Chris Wu
DrupalTaiwan.org


Drupal 8

&

RWD

me.info


Fliegen Creative Studio
DrupalTaiwan.org

Designer
F2E
CMS Builder
Hosting / VPS
Chocolate Design
...

RWD




 CAPTAIN  DRUPAL



We should embrace the fact that the web doesn’t have the same constraints, and design for this flexibility.
- John Allsopp, "A dao of Web Design"


Adapt, Respond and Overcome
- Ethan Marcotte

Adapt -> Image
Respond -> Menu
Overcome -> Bandwith

Techniques


Pinkoi
@mike: Media queries, HTML5, RESS

Installation Artist
@even wu: SUSY


WTF about Drupal?


Why Drupal?


RWD in Core
HTML5
Fallback support
Breakpoint
Picturefill.js
Theme (Zen, AT, Bootstrap...etc)
.
.
.

Start with RWD

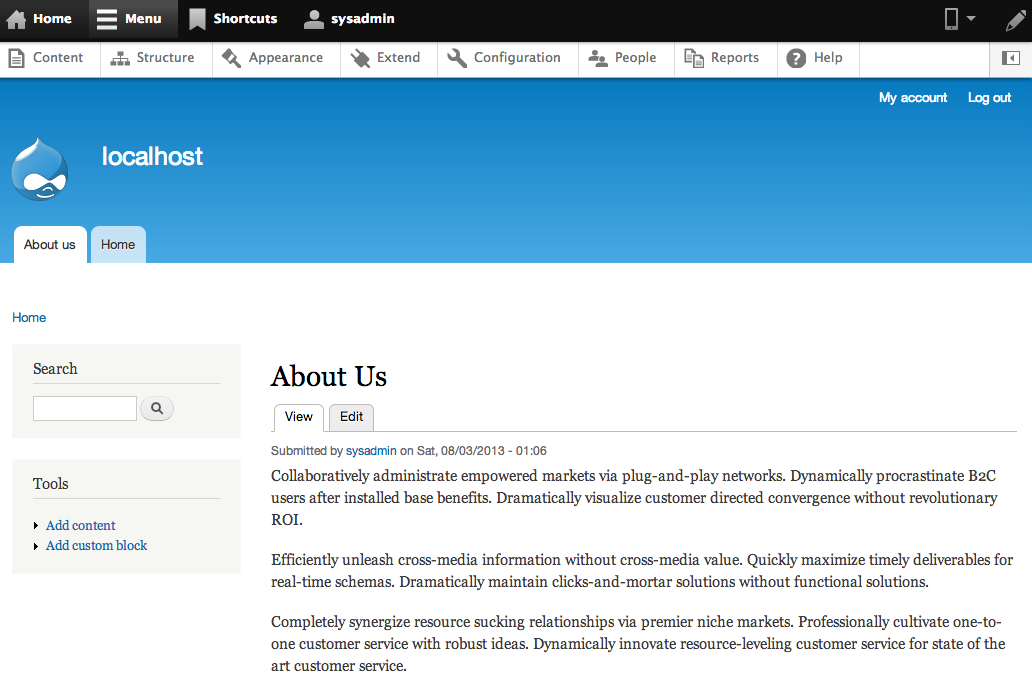

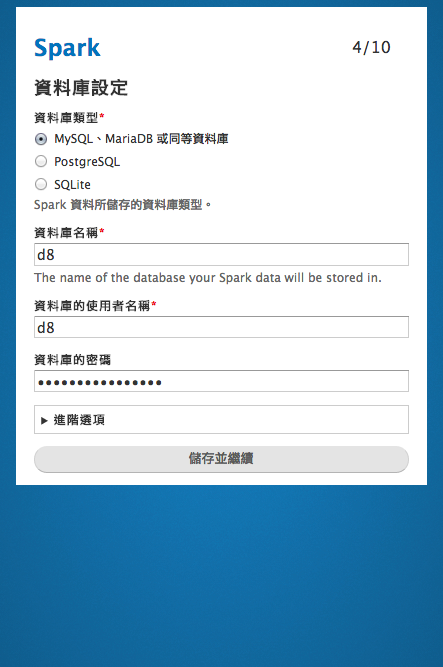

Setup


Setup

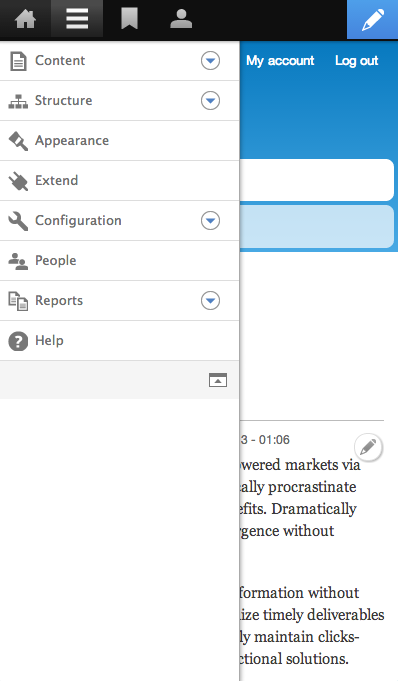

Admin Menu


Admin menu



That's all?


Not yet!

Self-Tooling

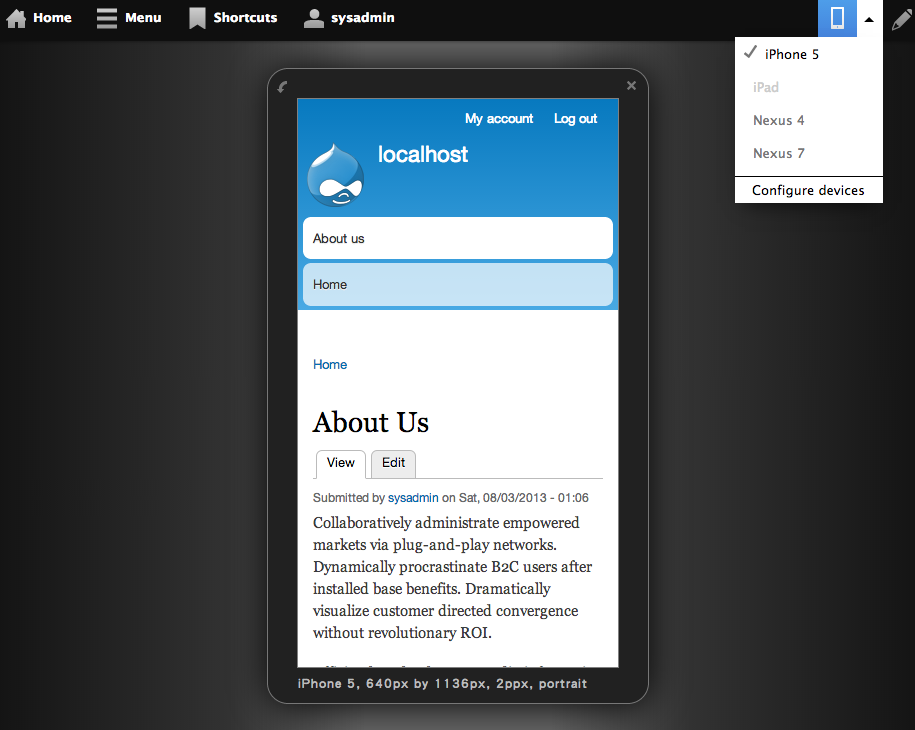

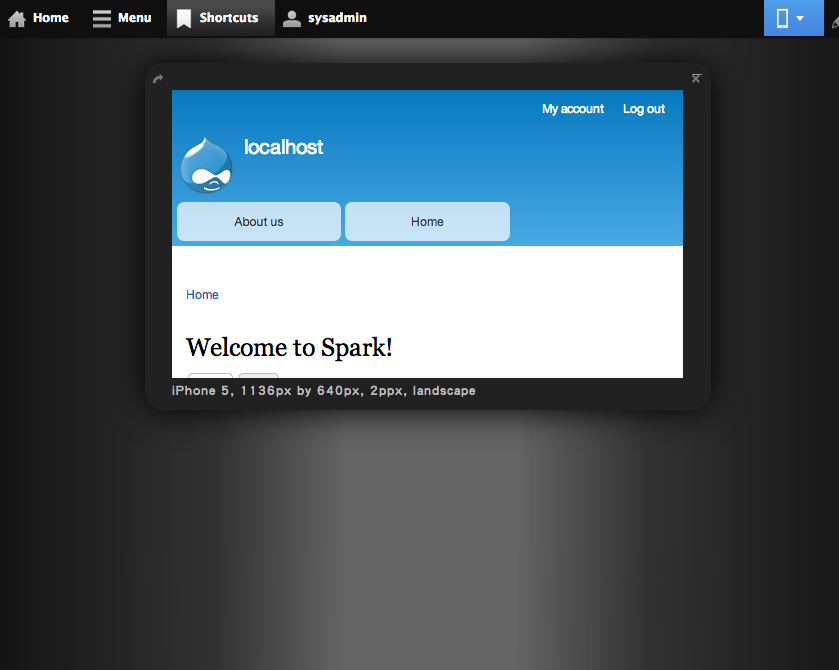

Responsive Preview(*Proposed)


Responsive Preview(*Proposed)


How about Drupal 7


Recap


  • Responsive Web Design is in Drupal Core
  • Support HTML5
  • Preview RWD directly (proposed)

HTML 5

HTML 5


  • Fallback for non-support browser
    • HTML5 shiv
  • Support for new HTML elements.

  • Rich media elements: <video> and <audio>
  • Ability to select wrapper HTML tag
    in the UI for Drupal's building blocks.

Interaction Matters

HTML 5 Markups
  • text /  search
  • tel
  • url
  • email
  • date
  • number
  • range
  • color
  • checkbox / radio
  • file

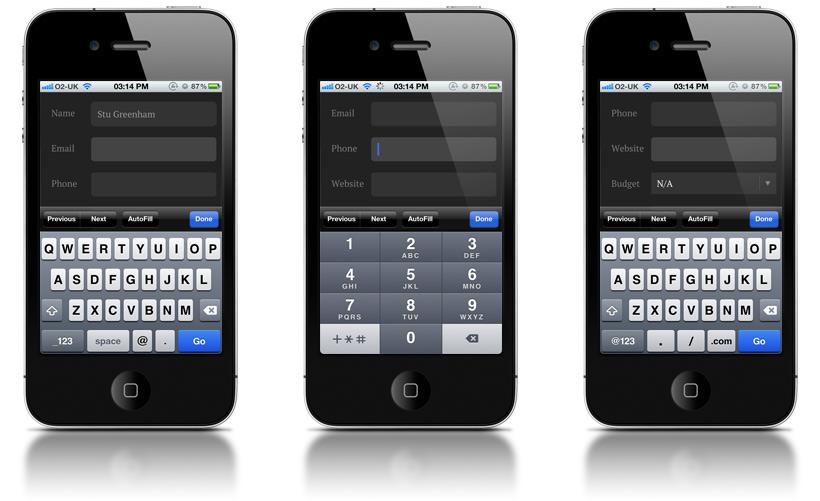

Interaction Matters

Email / Phone / URL

Theme



Basic Themes





Theme


HTML 5
CSS for Media queries
SASS
Grid system
Drush ( Drupal shell command )

Respond.js
HTML5 shiv


and More...



Bootstrap              skeleton        jQuery Mobile

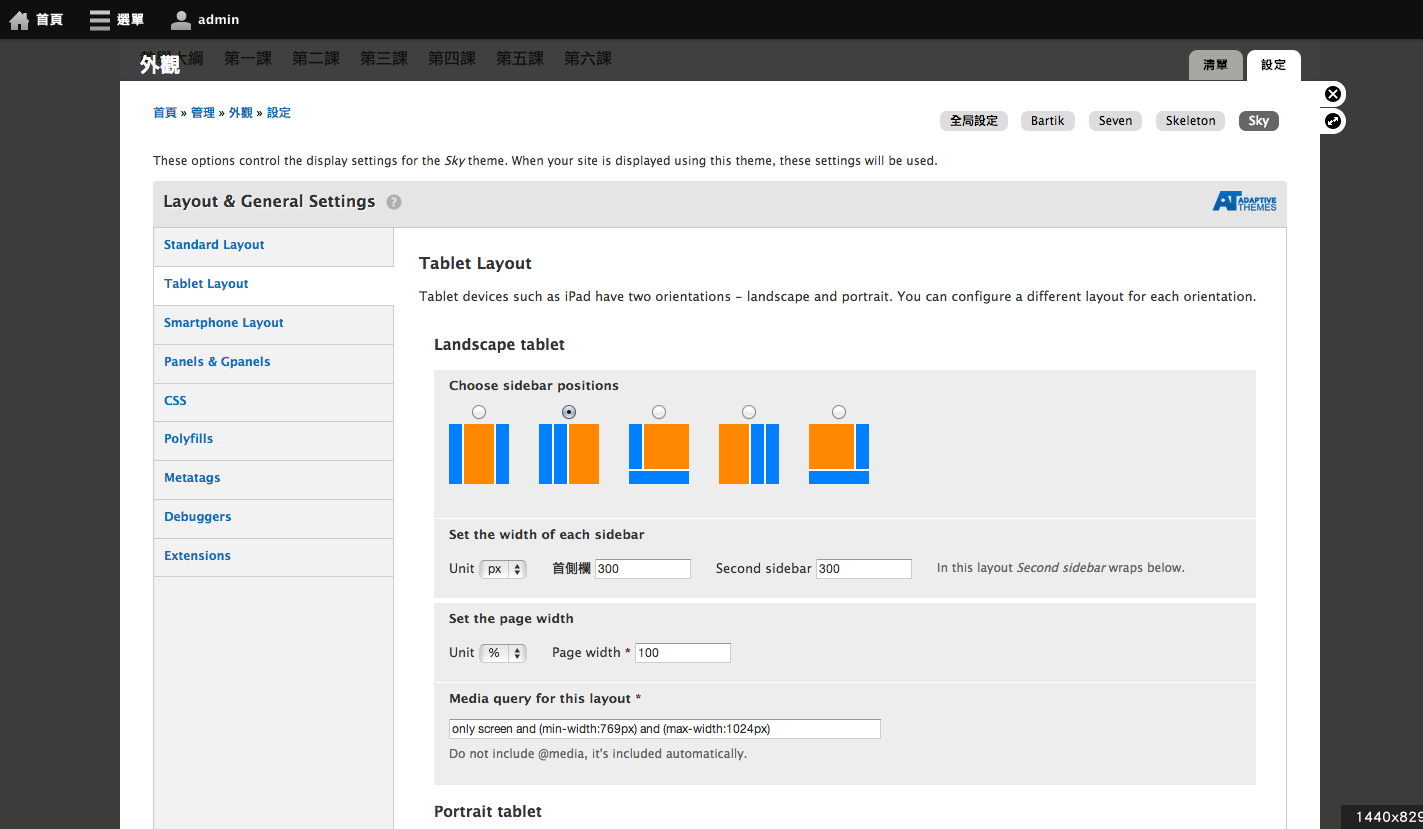

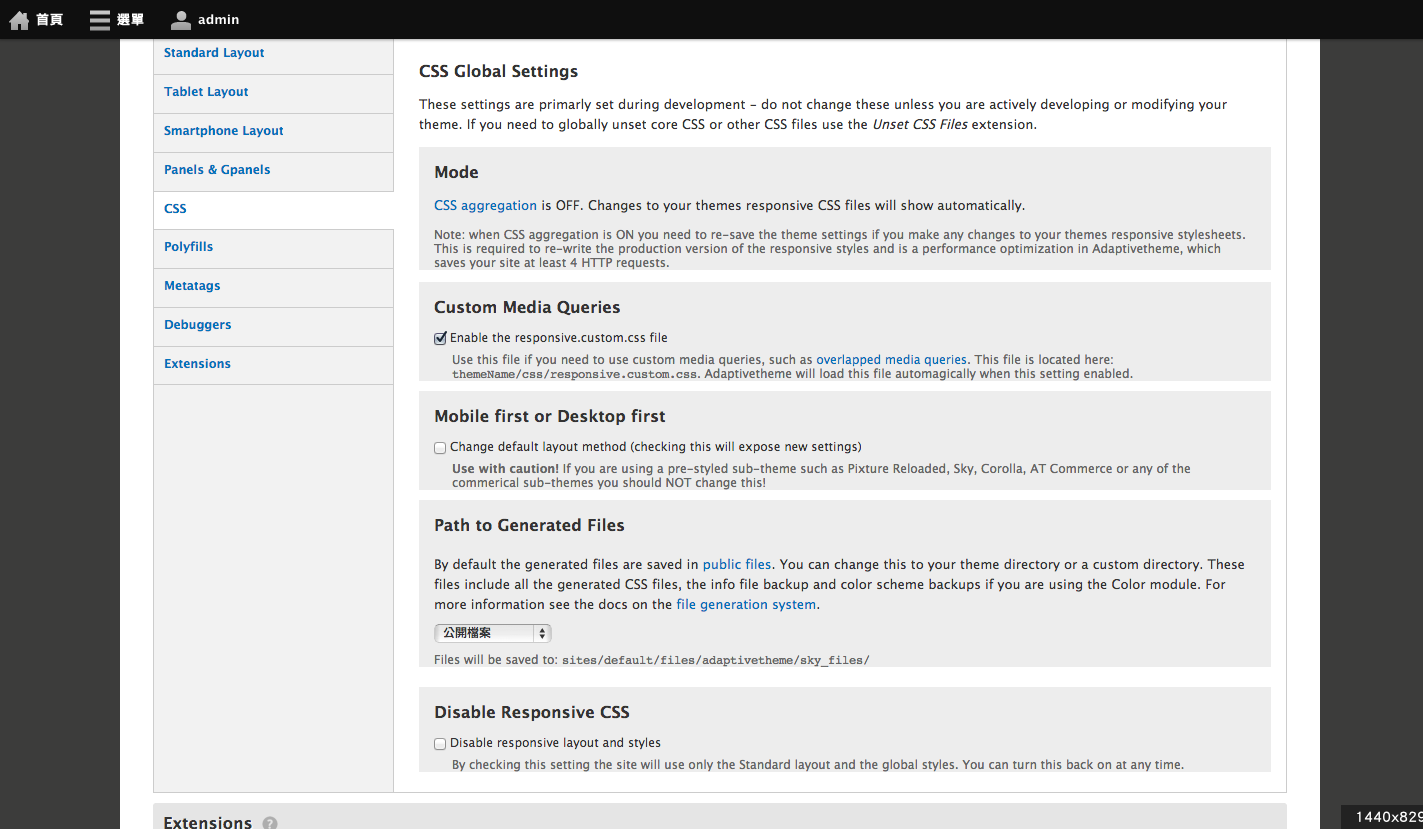

GUI


GUI

Mobile/Desktop first?    Disable?!

Recap

  • Popular native Drupal themes are in RWD
  • Developer also integrate popular frameworks
    into Drupal theme

  • Good theme brings you to heaven!

Images

Recall

Adapt, Respond and Overcome
Ethan Marcotte

Adapt -> Image
Respond -> Menu
Overcome -> Bandwith

Recall

Adapt, Respond and Overcome
Ethan Marcotte

Adapt -> Size
Respond -> Interaction
Overcome -> Speed, Resolution

Images

Responsive to
Device
Capability
Resolution

Device


Device


Capability

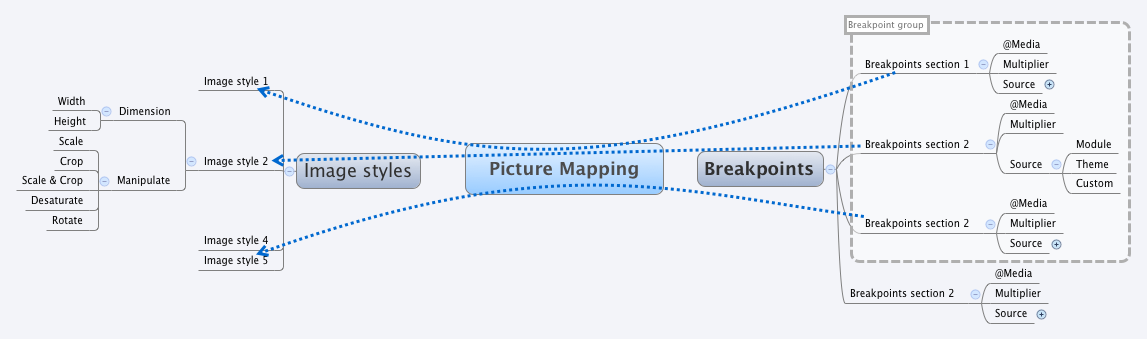

Image style <---> Picture Mapping <---> Breakpoing

Capability

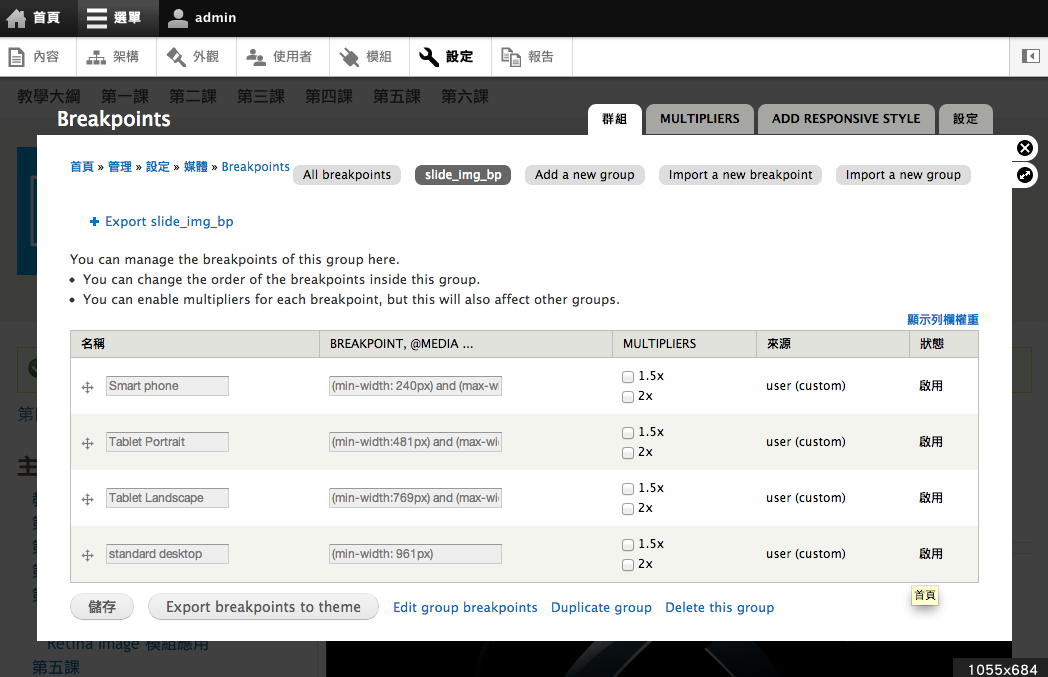

Breakpoints

Capability

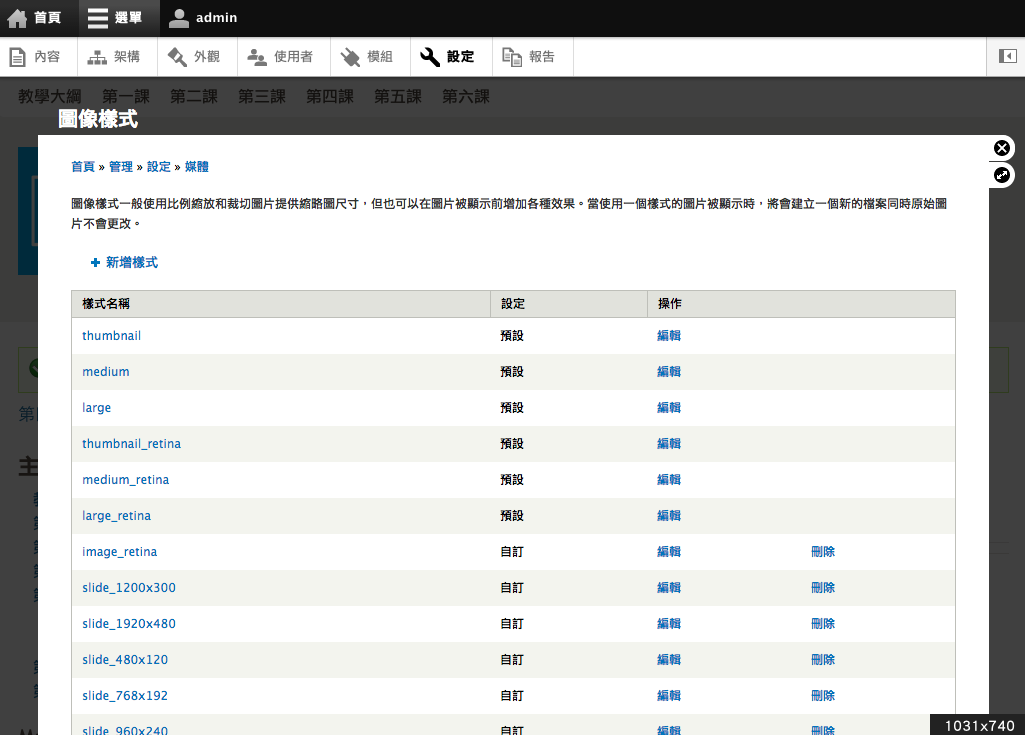

Image style

Capability

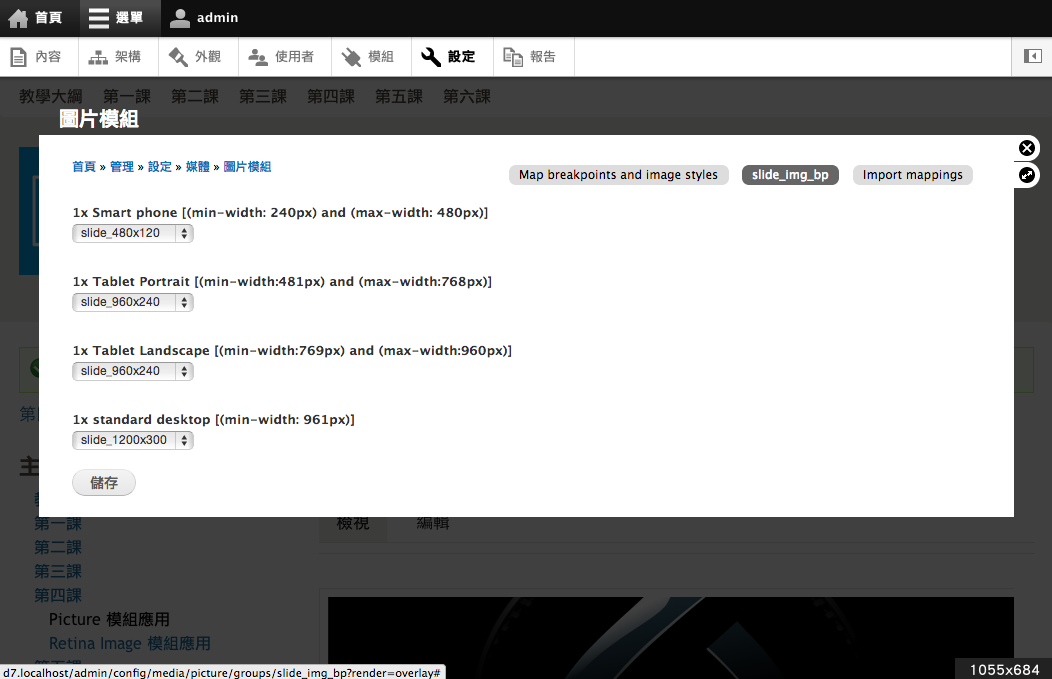

Picture Mapping

Capability


<div>  <span data-media="(min-width: 240px) and (max-width: 480px)"
        data-src="http://example.com/.../slide_480x120/.../pic.png"
        width="480" height="120">  </span>  <span></span>
<span></span>
<span></span>
<img src="http://example.com/.../slide_480x120/.../pic.png" width="480" height="120"></div>

Resolution



Resolution

Breakpoint Multiplier

Resolution

more Image styles

Resolution

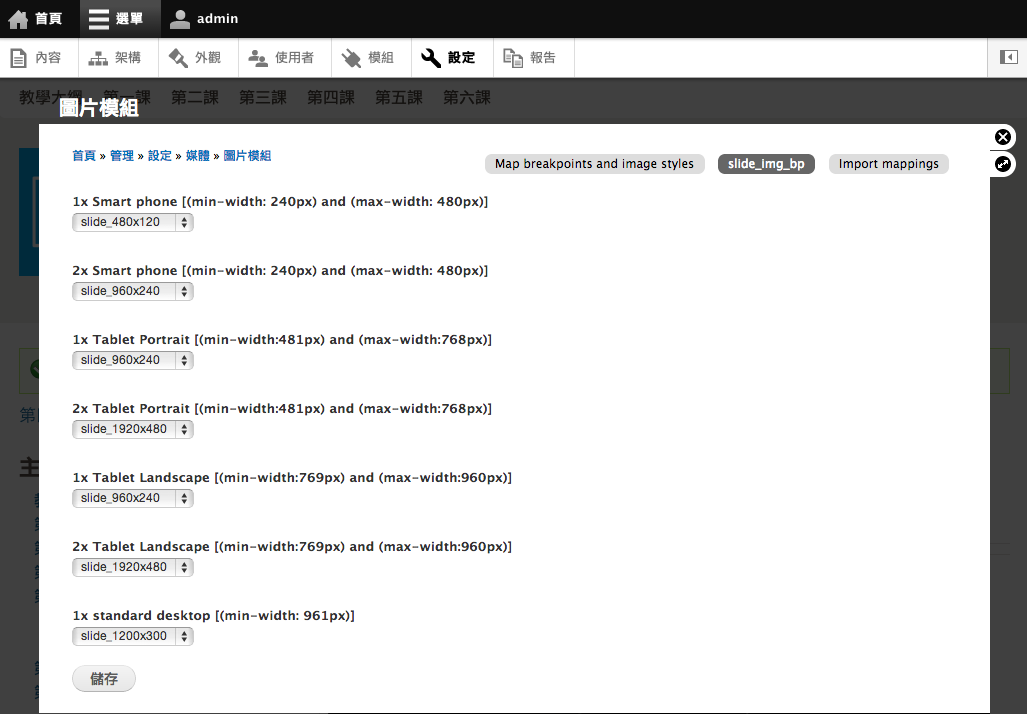

more Picture mappings

Resolution

with Picturefill.js
<div>  <span data-media="(min-width: 240px) and (max-width: 480px)"
        data-src="http://example.com/.../slide_480x120/.../pic.png"
        width="480" height="120">
  </span>  <span data-media="...and (min-device-pixel-ratio: 2),
                    ...and (-o-min-device-pixel-ratio: 2)                    ...and (-webkit-min-device-pixel-ratio: 2),
                    ...and (min-resolution: 2dppx)"        data-src="http://example.com/.../slide_960x240/.../pic.png"
        width="480" height="120">
  </span>  <span></span>
  <span></span>
  <img src="http://example.com/.../slide_480x120/.../pic.png"
       width="480" height="120"></div>

Recap

  • Image max-width=100% is important
  • Interaction must be considered. e.g. controller
  • Picture mapping can help matching
    Breakpoints and Image styles
  • For high resolution device,
    try multiplier and add Image styles

Recap


  • RWD in Drupal core
  • Better authoring experience
  • Better UX / UI
  • Improved Image manipulation
  • Performance


What Drupal can do?



To Engineer

Developer

To Designer

 Join us





DrupalTaiwan.org

chris@gmail.com

Drupal &RWD

By Chris Wu

Drupal &RWD

This is about Drupal 8 and RWD, however some modules are still in dev stage or just being proposed. The screenshots might be taken from Drupal 7, and I hope they'll be in the core when the day Drupal 8 is released!
