PRÁCTICA 1

IVÁN GARZÓN SEGURA

ÁNGEL RODRÍGUEZ HÓDAR

ANTONIO MOLNER DOMENECH

RAÚL SÁNCHEZ FERNÁNDEZ

VÍCTOR ALEJANDRO VARGAS PÉREZ

Especificaciones

CPU: Intel® Core™ i5-6300HQ

  • Número de núcleos: 4
  • Frecuencia de reloj: 2,3 Ghz
  • SO: Ubuntu 14.04 LTS
  • Carga del sistema: mínima

Cálculo del tiempo

clock_t antes;
clock_t despues;
double media = 0;

for (size_t i = 0; i < 3; i++) {
  for (int i = 0; i < n; i++) {
    T[i] = random();
  };

  antes = clock();
  heapsort(T, n);
  despues = clock();
  media = media + (despues - antes) / 3;
}

cout << n << '\t' << media / CLOCKS_PER_SEC << endl;

Ejecución

#!/bin/bash

#FORMATO: ./script.sh <PROGRAMA> <INCREMENTO> <ITERACIONES>
#SALIDA: fichero de texto de nombre <PROGRAMADATA.TXT>

inc=$2
arg=$inc
iter=$3

rm data$1.txt

for (( i = 0; i < $iter; i++)); do
	echo $arg
	./$1 $arg >> ./data$1.txt
	arg=$[ $inc + $arg ]
done

Algoritmos de orden O(n²)

Burbuja

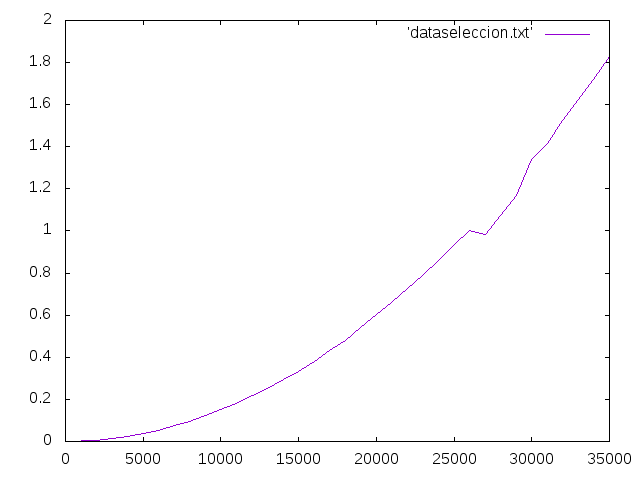

Selección

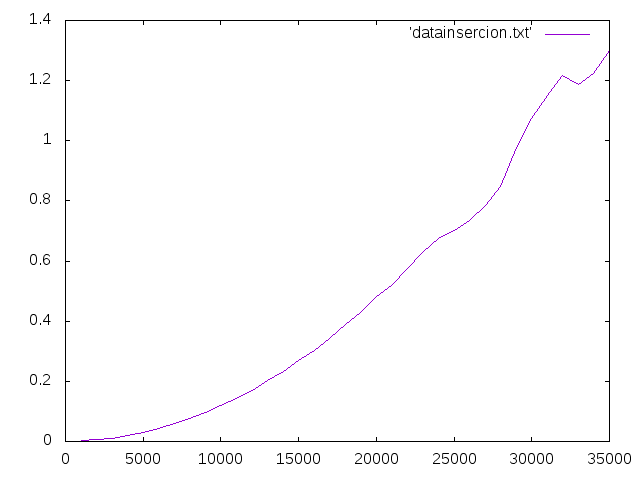

Inserción

Comparativa

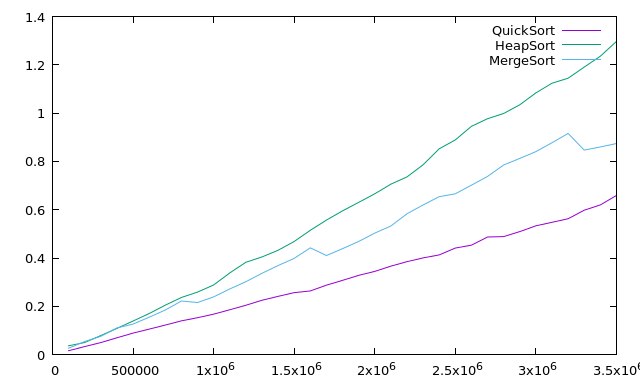

Algoritmos de orden O(nlog(n))

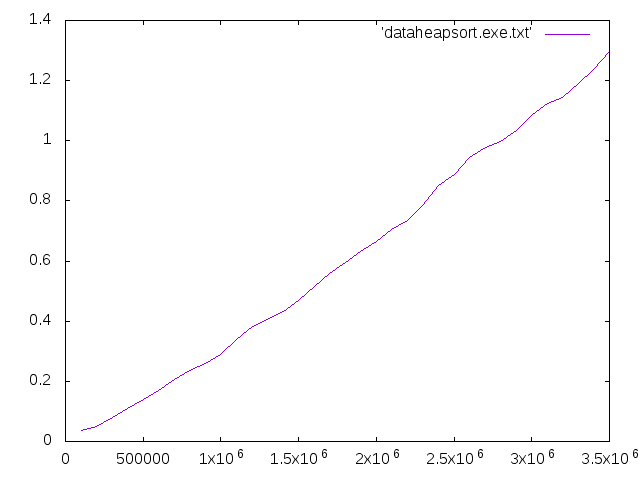

Heapsort

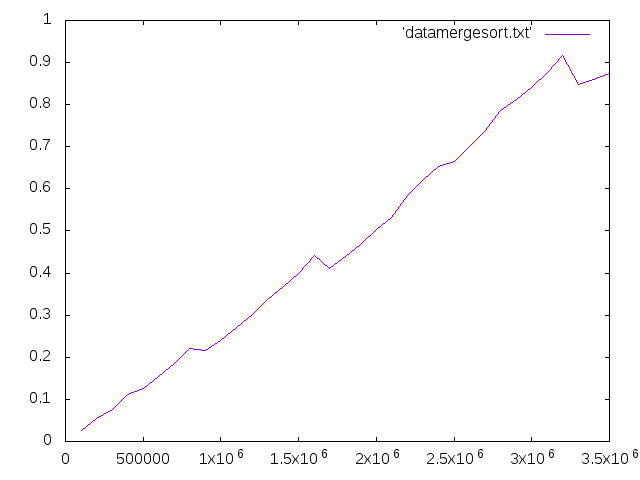

Mergesort

Quicksort

Comparativa

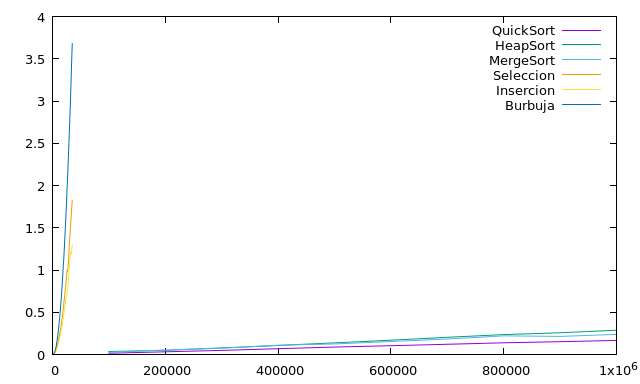

O(n²) vs O(nlog(n))

Otros órdenes

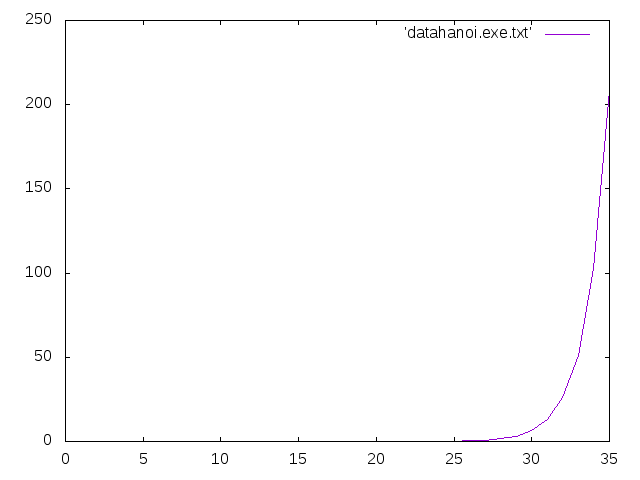

Hanoi

O(2^n)
O(2n)O(2^n)

Floyd

O(n^3)
O(n3)O(n^3)

Eficiencia Híbrida

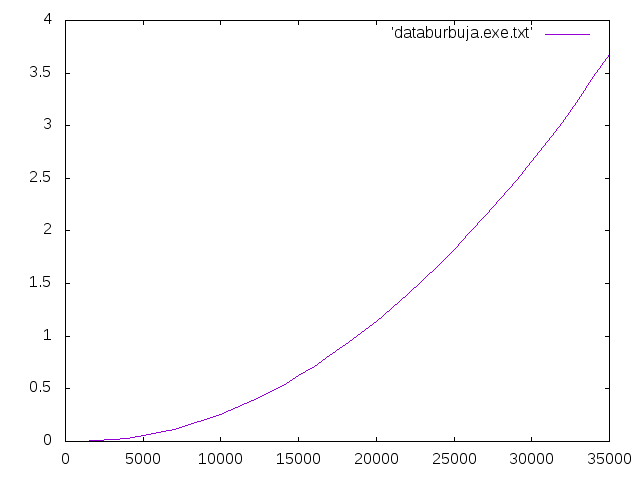

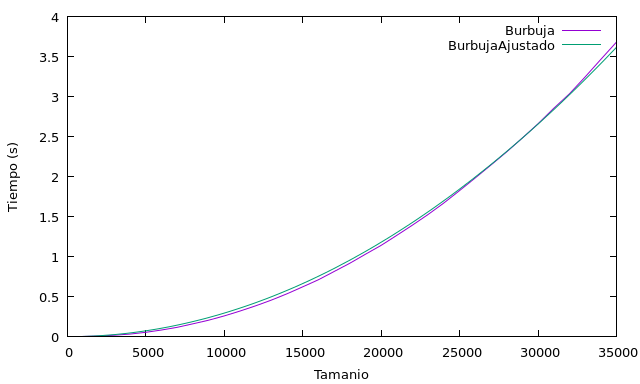

Burbuja

function used for fitting: g(x)
	g(x) = a*x*x

After 3 iterations the fit converged.
final sum of squares of residuals : 0.0338721
rel. change during last iteration : -6.971e-08

Final set of parameters
=======================
a               = 2.95178e-09

Asymptotic Standard Error
==========================
+/- 9.402e-12    (0.3185%)

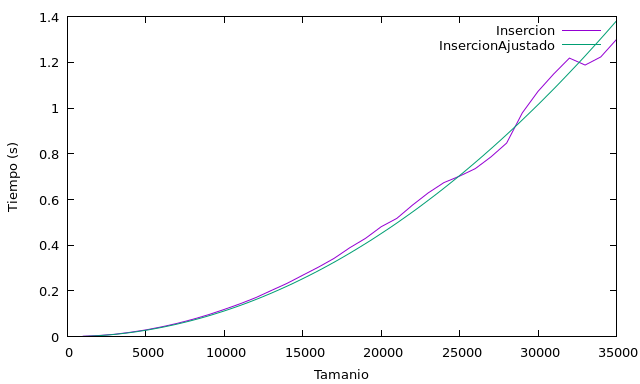

Insercion

function used for fitting: g(x)
	g(x) = a*x*x

After 3 iterations the fit converged.
final sum of squares of residuals : 0.0369889
rel. change during last iteration : -2.25015e-09

Final set of parameters
=======================
a               = 1.12738e-09

Asymptotic Standard Error
==========================
+/- 9.825e-12    (0.8715%)

Selección

function used for fitting: g(x)
	g(x) = a*x*x

After 4 iterations the fit converged.
final sum of squares of residuals : 0.0218379
rel. change during last iteration : -6.35491e-16

Final set of parameters
=======================
a               = 1.4699e-09

Asymptotic Standard Error
==========================
+/- 7.55e-12     (0.5136%)

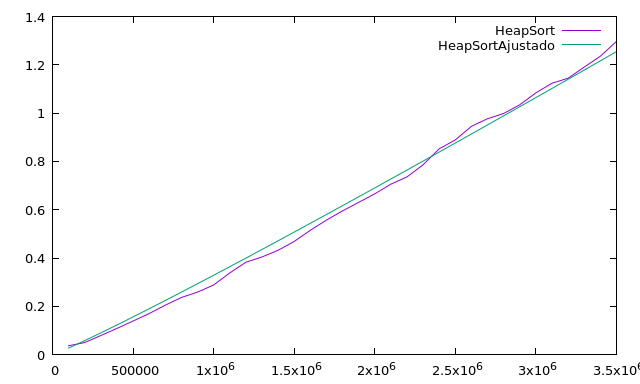

Heapsort

function used for fitting: f(x)
	f(x) = a*x * log(x)

After 5 iterations the fit converged.
final sum of squares of residuals : 0.0196566
rel. change during last iteration : -1.76503e-16

Final set of parameters
=======================
a               = 2.37907e-08

Asymptotic Standard Error
==========================
+/- 1.335e-10    (0.561%)

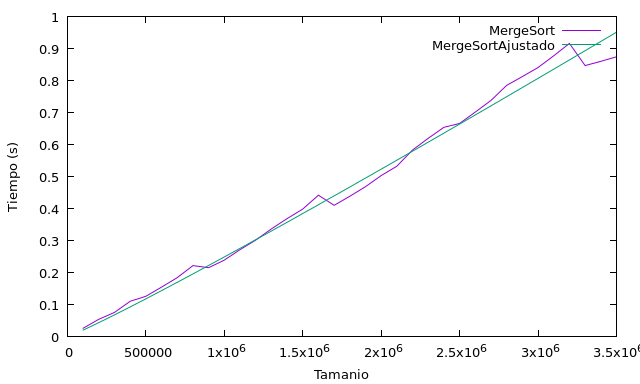

Mergesort

function used for fitting: f(x)
	f(x) = a*x * log(x)

After 3 iterations the fit converged.
final sum of squares of residuals : 0.0269555
rel. change during last iteration : -1.72414e-08

Final set of parameters
=======================
a               = 1.8035e-08

Asymptotic Standard Error
==========================
+/- 1.563e-10    (0.8667%)

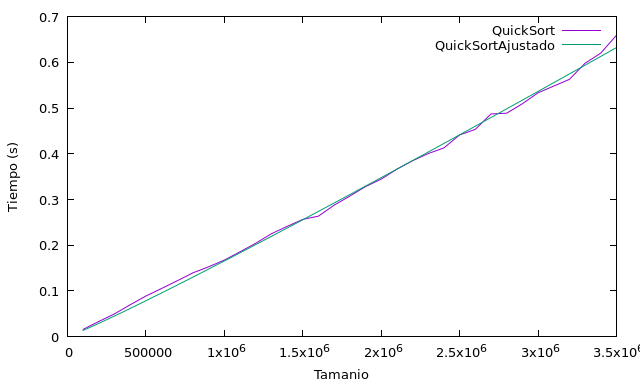

Quicksort

function used for fitting: f(x)
	f(x) = a*x * log(x)

After 3 iterations the fit converged.
final sum of squares of residuals : 0.00209986
rel. change during last iteration : -3.55973e-08

Final set of parameters
=======================
a               = 1.19859e-08

Asymptotic Standard Error
==========================
+/- 4.363e-11    (0.364%)

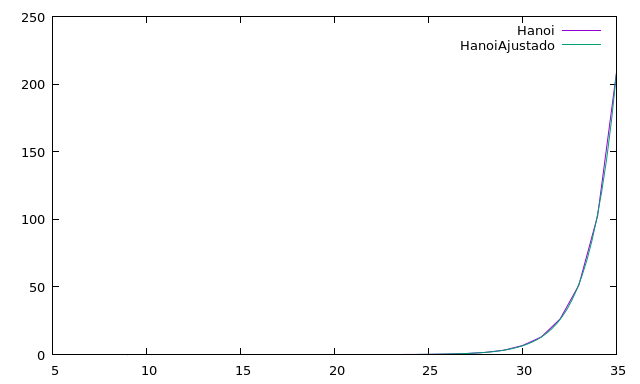

Hanoi

function used for fitting: f(x)
	f(x) = a*2**x

After 5 iterations the fit converged.
final sum of squares of residuals : 2.19399
rel. change during last iteration : -2.42894e-15

Final set of parameters
=======================
a               = 6.04719e-09

Asymptotic Standard Error
==========================
+/- 7.322e-12    (0.1211%)

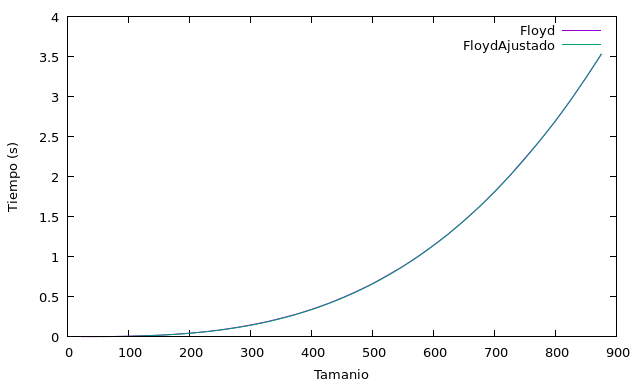

Floyd

function used for fitting: f(x)
	f(x) = a*x*x*x

After 4 iterations the fit converged.
final sum of squares of residuals : 0.000387746
rel. change during last iteration : -2.44664e-14

Final set of parameters
=======================
a               = 5.27167e-09

Asymptotic Standard Error
==========================
+/- 2.147e-12    (0.04072%)

Floyd mal ajustado

function used for fitting: f(x)
	f(x) = a*x

After 4 iterations the fit converged.
final sum of squares of residuals : 10.8864
rel. change during last iteration : -3.26345e-16

Final set of parameters
=======================
a               = 0.00249242

Asymptotic Standard Error
==========================
+/- 0.0001854    (7.437%)

COMPARATIVAS

Inserción y Floyd

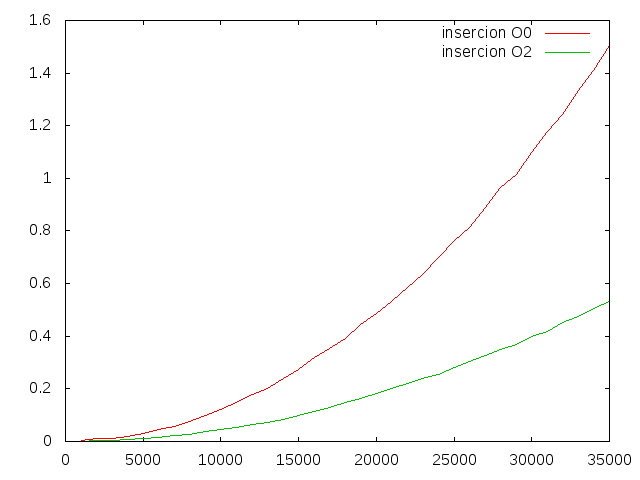

-O2 VS -O3

Inserción

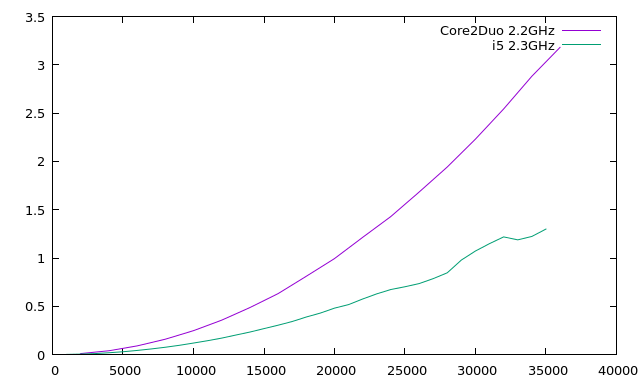

Core2Duo vs Intel i5

MACBOOK PRO 2012

i5-3210M CPU @ 2.50GHz

2 cores físicos y 4 lógicos

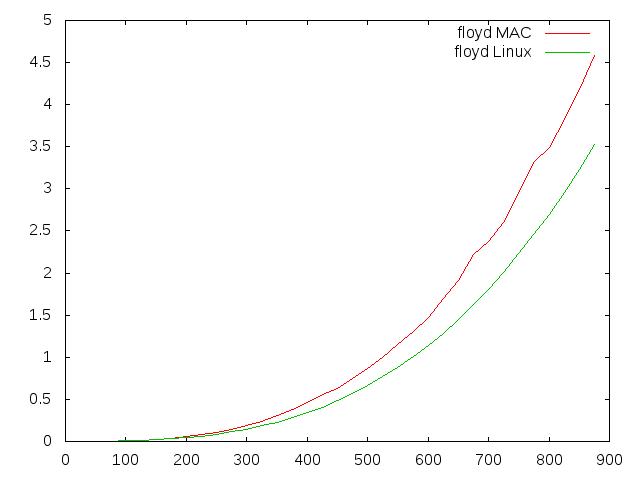

OS X  vs Ubuntu

ASUS GL552VW

i5-6300HQ CPU @ 2.3GHz

4 cores físicos y 4 lógicos

OS X vs Ubuntu

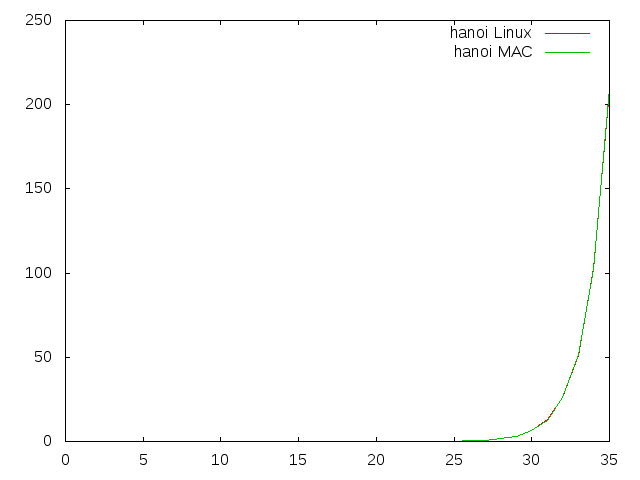

Hanoi y Floyd

FIN
