Connecting Google Maps with Live Feeds

TGIS 304 : Web GIS

Winter 2015 updated for Fall 2017

So
Much
Data

Weather

Transit

Earthquakes

Tides

Ships around the globe

...

Social media...

Here are several of links to Live data and that can be overlaid on maps
Energy Maps
http://energy.gov/maps
http://www.wunderground.com/weather/api/d/712683233b8fa25a/edit.html
http://www.wunderground.com/weather/api/d/docs
712683233b8fa25a
Vessel maps
http://www.vesselfinder.com/
http://www.marinetraffic.com/
Earthquake maps
http://www.oe-files.de/gmaps/eqmashup.html
https://github.com/lothc/Data-visualization

Weather
http://googlegeodevelopers.blogspot.com/2012/04/weather-layer-now-available-in-google.html
http://www.wunderground.com/weather/api/d/pricing.html
http://openweathermap.org/help/openlayer_tile.html
http://www.wunderground.com/wundermap/?zip=73130&magic=1&wmo=99999
http://www.nws.noaa.gov/gis/otherpage.html

http://openweathermap.org/api

Bus
http://www.piercetransit.org/about-website/
https://github.com/OneBusAway/onebusaway/wiki
	https://github.com/domoritz/live-bus-seattle
https://github.com/afiler/busdrone/
http://domoritz.de/live-bus-seattle/#12/47.6210/-122.3328

We need to look at others examples...

Install to make it easier to view JSON this chrome plug-in

Now let's look at two examples using this tool

this one

and this one

what are the differences between these two json files?

Two other cool resources

https://thimble.webmaker.org/en-US

and

http://jsfiddle.net/



More examples

Places to find live data feeds

Live update Earthquake map!

http://faculty.washington.edu/bricker0/503_4.html

MapBox

Esri

WHY google maps API?

They have excellent tutorials and documentation
https://developers.google.com/maps/documentation/javascript/earthquakes

Graduated Circles

https://developers.google.com/maps/tutorials/visualizing/earthquakes#circle_size

WHY google maps API examples all look so different???

Start with babysteps

As we learned from previous lab assignments, easy to run into trouble.

Let's start with baby steps and have a back up plan - that will evolve as we go along.

Start with a map of our region!

<!DOCTYPE html>
<html>
  <head>
    <title>Just a Map</title>
    <meta name="viewport" content="initial-scale=1.0">
    <meta charset="utf-8">
    <style>
      /* Always set the map height explicitly to define the size of the div
       * element that contains the map. */
      #map {
        height: 100%;
      }
      /* Optional: Makes the sample page fill the window. */
      html, body {
        height: 100%;
        margin: 0;
        padding: 0;
      }
    </style>
  </head>
  <body>
    <div id="map"></div>
    <script>
      var map;
      function initMap() {
        map = new google.maps.Map(document.getElementById('map'), {
          center: {lat: 47.225, lng: -122.46},
          zoom: 8,
           mapTypeId: 'terrain',
           tilt: 33,
           position: 'top_right'

        });
      }
    </script>

    <script src="https://maps.googleapis.com/maps/api/js?key=YOUR_KEY_HERE"
    async defer></script>
  </body>
</html>

google maps API - this should be review

<!DOCTYPE html>
<html>
  <head>
    <title>Hello World!</title>
    <meta name="viewport" content="initial-scale=1.0, user-scalable=no">
    <meta charset="utf-8">
    <style>
      html, body, #map-canvas {
        height: 100%;
        margin: 0px;
        padding: 0px
      }
    </style>
    <script src="https://maps.googleapis.com/maps/api/js?v=3.exp&signed_in=true"></script>
    <script>
var map;
function initialize() {
  var mapOptions = {
    zoom: 10,
    center: new google.maps.LatLng(47.2414, -122.4594)

  };
  map = new google.maps.Map(document.getElementById('map-canvas'),
      mapOptions);



}

google.maps.event.addDomListener(window, 'load', initialize);

    </script>
  </head>
  <body>

    <div id="map-canvas"></div>
  </body>
</html>

Let's look again at each part

HTML DOM

Document Object Model

Define map <div> in body of html

Then style map <div> in CSS

Then call the javascript from Google

<script src="https://maps.googleapis.com/maps/api/js?v=3.exp&signed_in=true"></script>

I recommend this way using an

API Key

 <script src="https://maps.googleapis.com/maps/api/js?key=YOUR_KEY_HERE"></script>

Google signed in maps - preservers users preferences if they are logged into Google Account

https://maps.googleapis.com/maps/api/js

Or Try



Set the map variable

var map;
function initialize() {
  var mapOptions = {
    zoom: 10,
    center: new google.maps.LatLng(47.2414, -122.4594)

  };
  map = new google.maps.Map(document.getElementById('map-canvas'),
      mapOptions);



}

Here we tell the browser to do the following when the map is initialized

  • set the zoom level to 10
  • and center the map on Tacoma, WA
  • and then load the map

Change the map type

var map;
function initialize() {
  var mapOptions = {
    zoom: 10,
    center: new google.maps.LatLng(47.2414, -122.4594),
    mapTypeId: google.maps.MapTypeId.TERRAIN

  };
  map = new google.maps.Map(document.getElementById('map-canvas'),
      mapOptions);



}

My favorite Google Map base map is Terrain so I set it as the default using the following steps

  • add a coma after the lat long coordinates
  • add one more line under center

Note:  if you are using the signed in version of Google Maps - this will not work

load, map!!!

}

google.maps.event.addDomListener(window, 'load', initialize);

    </script>
  </head>
  <body>
    <div id="map-canvas"></div>

  </body>
</html>

Now make sure the map is going to load. Make sure that the map is placed on the page and that it will render on load event



Check to see that the DOM elements are in the body of the html

<div>

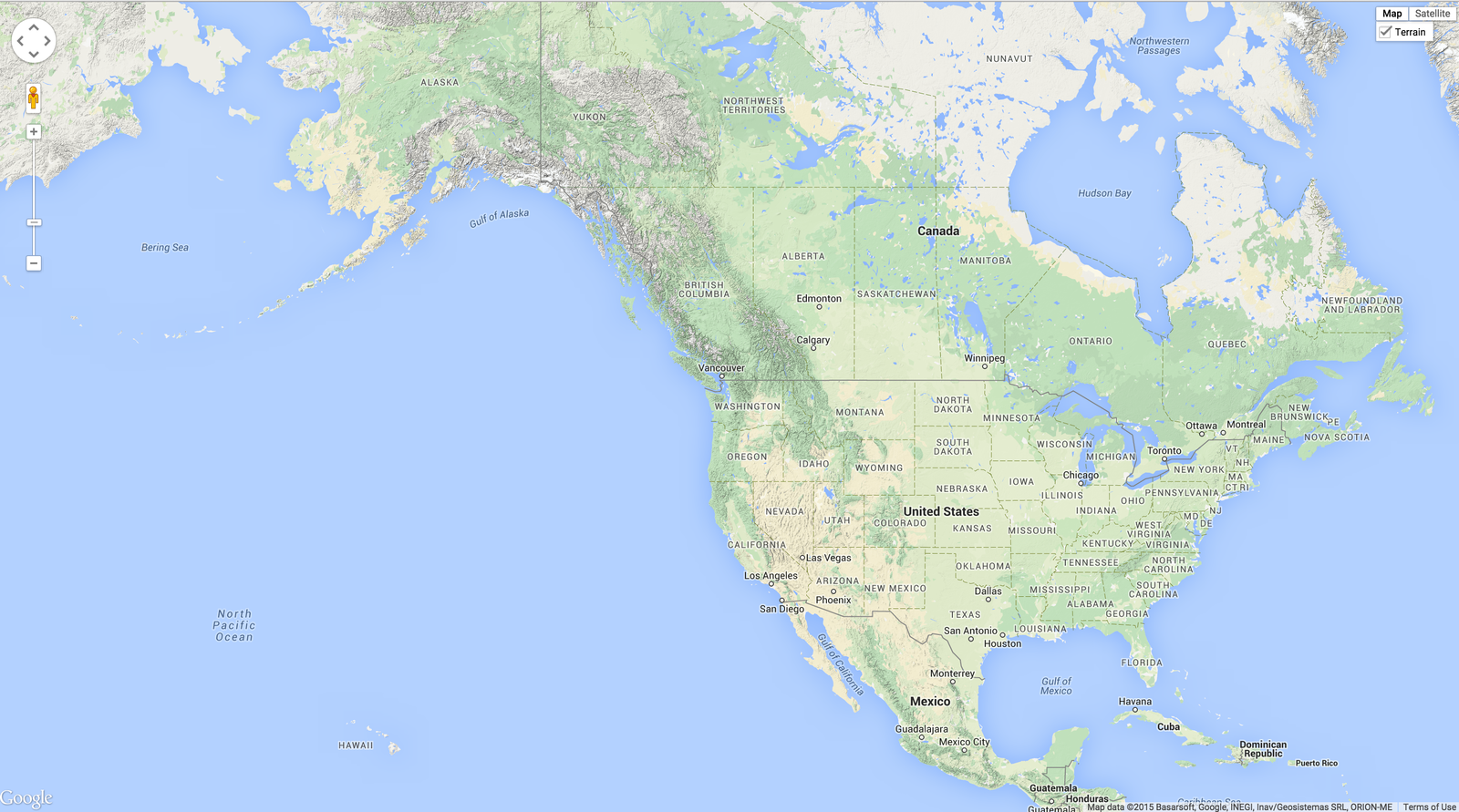

Your code and map should look like this

<!DOCTYPE html>
<html>
  <head>
    <title>EarthQuake Map</title>
    <meta name="viewport" content="initial-scale=1.0, user-scalable=no">
    <meta charset="utf-8">
    <style>
      html, body, #map-canvas {
        height: 100%;
        margin: 0px;
        padding: 0px
      }


    </style>

    <script src="https://maps.googleapis.com/maps/api/js?key=YOURKEYHERE"></script>
    <script>
var map;
function initialize() {
  map = new google.maps.Map(document.getElementById('map-canvas'), {
    zoom: 4,
    center: {lat: 47.2414, lng: -122.4594},
    mapTypeId: google.maps.MapTypeId.TERRAIN
  });

}

google.maps.event.addDomListener(window, 'load', initialize);

    </script>
  </head>
  <body>
    <div id="map-canvas"></div>

  </body>
</html>

Now lets overlay a live Earthquake feed

from USGS

So many ways to do this

  • GeoRSS
  • WMS -raster
  • JSON

So many ways to do this

  • GeoRSS - Lets Try this one
  • WMS
  • JSON - And this one

GeoRSS

GeoRSS makes it possible for applications to request, aggregate and share geotagged feeds. Generally XML

two encodings:

  1. Simple- supports geometry
  2. GML- supports greater range of features, notably WGS-87 coordinate system

USGS Feeds

//You can pick from a wide variety of GeoRSS feeds offered by NOAA here http://earthquake.usgs.gov/earthquakes/feed/v1.0/kml.php
//To get a live feed to overlay on your map add the following
    var georssLayer = new google.maps.KmlLayer({
    url: 'http://earthquake.usgs.gov/earthquakes/feed/v1.0/summary/2.5_month_depth_link.kml'
  });
  georssLayer.setMap(map);

}

Full code here, you should use a different feed, replace my kml


<!DOCTYPE html>
<html>
  <head>
    <title>EarthQuake Map</title>
    <meta name="viewport" content="initial-scale=1.0, user-scalable=no">
    <meta charset="utf-8">
    <style>
      html, body, #map-canvas {
        height: 100%;
        margin: 0px;
        padding: 0px
      }


    </style>

    <script src="https://maps.googleapis.com/maps/api/js?key=AIzaSyAMEcmfTe3x_Iq9o0dQY7edGBo_wfgwyjA"></script>
    <script>
var map;
function initialize() {
  map = new google.maps.Map(document.getElementById('map-canvas'), {
    zoom: 4,
    center: {lat: 47.2414, lng: -122.4594},
    mapTypeId: google.maps.MapTypeId.TERRAIN
  });


//You can pick from a wide variety of GeoRSS feeds offered by NOAA here http://earthquake.usgs.gov/earthquakes/feed/v1.0/kml.php
    var georssLayer = new google.maps.KmlLayer({
    url: 'http://earthquake.usgs.gov/earthquakes/feed/v1.0/summary/2.5_month_depth_link.kml'
  });
  georssLayer.setMap(map);

}


google.maps.event.addDomListener(window, 'load', initialize);

    </script>
  </head>
  <body>
    <div id="map-canvas"></div>

  </body>
</html>

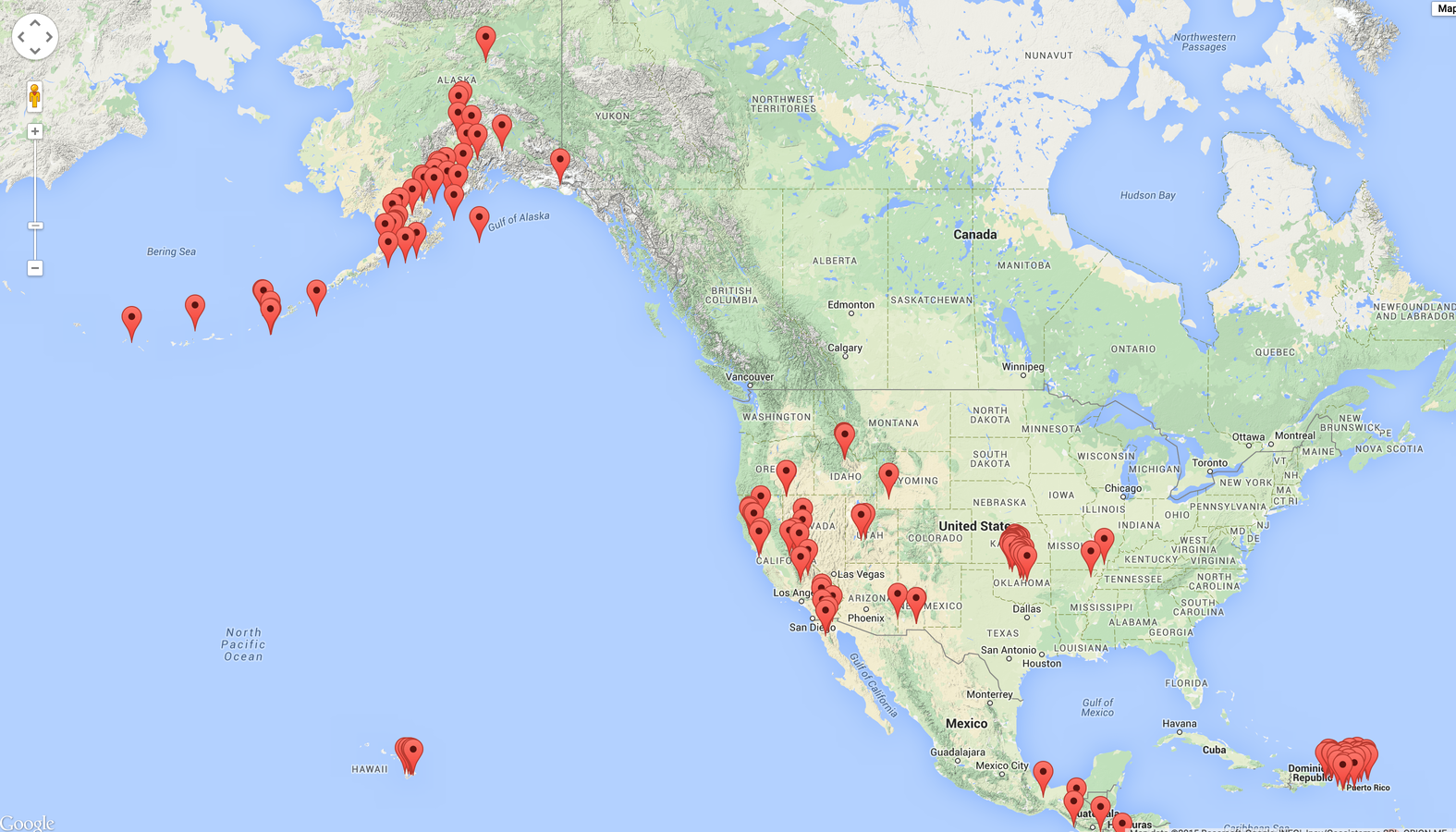

Does your new map look something like this?

Replace the GeoRSS var with the following -->

// Load GeoJSON.
  map.data.loadGeoJson('http://earthquake.usgs.gov/earthquakes/feed/v1.0/summary/2.5_week.geojson');


}

Let's try JSON next

So that was quick and easy but

  • not in much control of style
  • or content
  • and color is not rendering

JSON

  • JavaScript Object Notation
    • means of storing data (human readable)
  • http://www.copterlabs.com/blog/json-what-it-is-how-it-works-how-to-use-it/

JSONP

JSON with padding - wraps up JSON response into a JavaScript function and sends that script to the browsers - making it possible to render in all browsers



http://json-jsonp-tutorial.craic.com/index.html

jQuery

makes Ajax/HTTPD calls from a script to a server - fetching server response in JSON



AJAX

ability for a webpage to request new dat after it has loaded in the web browser, response to user action on the webpage displayed

We learned before that

Size matters

How much JSON is too much JSON?

Read more here

it depends on a lot of different things

Callback

an asynchronous equivalence of a function that gets called a the end of a task



browser process can run without waiting for the data to load with the live streaming GeoJSON data to finish updating.

Great!

We got a map to render with points of Earthquakes!

but this is kind of lame, the end user has no idea what they are looking at!  Time to doctor it up!

Add this code for text box to update with feature information, look at the JSON to see what attributes are available for display


  // Set mouseover event for each feature.
  map.data.addListener('mouseover', function(event) {
    document.getElementById('info-box').textContent =
        event.feature.getProperty("title");
 });

Now yours should look something like this

<!DOCTYPE html>
<html>
  <head>
    <title>EarthQuake Map</title>
    <meta name="viewport" content="initial-scale=1.0, user-scalable=no">
    <meta charset="utf-8">
    <style>
      html, body, #map-canvas {
        height: 100%;
        margin: 0px;
        padding: 0px
      }
 #info-box {
      background-color: red;
      border: 1px solid red;
      bottom: 30px;
      height: 20px;
      padding: 10px;
      position: absolute;
      right: 30px;
    }

    </style>

    <script src="https://maps.googleapis.com/maps/api/js?key=YOURKEY"></script>
    <script>
var map;
function initialize() {
  map = new google.maps.Map(document.getElementById('map-canvas'), {
    zoom: 4,
    center: {lat: 47.2414, lng: -122.4594},
    mapTypeId: google.maps.MapTypeId.TERRAIN
  });


 // Load GeoJSON from USGS.
  map.data.loadGeoJson('http://earthquake.usgs.gov/earthquakes/feed/v1.0/summary/2.5_week.geojson');

// Set mouseover event for each feature.
  map.data.addListener('mouseover', function(event) {
    document.getElementById('info-box').textContent =
        event.feature.getProperty("mag")+" magnitude on Richter scale"+" location: "+ event.feature.getProperty("place")

  });
}

google.maps.event.addDomListener(window, 'load', initialize);

    </script>
  </head>
  <body>
    <div id="map-canvas"></div>
     <div id="info-box">?</div>

  </body>
</html>

On your own change the following

  • Content in the info window!
  • CSS - change colors
  • Add a title + link to USGS and a little about the data being presented on the map
    • You are welcome to change the json being referenced too - but be sure to tell the map user what they are looking at.
    • Feel free to use examples you find on the web
    • Good luck!

Steps to add the info box

  • add CSS
  • set mouse over or click event
  • decide what property you want to show in your info box
  • add <div> to the body of your page
 #info-box {
      background-color: white;
      border: 1px solid black;
      bottom: 30px;
      height: 40px;
      padding: 10px;
      position: absolute;
      left: 30px;
    }

add a legend based on your code for example - css and div to the body

<div id="legendGradient" style="background: -webkit-linear-gradient(left, rgba(255, 255, 255, 1), rgba(94, 188, 0, 1), rgba(191, 202, 0, 1), rgb(198, 187, 0), rgb(209, 134, 7), rgb(292, 97, 21), rgb(300, 70, 57, 1));"></div><div id="legendText1">0<span style="white-space:pre">                                                                                   4+</span></div><div id="legendText2" align="center">Magnitude

    </div>
</div>
   #legend {
    position: relative;
    margin-left: 10px;
    width: 400px;
    height: 35px;
    margin-top: 10px;
    margin-left: 10px;
}

#legendGradient {
    width: 100%;
    height: 15px;
    border: 1px solid black;
}

Bare minimum cartographic elements we need to add

  • title - use headings <h1>
  • link to where data came from - add links using <p> & <a href>
  • info box to add information about each point

Steps to add the info box

  • add CSS
  • set mouse over or click event
  • decide what property you want to show in your info box
    • Open JSON in new window to find property name
    • You may pick more than one
  • add <div> to the body of your page

Google Maps Example

check out the JSFiddle for this example

<!DOCTYPE html>
<html>
  <head>
    <title>What kind of map is this?</title>
    <meta name="viewport" content="initial-scale=1.0, user-scalable=no">
    <meta charset="utf-8">
    <style>
      html, body, #map-canvas {
        height: 100%;
        margin: 0px;
        padding: 3px
      }
 #info-box {
      background-color: white;
      border: 1px solid red;
      bottom: 30px;
      height: 20px;
      padding: 10px;
      position: absolute;
      left: 30px;
    }

    </style>

    <script src="https://maps.googleapis.com/maps/api/js?key=YOURKEYHERE"></script>
    <script>

var map;
function initialize() {
  map = new google.maps.Map(document.getElementById('map-canvas'), {
    zoom: 4,
    center: {lat: 47.2414, lng: -122.4594},
    mapTypeId: google.maps.MapTypeId.TERRAIN
  });


 // Load GeoJSON.
  map.data.loadGeoJson('http://earthquake.usgs.gov/earthquakes/feed/v1.0/summary/2.5_week.geojson');

  // Set mouseover event for each feature.
  map.data.addListener('mouseover', function(event) {
    document.getElementById('info-box').textContent =
        event.feature.getProperty("mag")+" magnitude on Richter scale"+" location: "+ event.feature.getProperty("place")

  });

  //What is happening here?

map.data.setStyle(function(feature) {
    var magnitude = feature.getProperty('mag');
    return {
      icon: getCircle(magnitude)
    };
  });
}
 //What is happening here? Change this to a different scale and color

function getCircle(magnitude) {
  var circle = {
    path: google.maps.SymbolPath.CIRCLE,
    fillColor: 'red',
    fillOpacity: .2,
    scale: Math.pow(2, magnitude) / 2,
    strokeColor: 'white',
    strokeWeight: .5
  };
  return circle;
}

function eqfeed_callback(results) {
  map.data.addGeoJson(results);
}



google.maps.event.addDomListener(window, 'load', initialize);

    </script>
  </head>
  <body>
    <div id="map-canvas"></div>
     <div id="info-box">?</div>

  </body>
</html>

Here is some helpful code but don't forget to change yours!
