Notes on Type Theory

#Devoxx Belgium - 2016

For Absolute beginners

Hi! I'm Hanneli (@hannelita)

  • Computer Engineer
  • Programming
  • Electronics
  • Math <3 <3
  • Physics
  • Lego
  • Meetups
  • Animals
  • Coffee
  • Pokémon
  • GIFs

#Devoxx  - @hannelita

Disclaimer

GIFs :)

Quick session

Lots of theory

And mathematics

No advanced Type Theory

#Devoxx  - @hannelita

Goals

Understand what is type theory about

Understand how can we jump from language analysis to mathematics (it is not magic)

Understand some benefits of this analysis

#Devoxx  - @hannelita

Agenda

#Devoxx  - @hannelita

  • Choosing a programming language
  • Quick intro about type systems
  • Sketching the possible types
  • Symbolic Logic analysis
  • Predicate logic
  • Getting there!
  • Why is this important?
  • Challenges

How do you choose a programming language?

#Devoxx  - @hannelita

  • By company
  • By popularity
  • By team
  • By deadline to deliver a project
  • By project goal
  • By available tools
  • That was the only language I learned at school
  • Somebody told me I should use that
  • I really don't know

#Devoxx  - @hannelita

How often do you consider the following items when choosing a language?

  • Type System
  • Immutability
  • Avoidance to runtime errors
  • Paradigm
  • Verbosity
  • Memory management

#Devoxx  - @hannelita

Wait - what is a type system?

Let's ask Wikipedia:

"In programming languages, a type
 system is a collection of rules
that assign a property called
type to various constructs a
computer program consists of, such
 as variables, expressions, functions
 or modules"

#Devoxx  - @hannelita

Agenda

  • Choosing a programming language
  • Quick intro about type systems
  • Sketching the possible types
  • Symbolic Logic analysis
  • Predicate logic
  • Getting there!
  • Why is this important?
  • Challenges

#Devoxx  - @hannelita

Wait - what is a type system?

#Devoxx  - @hannelita

In all languages, even in Assembly, we have at least two components:

Data

Operations

Not all of the available operations make sense to all kinds of data.

#Devoxx  - @hannelita

If you use incompatible pieces of data for an operation, you will have a representation error

#Devoxx  - @hannelita

Programming languages use a type system to look at a program and determine if a representation error will happen or not

#Devoxx  - @hannelita

What are the possible strategies that a type system can use to handle representation errors?

#Devoxx  - @hannelita

Strategies

  • Generate a compile error
  • Perform a type check before run the code
  • Well defined error set
  • Unpredictable  runtime errors
  • Try implicit conversion
  • A compiler tags pieces of code and tries to infer if the behaviour will be valid or not (before the program runs)
  • A compiler / interpreter generates code to keep track of the data

#Devoxx  - @hannelita

Strategies

  • Generate a compile error
  • Perform a type check before run the code
  • Well defined error set
  • Unpredictable  runtime errors
  • Try implicit conversion
  • A compiler tags pieces of code and tries to infer if the behaviour will be valid or not (before the program runs)
  • A compiler / interpreter generates code to keep track of the data

"Strong"

"Weak"

"Static"

"Dynamic"

* Definitions are not exact on literature

You don't have to choose only one alternative

Java: static (why?)

... and somewhat strong

#Devoxx  - @hannelita

But how can we perform the 'type check' mentioned before?

Have you ever heard someone saying "Language X has a terrible type system, it is a total mess!" Why? What does it even mean? How can we prove that?

#Devoxx  - @hannelita

We need some Mathematics

#Devoxx  - @hannelita

The steps to Type Theory

#Devoxx  - @hannelita

#Devoxx  - @hannelita

Agenda

  • Choosing a programming language
  • Quick intro about type systems
  • Sketching the possible types
  • Symbolic Logic analysis
  • Predicate logic
  • Getting there!
  • Why is this important?
  • Challenges

#Devoxx  - @hannelita

#1:

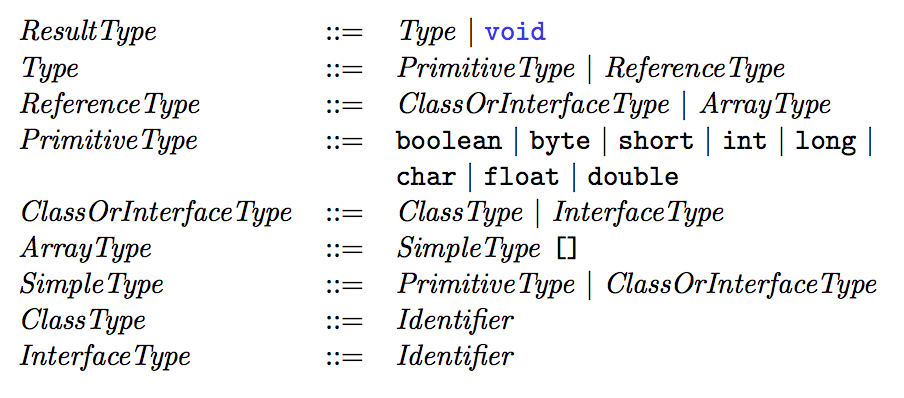

Given a language, collect all the keywords and analyse the grammar for each of these works individually.

#Devoxx  - @hannelita

#1 - Example in Java:

extends        ==> extends ClassType

implements ==> implements InterfaceTypeList

throws          ==> throws ClassTypeList

#Devoxx  - @hannelita

#2

Make it look like Mathematics - replace text with variables :)

#Devoxx  - @hannelita

#2 - Example in Java:

extends        ==> extends ClassType

implements ==> implements InterfaceTypeList

throws          ==> throws ClassTypeList

A        ==> ClassType

B        ==> InterfaceType(List)

C        ==> ClassType(List)

#Devoxx  - @hannelita

#2 - Example in Java:

 ζ       ==> ClassType

#Devoxx  - @hannelita

(people like letters from the greek alphabet)

#3

Group these results in sets and remove duplicates. These sets will reveal the types.

#Devoxx  - @hannelita

A very difficult task in science is grouping topics appropriately.

#Devoxx  - @hannelita

Agenda

  • Choosing a programming language
  • Quick intro about type systems
  • Sketching the possible types
  • Symbolic Logic analysis
  • Predicate logic
  • Getting there!
  • Why is this important?
  • Challenges

#Devoxx  - @hannelita

#4

Use symbolic logic to simplify your system

#Devoxx  - @hannelita

#4 - Example in Java

http://www.jot.fm/issues/issue_2007_09/article3.pdf

(Of course, you can come up with a different grouping)

#Devoxx  - @hannelita

#4

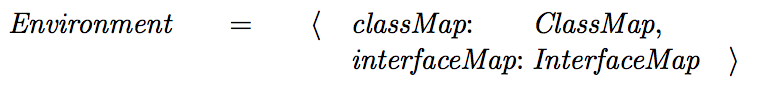

Every program has its set of Classes and Variables. We call it Environment (Γ):

#Devoxx  - @hannelita

#4

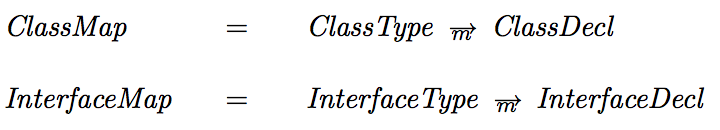

All mappings of a ClassType have a ClassDeclaration in Java (the same for interfaces). We will use the symbol

m

#Devoxx  - @hannelita

#4

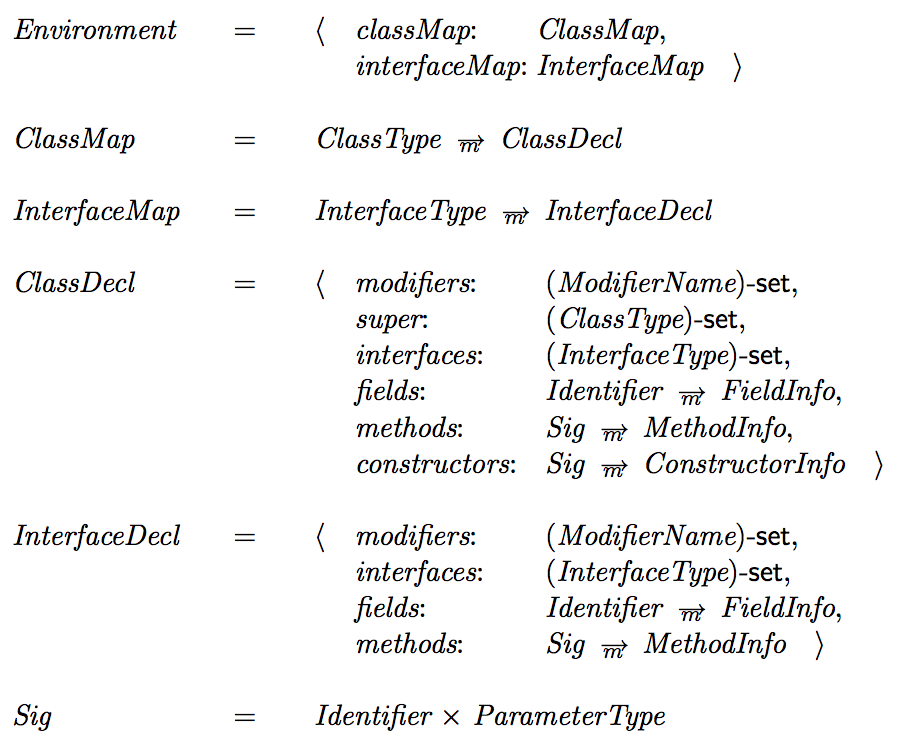

Keep expanding the definitions:

http://www.jot.fm/issues/issue_2007_09/article3.pdf

Agenda

  • Choosing a programming language
  • Quick intro about type systems
  • Sketching the possible types
  • Symbolic Logic analysis
  • Predicate logic
  • Getting there!
  • Why is this important?
  • Challenges

#Devoxx  - @hannelita

#5

Use predicate logic to analyse your system. Start with true statements ('well-formed'):

#Devoxx  - @hannelita

#5 - Example in Java

validType = true

validType (primitive) = true

validType (π) = true

validType (environment, primitive) = true

validType (Γ, π) = true

validClass(Type) = ClassMap of the environment for that type

validClass(τ) = Γ classMap(τ)

validType(Class) =

validClass(Type)

validType(ζ) = validClass(ζ)

#Devoxx  - @hannelita

#6 - Breathe

Free GIF!

#Devoxx  - @hannelita

#6 - Lambda Calculus

Understanding lambda calculus (out of scope of this presentation) will help you come out with these relations.

#Devoxx  - @hannelita

#6 - Bonus - Lambda Calculus

Lambda Calculus is about formal function theory. We can apply them to functional programming. We can also apply the ideas to general functions in programming.

  • http://www.cs.le.ac.uk/people/amurawski/mgs2011-tlc.pdf

#Devoxx  - @hannelita

#7 - Write some statements that you can prove:

"In Java, every class type that you define will be a subclass of a class"

#Devoxx  - @hannelita

#7 - Sketch a mathematical expression:

class => ζ

environment => Γ

class relation

(subclass or class itself) =>

#Devoxx  - @hannelita

#7 - Sketch a mathematical expression:

In an environment Γ,

Γ

we can prove

that a class of a

certain type

ζ1

ζ2

is a subclass of another type

or the other type itself (Object)

#Devoxx  - @hannelita

Agenda

  • Choosing a programming language
  • Quick intro about type systems
  • Sketching the possible types
  • Symbolic Logic analysis
  • Predicate logic
  • Getting there!
  • Why is this important?
  • Challenges

#Devoxx  - @hannelita

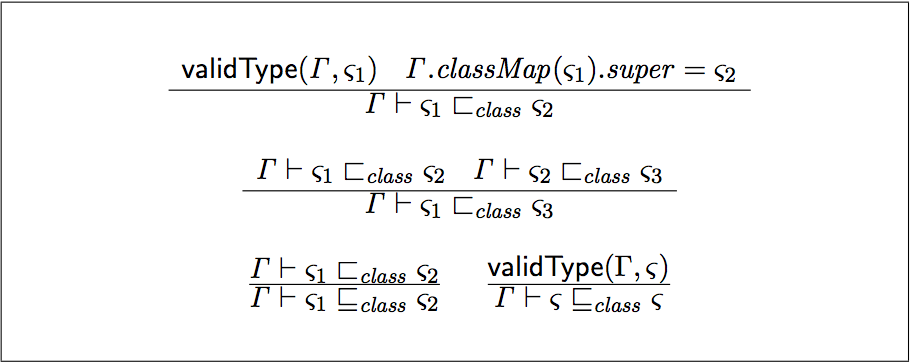

#8 - We can almost read this:

#Devoxx  - @hannelita

#8:

A valid class. A class type that is a subclass of another type

The super class of a type. But the super class also is a subclass of another type

#Devoxx  - @hannelita

#8:

A valid class. A class type that is a subclass of another type

The super class of a type. But the super class also is a subclass of another type

#Devoxx  - @hannelita

#8:

General subclass chain

A subclass or the class itself

Γ

ζ1

ζ2

#Devoxx  - @hannelita

#8:

Valid type!

validType(Γ, ζ)

Γ

ζ1

ζ2

True!

#Devoxx  - @hannelita

Agenda

  • Choosing a programming language
  • Quick intro about type systems
  • Sketching the possible types
  • Symbolic Logic analysis
  • Predicate logic
  • Getting there!
  • Why is this important?
  • Challenges

#Devoxx  - @hannelita

Why is this so important?

  • Reduce runtime errors by checking the types
  • IDEs can perform a better analysis of your code based on logical statements
  • Different languages have different type systems

#Devoxx  - @hannelita

Bonus #1 - Clojure type system

"Clojure was not designed to support a static type system" (https://s3.amazonaws.com/github/downloads/frenchy64/papers/ambrose-honours.pdf)

But you can treat it as Typed.

#Devoxx  - @hannelita

Bonus #1 - Notes on Clojure type system

  • DataType (similar to ClassType in Java)
  • ProtocolType (similar to InterfaceType in Java)
  • SingletonType
  • HeterogeneousMaps
  • NullableType (no equivalence in Java)

#Devoxx  - @hannelita

Bonus #2 - Notes on Scala type system

  • AnyType
  • NothingType
  • ParametrisedTypes
  • BoundedType
  • Static and Strong
http://www.slideshare.net/dgalichet/demystifying-scala-type-system

Sometimes it is difficult to find an equivalent type across different languages

#Devoxx  - @hannelita

Agenda

  • Choosing a programming language
  • Quick intro about type systems
  • Sketching the possible types
  • Symbolic Logic analysis
  • Predicate logic
  • Getting there!
  • Why is this important?
  • Challenges

#Devoxx  - @hannelita

Challenges

  • There is no single way to describe a type system
  • It is hard to find equivalences between languages
  • It is a lot of mathematics!
  • We have lots of theory and very few time to study them

#Devoxx  - @hannelita

Challenges

  • http://www.jot.fm/issues/issue_2007_09/article3.pdf
  • http://www.dsi.unive.it/myths/GC2004/Slides/Zucca_slides.pdf
  • http://groups.csail.mit.edu/pag/pubs/ref-immutability-oopsla2004-abstract.html
  • http://pubs.doc.ic.ac.uk/JavaProbablySound/JavaProbablySound.pdf

Java type system - proposed type representations:

#Devoxx  - @hannelita

References

  • http://blogs.atlassian.com/2013/01/covariance-and-contravariance-in-scala/
  • http://cseweb.ucsd.edu/~atl017/papers/pldi11.pdf
  • STEPANOV, A. Elements of Programming.
  • PIERCE, B. Types and Programming Languages
  • THOMPSON, S. Type Theory and Functional Programming (free ebook!)
  • MICHAELSON, G. An Introduction to Functional Programming Through Lambda Calculus.

Session at Open Source Bridge 2016

http://slides.com/hannelitavante-hannelita/type-theory-101-35#/

#Devoxx  - @hannelita

Special Thanks

  • B.C., for the constant review and support
  • Professor M. Coutinho (UNIFEI)
  • Devoxx Team

#Devoxx  - @hannelita

Thank you :)

Questions?



hannelita@gmail.com

@hannelita

#Devoxx  - @hannelita
