Pokémons, FP e Type Theory

Hi!

  • Computer Engineer
  • Programming
  • Electronics
  • Math <3 <3
  • Physics
  • Lego
  • Meetups
  • Animals
  • Coffee
  • GIFs

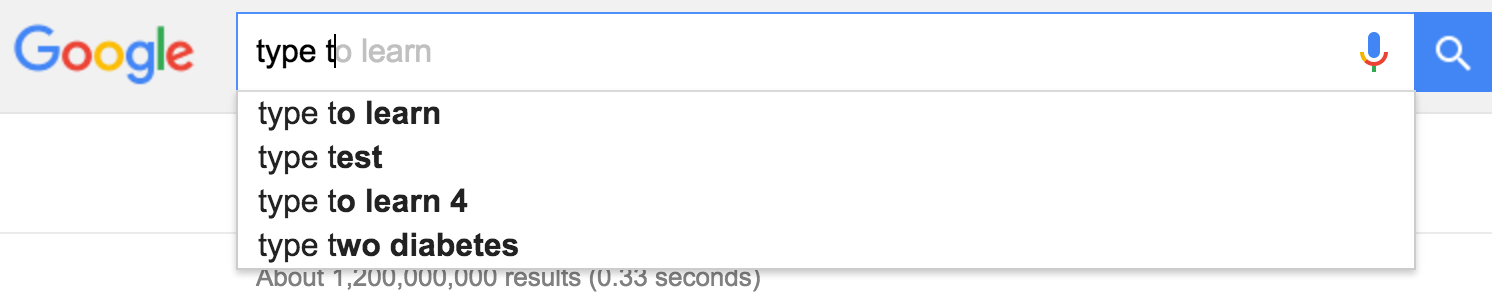

Why Type Theory??

DISCLAIMER

Introductory content

Pokémon, GIFs and theory

DISCLAIMER

Discussion + Theory

Few practical examples

DISCLAIMER

Mathematics + Programming

Agenda

  • Logic
  • Functional Programming with Pokémon
  • Intro to Lambda Calculus and Mathematical Formalism
  • Type Theory

Logic

How do we guarantee our program meets the spec?

Most of the time is spent with "I think..."

Let me try:

Only formal proofs could guarantee something more precise

When we write code

Formal proofs => Logic?

Programming => Logic

Types => Propositions

A programming language can be seen as a logical system

Would it be possible to have a way to "pre-prove" our code?

Can you think about strong typed languages and the opposite?

p:P

  • This is not an emoji
  • "The value p has the type P"
  • And so what? Then we analyse the functions, implications and mathematical constructions.
  • Look carefully and think about functions (form Algebra)
  • D(f):{2,9} or
  • Value and Types could express domains and ranges in functions!

(WTF ARE YOU TALKING ABOUT????)

What is love ?

Logic

Science of the argument

What is correct?

  • Write arguments that can be checked mechanically
  • Study properties
  • Elaborate semantic meanings

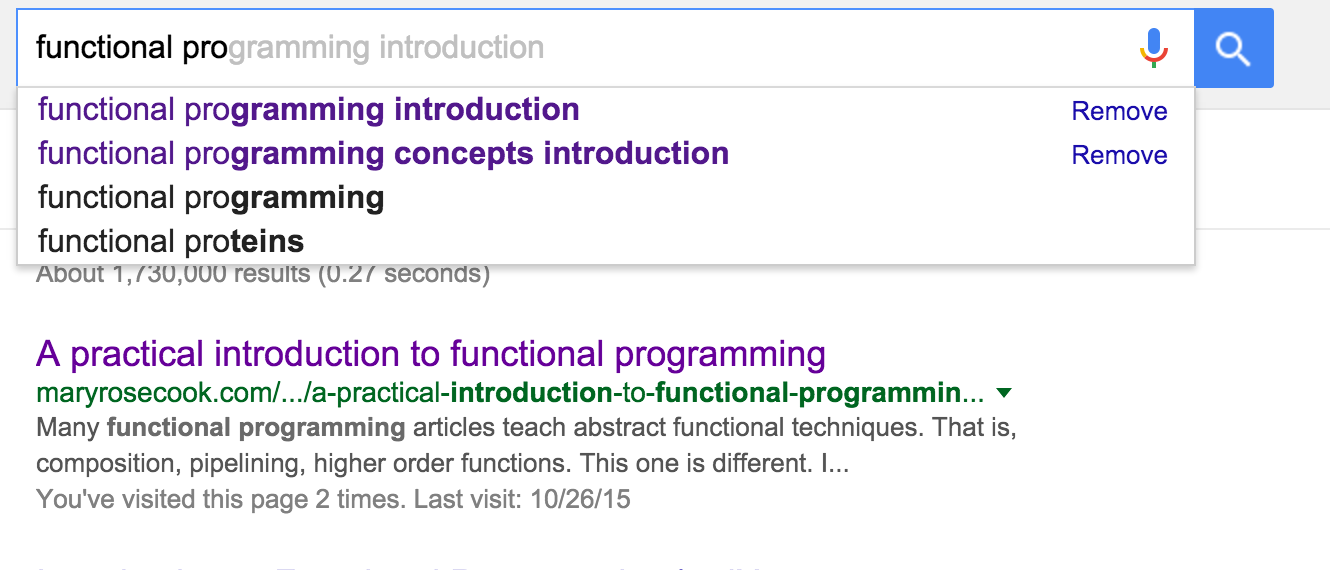

Functional Programming

WAT

It's simple:

  • Lambda calculus
  • Lisp
  • Haskell
  • Scala
  • Clojure
  • Papers
  • Academia
  • Category Theory
  • λ
  • λ
  • λ

Pokémon

We give instructions to Pokémon in a battle

Programming

We also give instructions to code

i = i+1;

Pokémon

We must know how some things work:

Programming

We must know how to manage information in our software

  • Data types
  • Evolution
  • How to group them
  • Important attributes
  • Business rules
  • Pokémon types
  • Evolution
  • Team strategy
  • EV/IV
  • Moves
  • Items
  • Trades

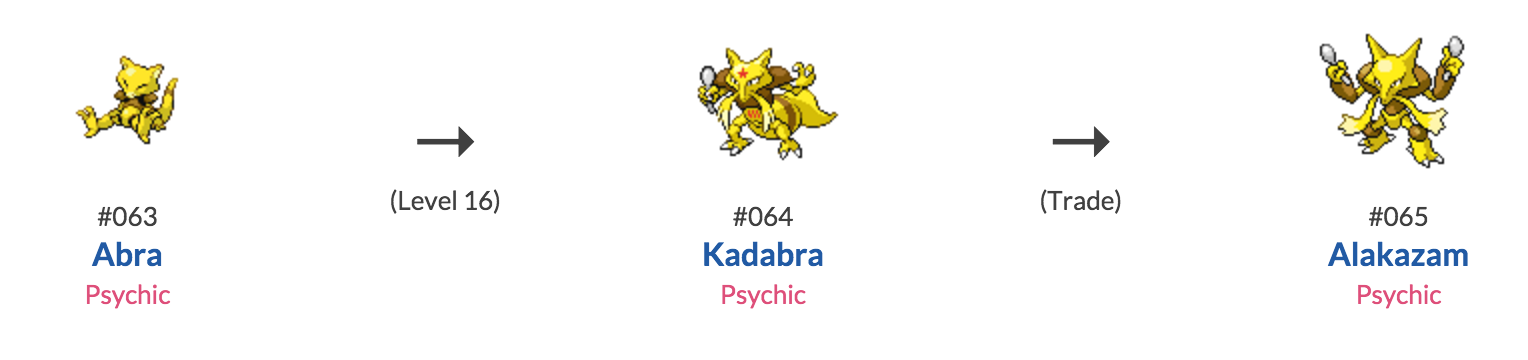

level >=16

f(evol)

output level is the same as the input

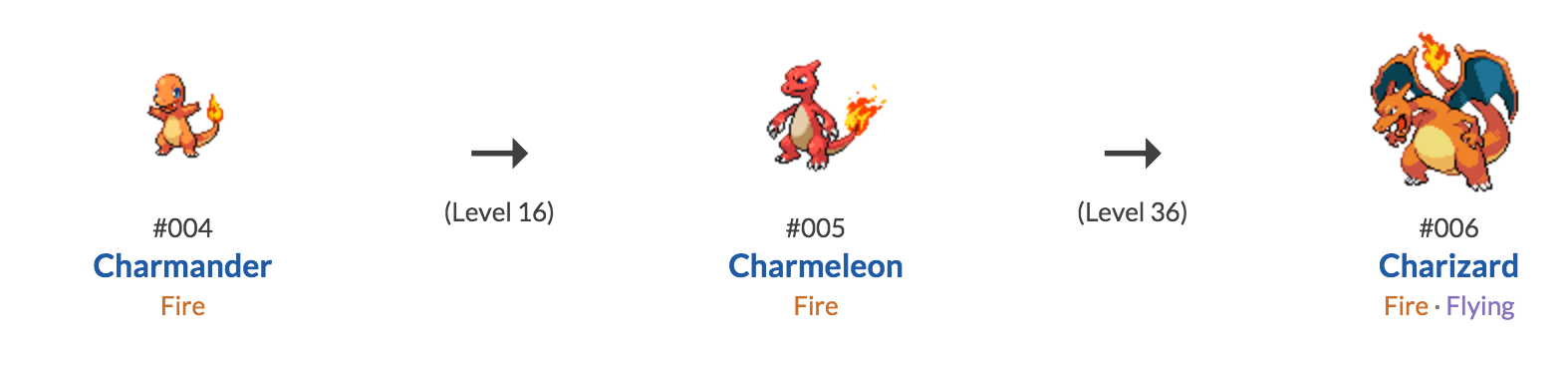

How can I get a Charizard from a Charmander?

level >=16

f(evol)

output level is the same as the input

output level is the same as the input

f(up)

level = 36

level=36

f(evol)

level = 36

Or:

level >=36

f(evol)

output level is the same as the input

f(evol)

output level is the same as the input

High Order Function

f(x) => g(x) => h(x)

In some competitions, there is a maximum value for the sum of the levels of the Pokémon on the team

Team

  • Charizard, lvl 100
  • Lapras, lvl 100
  • Dragonite, lvl 100
  • Rhydon, lvl 100
  • Pidgeotto, lvl 100
  • Gengar, lvl 100

Level sum: 600

  • Gengar, lvl 100
  • Charizard, lvl 100
  • Lapras, lvl 100
  • Rhydon, lvl 100
  • Pidgeotto, lvl 100
  • Dragonite, lvl 100

Level sum: 600

  • Lapras, lvl 100
  • Gengar, lvl 100
  • Charizard, lvl 100
  • Rhydon, lvl 100
  • Pidgeotto, lvl 100
  • Dragonite, lvl 100
  • Pidgeotto, lvl 100
  • Lapras, lvl 100
  • Gengar, lvl 100
  • Dragonite, lvl 100
  • Charizard, lvl 100
  • Rhydon, lvl 100
Credits: @bitemyapp and @argumatronic - http://haskellbook.com/

sumEverythong AndGiveTheResult([100,100, 100,100,100,100])

fold|reduce|other_names

(reduce + [100 100 100 100 100 100])  ;;=> 600

What else can you have on your party rather than battle Pokémon?

Eggs

Team

  • Charizard, lvl 100
  • Lapras, lvl 100
  • Dragonite, lvl 100
  • Egg
  • Pidgeotto, lvl 100
  • Gengar, lvl 100

Level sum: 500

Egg does not interfere on the sum

Egg level = 0

Does not change the value

Egg works as an identity element to the level.

  • Gengar, lvl 100
  • Charizard, lvl 100
  • Lapras, lvl 100
  • Egg
  • Pidgeotto, lvl 100
  • Dragonite, lvl 100

Level sum: 500

  • Lapras, lvl 100
  • Gengar, lvl 100
  • Charizard, lvl 100
  • Egg
  • Pidgeotto, lvl 100
  • Dragonite, lvl 100
  • Pidgeotto, lvl 100
  • Lapras, lvl 100
  • Gengar, lvl 100
  • Dragonite, lvl 100
  • Charizard, lvl 100
  • Egg

reduce

(reduce + 0[100 100 100 100 100])  ;;=> 500

identity element

collection

MONOIDS

Game items

Game items

[

]

Collection

Game Items

[

]

Collection

(map upgrade                        )


;;=>

[

]

Game Items

[0]

[1]

Optional

Game Items

Optional

(map change              )


;;=>
[
]
[
]

Game Items

[

]

In some part of the game you will have the badges

Future

Game Items

[

]

(map other_cont              )


;;=>

[

]

Future

[ Pokéballs]

[ Bike ]

[ Badges ]

=>

=>

=>

[ Pokéballs]

[ Bike ]

[ Badges ]

[ Pokéballs]

[ Bike ]

[ Badges ]

=>

=>

=>

[ Pokéballs]

[ Bike ]

[ Badges ]

FUNCTORS

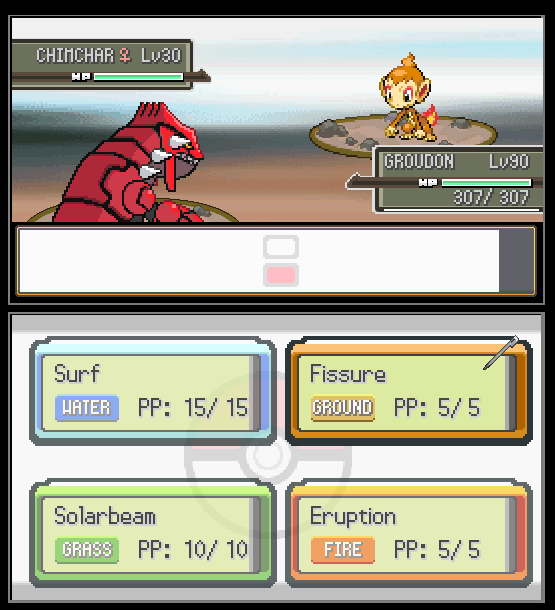

Move set

and moves

{Surf: 15},

{Fissure: 5},

{Solarbeam: 10},

{Eruption: 5}

Moves

[

]

{Surf: 15},

{Fissure: 5},

{Solarbeam: 10},

{Eruption: 5}

Moves

decrease_pp_used_move[{Surf: 15}]

[

]

[{Surf: 14}],

{Fissure: 5},

{Solarbeam: 10},

{Eruption: 5}

[

]

[]

[            ]

[                     ]

{Surf: 15},

{Fissure: 5},

{Solarbeam: 10},

{Eruption: 5}

Moves

[

]

{Surf: 14},

{Fissure: 5},

{Solarbeam: 10},

{Eruption: 5}

(flatten decrease_pp [{Surf:15}])


;;=> [{Surf: 14}, {Fissure: 5}, {Solarbeam: 10}, {Eruption: 5}]

Collection

Item

[Scope Lens]

boost_move

{Fissure:5},

{Surf:15},

{Solarbeam: 10},

{Eruption: 5}

[

]

{Fissure:5},

[{Surf:15:boosted}],

{Solarbeam: 10},

{Eruption: 5}

[

]

Optional

Item

[Scope Lens]

{Fissure:5},

{Surf:15},

{Solarbeam: 10},

{Eruption: 5}

[

]

Optional

(flatten boost_move [{Surf:15}]
;;=> [{Fissure:5}, {Surf: 15:boosted}, {Solarbeam: 10}, {Eruption: 5}]

{Fissure:5},

{Surf:15},

{Solarbeam: 10},

{Eruption: 5}

[

]

Future

{Fissure:5},

{Surf:15},

{Solarbeam: 10},

{Eruption: 5}

[

]

Moves

forget

{Fissure:5},

[],

{Solarbeam: 10},

{Eruption: 5}

[

]

{Fissure:5},

{Surf:15},

{Solarbeam: 10},

{Eruption: 5}

[

]

Future

(flatten forget [{Surf:15}]
;;=> [{Fissure:5}, {Solarbeam: 10}, {Eruption: 5]}

{Fissure:5},

{Surf:15},

{Solarbeam: 10},

{Eruption: 5}

[

]

Moves

No matter which move set you have (if it exists, if you have items, if you haven't learned the move yet):

  • Get the element
  • Apply a function if convenient
  • flatten
  • Allow call chain

MONADS

"Meownads!" (credits with @_leticia)

λ-calculus

How do we express functional programming with Mathematics?

Objects => Functions

  • Individual Variables => x, y, z
  • Applications => (e1, e2) [apply expression e1 to e2]
  • Abstractions => (λx, e) [f(x) = e]

λ-calculus: Topics

  • Substitution
  • Evaluation
  • Untyped or Typed
  • http://www.cs.le.ac.uk/people/amurawski/mgs2011-tlc.pdf

Mathematical Constructions

Constructive vs classical Mathematics

"If it's contradictory for no object x has the property P(x), then there's an object x with the property P(x)."

It asserts the existence of an object without giving any indication of what the object is

Constructive mathematics is typed

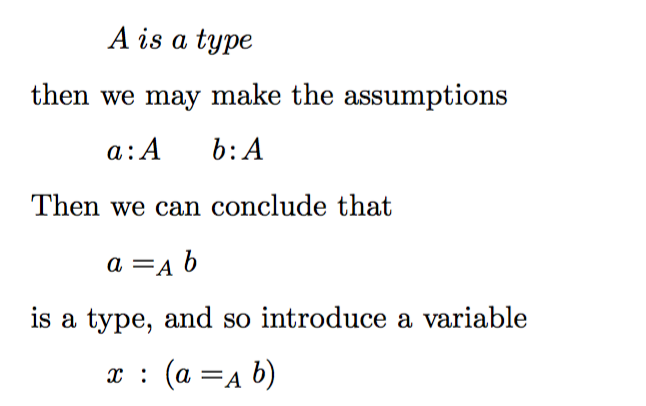

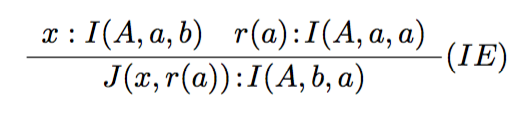

FINALLY! Type Theory

Types

Functions

Propositions

Proofs

Isomorfismo

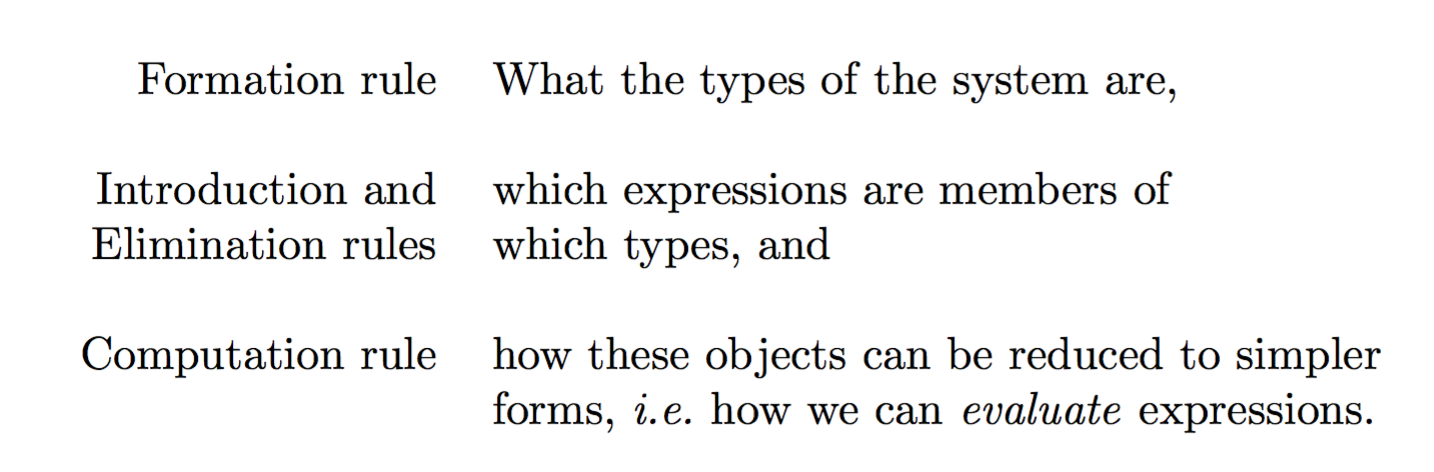

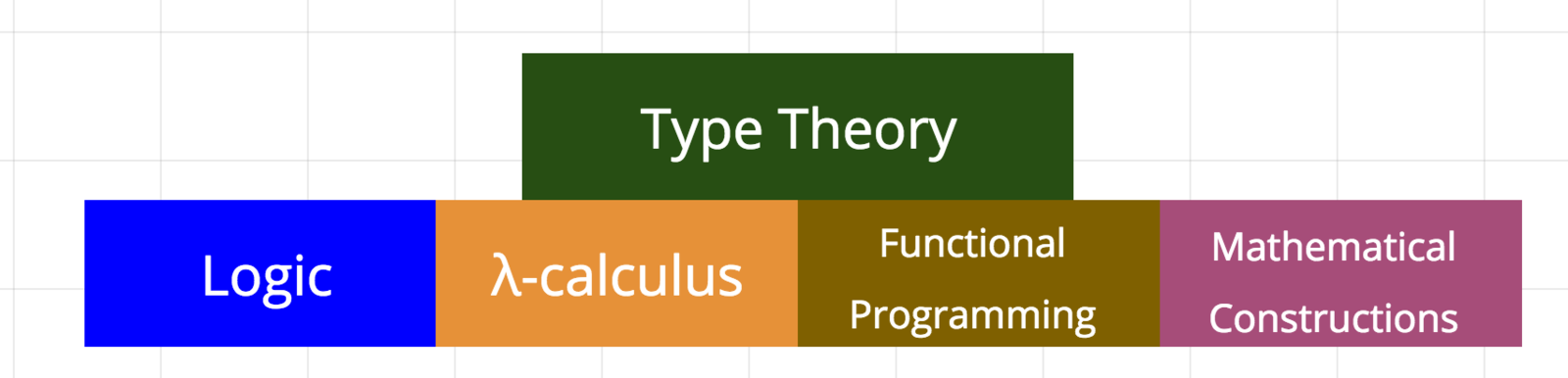

Topics

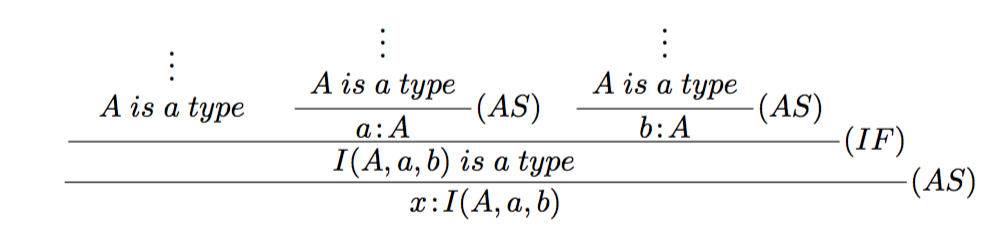

How can we turn this into Mathematics?

Simplifying

We can apply all this formalism for

  • Naming
  • Generalisations
  • Derivability

An then we can analyse programming statements with Mathematics.

Credits and references:

  • @brunoskonrad and Codeminer 42
  • GIRARD, Jean-Yves. Proofs and Types.
  • @lafp, @romulostotel, @pedrofelipee: GIFs
  • @klauss_weyl, for showing me the importance of logic and Type Theory
  • Henrique
  • http://www.cs.le.ac.uk/people/amurawski/mgs2011-tlc.pdf
  • http://www.andres-loeh.de/LambdaPi/LambdaPi.pdf

More credits and references:

  • @bitemyapp, @argumatronic and @FunctionalWorks
  • @txustice - http://blog.txus.io/
  • http://www.amazon.com/Functional-Programming-Practice-Bruce-Maclennan/dp/0201137445/ref=sr_1_9?ie=UTF8&qid=1445967378&sr=8-9&keywords=functional+programming
  • http://media.eurucamp.org/ (@eurucamp)
  • @_leticia ('Meownads')
  • http://stackoverflow.com/questions/2704652/monad-in-plain-english-for-the-oop-programmer-with-no-fp-background

Thank you! :)

Questions?
