Lego Mosaics

HTML5 Live Code NYC



Joe Stanco

5/15/2014

Concept Inspiration


Lego Albums Tumblr

by Harry Heaton


Design Inspiration


LEGOlize yourself PSD

by Ronald Hagenstein


Tools

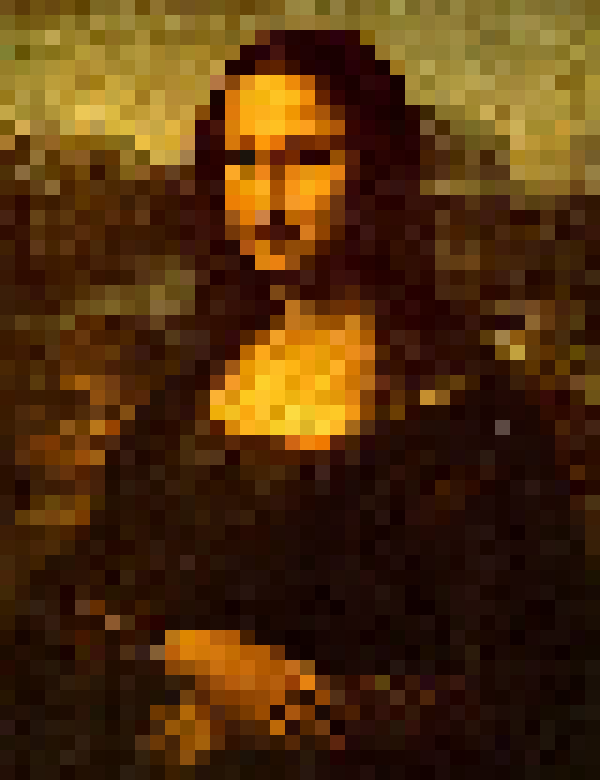

Mosaic Effect


 Pixastic.process(img, "mosaic", {blockSize:10});

  • Pixastic Effect
  • Brick size = 1/40 of image width

Studs


 canvas.getContext("2d").createPattern(img, "repeat");

  • Prototyped with PNG image
  • Used a scaled version of original image for tiling


Rendering Steps

Prototype

  1. Apply mosaic effect, then add to stage as bitmap
  2. Draw stud image on scratch canvas and scale it
  3. Get data URL of scratch canvas and set as image source
  4. Use loaded stud image for pattern fill on stage canvas

Stud Illustration


  • Scaled image causes excessive aliasing
  • Create vector version in Illustrator

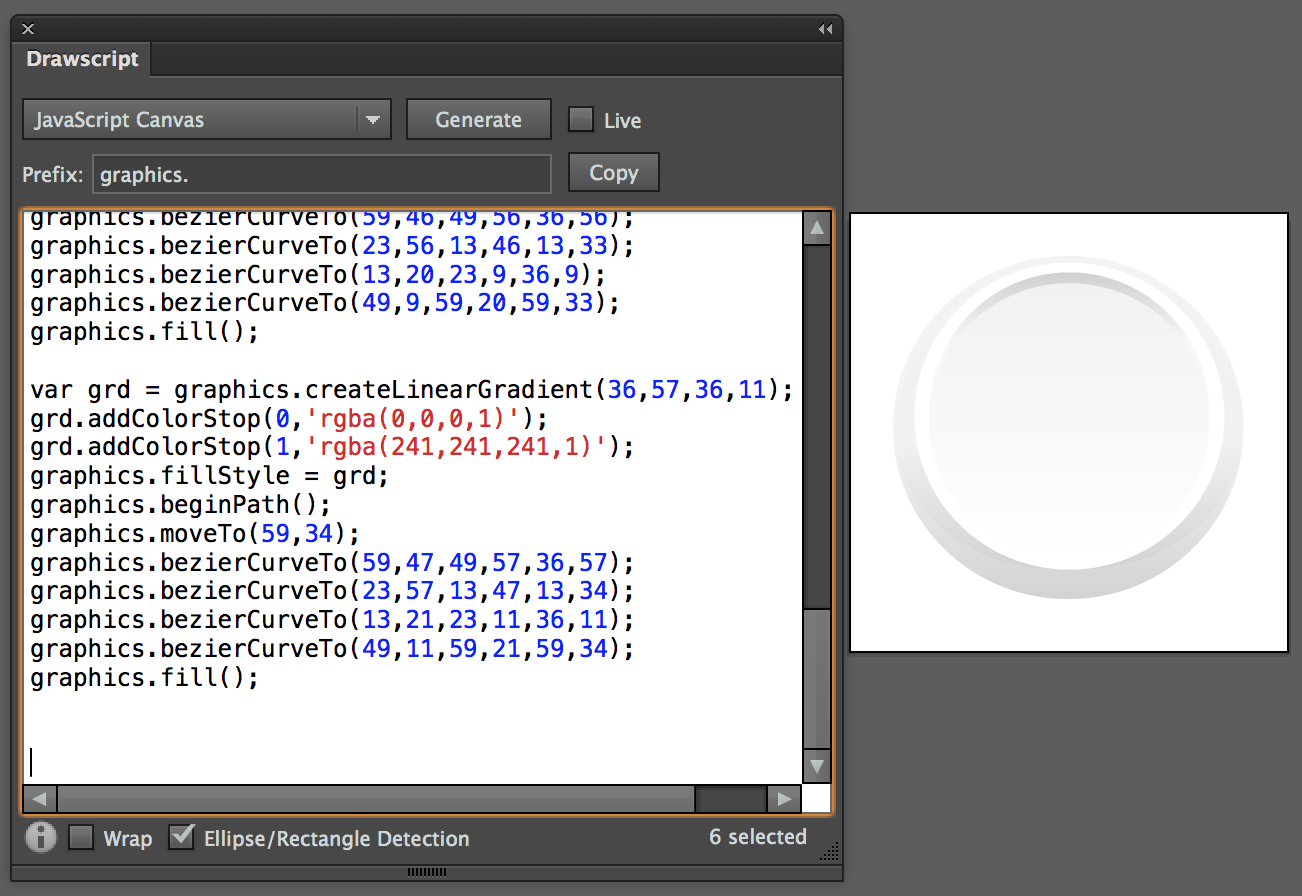

  • Export as canvas commands using Drawscript

Compositing


canvas.getContext("2d").globalCompositeOperation = "multiply";


  • First attempt: Multiply Only
  • Second attempt: Multiply + Lighter

Rendering Steps

Final

  1. Apply noise reduction and mosaic effects
  2. Draw base stud shape and use as pattern fill
  3. Draw highlight stud shape and use as pattern fill
  4. Draw grid lines on stage canvas
  5. Get data URL for stage canvas and set as image source

Scaling is Lossy


Draw at target size rather than scale

Scaled Vector       Drawn Vector


Brick Size


  • 1/40 ratio is not a panacea
  • Too small for big images
  • Too big for small images

Solution:
Define breakpoints for min and max brick size
thresholds: [   { maxImageWidth: 300, minBrickSize: 10, maxBrickSize: 15 },  { maxImageWidth: 1200, minBrickSize: 15, maxBrickSize: 26 },  { maxImageWidth: 1600, maxBrickSize: 36 }]

Harder, Better, Faster, Stronger




Thank you!



Lego Yourself

By Joe Stanco
