Designing a Flexible UI Architecture
with React and GraphQL

@kamranayub         bit.ly/NDCFlexibleUI

background by saragnzalez

@kamranayub

Keep track of my Games

I'm the kind of person That

seeks TO LEARN AND SOLVE PROBLEMS

@kamranayub

Speaking of problems...

Let me paint a picture

or better yet, show you one...

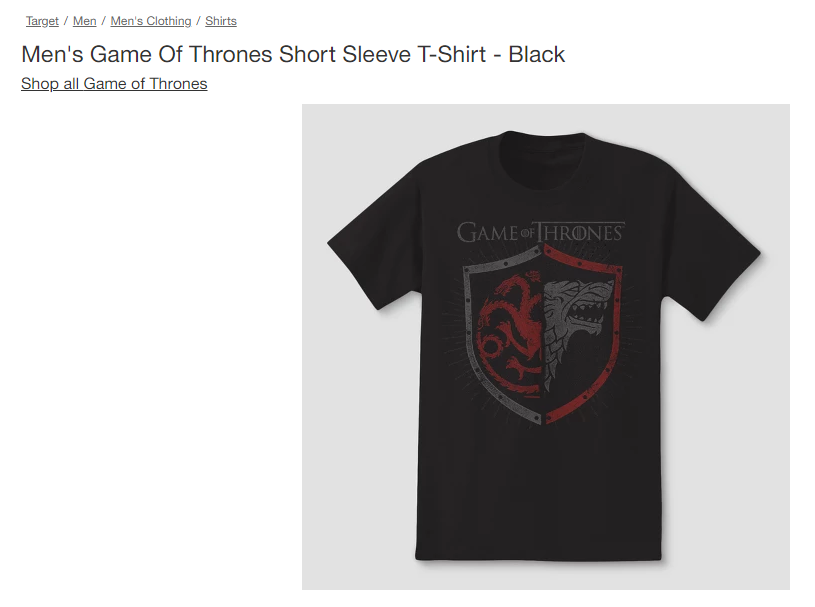

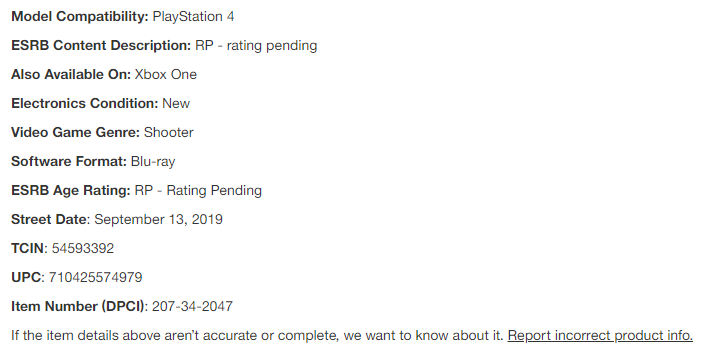

Item data

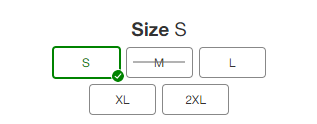

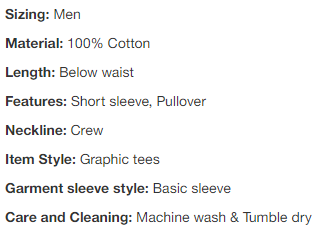

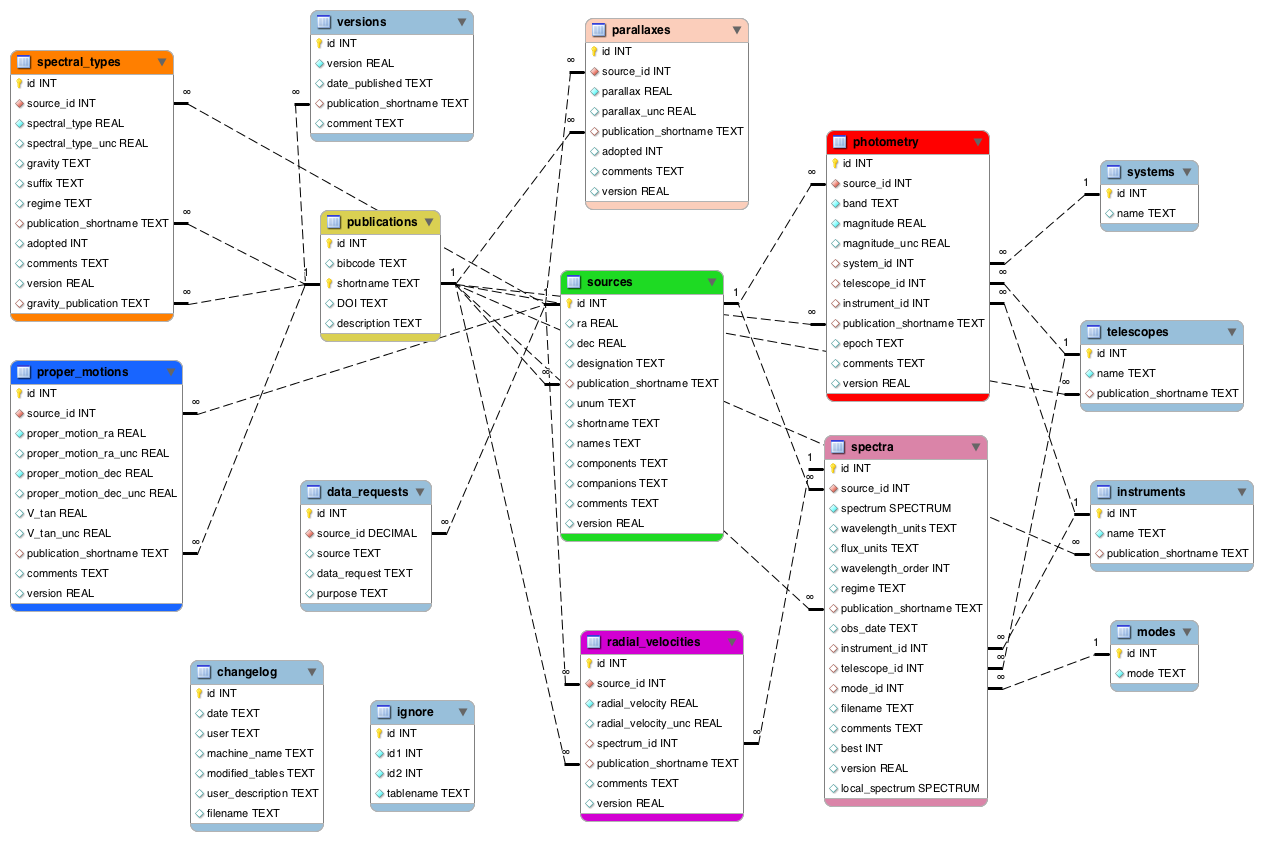

Item data is complex

How do we manage that data?

Carefully.

Once upon a time...

Challenges

complex ui state

Dynamic business rules

two different editing modes

scale to manage 200+ items at once

Disclaimer



Any resemblance to actual UI, legacy or modern,

is purely coincidental. These views are my own.

Source: Threadless

Horst Rittel and Melvin Webber defined a "wicked" problem as one that could be clearly defined only by solving it, or by solving part of it. This paradox implies, essentially, that you have to "solve" the problem once in order to clearly define it and then solve it again to create a solution that works.



Code Complete, Steve McConnell

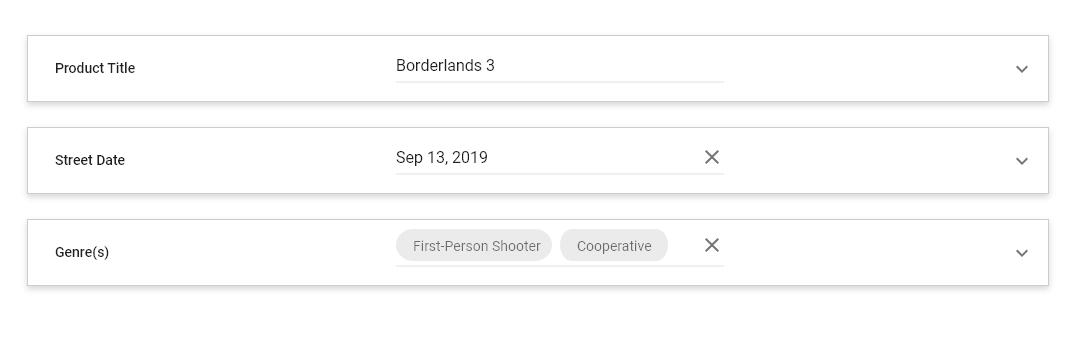

Starting from the ux

rethinking item data

item

product_title

street_date

rethinking item data

{
  "product_title": "Borderlands 3 Super Deluxe Edition",
  "street_date": "2019-09-13T00:00:00Z"
}

This is a "consumer" way of thinking

How do we describe data?

Data Schema

product_title

rules

display

values

street_date

rules

display

values

Data schema

{
  "product_title": {
    "description": "A product's title",
    "default_rules": {
      "required": true,
      "min_length": 1,
      "max_length": 1337,
      "read_only": false
    },
    "display": {
      "component_type": "single_line_text",
      "help_text": null
    },
    "item_values": [
      {
        "id": "item1",
        "value_raw": "Borderlands 3",
        "value_human": "Borderlands 3"
      },
      {
        "id": "item2",
        "value_raw": "Borderlands 3: Super Deluxe Edition",
        "value_human": "Borderlands 3: Super Deluxe Edition",
        "override_rules": {
          "required": false,
          "read_only": true
        }
      }
    ]
  },
  "street_date": {
    "description": "The date this item will be available for purchase",
    "default_rules": {
      "required": true,
      "min_date": 1555818103157,
      "max_date": null,
    },
    "display": {
      "component_type": "date",
      "help_text": "Must be later than today's date"
    },
    "item_values": [
      {
        "id": "item1",
        "value_raw": "2019-09-13T00:00:00Z",
        "value_human": "Sep 13, 2019",
        "override_rules": {
          "min_date": null
        }
      }
    ]
  }
}

A "Schema-driven" UI

RULES

handles

RENDERING

VALIDATION

Semantics

primary

data

external data

caching layer

GraphQL Backend

schema

engine

data

resolution

React Frontend

state

management

client rule engine

High-level architecture

Data resolution

query {
  itemData(attribute_ids: ["genres"]) {
    attributes {
      id
      default_rules {
        required
        read_only
      }
      display {
        component_type
      }
      values(item_ids: ["item1", "item2"]) {
        item_id
        raw_value
        human_value
        override_rules {
          required
        }
      }
    }
  }
}

AuthN / AuthZ

Default schema

Mapping (resolvers)

Load raw data

Load external data

Schema Engine

{
  id: "genres",
  default_rules: {
    required: true,
    read_only: false
  },
  display: {
    component_type: "multi_select"
  },
  values: [
    {
      item_id: "item1",
      raw_value: 2,
      human_value: "First-Person Shooter",
      override_rules: null
    }
  ]
}

Run rules

Modify schema

Merge resolved data

Return final schema

Schema Engine

{
  id: "genres",
  default_rules: {
    required: true,
    read_only: false
  },
  display: {
    component_type: "multi_select"
  },
  values: [
    {
      item_id: "item1",
      raw_value: 2,
      human_value: "First-Person Shooter",
      override_rules: null
    }
  ]
}
{
  id: "genres",
  default_rules: {
    required: true,
    read_only: false
  },
  display: {
    component_type: "multi_select"
  },
  values: [
    {
      item_id: "item1",
      raw_value: 2,
      human_value: "First-Person Shooter",
      override_rules: {
        required: false,
        read_only: true
      }
    }
  ]
}

Schema Engine

Challenges

Business rules need (most) of the data loaded to work with

Human data needs to be cached within and across requests for performance

Not all attributes have the same performance profile

Resolve data before running rule engine

Introduce a caching layer (Redis, memcache, etc.)

Try to collate attributes from different data sources

Why graphql?

GraphQL is a specification

which provides

predictability

consistency

safety

Why graphql?

type ItemAttribute {
  id: String!
  display: AttributeDisplay
}

type AttributeDisplay {
  component_type: ComponentType!
}

enum ComponentType {
  single_line_text
  multi_line_text
  number
  date
  datetime
  multi_option
}

Static typing

Powerful query capabilities

query data($attribute_ids: [String!]!, $item_ids: [String!]!, hydrate: Boolean!) {
  attributes(ids: $ids) {
    id
    title: description
    default_rules {
      max_length
    }
    values(items: $item_ids) {
       raw_value
       human_value @include(if: $hydrate)
       override_rules {
         max_length
       }
    }
  }

  item_metadata(ids: $item_ids) {
    last_updated
  }
}

Why graphql?

type AttributeRules {
  required: Boolean
  read_only: Boolean
  max_length: Int
  max_chars: Int @deprecated(reason: "Use `max_length` instead")
}

One version, field-level reporting

subscription item_updates(ids: ["item1"]) {
  item_id
  values {
    raw_value
    human_value
  }
}

Subscriptions

Why graphql?

Plus

Caching infrastructure

Field-level timing and analytics

Custom directives

Extensible architecture

But seriously,

you could totally use REST too

React UI

Dynamic rendering

undo / rollback values

relationship semantics

multi-item handling

Dynamic rendering

{
  "attributes": [
    {
      "id": "product_title",
      "display": {
        "component_type": "single_line_text"
      }
    }
  ]
}

Dynamic rendering

{
  "attributes": [
    {
      "id": "product_title",
      "default_rules": {
         "read_only": true
      },
      "display": {
        "component_type": "single_line_text"
      }
    }
  ]
}

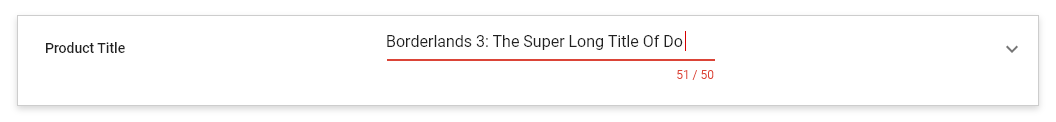

Dynamic rendering

{
  "attributes": [
    {
      "id": "product_title",
      "default_rules": {
         "read_only": true,
         "max_length": 50
      },
      "display": {
        "component_type": "single_line_text"
      }
    }
  ]
}

Dynamic rendering

{
  "attributes": [
    {
      "id": "street_date",
      "display": {
        "component_type": "date"
      }
    }
  ]
}

Dynamic rendering

{
  "attributes": [
    {
      "id": "genres",
      "display": {
        "component_type": "multi_select"
      }
    }
  ]
}

Dynamic rendering

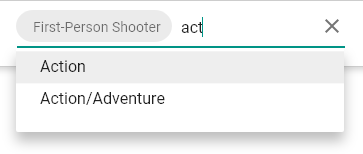

query {
  lookup(attribute_id: "genres") {
    page_size
    total
    options(filter: "act") {
      raw_value
      human_value
    }
  }
}

Dynamic rendering

different levels of customization

Attribute

Group

"Editor"

e.g. product_title

e.g. dimensions (WxHxD)

e.g. complex attributes

Undo / Rollback

Allow confirmation of values

Quick data entry

Batched save

Relationship semantics

Relationship semantics

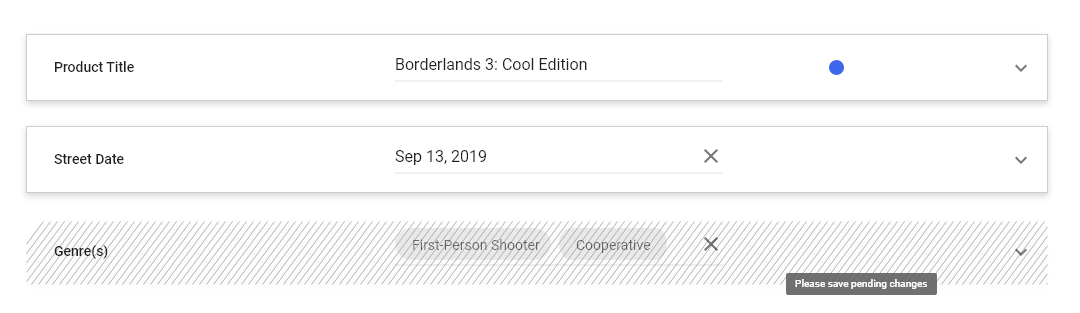

prevent updates

Relationship semantics

Hierarchical / Source

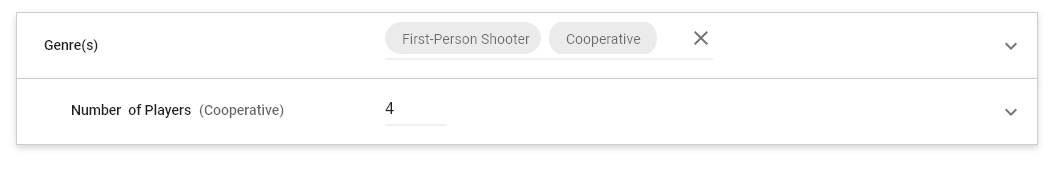

Relationship semantics

Conditional

Graph theory and math comes in handy!

multi-item handling

mixed edits

variedness

payload size

multi-item handling

mixed edits

multi-item handling

Variedness

multi-item handling

Payload size

What about saving data?

{
  product_title: [
    { item_ids: ["item1", "item2"], value: "Borderlands 3" },
    { item_ids: ["item3"], value: "Borderlands 3 Super Deluxe Edition" }
  ],
  street_date: [
    { item_ids: ["item1", "item2", "item3"], value: "2019-09-13T00:00:00Z" }
  ]
}

Send

Compare

Validate

Persist

Publish

The save flow reuses much of the same schema infrastructure

Async and optimistic

Save challenges

dependent data

transaction boundaries

Async updates

Utilize the same schema relationships to load data

If one item succeeds but another fails, do you fail the entire request? Probably not.

Optimistic UI, exception-based corrections

This ain't easy

1000+ unit tests

100+ functional tests

Typescript / GraphQL types

if we could do it again

Do as i say

(not as I do)

Use the same stack

Isomorphic rendering

Shared state

Shared code

Isomorphic rule engine

run on server and client

Faster user feedback

less roundtrips

fully utilize graphql

not just a proxy

directives and robust queries

subscriptions with observables

Real-time database

live updates

async messaging

state sync

Where can you start?

First, decide whether this is something you'll find value from. Do you have dozens or hundreds of data points to support?

See if JSON schema will work for you!

https://github.com/mozilla-services/react-jsonschema-form

If it doesn't, then roll your own schema
