A Cloud-based BIM Platform for Information Collaboration

Dr. Ling Ma

    Assoc. Prof. Rafael Sacks

BIM in a Project's Lifecycle

© 2016, Dr. Ling Ma

Information Interoperability

MATTI HANNUS,1998

© 2016, Dr. Ling Ma

Information Interoperability - IFC

© 2016, Dr. Ling Ma

IFC Schema and File

ENTITY IfcAxis2Placement3D

  SUBTYPE OF (IfcPlacement);

    Axis : OPTIONAL IfcDirection;

    RefDirection : OPTIONAL IfcDirection;

    ...

END_ENTITY;

#1001= IFCAXIS2PLACEMENT3D(#901,#902,#903);

DATA;
#1= IFCAPPLICATION(#2,'1.0.0.0','ggRhinoIFC - Geometry Gym Plug-in for Rhino3d','ggRhinoIFC');
#2= IFCORGANIZATION($,'Geometry Gym Pty Ltd',$,$,$);
#3= IFCPERSONANDORGANIZATION(#4,#5,$);
#4= IFCPERSON('Jon','Jon',$,$,$,$,$,$);
#5= IFCORGANIZATION($,'Geometry Gym Pty Ltd',$,$,$);
#6= IFCOWNERHISTORY(#3,#1,$,.ADDED.,1418084875,$,$,1418084875);
#7= IFCGEOMETRICREPRESENTATIONCONTEXT($,'Model',3,0.0001,#8,#10);
#8= IFCAXIS2PLACEMENT3D(#9,$,$);
#9= IFCCARTESIANPOINT((0.0,0.0,0.0));
#10= IFCDIRECTION((0.0,1.0));
#11= IFCGEOMETRICREPRESENTATIONSUBCONTEXT('Axis','Model',*,*,*,*,#7,$,.MODEL_VIEW.,$);
#12= IFCGEOMETRICREPRESENTATIONSUBCONTEXT('Body','Model',*,*,*,*,#7,$,.MODEL_VIEW.,$);
#13= IFCGEOMETRICREPRESENTATIONCONTEXT($,'Model',3,0.0001,#8,#14);
#14= IFCDIRECTION((0.0,1.0));
#50= IFCBUILDING('0y81Ev6rvAUxlnuftcyvNq',$,'IfcBuilding',$,$,#51,$,$,.ELEMENT.,$,$,#57);
#51= IFCLOCALPLACEMENT($,#52);
#52= IFCAXIS2PLACEMENT3D(#53,$,$);
#53= IFCCARTESIANPOINT((0.0,0.0,0.0));
#54= IFCRELCONTAINEDINSPATIALSTRUCTURE('16C2nttC9EMe6T5CFDJvvD',$,'Building','Building Container for Elements',(#210),#50);
#57= IFCPOSTALADDRESS($,$,$,$,$,$,$,'Unknown',$,$);
#100= IFCPROJECT('3mKjRoX3jBMhIv_Zx1c4Bd',#6,'IfcProject',$,$,'IfcProject','',(#13),#101);
#101= IFCUNITASSIGNMENT((#102,#103,#104));
#102= IFCSIUNIT(*,.LENGTHUNIT.,.MILLI.,.METRE.);
#103= IFCSIUNIT(*,.PLANEANGLEUNIT.,$,.RADIAN.);
#104= IFCSIUNIT(*,.TIMEUNIT.,$,.SECOND.);

© 2016, Dr. Ling Ma

IFC Schema and File

© 2016, Dr. Ling Ma

© 2016, Ling Ma

Information Collaboration in the Cloud

Create

Retrieve

Update

Delete

Semantic Enrichment

© 2016, Dr. Ling Ma

The Root of Object Identification

© 2016, Dr. Ling Ma

Feature Matching

© 2016, Dr. Ling Ma

Longitudinal Transverse Vertical Convex ...
Primary Girder 1 -1 -1 -1
Transverse Beam -1 1 -1 1
... 0

Transverse beam & Abutment

© 2016, Ling Ma

Matching Result

O1 E1 E3 E2
O2 E2 E1 E2
O3 E2 E1 E3
O4 E2 E1 E3
O5 E1 E3 E2
1st Candidate 2nd Candidate 3rd Candidate

© 2016, Ling Ma

Demo

Conclusion

© 2016, Dr. Ling Ma

  • Information is the core of building information model
  • CRUD is the common use case of information collaboration
  • Semantic enrichment is an important process for BIM adoption

Machine learning for more complex cases

Tested on synthetic cases

© 2016, Ling Ma

Thanks!

SeeBridge Information Delivery Manual (IDM) for Next Generation Bridge Inspection

Rafael Sacks, Amir Kedar, André Borrmann, Ling Ma, Dominic Singer and Uri Kattel

© 2016, Dr. Ling Ma

Conditions of the Highway Bridges

One in nine of the bridges in the US are structurally deficient

FHWA needs $20.5 billion annually to eliminate the bridge deficient backlog by 2028, but $12.8 billion is being spent

607,380 National Bridges in the US !!!

Over two billion trips are taken daily across these bridges

© 2016, Dr. Ling Ma

Bridge Inspection - Current Practice

14,700 bridges in Georgia

42 Inspectors in GDOT

Descriptive Inspection Report

AASHTOWare Bridge Management System (BMS)

Good?
Satisfactory?
Desirable?

Bridge Risk Prediction

© 2016, Dr. Ling Ma

Bridge Management System

3D Semantically rich bridge model (Bridge Information Model)

+

=

McGuire, B., et al., (2016) Bridge Information Modeling for Inspection and Evaluation. Journal of Bridge Engineering

Average age: 42 years

Time consuming

Consortium

Technion – Israel Institute of Technology

University of Cambridge

Technische Universität München

Georgia Institute of Technology

Georgia DOT

Trimble Navigation Inc.

Kedmor Engineers Ltd.

Pointivo

Transport for London

Netivei Israel

German Federal Ministry for Transportation

Infravation - SeeBridge

FP7 ERA-NET projects

Oct 1st, 2015 ~ Mar 31st, 2017

© 2016, Dr. Ling Ma

Workflow Overview

© 2016, Dr. Ling Ma

Information Delivery Manual

© 2016, Dr. Ling Ma

Business Process Model and Notation

National BIM Standard-United States (2015)

Model View Definition

© 2016, Dr. Ling Ma

Map the bridge element types to the IFC4 entity types

Defines the information exchange requirement

...

...

Model View Definition

© 2016, Dr. Ling Ma

MVDxml for model checking

...

To what extent the model is satisfactory

© 2016, Dr. Ling Ma

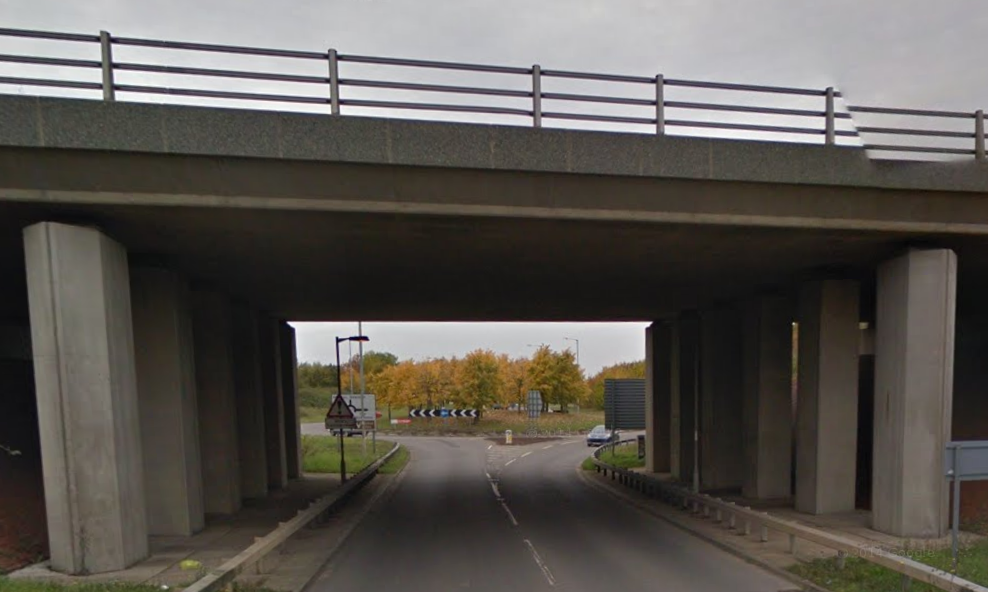

Georgia (3)

Data Collection

Cambridge (10)

Haifa (1)

© 2016, Dr. Ling Ma

Data Collection

Videogrammetry

(GoPro4 black)

Mobile laser scanning

(Trimble MX7)

Terrestrial laser scanning

(Leica c10)

3D Reconstruction

© 2016, Dr. Ling Ma

Semantic Enrichment

© 2016, Dr. Ling Ma

Damage Detection

© 2016, Dr. Ling Ma

Conclusion

© 2016, Dr. Ling Ma

  • Information delivery manual
    • Frame System Components
    • Layout the workflow
    • Define the information exchange model
    • Source of MVD
  • System integration

© 2016, Dr. Ling Ma

Thanks!
