MozReview

Commit-centric code review platform

Mark Côté

mcote

Manager, Automation and Tools (A-Team)

Whistler

June 26, 2015

(yeah it probably needs a better name)

Old & busted patch-based approach

$ hg qref --message "-b d -p linux64 -u all -t none"
$ hg push -f try
$ hg push mozilla-inbound

Very manual process

Developer has to be around to land on inbound

Reviewer wastes time with style nits

Old & busted patch-based approach

We're the A-Team

The "A" stands for "automation"

(and "awesome")

We're also Dev Services

(but they don't have a cool logo)

MozReview is a commit assembly line

Big Picture:

Commits move from inspection station to inspection station,

ending up eventually in mozilla-inbound

First stations are staffed by robots

First stations are staffed by robots

  • Static analysis
  • Uplift analysis
  • Regression analysis
  • Try run
    • with intelligent test selection
  • Intelligent (human) reviewer selection

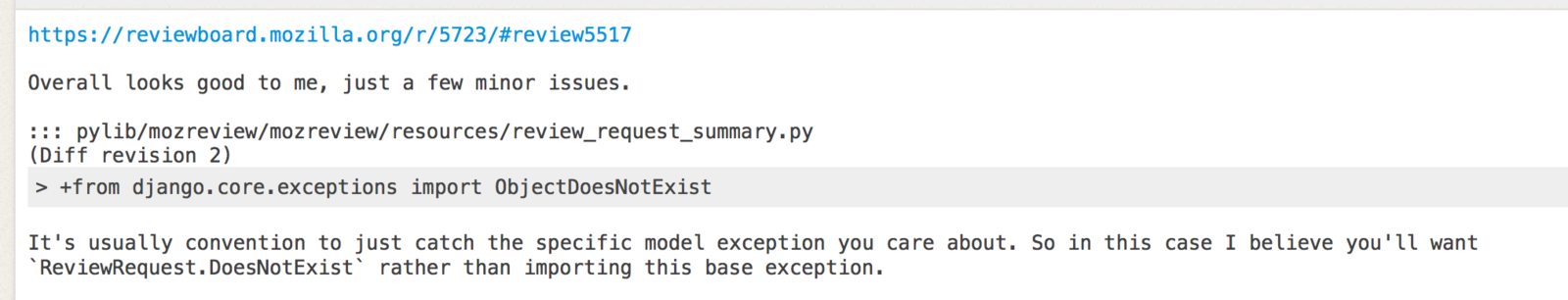

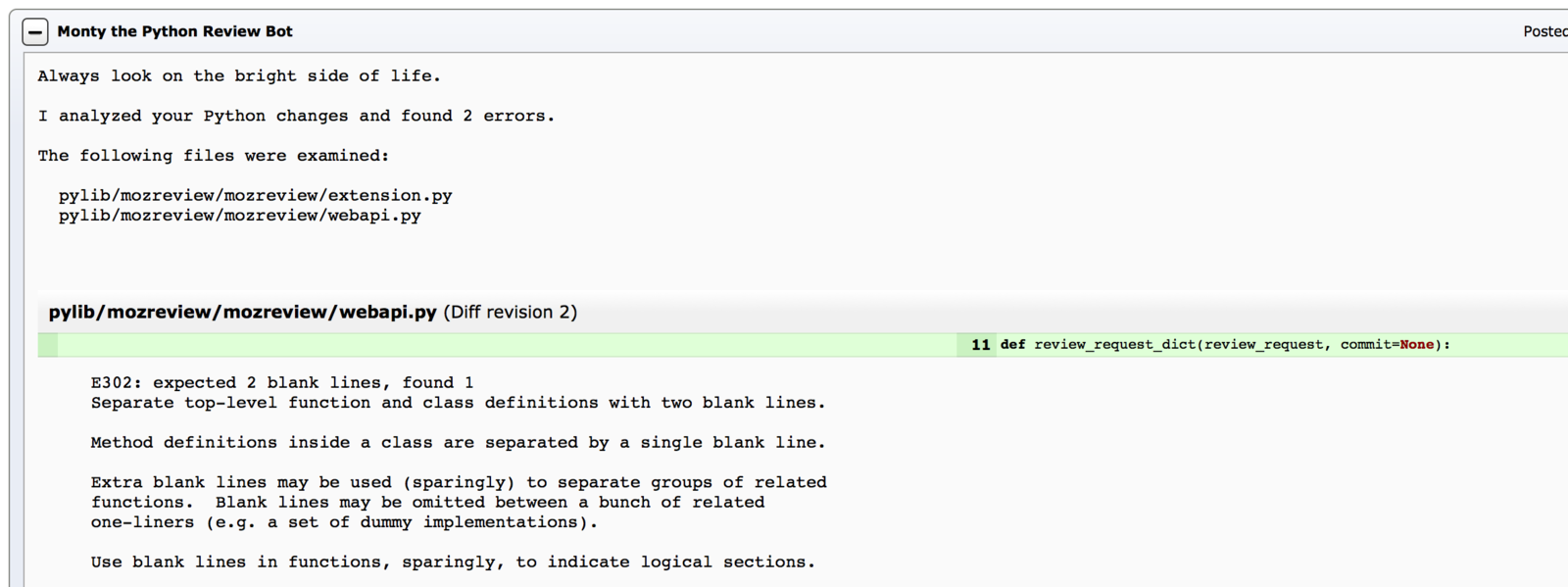

Robots leave reviews with open issues:

Only when the robots grant approval do human reviewers get involved

Reviewer time is very valuable

After human approval, commits queue up to land on inbound

No action needed by author

Automatic try run before landing

No integration branches: linear history

After human approval, commits queue up to land on inbound

Landings resume after tree closure

Landings can be spread out through the day

Automatic annotation of reviewers, link to MozReview request, etc.

Review Board

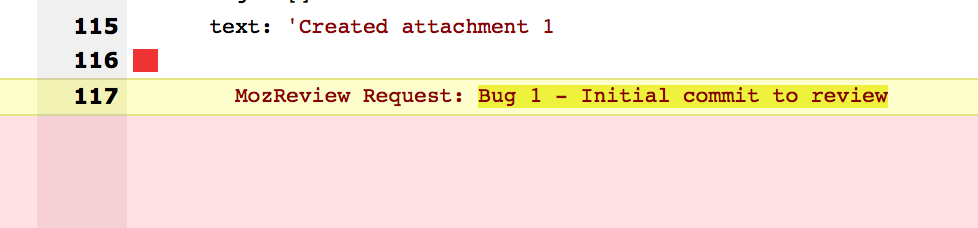

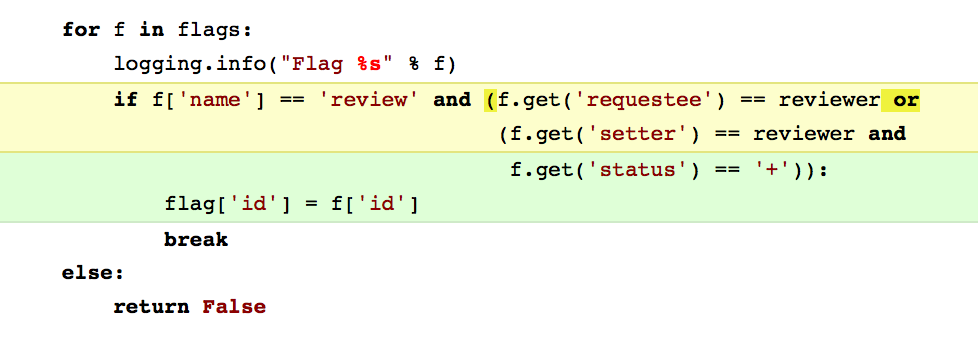

Syntax highlighting, including trailing spaces

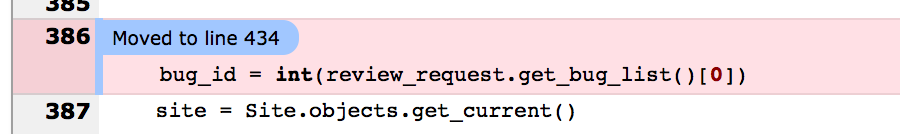

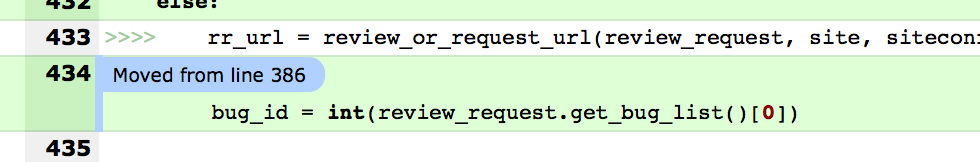

Moved code

Review Board

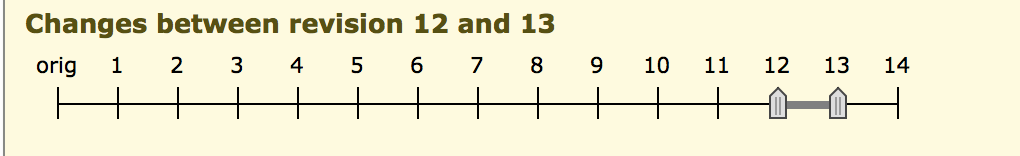

Interdiffs that actually work

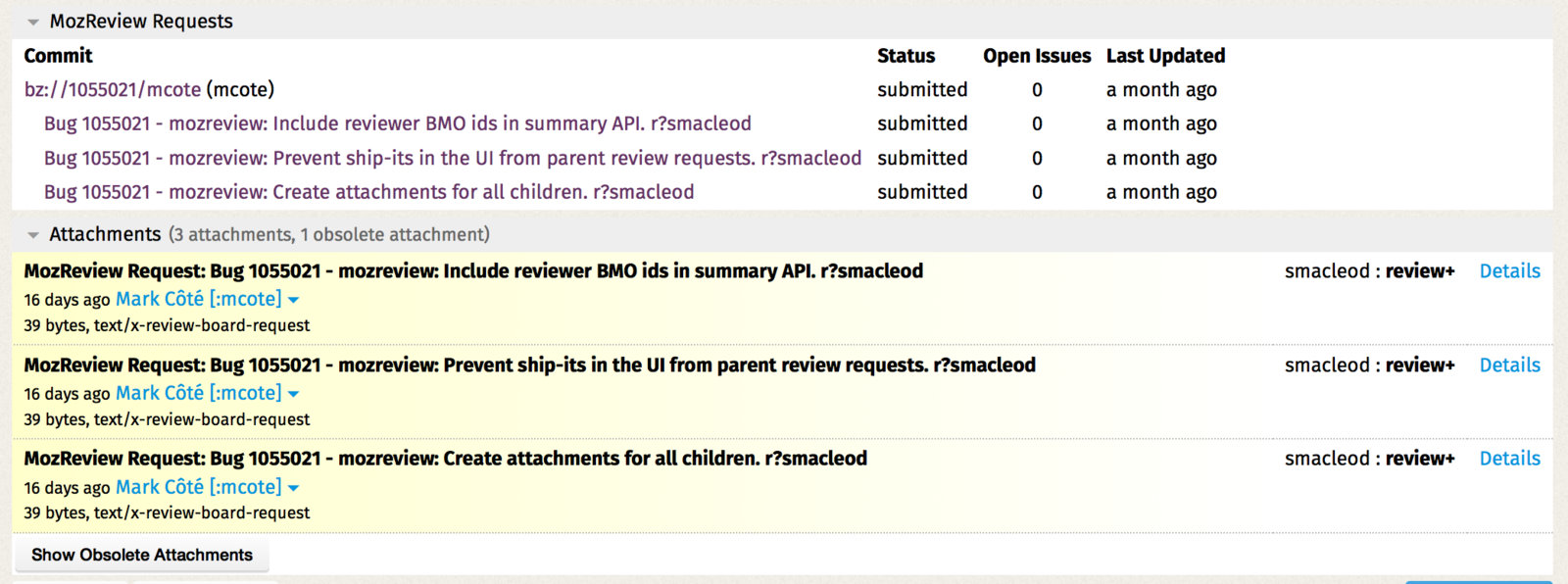

Integrated with Bugzilla

Working with commits

Commits are pushed to a review repo as they would be pushed to try or the repository of record



Three categories of benefits:

  • operations on commits
  • movement of commits
  • improvements to workflow

Operating on commits

Some things are easier to do in commits within the context of the whole repository than in isolated, contextless patches

Actions can be done by the review server based on in-tree metadata

  • Automatic bug filing
  • Automatic reviewer selection

Operating on commits

Automatic code-style analysis and/or reformatting saves reviewer time

Operating on commits

Reviewers edit code directly (annotations/suggestions) rather than describing changes

Automatically set commit metadata: link to review, list of reviewers

Moving commits

Pushing to the review repo is the same as pushing to repo of record. No more exporting patches

Moving commits around is much easier than applying patches

Pulling patches into your local working environment is the same as pulling from the repo of record. No more importing patches—and no more bitrot in testing.

And of course, autoland

Workflow improvements

Encourages (or at least does not discourage) microcommits: small, independent change sets

Makes reviewing easier and faster

Workflow improvements

Allows partial landings

Avoids bitrot

Chopping work into small pieces leads to less potential instability (not everything landing at once)

Rewards developers in the form of progress

Workflow improvements

Detect when commits can't cleanly apply

Detect when multiple commits touch the same files

Anticipate problems

We're constantly improving it

MozReview isn't perfect

http://mozilla-version-control-tools.readthedocs.org/en/latest/mozreview.html
