A first look at bridging choice modeling and agent-based microsimulation in MATSim

Sebastian Hörl (presenting)

Milos Balac

Kay W. Axhausen



ABTMRANS Workshop 2018

Best paper award


Porto, 11 May 2018

Initial Idea

  • Much work and effort put into choice modeling at IVT



  • Discrete choice models are readily available
    • Microcensus on Transport and Mobility
    • Autonomous vehicles



  • How to make use of them in MATSim?

Example: Multinomial logit model

P(k) = \frac{\exp(u_k)}{\sum_i \exp(u_i)}
P(k)=exp(uk)iexp(ui)P(k) = \frac{\exp(u_k)}{\sum_i \exp(u_i)}
u_{walking} = ?
uwalking=?u_{walking} = ?
u_{cycling} = ?
ucycling=?u_{cycling} = ?
u_{car} = ?
ucar=?u_{car} = ?
u_{pt} = ?
upt=?u_{pt} = ?

Making discrete choices

  • Score (utility) for each available
    choice with deterministic and
    random component




  • Choice model




  • Choice sampling



U_i=V_i+\epsilon_i
Ui=Vi+ϵiU_i=V_i+\epsilon_i
k = \text{argmax}_i \{ U_i,...,U_N \}
k=argmaxi{Ui,...,UN}k = \text{argmax}_i \{ U_i,...,U_N \}
P(k) = \frac{\exp(U_k)}{\sum_i \exp(U_i)}
P(k)=exp(Uk)iexp(Ui)P(k) = \frac{\exp(U_k)}{\sum_i \exp(U_i)}

Making discrete choices

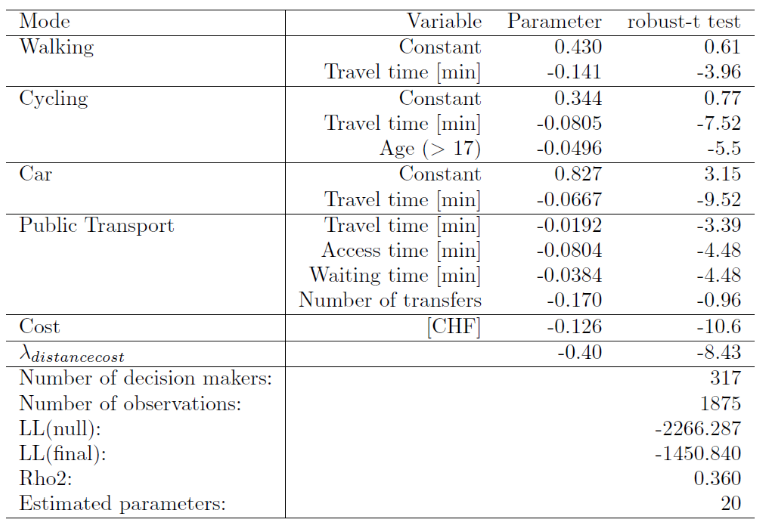

Making discrete choices

  • Walking
    • Travel Time:

  • Cycling
    • Travel Time:

  • Car
    • Travel Time:
    • Cost:
  • Public Transport
    • Travel Time:
    • Access Time:
    • Waiting Time:
    • Number of transfers:
    • Cost:





V_{walking} = ?
Vwalking=?V_{walking} = ?
V_{cycling} = ?
Vcycling=?V_{cycling} = ?
V_{car} = ?
Vcar=?V_{car} = ?
V_{pt} = ?
Vpt=?V_{pt} = ?

Making discrete choices

V_{walking} = ?
Vwalking=?V_{walking} = ?
V_{cycling} = ?
Vcycling=?V_{cycling} = ?
V_{car} = ?
Vcar=?V_{car} = ?
V_{pt} = ?
Vpt=?V_{pt} = ?
P(walking) = ?
P(walking)=?P(walking) = ?
P(cycling) = ?
P(cycling)=?P(cycling) = ?
P(car) = ?
P(car)=?P(car) = ?
P(pt) = ?
P(pt)=?P(pt) = ?

Making discrete choices

  • Probabilistic choice interpretation


  • More complex models available
    • Nested Logit
    • Mixed Logit
    • ...



Mode choice in MATSim

Almost purely random proposition of new plan

Score-based selection of plan from memory

Simulation

Scoring

Clean-up of worst plans until N are left

Initial execution is

necessary before

selection makes sense

First idea of integration

  • Selection between chains

  • Two components:
    1. Choice set generation
    2. A priori mode choice based on estimated travel characteristics

Choice set generation

  • Obtain the set of all possible chains of modes for a given chain of trips with origin and destination
    • Constrained by agent-level attributes (e.g. car availability)
    • Constrained by continuity constraints (e.g. vehicle location)

  • Maximum set:

  • Feasible set:
|\mathcal{C}| = M^N
C=MN|\mathcal{C}| = M^N
|\mathcal{C}_f \subset \mathcal{C}| = M^N - q
CfC=MNq|\mathcal{C}_f \subset \mathcal{C}| = M^N - q

Choice set generation

\mathcal{C} = \left\{ (\text{walk}, \text{walk}, \text{walk}, \text{walk}, \text{walk}), ... \right\}
C={(walk,walk,walk,walk,walk),...}\mathcal{C} = \left\{ (\text{walk}, \text{walk}, \text{walk}, \text{walk}, \text{walk}), ... \right\}

Start

Choice set generation

\mathcal{C} = \left\{ (\text{walk}, \text{walk}, \text{walk}, \text{walk}, \text{walk}), \right.
C={(walk,walk,walk,walk,walk),\mathcal{C} = \left\{ (\text{walk}, \text{walk}, \text{walk}, \text{walk}, \text{walk}), \right.
\left. (\text{car}, \text{car}, \text{car}, \text{car}, \text{car}), ... \right\}
(car,car,car,car,car),...}\left. (\text{car}, \text{car}, \text{car}, \text{car}, \text{car}), ... \right\}

Start

Choice set generation

\mathcal{C} = \left\{ (\text{walk}, \text{walk}, \text{walk}, \text{walk}, \text{walk}), \right.
C={(walk,walk,walk,walk,walk),\mathcal{C} = \left\{ (\text{walk}, \text{walk}, \text{walk}, \text{walk}, \text{walk}), \right.
\left. (\text{car}, \text{car}, \text{car}, \text{car}, \text{car}), \right.
(car,car,car,car,car),\left. (\text{car}, \text{car}, \text{car}, \text{car}, \text{car}), \right.
\left. (\text{car}, \text{walk}, \text{public transit}, \text{car}, \text{car}), ... \right\}
(car,walk,public transit,car,car),...}\left. (\text{car}, \text{walk}, \text{public transit}, \text{car}, \text{car}), ... \right\}

Start

Selection procedure

  • Problem: How to use a trip-based mode choice model for a whole chain?
  • Three (imperfect) approaches
\tilde u_k = \sum_i u_{k,i}(\theta_{k,i})
u~k=iuk,i(θk,i)\tilde u_k = \sum_i u_{k,i}(\theta_{k,i})
k = \text{argmax}_k \left \{ \tilde u_1, ..., \tilde u_K \right \}
k=argmaxk{u~1,...,u~K}k = \text{argmax}_k \left \{ \tilde u_1, ..., \tilde u_K \right \}
\tilde z_k = \sum_i u_{k,i} + \epsilon_{k,i}
z~k=iuk,i+ϵk,i\tilde z_k = \sum_i u_{k,i} + \epsilon_{k,i}

Best response selection

k = \text{argmax}_k \left \{ \tilde z_1, ..., \tilde z_K \right \}
k=argmaxk{z~1,...,z~K}k = \text{argmax}_k \left \{ \tilde z_1, ..., \tilde z_K \right \}

Total chain utility sampling

k \sim \text{Cat}(\tilde \pi_1, ..., \tilde \pi_K)
kCat(π~1,...,π~K)k \sim \text{Cat}(\tilde \pi_1, ..., \tilde \pi_K)

Naive chain sampling

with

\epsilon_{k,i} \sim \text{Gumbel}
ϵk,iGumbel\epsilon_{k,i} \sim \text{Gumbel}

and

\tilde \pi_k = \tilde w_k / \left( \sum_{k'} \tilde w_{k'} \right)
π~k=w~k/(kw~k)\tilde \pi_k = \tilde w_k / \left( \sum_{k'} \tilde w_{k'} \right)
\tilde w_k = \prod_i \tilde \pi_{k,i}
w~k=iπ~k,i\tilde w_k = \prod_i \tilde \pi_{k,i}
\tilde \pi_{k,i} = \mathbb{P}(\hat \theta_{k,i})
π~k,i=P(θ^k,i)\tilde \pi_{k,i} = \mathbb{P}(\hat \theta_{k,i})

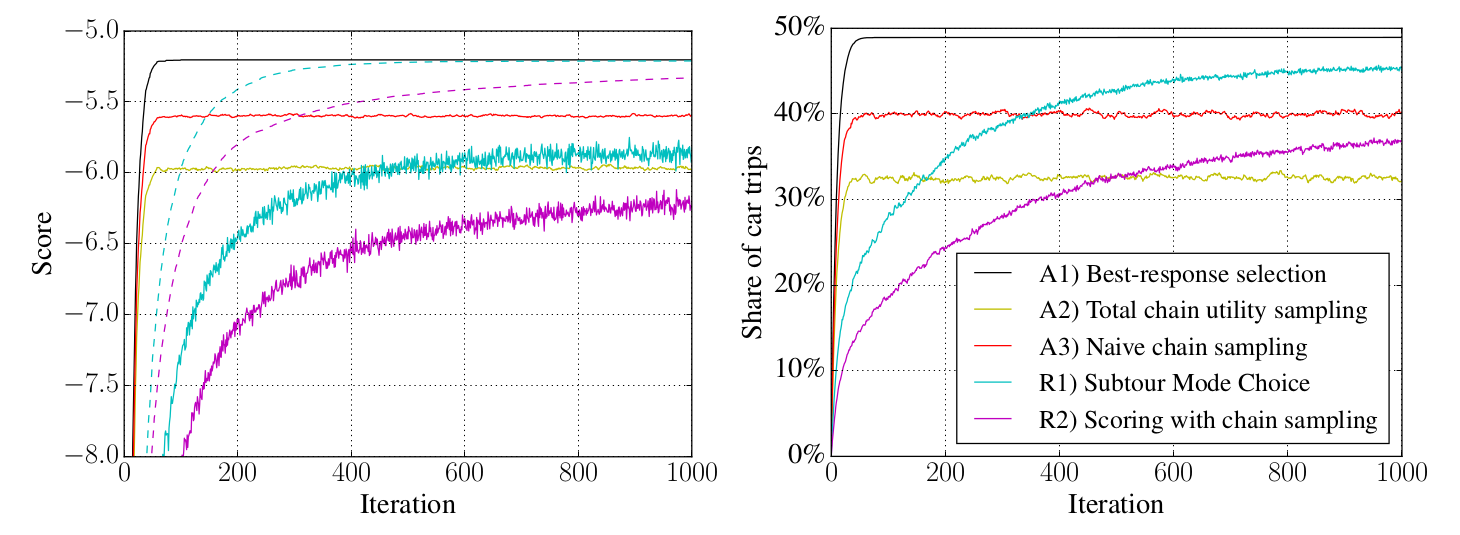

First simulation results

  • Teleportation-based simulation
    • Best-response is upper bound
    • Fast convergence for tested approaches vs SMC

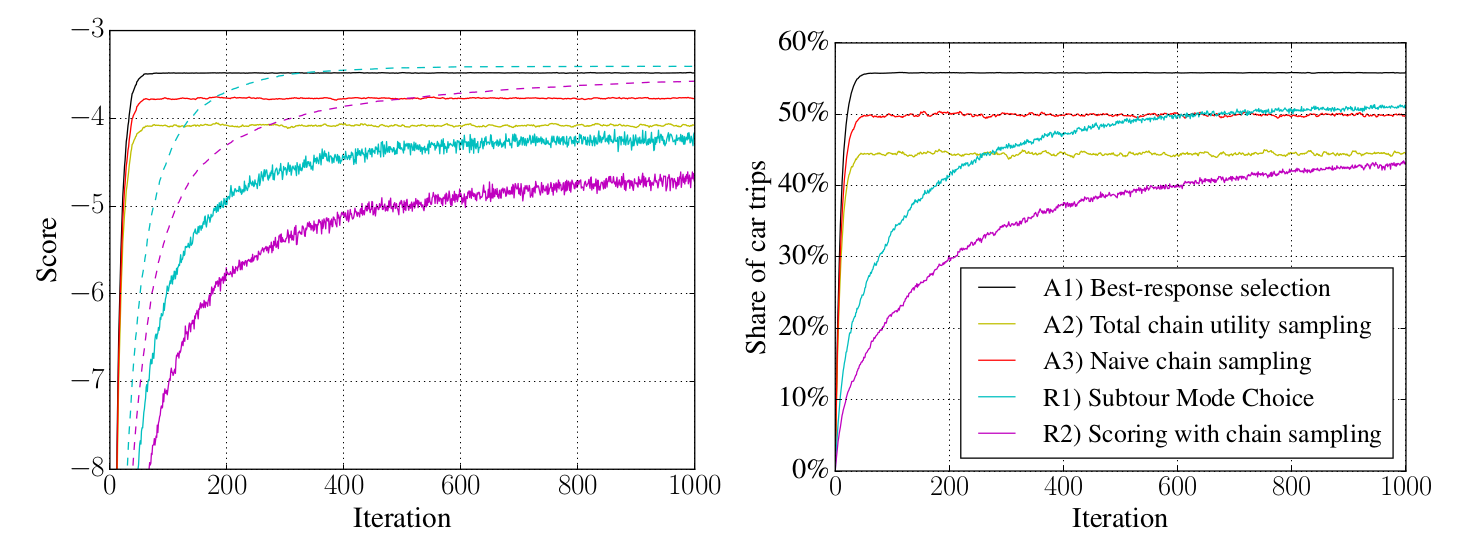

First simulation results

  • Network-based simulation
    • Best-response is not upper bound

Conclusions from our experiment

  • Questionable to draw conclusions from trip-based model in chain-based environment (MATSim)

  • Choice model makes life easier - we can argue to skip some calibration work, faster convergence

  • Choice model makes life harder - we need to come up with good estimates for the trip characteristics

  • Which one is right?

Mode choice in MATSim

If memory size exceeds limit Then
    - Remove plan with worst score in memory

    If the removed plan was selected Then
        - Select random plan from the remaining ones

    End If

End If

- Choose a strategy by probability (given whether innovation is already turned off)


If chosen strategy is a selection strategy:
    - Select new plan from existing ones according to strategy

Else (it is an innovation strategy)
    - Copy a random plan from the existing ones and set as selected plan
    - Apply mutation strategy to the newly selected plan

End If

Some thoughts on choice making in MATSim

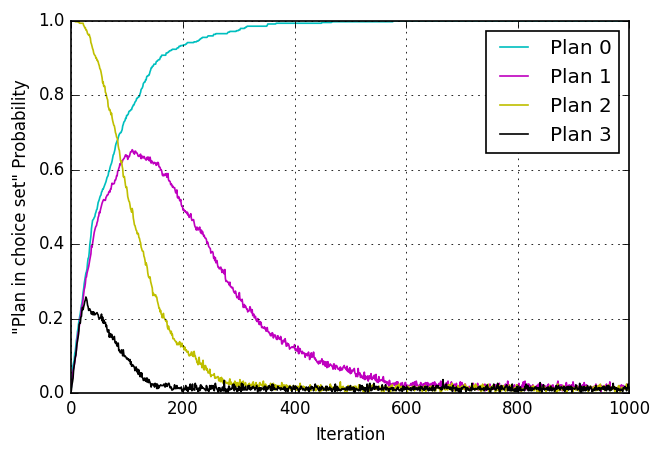

  • Imagine a MATSim run without innovation
    • Choice set per agent is changed continuously

    • Worst plan removal strategy has biggest influence on the procession of the choice set

    • Choice set collapses for high number of iterations

    • Finally, M plans with momentarily best score for the agent = (Stochastic) User Equilibrium

Some thoughts on choice making in MATSim

  • Except, there is innovation
    • Random new plan in X% of iterations (e.g. every 20th)
    • Early stopping after N iterations to maintain variability

  • So ...
    • MATSim is a global search algorithm for the UE
    • MATSim stops optimizing early to maintain a notion of a discrete plan choice

Short detour: One-agent toy examples

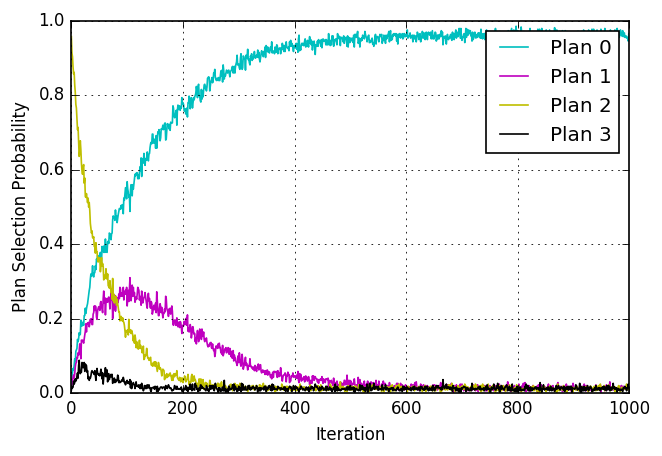

  • Numerical experiment: One agent, four plans with predefined utilities
  • Run MATSim selection / innovation procedure

Short detour: One-agent toy examples

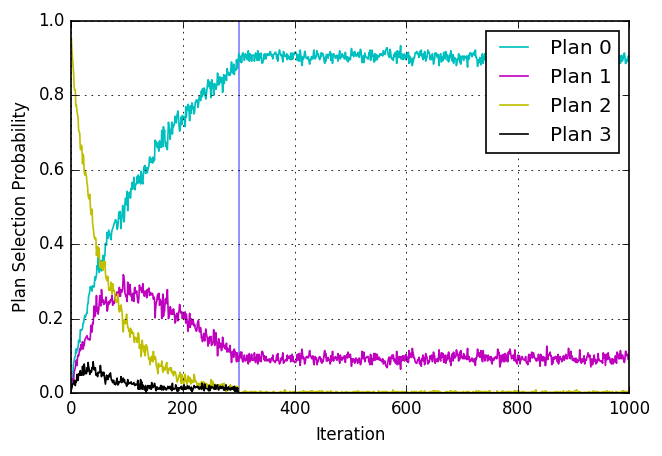

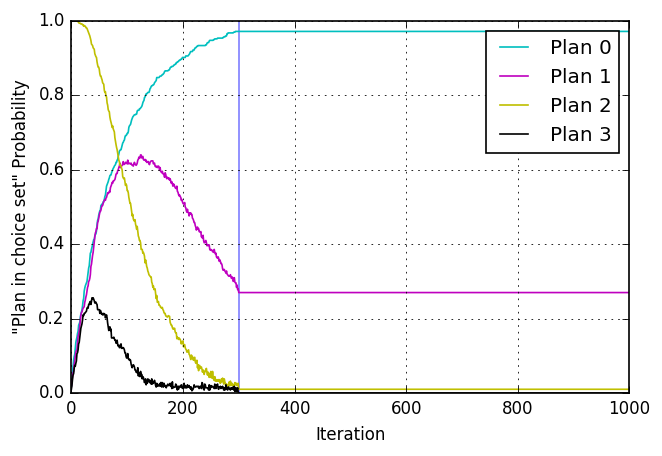

  • Now without innovation after 300 iterations

The best of both worlds?

Model-based proposition of plans

MATSim scoring and selection

Estimates (model input)

Sampling of relevant alternatives

  • Improves convergence

  • Avoids "innovation turn-off"

  • May introduce bias through estimates
  • Maintains stability



  • Compensates for estimation bias

The best of both worlds?

Model-based proposition of plans

MATSim scoring and selection

Estimates (model input)

Sampling of relevant alternatives

  • Condition: Any feasible can be sampled with non-zero probability

  • The code is there (for mode choice)
    • Chain sampler is available, scoring framework is available
    • MATSim choice procedure is available

Can we do better?

  • Why evolutionary algorithm? Notouriously hard to treat theoretically.

  • We have:
    • Prior score (during plan sampling)
    • Posterior score (after simulation)

  • Apply any rejection sampling approach (simulated annealing, Metropolis Hastings) on one plan per agent




  • Natural convergence measure: Prior score vs. posterior score

Propose plan

Simulate plan

Score plan

Accept / Reject plan

a(s,s')=\max(1, \exp((s' - s)/\sigma))
a(s,s)=max(1,exp((ss)/σ))a(s,s')=\max(1, \exp((s' - s)/\sigma))
