en 2018

Vincent Ogloblinsky

Frontend software architect

Agenda

2.

Caractéristiques

3.

Outils

4.

Avantages / inconvénients

5.

Erreurs à éviter

1.

Contexte

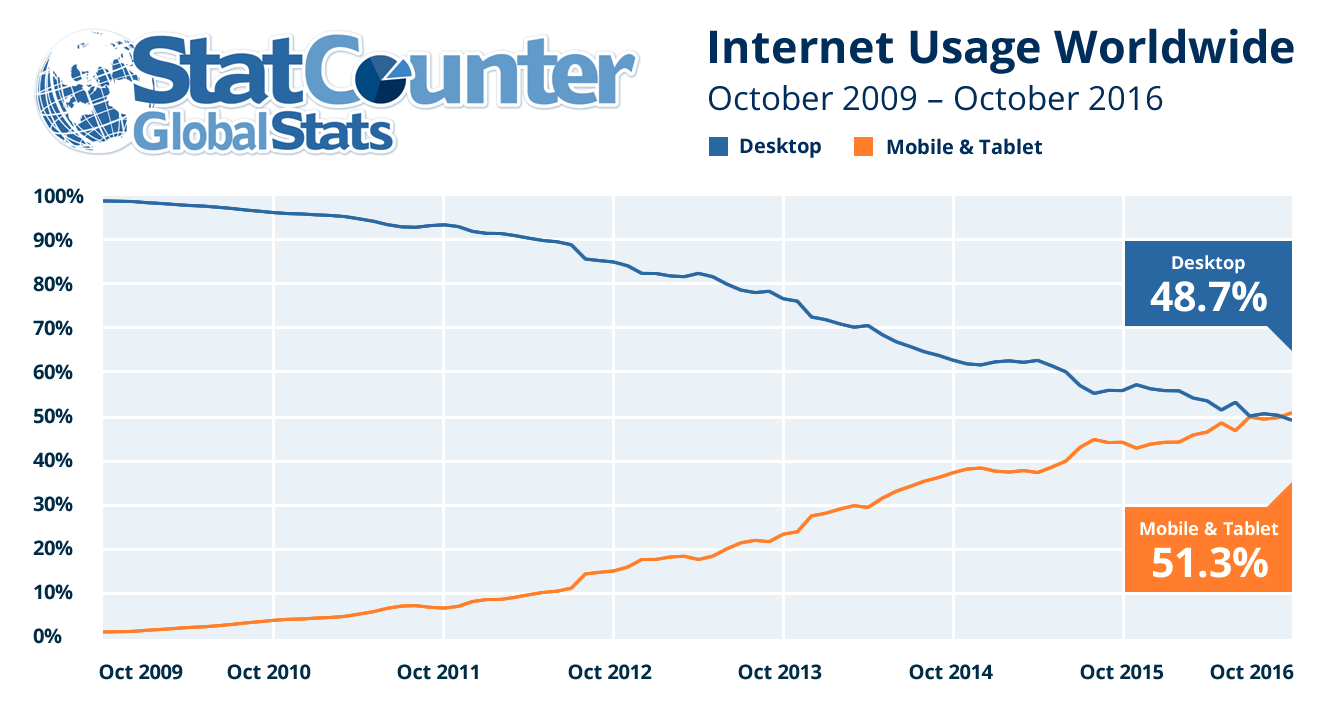

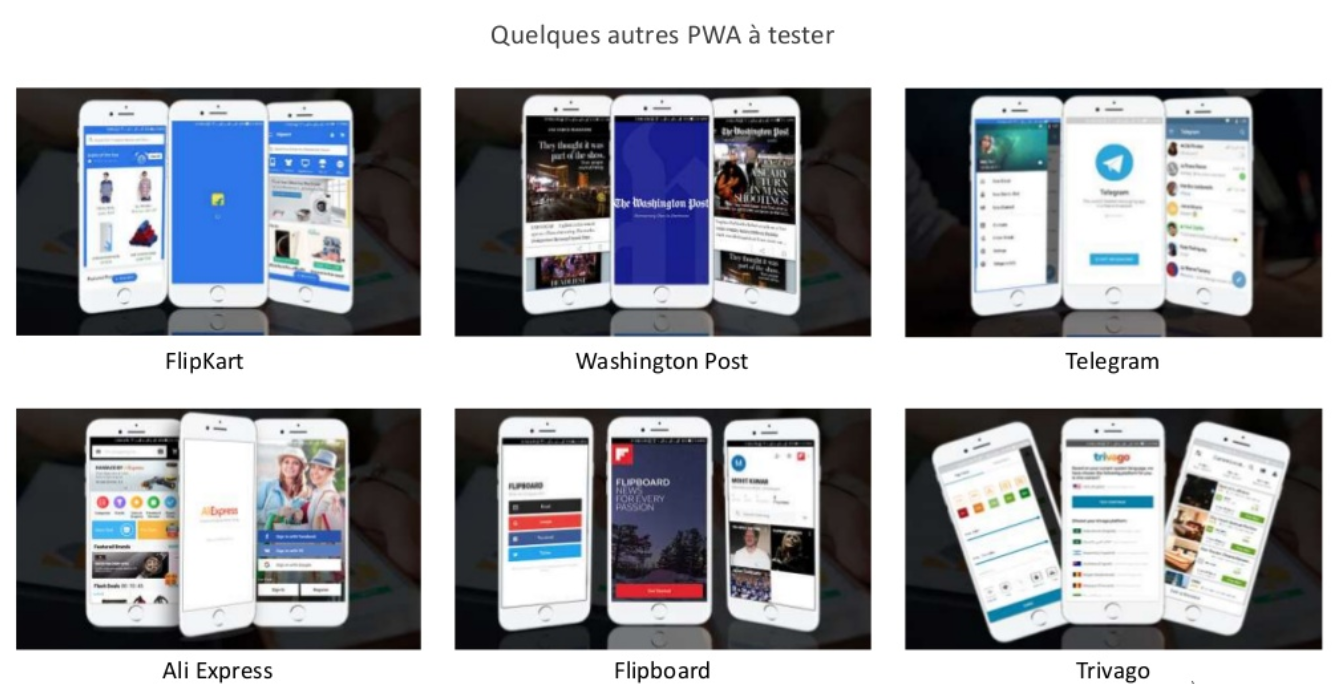

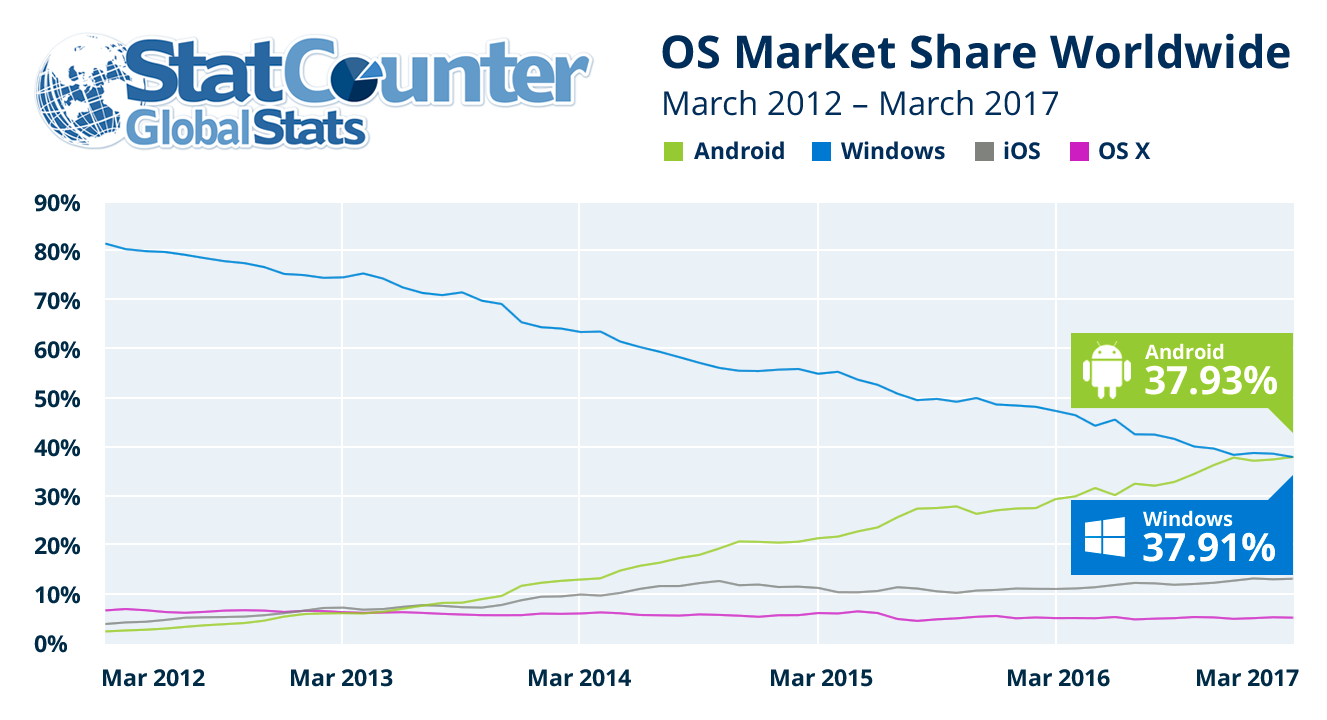

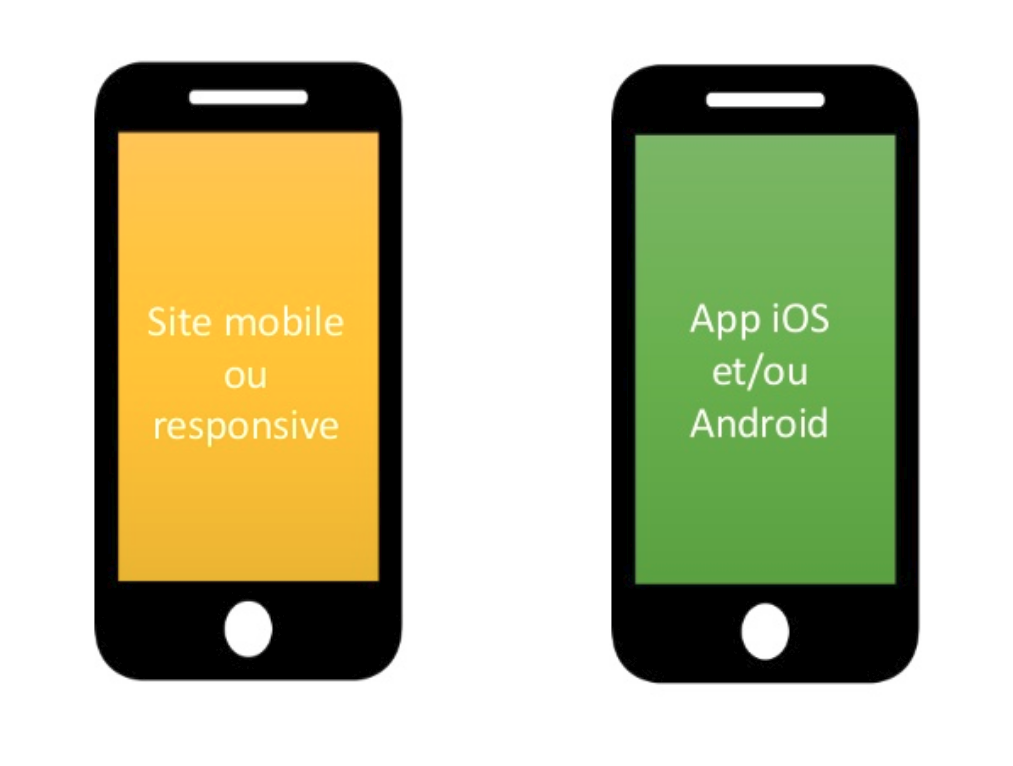

Contexte

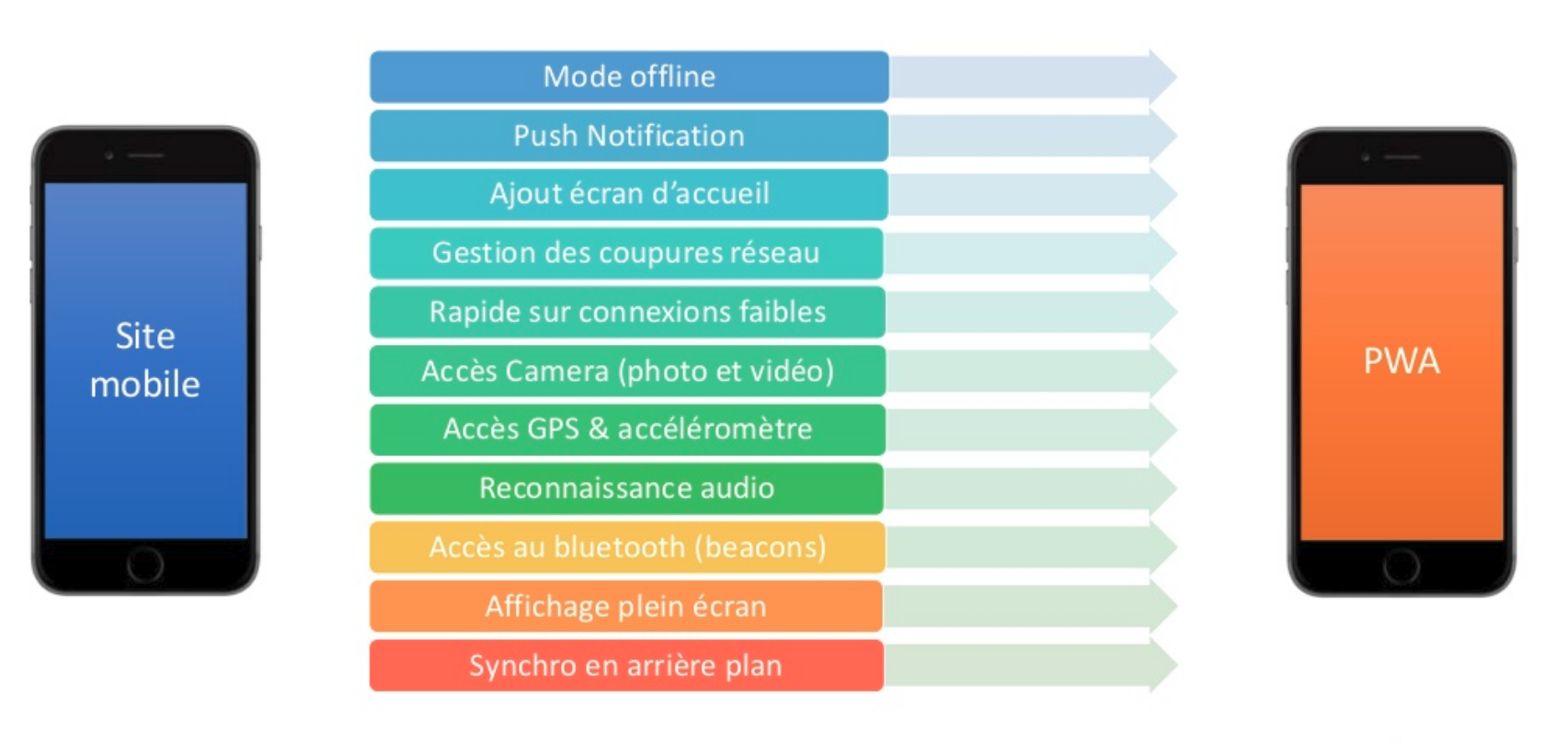

Caractéristiques

FIRE

Fast

Integrated

Reliable

Engaging

Fast

Integrated

Reliable

Engaging

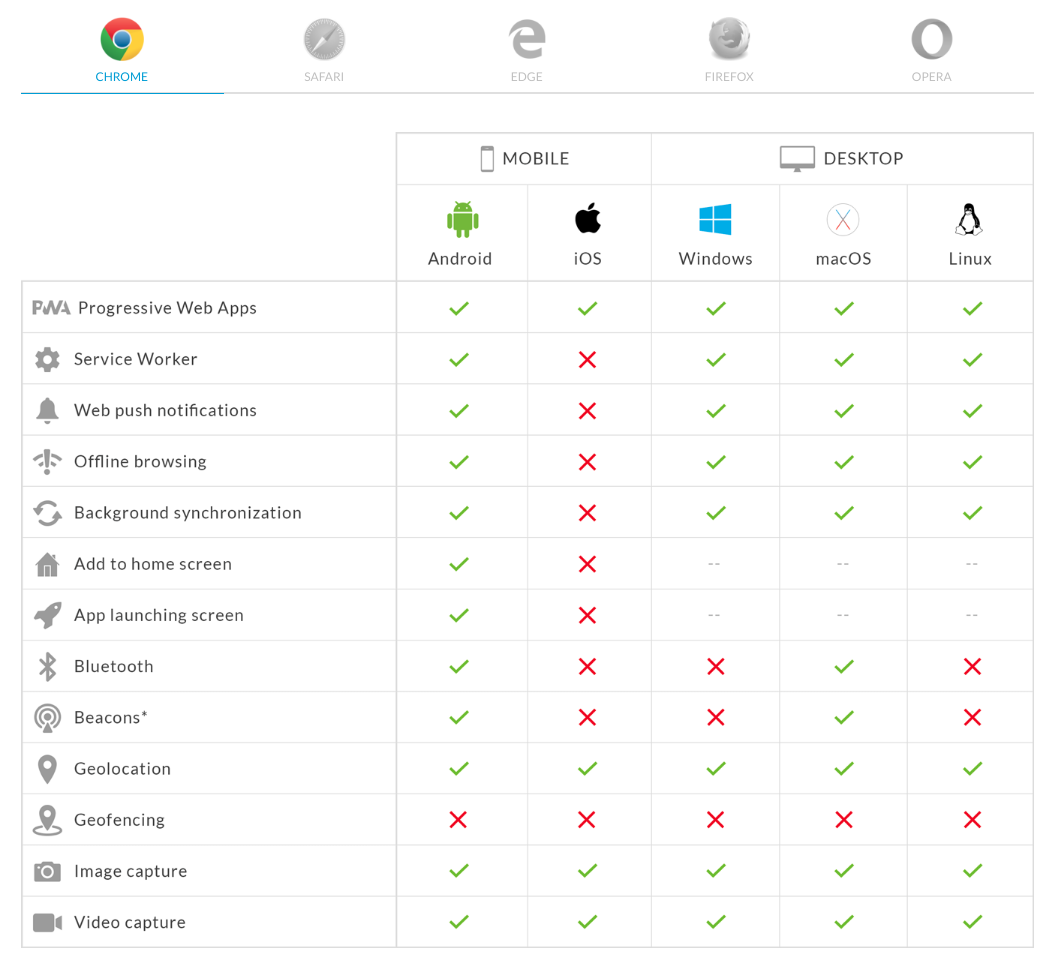

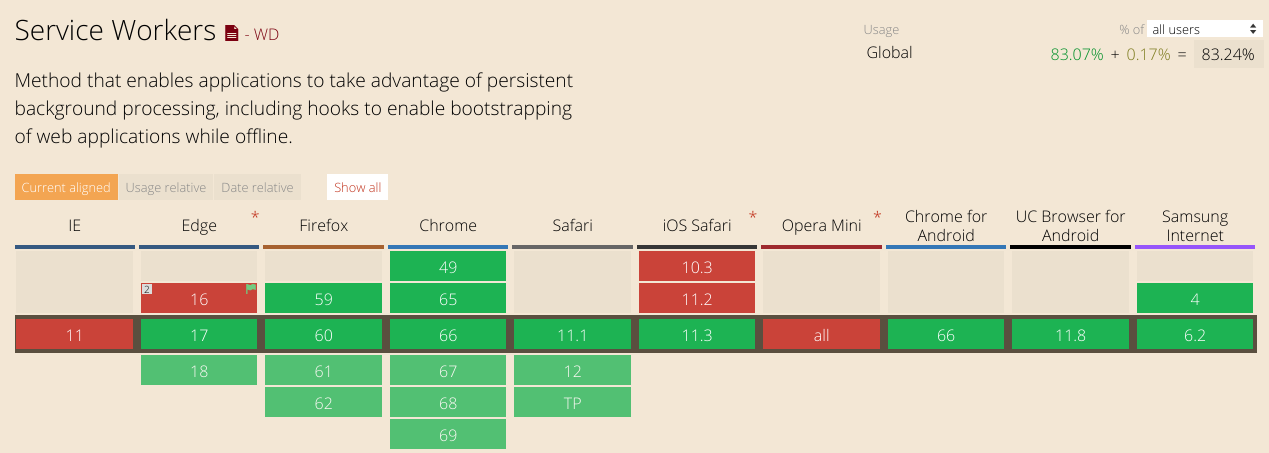

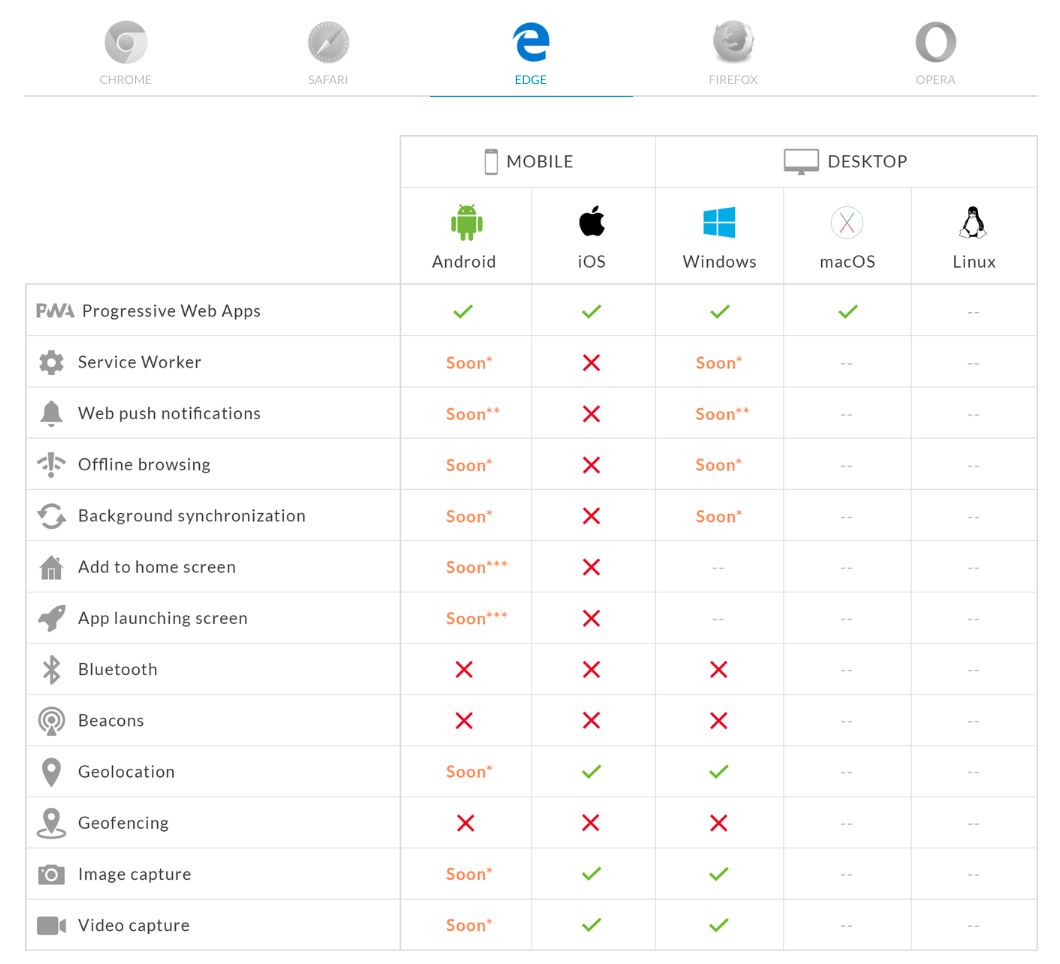

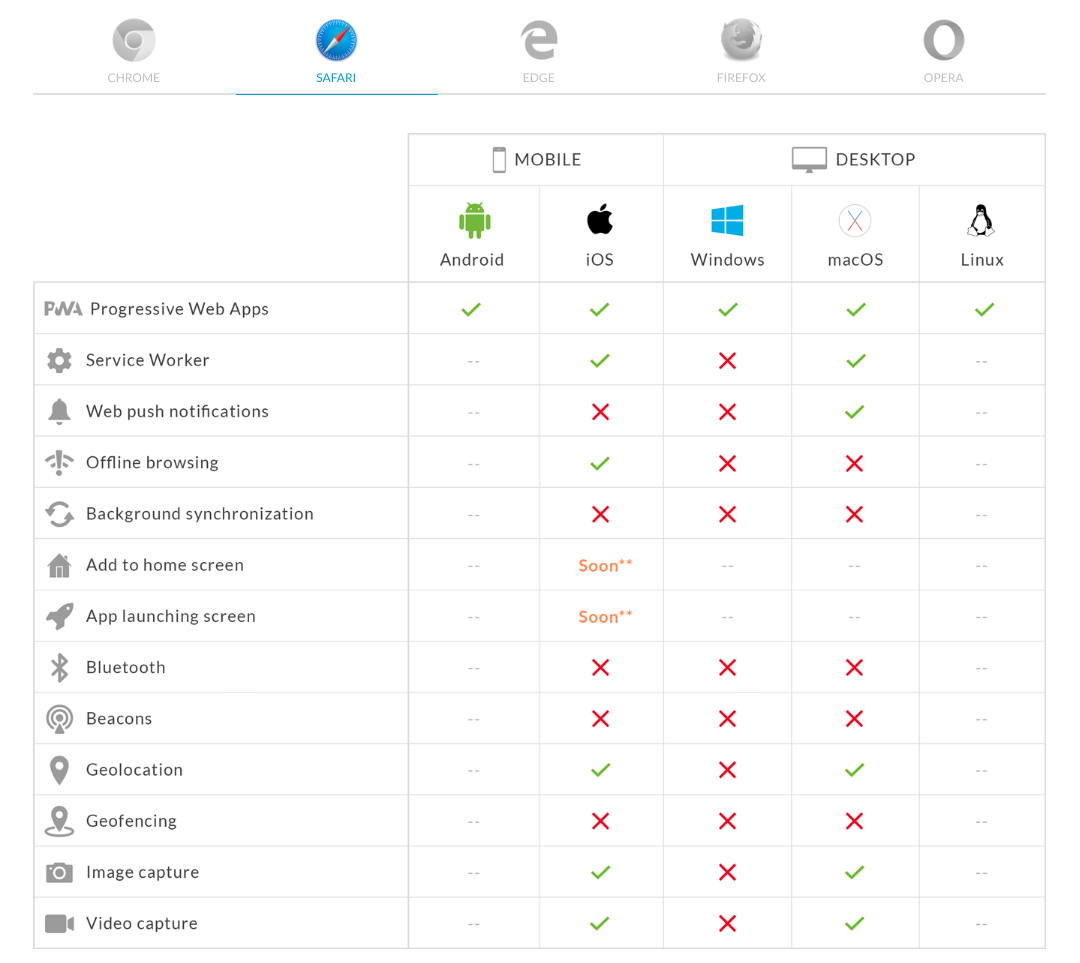

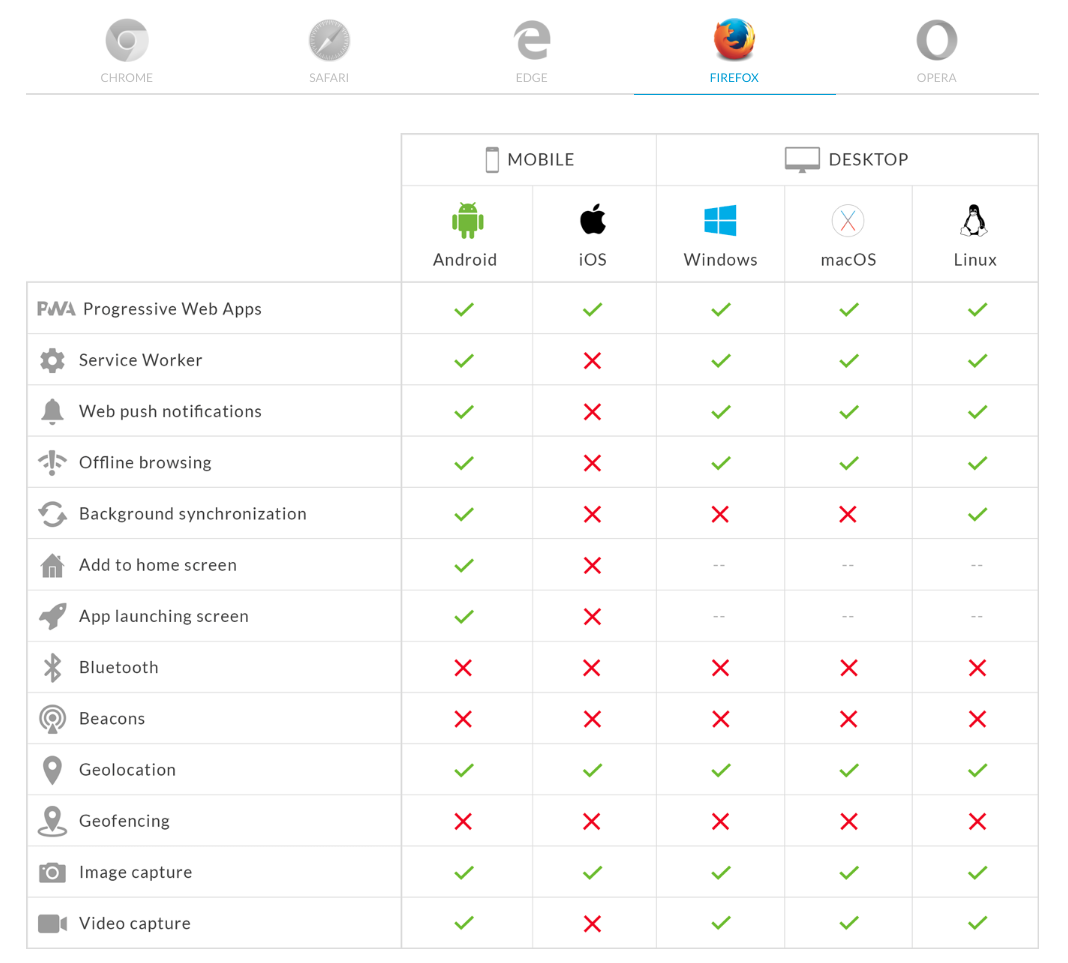

Support OS

Support OS

Support OS

Support OS

Support OS

Les 3 caractéristiques techniques

App shell

Manifest

Service worker

App shell

Manifest

{
  "name": "Funny App",
  "short_name": "Funny App",
  "lang": "fr-FR",
  "start_url": "/",
  "display": "fullscreen",
  "theme_color": "#3c3c3c"
}



<link rel="manifest" href="manifest.json">

<meta name="mobile-web-app-capable" content="yes">
<meta name="apple-mobile-web-app-capable" content="yes">
<meta name="application-name" content="Funny App">
<meta name="apple-mobile-web-app-title" content="Funny App">
<meta name="theme-color" content="#3c3c3c">
<meta name="msapplication-navbutton-color" content="#3c3c3c">
<meta name="apple-mobile-web-app-status-bar-style" content="black-translucent">
<meta name="msapplication-starturl" content="/">
<meta name="viewport" content="width=device-width, initial-scale=1, shrink-to-fit=no">

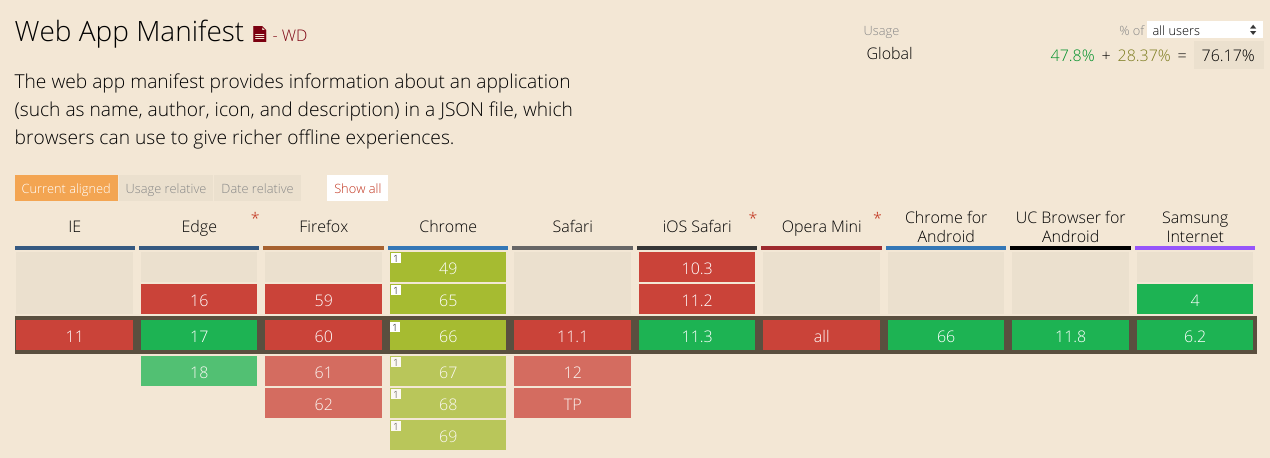

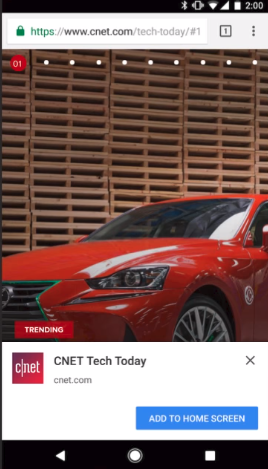

Manifest

En développement pour Firefox et Safari

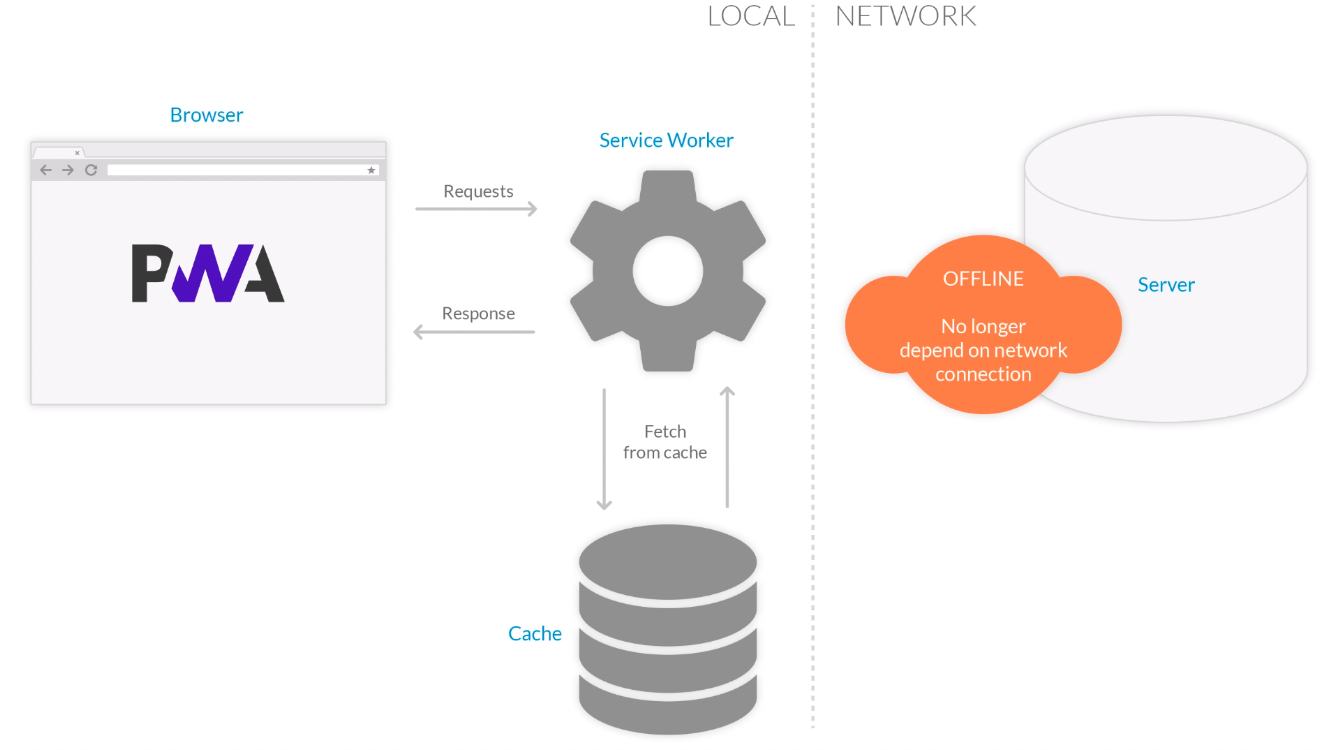

Service worker

Script exécuté en background



Offline



Notifications

Service worker

Service worker

Service worker

Service worker

Service worker

Parsed

/* In main.js */
if ('serviceWorker' in navigator) {
	navigator.serviceWorker.register('./sw.js')
	.then(function(registration) {
		console.log("Service Worker Registered", registration);
	})
	.catch(function(err) {
		console.log("Service Worker Failed to Register", err);
	})
}

Service worker

Installing

/* In main.js */
navigator.serviceWorker.register('./sw.js').then(function(registration) {
    if (registration.installing) {
        // Service Worker is Installing
    }
})

/* In sw.js */
self.addEventListener('install', function(event) {
  event.waitUntil(
    caches.open(currentCacheName).then(function(cache) {
      return cache.addAll(arrayOfFilesToCache);
    })
  );
})

Service worker

Installed / waiting

/* In main.js */
navigator.serviceWorker.register('./sw.js').then(function(registration) {
    if (registration.waiting) {
        // Service Worker is Waiting
    }
})

Service worker

Activating

/* In sw.js */
self.addEventListener('activate', function(event) {
  event.waitUntil(
    // Get all the cache names
    caches.keys().then(function(cacheNames) {
      return Promise.all(
        // Get all the items that are stored under a different
        // cache name than the current one
        cacheNames.filter(function(cacheName) {
          return cacheName != currentCacheName;
        }).map(function(cacheName) {
          // Delete the items
          return caches.delete(cacheName);
        })
      ); // end Promise.all()
    }) // end caches.keys()
  ); // end event.waitUntil()
});

Service worker

Activated

/* In main.js */
navigator.serviceWorker.register('./sw.js').then(function(registration) {
    if (registration.active) {
        // Service Worker is Active
    }
})

/* In sw.js */

self.addEventListener('fetch', function(event) {
  // Do stuff with fetch events
});

self.addEventListener('message', function(event) {
  // Do stuff with postMessages received from document
});

Service worker

Stratégies de cache : network only

Cas d'usage : ce qui ne peut être mis en cache

self.addEventListener('fetch', function(event) {
  event.respondWith(fetch(event.request));
  // or simply don't call event.respondWith, which
  // will result in default browser behaviour
});

Stratégies de cache : cache only

Cas d'usage : ce qui ne change pas souvent

self.addEventListener('fetch', function(event) {
  // If a match isn't found in the cache, the response
  // will look like a connection error
  event.respondWith(caches.match(event.request));
});

Stratégies de cache : cache fallback to network

Cas d'usage : si la fraîcheur n'est pas primordiale

self.addEventListener('fetch', function(event) {
  event.respondWith(
    caches.match(event.request).then(function(response) {
      return response || fetch(event.request);
    })
  );
});

Stratégies de cache : network fallback to cache

Cas d'usage : si la fraîcheur est primordiale

self.addEventListener('fetch', function(event) {
  event.respondWith(
    fetch(event.request).catch(function() {
      return caches.match(event.request);
    })
  );
});

Stratégies de cache : cache then network

Cas d'usage : si la fraîcheur est primordiale

self.addEventListener('fetch', function(event) {
  event.respondWith(
    caches.open('mysite-dynamic').then(function(cache) {
      return fetch(event.request).then(function(response) {
        cache.put(event.request, response.clone());
        return response;
      });
    })
  );
});

Stratégies de cache : generic fallback

Cas d'usage : contenu secondaire

self.addEventListener('fetch', function(event) {
  event.respondWith(
    // Try the cache
    caches.match(event.request).then(function(response) {
      // Fall back to network
      return response || fetch(event.request);
    }).catch(function() {
      // If both fail, show a generic fallback:
      return caches.match('/offline.html');
      // However, in reality you'd have many different
      // fallbacks, depending on URL & headers.
      // Eg, a fallback silhouette image for avatars.
    })
  );
});

Service worker

Outils

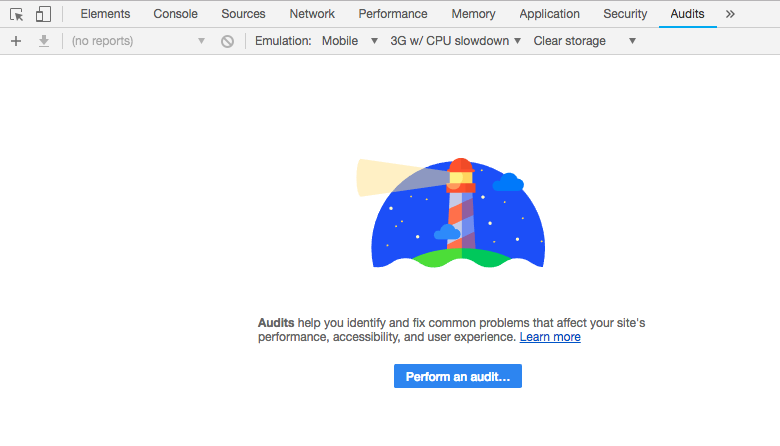

Audit : Lighthouse

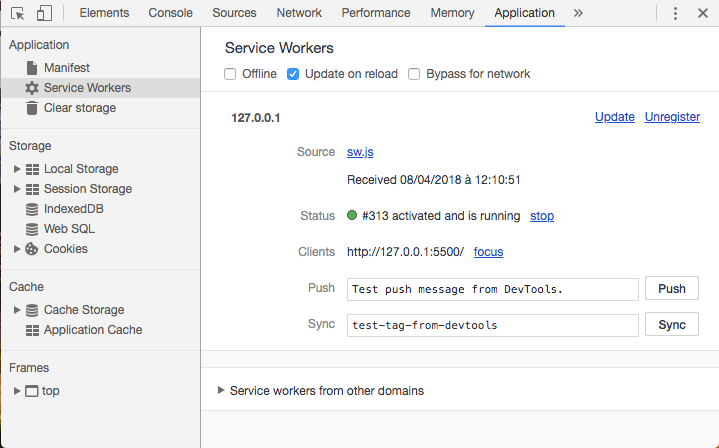

Debug : Devtools

Manifest

PWA Feature detector

Setup : Workbox

- ensemble de librairies pour mettre en place l'offline

- configuration des stratégies de cache

Setup : framework module

@angular/service-worker



@vue/cli-plugin-pwa



...

Frameworks : HNPWA

Outil : GoodBarber

Avantages

Inconvénients

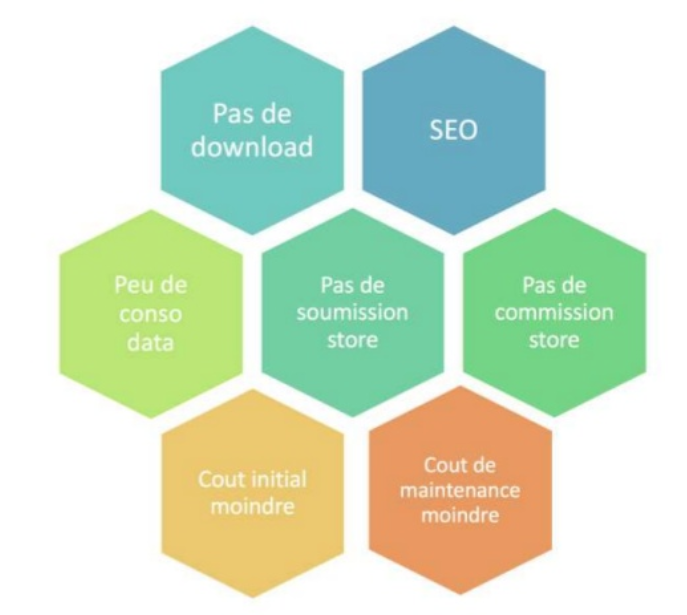

Avantages

Inconvénients

- coût

- technologies jeunes

- compatibilité (iOS / Android)

- limitations hardwares

- sécurité

- authentification partagée impossible

- légitimité utilisateurs

Erreurs à

éviter

Erreurs à éviter

- application lourde et lente

- UI lourde

- négliger les service workers

- ! au offline

News

Chrome 70 : Desktop PWAs on Windows, Linux et macOS avec Chrome 72 début 2019

Windows 10 supports for PWA in store

Merci

Des questions ?
