VM Lab - Esxi

presented by : Wally Wei

what is esxi ?

  • A Hyper-visor by VMware

today's target

  • Create a VM on Esxi
  • Allocate your resources
  • Install OS
  • Modify vswitch to support vlan
  • Modify the Ethernet card to support vlan

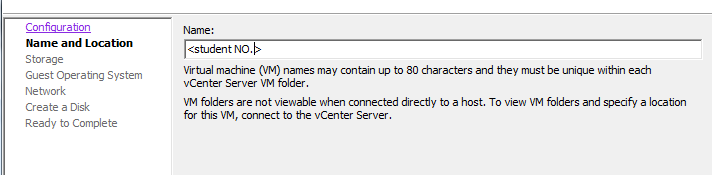

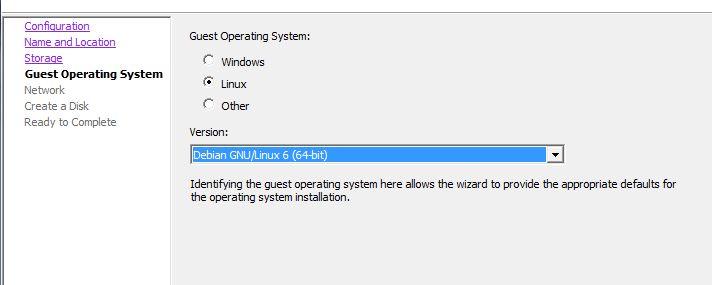

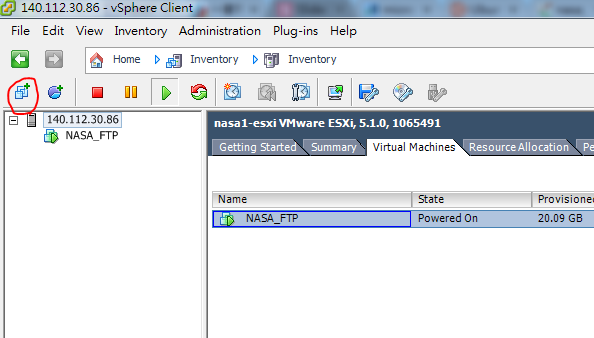

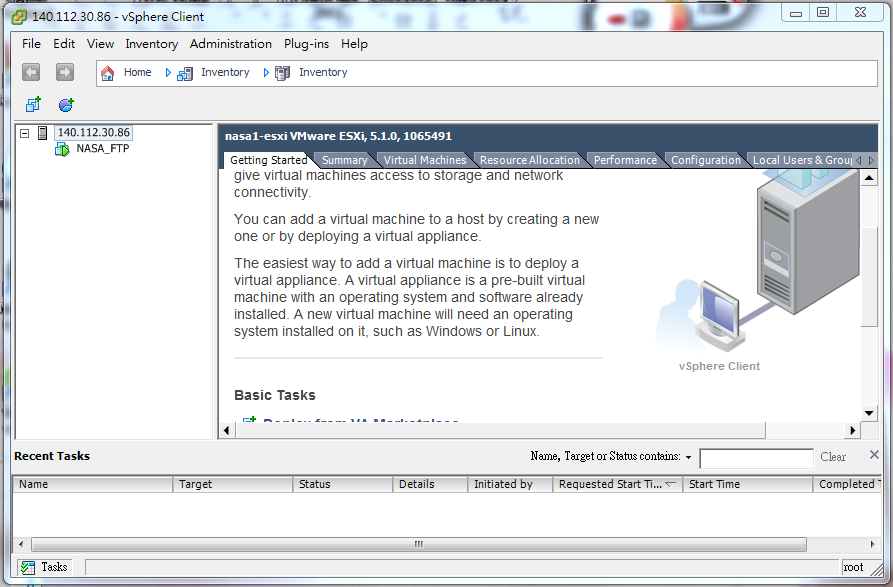

VM on esxi

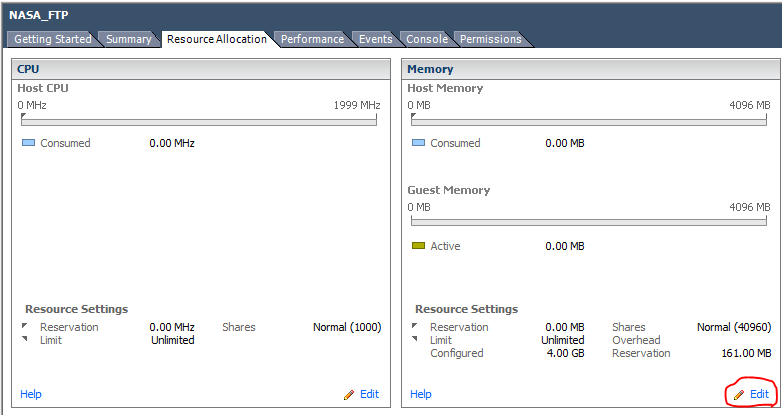

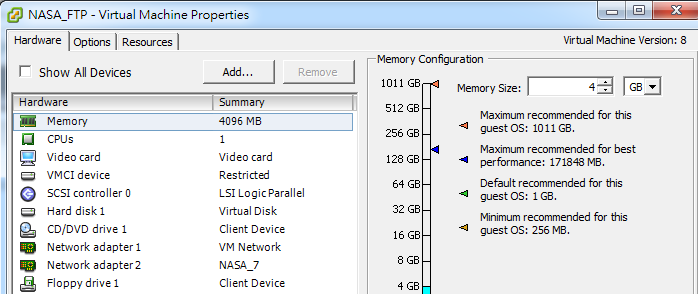

resource allocation

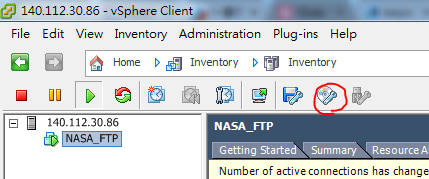

connect to ISO image on a datastore

Install OS

next -> next -> next !!!!


eth0 : dhcp get 192.168.48/49..... ( private dhcp

eth1 : static IP 172.16.219.x netmask
add route default gw !!

x = your seat No.

Thanks for attending the class
