Ariel Feldman

Advised by Dr. Caleb Kemere

A Machine Learning Approach to Predicting Occurrence of Sharp-Wave Ripple Complexes

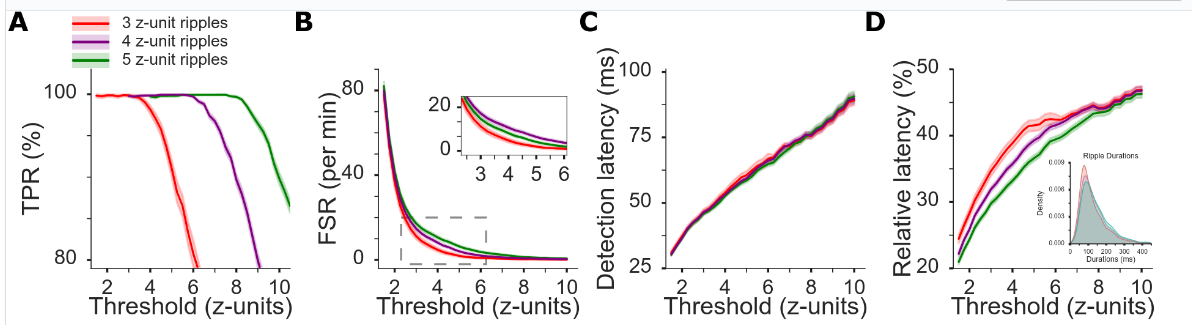

Figure credit: Etienne Ackermann

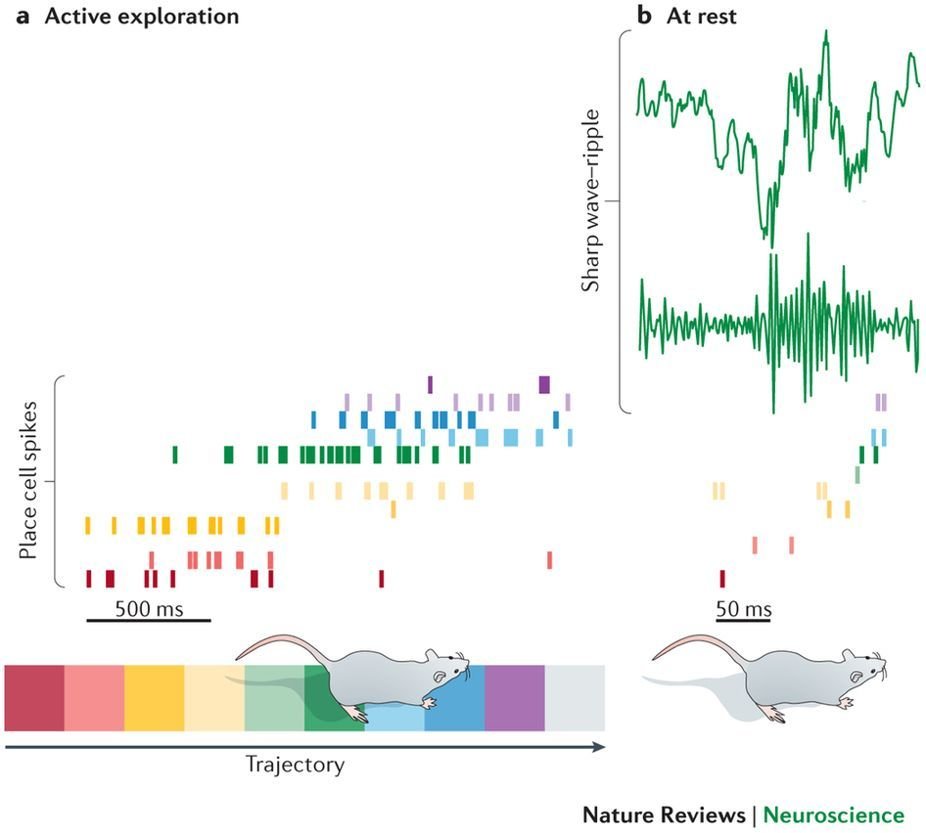

What Are Sharp-Wave Ripples?

Colgin et al. Nature Reviews, 2016

Why Do We Need Prediction?

  • Missing approx. 40 - 60% of the SWR
    • Never interrogated ripple generation
    • Validation of in vivo interaction
  • Research context
    • Interact with memory recall & consolidation
    • Analyze impact on decision-making

Objective

Design Challenges

Goal: Apply machine learning techniques towards building a realtime closed loop SWR disruption system.

  • Anomalous event
    • Ripples happen rarely
    • Complex classification problem
  • Loss value
    • ​Weighting loss misclassifications
    • Custom function
  • Must be realtime applicable

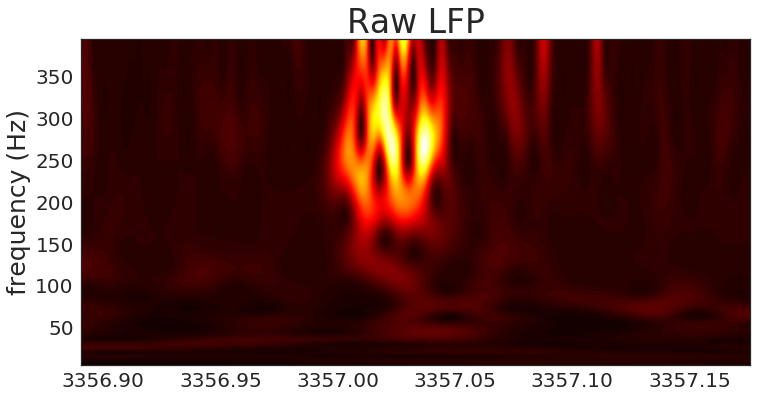

Spectral Domain

Sensitivity

Convolutional vs. Recurrent

\frac{TP}{TP + FN}
\frac{TN}{TN + FP}

Convolutional Architecture

Multi-Layer Perceptron

CA1

CA2

CA3

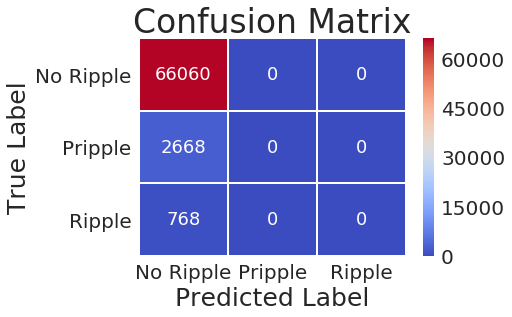

Weighting Misclassification

def sensitivity(y_true, y_pred):
    true_positives = K.sum(K.round(K.clip(y_true * y_pred, 0, 1)))
    possible_positives = K.sum(K.round(K.clip(y_true, 0, 1)))
    return true_positives / (possible_positives + K.epsilon())
def specificity(y_true, y_pred):
    true_negatives = K.sum(K.round(K.clip((1-y_true) * (1-y_pred), 0, 1)))
    possible_negatives = K.sum(K.round(K.clip(1-y_true, 0, 1)))
    return true_negatives / (possible_negatives + K.epsilon())
t = 1
class_weight={
    0:  1,
    1:  len(np.where(dfy_train == 0)[0])/ len(np.where(dfy_train == 1)[0]) * t
}

How Will We Approach This?

  • Ensemble/Cascade Learning
    • Multiple mediocre classifiers
  • Incorporation of Long Short Term Memory
    • Neural signals are time-series
      • ​temporal importance

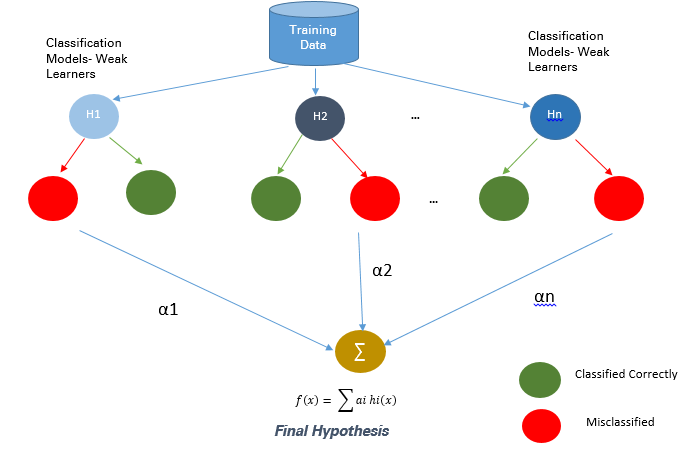

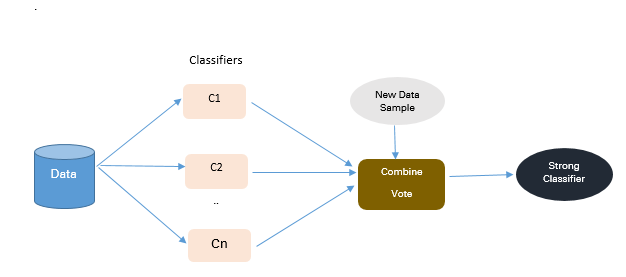

Ensemble Classifiers

Figures from Analytics Vidhya

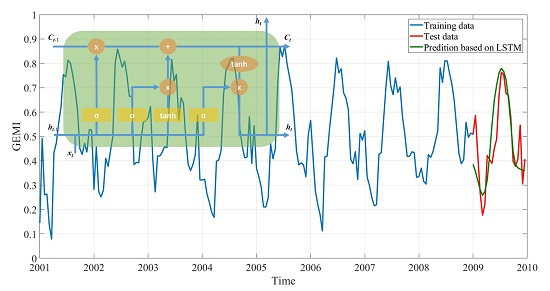

Long Short Term Memory Networks

Figure from MDPI and ACS Style

Why Do We Care?

  • Memory Enhancement
    • ​Cortical p-waves
  • Greater Understanding of Consolidation
    • ​How do we improve learning?
    • Neural basis of memory disorders
  • Post-Traumatic Stress Disorder
    • ​Remove access to specific memories

Acknowledgments

Dr. Caleb Kemere

Shayok Dutta

PhD Candidate, Collaborator

Principal Investigator
