SPECS

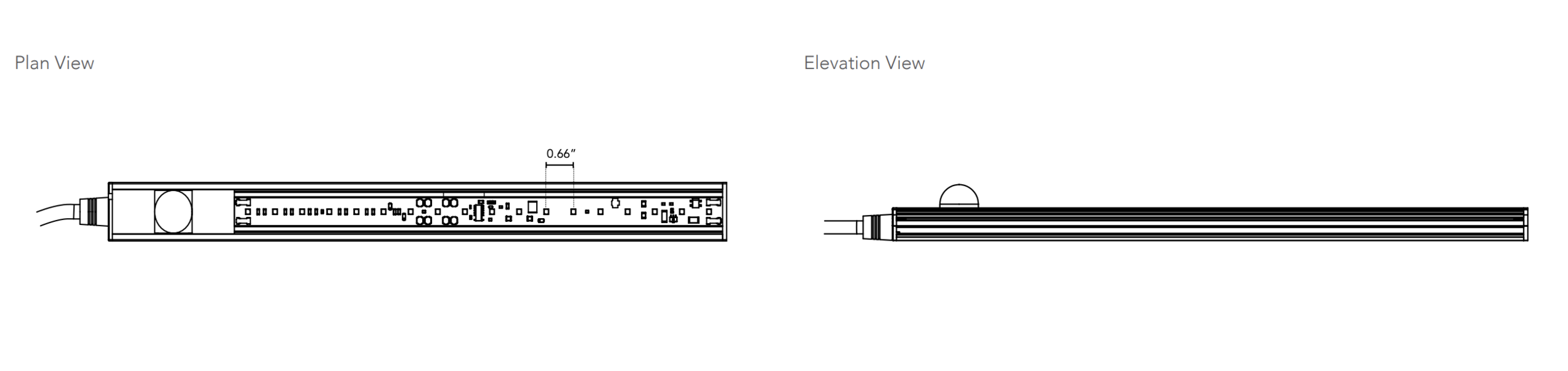

DIMENSIONS

LUMINAIRE INFORMATION

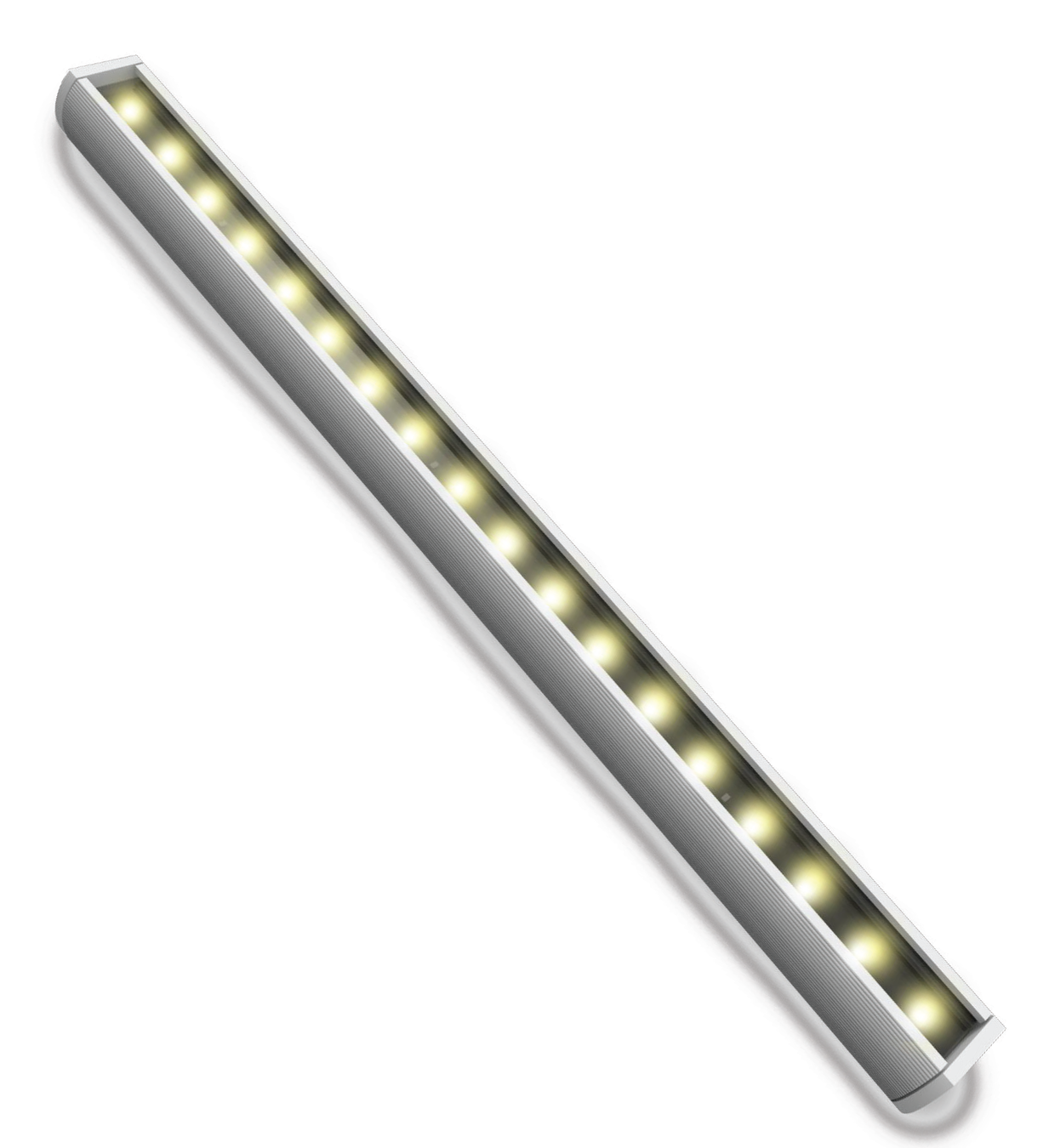

· Compact, variable light fixture.

· Fixture comes in 4” increments with a 12” minimum.

· Uses standard line voltage dimming.

· Total linear feet per power feed (6W): 120V = 80 ft., 277V = 150 ft.

VIEW NANOLUME PROJECTS

· Compact, cost-effective fixture perfect for areas where space
and energy consumption are constrained.

· Fixture comes in 4“ increments (12“ minimum)

· Interior Only

· 1.04” W × 0.69” H

SPECS

DIMENSIONS

· Standard range shifts the color temperature from 3000K to 2000K as the fixture is dimmed.

· Fixture comes in 4“ increments (12“ minimum)

· Interior Only

· 1.03” W × 0.82” H

VIEW NANO WARM DIM PROJECTS

SPECS

DIMENSIONS

LUMINAIRE INFORMATION

· Compact, variable light fixture for dry, damp or wet location use.

· Fixture comes in 6“ increments (12“ minimum)

· IP65 & IP68 Rating – 93CRI

· 1.68” W × 1.75” H

VIEW HPNLS-HO PROJECTS

SPECS

DIMENSIONS

· Compact, variable light fixture for interior use.

· Fixture comes in 6” increments (12” minimum)

· Fixtures offer optional Occupancy or IR Sensor on/off operation.

· 90° angular design for ease of integration in confined spaces.

VIEW NANOWEDGE PROJECTS

· Compact Durable Fixture for large coverage illumination.

· Fixture comes in 1ft, 2ft and 4ft

· Variable light fixture for dry, damp, or wet location use.

· 7.508” W × 3.556” H

· Compact, cost-effective, dimmable medium to high intensity light.

· Fixture comes in 6“ increments (12“ minimum)

· IP65 & IP68 Rating

· 1.56” W × 0.76” H

SPECS

DIMENSIONS

· Dual personality fixture that uses Boca Flasher’s patented technology for RGB additive color mixing.

· Fixture comes in 1ft, 2ft and 4ft models RGB mixing and/or white ·mixing up to 6 channels

· Wireless DMX Control

· IP68 & IP65

VIEW HPFB PROJECTS
