Entity Relationships & Advanced JPA Features

Advance Spring data JPA and production ready Rest APi

Learning Outcome

Optimize performance using fetch and cascade strategies

Implement pagination and sorting using Spring Data

Differentiate derived and custom query methods

Apply relationship annotations in real applications

Understand different types of JPA relationships

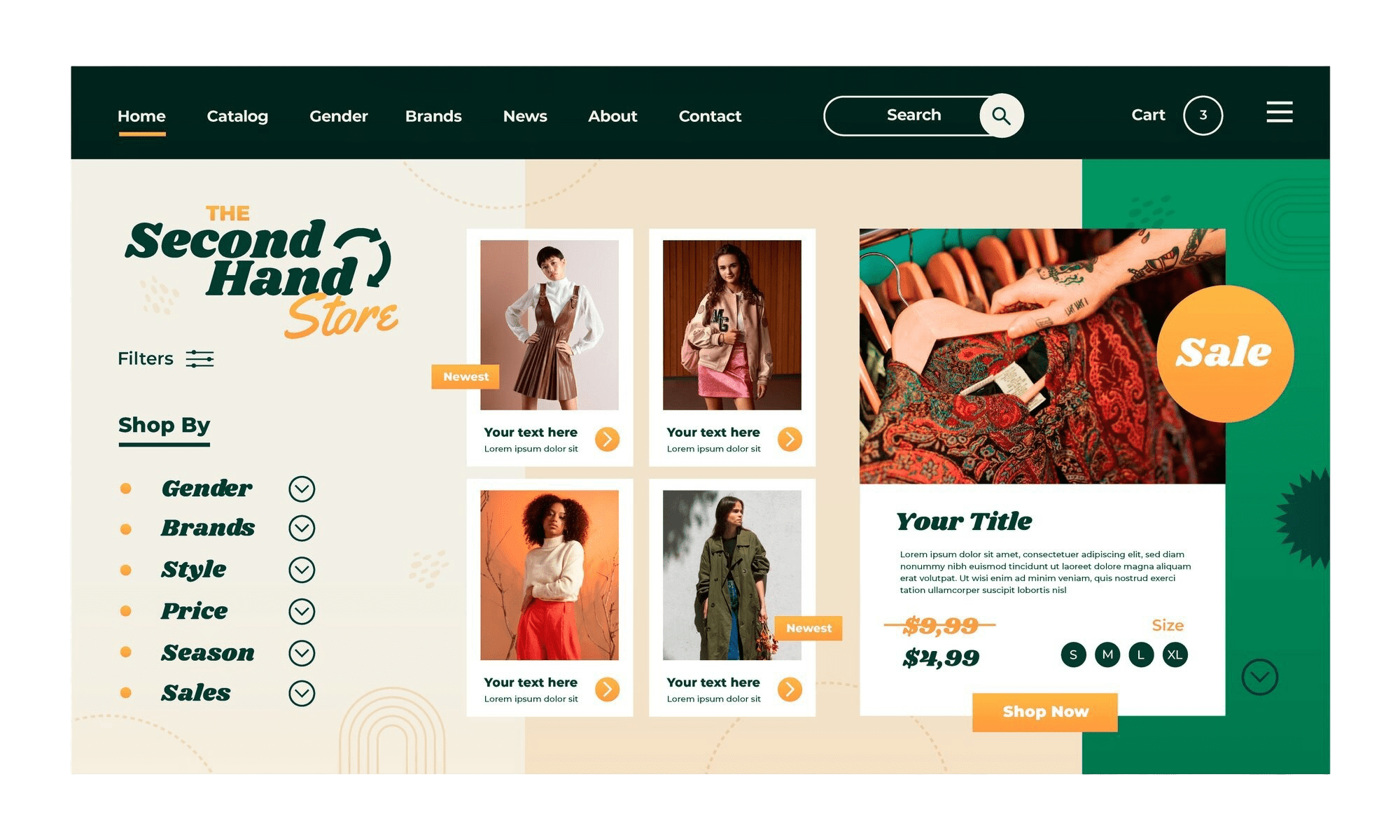

Imagine a customer ordering from an e-commerce app...

Customer searches for products, adds them to cart, then places an order.

After placing the order, a bill or invoice is generated containing customer details, product details, and order details

But think for a minute...

The data used to generate the invoice is stored in different tables

Customer_Details

cust_name

Address

Customer_Details

cust_name

Address

Order_Details

order_id

order_date

Order_Details

order_id

order_date

Product_Details

prod_id

prod_name

Then how are they connected and shown together in one bill?

This is done through relationship mapping...

It connects different entities (tables)

Allows data to be linked and retrieved together

Helps represent real-world relationships in databases

What is Relationship Mapping?

Relationship Mapping in Spring Boot (using JPA/Hibernate) defines how entities (Java classes) are connected to each other in the database.

Why Do We Need It?

Represents real-world data relationships clearly

Avoids data duplication in database tables

Enables easy data retrieval using object references

Maintains data consistency and integrity automatically

Example

Teacher teaches Student

"teaches" is the relationship between entities

One-to-One Relationship

Such a relationship exists when each record of one table is related to only one record of the other table.

For example, If there are two entities ‘Person’ (Id, Name, Age, Address)and ‘Passport’(Passport_id, Passport_no). So, each person can have only one passport and each passport belongs to only one person.

One-to-Many or Many-to-One Relationship

Such a relationship exists when each record of one table can be related to one or more than one record of the other table.

For example, If there are two entity type ‘Customer’ and ‘Account’ then each ‘Customer’ can have more than one ‘Account’ but each ‘Account’ is held by only one ‘Customer’.

Many-to-Many Relationship

This relationship exists when each record in the first table relates to multiple records in the second table, and vice versa.

For example, If there are two entity type ‘Customer’ and ‘Product’ then each customer can buy more than one product and a product can be bought by many different customers.

Major Relationship Annotations

@OneToOne

One entity is related to only one other entity

@OneToMany

One entity is related to multiple entities

@ManyToOne

Many entities are related to one entity

@ManyToMany

Many entities are related to many entities

Major Relationship Annotations

Defines a separate table that links two entities using foreign keys

@JoinTable

Defines the foreign key column that connects two related tables

@JoinColumn

Important Attributes

Points to primary key of another table

referencedColumnName

Defines foreign key in join table

joinColumns

Defines the non-owning side of relationship

mappedBy

Example :


import jakarta.persistence.*;
import java.util.List;

@Entity
public class User {

    @Id
    @GeneratedValue
    private Long id;
    private String name;

    @OneToMany(mappedBy = "user")
    private List<Order> orders;
}

import jakarta.persistence.*;
import java.util.Set;
@Entity
public class Order{
@Id
@GeneratedValue
private Long id;
@ManyToOne
@JoinColumn(name="user_id")
private User user;
@ManyToMany
@JoinTable(name="order_product",
joinColumns=@JoinColumn(name="order_id"),
inverseJoinColumns=@JoinColumn(name="product_id"))
private Set<Product> products;
}

User.java

Order.java

Example :


import jakarta.persistence.*;
import java.util.Set;

@Entity
public class Product {

    @Id
    @GeneratedValue
    private Long id;
    private String name;

    // Many products can belong to many orders
    @ManyToMany(mappedBy = "products")
    private Set<Order> orders;
}

Product.java

Understanding Unidirectional relationship

A unidirectional relationship is a relationship where only one entity knows or references the other entity.

Simple Example

Order

Customer

Get User from Order

Possible

Get Orders from User

Not Possible

Understanding Bidirectional relationship

Simple Example

Order

Customer

Get User from Order

Possible

Get Orders from User

Possible

A bidirectional relationship is when both entities know each other and can access data in both directions.

Fetch Strategies in JPA

Fetch is a strategy that defines when related (associated) data is loaded from the database.

It decides whether data is loaded immediately or only when needed

EAGER Fetch

LAZY Fetch

Loads data only when needed

Loads related data immediately

@ManyToMany(fetch = FetchType.EAGER)
private Set<Product> products;

@ManyToMany(fetch = FetchType.LAZY)

private Set<Product> products;

When you fetch an Order
Products are also loaded immediately

Products are NOT loaded immediately
They load only when accessed

Cascade Operations in JPA

Cascade is a feature that automatically applies operations from a parent entity to its related child entities.

When you perform action on parent, same action applies to child

Applies all operations (persist, remove, merge, etc.)

CascadeType.ALL

CascadeType.PERSIST

Saves parent + child together

CascadeType.REMOVE

Deletes child when parent is deleted

CascadeType.MERGE

Updates child when parent is updated

Common Cascade Types

Introduction to Query Methods

In Spring Data JPA, query methods are abstract methods declared in a repository interface used to retrieve or modify data in a database

Query Methods

Spring Data JPA automatically generates the underlying query implementation at runtime based on the method signature, eliminating the need to write boilerplate code

Derived query method

Custom query method

Derived Query Methods

Derived query methods are query methods where the query is derived from the method name itself.

Here,

Method name = Query logic
Spring parses method name and builds query


import org.springframework.data.jpa.repository.JpaRepository;
import java.util.List;
public interface UserRepository extends JpaRepository<User, Long> {
    List<User> findByName(String name);
    List<User> findByAgeGreaterThan(int age);
    List<User> findByNameAndAge(String name, int age);
}

Example

Structure of Derived Query Methods

Query Prefix

Your method name must start with one of these keywords, defining the primary action:

findBy
readBy
getBy
countBy
existsBy
deleteBy

Example: findBy

Property Expressions

After the prefix, chain the names of your entity's properties you want to query by.
Each property name should start with an uppercase letter.

Example: findByUsername

Condition Keywords

Refine your queries by adding logical operators or comparison keywords between properties. These allow for complex conditions.

And, Or
Between, LessThan, GreaterThan
Like, Containing, In
...and many more!

Example: findByUsernameAndEmail Like

Custom Query Method

A custom query method is a repository method where the query is written manually using the @Query annotation.


import org.springframework.data.jpa.repository.*;
import org.springframework.data.repository.query.Param;
import java.util.List;
public interface UserRepository extends JpaRepository<User, Long> {
    @Query("SELECT u FROM User u WHERE u.age > :age")
    List<User> getUsersAboveAge(@Param("age") int age);
}

Example:

When to Use

Complex queries
Joins between entities
Aggregations (COUNT, SUM)
When method names become too long

Simple Meaning

Instead of relying on method names,
we write our own query (JPQL or SQL)

Custom Query Method


import org.springframework.data.jpa.repository.*;
import org.springframework.data.repository.query.Param;
import java.util.List;
public interface UserRepository extends JpaRepository<User, Long> {
    @Query("SELECT u FROM User u WHERE u.age > :age")
    List<User> getUsersAboveAge(@Param("age") int age);
}

Used to manually write the query that should be executed by Spring Data JPA.

:age is a named parameter placeholder inside the query.

@Param is used to bind the method parameter to the named parameter in the query.

Common Query Keywords

And / Or

Combine multiple conditions

findByNameAndAge(String name, int age);

Between

Fetch values in a range

findByAgeBetween(int start, int end);

Like

Pattern matching (partial search)

findByNameLike(String name);

In

Match values from a list

findByNameIn(List<String> names);

OrderBy

Sort results

findByNameOrderByAgeAsc(String name);

Querying Using Nested Properties

Querying using nested properties means fetching data using fields of a related entity.

Key Advantages

Important Points

No need to write SQL or joins

Easy to understand and use

Works automatically with relationships

Reduces boilerplate code

Property names must match entity fields exactly

Works only when relationship is defined properly

Method names can become long if deeply nested

It allows accessing related object properties directly in method names without writing joins.

Example :

@Entity
public class User {
    private String name;

    @ManyToOne
    private Address address;
}

@Entity
public class Address {
    private String city;
}

User.java

Address.java

List<User> findByAddressCity(String city);

Query Method

This means:

Fetch users where address.city = ?

Pagination & Sorting with Spring Data JPA

What is Pagination ?

Pagination is used to divide large data into smaller, manageable pages while fetching from the database.

1

3

2

Pagination basics

Pageable Interface

An interface used to pass pagination and sorting information (page number, page size, sort order) to the data layer.

PageRequest

A concrete implementation of the Pageable interface, created using static factory methods like PageRequest.of().

Page<T>

An interface that represents a specific sublist of data and provides essential metadata like total pages, total elements, and the current page number.

PagingAndSortingRepository

Repository interfaces in Spring Data that extend capabilities for pagination and sorting.

Example: Paginating Through Books

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.data.domain.Page;
import org.springframework.data.domain.Pageable;
import org.springframework.data.domain.PageRequest;
import org.springframework.stereotype.Service;
import java.util.List;

@Service
public class BookService {
    @Autowired
    private BookRepository bookRepository;

    public void getPaginatedBooks(int page, int size) {

        Pageable pageable = PageRequest.of(page, size);

        Page<Book> bookPage = bookRepository.findAll(pageable);

        List<Book> books = bookPage.getContent();  // Get books for current page
        int totalPages = bookPage.getTotalPages(); // Total pages
        long totalElements = bookPage.getTotalElements(); // Total records

        System.out.println("Total Pages: " + totalPages);
        System.out.println("Total Elements: " + totalElements);
        books.forEach(System.out::println);
    }
}

Sorting with Sort Interface

The Sort interface is used to define sorting criteria for query results. You can sort by one or more fields in ascending or descending order.

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.data.domain.Sort;
import org.springframework.stereotype.Service;
import java.util.List;

@Service
public class BookService {
    @Autowired
    private BookRepository bookRepository;
    public void getSortedBooks() {
        List<Book> books = bookRepository.findAll(Sort.by("title").ascending());
        books.forEach(System.out::println);
    }
}

Example: Sorting Books by Title

Combining Pagination and Sorting

You can combine pagination and sorting by passing both a Pageable object that contains sorting information.

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.data.domain.Page;
import org.springframework.data.domain.Pageable;
import org.springframework.data.domain.PageRequest;
import org.springframework.data.domain.Sort;
import org.springframework.stereotype.Service;
import java.util.List;

@Service
public class BookService {
    @Autowired
    private BookRepository bookRepository;
    public void getPaginatedAndSortedBooks(int page, int size) {
        Pageable pageable = PageRequest.of(page, size, Sort.by("title").ascending());
        Page<Book> bookPage = bookRepository.findAll(pageable);
        List<Book> books = bookPage.getContent();
        books.forEach(System.out::println);
    }
}

Summary

Pagination and sorting manage large datasets efficiently

Query methods retrieve data using method names

Fetch strategies control when data is loaded

JPA annotations define entity relationships clearly

Relationship mapping connects entities in database

Quiz

Which annotation defines foreign key column?

A. @JoinTable

B. @JoinColumn

C. @ManyToMany

D. @Entity

Which annotation defines foreign key column?

A. @JoinTable

B. @JoinColumn

C. @ManyToMany

D. @Entity

Quiz-Answer
