See Gamedev in JS

One...
Two...
Three words

about me.

That's me

Student of Taras Shevchenko National University of Kyiv



Faculty: cybernetics





#100DaysOfCode



About myself:

A Girl with great ambitions and low budget

Where you can find me

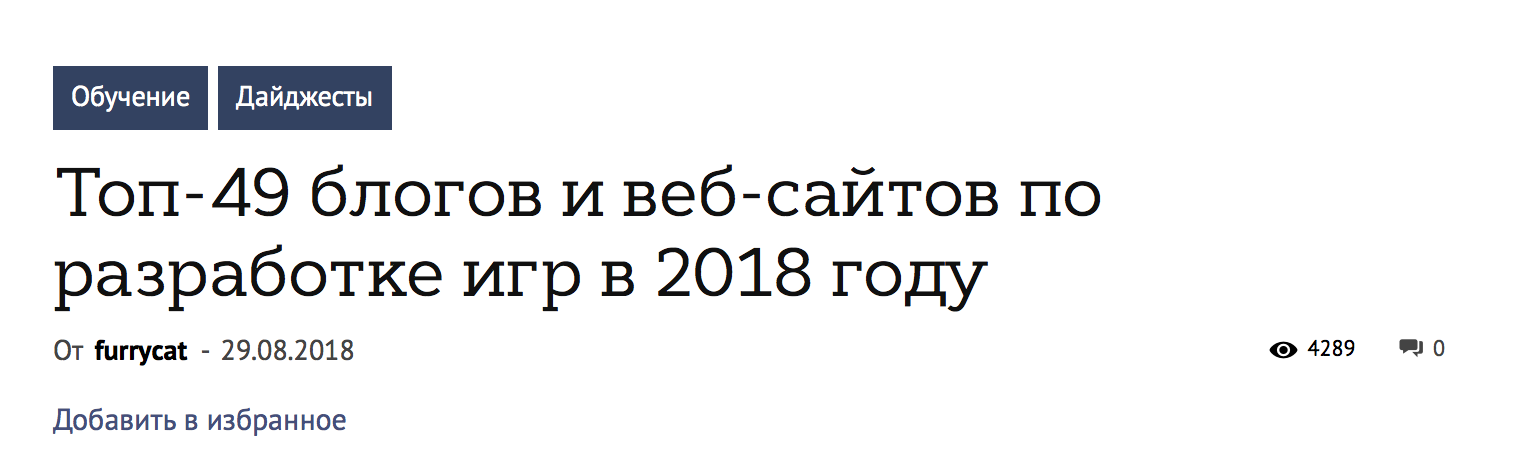

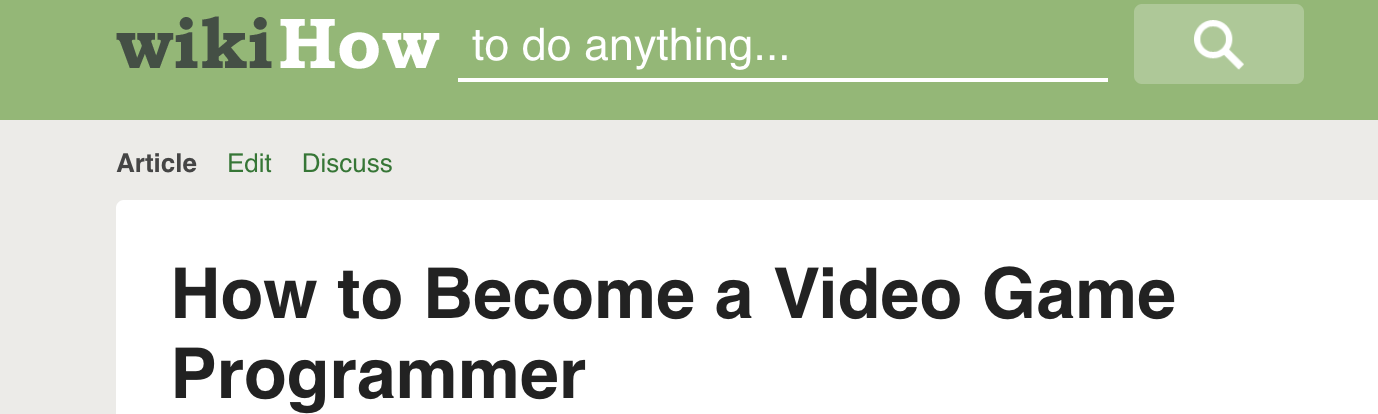

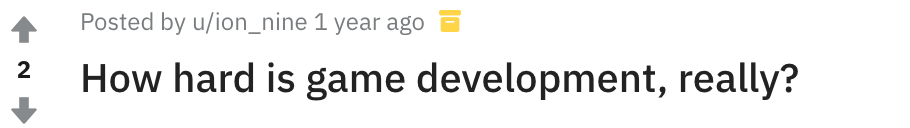

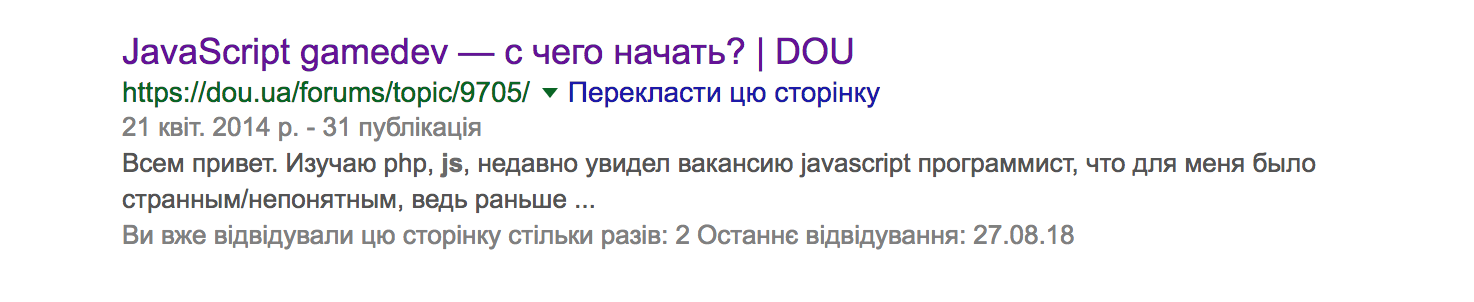

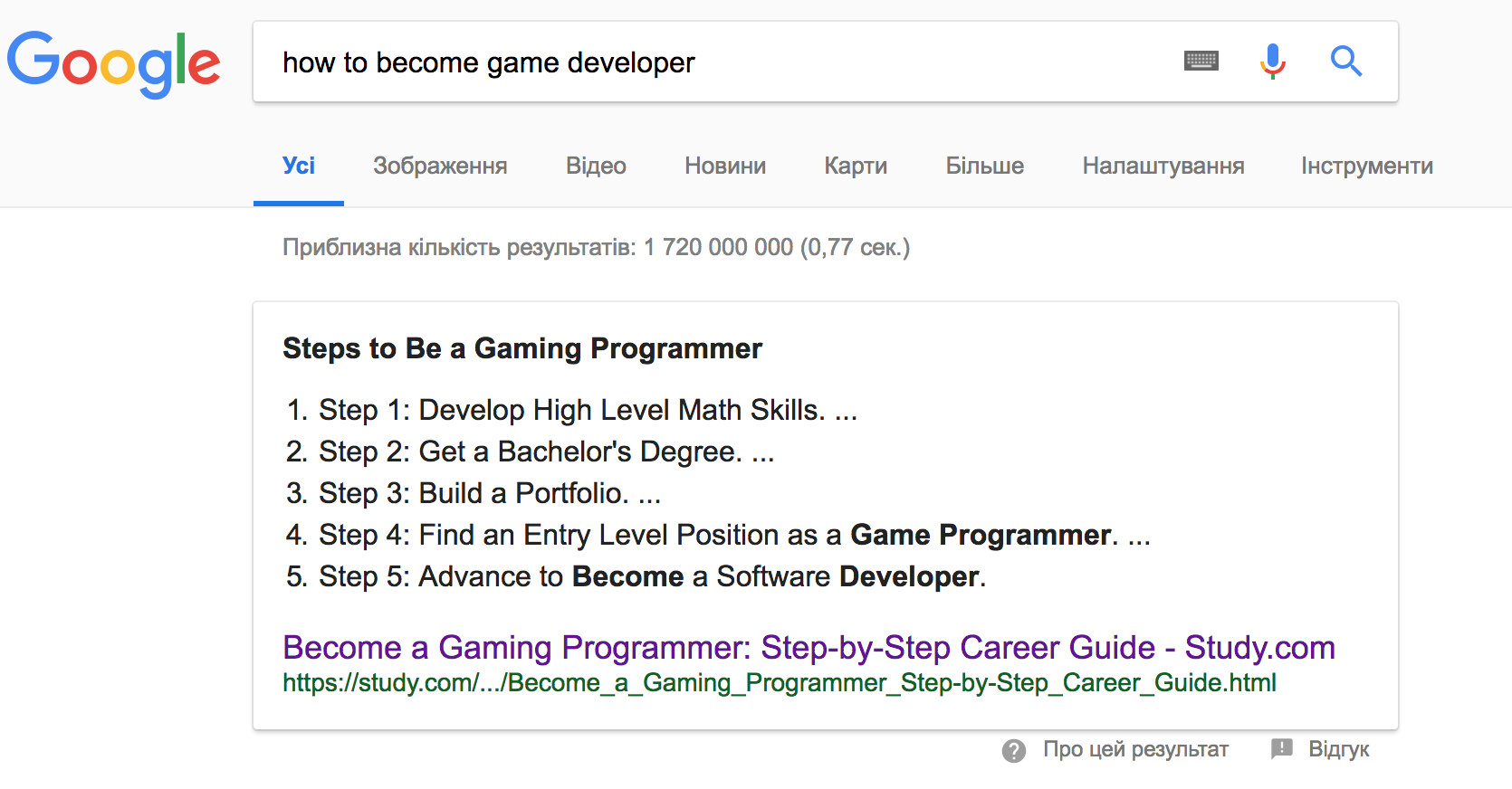

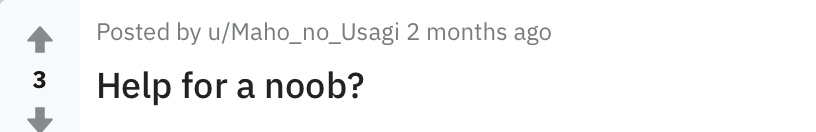

Let's imagine the situation...

Web developer

I don't want to be a web developer

I want to be...

a game developer

But before you start

Put your devhats on

Let's the party begin

Chapter 1

Make a plan

Game

Speed

Physics

Sound

Animation

Platforms

Chapter 2

Let's choose language

Common choice

  • C++

  • Java

  • Swift

  • C#

  • HTML5

  • Unreal Engine

  • Unity

  • id Tech 4

  • Source

Why HTML5

Java Applets

Flash apps

Silverlight apps

Unity Web Player





<= require plugin

<= require plugin

<= require plugin

<= require plugin



HTML5

<= no plugins, just browser!

Why to bother at all?

  • build once and deploy everywhere
  • no installs, no plugins, just instant gaming right in the browser
  • millions of potential users/clients
  • millions of potential developers
  • huge database of ready-to-go solutions, libraries, engines and frameworks

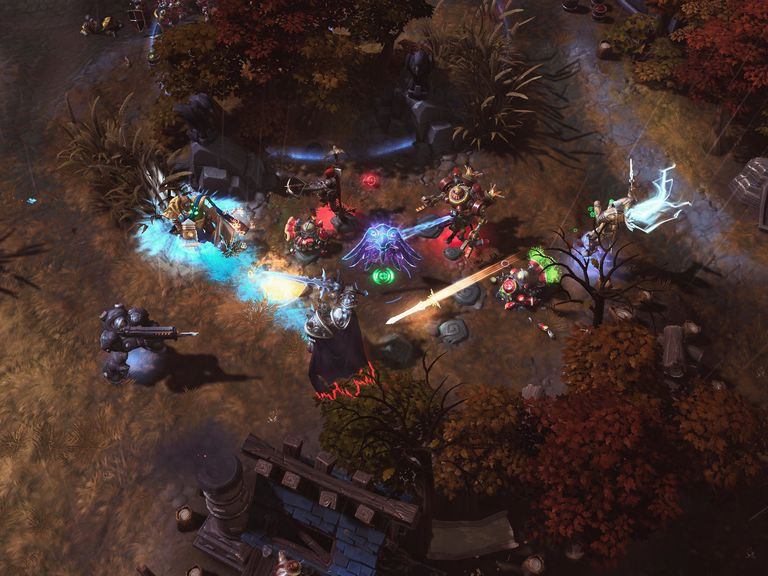

So where are those games?

  • mobile games

  • games markets & promo sites

  • Steam

  • Playable ads

Duelyst

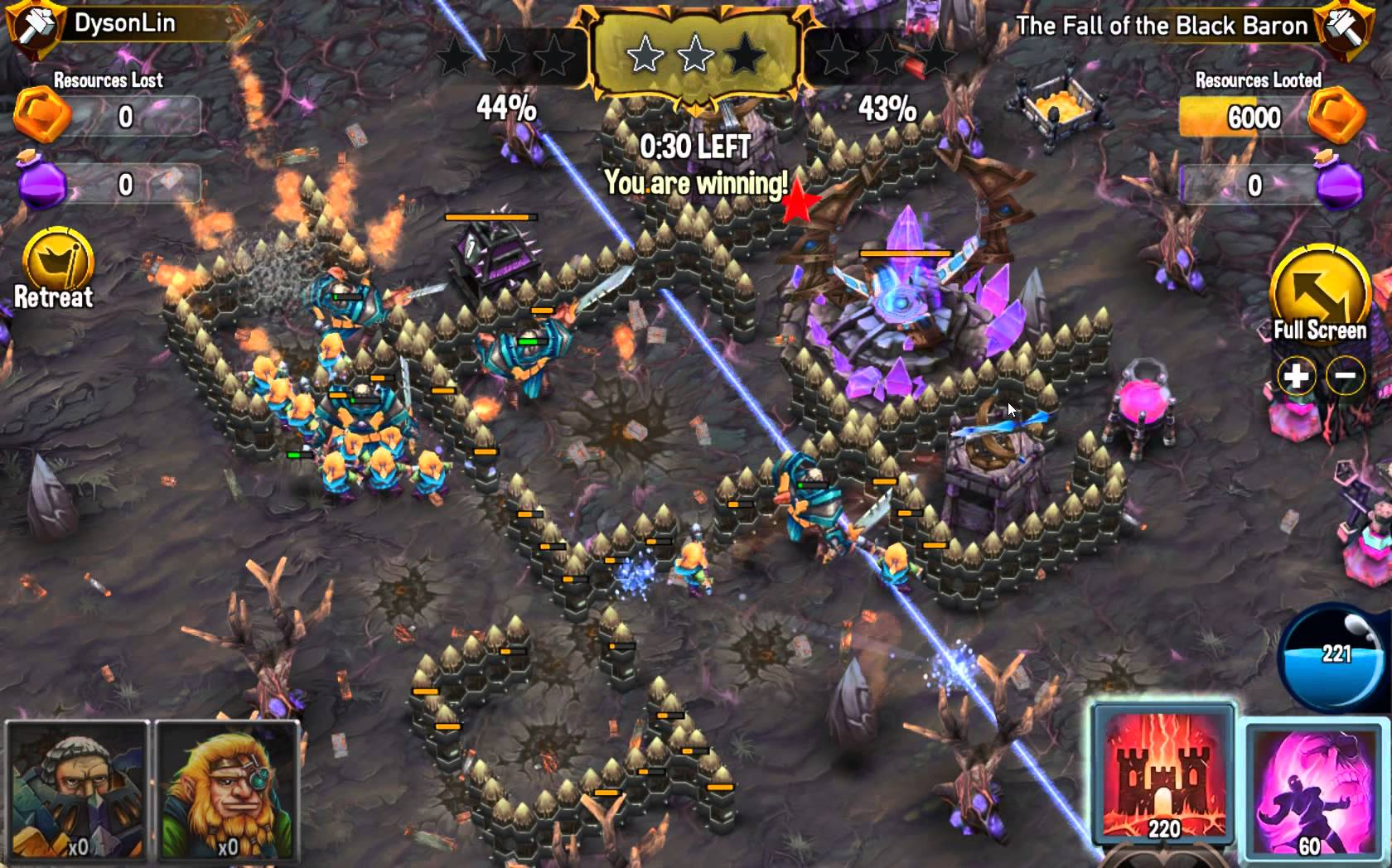

Heroes of Paragon

Kopanito All-Stars Soccer

Let's have a look

http://10.0.0.238:3000

To do list

  • Language

  • Physic

  • Sound

  • Animation

  • Speed

Chapter 3

Let's create a game

HTML5

JS

CSS

DOM

var getRandomNumber = function (size) {

        return Math.floor(Math.random() * size);

    };

//calculate distance between click(event) to treasure (target)

var getDistance = function (event, target) {
    var diffX = event.offsetX - target.x;
    var diffY = event.offsetY - target.y;

    return Math.sqrt((diffX * diffX) + (diffY * diffY));
};

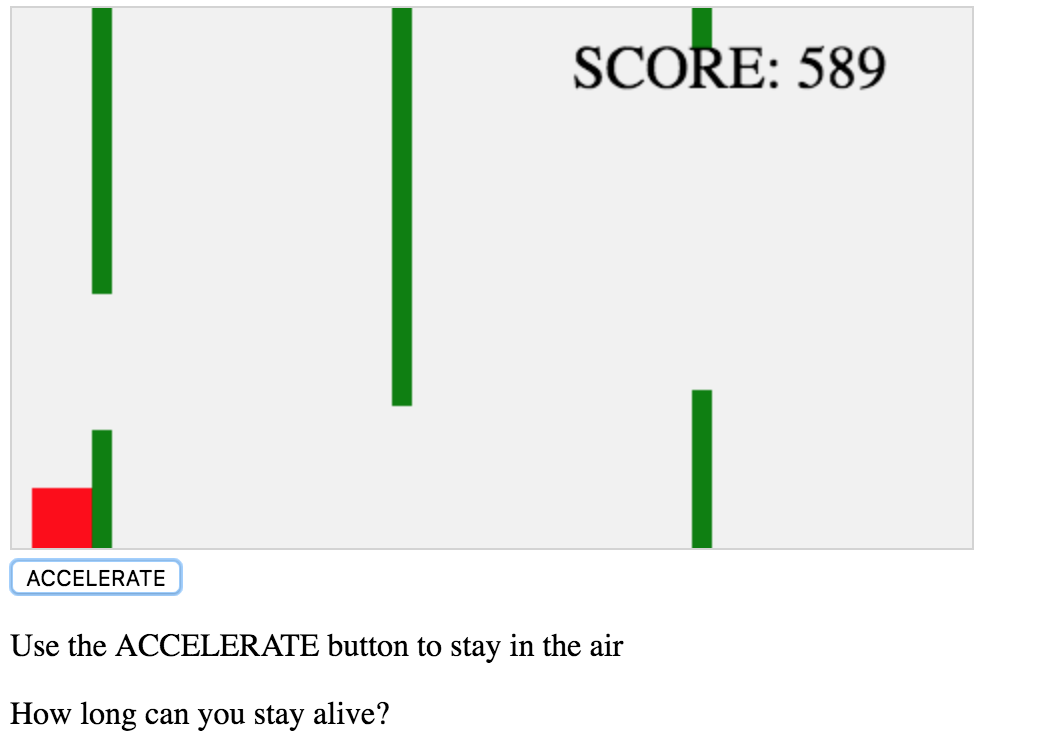

Canvas

function startGame() {
    myGamePiece = new component(30, 30, "red", 10, 120);
    myGamePiece.gravity = 0.05;
    myScore = new component("30px", "Consolas", "black", 280, 40, "text");
    myGameArea.start();
}

var myGameArea = {
    canvas : document.createElement("canvas"),
    start : function() {
        this.canvas.width = 480;
        this.canvas.height = 270;
        this.context = this.canvas.getContext("2d");
        document.body.insertBefore(this.canvas, document.body.childNodes[0]);
        this.frameNo = 0;
    },
    clear : function() {
        this.context.clearRect(0, 0, this.canvas.width, this.canvas.height);
    }
}

But...





It's rather boring...

We need some tools!!!

Wow...Slow down

Chapter 4

Frameworks

Physic

Goal:

  • Simple collision detection
  • Simple manifold generation
  • Impulse resolution
  • etc.

How to reach success?

Solution

  1. Write your own code with the help of formulas
  2. Use frameworks
  3. Use libraries

Frameworks

  • Arcade Physics
  •  P2
  • Ninja Physics

Example:

is a 2D physics engine for the web

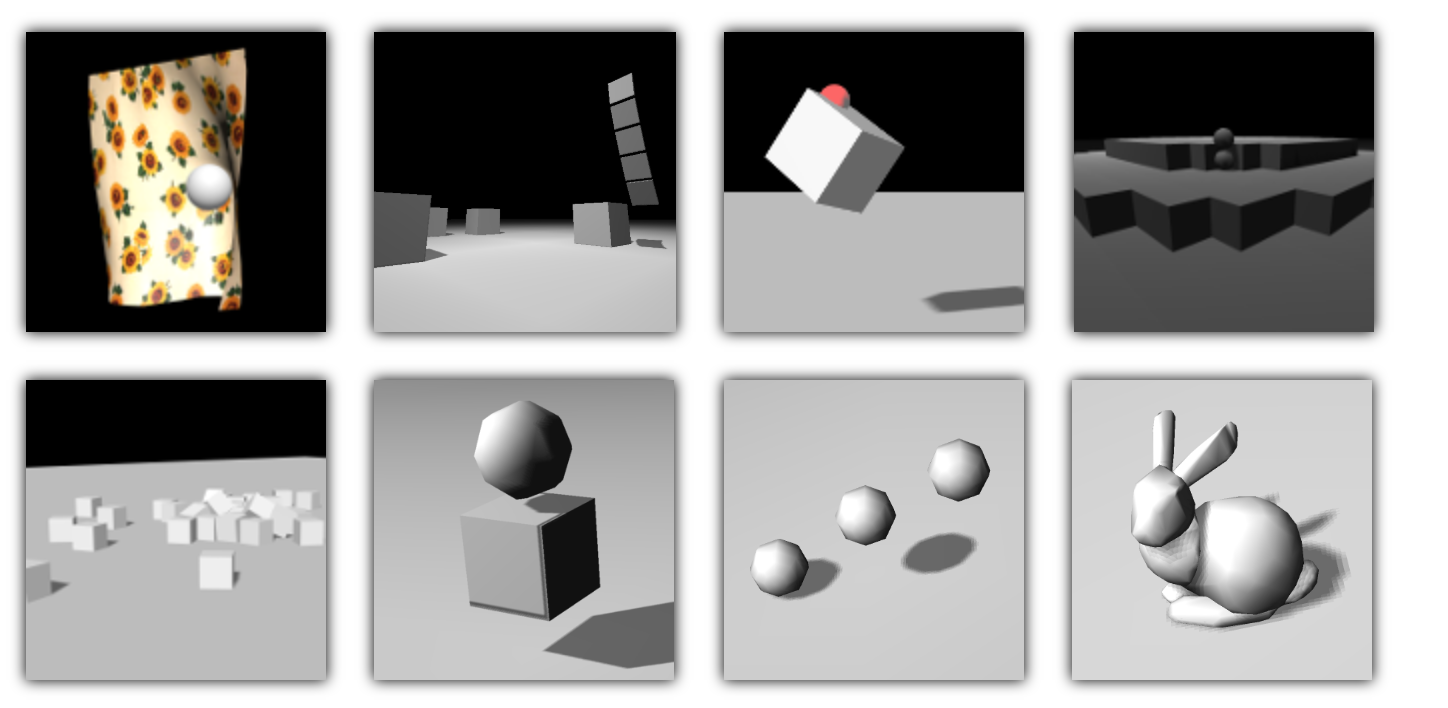

cannon.js



A lightweight and simple 3D physics engine for the web.

Look an example

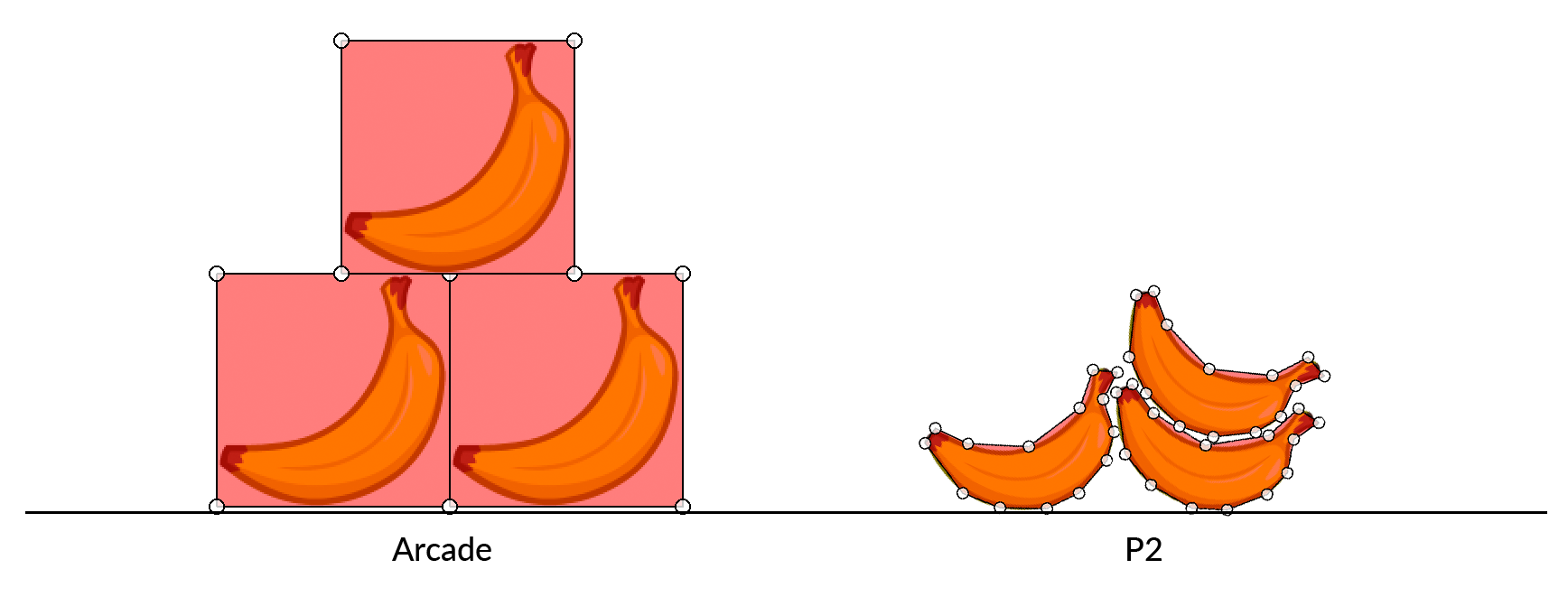

Load the physics shapes and sprites

function preload() {
    // Load sprite sheet generated with TexturePacker
    this.load.atlas('sheet', 'assets/fruit-sprites.png', 'assets/fruit-sprites.json');

    // Load body shapes from JSON file
    //generated using PhysicsEditor
    this.load.json('shapes', 'assets/fruit-shapes.json');
}

Load magic line for physic

this.matter.world.setBounds(0, 0,
game.config.width, game.config.height);


    // add some objects
    this.matter.add.sprite(200, 50, 'sheet', 'crate',
    {shape: shapes.crate});
    this.matter.add.sprite(250, 250, 'sheet', 'banana',
    {shape: shapes.banana});
    this.matter.add.sprite(360, 50, 'sheet', 'orange',
    {shape: shapes.orange});
    this.matter.add.sprite(400, 250, 'sheet', 'cherries',
    {shape: shapes.cherries});

Now add some more objects in the scene:

By click add more bananas

    this.input.on('pointerdown', function (pointer) {
        this.matter.add.sprite(pointer.x, pointer.y,
        'sheet', 'banana', {shape: shapes.banana});
    }, this);
}
  • Language

  • Physic

  • Sound

  • Animation

  • Speed

To do List

Chapter 5

Frameworks

Sounds

Difficulties​

  • Autoplay
  • Volume
  • Concurrent audio playback
  • Testing and support

   Ways to work around the issues

  • Audio sprites
  • HTMLMediaElement
  • XMLHttpRequest
  • WebAudio
  • Libraries

Library

  • Zero Dependencies
  • Audio Sprites
  • Works Everywhere

Most basic

var sound = new Howl({
  src: ['sound.mp3']
});

sound.play();

Define and play a sound sprite:

var sound = new Howl({
  src: ['sounds.webm', 'sounds.mp3'],
  sprite: {
    blast: [0, 3000],
    laser: [4000, 1000],
    winner: [6000, 5000]
  }
});

// Shoot the laser!
sound.play('laser');
  • Language

  • Physic

  • Sound

  • Animation

  • Speed

To do List

Chapter 6

Frameworks

Animation

Considerations

  • CSS transform

  • requestAnimationFrame
  • A take-away



var startTime = -1;
var animationLength = 2000; // Animation length in milliseconds

function doAnimation(timestamp) {
  // Calculate animation progress
  var progress = 0;

  if (startTime < 0) {
      startTime = timestamp;
  } else {
      progress = timestamp - startTime;
  }

  // Do animation ...
  if (progress < animationLength) {
      requestAnimationFrame(doAnimation);
  }
}

// Start animation
requestAnimationFrame(doAnimation);

Libraries

Chapter 7

Brief look

PixiJS

Create great interactive graphics for Games and Web

What isn't PiXi

A game engine

No built-in :

  • keyboard input
  • collision detection
  • sound engine
  • animation engine Particles

Then...What is Pixi?

  • Wrapper for WebGL
  • Multimedia engine
  • Interactive

What PiXi gives us

  • Sprites
  • Easy loading
  • Flexible data structure
  • Cross-device compatibility
  • JavaScript!

Chapter 8

Usage of PiXiJS

Setting up

$> npm install pixi.js


/** CDN Install (via cdnjs) **/
<script src="https://cdnjs.cloudflare.com/ajax/libs/pixi.js/4.5.1/pixi.min.js"></script>

Create background

var PIXI  = require('pixi.js');
var app = new PIXI.Application(800, 600, {backgroundColor : 0x6889ff});
document.body.appendChild(app.view);

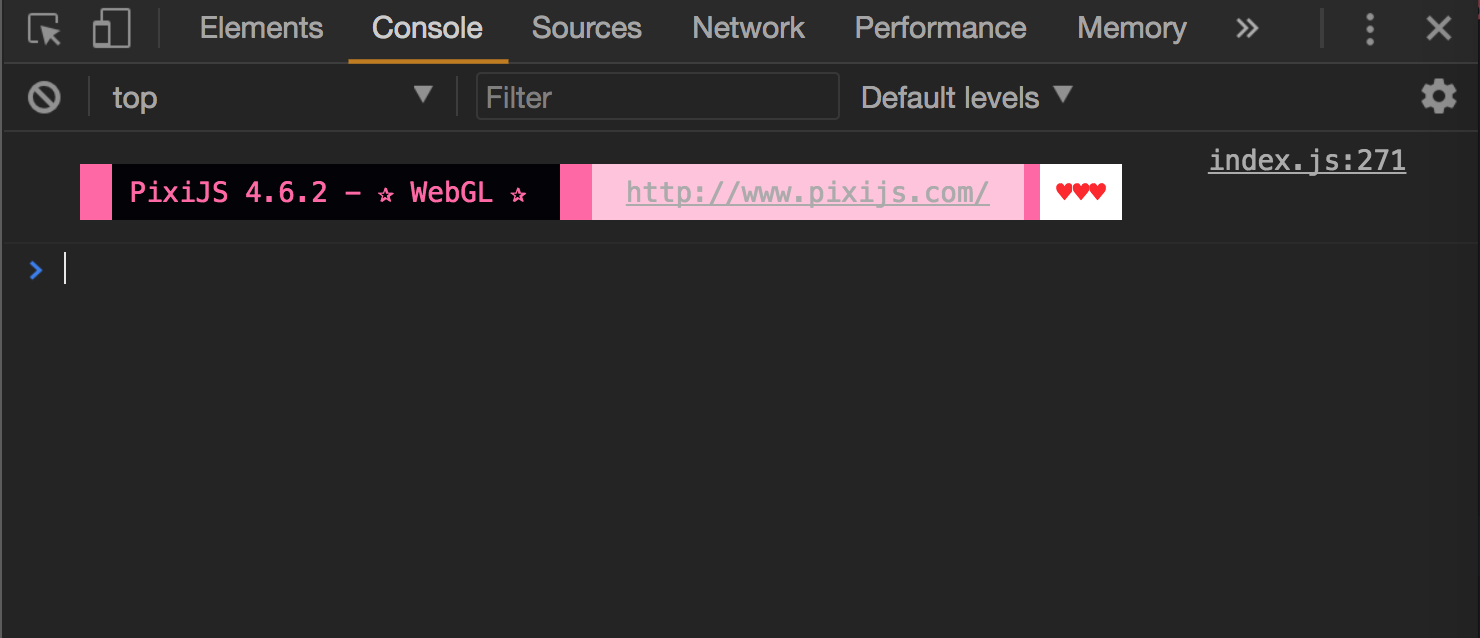

Result

Create Sprite Animation

let roleImages = ["images/mario1.png","images/mario2.png","images/mario3.png","images/mario4.png"];
let textureArray = [];
roleImages.forEach((role) => {
    let texture = PIXI.Texture.fromImage(role);
    textureArray.push(texture);
});

let mario = new PIXI.extras.AnimatedSprite(textureArray);
mario.animationSpeed = 0.1;
mario.play();
mario.interactive = true;
mario.position = new PIXI.Point(0, 538);
app.stage.addChild(mario);

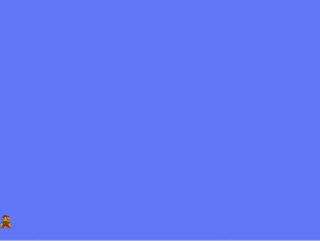

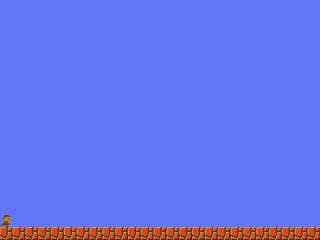

Result

Layer

let tilingSprite =

 new PIXI.extras.TilingSprite.fromImage(
    'images/ground.png',
    app.screen.width,
    app.screen.height
);
tilingSprite.y = app.screen.height - 32;
tilingSprite.scale = new PIXI.Point(2, 2);
app.stage.addChild(tilingSprite);

Result

  • Language

  • Physic

  • Sound

  • Animation

  • Speed

To do List

Chapter 9

Future of HTML5

Games need performance!

JS is sloooow!





How about some speedup?

asm.js



  • speed race since V8 by Google
  • JS:  dynamic, untyped, and interpreted

JIT - Just In Time Compiler

  • compilation at execution
  • adaptive optimization
  • asm.js - strict subset of JS, generated by source to source compilers

Result?

Up to 66% of native speed

On a browser!!!

Who uses it?

  • as a proof of concept Mozilla ported simple
    Unreal Engine game (asm.js+WebGL interface)
  • some heavy-performance JS libs use it
  • game engines like Unity, Godot or Unreal allow to export game to HTML5

Is that all?

Nope

Web Assembly is on the way
= native browser sandbox to run bytecode
  • Parsing — the time it takes to process the source code into something that the interpreter can run.
  • WebAssembly doesn’t need to go through this transformation because it is already a bytecode.
  • Compiling + optimizing — the time that is spent in the baseline compiler and optimizing compiler. Some of the optimizing compiler’s work is not on the main thread, so it is not included here.
  • The compiler doesn’t have to spend time running the code to observe what types are being used before it starts compiling optimized code.
  • More optimizations have already been done ahead of time in LLVM
  • Re-optimizing — the time the JIT spends readjusting when its assumptions have failed, both re-optimizing code and bailing out of optimized code back to the baseline code.
  • In WebAssembly, things like types are explicit, so the JIT doesn’t need to make assumptions about types based on data it gathers during runtime.
  • Execution — the time it takes to run the code.
  • Many of the optimizations that JITs make to JavaScript just aren’t necessary with WebAssembly.
  • Garbage collection — the time spent cleaning up memory.
  • For now, WebAssembly does not support garbage collection at all. Memory is managed manually

Chapter 10

Final

Creating games is not so hard as it seems

Results??!

Give some little magic

Thank you for attention

Gamedev in JS

By Cristina Landvytovych
