BIOSC 1540: L03B (Genome assembly)

Computational Biology

(BIOSC 1540)

Jan 23, 2025

Lecture 03B

Genome assembly

Methodology

Announcements

CByte 01 is live and will expire on Feb 1
CByte 02 will be released Friday (Jan 24) and expire on Feb 7

Quiz 01 is next week (Jan 28) and will cover lectures 02A to 03B

Assignments

Assignment P01B is due Friday (Jan 24)
Assignment P01C is due next Friday (Jan 31)

Quizzes

CBytes

ATP until the next reward: 1,903

Next reward: Checkpoint Submission Feedback

Quick homework tip

When asking for five FASTQ entries, here is what it should look like

fastq_five = """
@synthetic_read_1/f
TACGGCTAGGCATCTCGAGATCTGTGACGTTTCAGATCCCCTGCTGCGTGCGTTTGATGTCCAACTGTCGTACTCACGCCGGACGGGGAGTAACTTCTTTTCGAGCCGTAGTTGCGCGTACCCCATAAATTAGCCTTGGGAGCAGACAAGGCAAAACCCCAGAAGTTGGGTGTCCAATAAGGTTCACATCTGACCGGTCGCTTAAAAGGAAGCTTCCATTATCCGCTATATAAACGCCGGTGCTACCTAAGATGCGACACCT
+
46:47287653825380557902185865586;11784536:8>:7946436;67:04>8671293:53991474581727927476120866:4;;441889567264523394268:775;459726:6:5;865421764998273667561/6:6=987731855057787594555;4:859357388590:54:67365857865:66456:2737:3:34683758339648455674;6569;82364766;67
@synthetic_read_2/f
GACGATCGTAGCTCAGTCGGACCAACGACTCGCTGCTTACTGGAAGATCCTCGTAGACGGTTTTTTTGCGAAAGTACAGGCGACCCAGTACAAATCGGGATAGTGGTCACTTACTTATTTGGGCGGCTGCGATCATGGCCGCCGGTGGTTTAGGGTGTACGAATTCATCCTAGCCGCGAATGATTACGGACATCGTGACCATTATATGATCCGTTGTAGGCAGGTGTAACCCGACACTACTACATGACGGCTCACTCCAACA
+
GGDIHIFGEHGGIGGIHGFGIIFIHFDEFEFCCFFIIHIGIEEFIEFFICDGFHICFEICGGFFEIEEFGIFGFIHIIBDGHIGHIIGGGHFGIEHIIIDIIECAIHDHCEDECFHFBIIEIFHIIECIIIGIEIGEEFIDIHIEIFIDHFDIGEHEAGEIGDICIGFHHGGEIEDDDIGIDH?EIICDEHEHFGGIFGIGAIIIIIIIFGIEEIGCHIGIDIHIIIIICID@FIIIIEIGCIIGIHGIIIHIEGFHEEAFI
@synthetic_read_3/f
CGTAGCTGACGTAGATTCGATTTAAGAAACGCAGATATGGACATTGTCGCCGTGCCTTTATATTCCACATATCGTGGTAATCATACCGGCATAGGGTCATGTCCGCAGCTGTCCAACTATCGGTTAACGTTCCCCCTACTATCTCTGCGCGAGCCTAGAGTAAATCGATGAGTCTGAAGAACGCCTCATATCTGCTGTATGCCCGCCGCGTGAACTCTCAGTATTCGCGAACACATTGGTCTTGCTATCCTCGGTAAGGAAC
+
:=9<<:7<9::=<?<<6;;=;?;<7;9=9?6:8;8A9:=>=<:A79;=>=;:==:<4::7<9?E4<9;;:97=<7@9;8?@<7999:A9:=;6:?>:@988A?97=A>=@:;98>::<A>?7:<<A?<<5=7<7<==:4;3><=?5>><999;;=<8?;=88>>8;:;;7967>;;59=:<;8:7687856;679763<9=@;87550:627535<755461A329795;87269;45074317650467412984:51937
@synthetic_read_4/f
TACGGCTAGGCACGTTTTCAGCAATCACGCGTGAGAATGCAATACAGCTGAGTATAGGTGGCCGGGCGTACGTTTCTACGTGAGCATGTTTTTTTATTACAGAGTACCGGTAGCGGGGTTAACATGGAAGGCAGATACCGCTACGTCCGCCCCGAACGAGCCGCACATACAACCCGATCGGTACCGGTTAGTGTAAGGGGCTTTGTGAGTAGGTGTGGGCCGTGTACGGGTAGTACTCGGGAATGATGCGGATAATACCATC
+
>:A@=@=<ABB><=:==?>@=><<<9=?3:>@CHD;?=7:@?6G<8<@?AEE<=?;<;C<66B3>>>>=8488<8>?@9>43>?A?A61:@8;:6@97;825=>7>8><1<853;@B=66><A;?@5475:382@<@@<7><5-945?=7?;9=90<;B6C;;=77:?7;69-/87665=<<:>92A8AB47B5;8;3<A=8<92;7.99?65>653::@97A>6B>>11BAD>C>5:7,:A>@8<=7:<99??57:=:95<
@synthetic_read_5/f
GTACGATCGTACCTGCGTACAAAACAGTTTCGGGGTCCAAACCACGCCTCAACTGTTCTCGGTTAGTACCGTAGCTACACTCGGTCTATCTGTCAGCTGCCGTTCATTCGAGCTTTCGCGTACTTAACAGTACCAGAAGGGCGGGTCAGTATCCATGGTTGGTGCAAGCCCCTGTCCCAGTCTTACCGGATAGCGCACATTACTTCTCCTGGTTCGGGCGAATCCCCTAGCAATCCCATTTCATTACGAAACCAACGCTCCA
+
78<8675<68;9;9<72;4==:689<;95=5;?76:57<16;:4@;9.=:1:;?<49;89;0<>?6327778:8:518?7=79:6:<7><A@16:65<98:6<7446<;@9=9:<@<27:9<38@98<?8;9<5:4<3547?9>5:1;A=695=6<:8/;873?66::?45;:C857>:E:9:;9;258<:<<<79:599<<>77679<<;3<9328=53>8;35?E7=;8<A99>68;A99799?=5:6:70?<8::187;
"""

After today, you should have a better understanding of

Problem formulation of genome assembly

Why we need genome assembly

DNA sequence (i.e., contig)

Overlapping reads

Assembly algorithms

TACGATCGGATTACGCGTAGGCTAGCTTACGGACTCGATGTACGATCGGATTACG

Genome assembly reconstructs a long DNA sequence from short, error-prone reads, ensuring as many reads fit into the final sequence

Recap from L03A

After today, you should have a better understanding of

Problem formulation of genome assembly

Assumptions

We make simplifying assumptions to address challenges and make assembly tractable

Reads originate from a single, contiguous genome

If we had two sources of DNA

Chance of overlap is likely, and it would be challenging to differentiate the origin of each read

+

It dramatically simplifies our problem if we assume only a single source of reads

Sequencing coverage is sufficient for redundancy and error correction

TACGATCGGATTACGCGTAGGCTAGCTTACGGACTCGATGTACGATCGGATTACGCGTAGG

Real sequencing errors

can be fixed in high-coverage areas

Real SNPs

can be confidently detected when all reads have the same base

Assume that we have

high coverage

What if your sequencing data does not meet these assumptions?

This happens all the time in science!

If you more robust options are available, using those may be required

If there is no other option, use the best approach and disclose how this could impact your results and interpretation

After today, you should have a better understanding of

Problem formulation of genome assembly

String manipulation in Python

Review: DNA sequences are represented as strings in Python

read1 = "ATCG"
read2 = "TCGA"

A DNA sequence is simply a sequence of letters: A, T, C, and G. In Python, we can represent this using quotation marks ("" or '').

read_long = """
CGTAGCTGACGTAGATTCGATTTAAGAAACGCAGATATGGACATTGTCGCCGTGCCTTTATAT
TCCACATATCGTGGTAATCATACCGGCATAGGGTCATGTCCGCAGCTGTCCAACTATCGGTTA
ACGTTCCCCCTACTATCTCTGCGCGAGCCTAGAGTAAATCGATGAGTCTGAAGAACGCCTCAT
ATCTGCTGTATGCCCGCCGCGTGAACTCTCAGTATTCGCGAACACATTGGTCTTGCTATCCTC
GGTAAGGAAC
"""

Comparing strings allows us to detect similarities or differences between DNA reads

read1 = "ATCG"
read2 = "TCGA"

# Compare two strings
print(read1 == read2)  # Output: False

To compare strings, we can use the equality operator ==

read1 = "ATCG"
read2 = "ATCG"

# Compare two strings
print(read1 == read2)  # Output: True

We can extract parts of a string using indices in Python

0123
ATCG

Use square brackets [] to get a character by its index

read = "ATCG"
print(read[0])  # Output: A
print(read[2])  # Output: C

Use slicing with start:stop to get part of a string

print(read[0:2])  # Output: AT
print(read[1:3])  # Output: TC

Python does not include the stop index

Each character in a string has an index

Example: "C" has index of 2

We can use loops to check every position in a string

Use a for loop to go through each character one by one

read = "ATCG"

for char in read:
    print(char)
# Output:
# A
# T
# C
# G

read = "ATCG"

for i in range(len(read)):
	# Print substrings starting at index i
    print(read[i:])
# Output:
# ATCG
# TCG
# CG
# G

You can also slice inside of a for loop with an index

range(len(read))

generates integers from 0 until the length of the read (in this case 4)

Comparing parts of strings allows us to find overlaps between DNA reads

read1 = "ATCG"
read2 = "TCGA"

for i in range(len(read1)):
    if read1[i:] == read2[:len(read1) - i]:
        print(f"Overlap found: {read1[i:]}")
        break
# Output: Overlap found: TCG

Let’s find where read1 overlaps with read2

When i = 0:

read1[0:] gives us "ATCG" (the full string)
read2[:4] gives us "TCGA" (first 4 characters)
Comparison: "ATCG" == "TCGA"
Result: No match

Comparing parts of strings allows us to find overlaps between DNA reads

read1 = "ATCG"
read2 = "TCGA"

for i in range(len(read1)):
    if read1[i:] == read2[:len(read1) - i]:
        print(f"Overlap found: {read1[i:]}")
        break
# Output: Overlap found: TCG

Next is i = 1:

read1[1:] gives us "TCG" (excluding 'A')
read2[:3] gives us "TCG" (first 3 characters)
Comparison: "TCG" == "TCG"
Result: Match found! 🎉

Comparing parts of strings allows us to find overlaps between DNA reads

Once we find the overlap, we can merge the reads

read1 = "ATCG"
read2 = "TCGA"

i = 1

merged = read1[:i] + read2
print(merged)
# Output: ATCGA

We can use this approach of finding overlaps and merging reads to form a contig

This idea of finding overlaps and merging motivates our first assembly approach: the greedy algorithm

After today, you should have a better understanding of

The greedy algorithm for genome assembly

Overlaps and merges

The greedy algorithm builds genome assemblies by iteratively merging the best overlaps

Algorithm

1. Check every possible read for the largest overlap.

2. Merge the two reads with largest overlap.

3. Repeat until no further merges are possible.

At the end, we have a set of contigs that represent our original DNA sequence

The greedy algorithm minimizes repeats by maximizing overlap

The greedy algorithm focuses on selecting the best immediate option (i.e., local optimal) at each step without full consideration of the overall global solution

The greedy algorithm aims to find the shortest superstring, which minimizes unnecessary duplication.

A superstring is a single string that contains all reads as substrings

Example: ACGTAC is a superstring of

ACGT, CGTA, GTAC

This means the greedy algorithm will always make the best move in the moment even if it gives the wrong final answer

Being greedy makes genome assembly tractable

After today, you should have a better understanding of

The greedy algorithm for genome assembly

Breaking ties

Tie-breaking rules are necessary when overlaps are identical

Talk with your neighbors

Suppose we have these three reads

ACGTAA

CGTAAC

with a highest

overlap of five

We merge reads R2 and R3:

TAACGT

R1

R2

R3

TAACGT

ACGTAAC

(and keep R1)

However, now we have a problem

ACGTAACGT

TAACGTAAC

Both have a length of 9, which one is the correct move?

Overlap of 4

TAACGT

ACGTAAC

Overlap of 4

TAACGT

ACGTAAC

Tie breakers are a personal preference

First encountered, first merged

Highest quality base calls

Highest coverage

Look ahead

Exclude

The one you found first

Use sequence with highest quality

Whichever results in more coverage

Do both and evaluate consequences

Be petty and don't merge them (separate contigs)

After today, you should have a better understanding of

The greedy algorithm for genome assembly

Trouble with repeats

Greedy assembly will incorrectly collapse repeats if possible

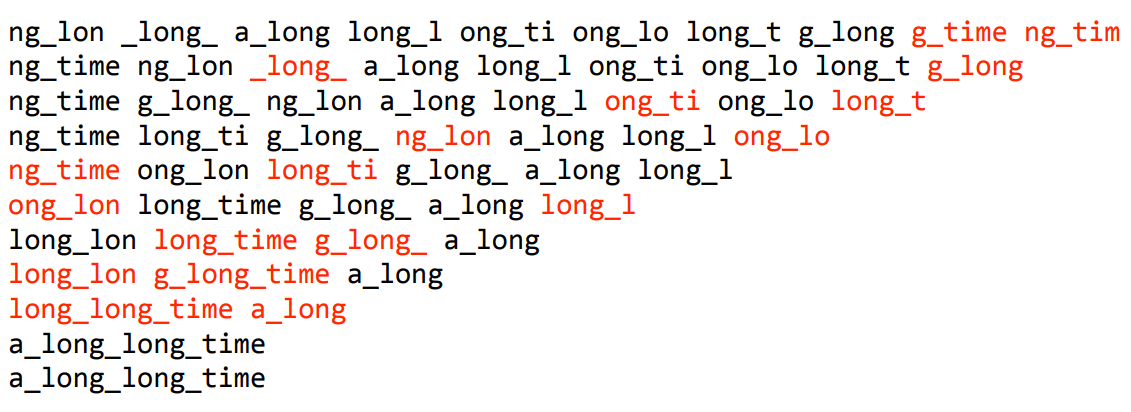

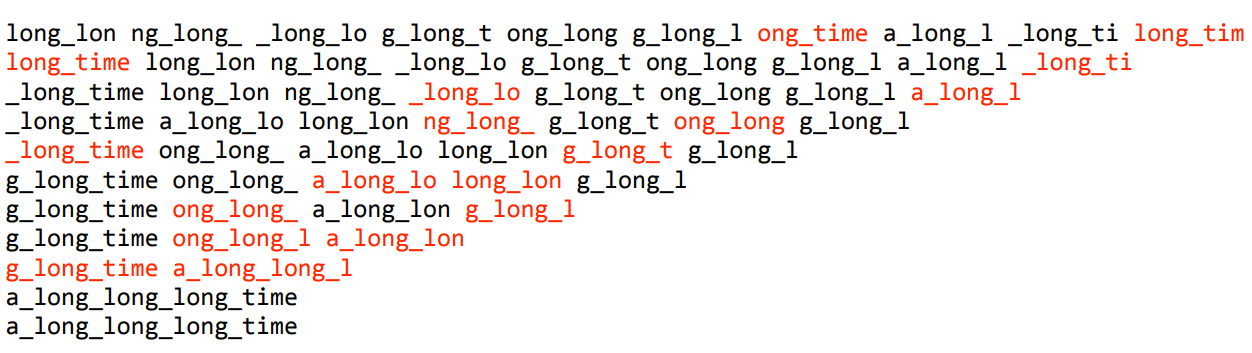

a_long_long_long_time

We are missing a "_long". Why?

Let's take a string and cyclically permute it with k = 6

Then perform the greedy algorithm

Longer reads and genome assembly

We get the correct string back, but how did increasing our k fix this?

a_long_long_long_time

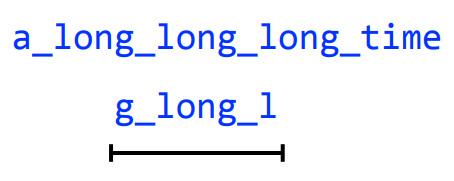

By having one read span all three "long"s, (i.e., the repeating region) we prevented a collapse

k = 8

Remember: This is why long sequencing reads are very helpful in resolving repeats!

After today, you should have a better understanding of

De Bruijn graphs and their role in assembly

K-mers

The greedy algorithm provides insights but is rarely used in modern genome assembly

The greedy approach is computationally efficient but fails for large, complex genomes.

Finding overlaps between all reads scales poorly with genome size

Full pairwise comparisons between reads require operations

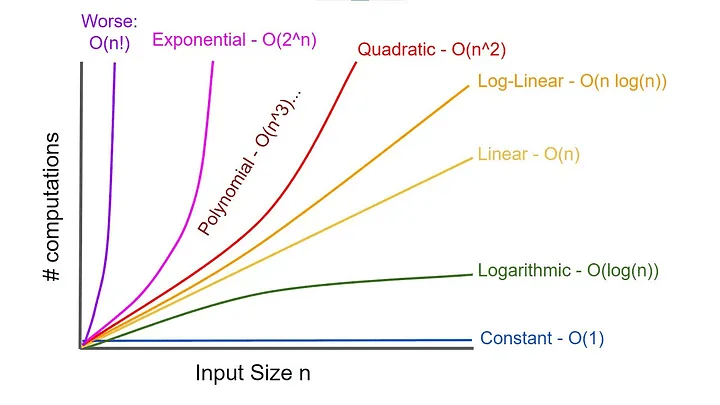

O(n^2)

where $n$ is the number of reads

As our number of reads increases, our time to find overlaps dramatically increases

However, the number of reads also improves our assembly

k-mers break reads into manageable, fixed-length pieces

By decomposing reads into k-mers, we can:

Represent sequences as collections of overlapping k-mers.
Avoid comparing entire reads by focusing on k-mer matches.
Use fixed-length k-mers to tolerate sequencing errors in overlaps.
Number of reads does not change number of k-mers

Instead of comparing whole sequences, we can compare k-mers!

A k-mer is a substring of length $k$ extracted from a sequence

Example: For the sequence ATCGT, the 3-mers are ATC, TCG, CGT.

Building k-mers from a string

GGCGATTCATCG

Slice first k characters
Shift right one character
Repeat

Spectrum with k = 3

GGC

GCG

CGA

TCG

ATC

GAT

ATT

TTC

TCA

CAT

All 3-mers

k-mers are robust to sequencing errors

Sequencing errors affect only a few k-mers in a read, not the entire sequence.

Longer k-mers provide specificity, while shorter k-mers ensure sensitivity.

Even if a single read has errors, most k-mers will match correctly to others.

After today, you should have a better understanding of

De Bruijn graphs and their role in assembly

Building graphs

Graphs is a data structure for drawing relationships between items

Node

Represents a single entity

Person
Location
Protein
Sequencing read

Edge

Represents a connection (possibly with a direction)

Instagram follower
Flights
Protein-protein interaction
Sequence overlap

Genome assembly uses direct edges to specify overlap and concatenation

"tomorrow and tomorrow and tomorrow"

Let's build a directed multigraph:

Each unique k-mer is a node
Add directed edges for each overlap and concatenation

K-mer is a substring of length k

(We will cheat here and write down just unique words)

tomorrow

and

Build a De Bruijn graph with k-1 nodes

AATGGCGTA

AAT

ATG

GGC

GCG

TGG

CGT

GTA

AATG

ATGG

TGGG

GGCG

GCGT

CGTA

5'

3'

Step 1:

Let's use k_edge = 4

Step 2:

AATG

L

R

Step 3: Repeat

ATGG

TGGG

GGCG

GCGT

CGTA

Take left and right k-1 mer and make two connected nodes (k_node = 3)

Build k-mers

Building De Bruijn graphs with a read

CGTAAAT

Build a De Bruijn graph with k = 3

CGT

GTA

TAA

AAA

AAT

CG

GT

TA

AA

AT

De Bruijn graphs with multiple reads

5' AATGGCGTA 3'

5' CGTAAAT 3'

Read 1

Read 2

Let's use nodes of length 4

AAT

ATG

GGC

GCG

TGG

CGT

GTA

TAA

AAA

Note: This is a circular genome

Frist, build the De Bruijn graph for

Read 1

Add edges and any new k-mers from

Read 2

Another example, but not circular

5' AATGGCGTA 3'

5' CGTAAAG 3'

5' TAAAGGCGAA3'

Read 1

Read 2

Read 3

AAT

ATG

GGC

GCG

TGG

CGT

GTA

TAA

AAA

AAG

CGA

GAA

AGG

We can add weights to edges instead of drawing multiple edges

5' AATGGCGTA 3'

5' CGTAAAG 3'

5' TAAAGGCGAA3'

Read 1

Read 2

Read 3

AAT

ATG

GGC

GCG

TGG

CGT

GTA

TAA

AAA

AAG

CGA

GAA

AGG

2

1

2

1

Another (another) example, but not circular

GATTAC

TACAGATT

AGATTAC

TACCGG

GGATTA

The solution is on the next slide (no peeking!)

De Bruijn graphs is one of the most missed questions on assessments, let's get some practice

Another example, but not circular

GATTAC

TACAGATT

AGATTAC

TACCGG

GGATTA

TACC

ACCG

CCGG

GATT

ATTA

TTAC

TACA

ACAG

CAGA

AGAT

GGAT

After today, you should have a better understanding of

De Bruijn graphs and their role in assembly

Characteristics

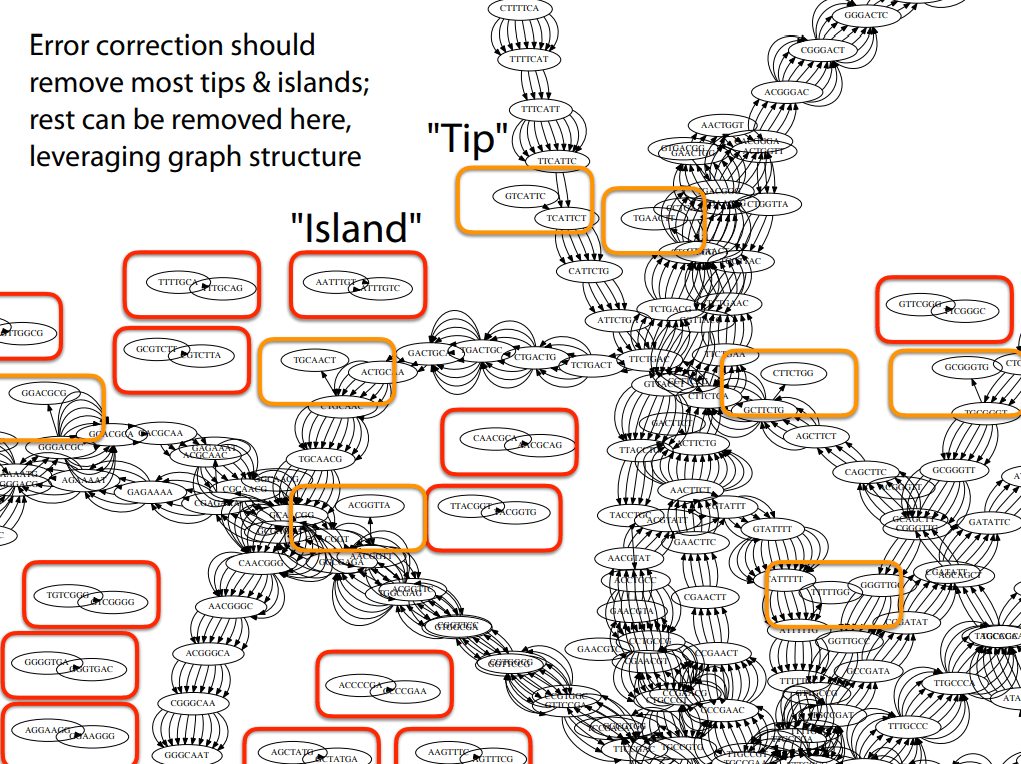

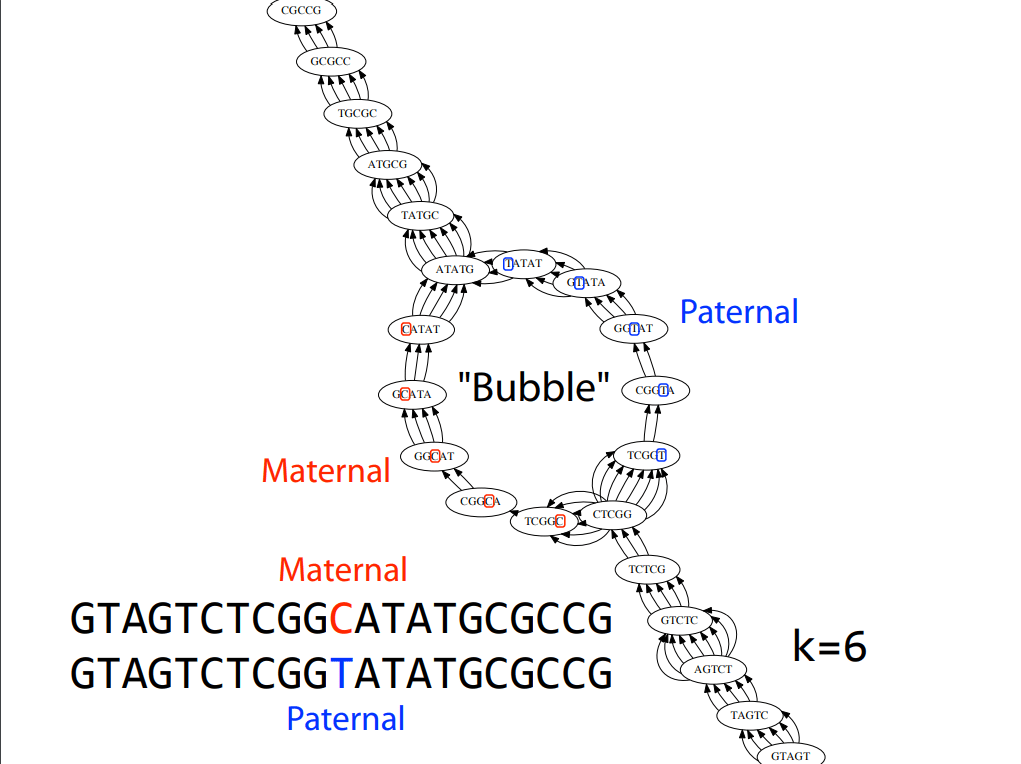

Tips are good starting points of contigs if they have high coverage

Islands are reads we couldn't merge

After today, you should have a better understanding of

Graph traversal methods for extracting contigs

De Bruijn graphs are traversed to extract contiguous genome sequences

Traversal is the process of finding contigs (continuous DNA sequences) by walking through the De Bruijn graph

TACC

ACCG

CCGG

GATT

ATTA

TTAC

TACA

ACAG

CAGA

AGAT

GGAT

Edges: Represent k-mer overlaps between nodes.

Nodes: Represent k-mers derived from sequencing reads.

Standard traversal methods, such as breadth-first search (BFS) and depth-first search (DFS), are building blocks for more advanced assembly techniques.

After today, you should have a better understanding of

Graph traversal methods for extracting contigs

DFS explores as far as possible along each branch before backtracking

Imagine exploring a maze with this strategy:

Keep walking forward until you hit a dead end
Backtrack only when necessary
Take the first unexplored path you see

    A
   / \
  B   C
 /   / \
D   E   F

DFS Traversal from A (one possible order):

A → B → D (follow first path to end)
Backtrack to A
A → C → E
Backtrack to C
C → F

BFS explores all neighbors of a node before moving deeper into the graph

Imagine you're dropping a pebble in a pond:

First, you see ripples reach nearby points
Then, they spread outward in circles
Each "wave" represents a level of exploration

    A
   / \
  B   C
 /   / \
D   E   F

DFS Traversal from A (one possible order):

A → B → D (follow first path to end)
Backtrack to A
A → C → E
Backtrack to C
C → F

Standard traversal methods struggle with genome assembly challenges

Specialized traversal methods, like Eulerian and Hamiltonian paths, address these challenges.

After today, you should have a better understanding of

Graph traversal methods for extracting contigs

Eulerian paths traverse every edge exactly once, aligning with k-mer overlaps

Definition: A path that visits every edge exactly once in a graph.
Relevance to De Bruijn Graphs:
- Nodes = k-1-mers, Edges = k-mer overlaps.
- Finding an Eulerian path reconstructs the genome sequence.
Key Properties:
- All nodes must have equal in-degree and out-degree, except at most two nodes (semi-balanced).
- Efficient traversal in graphs where overlaps are abundant.
Example: AAT → ATG → TGG → GGC forms a single path when traversing overlaps.

An Eulerian path resolves overlaps in sequencing reads

Graph Example:
- Nodes: AAT, ATG, TGG, GGC, GCG, CGT.
- Edges: AAT → ATG, ATG → TGG, TGG → GGC, GGC → GCG, GCG → CGT.
Traversal: Follow the edges to reconstruct the genome: AATGGCGT.
Activity: Ask students to find the Eulerian path for a similar graph with cycles.

Eulerian paths are fundamental to extracting contigs from De Bruijn graphs

Eulerian Path: A path through a graph that visits every edge exactly once.
Why Eulerian Paths?
- De Bruijn graphs use k-mer overlaps to simplify assembly into an edge-traversal problem.
- Each edge represents an overlap, making the Eulerian path equivalent to contig assembly.
Key Properties for Eulerian Paths:
- All nodes except two must have equal in-degree and out-degree.
- At most two nodes can be semi-balanced (differing in degree by one).

Hamiltonian paths visit every node exactly once, aligning with reads

Definition: A path that visits every node exactly once in a graph.
Relevance to Overlap Graphs:
- Nodes = Reads, Edges = Overlaps between reads.
- A Hamiltonian path assembles the genome by arranging reads in sequence.
Limitations:
- Computationally intractable for large datasets due to the complexity of visiting every node.
- Less practical than Eulerian paths in modern genome assembly.

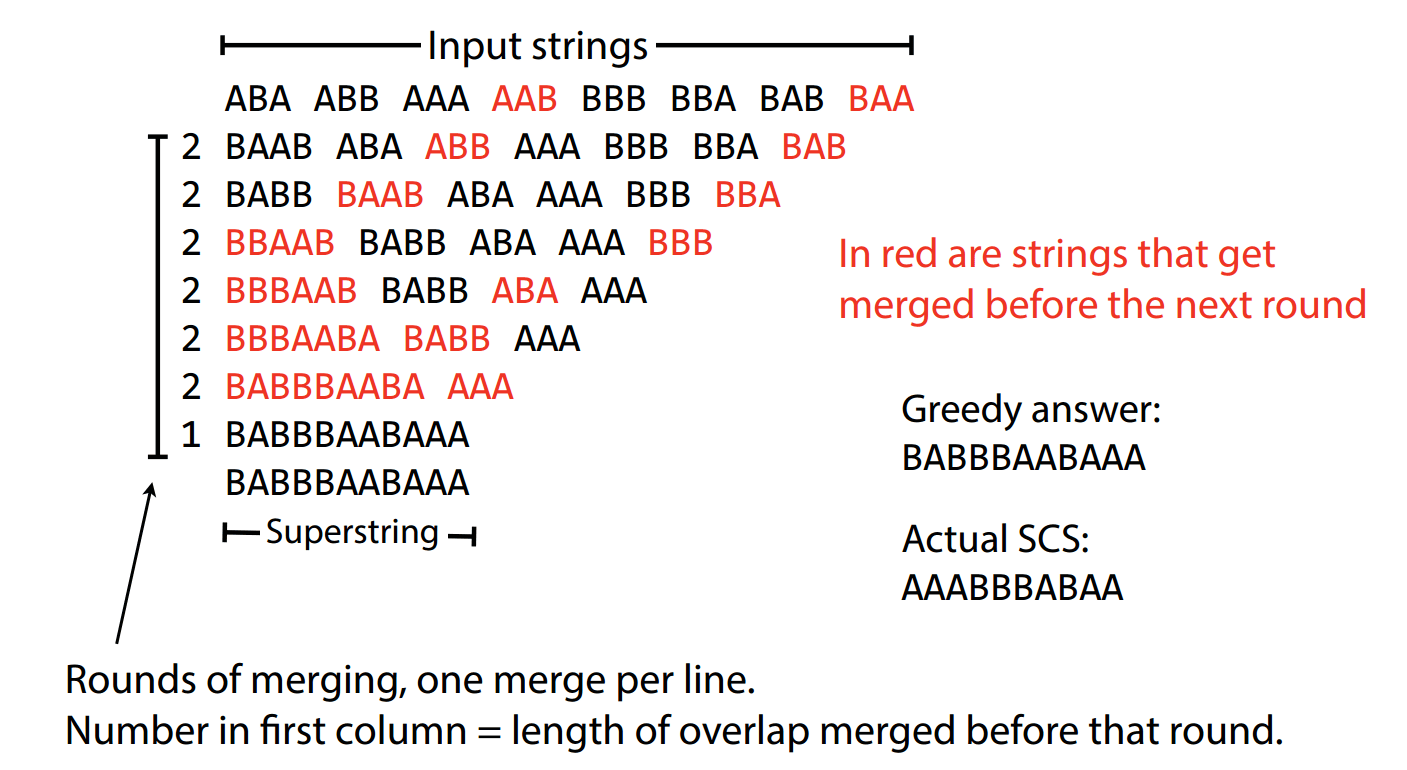

Suppose we want the shortest superstring

This is a valid superstring, but why would we want the shortest?

BAAAABBBAABAABBBBBAAABAB

Talk with your neighbors

Overlap maximization

Reduces redundancy
Maximizes confidence with highest overlaps

Repeat resolution

Resolves repeats by favoring collapsed arrangements

Evolutionary pressure

Most genomes have selective pressure to be efficient

Let's formulate our problem

Suppose we have a collection of strings (i.e., reads)

(In CS, we call a sequence of characters a string)

BAA

AAB

BBA

ABA

ABB

BBB

AAA

BAB

We want to assemble these strings into a single, continuous string (i.e., contig)

What's the easiest way?

Concatenate

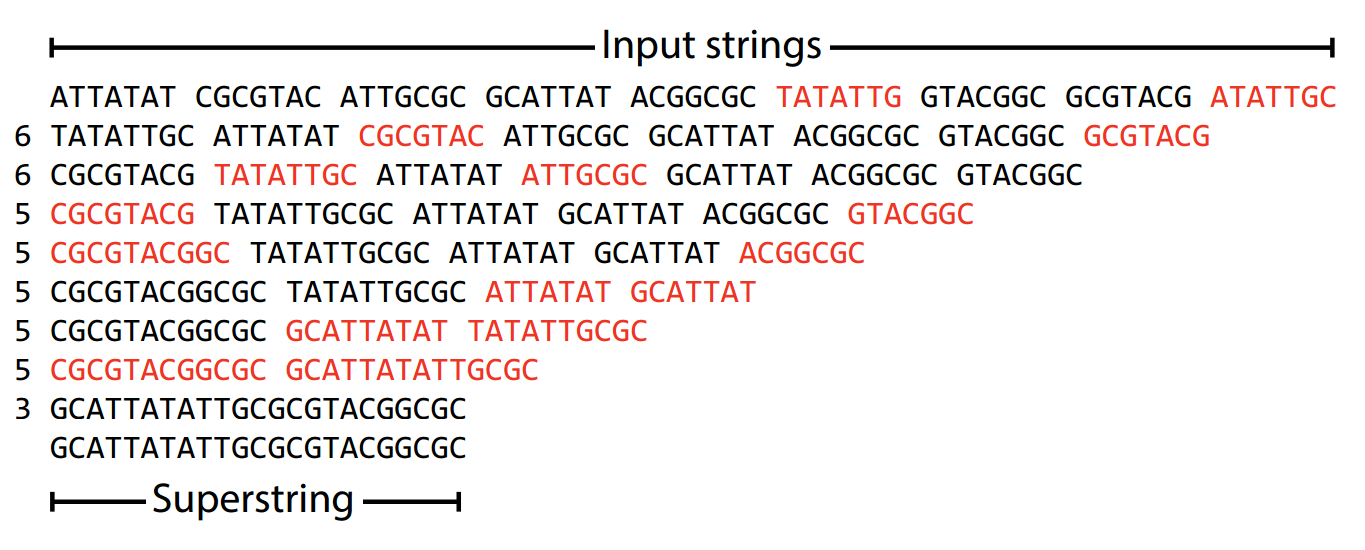

BAAAABBBAABAABBBBBAAABAB

Done!

Well, no.

Right?

This is called a "superstring"

After today, you should have a better understanding of

De Bruijn graphs and their role in assembly

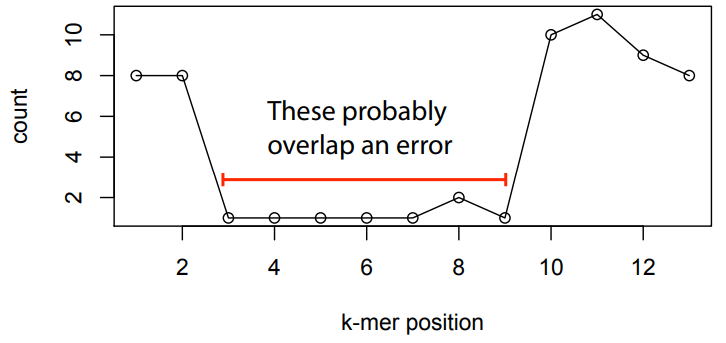

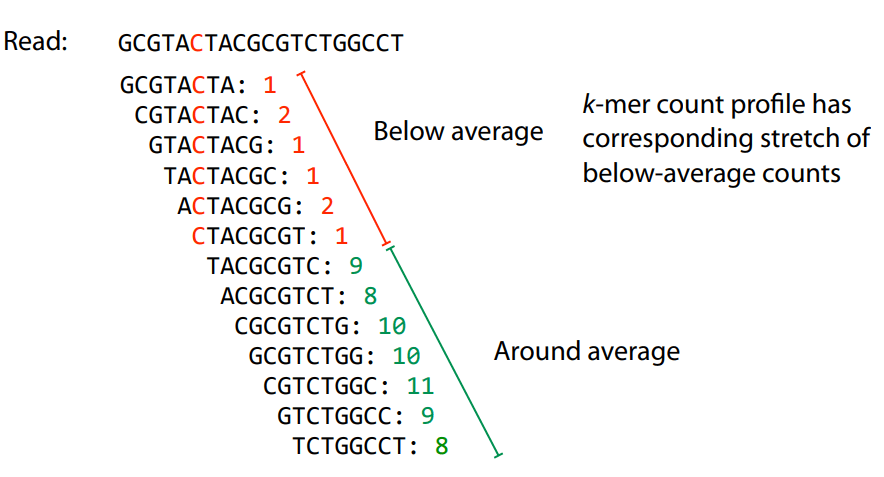

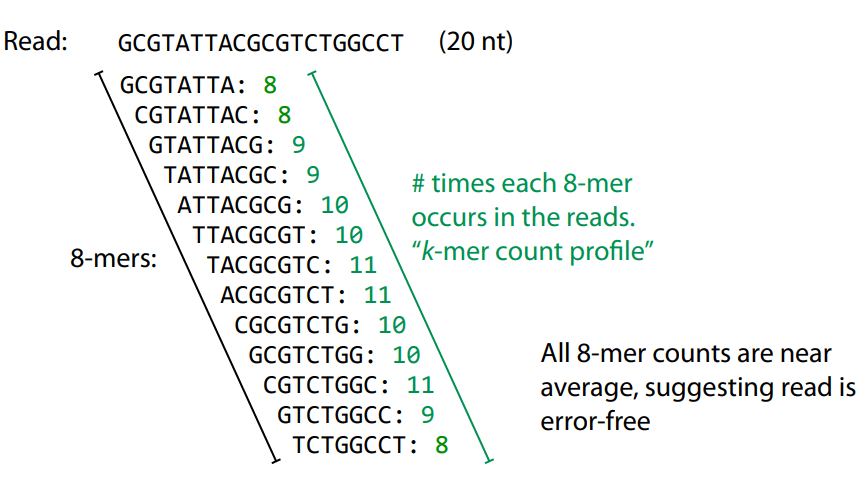

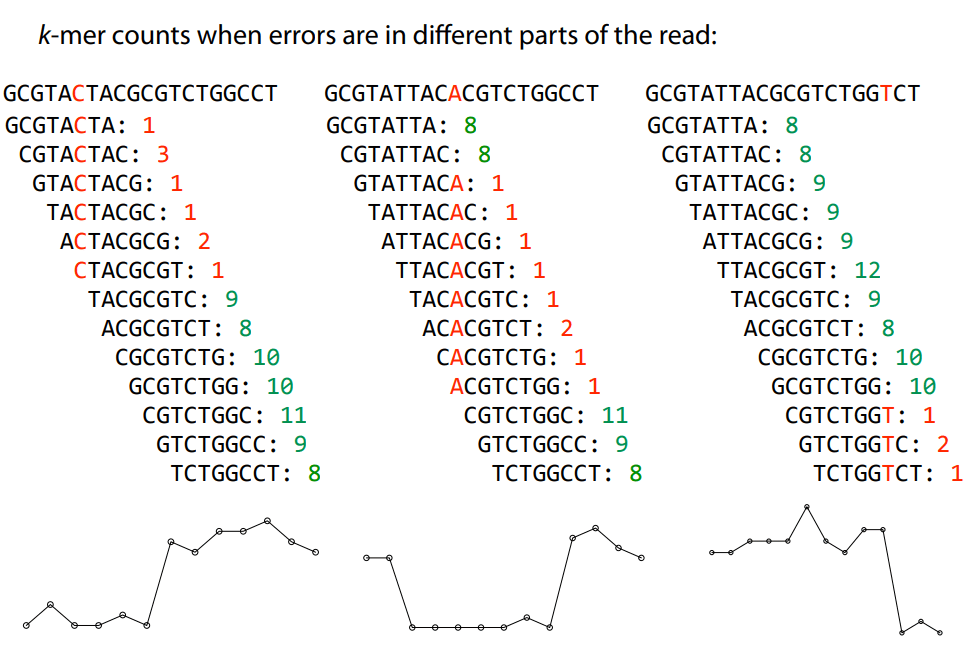

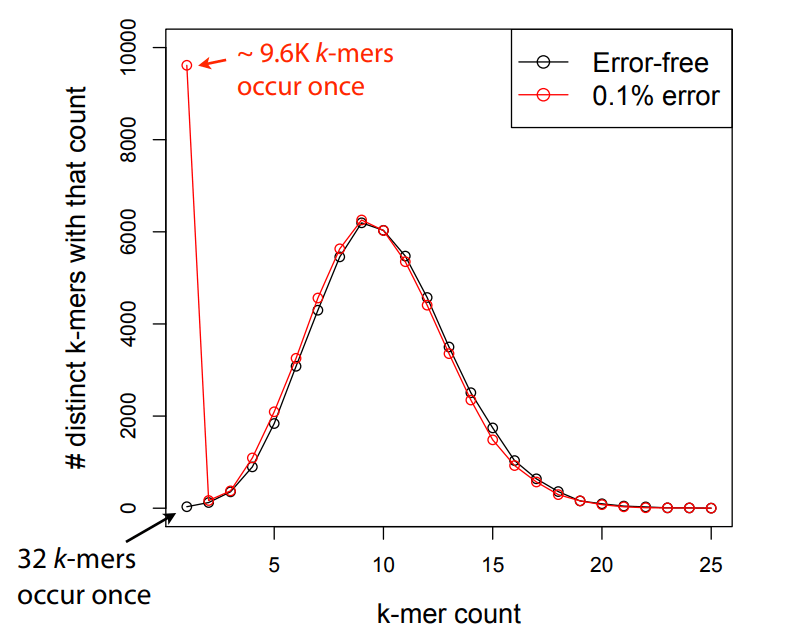

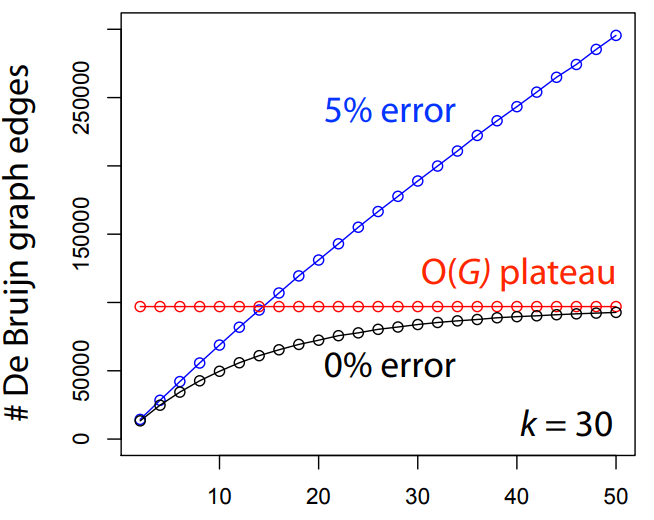

Error correction
