Computational Biology

(BIOSC 1540)

Mar 11, 2025

Lecture 09A

Structural Biology

Foundations

Announcements

After today, you should have a better understanding of

The definition and biological importance of structural biology

The atomic world of biology

At the foundation of biological processes lie atoms and their interactions

What is structural biology?

Importance of structural biology: We cannot exploit what we do not understand

Innovation and biotechnology depend on molecular understanding

After today, you should have a better understanding of

The definition and biological importance of structural biology

Alex's research example: Engineering green fluorescent protein with Dr. Rosenbaum and Dr. Carlson

Green Fluorescent Protein (GFP) is a fluorescent protein from the jellyfish Aequorea victoria

Enhanced GFP (eGFP) absorbs violet/blue light (400 - 490 nm) and emits green light ~507 nm

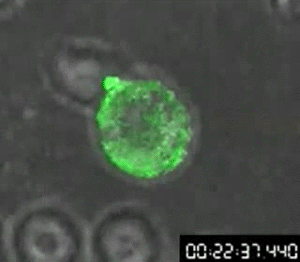

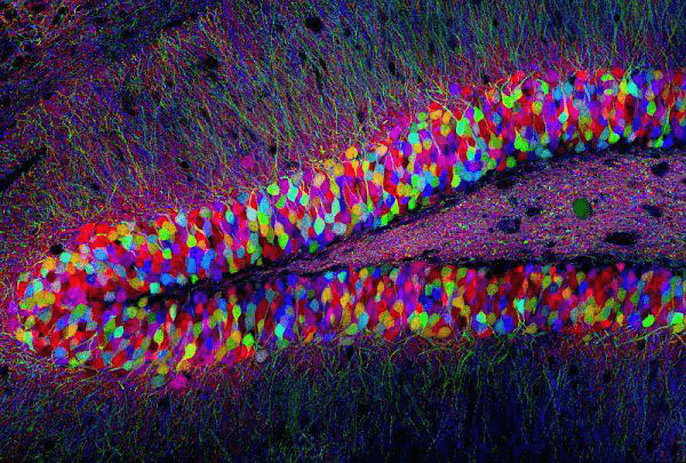

We can repurpose GFP to do many things!

Redox reactions are a cornerstone of biology

Remington and coworkers developed redox-sensitive GFPs

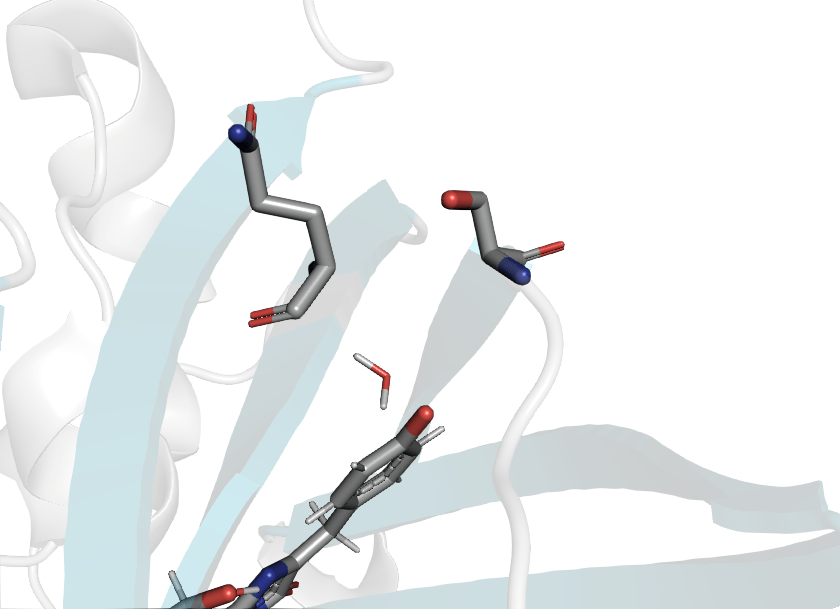

roGFP2 has S147C and Q204C mutations

Hanson, G. T., et al. (2004). Journal of Biological Chemistry, 279(13), 13044-13053. DOI: 10.1074/jbc.M312846200

PDB ID: 2Y0G

PDB ID: 1JC0

147

204

CRO

147

204

CRO

Wild type

roGFP2

Disulfide bond formation is driven by redox potential

Hanson, G. T., et al. (2004). Journal of Biological Chemistry, 279(13), 13044-13053. DOI: 10.1074/jbc.M312846200

Reduced

Oxidized

PDB ID: 1JC0

PDB ID: 1JC1

Cysteines can also bind metals

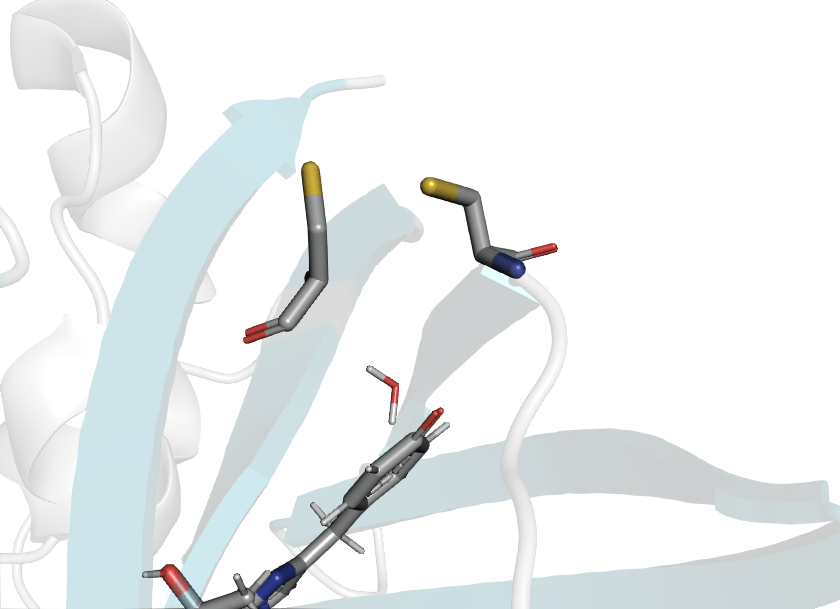

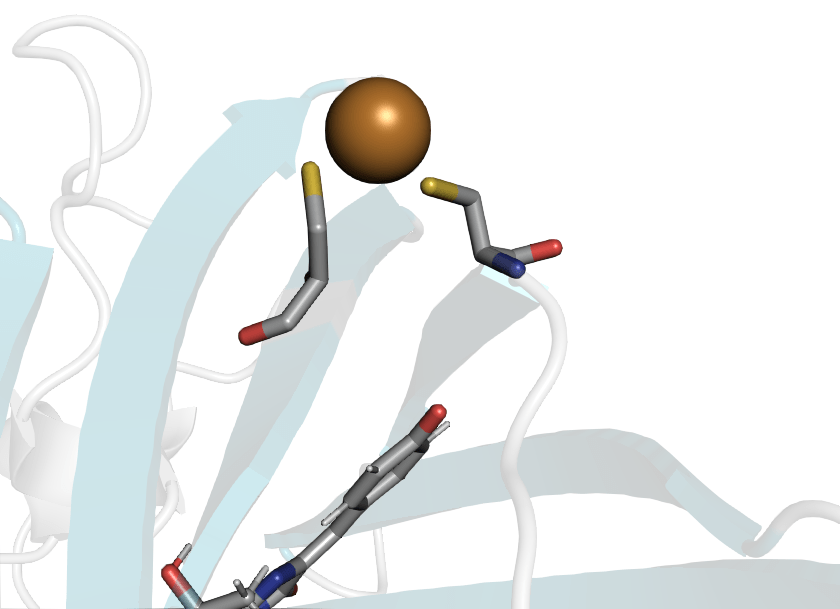

roGFP2 can bind Cu(I) to CYS147 and CYS204

Cu(I) sensing GFP

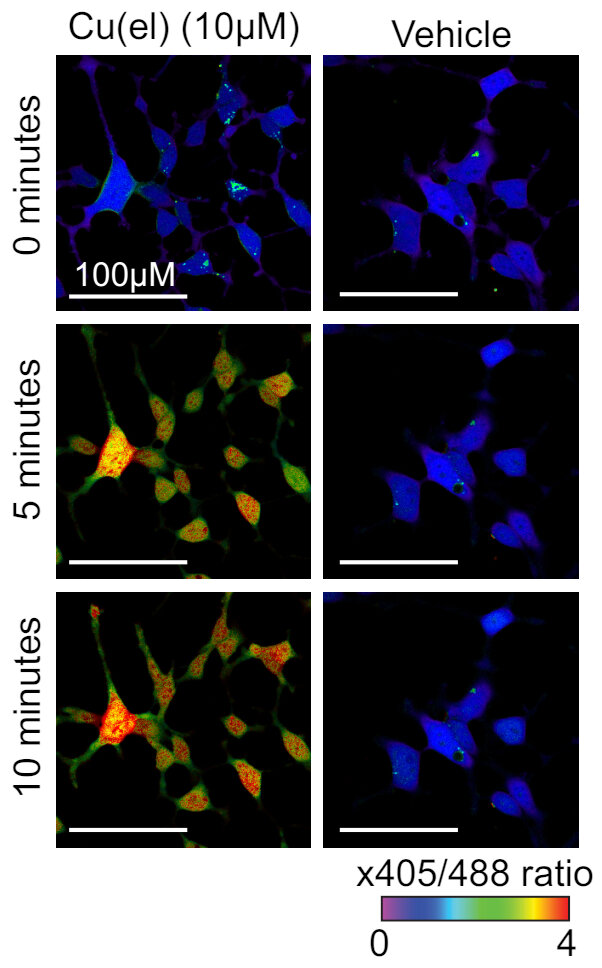

Computational question: How does Cu(I) binding quench roGPF2 florescence?

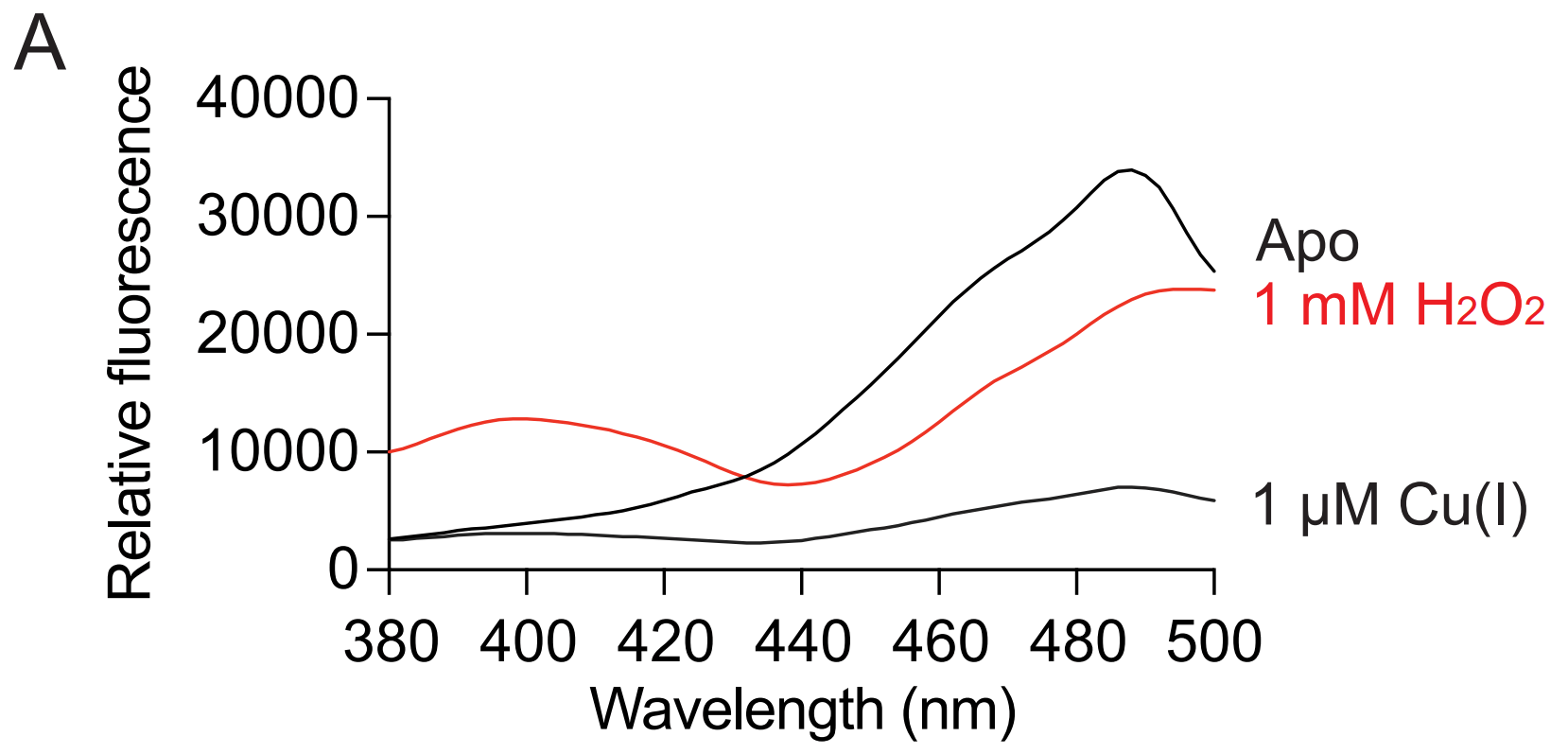

roGFP2 will also change fluorescence in a different way when copper is present

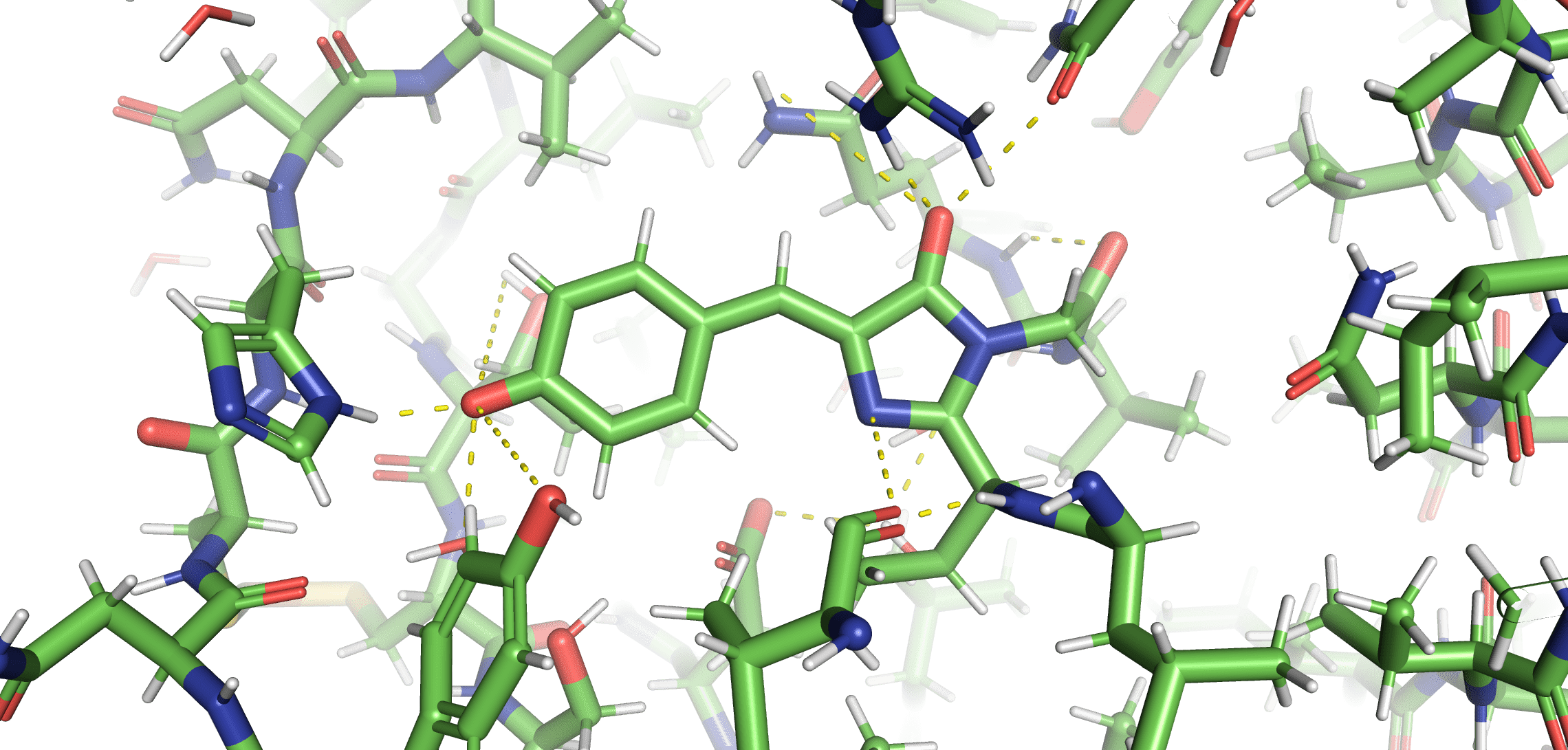

Cu(I) binding to Cys147 and Cys204 disrupts the chromophore's hydrogen bonding network

When the chromophore has increased flexability, it will de-excite through vibrations instead of emitting photons

Application: We can tailor the position of these cysteines to bind other heavy metals like lead, arsenic, etc.

After today, you should have a better understanding of

The definition and biological importance of structural biology

Alex's research example: Listeria monocytogenes with Dr. Cahoon

Dr. Cahoon is studying how Listeria monocytogenes (Lm) infects cells

Agbavor, C.; et al. DOI: 10.1128/mbio.00743-24

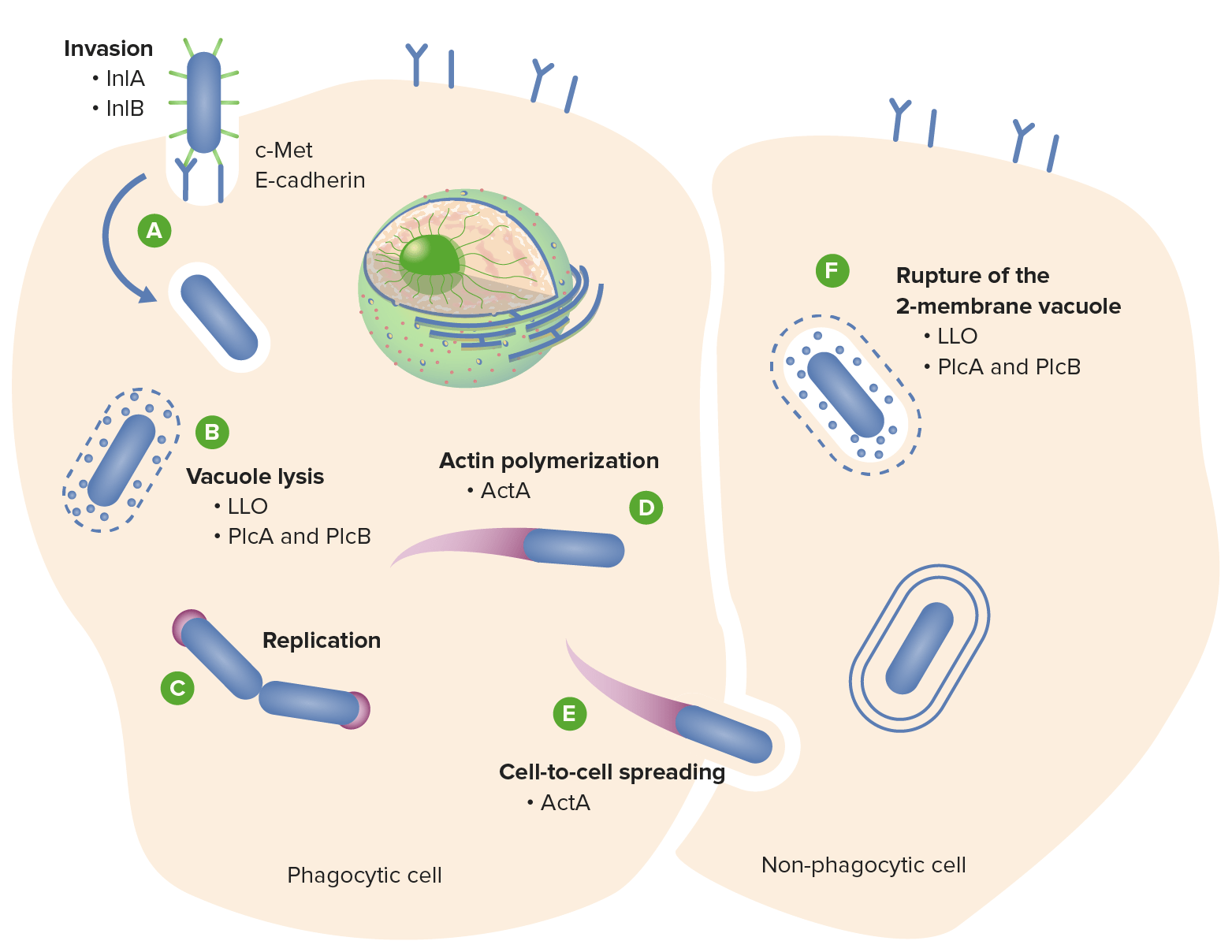

Lm secretes listeriolysin O (LLO) which forms pores in vacuoles allowing it to escape

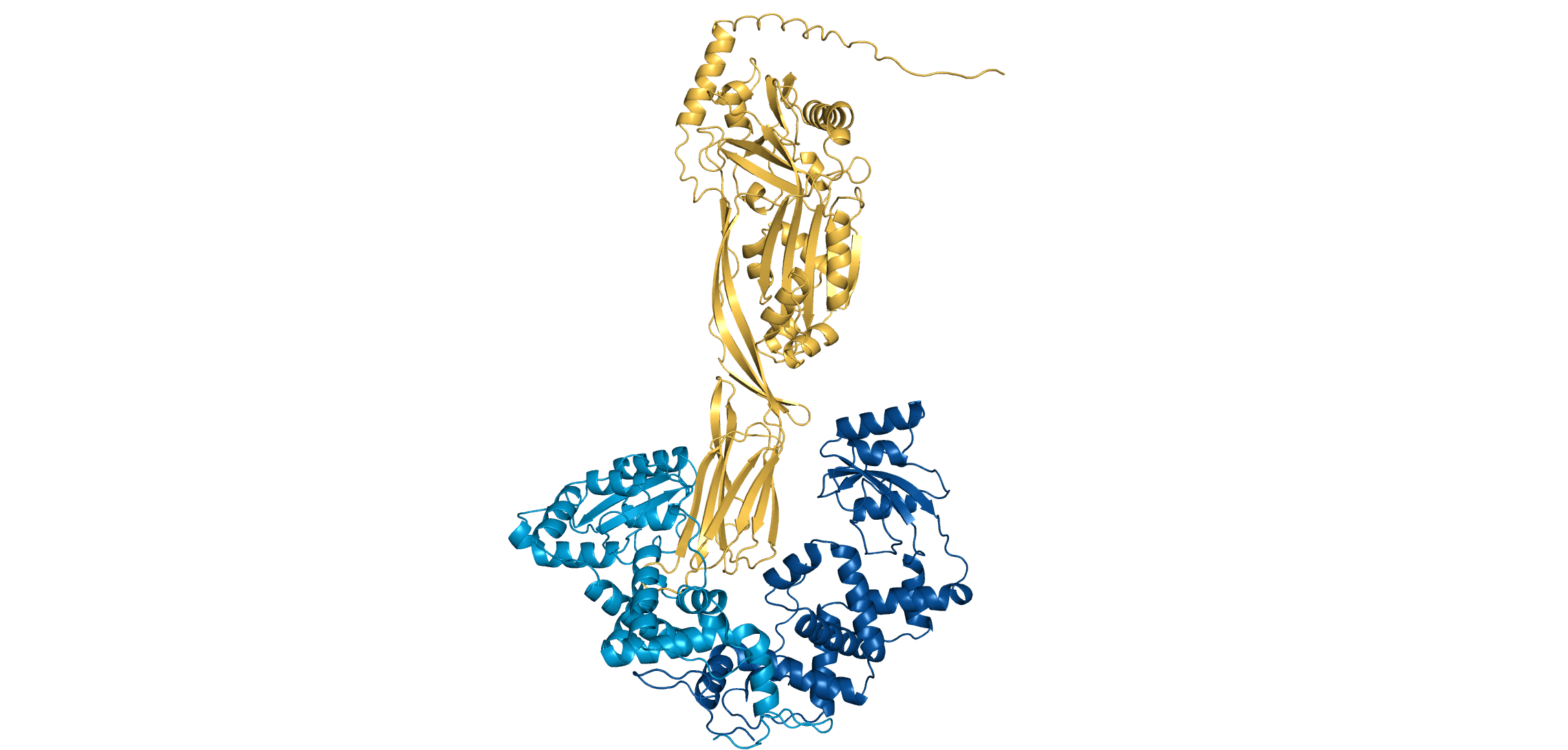

PrsA2

PrsA2

LLO

Lm secretes a pore-forming, cholesterol-dependent toxin called listeriolysin O (LLO) to escape vacuoles and infect cells

Agbavor, C.; et al. DOI: 10.1128/mbio.00743-24

This is a new project, so we do not know yet!

What is our computational question?

Are PrsA2-LLO interactions destabilized in acidic (i.e., pH 5) environments? If so, how?

Application: Once we understand this interaction, we can design a new antibiotic for gram positive bacteria

PrsA2

PrsA2

LLO

After today, you should have a better understanding of

Basic principles of protein structure

All proteins are composed of smaller molecules called amino acids, which are linked together in specific sequences.

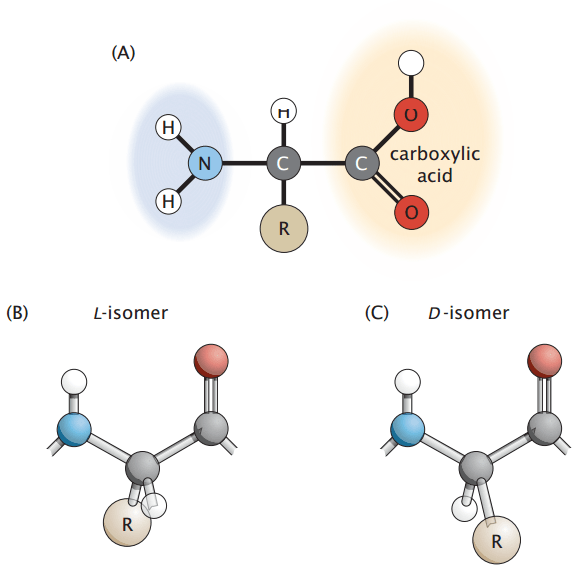

Each amino acid contains a central carbon (alpha carbon) bonded to an amino group (NH₂), a carboxyl group (COOH), a hydrogen atom, and a variable side chain known as the R-group.

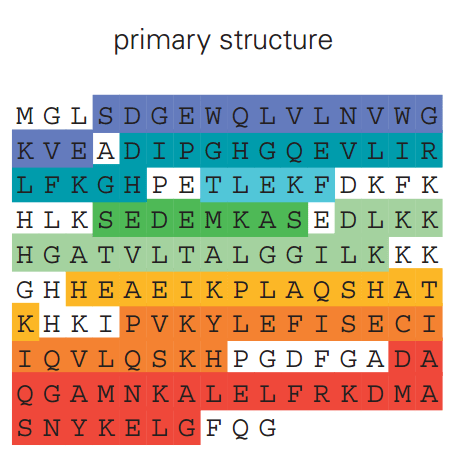

The primary structure of a protein is the linear sequence of amino acids held together by covalent peptide bonds

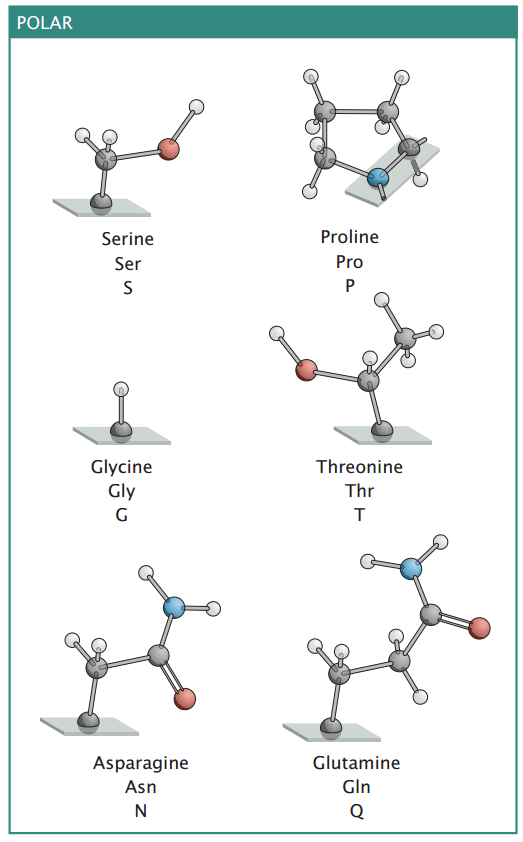

Polar amino acids enable interactions with water and other polar molecules

Polar amino acids have side chains that can form hydrogen bonds, making them hydrophilic

You will not be tested on your amino acid abbreviations

Polar amino acids contribute to protein solubility and help stabilize secondary and tertiary structures through hydrogen bonding.

Many polar amino acids are involved in enzymatic activity, facilitating catalytic reactions by stabilizing transition states or interacting with substrates.

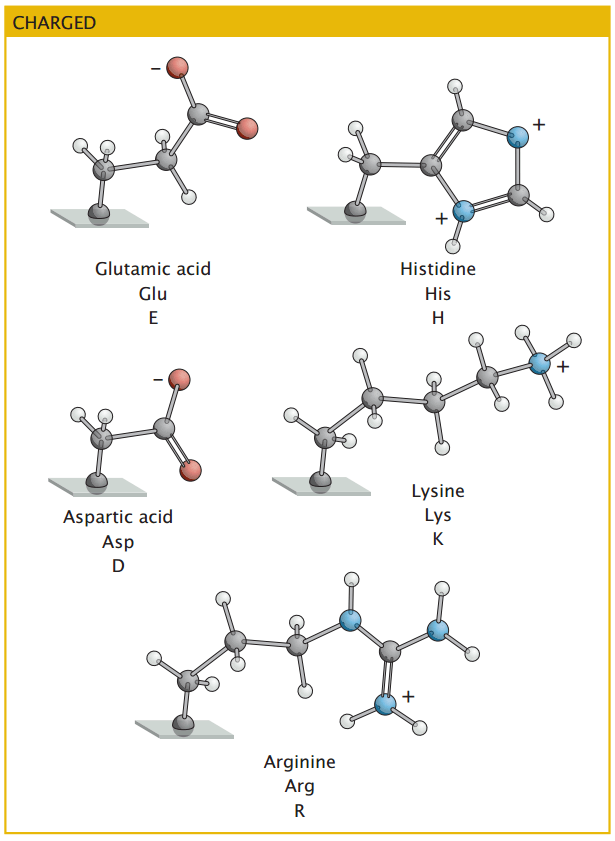

Charged amino acids play key roles in protein stability and interactions

Acidic amino acids carry negative charges and participate in ionic interactions that stabilize protein structures

Charged amino acids contribute to protein folding by forming salt bridges, which enhance stability.

The cellular environment's pH can influence these amino acids' charge state, affecting protein conformation and function.

Basic amino acids carry positive charges and frequently interact with negatively charged molecules like DNA and phospholipids.

Nonpolar amino acids drive protein folding and membrane interactions

These amino acids are often found in the interior of globular proteins, stabilizing protein structure by minimizing exposure to water

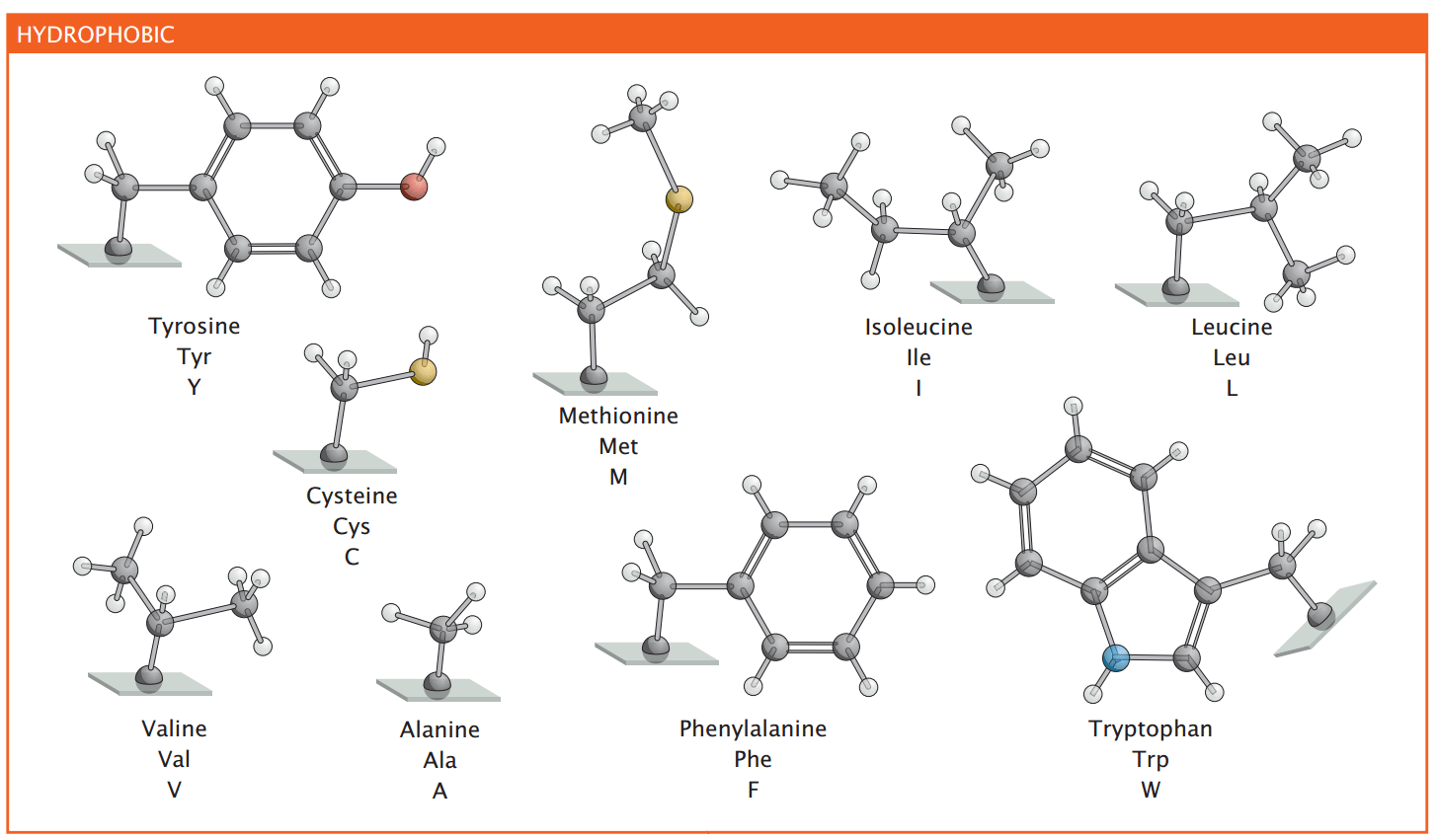

Aromatic nonpolar amino acids  participate in stacking interactions, influencing protein stability and ligand binding

The primary structure of a protein determines its final shape and function

The primary structure of a protein is the linear sequence of amino acids, held together by covalent peptide bonds

The primary structure alone does not reveal the protein's functional form or activity

While the primary sequence is critical, the folding process may also depend on cellular factors (e.g., chaperones)

After today, you should have a better understanding of

Basic principles of protein structure

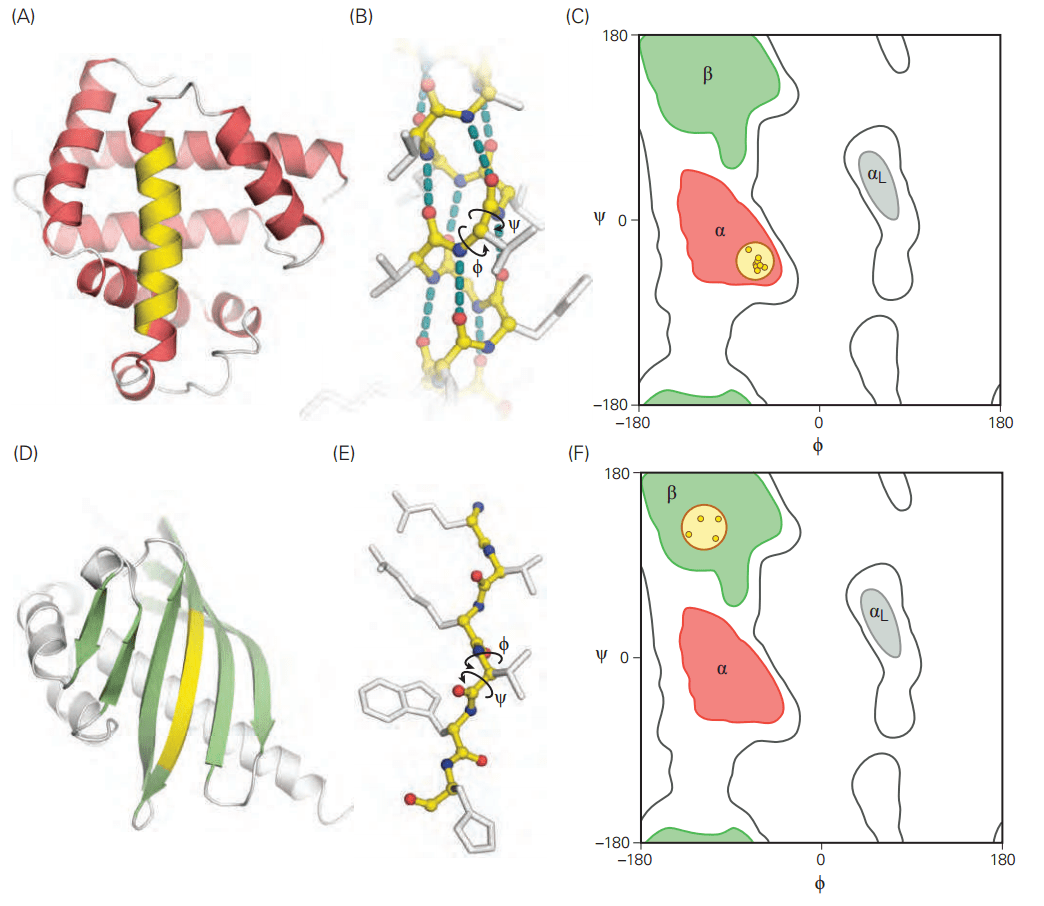

Phi (Φ) and Psi (Ψ) angles determine protein backbone flexibility and folding

Proteins are flexible due to rotation around specific backbone bonds: the phi (Φ) and psi (Ψ) angles.

Not all angle combinations are allowed due to steric hindrance—this is visualized in a Ramachandran plot, which maps permitted conformations.

Secondary structures provide local organization within proteins

Secondary structures refer to regularly repeating local conformations of the polypeptide backbone.

These structures help proteins achieve compact and stable folding while maintaining flexibility for function.

Alpha-helices are stabilized by hydrogen bonds and provide structural flexibility

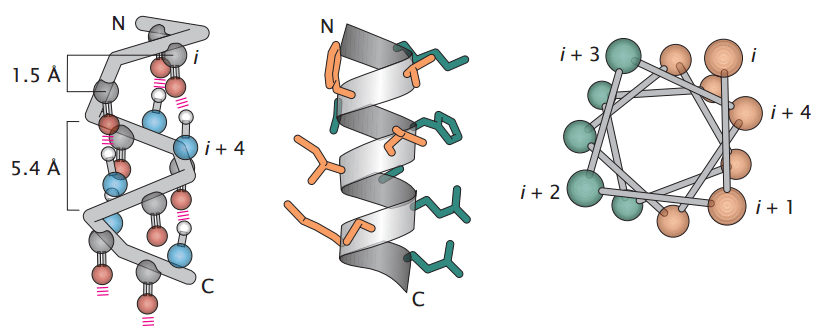

An alpha-helix is a right-handed coil with 3.6 amino acids per turn, stabilized by hydrogen bonds between the backbone carbonyl oxygen and the amide hydrogen of a residue four positions ahead.

Side chains project outward, allowing interactions with the surrounding environment.

Beta-sheets provide strength and stability to protein structures

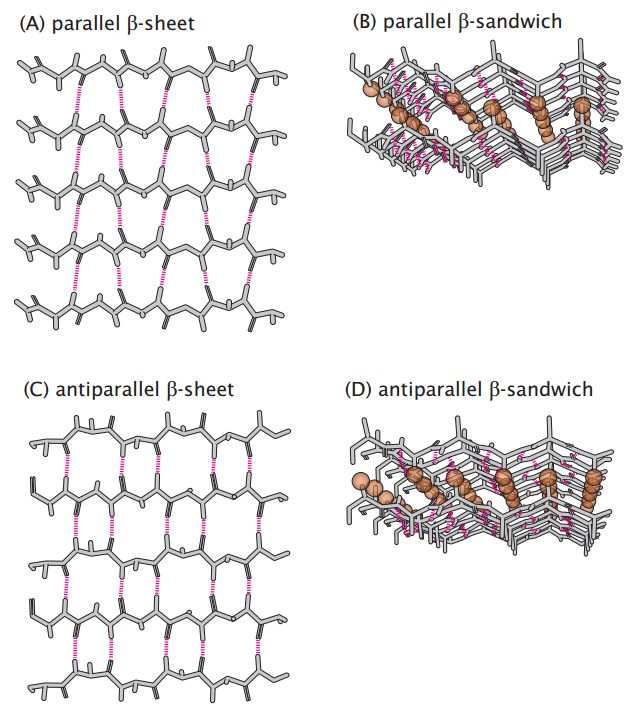

Beta-sheets consist of extended polypeptide strands aligned side by side, stabilized by hydrogen bonds between backbone atoms of adjacent strands.

Strands can be parallel (N-to-C direction aligned) or antiparallel (N-to-C in opposite directions), with antiparallel sheets being more stable.

Side chains alternate above and below the sheet, affecting interaction and stability.

After today, you should have a better understanding of

Basic principles of protein structure

Tertiary Structure

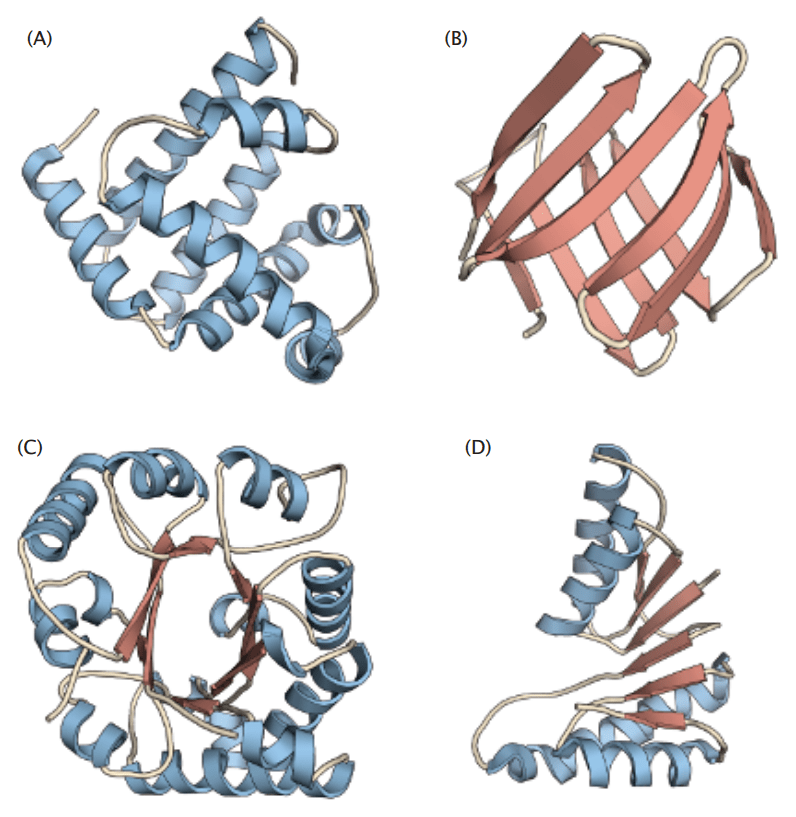

The tertiary structure refers to the complete 3D shape of a single polypeptide chain

Tertiary structures reveal active sites or binding pockets where catalysis or molecular interactions occur

After today, you should have a better understanding of

X-ray crystallography and cryo-electron microscopy

Fundamentals of X-ray Crystallography

Basic Principle: Photons scatter when they interact with other particles

The scattered X-rays form a diffraction pattern unique to the crystal

Probe: Photon (carrier of electromagnetic radiation)

X-rays undergo elastic scattering by electrons

1. An incident photon induces an oscillating dipole by distorting the electron density (Rayleigh)
2. An oscillating dipole acts as an electromagnetic source and re-emits photons at the same wavelength in all directions

Constructive interference is needed to amplify signal for detectors

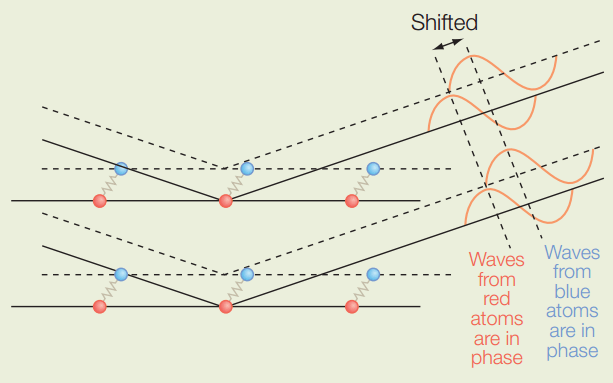

If wavelengths are similar and in phase, they constructively interfere

If waves are out of phase, they deconstructively interfere

Constructive interference leads to distinct patterns

If wavelengths are similar and in phase, they constructively interfere and form spots based on atom type and distance

The diffraction pattern

The spots on the detector represent the reflections of the scattered X-rays

• Intensity of the spots reflects the electron density in the crystal
• Position and angle: The position of the spots corresponds to the geometry

The diffraction pattern does not directly show the atomic positions, but provides the data needed to infer the electron density

Building the electron density map

The 3D electron density map reveals the distribution of electrons in the crystal, indicating where atoms are located

The electron density map is interpreted by fitting atomic models (e.g., amino acids for proteins) into the density

Low-resolution data make it difficult to assign atomic positions precisely, leading to uncertainty in the model

Why do we need crystals?

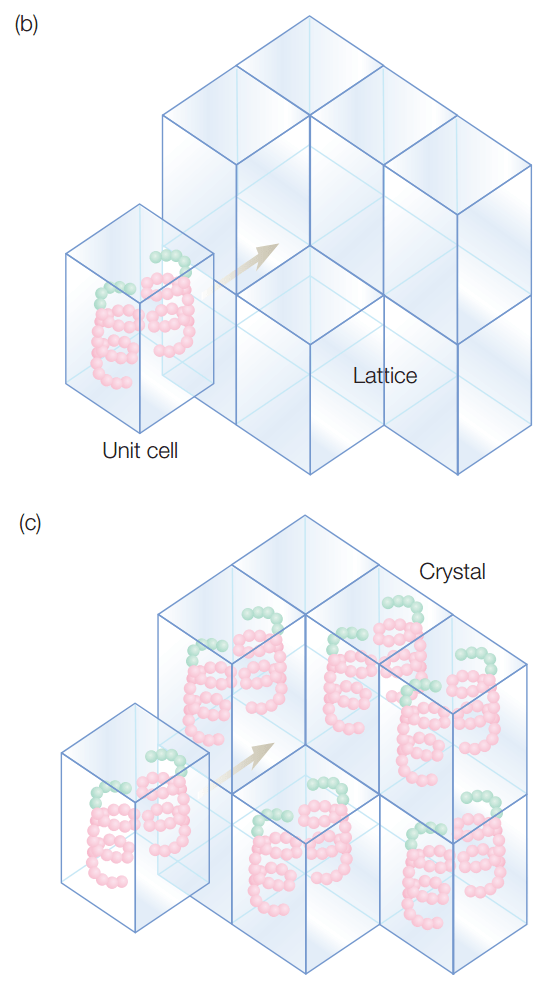

Crystals have the same repeating unit cell, which amplifies our signals

If in solution, particles would be

• Too sparse to diffract
• Moving and diffraction pattern would constantly change

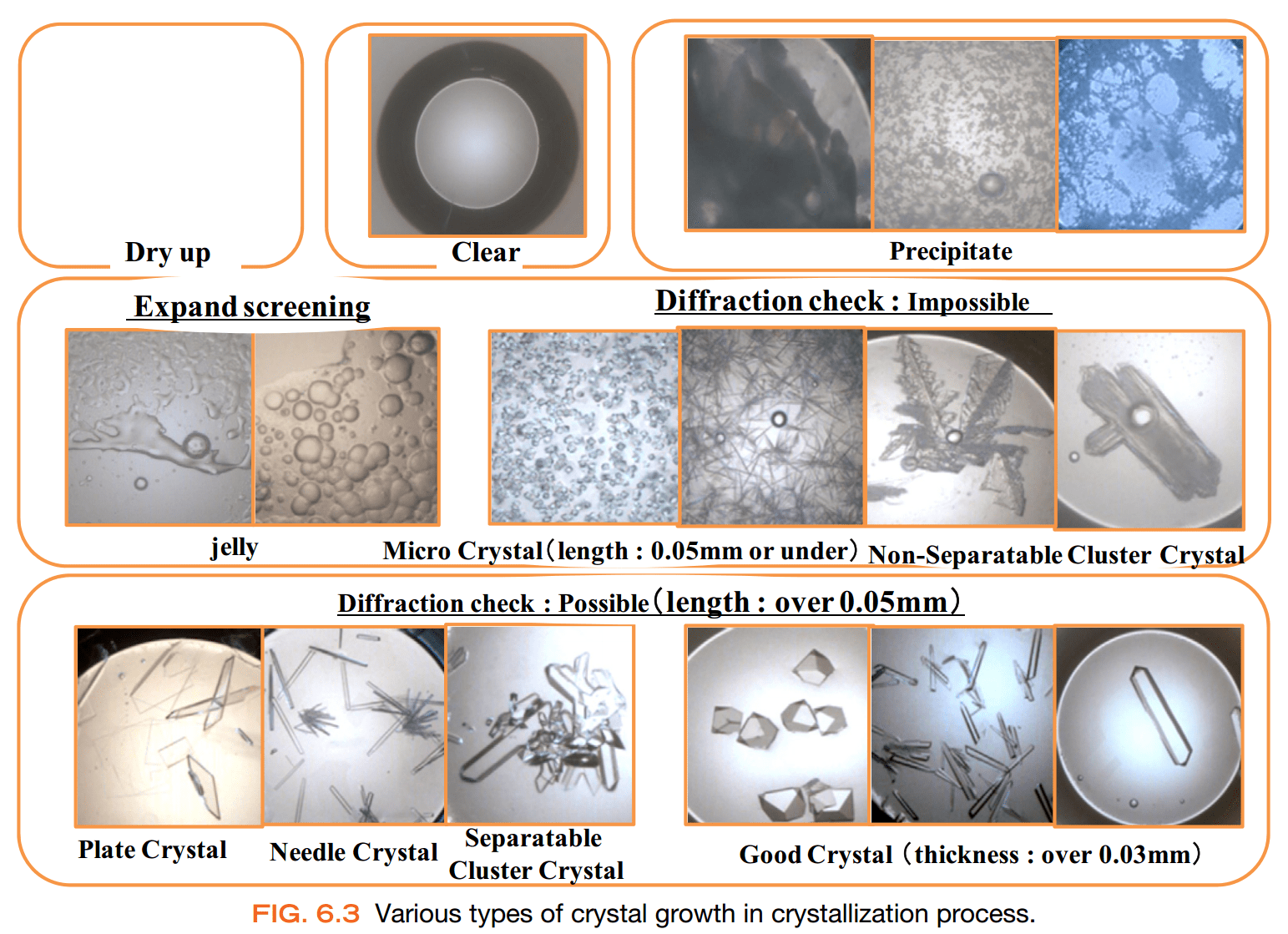

Crystal quality

After today, you should have a better understanding of

X-ray crystallography and cryo-electron microscopy

Why Cryo-EM?

In Cryo-EM, a beam of high-energy electrons is used instead of photons

​Why Electrons?

• Electrons have a much shorter wavelength (~0.02 Å at 300 keV) than photons
• Light elements scatter electrons more effectively than X-rays

No crystals: The sample is rapidly frozen in vitreous ice to preserve its native structure

• By freezing the sample, biological molecules are imaged in their native hydrated state

Single Particle Analysis (SPA)

• Millions of images of individual particles are collected from a thin layer
• Particles are computationally aligned and classified into different orientations

After today, you should have a better understanding of

The challenge of protein disorder

Challenge of flexibility and disorder in biomolecules

Challenges in X-ray Crystallography

• Flexible or disordered regions do not pack into crystals well, often leading to failure in obtaining high-quality crystals.
• Even in cases where crystallization is successful, flexible or disordered regions often do not show up clearly in the electron density map.
• Crystals capture a single molecule conformation, often ignoring the flexibility or dynamic range.

Cryo-EM and Conformational Flexibility

One strength of Cryo-EM is its ability to capture multiple conformational states of a molecule, providing insights into flexibility and structural heterogeneity.

​Challenge: A major issue in Cryo-EM is that highly flexible or disordered molecules may appear as fuzzy or low-resolution regions in the final structure

Advanced computational techniques are required to sort out different conformations present in the Cryo-EM data

Intrinsically Disordered Proteins (IDPs)

Intrinsically disordered proteins (IDPs) or regions lack a stable 3D structure under physiological conditions but are still functional, often gaining structure upon binding to partners

Atomistic structure determines behavior of biomolecules

Particle behaviors are determined by quantum numbers

Each atom contributes electrons to the molecule

Benzene has . . .

Six carbon atoms with 1s² 2s² 2p²

Six hydrogen atoms with 1s

located at the center of each atom's position

Electrons "mix" into molecular orbitals to a specific energy level

Particles (e.g., electrons and photons) can interact with these molecular orbials

D_6h structure

D_3h structure

 These molecular orbitals determine behavior

Changing the positions (or symmetry) change molecular orbitals

Result: An electron density distribution unique to that structure

• X-ray Crystallography: How a crystal of molecules diffracts X-rays
• NMR Spectroscopy: How atomic nuclei interact with magnetic fields and radiofrequency pulses
• Cryo-Electron Microscopy: How molecules scatter electron beams

After today, you should have a better understanding of

Basic principles of X-ray crystallography and cryo-electron microscopy

UniProt is a protein information database

Let's find information about our project's drug target: Dihydrofolate reductase

www.uniprot.org

UniProt is a comprehensive database to access curated data about protein structures, functions, sequences, and annotations.

Link to page

This page shows the results of a search in UniProtKB for a specific protein, in this case, "Dihydrofolate reductase"

On the left side, you have multiple filters to narrow your search results:

• Reviewed (Swiss-Prot): Experts manually curated and verified these entries, ensuring high accuracy

• Unreviewed (TrEMBL): These entries are automatically generated and have not been manually reviewed

Each row in the table represents a different protein entry

Entry ID: A unique identifier for the protein (e.g., P00383). You can click on this ID for detailed information about the protein

Link to page

Link to page

Protein Data Bank contains structures

www.rcsb.org

Conformational Heterogeneity and Biological Function

Many proteins function by switching between different conformations, which is essential for their activity (e.g., enzymes, transporters, and receptors).

• Example: G-protein coupled receptors (GPCRs) adopt different conformations when bound to different ligands, triggering different cellular responses.
