Deep dive into modern frameworks Reactivity 🔬⚛️
Sylvain DEDIEU
Frontend engineer – #ui-foundations 🛸
        s.dedieu@criteo.com
Sylvain DEDIEU
Senior Software Development Engineer – #ui-foundation 🛸
       @sdedieu.bsky.social
         s.dedieu

Agenda

1

2

3

4

What is reactive programming ?

Why modern frameworks do need reactive programming

Comparison on how modern frameworks use reactivity

Focus on Angular, from Zone.JS to Signals

1

2

3

4

What is reactive programming ?

Why modern frameworks do need reactive programming

Comparison on how modern frameworks use reactivity

Focus on Angular, from Zone.JS to Signals

What is reactive programming ?

Welcome to 2051 !

Great Scott!

2010 Presentation “What is Reactive Programming” by Paul Stovell
var a = 10;
var b <= a + 1;
a = 20;
Assert.AreEqual(21, b);
Example of P# code using a destiny operator

Welcome to 2051 1969 !

The future was there...

Apple Macintosh - Microsoft Multiplan v1.01 (1984) Microsoft
Rene Pardo & Remy Landau Introduce LANPAR, the First Commercial Electronic Spreadsheet - 1969

Problem

JS is not reactive by default

let a = 10
let b = 1
let c = a + b

expect(c).toEqual(11) // ✅

a = 20
expect(c).toEqual(21) // 💥

function update() {
  c = a + b
}

update()

expect(c).toEqual(21) // ✅

1

2

3

4

What is reactive programming ?

Why modern frameworks do need reactive programming

Comparison on how modern frameworks use reactivity

Focus on Angular, from Zone.JS to Signals

Why modern framework do need reactive programming ?

Error 404 - Reactivity is missing

<!-- index.html -->
<html>
  <body>
    <h1>Hello <span id="conference"></span>!</h1>
    <p>
      Counter: <span id="counter"></span>
      <button onclick="increment()">Increment</button>
    </p>
    <p>Counter is even: <span id="is-even"></span></p>

    <script type="text/javascript">
      // Init values and DOM
      let counter = 0;
      let isEven = counter % 2 == 0;
      const conference = 'Devoxx';

      document.getElementById('conference').innerText = conference;
      document.getElementById('counter').innerText = counter;
      document.getElementById('is-even').innerText = isEven;

      // On button clicked
      window.increment = function () {
        counter++;
        isEven = counter % 2 == 0;
        console.log(`counter: ${counter}`);
        console.log(`isEven: ${isEven}`);
      };
    </script>
  </body>
</html>

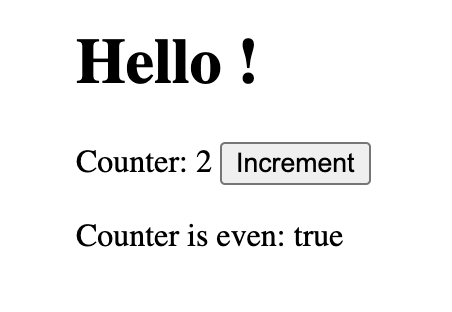

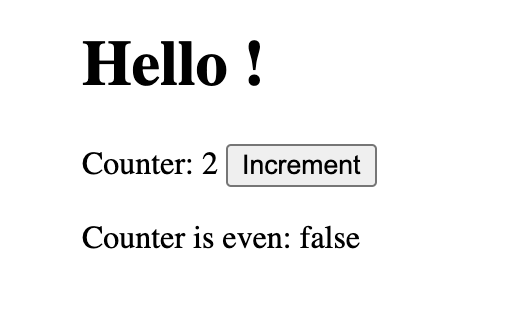

Rendering DOM (1/2)

Working solution

<html>
  <body>
    <h1>Hello <span id="conference"></span>!</h1>
    <p>
      Counter: <span id="counter"></span>
      <button onclick="increment()">Increment</button>
    </p>
    <p>Counter is even: <span id="is-even"></span></p>

    <script type="text/javascript">
     // Init values and DOM
      let counter = 0;
      let isEven = counter % 2 == 0;
      const conference = 'Devoxx';
      document.getElementById('conference').innerText = conference;
      document.getElementById('counter').innerText = counter;
      document.getElementById('is-even').innerText = isEven;

      // On increment
      window.increment = function () {
        setCounter(counter + 1);
      };
      window.setCounter = function (value) {
        counter = value;
        document.getElementById('counter').innerText = counter;
        updateIsEven(counter);
      };
      window.updateIsEven = function (value) {
        isEven = value % 2 == 0;
        document.getElementById('is-even').innerText = isEven;
      };
    </script>
  </body>
</html>

Rendering DOM (2/2)

Data binding

{{AngularJS 2009}}

<html>
  <script src="https://ajax.googleapis.com/ajax/libs/angularjs/1.6.9/angular.min.js">
  </script>
  <body>
    <div ng-app="myApp" ng-controller="myCtrl">
      <h1>Hello <span id="conference">{{conference}}</span>!</h1>
      <p>
        Counter: <span id="counter">{{counter}}</span>
        <button ng-click="increment()">Increment</button>
      </p>

      <p>Counter is even: <span id="is-even">{{isEven}}</span></p>
    </div>

    <script>
      var app = angular.module('myApp', []);
      app.controller('myCtrl', function($scope) {
          $scope.conference = "Devoxx";
          $scope.counter = 0;
          $scope.isEven = true;

          $scope.increment = function() {
            $scope.counter++;
          }
          $scope.$watch('counter', function(newValue, oldValue) {
            $scope.isEven = newValue % 2 === 0
          });
      });
    </script>
  </body>
</html>

Dirty checking

Clean on progress !

1

2

3

4

What is reactive programming ?

Why modern frameworks do need reactive programming

Comparison on how modern frameworks use reactivity

Focus on Angular, from Zone.JS to Signals

Comparison of different reactivity approaches

Value-based

Value-based

Value-based systems rely on storing the state in a local reference as a simple value.

🌶️ HOT TAKE: Dirty-checking is the only strategy that can be employed with value-based systems. Compare the last known value with the current value. This is the way.

https://www.builder.io/blog/unified-reactivity-theory#value-based

Miško Hevery

Angular

Before

Compiled code (1/2)

@Pipe({
  name: 'isEven',
  standalone: true,
})
export class IsEvenPipe implements PipeTransform {
  transform(counter: number): boolean {
    return counter % 2 === 0;
  }
}
@Component({
  selector: 'app-root',
  standalone: true,
  imports: [IsEvenPipe],
  template: `
    <h1>Hello <span>{{conference}}</span>!</h1>
    <p>
      Counter: <span>{{counter}}</span>
      <button (click)="counter = counter + 1">Increment</button>
    </p>

    <p>Counter is even: <span>{{ counter | isEven }}</span></p>
  `,
})
export class AppComponent {
  counter: number = 0;
  conference: string = 'Devoxx';
}

https://blog.angular.io/how-the-angular-compiler-works-42111f9d2549

After

Compiled code (2/2)

import * as i0 from "@angular/core";

AppComponent.ɵcmp = i0.ɵɵdefineComponent({
  type: AppComponent,
  selectors: [["app-root"]],
  standalone: true,
  features: [i0.ɵɵStandaloneFeature],
  decls: 16,
  vars: 5,
  consts: [["onclick", "increment()"]],
  template: function AppComponent_Template(rf, ctx) {
    if (rf & 1) {
      i0.ɵɵelementStart(0, "h1");
      i0.ɵɵtext(1, "Hello ");
      i0.ɵɵelementStart(2, "span");
      i0.ɵɵtext(3);
      i0.ɵɵelementEnd();
      i0.ɵɵtext(4, "!");
      i0.ɵɵelementEnd();
      i0.ɵɵelementStart(5, "p");
      i0.ɵɵtext(6, " Counter: ");
      i0.ɵɵelementStart(7, "span");
      i0.ɵɵtext(8);
      i0.ɵɵelementEnd();
      i0.ɵɵelementStart(9, "button", 0);
      i0.ɵɵtext(10, "Increment");
      i0.ɵɵelementEnd()();
      i0.ɵɵelementStart(11, "p");
      i0.ɵɵtext(12, "Counter is even: ");
      i0.ɵɵelementStart(13, "span");
      i0.ɵɵtext(14);
      i0.ɵɵpipe(15, "isEven");
      i0.ɵɵelementEnd()();
    }
    if (rf & 2) {
      i0.ɵɵadvance(3);
      i0.ɵɵtextInterpolate(ctx.conference);
      i0.ɵɵadvance(5);
      i0.ɵɵtextInterpolate(ctx.counter);
      i0.ɵɵadvance(6);
      i0.ɵɵtextInterpolate(i0.ɵɵpipeBind1(15, 3, ctx.counter));
    }
  },
  dependencies: [IsEvenPipe],
  encapsulation: 2
});

Refresh View

function executeTemplate<T>(
    ..., rf: RenderFlags, context: T) {
  ...
  try {
    ...
    templateFn(rf, context);
  }
  ...
}

Change Detection (CD)

context == state (with new values)

export const enum RenderFlags {
  /* (e.g. create elements
   * and directives) */
  Create = 0b01,
  /* (e.g. refresh bindings) */
  Update = 0b10
}

What is Zone.js !

An execution context!

angular/zone.js README.md

How it works !? (1/2)

Without Zone

function foo() {
  return new Promise((res) => setTimeout(res(), 0))
    .then(bar);
}

function bar() {
  throwError();
}

function throwError() {
  throw new Error();
}

foo()
Javascript code throwing nested Error not using Zone.js.

How it works !? (2/2)

With Zone

import 'zone.js';
import 'zone.js/dist/long-stack-trace-zone.js';

function foo() {
  return new Promise((res) => setTimeout(res(), 0))
    .then(bar);
}
function bar() {
  throwError();
}
function throwError() {
  throw new Error();
}
Zone.current
  .fork({
    name: 'error',
    onHandleError: function (
      parentZoneDelegate,
      currentZone,
      targetZone,
      error
    ) {
      console.log(error.stack);
    },
  })
  .fork(Zone.longStackTraceZoneSpec)
  .run(foo);

Javascript code throwing nested Error using Zone.js.

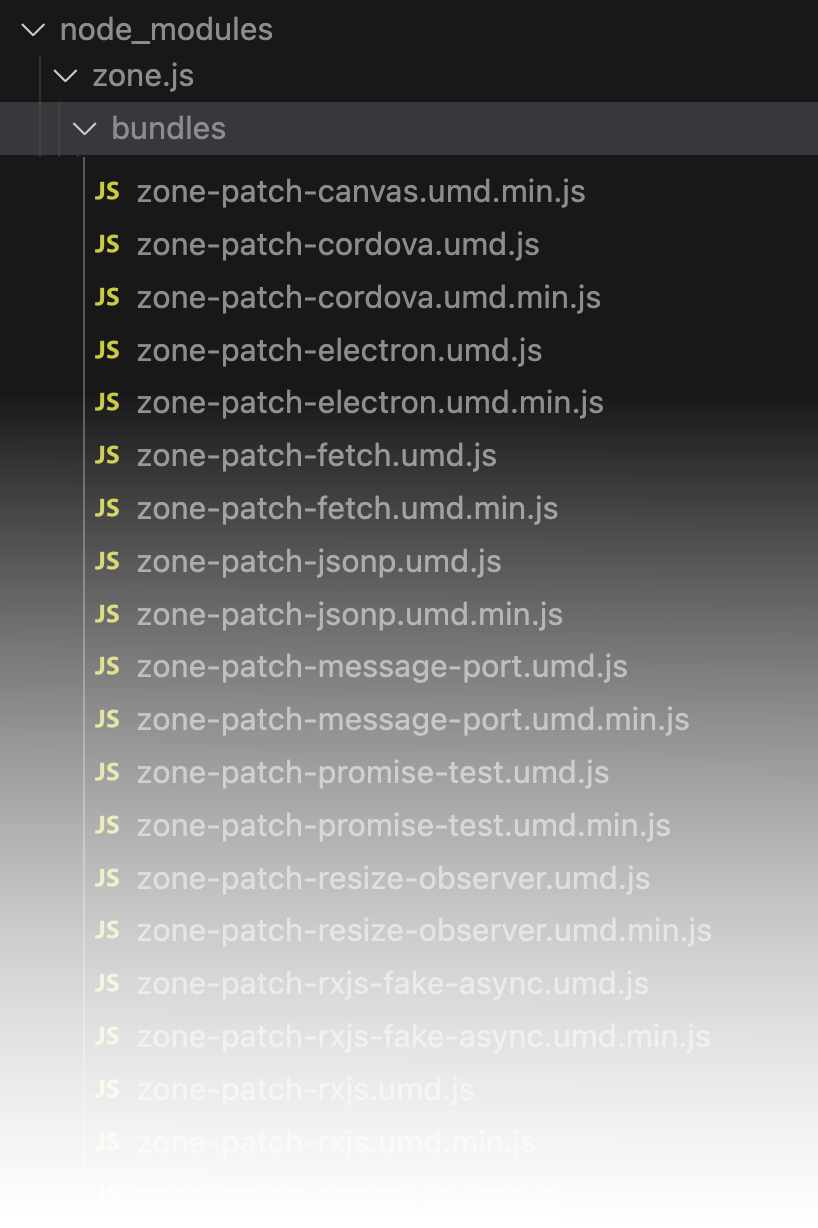

Let's patch everything !

\o/

angular/zone.js

Change detection strategy (1/3)

DOM Refreshing

C

C

C

C

C

C

C

EVENT

C

C

C

C

C

C

C

C

https://mokkapps.de/blog/the-last-guide-for-angular-change-detection-you-will-ever-need/

Change detection strategy (2/3)

OnPush

https://github.com/criteo/eslint-plugin-criteo

C

C

OnPush

C

C

EVENT

C

C

C

C

C

OnPush

OnPush

Only updated if:

  • @Input reference has changed
  • Component or one of its children triggers an event handler
  • Change detection is triggered manually
  • An observable linked to the template via the async pipe emits a new value
@Component({
  ...
  changeDetection: ChangeDetectionStrategy.OnPush,
  ...
})
export class OnPushComponent {}
Angular change detection strategy

Change detection strategy (3/3)

@Component({
  selector: 'app-header',
  standalone: true,
  changeDetection: ChangeDetectionStrategy.OnPush,
  template: `
    <h1>Hello <span>{{conference()}}</span>!</h1>
  `,
})
export class HeaderComponent {
  conference(): string {
    console.log('title refreshed');
    return 'Devoxx';
  }
}
@Component({
  selector: 'app-root',
  standalone: true,
  imports: [IsEvenPipe, HeaderComponent],
  template: `
    <app-header></app-header>
    <p>
      Counter: <span>{{counter}}</span>
      <button (click)="counter = counter + 1">Increment</button>
    </p>

    <p>Counter is even: <span>{{ counter | isEven }}</span></p>
  `,
})
export class AppComponent {
  counter: number = 0;
}

bootstrapApplication(AppComponent);

Demo

React

React

https://legacy.reactjs.org/docs/design-principles.html#scheduling

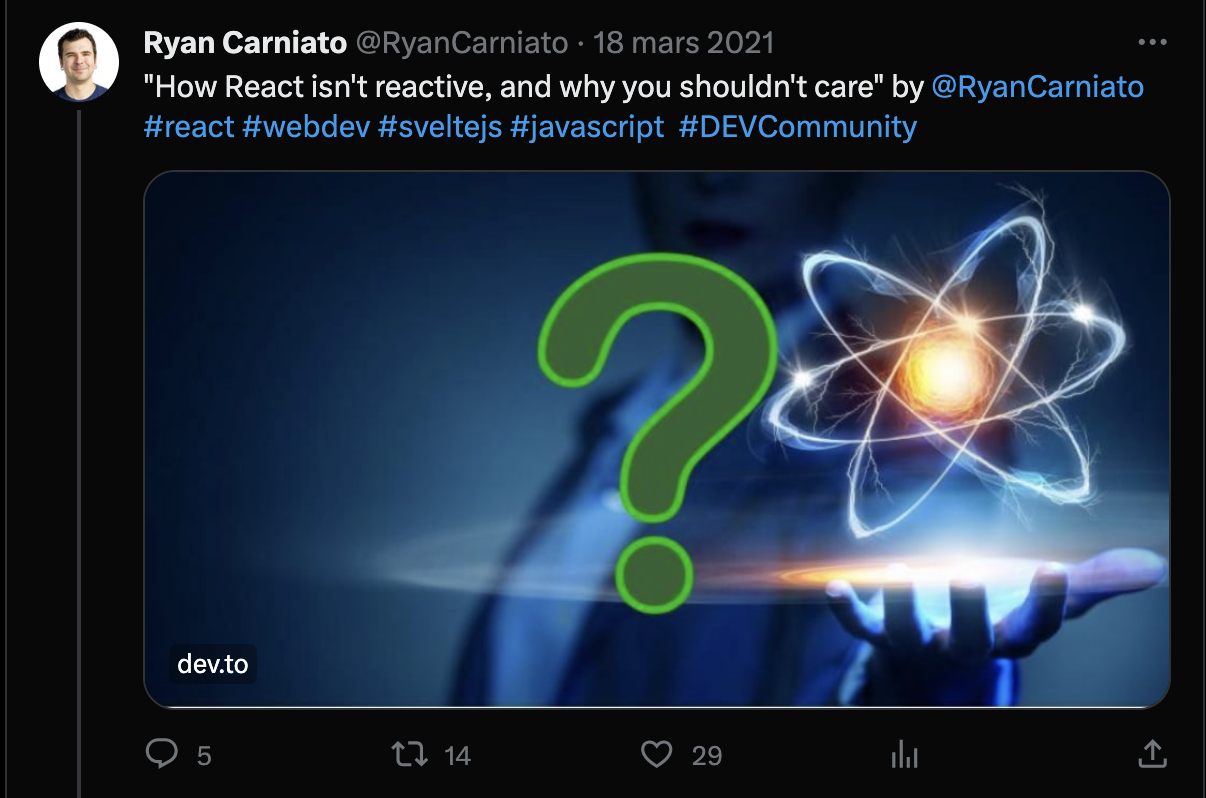

Reactive or not reactive ?

Some popular libraries implement the “push” approach where computations are performed when the new data is available. React, however, sticks to the “pull” approach where computations can be delayed until necessary.

https://dev.to/this-is-learning/how-react-isn-t-reactive-and-why-you-shouldn-t-care-152m

React is a terrible name for React.

Rich Harris

Reactive Programming is a declarative programming paradigm built on data-centric event emitters.

Ryan Carniato

setState

React

C

C

C

C

C

C

C

C

SetState

In React, the user triggers the change detection by calling the setState function

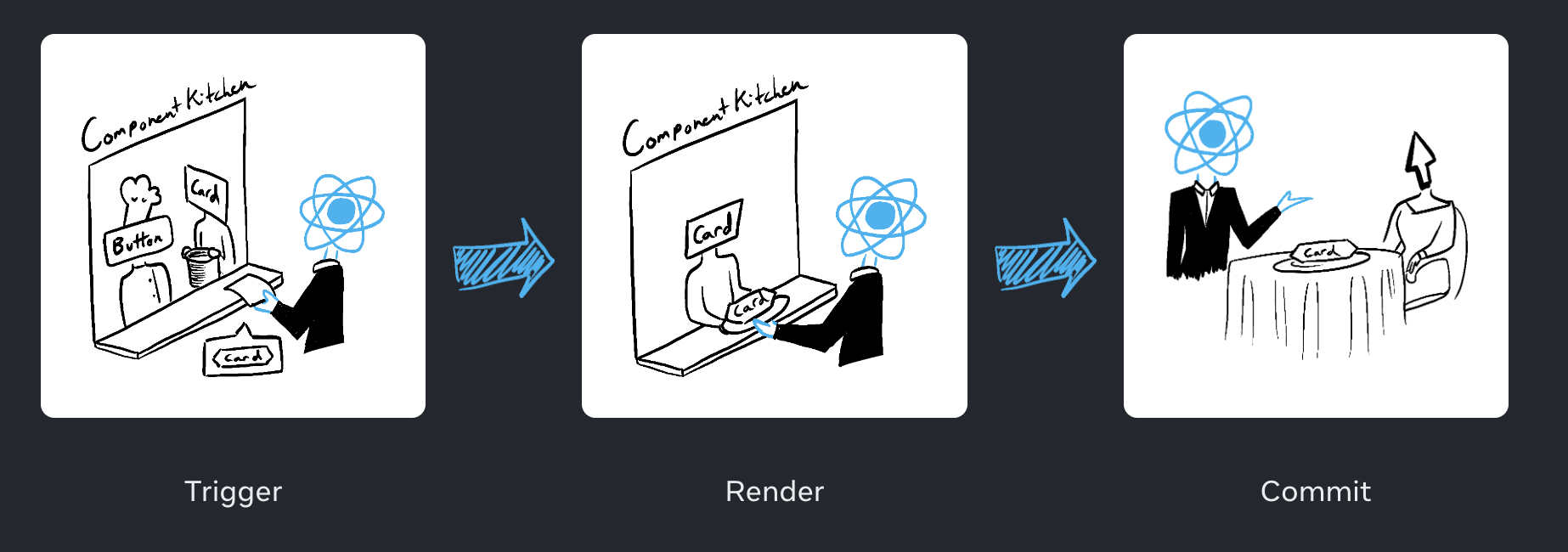

Trigger & Commit

React

  • It’s the component’s initial render.
  • Component’s (or one of its ancestors’) state has been updated.
  • On initial render, React will call the root component.
  • For subsequent renders, React will call the function component whose state update triggered the render.
  • For the initial render, React will use the appendChild() to put all the DOM nodes it has created on screen.
  • For re-renders, React will apply the minimal necessary operations to make the DOM match the latest rendering output.
https://react.dev/learn/render-and-commit

setState

React

const Counter = () => {
  const conference = 'Devoxx';
  const [counter, setCounter] = useState(0);

  const isEven = useMemo(() => counter % 2 === 0, [counter]);

  return (
    <div>
      <h1>
        Hello <span>{conference}</span>!
      </h1>
      <p>
        Counter: <span>{counter}</span>
        <button onClick={() => setCounter(counter + 1)}>Increment</button>
      </p>

      <p>
        Counter is even: <span>{isEven.toString()}</span>
      </p>
    </div>
  );
}

Redraw everything under the affected node

React

const Header = () => {
  const conference = () => {
    console.log('conference called');
    return 'Devoxx';
  };

  return (
    <h1>
      Hello <span>{conference()}</span>!
    </h1>
  );
}

const Counter = () => {
  const [counter, setCounter] = useState(0);
  const isEven = useMemo(() => counter % 2 === 0, [counter]);

  return (
    <div>
      <Header />
      <p>
        Counter: <span>{counter}</span>
        <button onClick={() => setCounter(counter + 1)}>Increment</button>
      </p>

      <p>
        Counter is even: <span>{isEven.toString()}</span>
      </p>
    </div>
  );
}

shouldComponentNot!Update

React

const Header = React.memo((props) => {
  const conference = () => {
    console.log('conference called');
    return 'Devoxx';
  };

  return (
    <h1>
      Hello <span>{conference()}</span>!
    </h1>
  );
}, (prev, next) => true);

const Counter = () => {
  const [counter, setCounter] = useState(0);
  const isEven = useMemo(() => counter % 2 === 0, [counter]);

  return (
    <div>
      <Header />
      <p>
        Counter: <span>{counter}</span>
        <button onClick={() => setCounter(counter + 1)}>Increment</button>
      </p>

      <p>
        Counter is even: <span>{isEven.toString()}</span>
      </p>
    </div>
  );
}

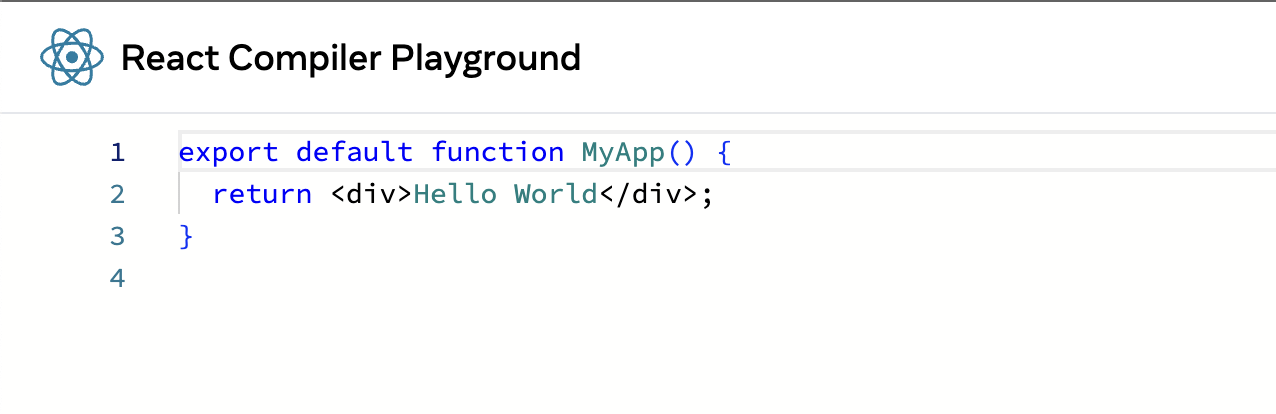

https://playground.react.dev/

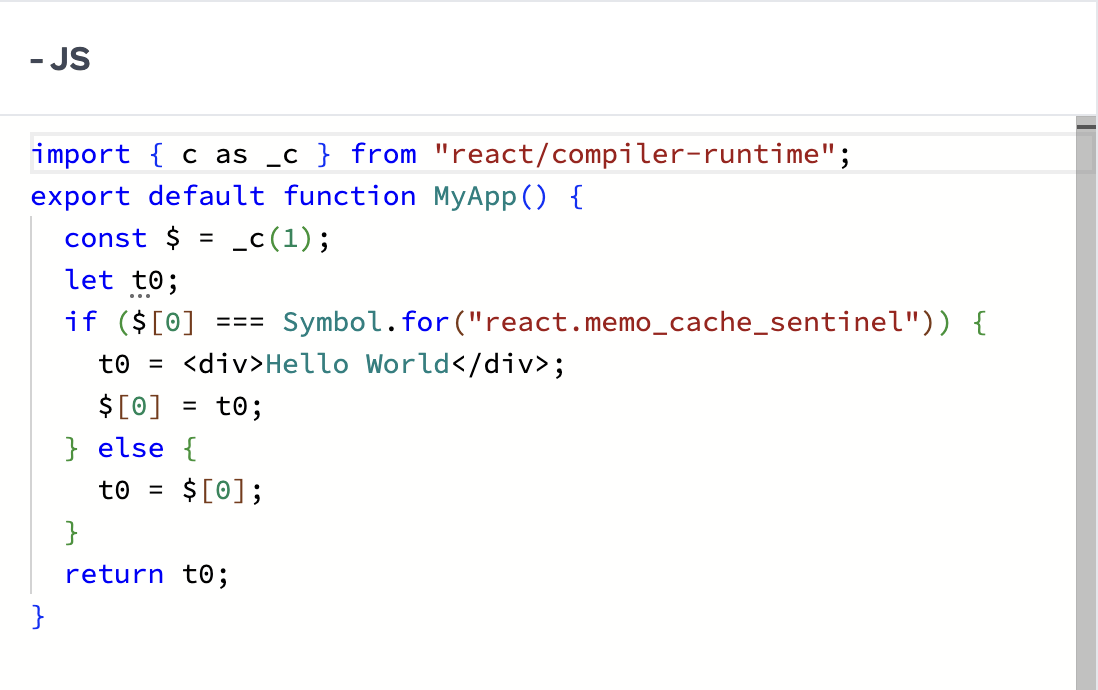

Compiler

React

https://playground.react.dev/
React Compiler is a new compiler that we’ve open sourced to get early feedback from the community. It is a build-time only tool that automatically optimizes your React app. It works with plain JavaScript, and understands the Rules of React, so you don’t need to rewrite any code to use it.

Value-based

Pro & cons

Pros:
  • It just works: You don't have to wrap objects in special containers, they are easy to pass around, and they are easy to type.
  • Hard to fall off: It is hard to fall off the reactivity cliff. You are free to write code in many different ways with expected results.
  • Easy to explain mental model: consequences of the above are easy to explain.
    Cons:
  • Performance foot-guns: Performance slows down over time and requires "optimization refactoring”, which creates "performance experts.” For this reason, these frameworks provide "optimization"/"escape hatch" APIs to make things faster.
  • Once you start optimizing, one can fall off the "reactivity-cliff" (UI stops updating, so in that sense, it is the same as signals)

https://www.builder.io/blog/unified-reactivity-theory#value-based

Miško Hevery

Observable-based

Observable-based

Observables are values over time. Observables allow the framework to know the specific instance-in-time when the value changes because pushing a new value into observable requires a specific API that acts as a guard.

https://www.builder.io/blog/unified-reactivity-theory#value-based

Miško Hevery

RxJS

Subscription

const a$ = new BehaviorSubject(10);
const b$ = new BehaviorSubject(1);

const c$ = a$.pipe(
  combineLatestWith(b$),
  map(([a,b]) => a + b)
);

c$.subscribe(console.log);
// outputs: 11

a$.next(20);
// outputs: 21

Svelte 2 (deprecated)

Observable-based

Pro & cons

Pros:
  • Values over time is a compelling concept that can express very complex scenarios and is a good fit for the browser event system, which is events over time.
    Cons:
  • Observables are not a good fit for UI. The UI represents a value to be shown now, not values over time.
  • Observables are complicated. They are hard to explain. There are dedicated courses on observables alone.
  • The explicit subscribe() is not a good DX as it requires subscribing (allocating callbacks) for each binding location.
  • The need for unsubscribe() is a memory-leak footgun.

https://www.builder.io/blog/unified-reactivity-theory#value-based

Miško Hevery

Svelte 3

We love $

Svelte 3

<script>
  const conference = () => {
    console.log('title refreshed');
    return 'Devoxx'
  }
  let counter = 0
  const increment = () => {
    counter += 1
  }
  $: isEven = counter % 2 == 0
</script>

<main>
  <h1>
    Hello <span>{conference()}</span>!
  </h1>
  <p>
    Counter: <span>{counter}</span>
    <button on:click={increment}>Increment</button>
  </p>
  <p>
    Counter is even: <span>{isEven}</span>
  </p>
</main>

https://svelte.dev/playground/b1f3bd20323d407aaf756ed768d44a4b?version=3.59.1

In the heart of the software (1/2)

Svelte 3

// src/runtime/internal/Component.ts
const $$invalidate = (key, ret, value = ret) => {
  if ($$.ctx && not_equal($$.ctx[key], value)) {
    // 1. update the variable in $$.ctx
    $$.ctx[key] = value;
    // ...
    // 2a. mark the variable in $$.dirty
    make_dirty(component, key);
  }
  // 4. return the value of the assignment
  // or update expression
  return ret;
};

// src/runtime/internal/Component.ts
function make_dirty(component, key) {
  if (!component.$$.dirty) {
    dirty_components.push(component);
    // 3. schedule an update
    schedule_update();
    // initialise $$.dirty
    component.$$.dirty = blank_object();
  }
  // 2b. mark the variable in $$.dirty
  component.$$.dirty[key] = true;
}

https://lihautan.com/compile-svelte-in-your-head-part-2/

$$invalidate

Mark component key as dirty

Schedule an update

In the heart of the software (2/2)

Svelte 3

https://lihautan.com/compile-svelte-in-your-head-part-2/

// src/runtime/internal/scheduler.ts
export function schedule_update() {
  if (!update_scheduled) {
    update_scheduled = true;
    // NOTE: `flush` will do the DOM update
    // we push it into the microtask queue
    resolved_promise.then(flush);
  }
}

// src/runtime/internal/scheduler.ts
function flush() {
  // for each component in `dirty_components`
  update(component.$$);
}

// src/runtime/internal/scheduler.ts
function update($$) {
  if ($$.fragment !== null) {
    // ...
    // calls the `p` function
    $$.fragment && $$.fragment.p($$.dirty, $$.ctx);
    // resets `$$.dirty`
    $$.dirty = null;
    // ...
  }
}

Update
(call the p function)

Schedule an update

async

Remove the dirty state

In the heart of the software recap

Svelte 3

https://lihautan.com/compile-svelte-in-your-head-part-2/

1. Click on the "Increment" to call the increment function
2. $$invalidate('counter', counter = counter + 1)
3. Mark the variable counter dirty, $$.dirty['counter'] = true
4. Schedule an update, schedule_update()
5. Since it's the first update in the call stack, push the flush function into the microtask queue
6. -- End of task --
7. -- Start of microtask--
8. flush() calls update() for each component marked dirty
9. Runs $$.update()
   - As "counter" has changed, evaluates and $$invalidate "isEven"
10. Calls $$.fragment.p($$.dirty, $$.ctx).
11. $$.dirty is now { counter: true, isEven: true }
12. $$.ctx is now { counter: 1, isEven: false }
13. In function p(dirty, ctx),
    Update the 1st text node to $$.ctx['counter'] if $$.dirty['counter'] === true
    Update the 2nd text node to $$.ctx['isEven'] if $$.dirty['isEven'] === true
14. Resets the $$.dirty to null
...
-- End of microtask--

Signal-based

Signal-based

Signals are like synchronous cousins of Observables without the subscribe/unsubscribe.

https://www.builder.io/blog/unified-reactivity-theory#value-based

Miško Hevery

Vue

Proxies

This is the VueJS way

function reactive(obj) {
  return new Proxy(obj, {
    get(target, key) {
      track(target, key)
      return target[key]
    },
    set(target, key, value) {
      target[key] = value
      trigger(target, key)
    }
  })
}
function ref(value) {
  const refObject = {
    get value() {
      track(refObject, 'value')
      return value
    },
    set value(newValue) {
      value = newValue
      trigger(refObject, 'value')
    }
  }
  return refObject
}
VueJS - Reactivity in Depth

Proxies

Track & trigger

function track(target, key) {
  if (activeEffect) {
    const effects = getSubscribersForProperty(target, key)
    // Stored in a global WeakMap<target, Map<key, Set<effect>>> data structure.
    effects.add(activeEffect)
  }
}

function trigger(target, key) {
  const effects = getSubscribersForProperty(target, key)
  effects.forEach((effect) => effect())
}

function whenDepsChange(update) {
  const effect = () => {
    activeEffect = effect
    update()
    activeEffect = null
  }
  effect()
}
VueJS - Reactivity in Depth

Proxies

Et voila !

import { ref, watchEffect, computed } from 'vue'

const A0 = ref(0)
const A1 = ref(1)
const A2 = ref()

watchEffect(() => {
  // tracks A0 and A1
  A2.value = A0.value + A1.value
})

// triggers the effect
A0.value = 2

// The more declarative way
const A2 = computed(() => A0.value + A1.value)

A0.value = 2
VueJS - Reactivity in Depth

Proxies

Render

import { ref, watchEffect } from 'vue'

const count = ref(0)

watchEffect(() => {
  document.body.innerHTML = `count is: ${count.value}`
})

// updates the DOM
count.value++
VueJS - Reactivity in Depth

Composition API

Vue

// App.vue
<template>
  <div>
    <Header />
    <p>
      Counter: <span>{{ counter }}</span>
      <button @click="counter++">Increment</button>
    </p>
    <p>Counter is even: <span>{{ isEven }}</span></p>
  </div>
</template>

<script setup>
import Header from './components/Header.vue';
import { ref, computed } from 'vue';

const counter = ref(0);
const isEven = computed(() => counter.value % 2 == 0);
</script>

// Header.vue
<template>
  <h1>Hello <span>{{ conference() }}</span>!</h1>
</template>

<script setup>
import { onMounted } from 'vue';

const conference = () => 'Devoxx';

onMounted(() => {
  console.log(`Header is mounted.`);
});
</script>

Solid

Bring reactivity to another level

Solid

import { Component, createMemo, createSignal } from 'solid-js';

const Header: Component = () => {
  const conference = () => {
    console.log('conference called');
    return 'Devoxx';
  };

  return (<h1>Hello <span>{conference()}</span>!</h1>);
};

const App: Component = () => {
  const [counter, setCounter] = createSignal(0);
  const isEven = createMemo(() => counter() % 2 === 0);

  return (
    <div>
      <Header />
      <p>
        Counter: <span>{counter()}</span>
        <button onClick={() => setCounter(counter() + 1)}>Increment</button>
      </p>

      <p>
        Counter is even: <span>{isEven().toString()}</span>
      </p>
    </div>
  );
};

https://playground.solidjs.com/

Svelte 5

Signal-based

Pro & cons

Pros:
  • Always performant/no need to optimize: Performance out of the box.
  • A very good fit for the UI transactional/synchronous update model.

    Cons:
  • More rules than "value-based". Not following rules results in a broken reactivity.

https://www.builder.io/blog/unified-reactivity-theory#value-based

Miško Hevery

1

2

3

4

What is reactive programming ?

Why modern frameworks do need reactive programming

Comparison on how modern frameworks use reactivity

Focus on Angular, from Zone.JS to Signals

Focus on Angular, from Zone.JS to Signals

We are in the Zone (.js)

Remember ?

The need for a change

The limit

Matteo Collina (Node.js Technical Steering Committee member) warning against monkey patching global objects.

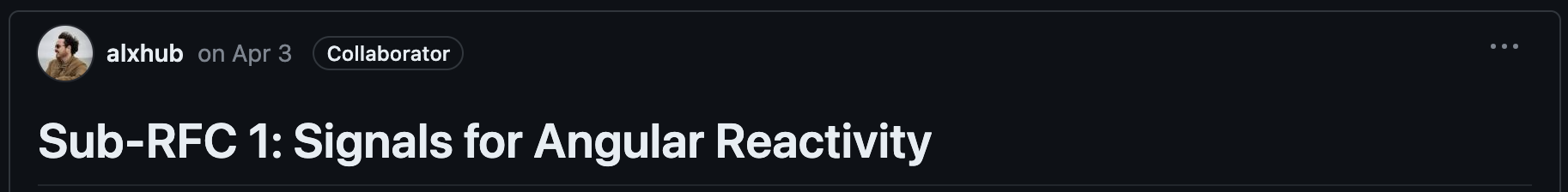

RFC    ngular Signals

Angular RFC Signals

Signals For Angular Reactivity

Angular RFC Signals

Requirements for a new reactivity primitive

- It must be able to notify Angular about model changes affecting individual components (per overall goals).

- It must provide synchronous access to the model, because template bindings must always have a current value.

- Reading values must be side-effect free.

- It must be _glitch fre_e: reading values should never return an inconsistent state.

- Dependency tracking should be ergonomic.

Options considered

- Improving zone.js

- setState-style APIs

- Signals

- RxJS

- Compiler-based reactivity

- Proxies

Why not RxJS since it is already here ?

Angular RFC Signals
import { BehaviorSubject, combineLatest, map } from 'rxjs';

const counter$ = new BehaviorSubject(0);
const isEven$ = counter$.pipe(map((value) => value % 2 === 0));
const message$ = combineLatest(
  [counter$, isEven$],
  (counter, isEven) => `${counter} is ${isEven ? 'even' : 'odd'}`
);

message$.subscribe(console.log);
counter$.next(1);

// 0 is even
// 1 is even
// 1 is odd

The Signals API - Writable signals

Angular RFC Signals
interface WritableSignal<T> extends Signal<T> {
  /**
   * Directly set the signal to a new value, and notify any dependents.
   */
  set(value: T): void;
  /**
   * Update the value of the signal based on its current value, and notify any dependents.
   */
  update(updateFn: (value: T) => T): void;
  /**
   * Return a non-writable `Signal` which accesses this `WritableSignal` but does not allow
   * mutation.
   */
  asReadonly(): Signal<T>;
}

// Create a new Signal
function signal<T>(
  initialValue: T,
  options?: {equal?: (a: T, b: T) => boolean}
): WritableSignal<T>;

// create a writable signal
const counter = signal(0);

// set a new signal value, completely replacing the current one
counter.set(5);

// update signal's value based on the current one (avoid counter.set(counter() + 1))
counter.update(currentValue => currentValue + 1);

The Signals API - Computed signals

Angular RFC Signals
function computed<T>(
  computation: () => T,
  options?: {equal?: (a: T, b: T) => boolean}
): Signal<T>;

const counter = signal(0);

// creating a computed signal
const isEven = computed(() => counter() % 2 === 0);

// computed properties are signals themselves
const color = computed(() => isEven() ? 'red' : 'blue');

// providing a different, even value, to the counter signal means that:
// - isEven must be recomputed (its dependency changed)
// - color don't need to be recomputed (isEven() value stays the same)
counter.set(2);

The Signals API - Effects

Angular RFC Signals
function effect(
  effectFn: (onCleanup: (fn: () => void) => void) => void,
  options?: CreateEffectOptions
): EffectRef;

// Usage example:

const firstName = signal('John');
const lastName  = signal('Doe');

// This effect logs the first and last names,
// and will log them again when either (or both) changes.
effect(() => console.log(firstName(), lastName()));

Effects have a variety of use cases, including:

  • synchronizing data between multiple independent models
  • triggering network requests
  • performing rendering actions

Angular without ZoneJS

Angular RFC Signals
import { Component, computed, signal, WritableSignal, provideExperimentalZonelessChangeDetection, ChangeDetectionStrategy } from '@angular/core';
import { bootstrapApplication } from '@angular/platform-browser';

@Component({
  selector: 'my-app',
  standalone: true,
  template: `
  <h1>Hello <span>{{conference()}}</span>!</h1>
  <p>
    Counter: <span>{{counter()}}</span>
    <button (click)="increment()">Increment</button>
  </p>

  <p>Counter is even: <span>{{ isEven() }}</span></p>
  `,
  changeDetection: ChangeDetectionStrategy.OnPush,
})
export class App {
  counter: WritableSignal<number> = signal(0);
  conference: WritableSignal<string> = signal('Devoxx');
  title = computed(() => `Hello ${this.conference()} !`);
  isEven = computed(() => this.counter() % 2 === 0);

  increment() {
    this.counter.update((counter) => counter + 1);
  }
}

bootstrapApplication(App, {
  providers: [provideExperimentalZonelessChangeDetection()],
});

Signal Based Component

Angular RFC Signals
@Component({
  selector: 'app-root',
  standalone: true,
  signals: true,
  template: `
    <h1>Hello <span>{{conference()}}</span>!</h1>
    @if(counter() > -1) {
      <p>
        Counter: <span>{{counter()}}</span>
        <button (click)="increment()">Increment</button>
      </p>

      <p>Counter is even: <span>{{ isEven() }}</span></p>
    }`
})
export class AppComponent {
  counter: WritableSignal<number> = signal(0);
  get conference() {
     console.log('conference called');
     return 'Devoxx';
  }
  isEven = computed(() => this.counter() % 2 === 0);

  increment() {
    this.counter.update(counter => counter + 1);
  }
}

Thank You !

References

Join us

Let's share a chat we have barbapapa

Sylvain DEDIEU
        s.dedieu@criteo.com
       @sdedieu.bsky.social
         s.dedieu
        s.dedieu@criteo.com
       @sdedieu.bsky.social
         s.dedieu
Senior Software Development Engineer – #ui-foundation 🛸
