Component based theming in Drupal 8

by Evgenii Nikitin

What is it about?

Analysis of existing theming approaches.
Explanation how components work.
How integrate Drupal and with component libraries.
Best practises that we use.

Roles on the project

Project manager	Back-end developer	Front-end developer	QA tester
thinks about budget	provides logic, prepares data	implements representation	ensures that everything works properly
needs clear vision on a project	needs easy way to integrate design in application	has to think about: platforms, browsers, accessibility, performance	needs time, tools for automated testing

Theming approaches

"Classic": back-end first, styles are added after it directly to theme.
Layout first: HTML markup is prepared separately, then it is copied to Drupal.
Component based approach: elements are prepared as separate components.

Theming approaches: "Classic"

Back-end first, styles are added after it directly to theme.

Simplest, fastest. Good to use if only one developer works on the project.

Key features

All pages have to be prepared in advance. FE dev can't work if templates aren't ready.

Result is visible when BE and FE parts are completed. Long process, poor visibility.

FE dev are limited by existing html markup that template provides

BE:

FE:

PM:

QA:

BE:

FE:

Pages with examples can be removed. Difficult to provide variations of templates.

PM:

QA:

FE:

Conclusion

Theming approaches: Layout first

HTML markup is prepared separately, then it is copied to Drupal.

Starting point for teams with few developers that works simultaneously.

Key features

Easiest for FE developer. He does everything as he wants. No need additional libraries and tools.

HTML markup can be tested separately from BE part.

Developers can work simultaneously.

BE:

FE:

PM:

QA:

BE:

FE:

Conclusion

PM:

Need to add changes in HTML markup and BE part separately. Difficult support.

BE:

FE:

PM:

QA:

FE:

Theming approaches: Component based

All elements are prepared as separate components.

Key features

Developers can work simultaneously.

BE:

FE:

PM:

HTML markup can be tested separately from BE part.

PM:

QA:

We need additional tools for it. Complexity increases.

PM:

FE:

BE:

FE:

Easy way to support theme during project life. As many variations of templates as we want.

BE:

FE:

PM:

Industrial method with division of labor for long-life projects.

Conclusion

Component "Button"

context:
  button_color: ''
  button:
    href: '#'
    title: 'title text'
    value: 'link text'

<a class="{{ button_color  }}"
  href="{{ button.href }}"
  title="{{ button.title }}">
  {{ button.value }}
</a>

Configuration (Fractal):

Template (Twig)

View

.button {
  border: 1px solid $color-darker;
  background: $color-darker;
  color: $color-lightest;
  width: 100%;
  display: block;
  line-height: 1.2;
  padding:0.65em 20px;
  margin: 0;
  cursor: pointer;
  @include font-family(2);
  font-weight: 700;
  font-size: 15px;
  text-align: center;
  text-decoration: none;
  text-transform: uppercase;
  box-sizing: border-box;
  transition: background $duration-medium ease, color $duration-medium ease, border-color $duration-medium ease;
}

Styles (css/sass/scss)

JS (optional)

(function ($, Drupal, drupalSettings) {
  ...
})(jQuery, Drupal, drupalSettings);

Component "Button". Variations

context:
  button_color: ''
  button:
    href: '#'
    title: 'title text'
    value: 'link text'
variants:
- name: 'Red button'
  context:
    button_color: 'red'
- name: 'Green button'
  context:
    button_color: 'green'

Configuration (Fractal):

.button--fill--veo-green {
  color: green;
}
.button--fill--veo-red {
  color: red;
}

Styles (scss)

View

{% for index, scheme_name in theme_colors %}

<div class="background-color--{{scheme_name}}">
  {%
    include 'components/button'
  %}
</div>

{% endfor %}

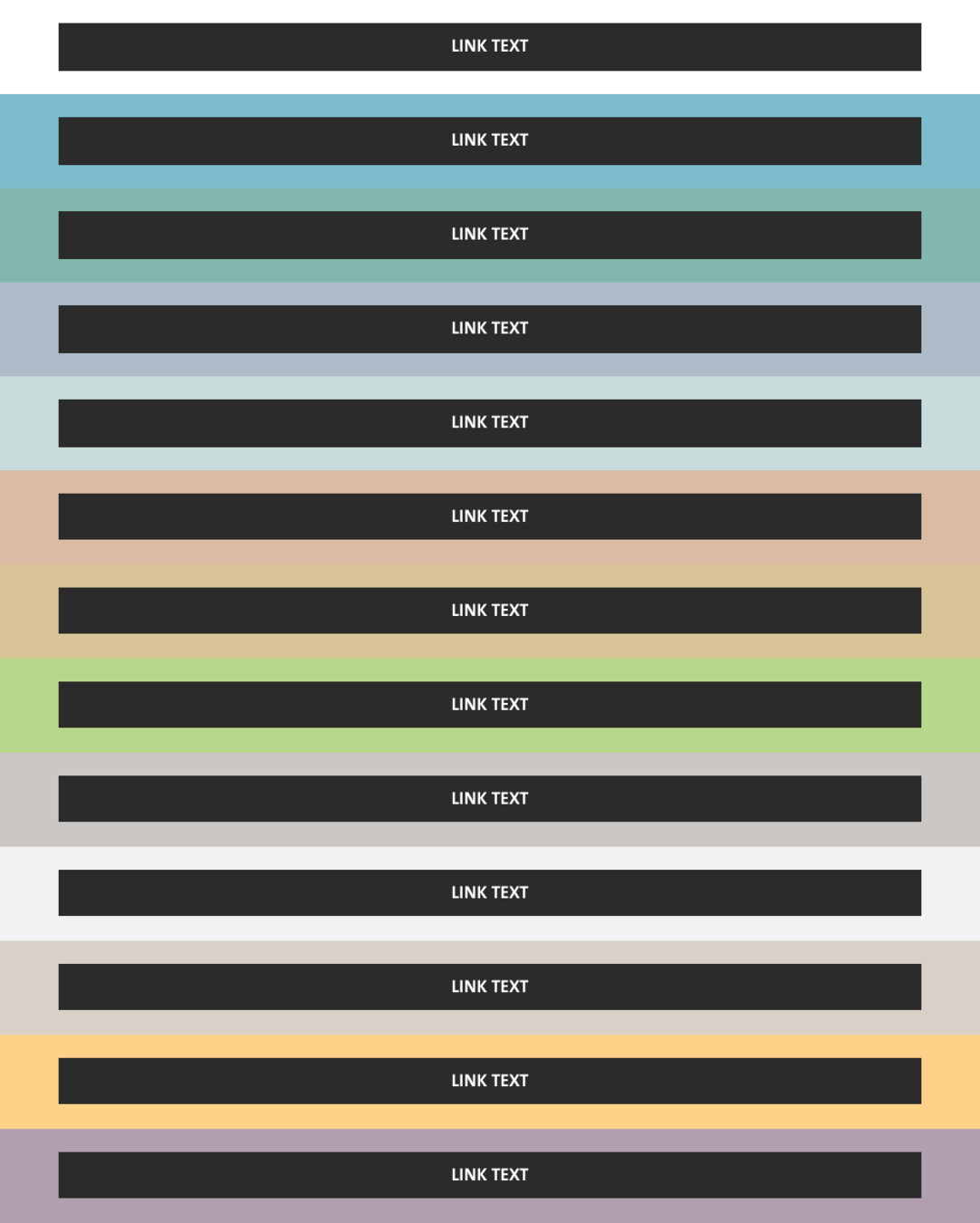

Component "Button". Multiple examples

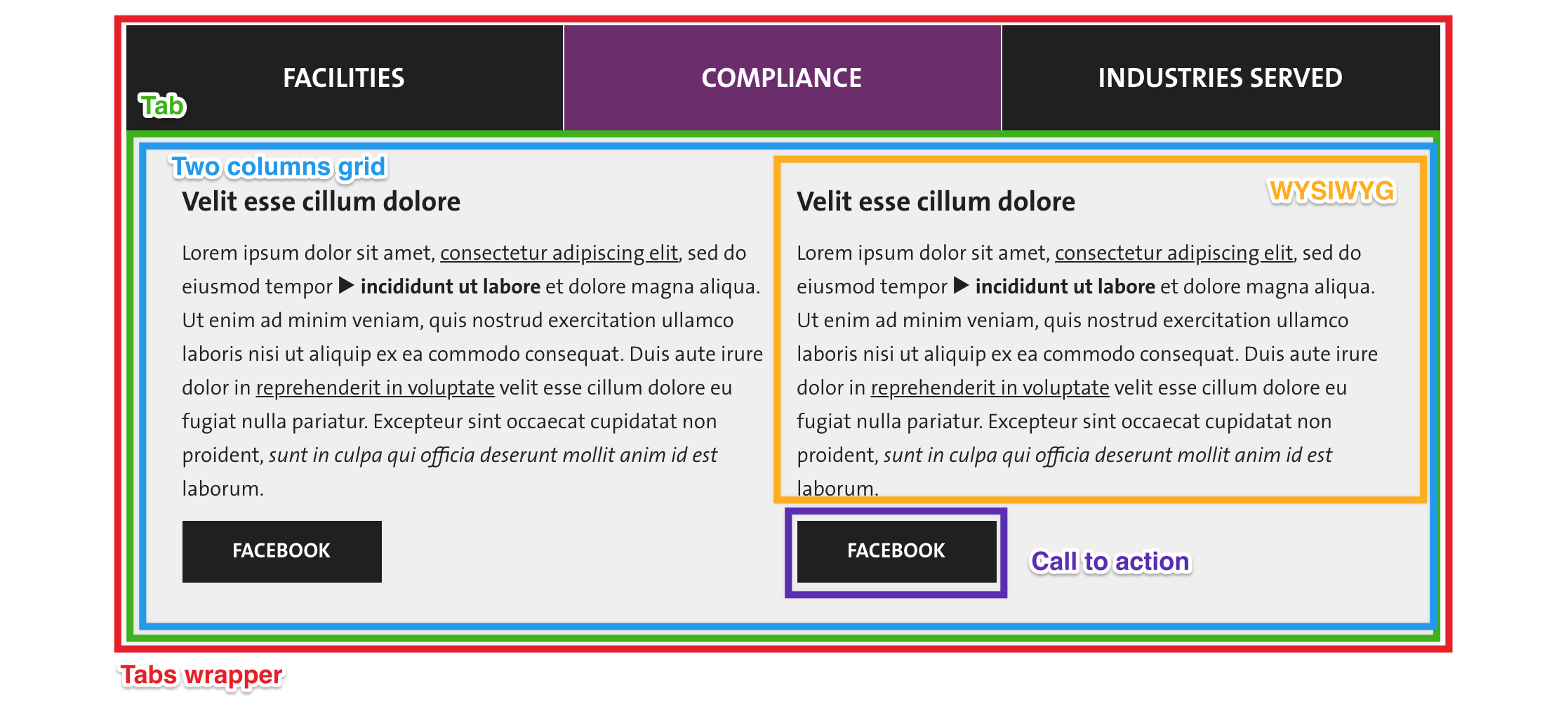

Nesting of components. Tabs example

Nesting of tabs

Variants of pages

Components support in Drupal

https://www.drupal.org/project/components

Add to *.info.yml:

component-libraries:
  myLib:
    paths:
      - path/components

Usage in twig template *.html.twig:

{% include "@myLib/box/box.twig" %}

{% include "@myLib/box/box.twig" with {
  'value_1': 'some value 1',
  'value_2': 'some value 2',
} %}

Passing variables to component in twig template *.html.twig:

Components structure for Drupal

1 Drupal template = at least 1 component.

Exceptions:

field.html.twig
img.html.twig

Integration of components assets with Drupal

global-styling:
  version: 1.x
  css:
    theme:
      build/assets/styles/main.css: {}
global-scripts:
  version: 1.x
  js:
    build/assets/scripts/main.js: {}

THEME.libraries.yml

THEME.info.yml

libraries:
  - THEME/global-styling
  - THEME/global-scripts

box-library:
  version: VERSION
  js:
    build/assets/scripts/box/box.js: {}
  css:
    theme:
      build/assets/styles/box/box.css: {}

We should not add all assets to all pages!

THEME.libraries.yml

{{ attach_library('THEME/box-library') }}

{% include "@myLib/box/box.twig" %}

*.html.twig

function yourmodule_some_hook(array &$vars) {
  $vars['#attached']['library'][] = 'THEME/box-library';
}

*.module

MODULE.libraries.yml

module_library:
  js:
    js/script.js: {}
  dependencies:
    - THEME/box-library

Component library has to support Drupal's Twig extensions

Drupal Twig filters:

```
t
```
```
trans
```
```
placeholder
```
```
drupal_escape
```
```
safe_join
```
```
without
```
```
clean_class
```
```
clean_id
```
```
render
```
```
format_date
```

Drupal Twig functions:

```
render_var
```
```
url
```
```
path
```
```
link
```
```
file_url
```
```
attach_library
```
```
active_theme_path
```
```
active_theme
```
```
create_attribute
```

https://www.npmjs.com/package/twig-drupal-filters

Remember about Drupal template attributes variable

{%
  set classes = [
    'webform',
    'container',
    'container--webform',
    'container--width--narrow',
    'container--space-outer--v-m',
  ]
%}
<form {{ attributes.addClass(classes) }}>
  {{ title_prefix }}
  {{ children }}
  {{ title_suffix }}
</form>

Component webform.twig

Links - are objects

label: 'Link'
context:
  link: "<a href='#' title='' rel='nofollow'>Link</a>"

Configuration (Fractal):

{{ link }}

Template (Twig)

Component content should contain variables only. No need to place data there

label: 'HTML examples'
context:
  link: "<a href='#'>Link</a>"
  title: "Title"

Configuration (Fractal):

{% set title = 'Title'|t %}

{% include "@myLib/component/component.twig" with {
  'link': link_object,
  'title': title,
} %}

<div class="title">{{ title }}</div>
<div class="link">{{ link }}</div>

Template (Twig)

Drupal template *.html.twig

Check that data isn't empty

{% if title is not empty %}
  <div class="container">
    {{ title }}
  </div>
{% endif %}

Component

{% set title = '' %}

{% if content.field_title.0 is not empty %}
  {% set title = content.field_title
{% endif %}

{% include @myLib/component.twig with {
  title = title
} %}

Drupal template *.html.twig

Component libraries

Fractal (https://fractal.build)

- Bad support of Twig (https://github.com/Adyax/fractal-twig-drupal-adapter/).

- v1 is old.

Patternlab (https://drupal-pattern-lab.github.io/)

- Very good support of community.

- Atomic design methodology.

Storybook (https://storybook.js.org/)

- Good support of React, Vue, and Angular

- Lots of add-ons
