Who we are?

https://connect.sensiolabs.com/club/symfonybro

Our competences

5+ years in development

DDD

Software architect

PHP, Java, C#

Symfony, Yii2

Legacy projects migration

GERP

Trouble ticket system - GERP

• SaaS solution
• RESTful api + Mobile App
• Integrations (SOAP, Xml, Json, etc.)
• Reporting
• Scheduling
• Billing
• Ticket QA
• And many other features

GERP

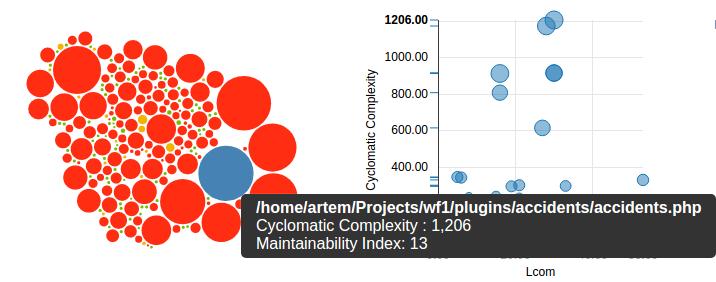

Was migrated from this

To Symfony!

Problems

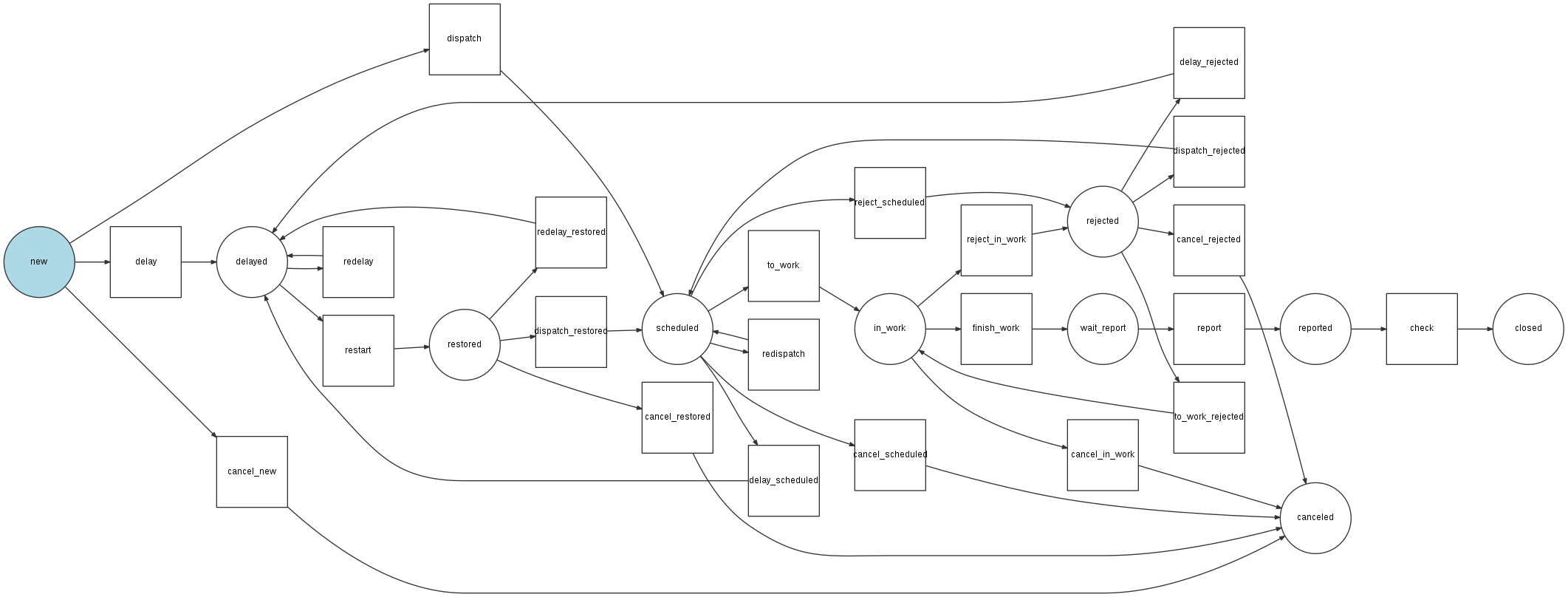

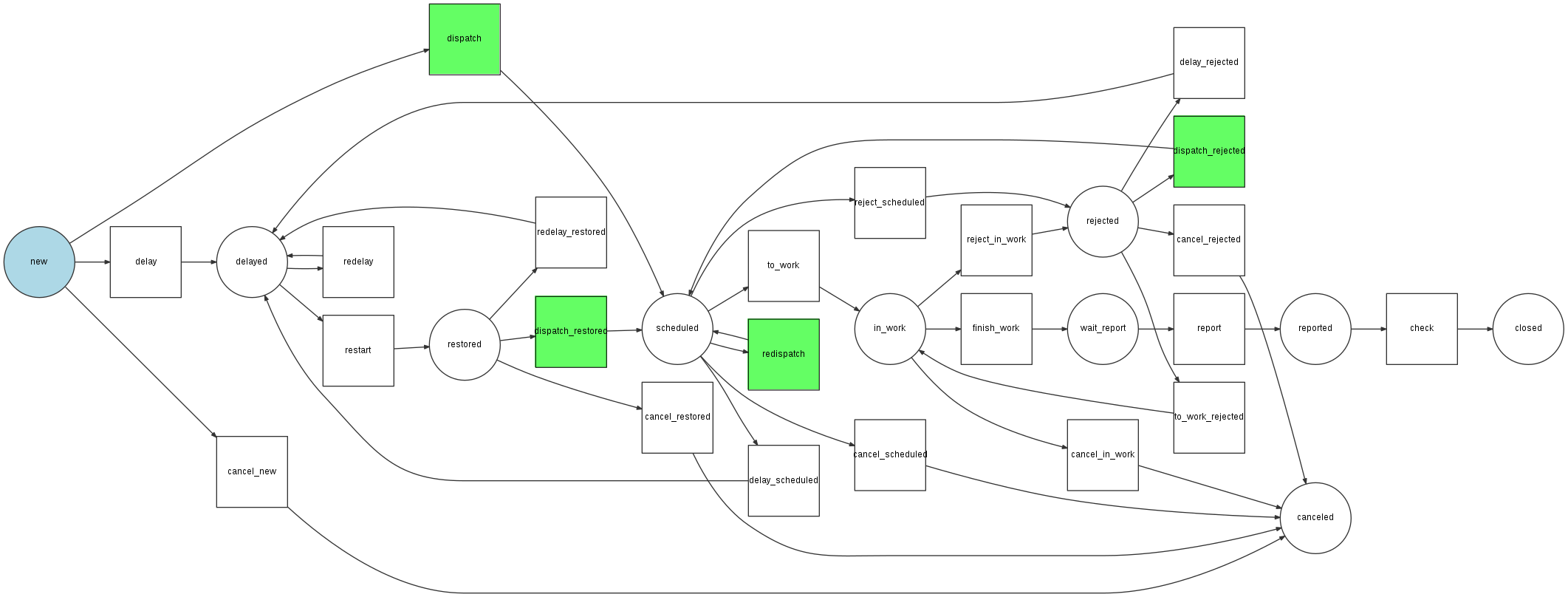

Complex graph

Problems

• Nontrivial state graph

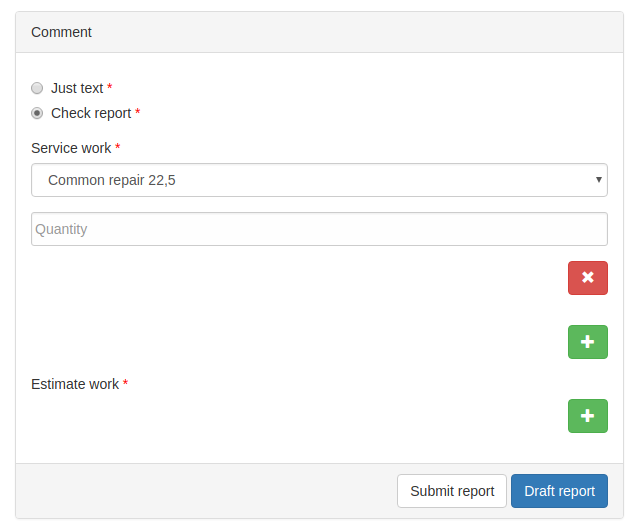

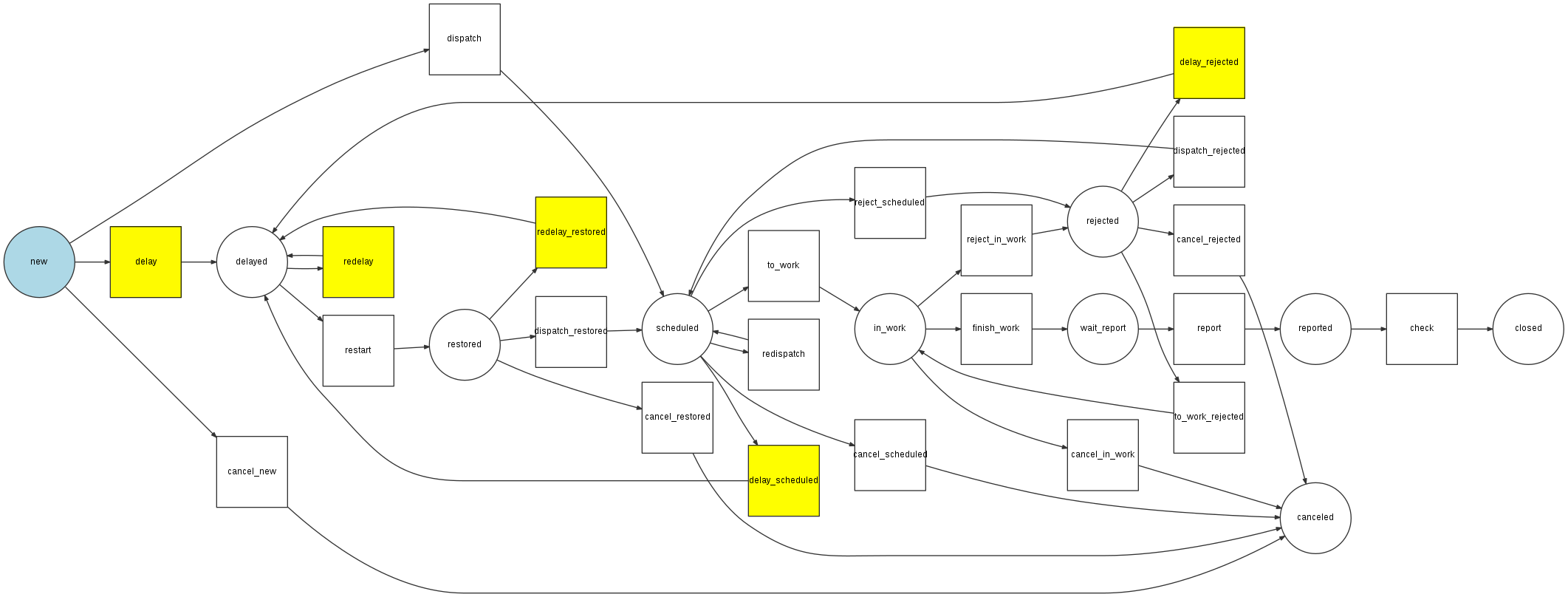

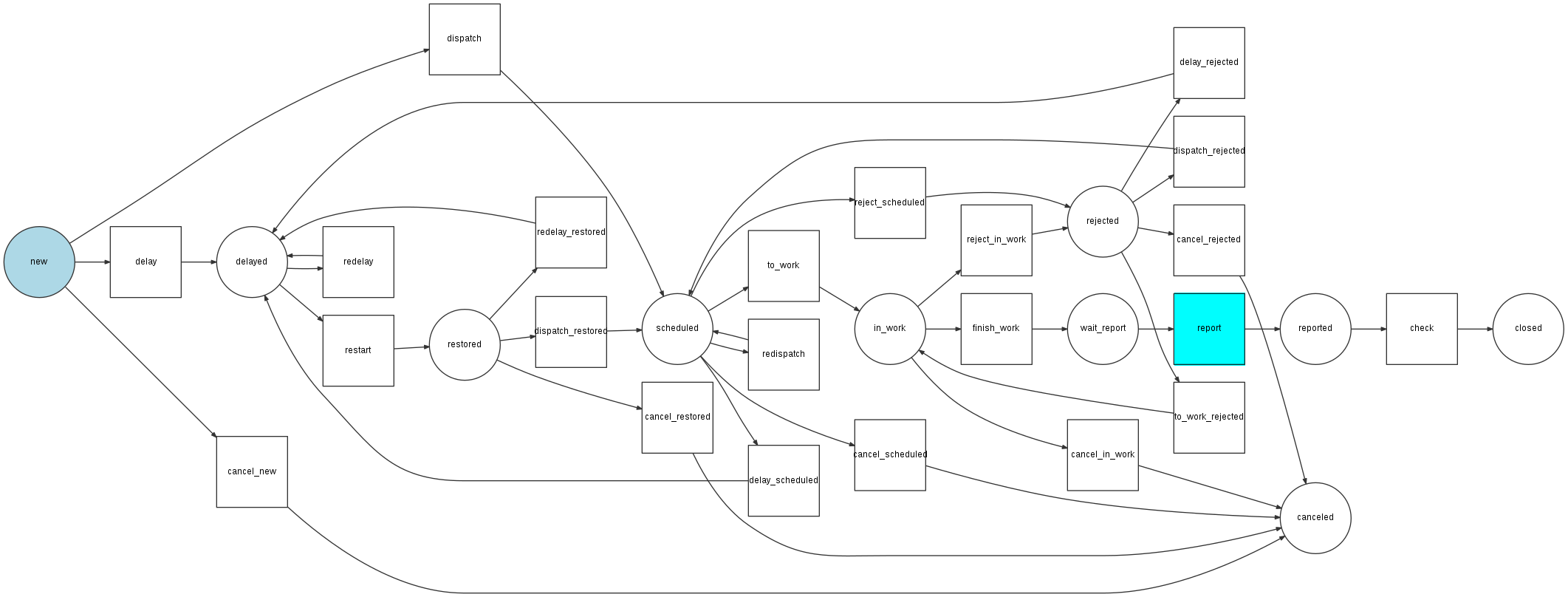

Data and Comment

Problems

• Nontrivial state graph
• Additional transition data
• Comment to ticket on ticket changes

Pluggable workflows

for bundles

Problems

• Nontrivial state graph
• Additional transition data
• Comment to ticket on ticket changes
• Pluggable workflow configuration

Transition security

Transition guard

Problems

• Nontrivial state graph
• Additional transition data
• Comment to ticket on ticket changes
• Pluggable workflow configuration
• Security restrictions

Research

Form Component

for additional transition data

Commands and Handlers

to wrap Comment object

Compiler passes

for setup Workflow services from bundle configuration

Custom workflow guard listeners

for transitions guarding

Development

(solution)

Command bus

by League of Extraordinary packages

WorkflowMiddleware

public function execute($command, callable $next)
{
    //...

    $result = $next($command);

    //...

    try {
        $workflow = $this->registry->get($task, $workflowName);
        $workflow->apply($task, $command->getTransition());
    } catch (Exception $exception) {
        throw new TaskException( /* ... */ );
    }
}

Example transition

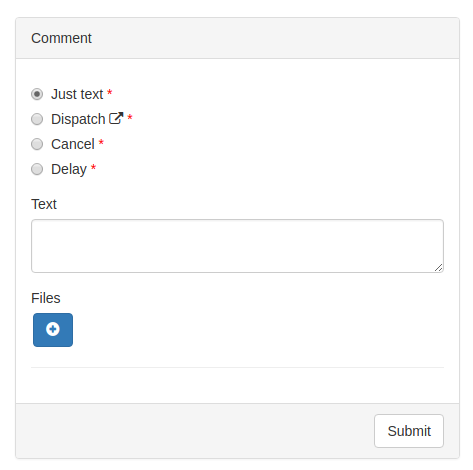

Forms

SymfonyBro\TaskBundle\Form\TransitionType

Choices are enabled transitions of given subject extracted from Workflow component

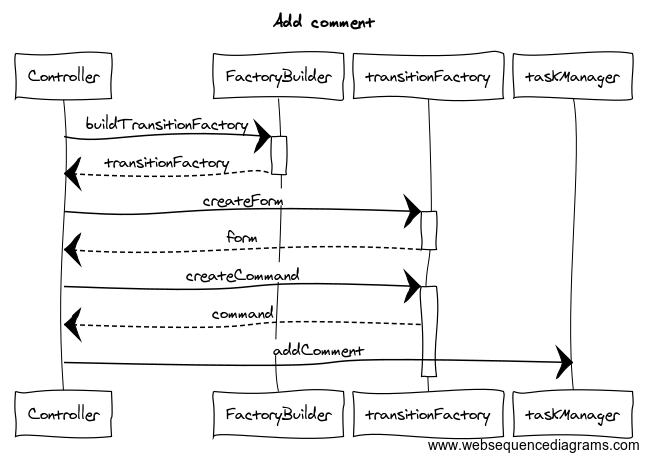

Building command flow

(comment)

Pluggable workflows

• Copy-paste from FrameworkExtension::registerWorkflowConfiguration into AbstractRegisterWorkflowPass
• custom transitions options
• guard expression option
• allow any time extension, eg. places coloring

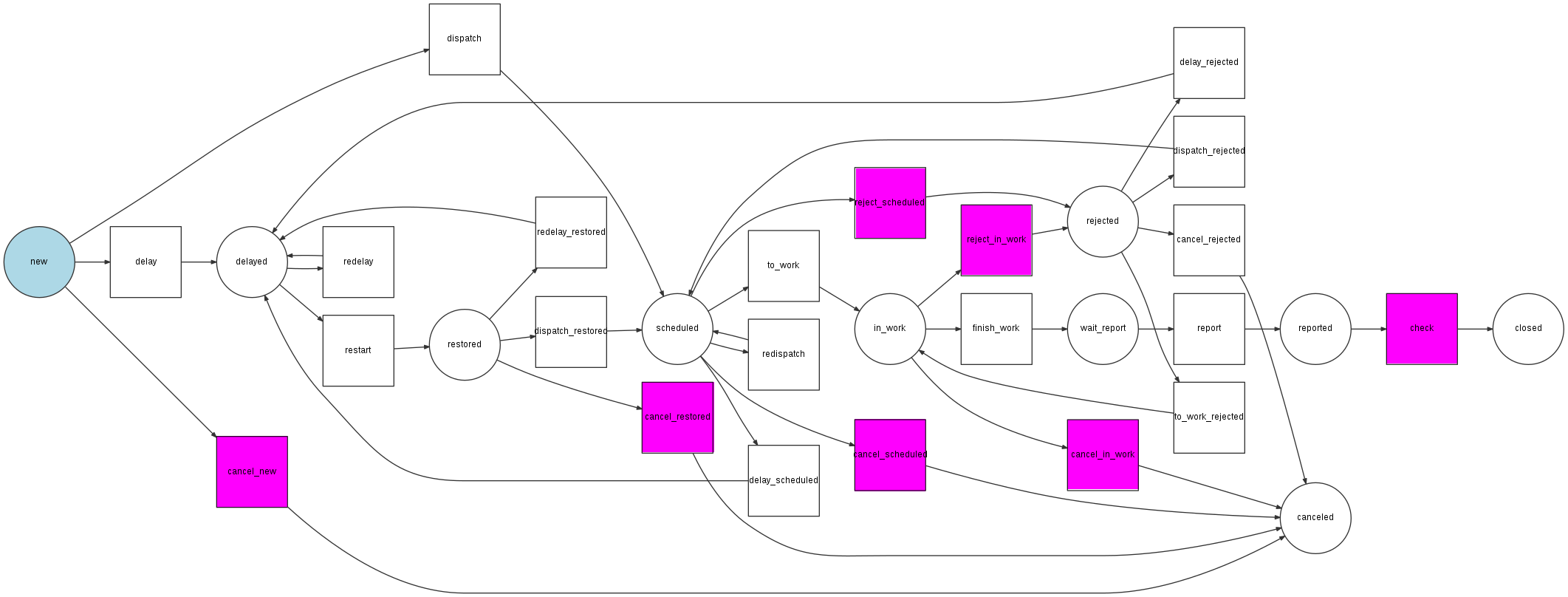

Security

Gorserv/Gerp/TaskServiceBundle/Resources/config/workflow.yml

    transitions:
        delay:
            from: new
            to: delayed
            guard: 'is_granted(["ROLE_DISPATCHER"])'
        dispatch:
            from: new
            to: scheduled
            guard: 'is_granted(["ROLE_DISPATCHER"])'
        to_work:
            from: scheduled
            to: in_work
            guard: 'is_granted(["ROLE_TECH"])'

TransitionToRolePass

builds roles from specified workflow transitions and inject them into containers roles hierarchy

workflow

cancel:
    from: new
    to: canceled

to_agreement:
    from: new
    to: wait_agreement

dispatch:
    from: new
    to: scheduled

security.role_hierarchy.roles

ROLE_SERVICE_TRANSITION_CANCEL:



ROLE_SERVICE_TRANSITION_TO_AGREEMENT:



ROLE_SERVICE_TRANSITION_DISPATCH:
