Upgrading from Drupal 6 to Drupal 7 - How hard is it?

Dependant on contrib modules
Do all the Drupal 6 modules exist for Drupal 7?
Site complexity
Custom / bespoke modules need updating for Drupal 7
New Drupal 7 modules may make older bespoke code obsolete
Update / port the theme or re-write from scratch?

Sometimes it simpler / easier to start from scratch

Case example:

http://www.thebacillus.co.uk

Simple website for a band in Manchester.
Bespoke theme - not responsive
Audio module - not secure
Drupal 6 backend vs Drupal 7 backend upgrade
Future proofing new features only in Drupal 7
Simpler front end editing workflow for the band members

Start from scratch? But what about all the content?

Can't use node export due to upgraded content using better field types / different field names
Views attachment in Drupal 6 replaced by Eva in Drupal 7
RSS feeds in Drupal 6 not easily customisable and make it difficult to output the path and date fields correctly

Solution?

Perform a clean Drupal 7 install
Quickly re-create the necessary content types
Create XML feeds on the Drupal 6 website for each content type*
Create Feeds importers on the Drupal 7 to consume the content*
Migrate over the content

*(after installing dependancies)

Module Dependancies

Drupal 6:

Views Data Export (6.x-2.x-dev)

(https://drupal.org/project/views_data_export)

Drupal 7:

Feeds (plus dependancies)

(https://drupal.org/project/feeds)

Feeds XPath Parser

(https://drupal.org/project/feeds_xpathparser)

Content types?

You can use Bundle Copy

(https://drupal.org/project/bundle_copy)

Bundle Copy is in Drupal 8 Core CMI!

Has export/import support for:

Node types
Taxonomy
User
Field API fields
Field groups

Drupal 6: Create the xml feeds

Create a new node view with published content = Yes
Add fields for each field you want to migrate e.g.
Uid, Nid, Post Date, Path, Title, Body, Tags etc..
Make sure that the Title field and any other fields don't link to the content or that will output them as links in the XML feed too

Drupal 6: Creating the XML Feeds

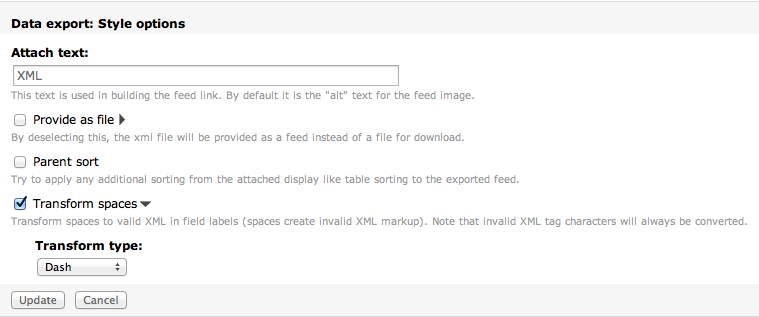

Add a "Data Export" display type

Give the feed a path e.g. /feeds/content-type/all

Under style settings choose "XML file"

Uncheck "Provide as file"

Check "Transform Spaces" with a type of "Dash"

Drupal 6: Create the XML feeds

Paths

For the Node:path field (if migrating):

Check "Rewrite the output of this field"

Rewrite the output as [path]

Drupal 6: Create the XML Feeds

Dates:

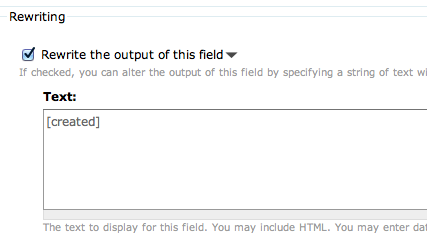

Rewrite the output as [created]

Choose custom date format and enter:

Y-m-d H:i:s O

Drupal 6: Preview the XML Feed

<?xml version="1.0" encoding="utf-8" ?>

<nodes>

<node>

<Path>/about/staff</Path>

<Post-date>2011-04-28 13:04:39 -0400</Post-date>

<Title>Our Staff</Title>

<Body><p>Our employees are brilliant!  And attractive, too.</p></Body>

</node>

<node>

<Path>/about/location</Path>

<Post-date>2011-04-28 13:06:27 -0400</Post-date>

<Title>Our Location and Hours</Title>

<Body><p>More fascinating HTML goes here, including an <a href="http://mysite.gatech.edu/fakedirectory/pagename">absolute link</a> whose URL may need replaced if I am changing my site's Domain Name.</p></Body>

</node>

</nodes>

Drupal 7: Create the Feeds Importers

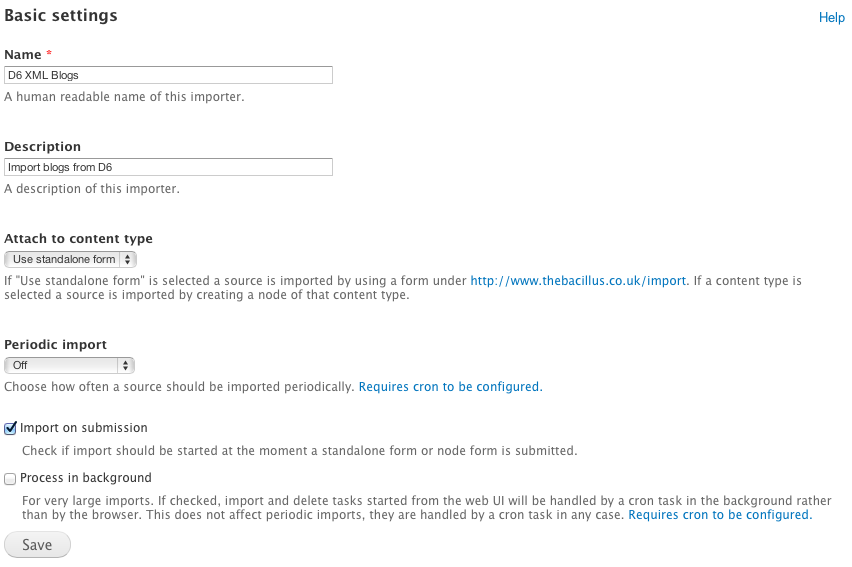

Basic Settings:

DRUPAL 7: CREATE THE FEEDS IMPORTERS

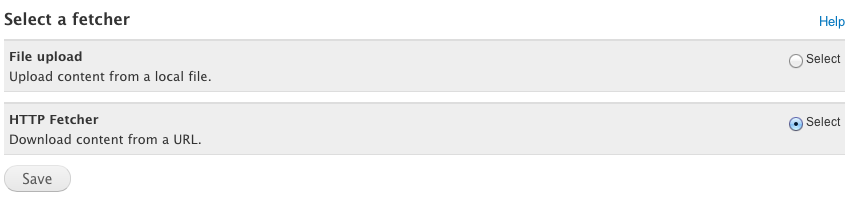

Fetcher

Leave it as it is on the default HTTP fetcher

DRUPAL 7: CREATE THE FEEDS IMPORTERS

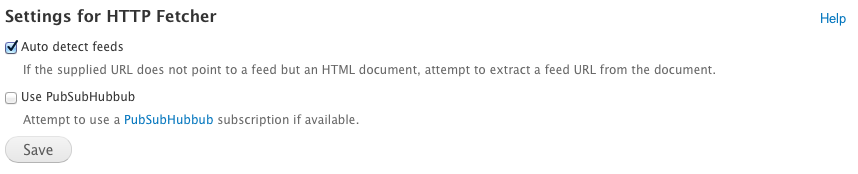

HTTP Fetcher Settings:

Check "Auto detect feeds"

DRUPAL 7: CREATE THE FEEDS IMPORTERS

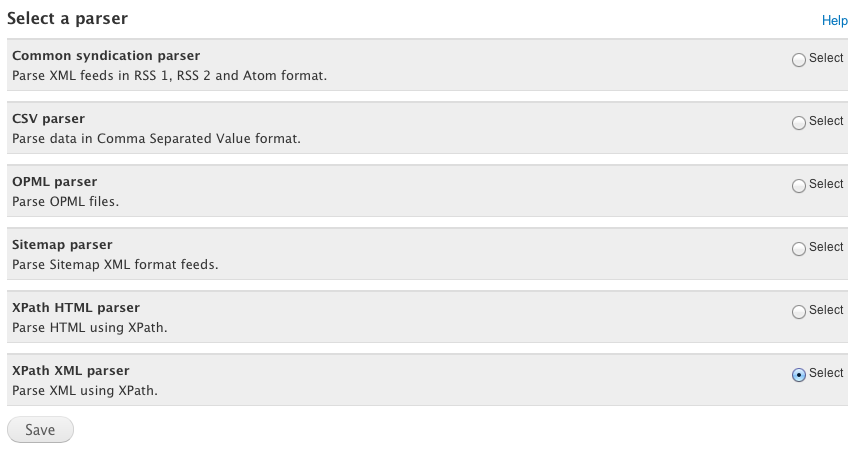

Parser:

DRUPAL 7: CREATE THE FEEDS IMPORTERS

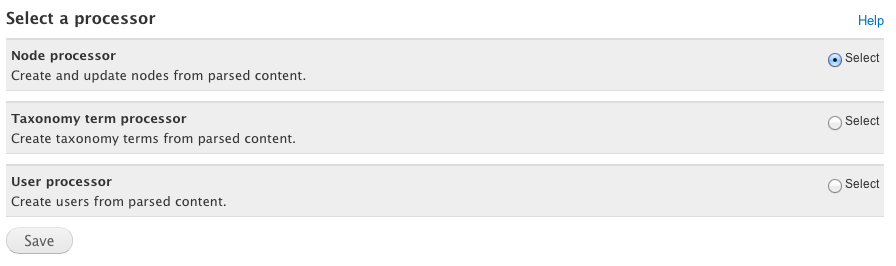

Processor (skip XPath XML parser settings for now):

Leave as the Node processor

DRUPAL 7: CREATE THE FEEDS IMPORTERS

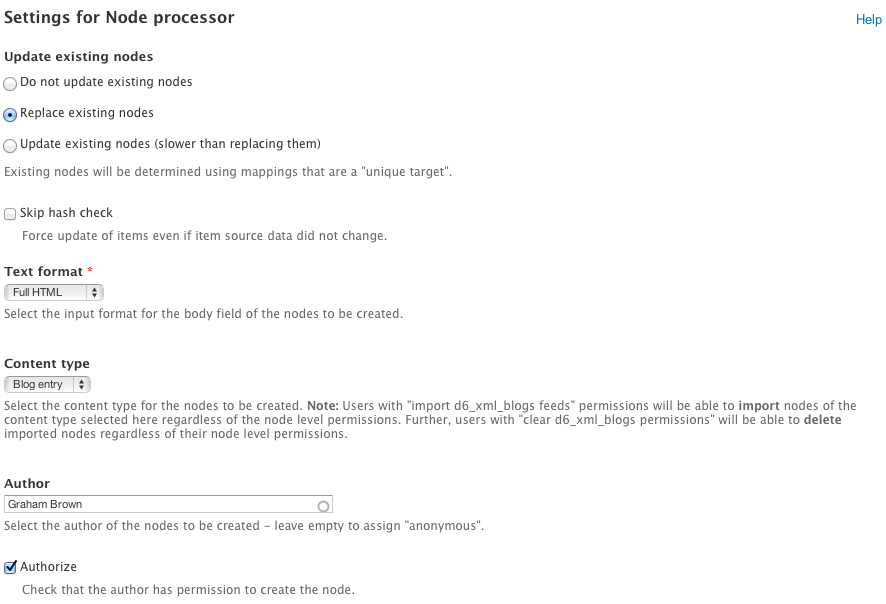

Node Processor Settings:

DRUPAL 7: CREATE THE FEEDS IMPORTERS

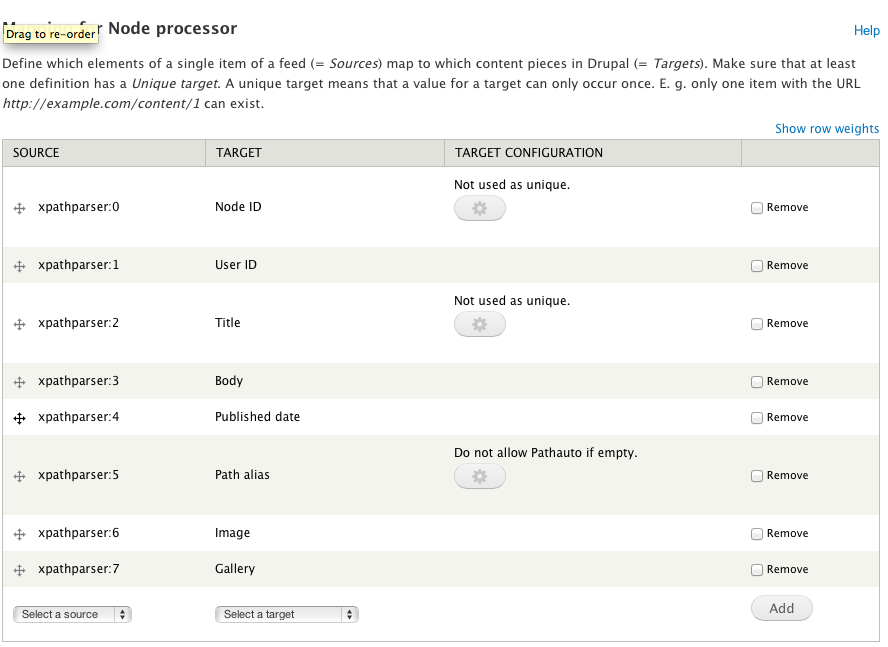

Field Mappings: Select XPath Expression for each and a destination.

DRUPAL 7: CREATE THE FEEDS IMPORTERS

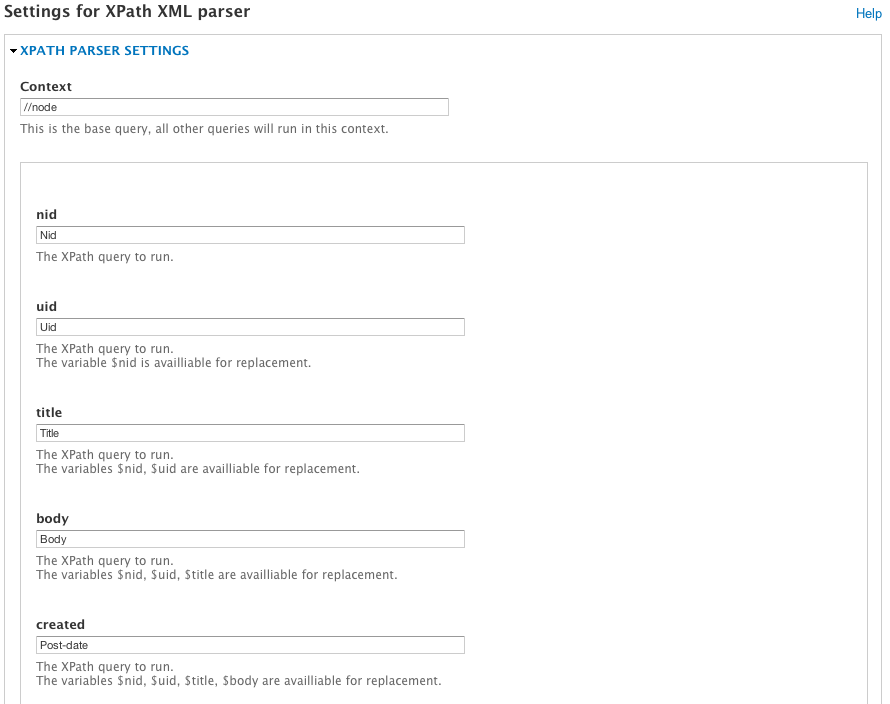

XPath XML parser Settings:

Take a look at the generated XML feed on Drupal 6

The content is wrapped in a "node" tag which has a single parent of "nodes" so...

Context = //node

Now simply copy and paste the field names from the XML tags into the appropriate field mapping fields

Perform the Migration!

Beware:

Backup the destination website first

For multi user blogs import the users first:

Create an XML feed of users

Use the following patch: http://drupal.org/node/1570544

Use Feeds to import them

Multi-Value Fields (e.g. image gallery)

For multiple value fields use Feeds Tamper (https://drupal.org/project/feeds_tamper)

Use a views template views-view-field--fid.tpl.php file to output each value of the multi-value fields separated by comma / pipe (usually a comma)

Add a tamper on the field in the Feeds importer settings and "explode" on the separator you chose above (comma by default) to transform the single XML values into multiple values during the import

But wait there's more!

Use the same technology to create site-to-site synchronous data transfers using XML

Create feeds from one site to another using Views Data Export and Feeds XPath Parser

Import external feeds from third parties using XPath Parser

Create feeds for third parties using Views Data Export

It's not all about upgrading / migrating but can also be about INTEGRATING too :)

Credits

Inspiration for migrating anything from / to anything was acquired from:

http://adellefrank.com/blog/how-to-migrate-content-from-drupal6-to-drupal7-with-feeds-module
