Today!
Assignment 6
Due Today!!
Wednesday 11 / 04 / 2020
Meet with me
in November
10 minutes
Time
<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8" />
<title>CS460 Computer Graphics at the University of Massachusetts Boston</title>
<script type="text/javascript" src="../../js/xtk_edge.js"></script>
<link rel="stylesheet" type="text/css" href="../../styles/fonts.css"/>
<style>
html, body {
background-color:#000;
margin: 0;
padding: 0;
height: 100%;
overflow: hidden !important;
font-family: din_condensed;
font-size: 18pt;
}
</style>
<script type='text/javascript'>
window.onload = function() {
// create a new test_renderer
r = new X.renderer3D();
r.init();
// UMASS BOSTON
//
// create a cube
umassboston = new X.cube();
// skin it..
umassboston.texture.file = 'umassboston.png';
// hide it for now!
umassboston.visible = false;
r.add(umassboston);
// BOSTON GFX
//
// create a cube
bostongfx = new X.cube();
// skin it..
bostongfx.texture.file = 'bostongfx.png';
// hide it for now!
bostongfx.visible = false;
r.add(bostongfx);
// setup the camera
r.camera.position = [00, 00, 60];
// .. and render it
r.render();
};
clicked = false;
window.onclick = function() {
if (clicked) return; // sometimes you click again by accident,
// and restart the animation.. let's not!
// we need user feedback, to allow the music to play..
// let's do it on click!
clicked = true;
animation();
}
function animation() {
// start the music
var music = document.getElementById('music');
music.autoplay = true;
music.load();
setTimeout(function() {
umassboston.visible = true;
}, 400);
setTimeout(function() {
umassboston.visible = false;
r.camera.position = [0, 0, -25];
bostongfx.visible = true;
}, 3200);
setTimeout(rotate_bostongfx, 6200);
};
function rotate_bostongfx() {
var rotateCounter = 0;
var spinner1 = setInterval(function(){
rotateCounter += 1;
// console.log(rotateCounter*2);
if (rotateCounter*2 >= 90) {
clearInterval(spinner1); // this is not time-based now...
bostongfx.visible = false;
// now the real CS460 logo..
create_cs460_logo();
return;
}
bostongfx.transform.rotateY(rotateCounter*2);
},100);
};
function create_cs460_logo() {

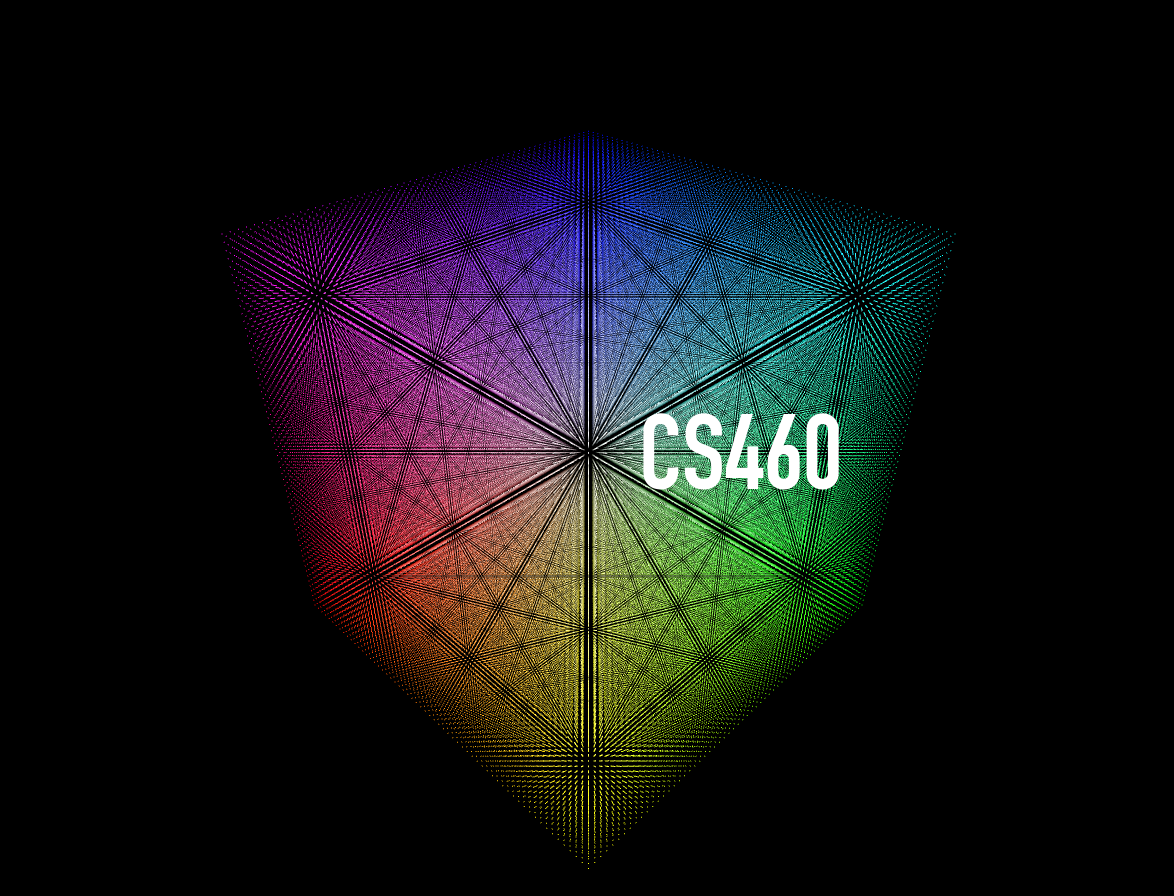

document.getElementById('caption').style.display = 'block';
// create a new X.object
cs460logo = new X.object();
// add the points, normals and colors
//
// this means 648000 / 3 == 216000 vertices
// on my work machine I could set 24000000 / 3 == 8 mio vertices
cs460logo.points = new X.triplets(648000);
cs460logo.normals = new X.triplets(648000);
cs460logo.colors = new X.triplets(648000);
// and set the type to POINTS
cs460logo.type = 'POINTS';
// create the points, normals and colors
for ( var x = 0; x < 60; x++) {
for ( var y = 0; y < 60; y++) {
for ( var z = 0; z < 60; z++) {
cs460logo.points.add(x, y, z);
cs460logo.normals.add(1, 1, 1);
cs460logo.colors.add(x/60, y/60, z/60);
}
}
}
// add the object
r.add(cs460logo);
// setup the camera
r.camera.position = [500, 500, 500];
setTimeout(zoom_into_cs460logo, 2000);
};
function zoom_into_cs460logo() {
var zoomer = setInterval(function() {
// we can stop once we are far away enough
if (r.camera.view[14] > 1000) {
clearInterval(zoomer);
// console.log('zooming done');
setTimeout(function() {
document.getElementById('caption').style.display = 'none';
start_content();
}, 2000);
return;
}
// zoom in
r.camera.zoomIn();
}, 10);
};
function start_content() {
// reduce music volume
var music = document.getElementById('music');
music.volume = .1;
// activate speech
var voice = document.getElementById('voice');
voice.autoplay = true;
voice.volume = 1;
voice.load();
frames = ['content1', 'content2', 'content3', 'content4', 'content5', null];
times = [0, // Today...
1000, //
4200, // And
6000, //
10000, // this is lecture 19
14000];
//
// this is (like the whole animation concept), a little hacky!!
//
for (var f in frames) {
setTimeout(function(f) {
if (f > 0) {
document.getElementById(frames[f-1]).style.display = 'none';
}
if (frames[f] != null) {
document.getElementById(frames[f]).style.display = 'block';
} else {
music.volume = .1;
setTimeout(function(f) {
fadeout = setInterval(function(f) {
if (music.volume <= 0.) {
clearInterval(fadeout);
return;
}
music.volume -= .05;
}, 500);
},3000);
}
}.bind(this,f), times[f]);
}
};
</script>
</head>
<body>
<div style="visibility:hidden">
<audio id='music'>
<source src="bensound-evolution.mp3">
</audio>
<audio id='voice'>
<source src="lecture23.mp3">
</audio>
</div>
<div id='caption' style='display:none;position: absolute;color:white;top:45%;left:50%;margin-left:50px;font-size:440%'>CS460</div>
<div id='content1' style='display:none;position: absolute;color:white;top:25%;left:30%;margin-left:50px;font-size:440%'>Today...</div>
<div id='content2' style='display:none;position: absolute;color:white;top:30%;left:20%;margin-left:50px;font-size:440%'>We will learn more about animations..</div>
<div id='content3' style='display:none;position: absolute;color:white;top:20%;left:10%;margin-left:50px;font-size:440%'>And...</div>
<div id='content4' style='display:none;position: absolute;color:white;top:35%;left:20%;margin-left:50px;font-size:440%'>We will talk to an emmy winning prime-time animator!</div>
<div id='content5' style='display:none;position: absolute;color:white;top:45%;left:40%;margin-left:50px;font-size:440%'>This is lecture 23.</div>
</body>
</html>
1. Setup
2. UMB
400 ms
3. GFX
3200 ms

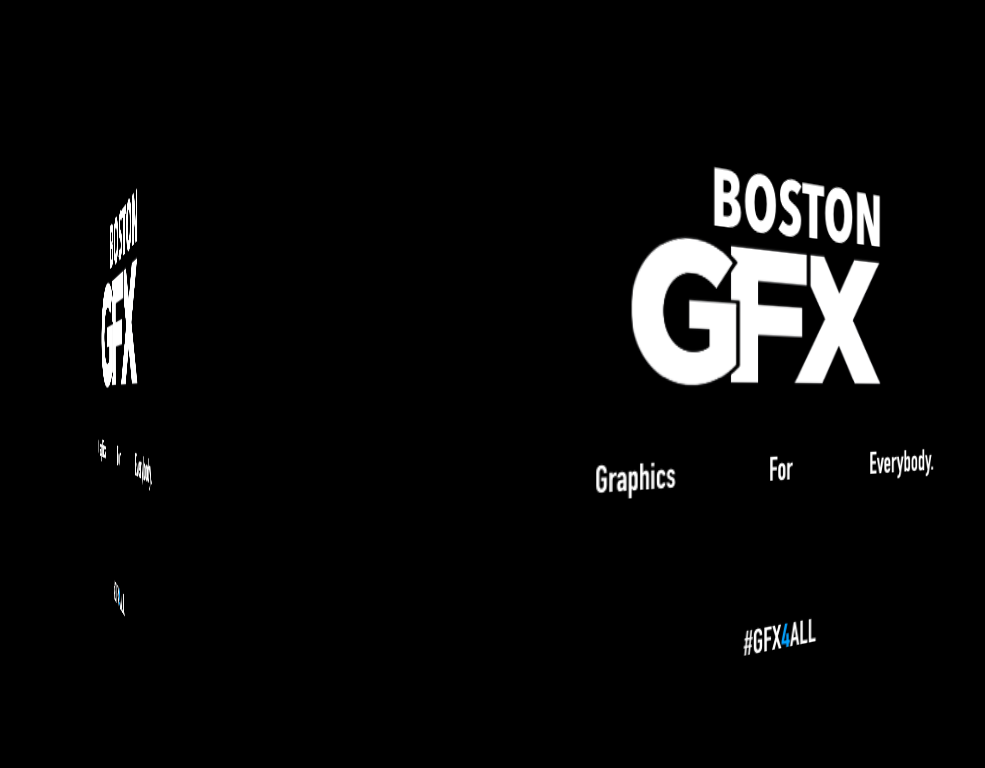

3. rotate
6200 ms

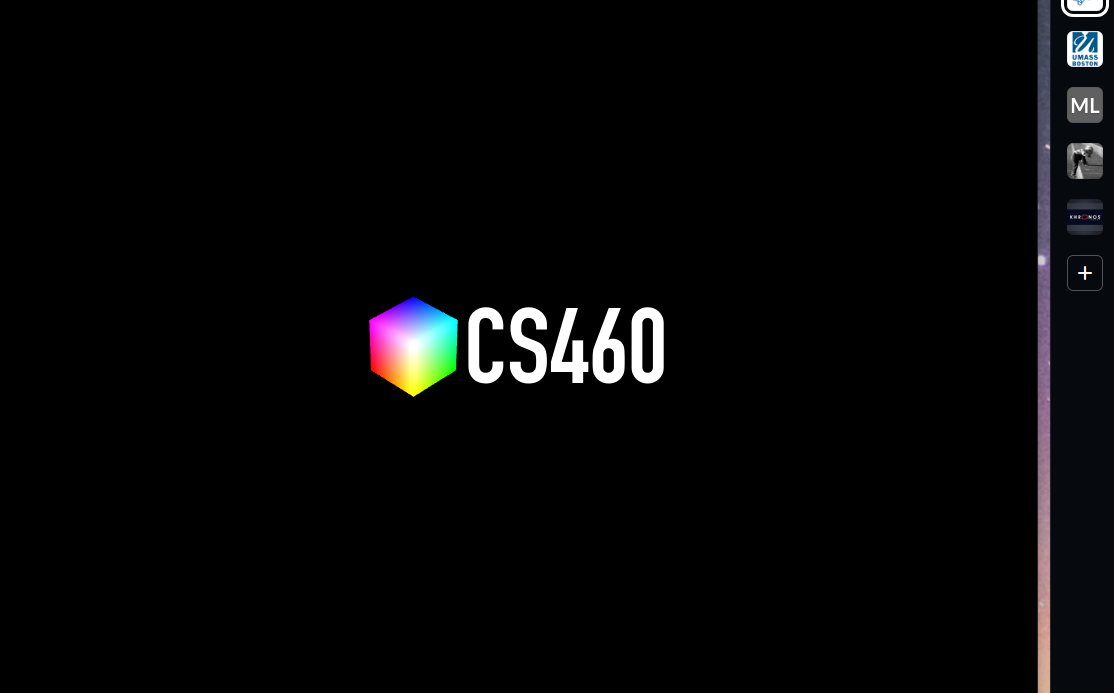

4. CS460
180°
5. zoom
2000 ms
6. content
camera.z > 1000
7. end
XXX ms
action
time
Skinning
Skeleton -> Mesh
Texture Mapping
X
Y
0
0
width
height
U
V
0
0
1
1
Fragment Shader
Fragment Shader
Vertex Shader
vec2( )
vec2( )
vec2( )
vec3 a_Position;
vec2 a_TexCoord;
vec2 v_TexCoord;
0, 0
1, 1
0, 1
u, v
varying
vec2 v_TexCoord;
varying
sampler2D u_Sampler;
Sampling
Nearest Neighbor
Linear
Interpolation
Wrapping
Repeat
Mirrored Repeat
Clamp To Edge
Clamp To Border
For U,Vs outside 0..1
Three.js
XTK
Default WebGL
var cube = new X.cube();
cube.texture.file = 'umb.png';var floorTexture = new THREE.TextureLoader().load( 'board.jpg' );
var floorGeometry = new THREE.PlaneBufferGeometry( 1000, 1000 );
var floorMaterial = new THREE.MeshBasicMaterial( {
map: floorTexture,
side: THREE.DoubleSide
} );
floor = new THREE.Mesh( floorGeometry, floorMaterial );
V
U
W
3D Textures

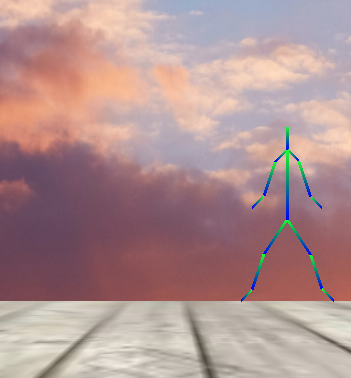

Head
Upper Leg
1
2
3
Robot.prototype.onAnimate = function() {
if (this.movement == 'raise left arm') {
var T = -Math.PI;
this.left_upperarm.quaternion.slerp( new THREE.Quaternion(Math.sin(T/2), // x
0, // y
0, // z
Math.cos(T/2)), // w
0.1 );
} else if (this.movement == 'kick') {
// check if slerp reached almost the end
if (this.right_upperleg.quaternion.w < 0.72) {
// signal that the kick is done and the leg should move back
this.movement = 'kick done';
} else {
var T = -Math.PI/2;
this.right_upperleg.quaternion.slerp( new THREE.Quaternion( Math.sin( T / 2 ), // x
0, // y
0, // z
Math.cos( T / 2 ) ), // w
0.1 );
}
} else if (this.movement == 'kick done') {
// reset leg back to identity
this.right_upperleg.quaternion.slerp( new THREE.Quaternion(0,0,0,1), 0.1 );
}
};
w
during slerp "w" goes from 1 to 0.7
w
