Learned Proximal Operators

from denoising to sampling

Jeremias Sulam

A central question in data science

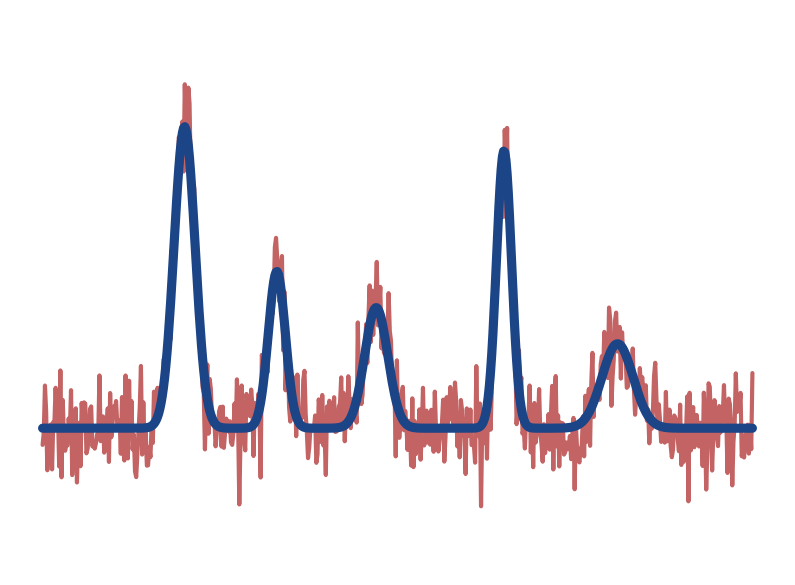

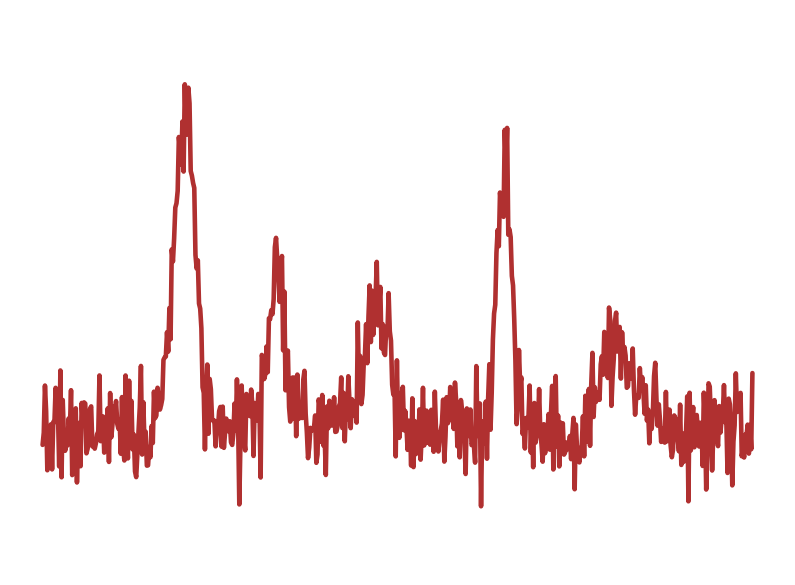

observation

model of the world

Inverse Problems

Constrained Optimization

Sampling

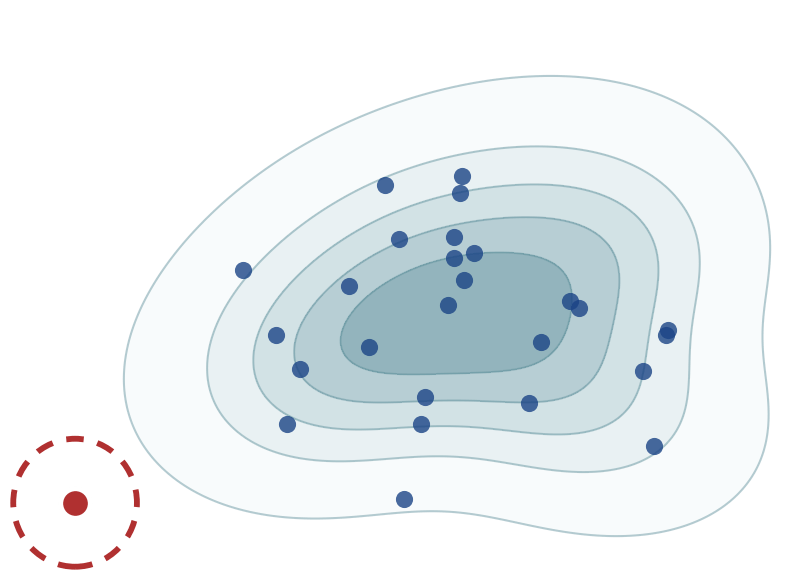

Outlier Detection

A central question in data science

Sampling

Outlier Detection

A central question in data science

Inverse Problems

Today: how we learn these operators from data?

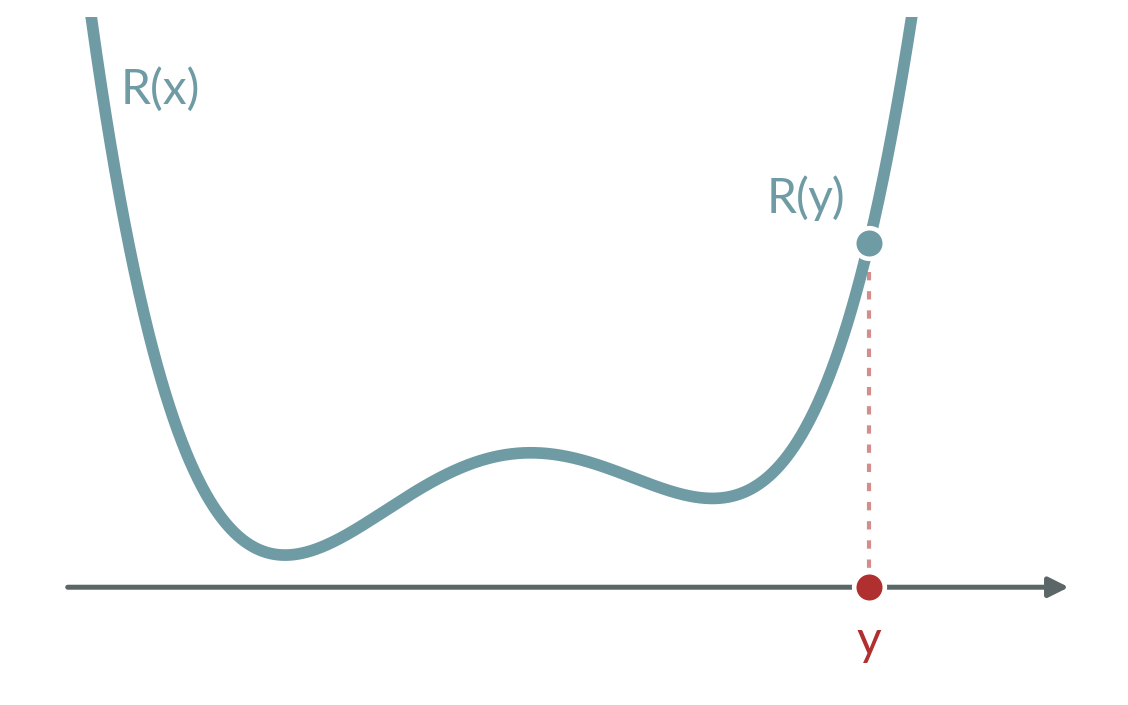

Proximal Operators

Constrained Optimization

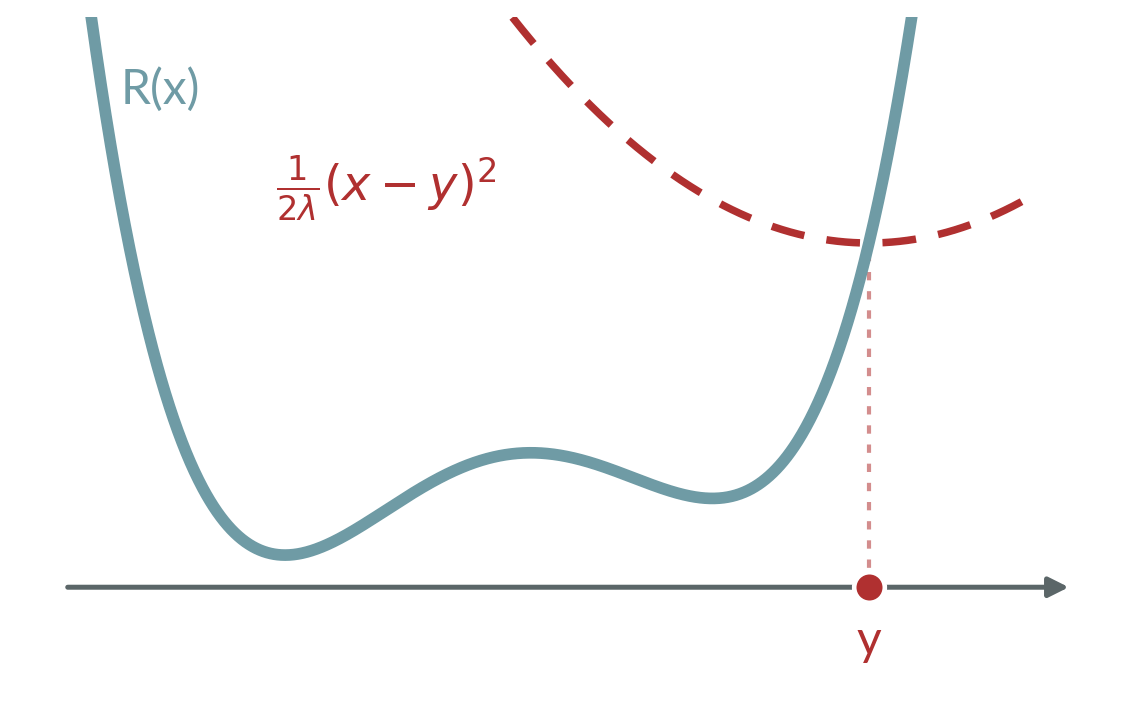

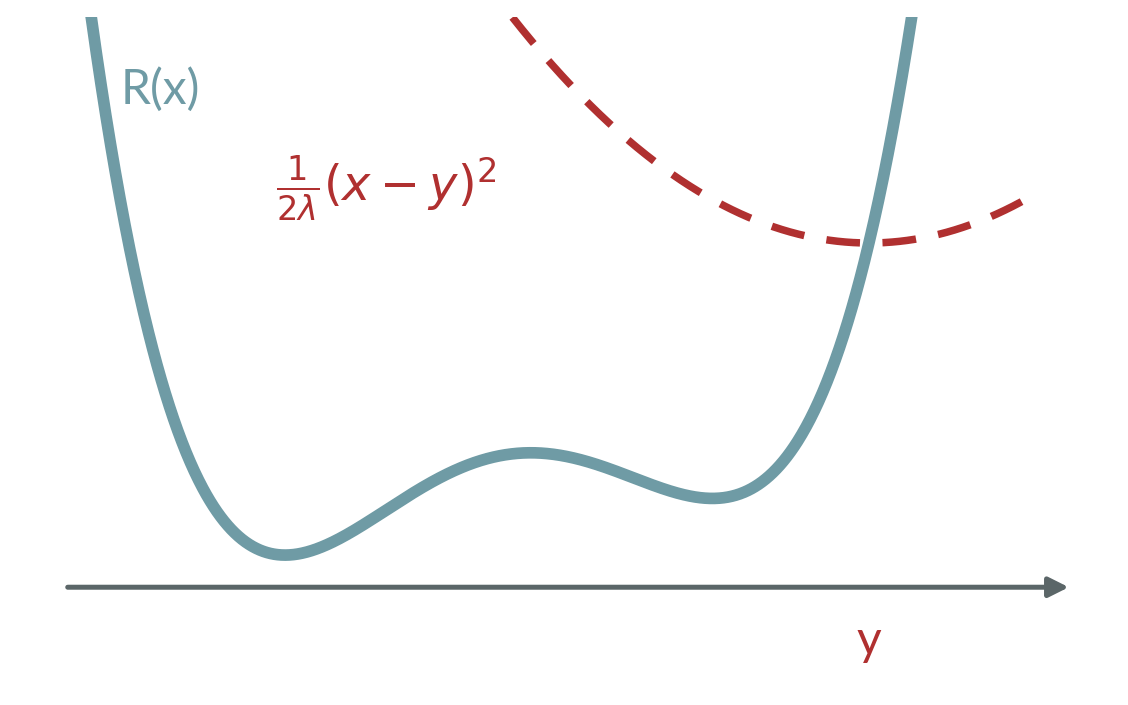

Proximal Operators

\text{prox}_{\lambda R}(y) ~\triangleq~ \underset{x}{\arg\min} ~ \tfrac12 \|x-y\|_2^2 + \lambda R(x)

[Moreau 1962, 1965]

Proximal Operators

\text{prox}_{\lambda R}(y) ~\triangleq~ \underset{x}{\arg\min} ~ \tfrac12 \|x-y\|_2^2 + \lambda R(x)

[Moreau 1962, 1965]

Proximal Operators

\text{prox}_{\lambda R}(y) ~\triangleq~ \underset{x}{\arg\min} ~ \tfrac12 \|x-y\|_2^2 + \lambda R(x)

\(\text{prox}_\lambda R (y) \to \arg\min R(x)\)

when \(\lambda \to \infty\)

Proximal Operators

\text{prox}_{\lambda R}(y) ~\triangleq~ \underset{x}{\arg\min} ~ \tfrac12 \|x-y\|_2^2 + \lambda R(x)

\(\text{prox}_\lambda R (y) = y\)

when \(\lambda = 0 \)

Proximal Operators

\(R(x) = \|x\|_1\)

\(R(x) = \|\nabla x\|_1\)

\(R(x) = \iota_C(x)\)

soft-thresholding

projection onto \(C\)

TV denoising

\text{prox}_{\lambda R}(y) ~\triangleq~ \underset{x}{\arg\min} ~ \tfrac12 \|x-y\|_2^2 + \lambda R(x)

Proximal Operators

\(R(x) = \|x\|_1\)

\(R(x) = \|\nabla x\|_1\)

\(R(x) = \iota_C(x)\)

soft-thresholding

projection onto \(C\)

TV denoising

\text{prox}_{\lambda R}(y) ~\triangleq~ \underset{x}{\arg\min} ~ \tfrac12 \|x-y\|_2^2 + \lambda R(x)

\underset{x}{\arg\min} ~ \tfrac12 \|x-y\|_2^2 + \underbrace{\|Wx\|_1}_{R(x)}

A Bayesian Perspective

\(= \underset{x}{\arg\max} ~~~ p(y|x)p_x(x)\)

\(= \underset{x}{\arg\min} ~ -\log p(y|x) - \log p_x(x)\)

\(= \underset{x}{\arg\min} ~ \frac{1}{2\sigma^2} \|y-x\|^2_2 - \log p_x(x)\)

\(= \text{prox}_{-\sigma^2\log p_x}(y)\)

\(x\sim p_x\)

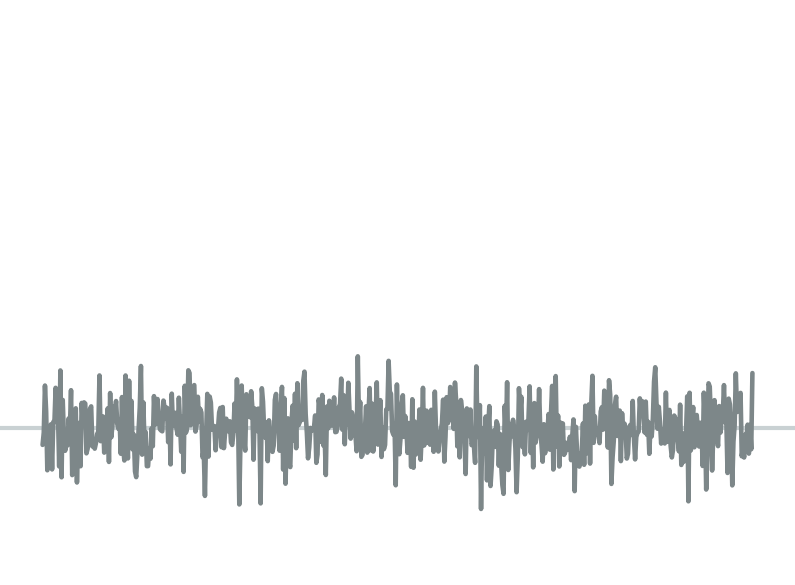

\(y = x + z\)

\(z\sim \mathcal N(0,\sigma^2 I)\)

\(\hat{x} = \underset{x}{\arg\max} ~ p(x|y)\)

Maximum a

Posteriori

estimator

MAP

A Bayesian Perspective

\(\underset{x}{\arg\min} ~ \frac1{2\sigma^2} \|y-x\|^2_2 - \log p_x(x)\)

\(= \text{prox}_{-\sigma^2\log p_x}(y)\)

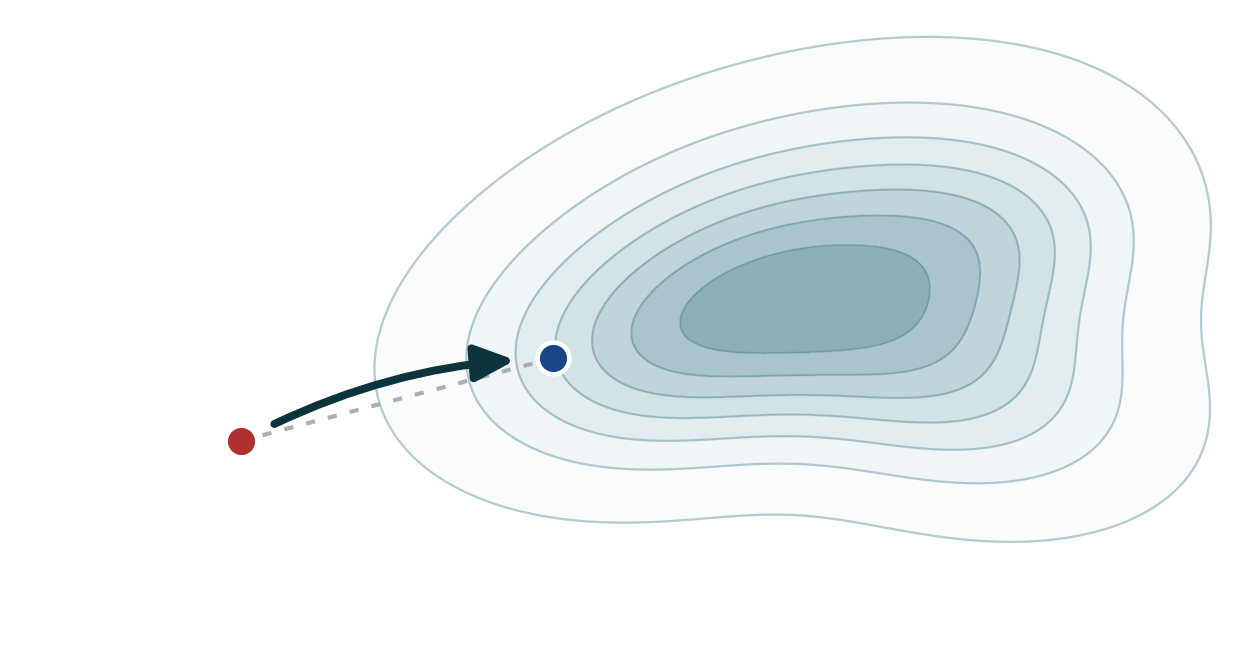

observation

model of the world

\(y\)

\(p_x\)

\(\text{prox}_{-\sigma^2 \log p_x}(y)\)

\(R(x)\): regularizer

\(\underbrace{{\qquad}}{}\)

MAP(x|y):

A Bayesian Perspective

observation

model of the world

\(y\)

\(p_x\)

\(\text{prox}_{-\log p_x}(y)\)

Can we learn functions \(\hat{f}:\mathbb R^d\to\mathbb R\) from data \(x\sim p_x\) so that

\(\hat{f} = \text{prox}_R\) and \(R \to -\sigma^2\log p_x\)?

\(\underset{x}{\arg\min} ~ \frac1{2\sigma^2} \|y-x\|^2_2 - \log p_x(x)\)

\(= \text{prox}_{-\sigma^2\log p_x}(y)\)

\(R(x)\): regularizer

\(\underbrace{{\qquad}}{}\)

MAP(x|y):

Yes, enabling ...

Inverse Problems

Outlier Detection

"A man with curly hair and a beard, wearing a dark jacket, stands indoors..."

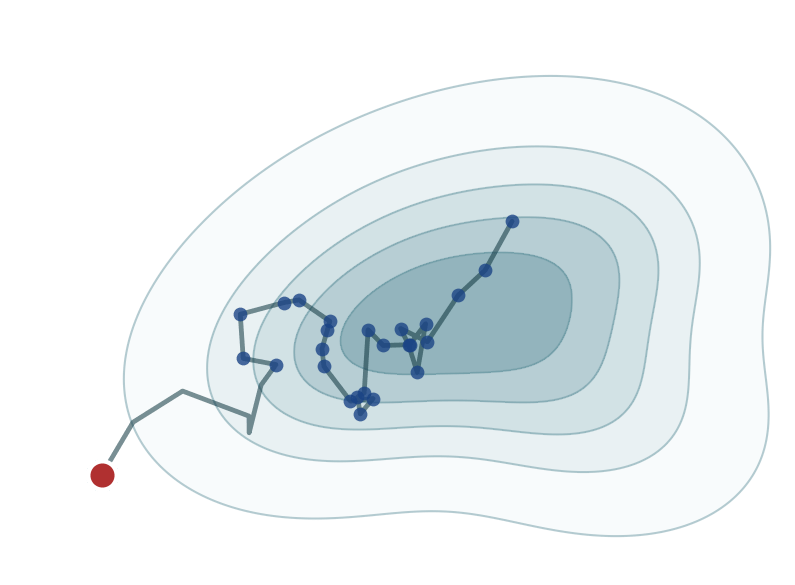

Sampling

Can we learn functions \(\hat{f}:\mathbb R^d\to\mathbb R\) from data \(x\sim p_x\) so that

\(\hat{f} = \text{prox}_R\) and \(R \to -\sigma^2\log p_x\)?

Part I: Obtaining learned proximal operators

Part III: Sampling with learned proximals

Part II: Solving inverse problems

Can we learn functions \(\hat{f}:\mathbb R^d\to\mathbb R\) from data \(x\sim p_x\) so that

\(\hat{f} = \text{prox}_R\) and \(R \to -\sigma^2\log p_x\)?

Theorem [Fang, Buchanan, S.]

Let \(f: \mathbb R^d\to\mathbb R^d\) be a network : \(f_\theta (x) = \nabla \psi_\theta (x)\),

where \(\psi_\theta : \mathbb R^d \to \mathbb R,\) convex and differentiable.

Then,

1. Existence of regularizer
\(\exists ~R: \mathbb R^d \to \mathbb R\) not necessarily convex : \(f_\theta(x) \in \text{prox}_{R}(x),\)

2. Computability
We can compute \(R(x)\) by solving a convex problem

What functions are proximals?

see also (Gribonval & Nikolova, 2020)

Part I: Obtaining learned proximal operators

How do we obtain \(f = \text{prox}_{-\sigma^2\log p_x}\) from data?

Say \(y = x + z \), with \(z \sim \mathcal N(0,\sigma^2 I)\) and \(x\sim p_x\)

Denoisers: \(f(y) = \underset{f}{\arg\min} ~ \underset{x,z}{\mathbb E} \left[ \ell(f(y), x)\right]\)

Part I: Obtaining learned proximal operators

when \(\ell(y,x) = \|y- x\|^2_2\) \(\Rightarrow\) \(f(y) = \mathbb E[x|y]\)

Minimum mean squared estimators (MMSE)

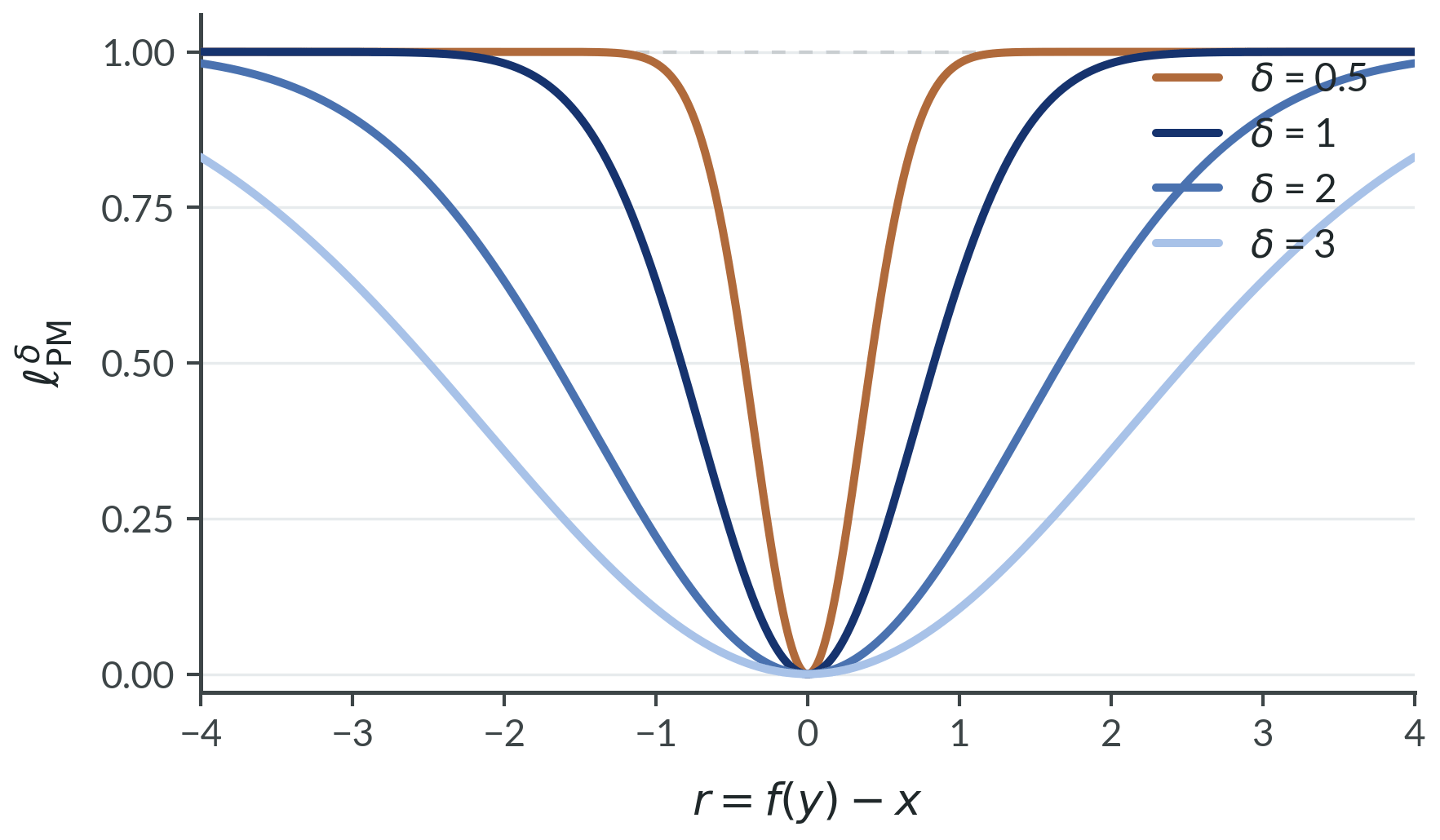

\ell^\delta_\text{PM} (f(y),x) = 1- \exp\left( -\frac{\|f(y)-x\|_2^2}{\delta^2} \right)

Maximum a posteriori estimators

Part I: Obtaining learned proximal operators

Say \(y = x + z \), with \(z \sim \mathcal N(0,\sigma^2 I)\) and \(x\sim p_x\)

Denoisers: \(f(y) = \underset{f}{\arg\min} ~ \underset{x,z}{\mathbb E} \left[ \ell(f(y), x)\right]\)

(informal)

Theorem [Fang, Buchanan, Díaz, S.]

f^* = ~\lim_{\delta \searrow 0}~ \mathop{\arg\min}\limits_{f:\,\text{measurable}} ~ \mathbb E_{x,z} \left[ \ell^\delta_\text{PM}(f(y),x)\right] = \text{prox}_{-\sigma^2\log p_x}

\text{Sample } y= x+z,~ \text{ with } x \sim \text{Laplace}(0,1) \text{ and } z\sim \mathcal N(0,\sigma^2)

Example 0: recovering a prior

Part I: Obtaining learned proximal operators

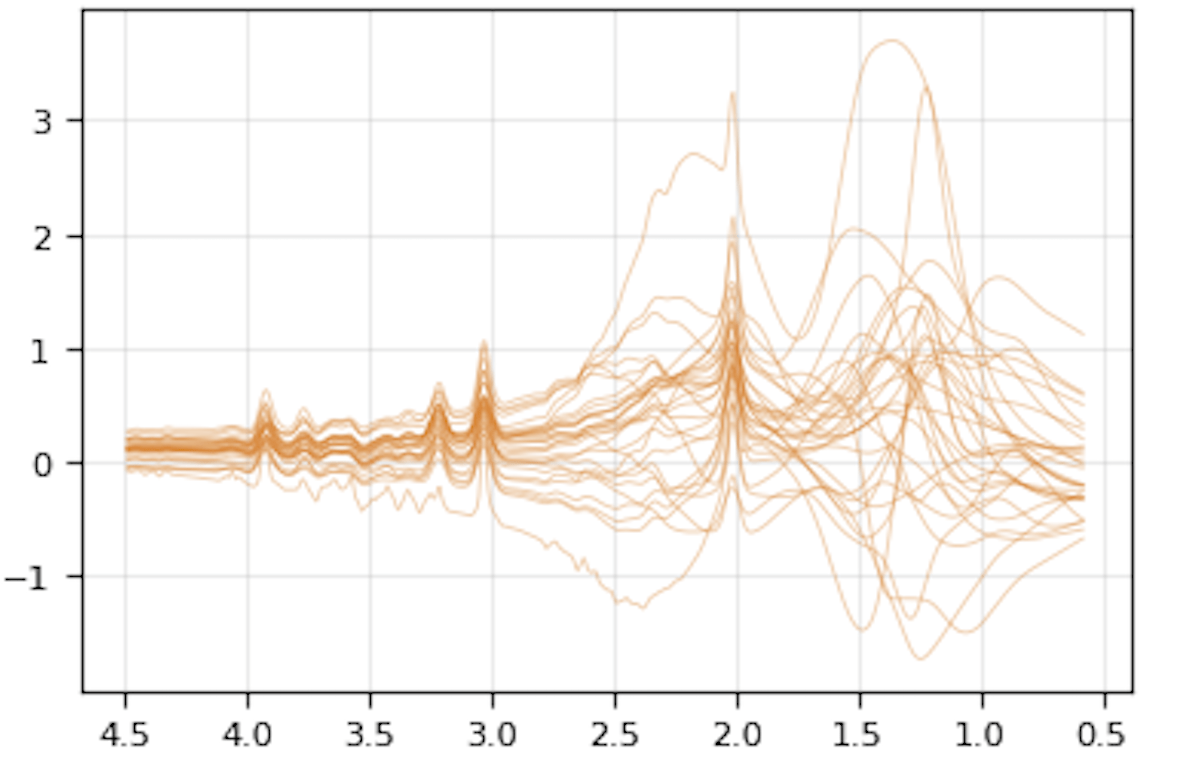

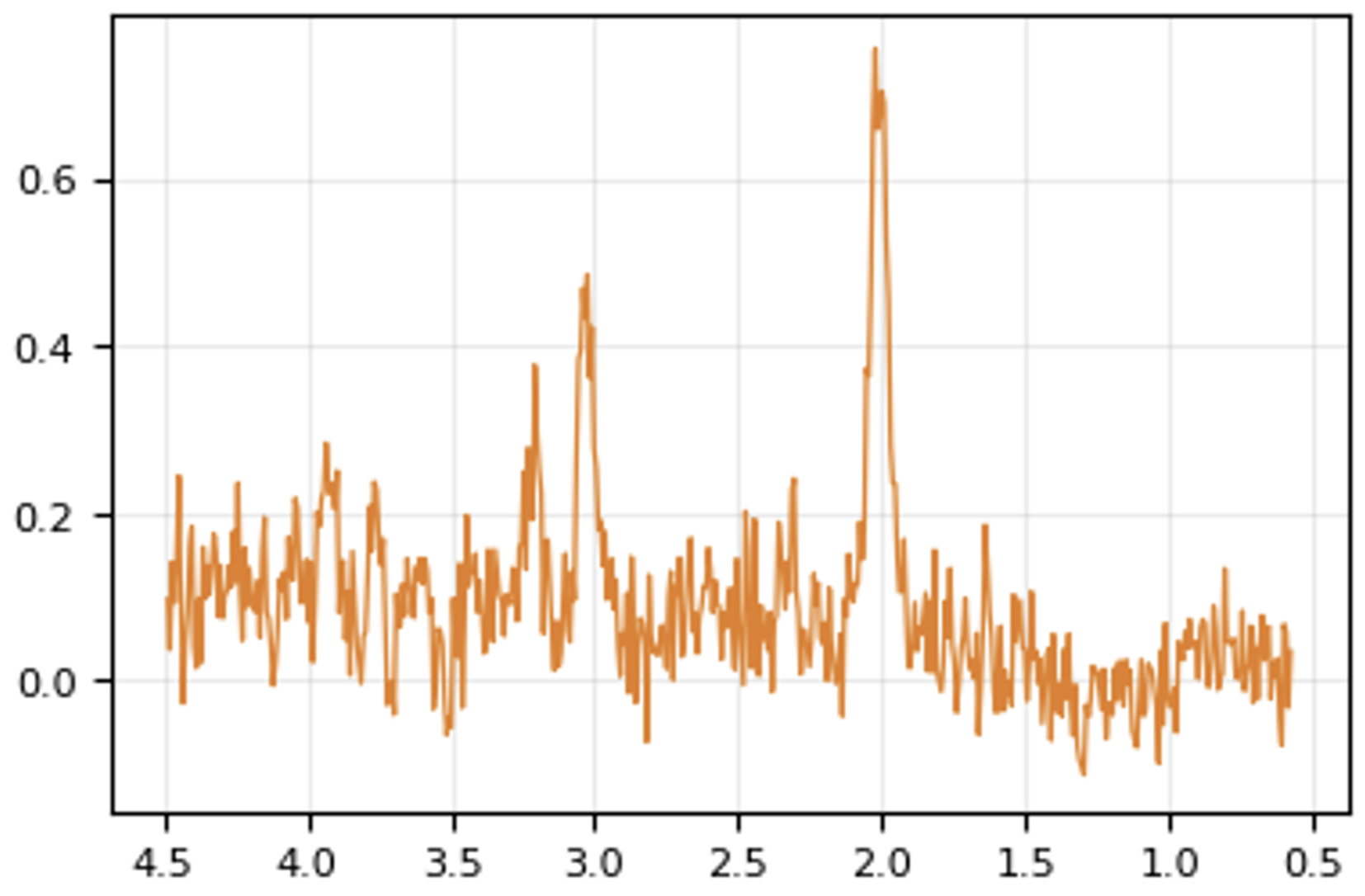

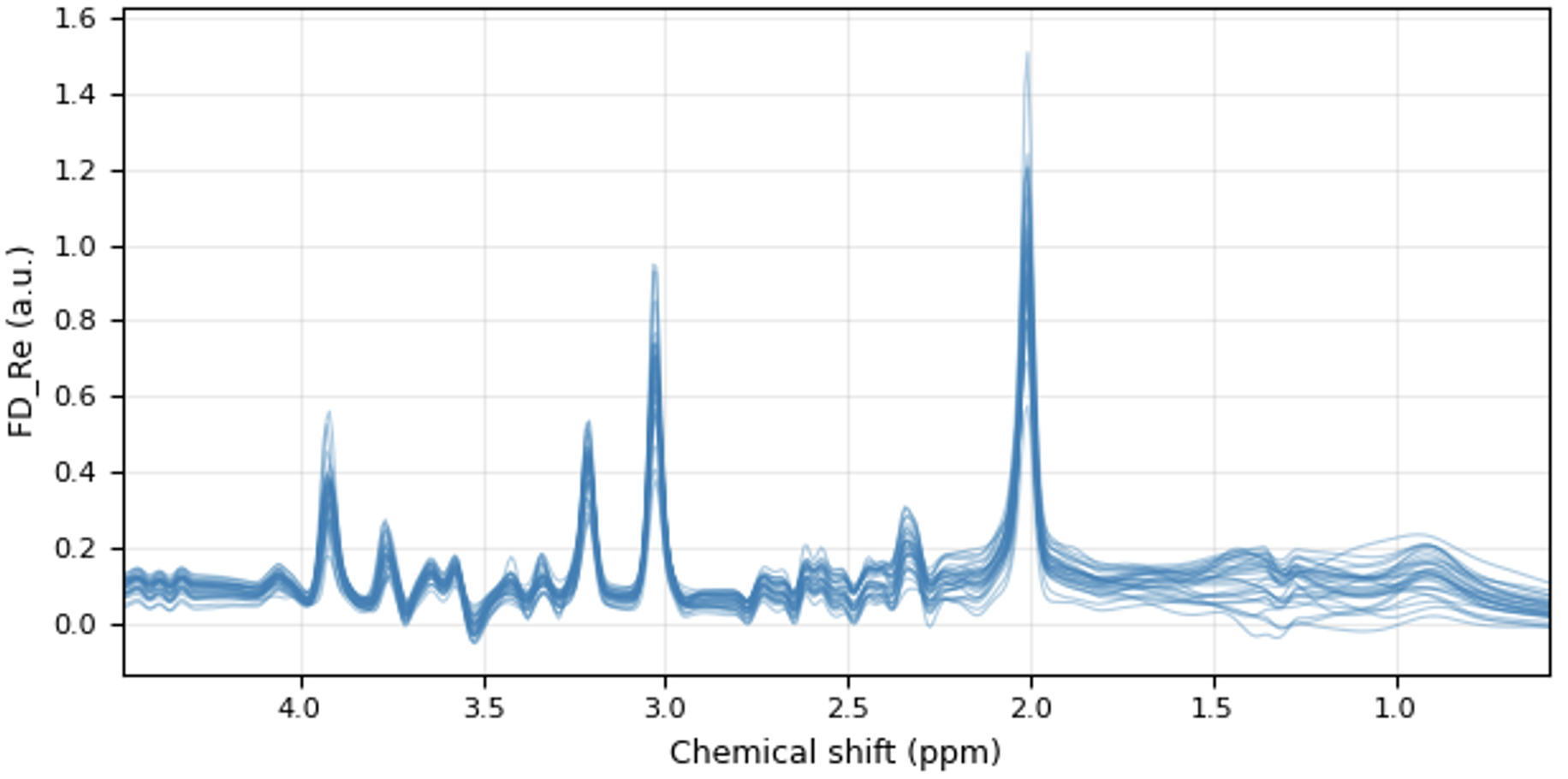

Example 1: learning a prior for MR Spectroscopy

Part I: Obtaining learned proximal operators

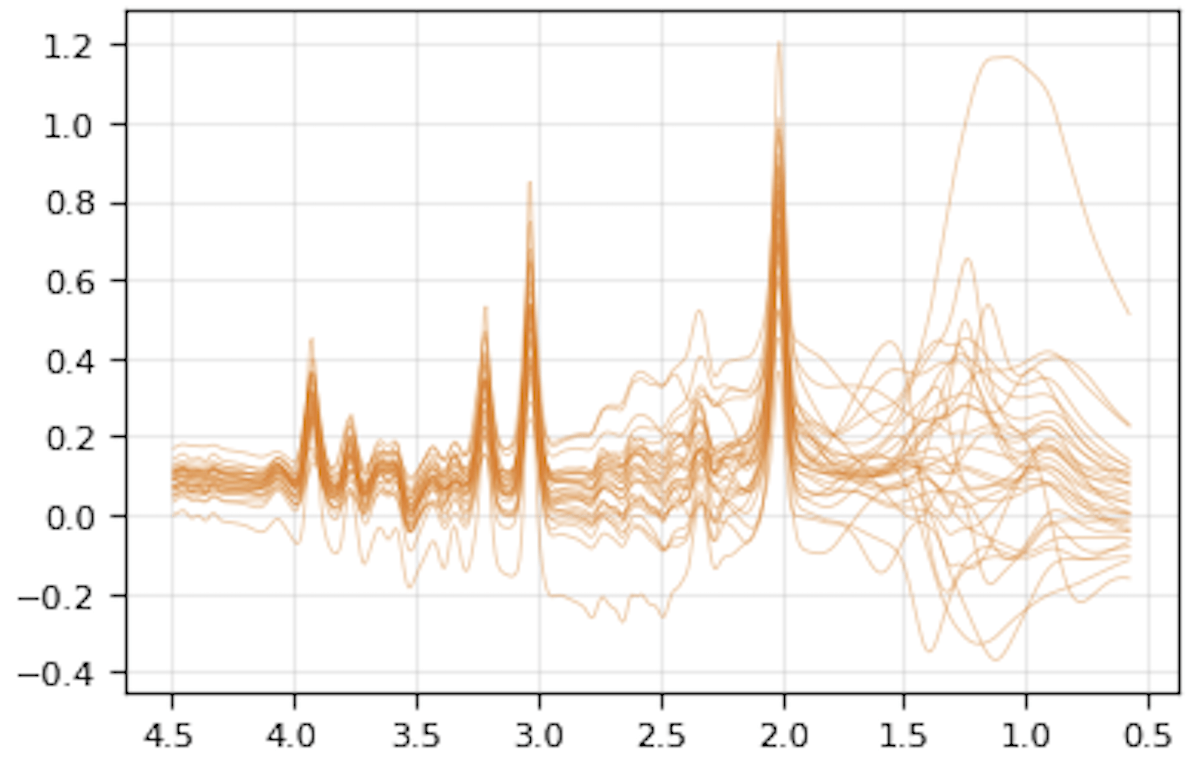

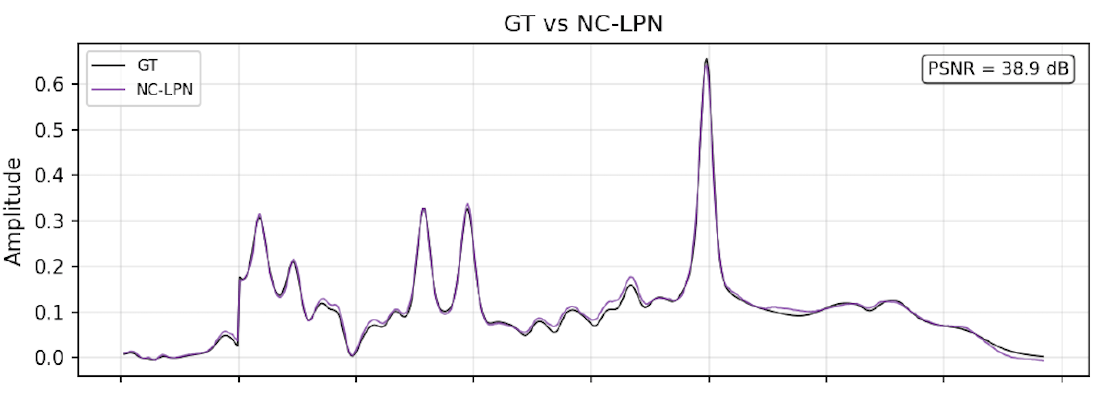

Example 1: learning a prior for MR Spectroscopy

baseline

Part I: Obtaining learned proximal operators

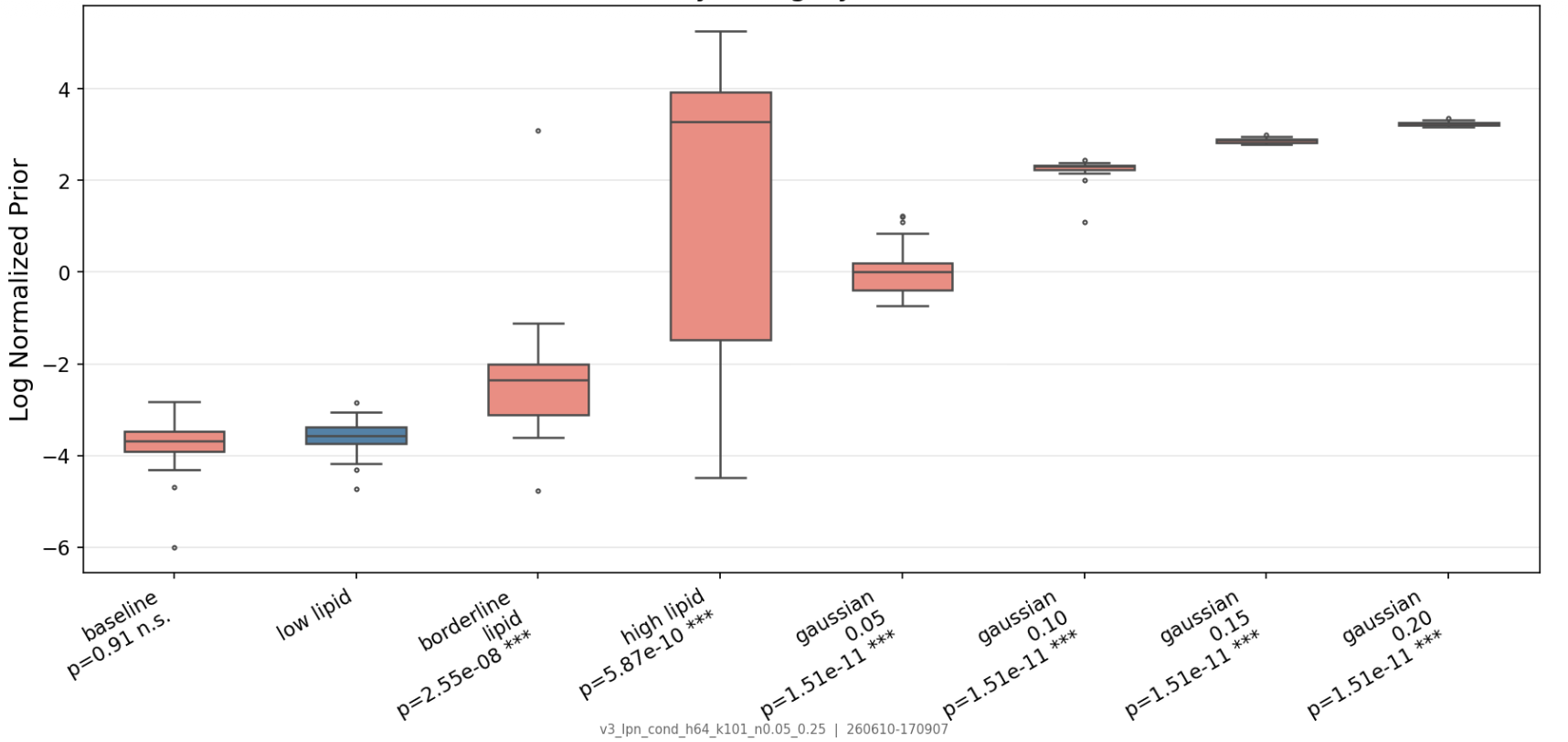

Example 1: learning a prior for MR Spectroscopy

baseline

Part I: Obtaining learned proximal operators

Example 1: learning a prior for MR Spectroscopy

baseline

Part I: Obtaining learned proximal operators

Part III: Sampling with learned proximals

Part II: Solving inverse problems

\hat x = \arg\min_x \frac 12 \| y - A x \|^2_2 + R(x)

[Romano, Y., Elad, M., & Milanfar, P. (2017).]

Part II: Solving inverse problems

Priors as critics

[Lunz, Öktem, Schönlieb, 2020]
and others ..

via MLE
```
[Ye Tan, ..., Schönlieb, 2024], ...
```

RED
```
[Romano et al, 2017] ...
```

Generative Models
```
[Bora et al, 2017] ...
```

Data driven regularizers

\hat x = \arg\min_x \frac 12 \| y - A x \|^2_2 + R(x)

Part II: Solving inverse problems

Unrolled Iteration (implicit priors)

\hat x = \arg\min_x \frac 12 \| y - A x \|^2_2 + R(x)

\( x^{k+1} = {\hat{f}} \left(x^k - \eta A^\top(A(x^k)-y)\right) \)

Plug and Play
```

```

```
Neumann Networks
```

[Venkatakrishnan et al., 2013;
Zhang et al., 2017b;
Meinhardt et al., 2017;
Zhang et al., 2021;
Kamilov et al., 2023b;
Terris et al., 2023;
Hurault, Leclaire & Papadakis, 2022;
Vert, Kenta, et al., 2026]

[Gilton, Ongie, Willett, 2019]

```
Many other variations ...
```

Part II: Solving inverse problems

Learned-Proximal Gradient Descent

\hat x = \arg\min_x \frac 12 \| y - A x \|^2_2 + R(x)

\( x^{k+1} = {\hat{f}}_\text{LPN} \left(x^k - \eta A^\top(A(x^k)-y)\right) \)

Learned proximal networks trained with Proximal Matching

Part II: Solving inverse problems

Learned-Proximal Gradient Descent

\( x^{k+1} = {\hat{f}}_\text{LPN} \left(x^k - \eta A^\top(A(x^k)-y)\right) \)

Part II: Solving inverse problems

Learned-Proximal Gradient Descent

\( x^{k+1} = {\hat{f}}_\text{LPN} \left(x^k - \eta A^\top(A(x^k)-y)\right) \)

Theorem (PGD with Learned Proximal Networks)

x^{k+1} = \hat{f}_{\hat R} \left(x^k - \eta A^\top(Ax^k - y)\right)

Let \(f_\theta = \text{prox}_{\hat{R}} \) be an LPN (smooth activations, invertible, bounded step-size)

\text{Then } \exists x^* : \lim_{k\to\infty} x^k = x^* \text{ and }

f_\theta(x^* - \eta A^\top(Ax^*-y)) = x^*

(Analogous results hold for ADMM)

Part I: Obtaining learned proximal operators

Part III: Sampling with learned proximals

Part II: Solving inverse problems

Part III: Sampling with learned proximals

Goal: Draw samples \(x\sim p_x\)

Part III: Sampling with learned proximals

\(t\)

[Song et al, 2019][Ho et al, 2020]

dx_t = - \left[ x_t + 2 \nabla \ln p_t(x_t)\right] dt + \sqrt{2} dw_t

Diffusion process:

Part III: Sampling with learned proximals

x_{\color{red}k-1} = x_{\color{blue}k} + \gamma_k\left[ \frac12 x_{\color{blue}k}+ \nabla \ln p_{t_{\color{blue}k}}(x_{\color{blue}k}) \right] + \sqrt{\gamma_k}z_k

Forward discretization:

(DDPM)

[Ho et al, 2020]

dx_t = - \left[ x_t + 2 \nabla \ln p_t(x_t)\right] dt + \sqrt{2} dw_t

Part III: Sampling with learned proximals

x_{\color{red}k-1} = x_{\color{blue}k} + \gamma_k\left[ \frac12 x_{\color{red}k-1}+ \nabla \ln p_{t_k}(x_{\color{red}k-1}) \right] + \sqrt{\gamma_k}z_k

Backward discretization:

Forward discretization:

(DDPM)

[Ho et al, 2020]

x_{\color{red}k-1} = x_{\color{blue}k} + \gamma_k\left[ \frac12 x_{\color{blue}k}+ \nabla \ln p_{t_{\color{blue}k}}(x_{\color{blue}k}) \right] + \sqrt{\gamma_k}z_k

dx_t = - \left[ x_t + 2 \nabla \ln p_t(x_t)\right] dt + \sqrt{2} dw_t

Part III: Sampling with learned proximals

Backward discretization:

(ProxDM)

x_{\color{red}k-1} = x_{\color{blue}k} + \gamma_k\left[ \frac12 x_{\color{blue}k}+ \nabla \ln p_{t_{\color{blue}k}}(x_{\color{blue}k}) \right] + \sqrt{\gamma_k}z_k

Forward discretization:

(DDPM)

dx_t = - \left[ x_t + 2 \nabla \ln p_t(x_t)\right] dt + \sqrt{2} dw_t

[Ho et al, 2020]

x_{k-1} = \text{prox}_{-\alpha_k \ln p_{t_{k-1}}}\left[ \frac{2}{2-\gamma_k}\left( x_k + \sqrt{\gamma_k} z_k \right) \right]

Bounded moments: \(\mathbb E \|X\|^2 \lesssim d\), \(\mathbb E \|\nabla \ln p_t (X)\|^2 \lesssim dL^2\)
Smoothness: \(\ln p_t\) has \(L\)-Lipschitz gradient and \(H\)-Lipschitz Hessian
Step-size: \( \gamma \lesssim 1/L \)
Regularity conditions: technical but common

Theorem [Fang, Díaz, Buchanan, S.]
(informal)

ProxDM requires \(N\gtrsim {d/\sqrt{\epsilon}}\)

To achieve \(\text{KL}(\text{target}||\text{sample})\leq \epsilon\)

DDPM requires \(N\) is \(\mathcal O( d/\epsilon)\) (vanilla) or \(\mathcal O(d^{3/4}/\sqrt{\epsilon})\) if accelerated

[Chen et al, 2022][Wu et al, 2024]

Part III: Sampling with learned proximals

Sampling acceleration
Probability Flows and ODEs (e.g. DDIM) [Song et al 2020, Chen et al, 2023, ...]
DPM-solver [Lu et al 2022]
Higher-order solvers [Wu et al, 2024, ... ]
Accelerations of different kinds [Song et al, 2023, Chen et al, 2025, ... ]

Benefits of backward discretization of ODEs/SDEs

Optimization [Rockafellar, 1976], [Beck and Teboulle, 2015] ...
Langevin Dynamics: PLA [Bernton 2018, Pereyra 2016, Wibisono 2019, Durmus et al 2018]
Forward-backward in space of measures [Chen et al 2018, Wibisono, 2025, Chen et al 2026]

Part III: Sampling with learned proximals

Part III: Sampling with learned proximals

Part III: Sampling with learned proximals

Diffusion in latent spaces

[Rombach et al, 2022]

Part III: Sampling with learned proximals

\(x \sim p_{x_0|\text{signal}}\)

e.g. \(\text{signal}=\)

"A woman with long blonde hair and a black top stands against a neutral background. She wears a delicate necklace. The image is a portrait-style photograph with soft lighting."

dX_t = - \left[ X_t + 2 \nabla \ln p_t(X_t\mid {\color{brown}\text{signal}})\right] dt + \sqrt{2} dW_t

Diffusion process:

X_{k-1} = \text{prox}_{-\alpha_k \ln p_{k-1}(\cdot\mid{\color{brown}\text{signal})}}\left[ \frac{2}{2-\gamma_k}\left( X_k + \sqrt{\gamma_k} Z_k \right) \right]

Conditional ProxDM (ProxT2I)

Part III: Sampling with learned proximals

(10 steps)

e.g. \(\text{signal}=\)

"A woman with long blonde hair and a black top stands against a neutral background. She wears a delicate necklace. The image is a portrait-style photograph with soft lighting."

\(x \sim p_{x_0|\text{signal}}\)

Part III: Sampling with learned proximals

Part I: Obtaining learned proximal operators

Part III: Sampling with learned proximals

Part II: Solving inverse problems

Wrapping up

Sampling

Outlier Detection

Inverse Problems

Proximal Operators

Wrapping up

Constrained Optimization

Proximal Operators

Learned

Inverse Problems

Outlier Detection

"A man with curly hair and a beard, wearing a dark jacket, stands indoors..."

Sampling

Flexible parametrizations for proximal operators
Approximations for log-densities
Many open problems (constraint sampling, UQ, ...)

Zhenghan Fang

Sam Buchanan

Mateo Díaz

Yuqing He

Fang et al, Learned Proximal Networks for Inverse Problems, ICLR 2024.

Fang et al, Beyond Scores: Proximal Diffusion Models, Neurips 2025.

Fang et al, ProxT2I: Efficient Reward-Guided Text-to-Image Generation via Proximal Diffusion, arXiv 2025.

Team

Appendix

Mathematical tractability vs Complexity

in a box

simpler models

more assumptions

any model

no assumptions

Denoiser

Linear models

Linear networks

Shallow

ReLU Networks

Just ask GPT

Learned Proximal Operators

Q2: How do we implement proximal diffusion models?

How do we train so that \(f_\theta \approx \text{prox}_{-\ln p}\) ?

\( \text{prox}_{-\ln p}(Y) = \underset{X}{\arg\min} \frac12 \|X-Y\|^2_2 - \ln p(X) \)

\text{Let } Y = X+Z , \quad ~ X\sim p_0, ~~Z \sim \mathcal N(0,\sigma^2I)

\( = {\arg\max}~ p(X|Y) ~~~~ \text{(MAP)}\)

f_\theta = \arg\min_{f_\theta} \mathbb E \left[ {{\color{red}\ell} (f_\theta(Y),X)} \right]

\bullet ~~ {\ell (f_\theta(Y),X)} = \|f_\theta(Y) - X\|^2_2 ~~\implies~~ \mathbb E[X|Y] \text{ (MMSE)}

\bullet ~~ {\ell (f_\theta(Y),X)} = \|f_\theta(Y) - X\|_1 ~~\implies~~ \texttt{median}(p_{X|Y})

examples

Denoiser:

\text{Sample } Y= X+Z,~ \text{ with } X \sim \text{Laplace}(0,1) \text{ and } Z\sim \mathcal N(0,\sigma^2)

Example: recovering a prior

Q2: How do we implement proximal diffusion models?

Example 2: a prior for CT

Aside 2: What (data-driven) functions are proxs?

Example 2: a prior for CT

Aside 2: What (data-driven) functions are proxs?

Example 2: a prior for CT

Aside 2: What (data-driven) functions are proxs?

Example 2: a prior for CT

Aside 2: What (data-driven) functions are proxs?

Example 2: a prior for CT

Aside 2: What (data-driven) functions are proxs?

Learned Proximal Networks

\(R(\tilde{x})\)

Example 2: priors for images

ProxDM Synthetic

ProxDM Synthetic 2

Related Works
