K8s - let's deploy an application

Lunch & Learn

by Kamil Galuszka

Kubernetes Architecture

Master

  • It's exposing all k8s APIs
  • All kubectl commands go through node
  • It's scheduling and creating different k8s objects on Nodes

Nodes

  • It's a place where k8s objects are scheduled & created
  • They expose available CPU & memory
  • They can be grouped in pools of nodes based on specific characteristics (like high memory nodes, CPU, etc.)

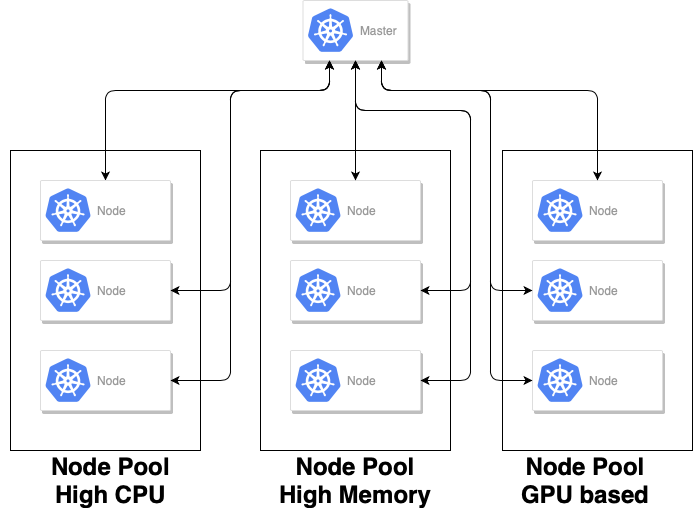

Master - Node relationships

Kubernetes Objects

  • Declarative API (yay!)
  • They described in YAML / JSON
  • You can easily edit them in place ( `kubectl edit` is Your friend )
  • Some of the objects are immutable so make sure You check that before editing

Namespace

  • Every k8s object has to live on given namespace
  • You can use namespaces to logically divide different environments

Pods

  • Spin up a container (or multiple containers)
  • Governs IP/networking
  • Ephermal
  • Normally You don't deploy them directly
  • In other word, Pod is a single instance of an application

Some of the properties in Pods

nodeSelectors:
   type: 'cpu-intensive'
---

resources:
  requests:
    memory: "64Mi"
    cpu: "250m"
  limits:
    memory: "128Mi"
    cpu: "500m"
---

envFrom:
-
  configMapRef:
    name: worker-configmap

---
image: worker-nodejs:latest
imagePullPolicy: Never

ReplicaSet and Deployment

  • A ReplicaSet ensures that a specified number of pod replicas are running at any given time
  • A Deployment controller provides declarative updates for Pods and ReplicaSets.​
  • ReplicaSets are managing scaling of pods.
  • Pods are born & killed by ReplicaSets. They are never resurrected
kind: Deployment
apiVersion: apps/v1beta1
metadata:
  name: orchestrator
  labels:
    name: orchestrator-ruby
    role: orchestrator
spec:
  replicas: 2
  selector:
    matchLabels:
      name: orchestrator-ruby
      role: orchestrator
  strategy:
    rollingUpdate:
      maxUnavailable: 10%
      maxSurge: 10%
    type: RollingUpdate
  template:
    metadata:
      name: orchestrator-ruby
      labels:
        name: orchestrator-ruby
        role: orchestrator
    spec:
      containers:
      -
        name: orchestrator-ruby
        resources:
          requests:
            cpu: 40m
            memory: 50Mi
        image: orchestrator-ruby:latest
        imagePullPolicy: Never
        readinessProbe:
          httpGet:
            path: /healthcheck
            port: 80
          initialDelaySeconds: 15
          failureThreshold: 2
        livenessProbe:
          httpGet:
            path: /healthcheck
            port: 80
          failureThreshold: 2
          initialDelaySeconds: 15
        envFrom:
        -
          configMapRef:
            name: orchestrator-configmap
        ports:
        -
          name: a-http
          containerPort: 80

Service

  • Service are grouping pods
  • Grouping of pods is done by label selector
  • Service is routing requests/connections to specific pods
kind: Service
apiVersion: v1
metadata:
  name: orchestrator-ruby
  labels:
    name: orchestrator-ruby
    role: orchestrator
spec:
  ports:
  -
    name: http
    port: 80
    targetPort: a-http
    protocol: TCP
  selector:
    name: orchestrator-ruby
    role: orchestrator

ConfigMaps and Secrets

  • Any non-sensitive ENV variables you can store them in ConfigMap
  • All sensitive ENV variables should be store in secrets (encoded Base64)
apiVersion: v1
kind: ConfigMap
metadata:
  name: api-configmap
  namespace: staging
data:
  REDIS_URL: redis://redis-staging-master/

Jobs

  • There are 2 types of this type of objects:
    • Job (scheduled once)
    • CronJob (scheduled based on cron)
  • Job controller spin up and control the Pod to successfully complete

Helm

Package manager for k8s

  • Helm uses charts to deploy into cluster
  • A lot of different charts are available as open source for ex.
    1. Redis
    2. PostgreSQL
    3. Elasticsearch etc.
  • Most of them shouldn't be in production

Kubectl

sneak peak of this tool.

# kubectl apply -f file.yaml
# kubectl describe pod name_of_the_pod
# kubectl get pods -n <namespace>
# kubectl edit deployment <name> -n namespace
# kubectl delete pod <name> -n namespace
# kubectl logs pod <name> -n namespace


# -n is Your friend. But if You don't want
#  to specify namespace with every command use `kubens`

Let's build an app

That is ...

...build from 3 microservices

  • Ruby Orchestrator
  • Python API
  • NodeJS Worker

...it's deployed to

  • dev
  • staging

...it's using

  • redis as a storage

APIs

Ruby (Sinatra)

GET /healthcheck
GET /am-i-famous?name=<person_name>
GET /result/<job_id>
DELETE /result/<job_id>


Python (Flask)

GET /healthcheck
POST /job/
GET /result/<job_id>
DELETE /result/<job_id>

Used tools

  • Sinatra (Orchestrator)
  • Flask (API)
  • Commander (Worker)

Github Link:

How to run it?

$ make minikube-start
$ docker-compose build
$ make helm-init
$ make create-dev
$ make create-staging

// To cleanup/shutdown whole thing
$ make delete-dev
$ make delete-staging
$ make minikube-stop

Edit /etc/hosts

127.0.0.1	localhost
255.255.255.255	broadcasthost
::1             localhost

# For this tutorial probably
# linux has to change it to 127.0.0.1
192.168.99.100  k8s-dreams-dev
192.168.99.100  k8s-dreams-staging

Any Questions?

Thanks!
