DATA



SANDRA BECKER  |  MADRID  |   01/2020



VIZ

VIZ

INTRO



01





01



WHY DO WE NEED

DATAVIZ



B. SCHNEIDERMAN



01



THE PURPOSE OF DATA VISUALIZATION ARE INSIGHTS NOT PICTURES



H. ROSLING



01



LET MY DATASET CHANGE YOUR MINDSET



H. THOREAU



01



IT'S NOT WHAT YOU LOOK AT THAT MATTERS, IT'S WHAT YOU SEE



E. TUFTE



01



ABOVE ALL ELSE SHOW THE DATA



01



WHAT IS

DATAVIZ



01





01



OPPORTUNITIES

A WORLD OF



01





01





01





01





01



DATAVIZ

TODAY



01



BIG



VIZ



01



REALTIME



VIZ



01



DYNAMIC



VIZ



01



SMART



VIZ



01



ALGO



VIZ



01



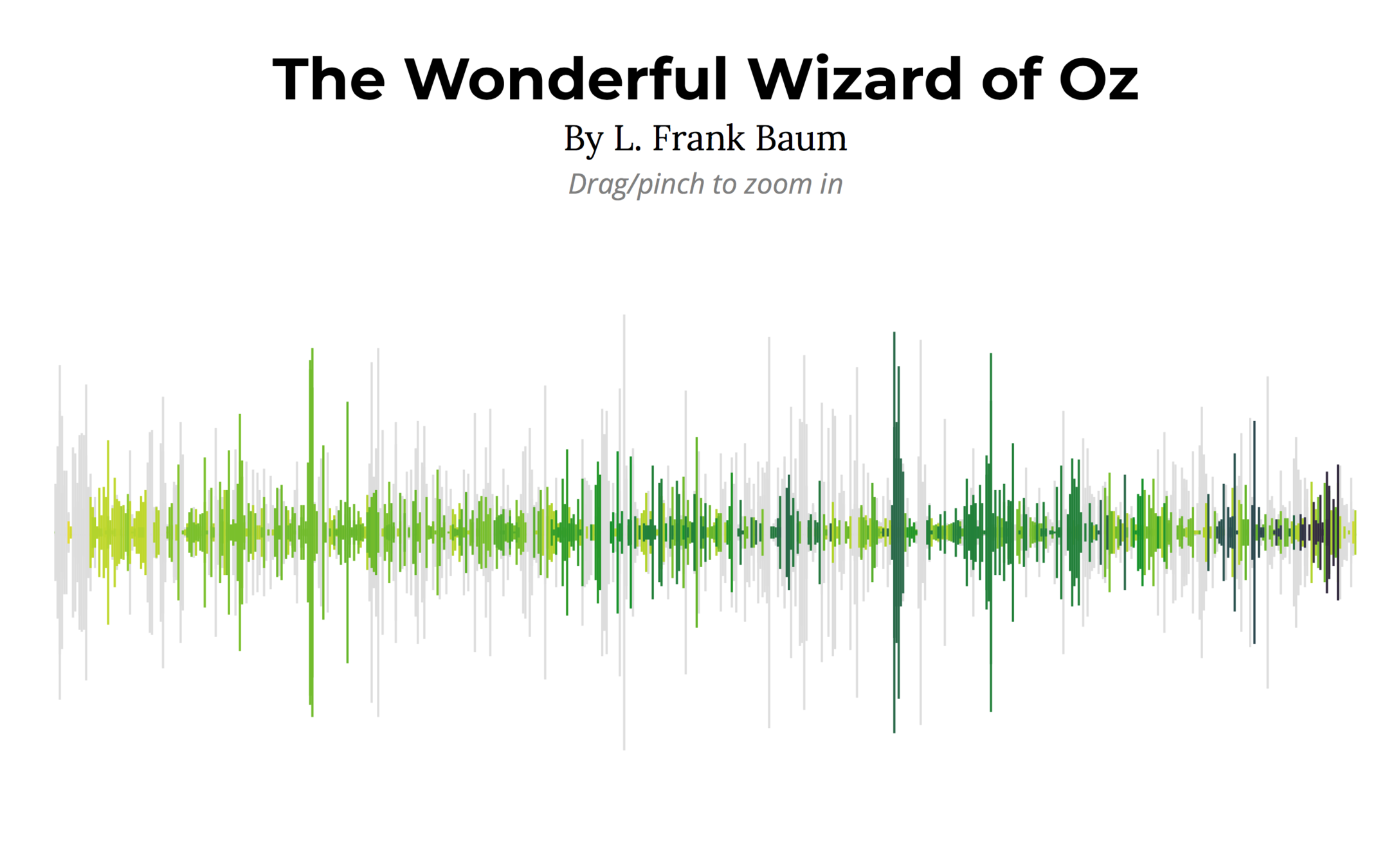

ART



VIZ



01



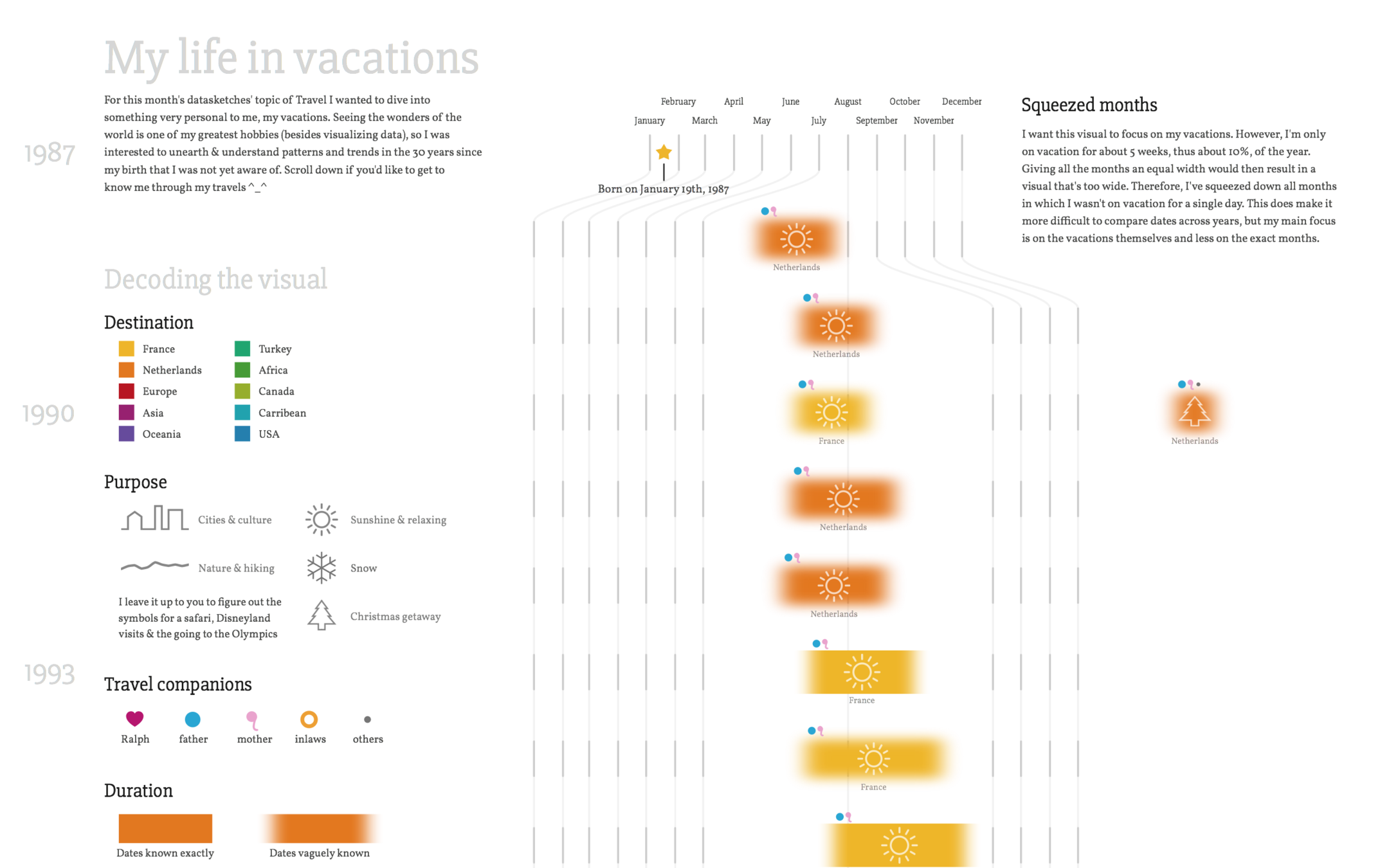

STORY



VIZ



01



YOU ARE GOING TO

LEARN

CREATION

INTERPRETATION

EVALUATION



01



VIZ

DATA

EXPLORE

R



02





PART 01





02



WHAT IS

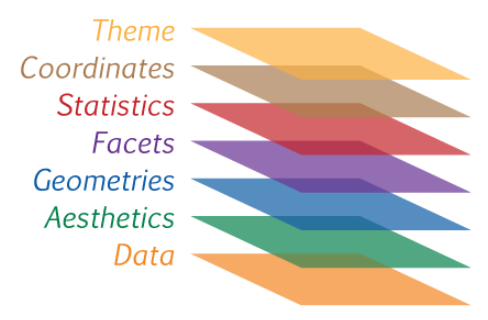

GGPLOT2

H. WICKMAN



02



A GRAMMAR OF GRAPHICS IS A TOOL THAT ENABLES US TO CONCISELY DESCRIBE THE COMPONENTS OF A GRAPHIC



02





02



HOW TO LEARN

GGPLOT2



TRY  OUT



02





SEARCH



E. TUFTE



02



EXCELLENCE IN STATISTIC GRAPHS CONSISTS OF COMPLEX IDEAS COMMUNICATED WITH CLARITY, PRECISION AND EFFICIENCY



02



LIBRARY

INSTALLATIONS



02



THEME

SELECTION



02



DEFAULT

PERSONALISED



02





02



EXPLORATIVE

ANALYSIS



02

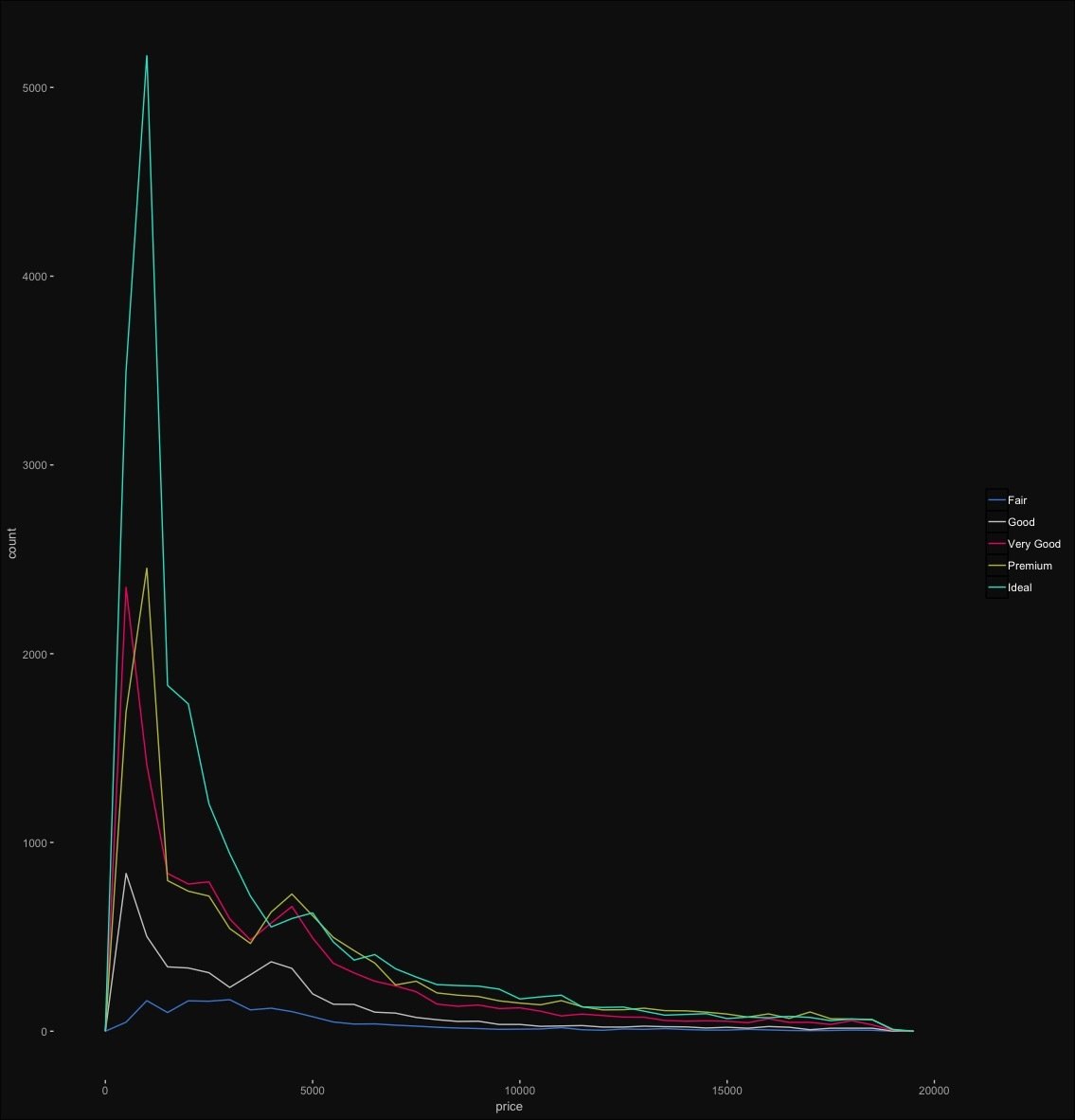

FREQUENCY

PLOT



02



SHOWING DETAILS

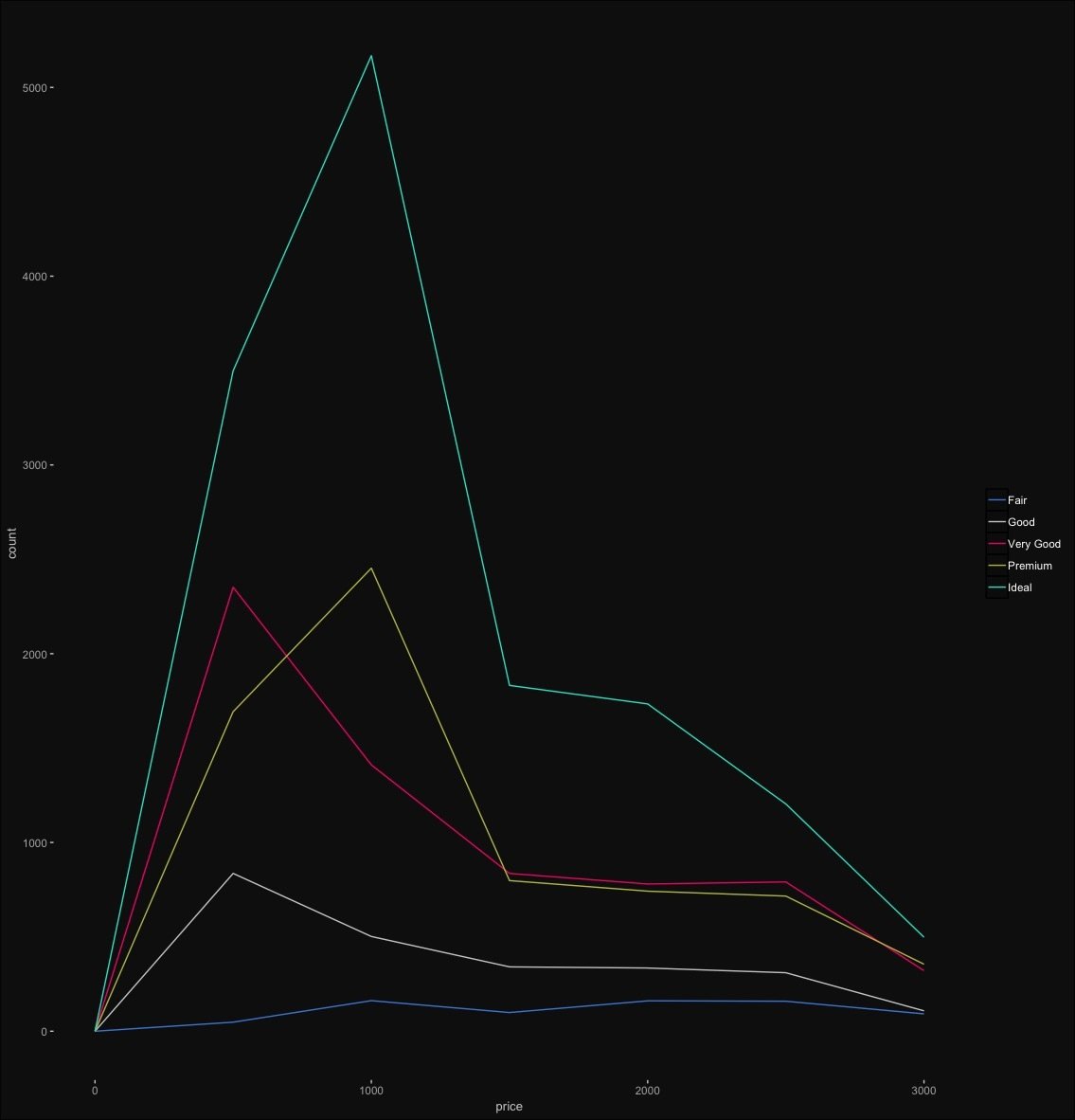

ADDING A VISUAL ENCODING



02





02



ZOOMING



02

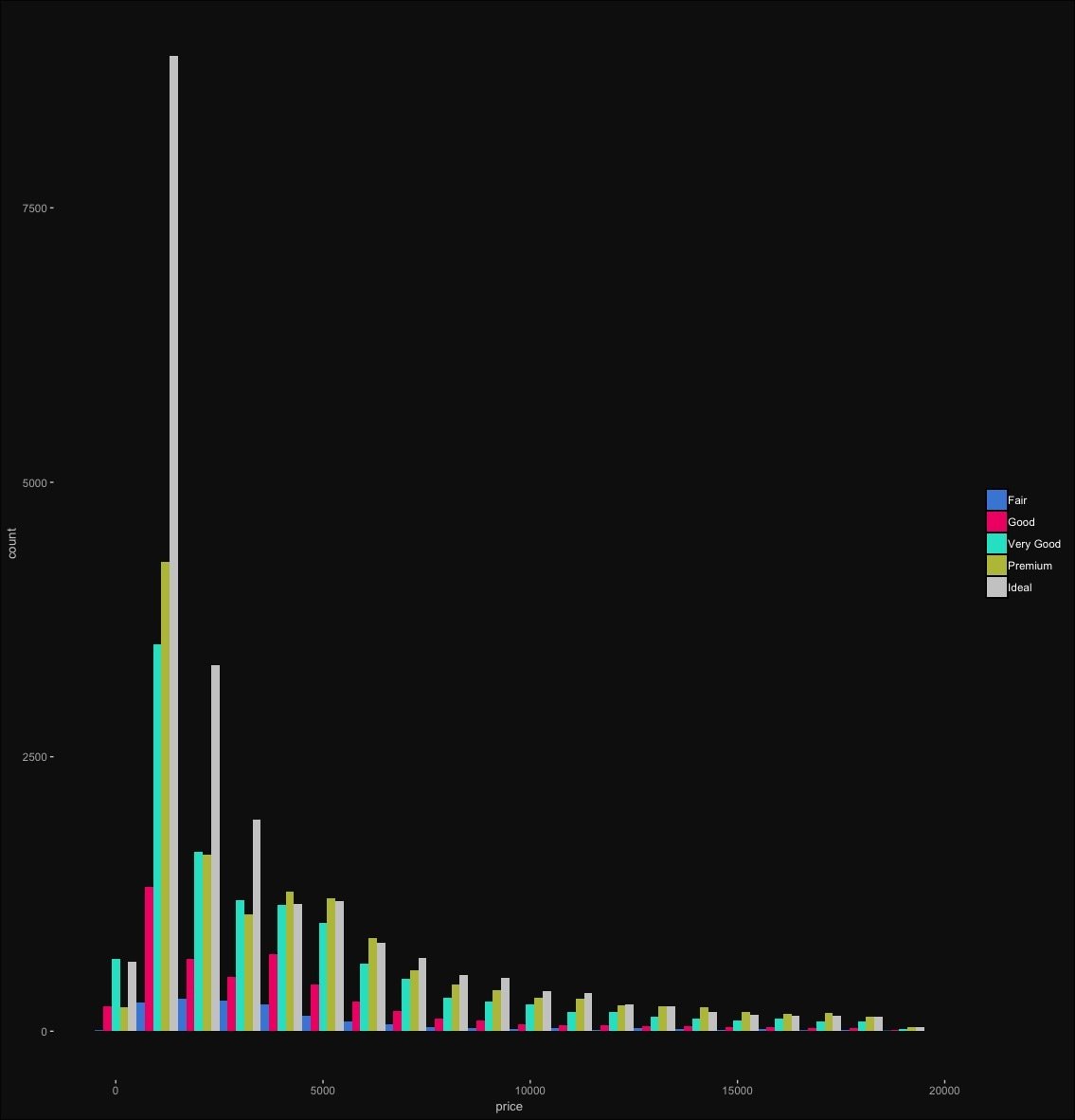

HISTOGRAM

PLOT



02



USING BARS INSTEAD OF LINES



02





02



ADDING A VISUAL ENCODING: COLOR

CONCEPT OF GRAMMAR OF GRAPHICS - OVERLAPPING



02





02

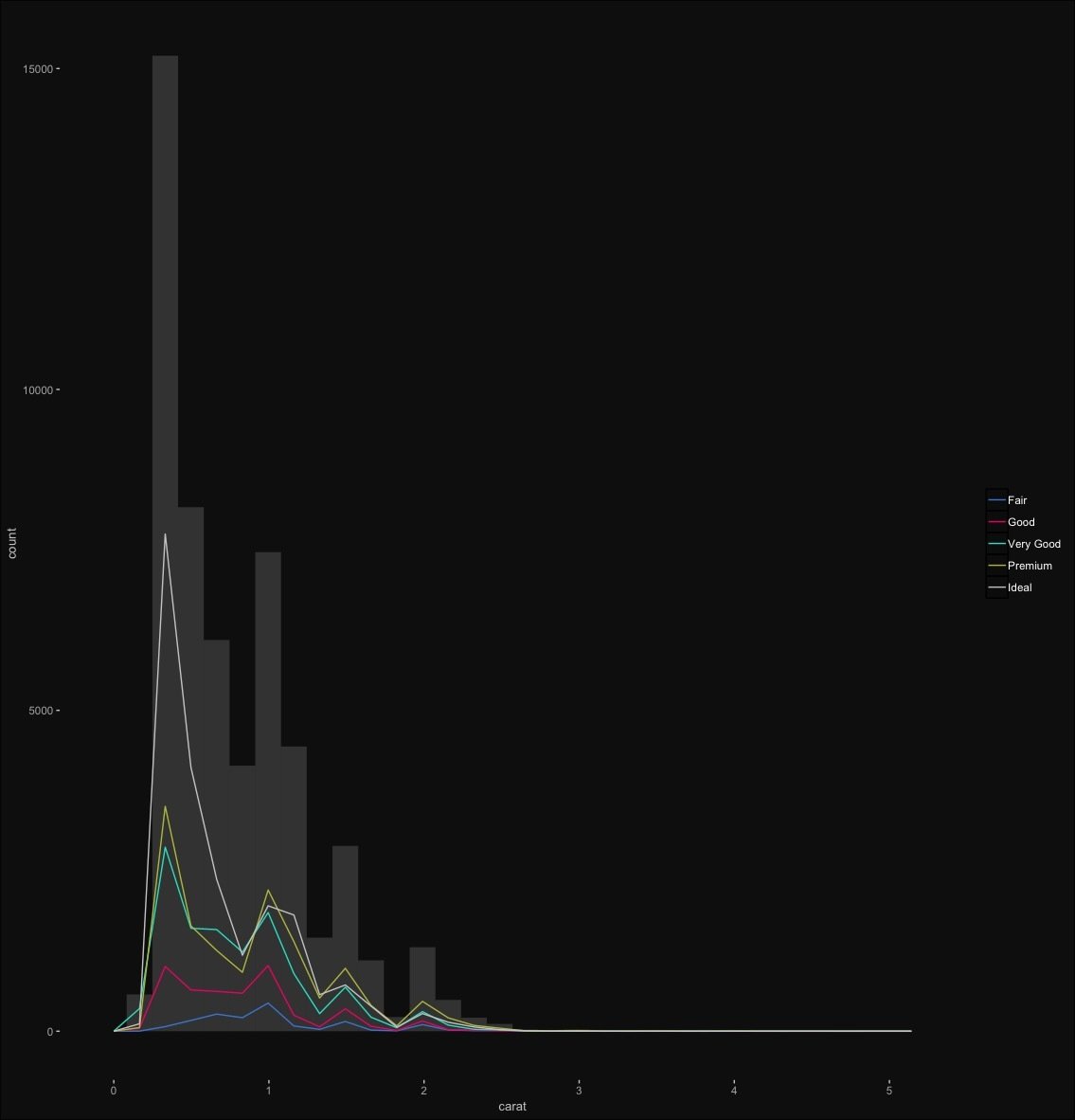

SMALL MULTIPLE - HISTOGRAM



02



USING COLOR CODE



02

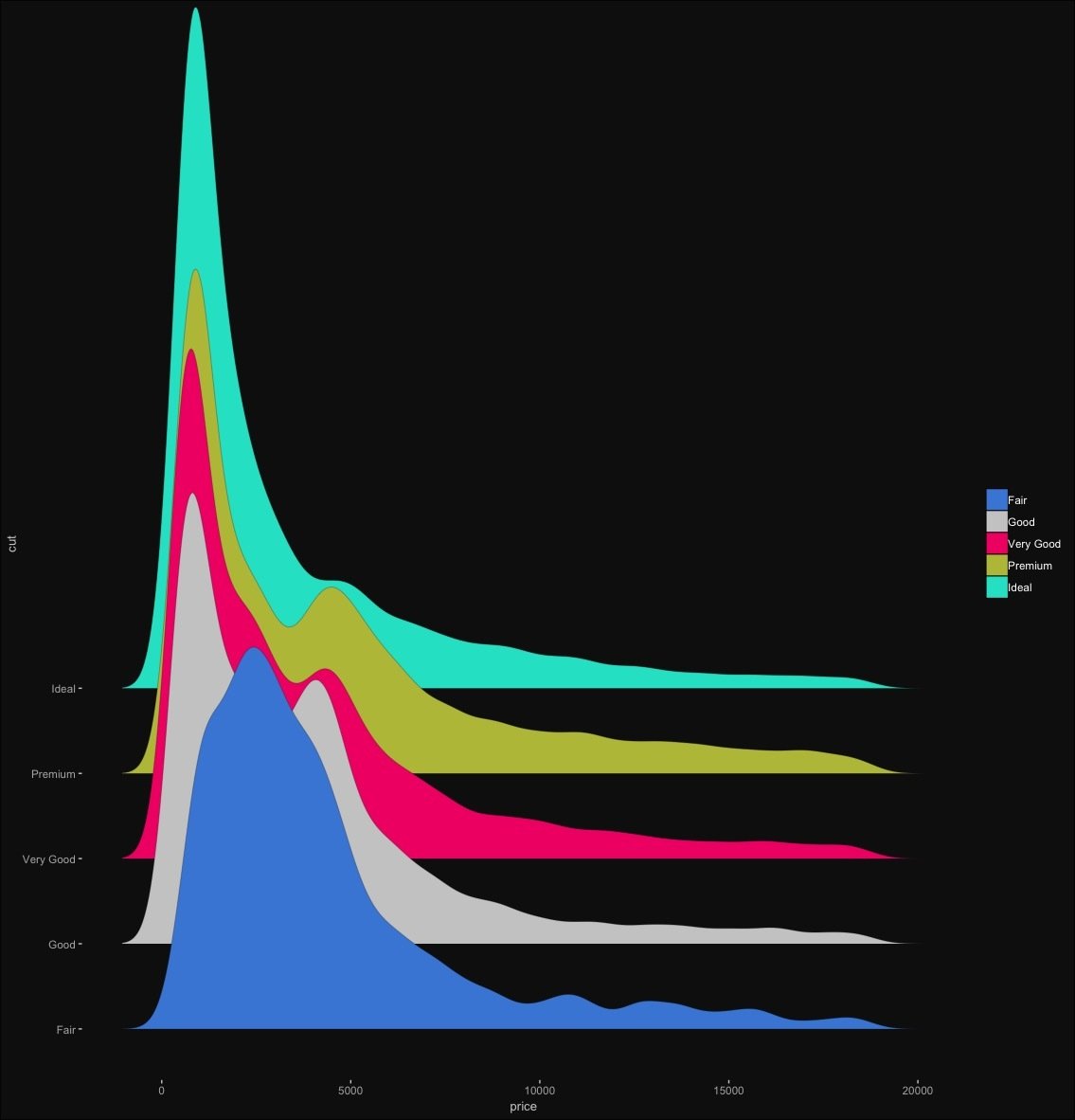

PLOT

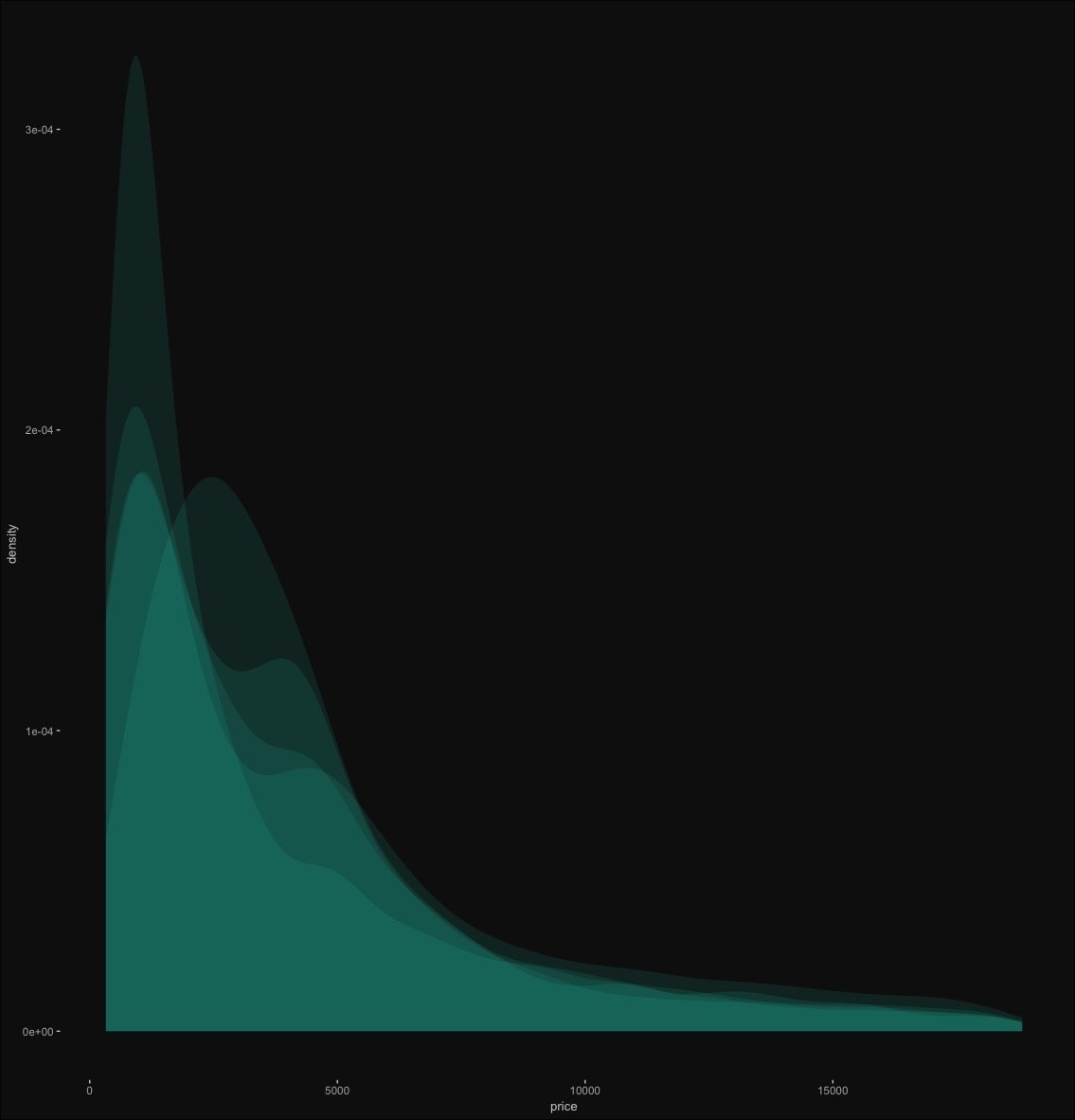

DENSITY



02

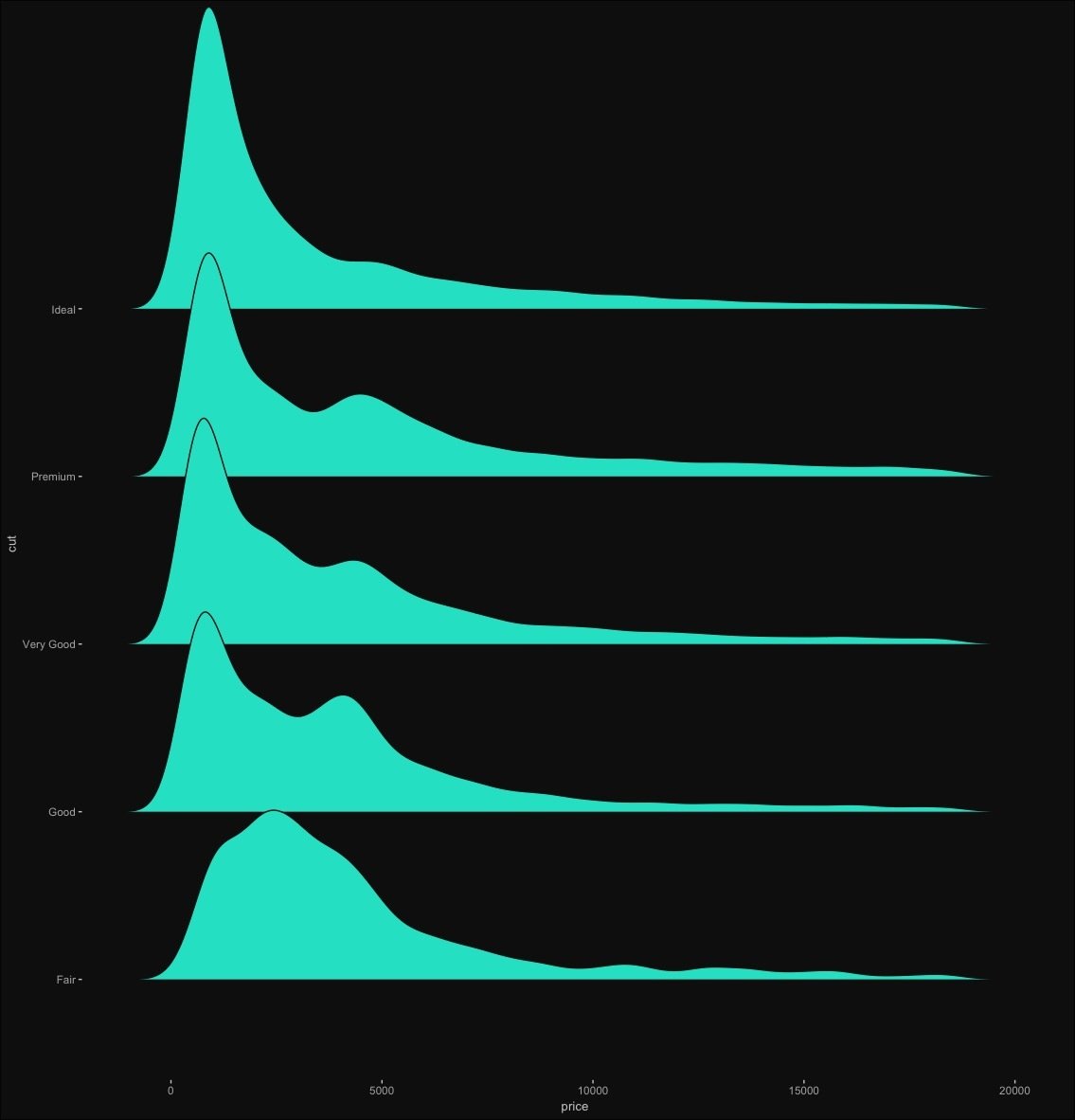

KERNEL DENSITY ESTIMATE



02



ADDING A VISUAL ENCODING: COLOR



02



USING TRANSPARENCY



02

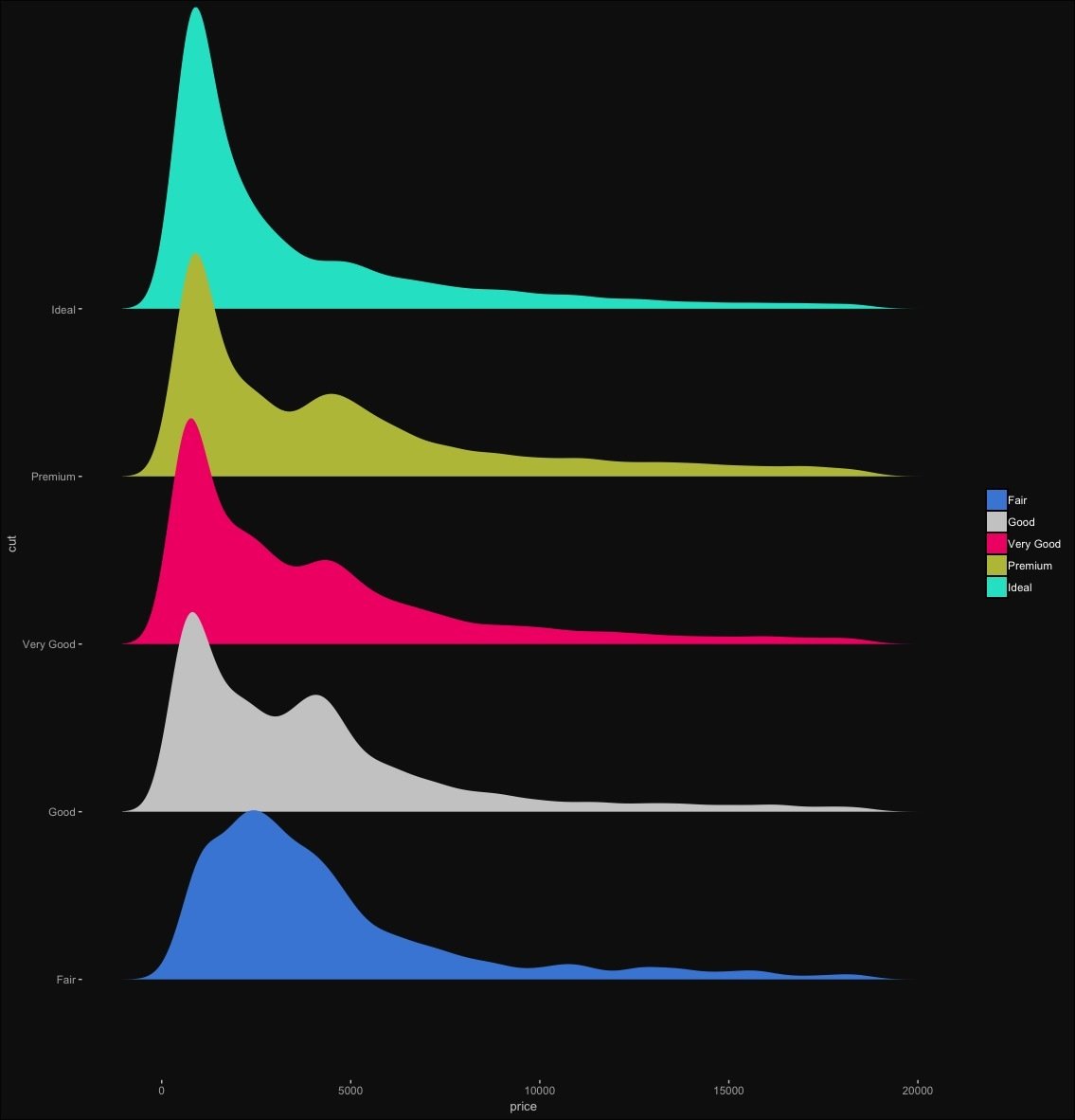

SMALL MULTIPLE TO COMPARE FULL DISTRUBTIONS



02



USING COLOR CODE



02



CHANGING OVERLAP FACTOR



02

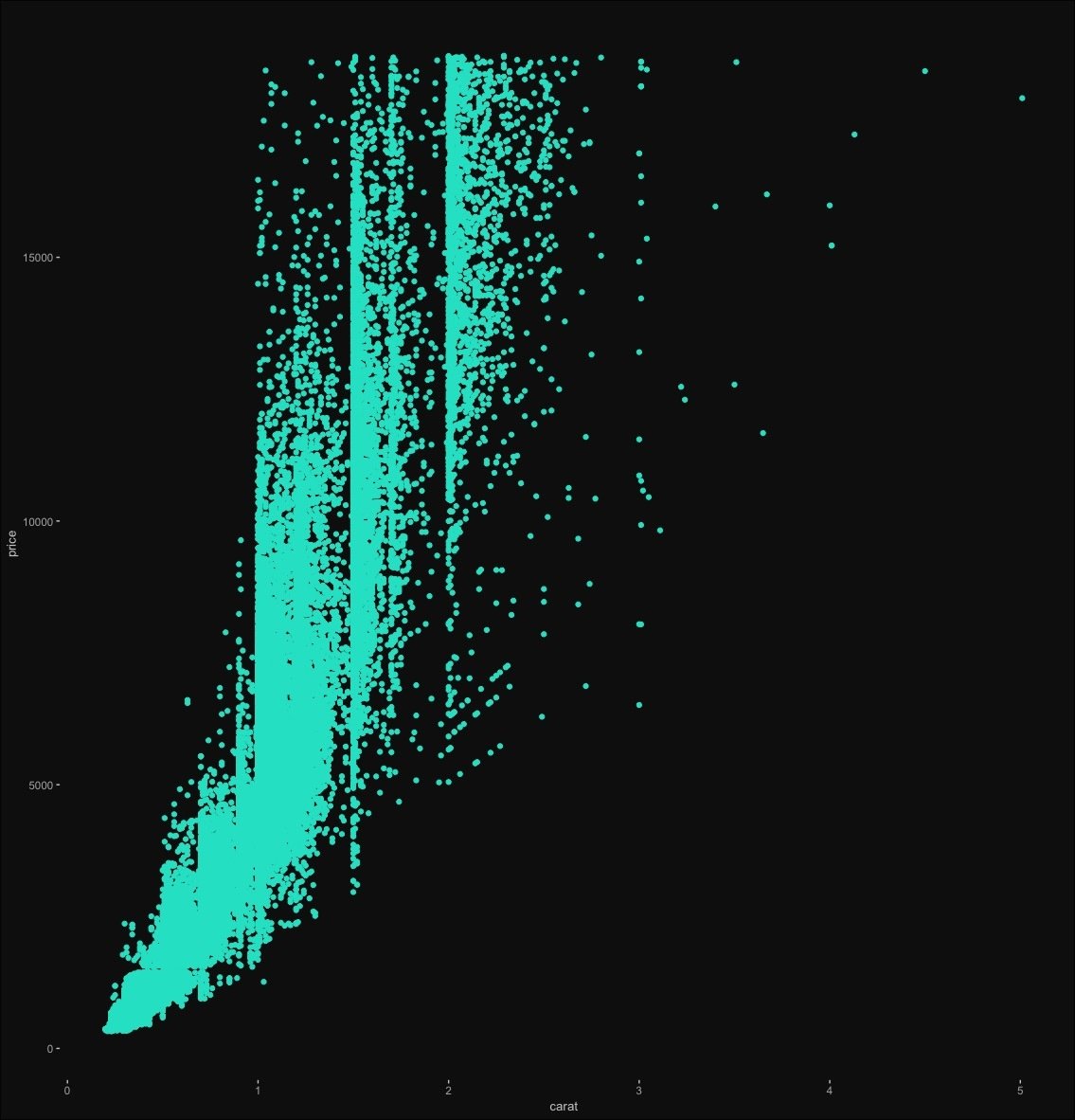

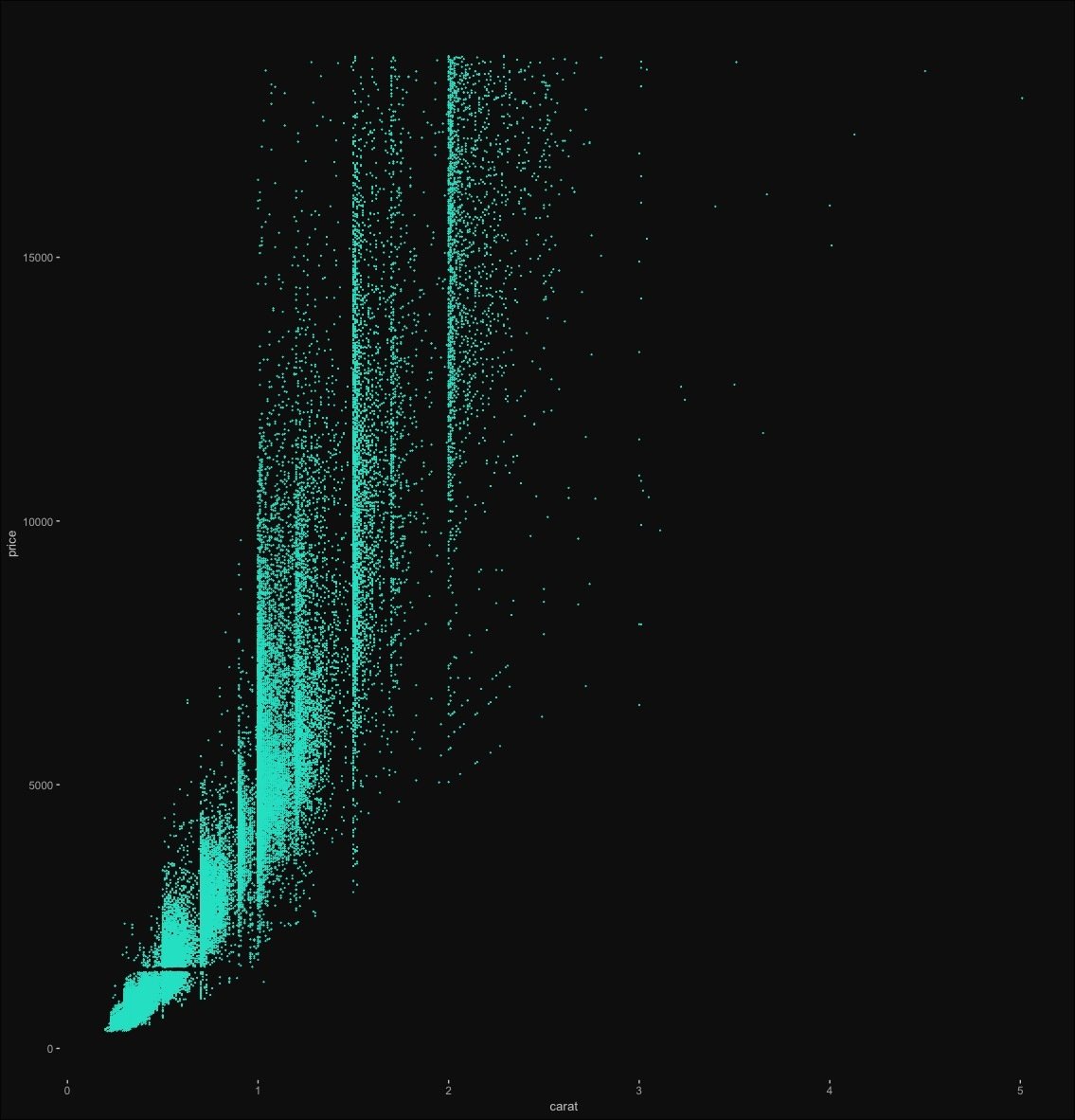

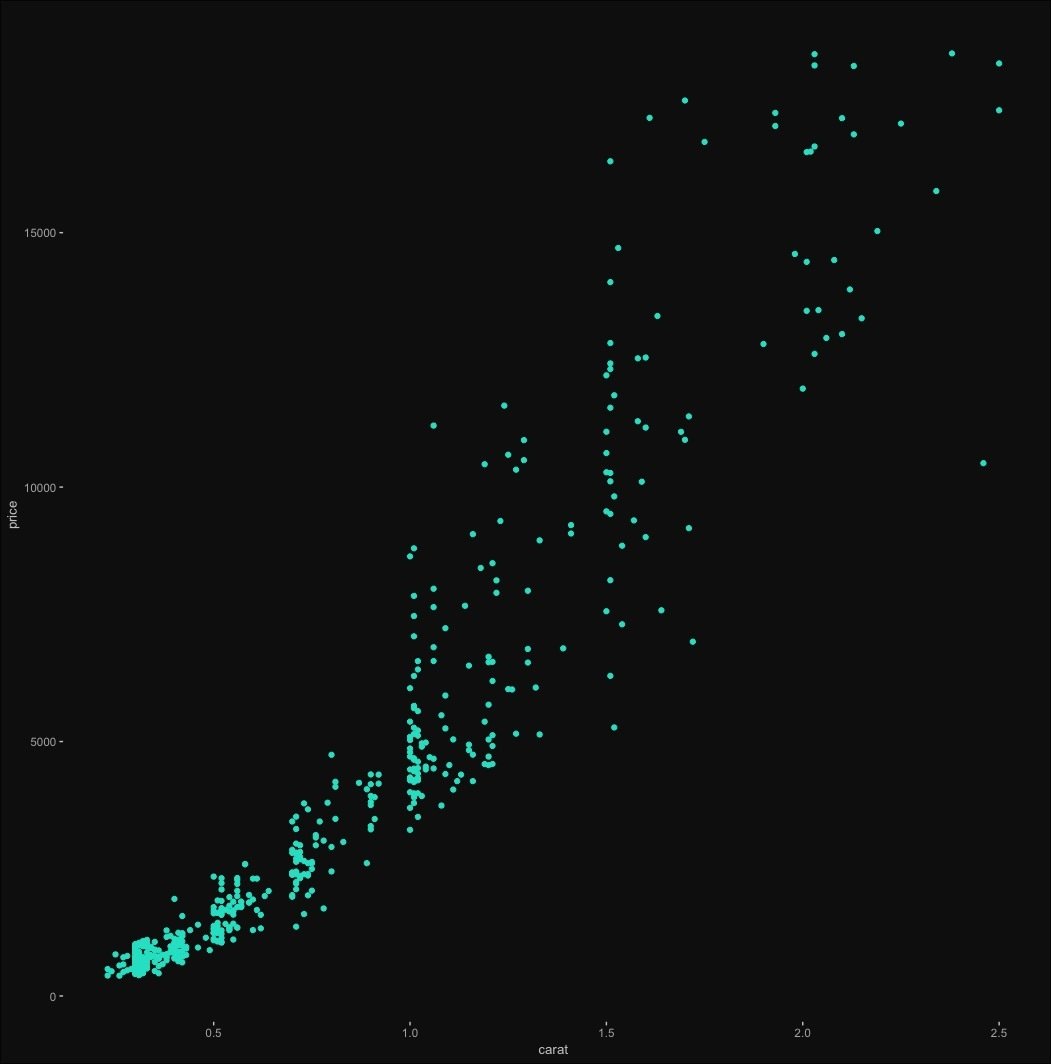

SCATTER

PLOT



02



DEFAULT



02



REDUCE SIZE



02

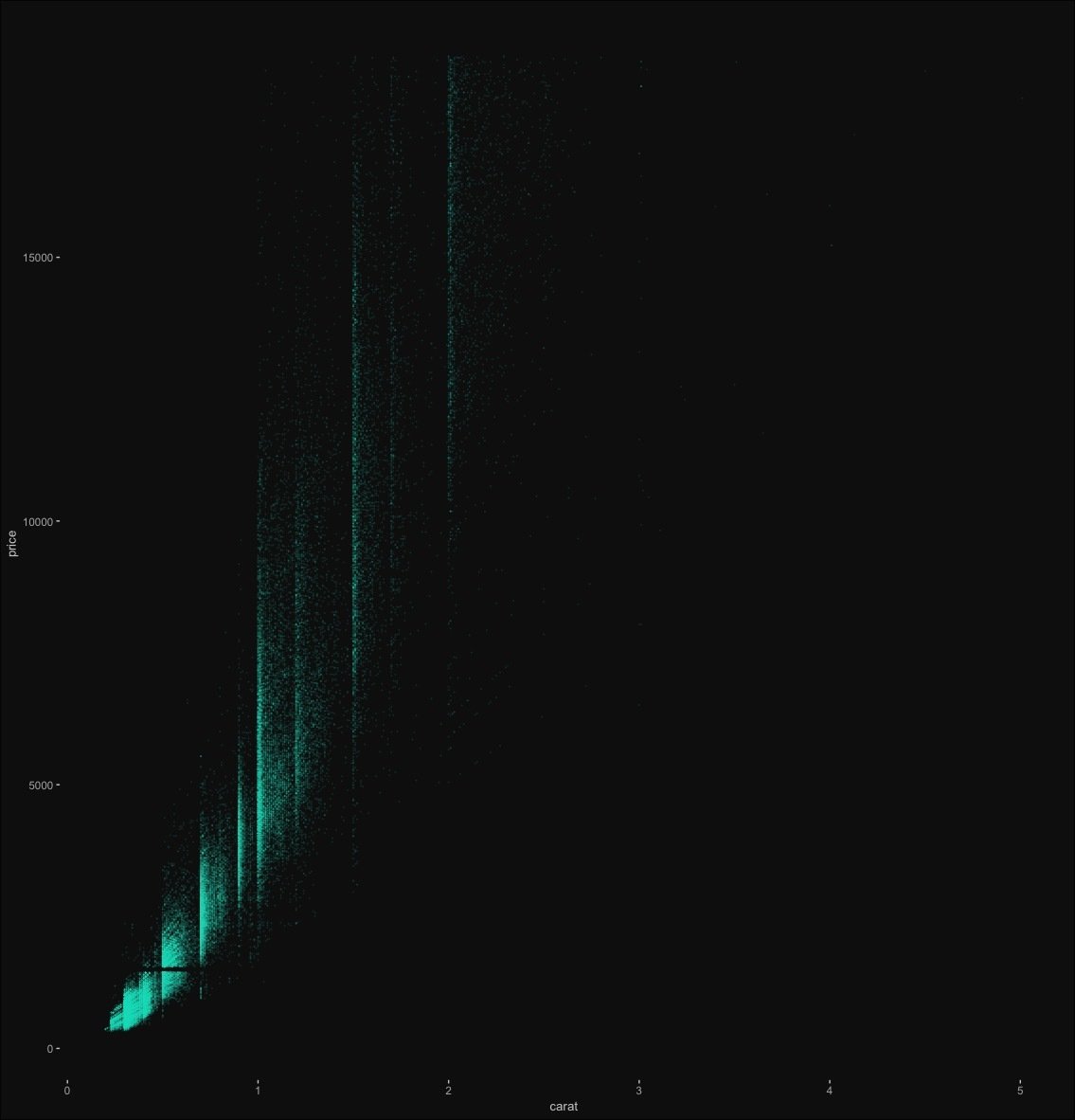

ADD TRANSPARENCY



02



SHOWING QUANTILE



02



SUB-SAMPLE



02

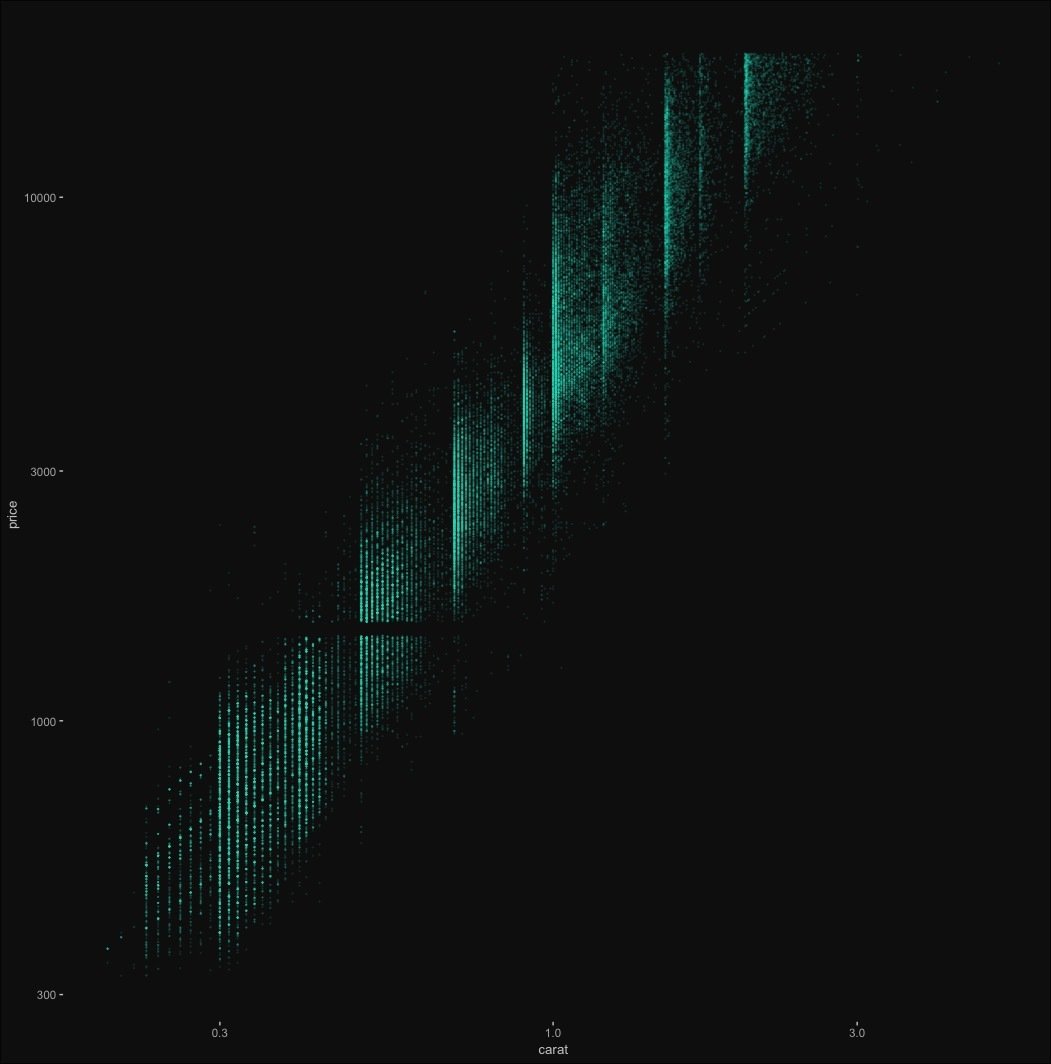

LOG - SCALING



02

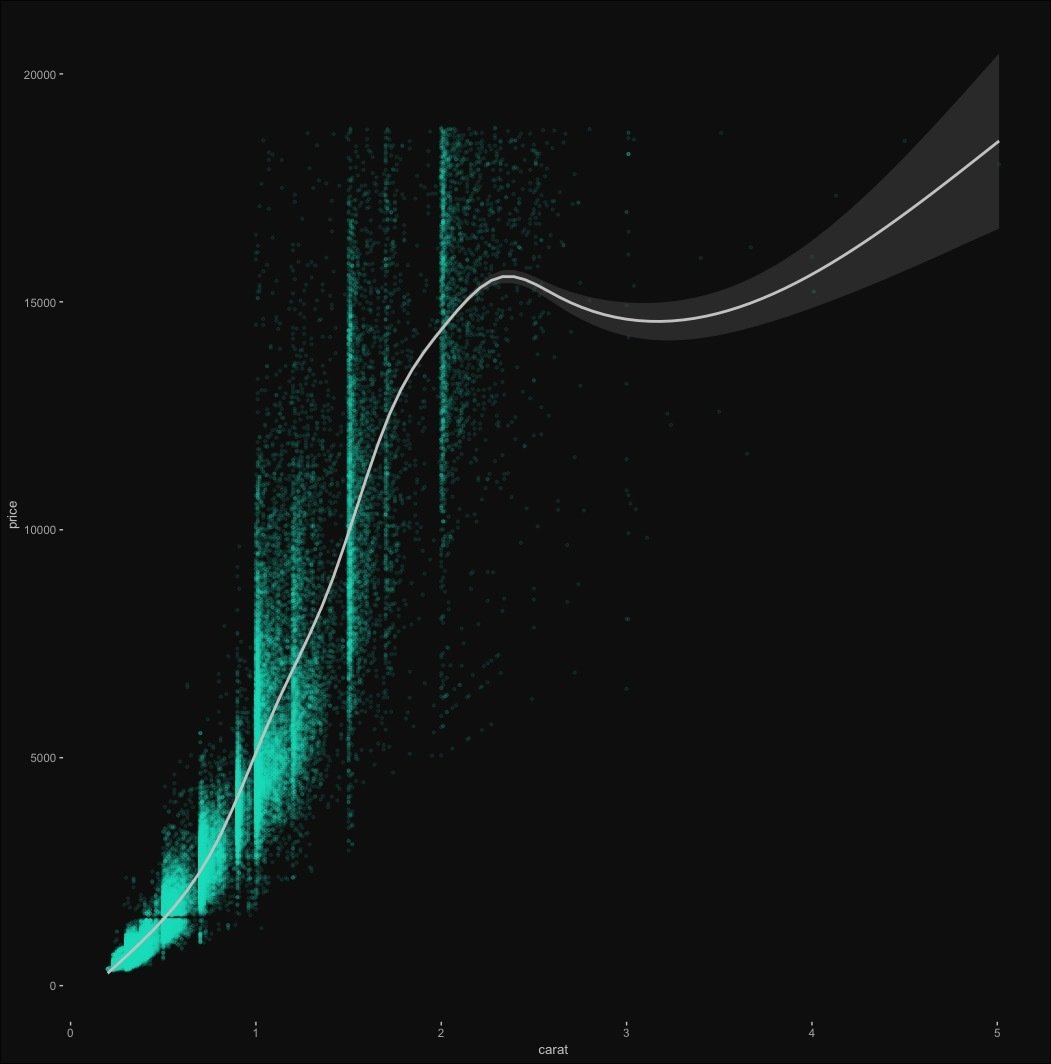

ADDING A TREND



02

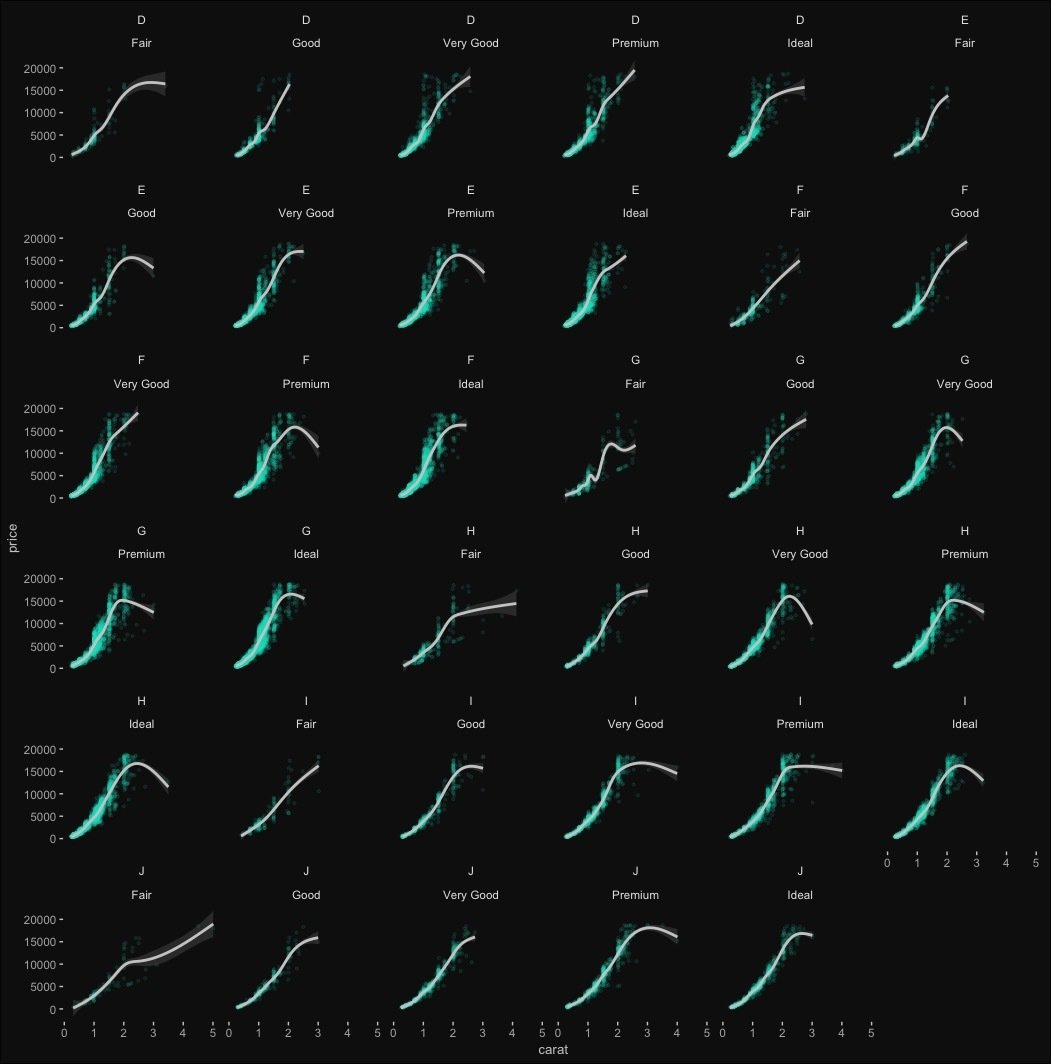

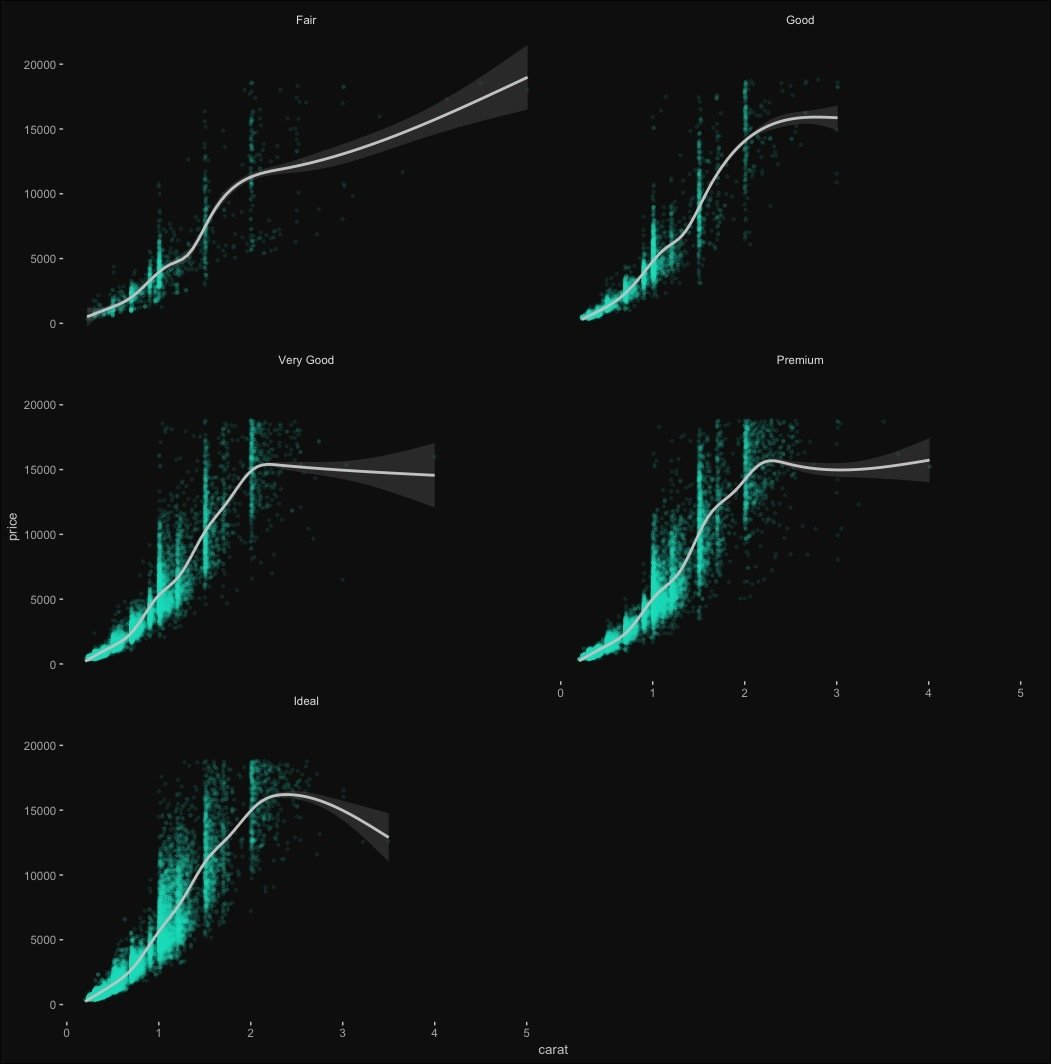

ADDING CONTEXT: SMALL MULTIPLE



02



MORE CONTEXT



02

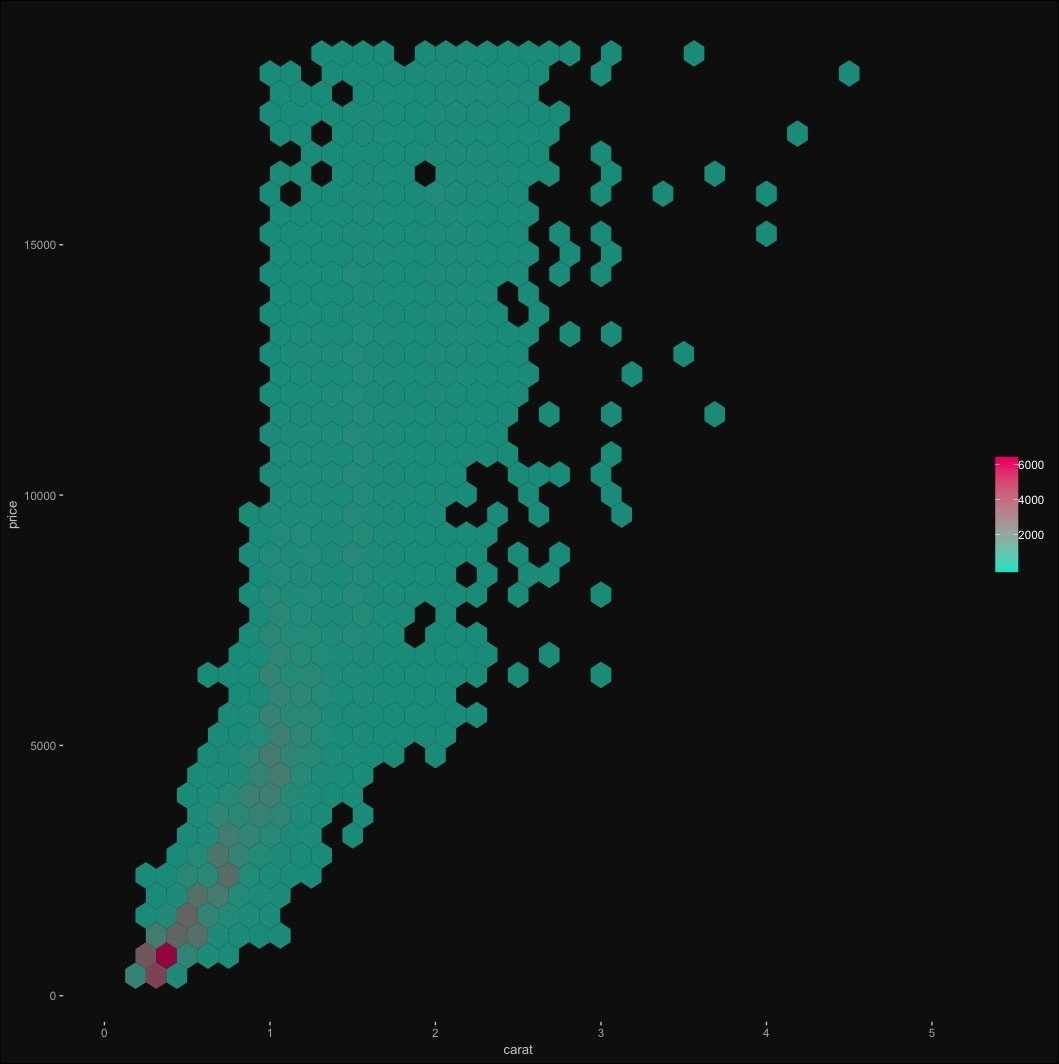

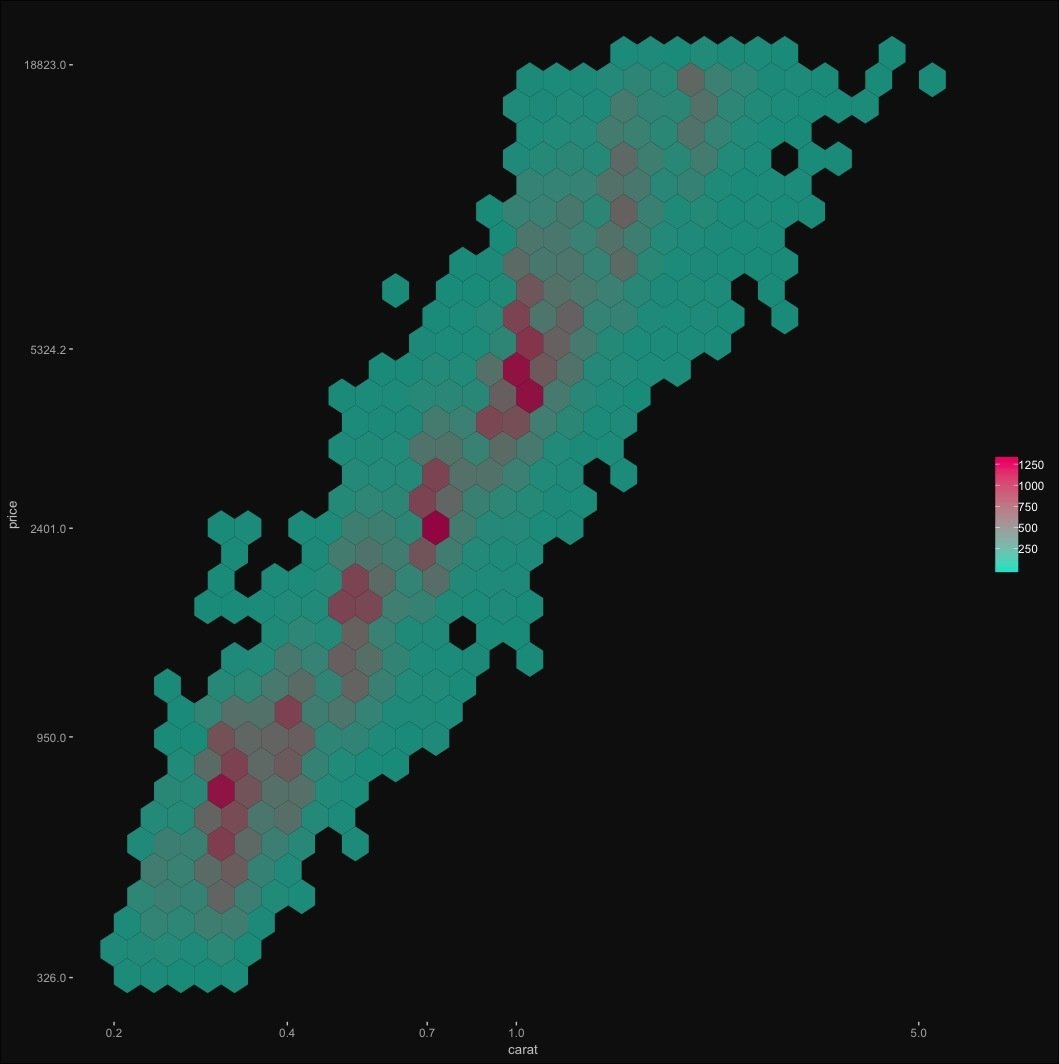

HEXAGONAL

BINNING



02





02



AGGREGATION ENCODED IN COLOR



02



LOG SCALE



02

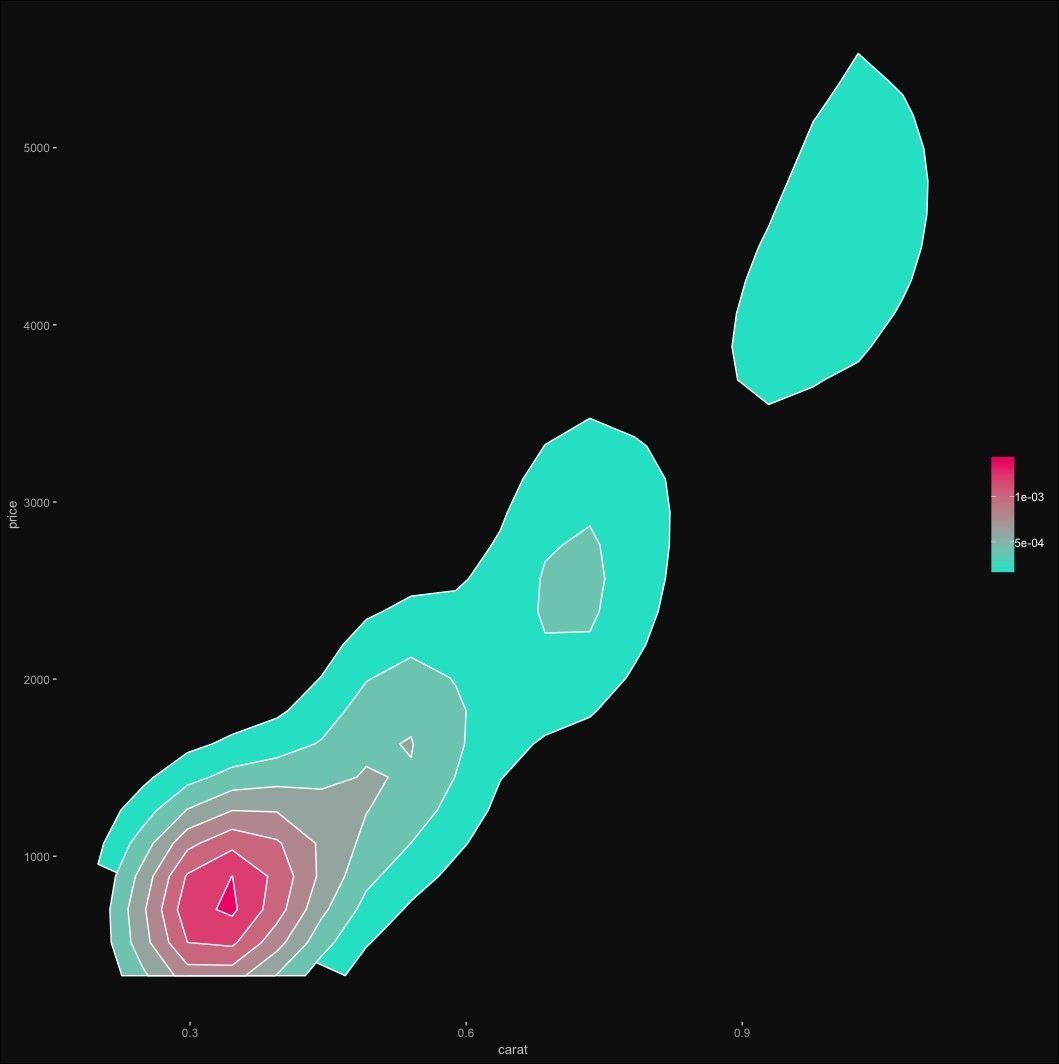

DENSITY: 2D



02



SCALE

AXIS



02



DEFAULT



02



LOG SCALE



02



LINEAR TRANSFORMATION



02



DEFINING BREAKS



02



ADD LABLES



02



ADD SIZE SCALE



02



ADD A COLOR SCALE



02



SMALL MULTIPLE TO DECLUTTER



02



FLIP AXIS



02



FLIP SCALES



PART 02



R

EXPLORE



03



R

TUFTE IN



03



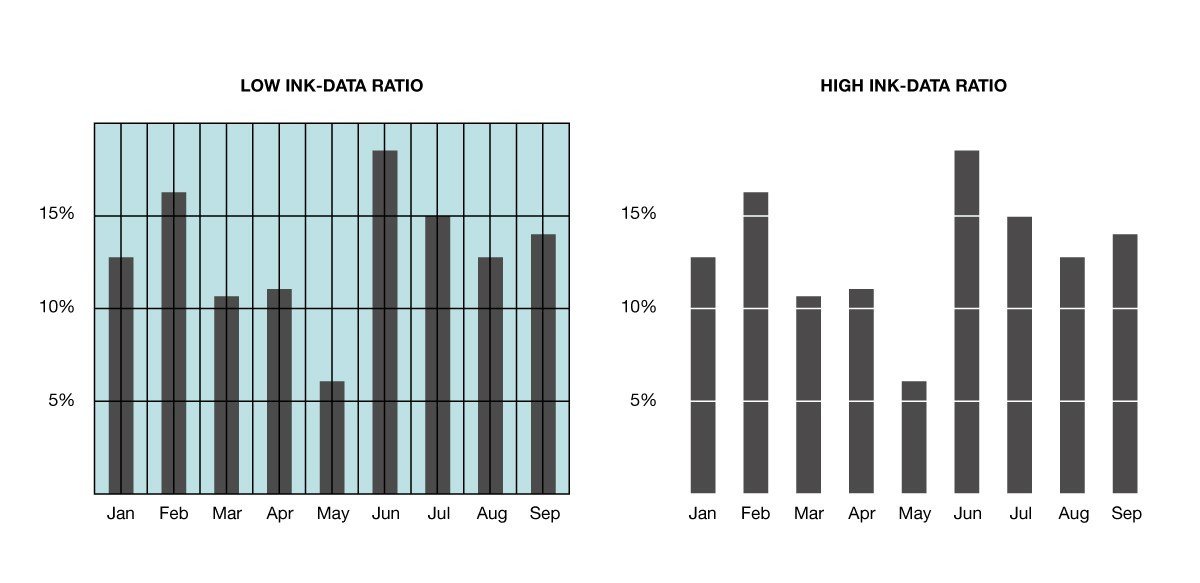

REDUCE CHARTJUNK



03



theme_tufte(base_size = 11, base_family = "serif", ticks = TRUE)

TUFTE THEME



03





03

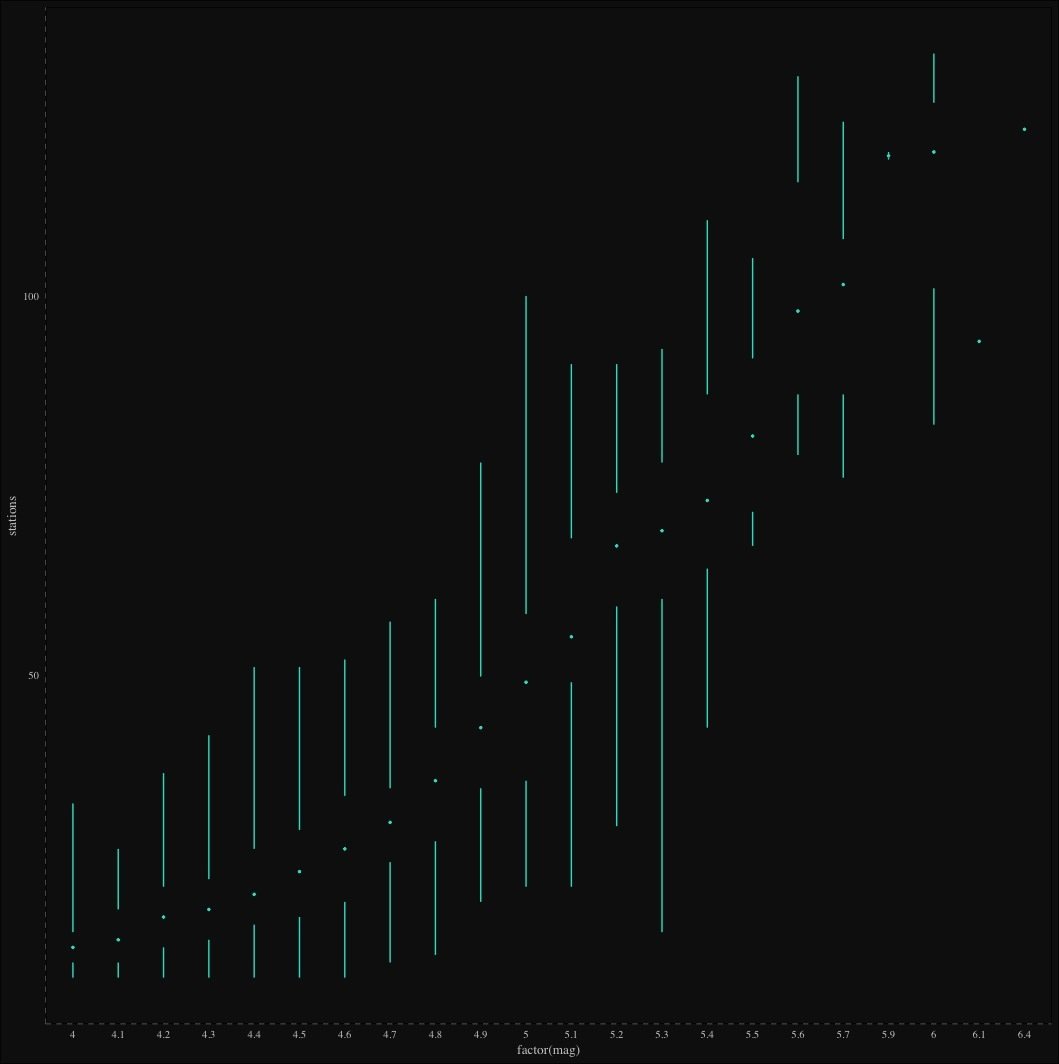

BOXPLOT

TUFTE



03



TUFTE BOXPLOT



03



DIMENSIONS

ADDING



03





03

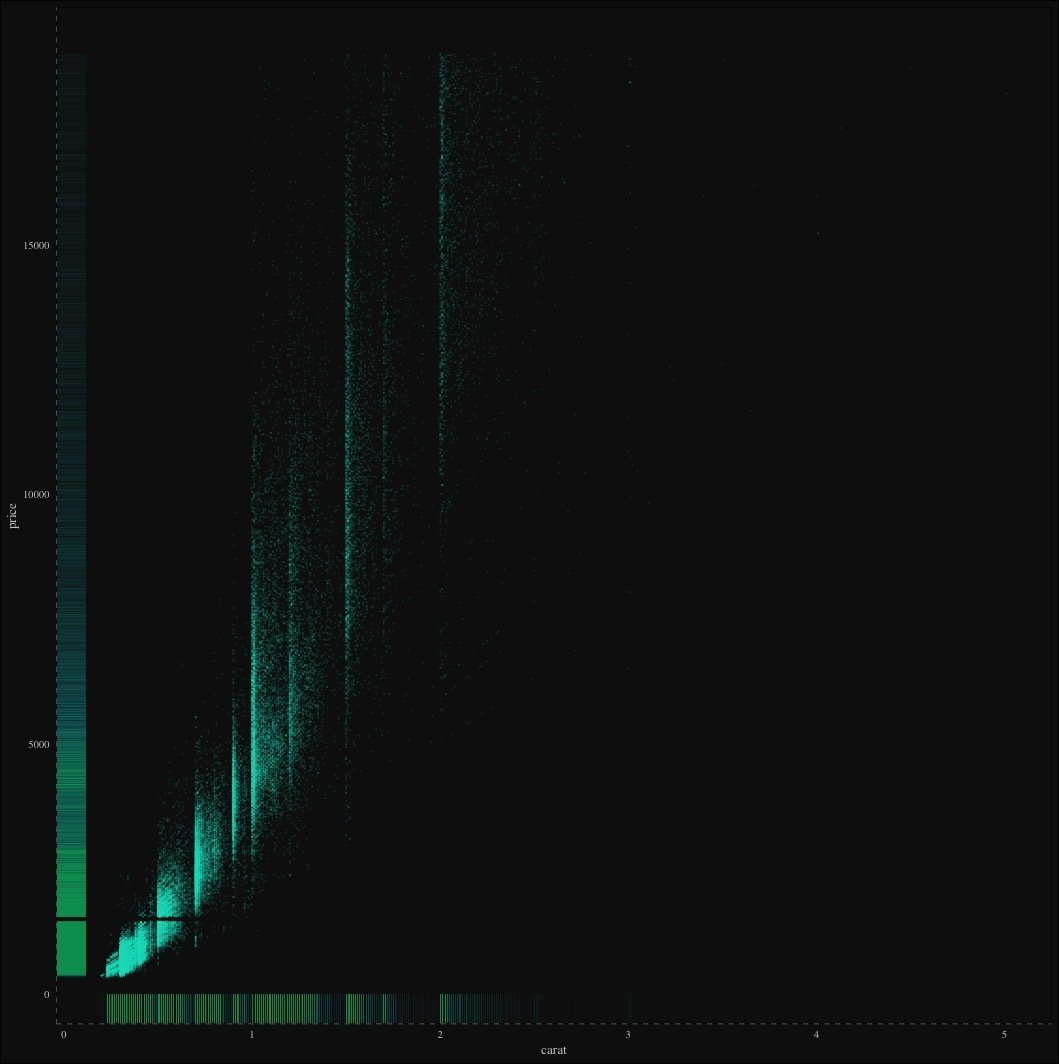

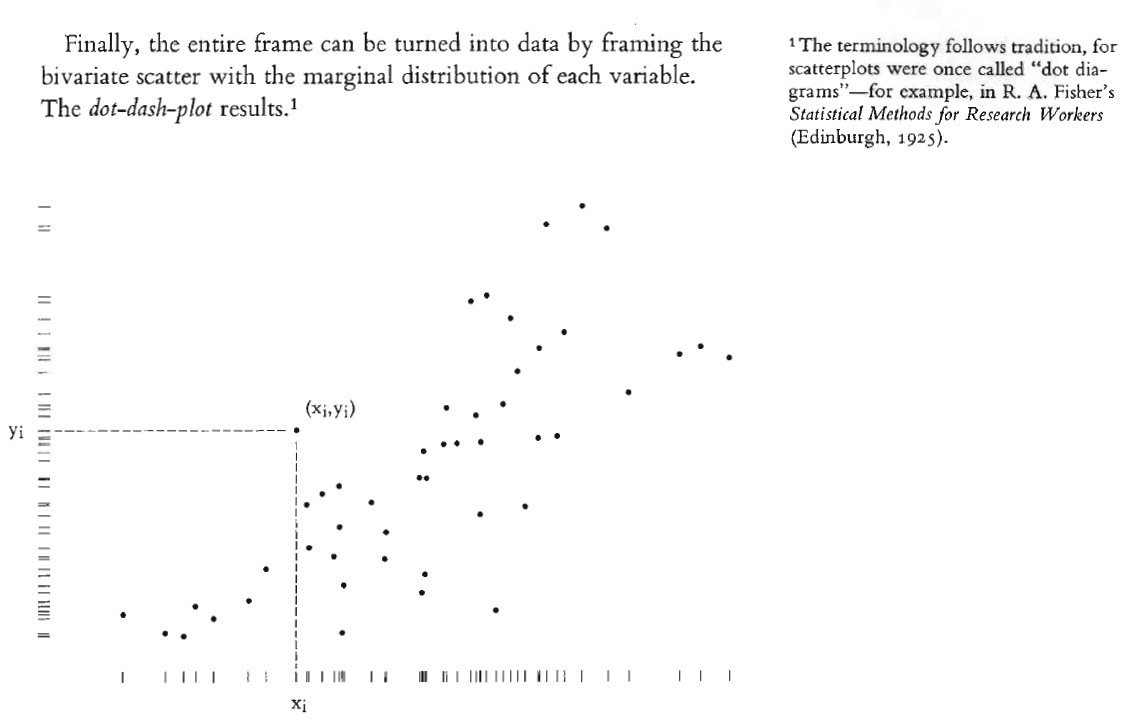

DOT DASH SCATTER PLOT



03

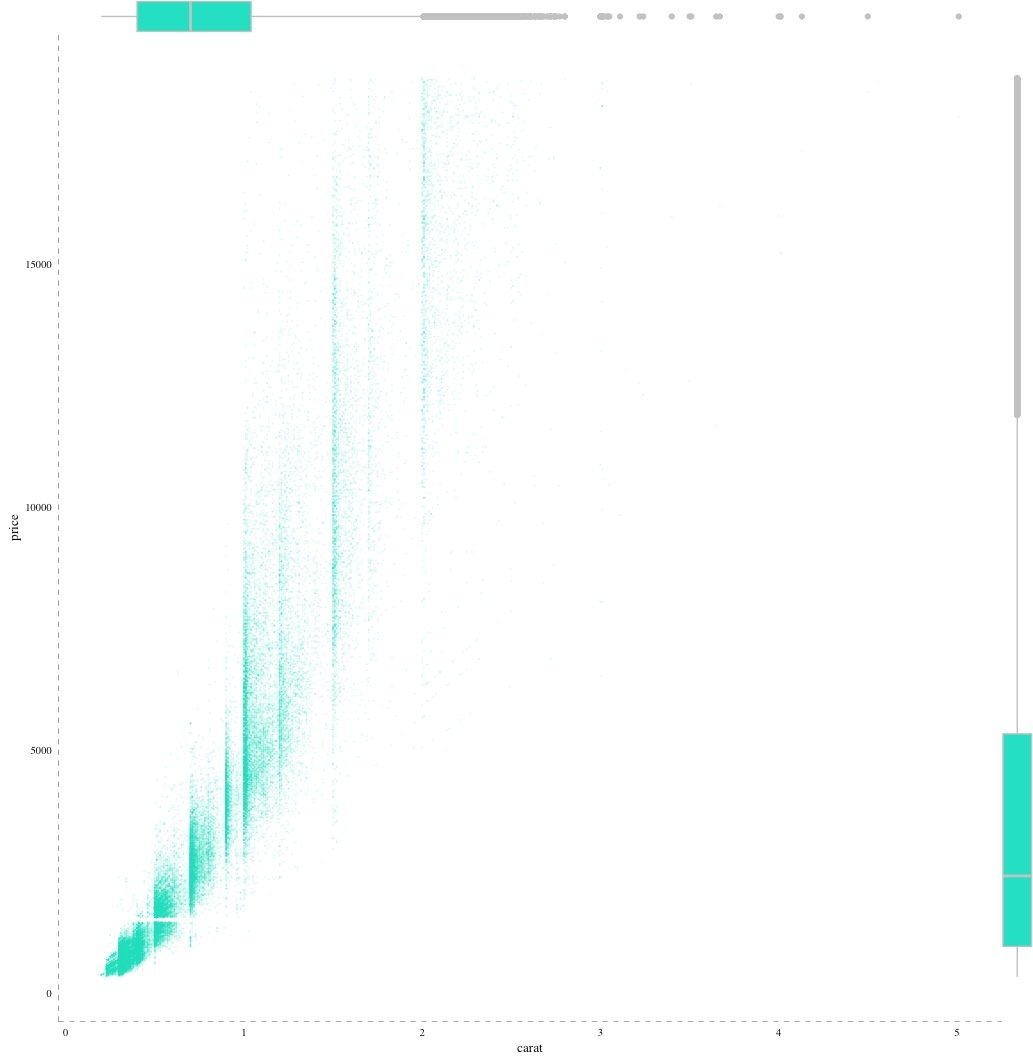

MARGINAL BOX-PLOT SCATTER PLOT



03





03

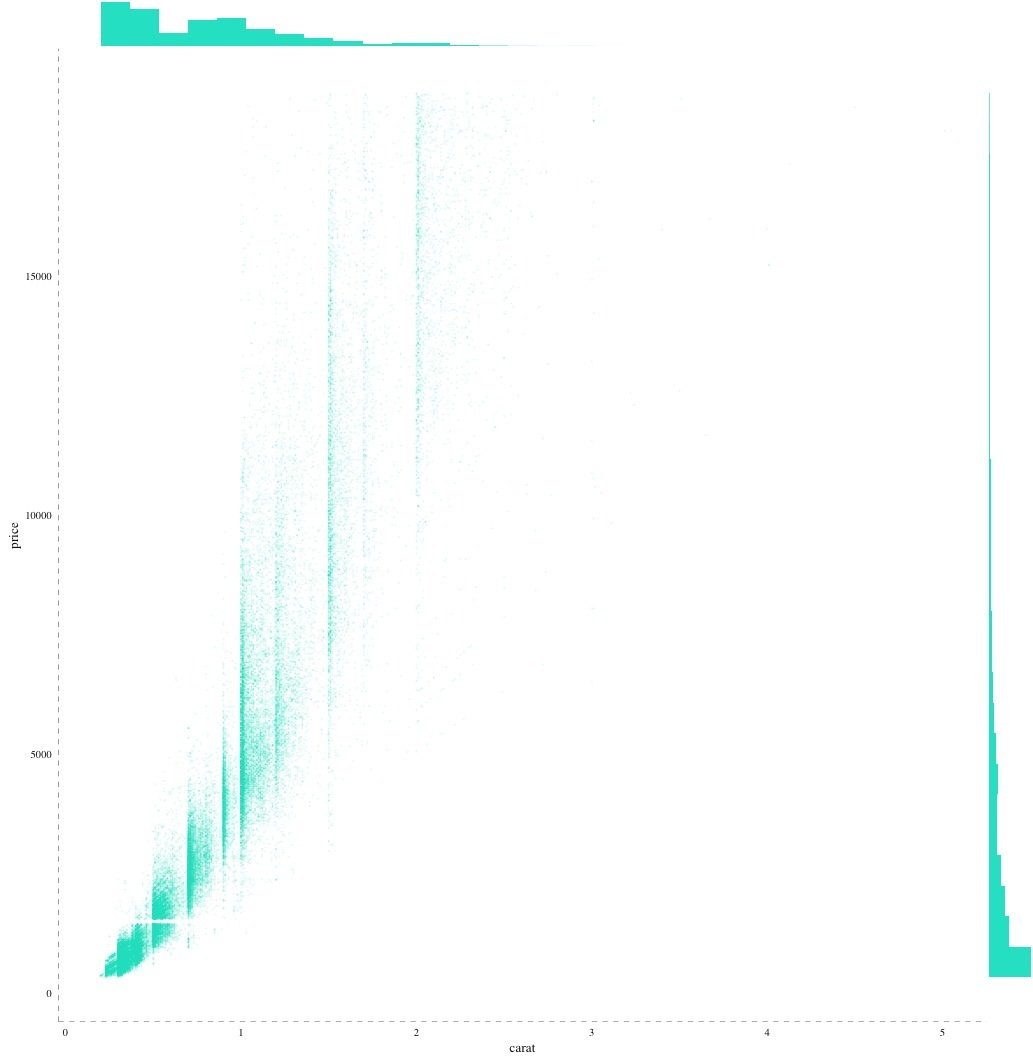

MARGINAL HISTOGRAM SCATTER PLOT



03



MARGINAL DENSITY SCATTER PLOT

ANALYSIS

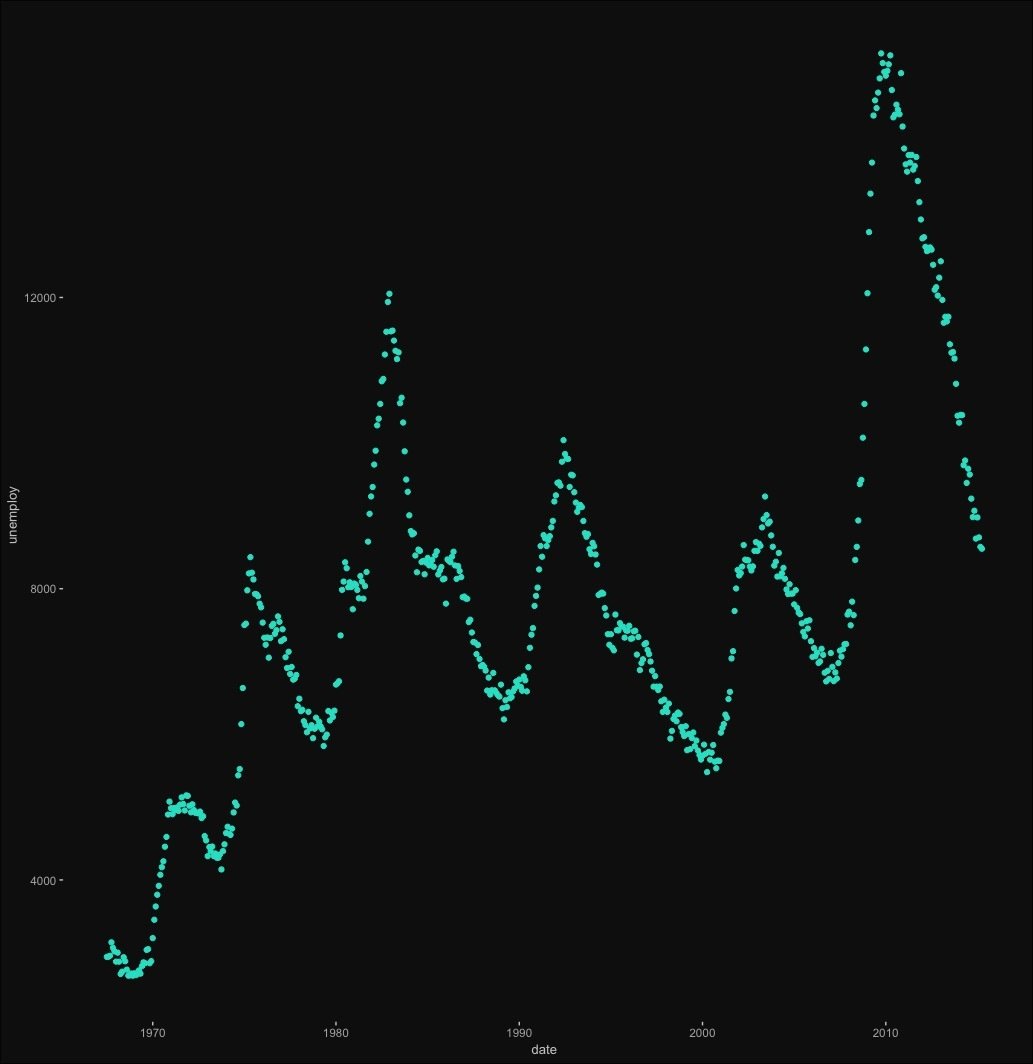

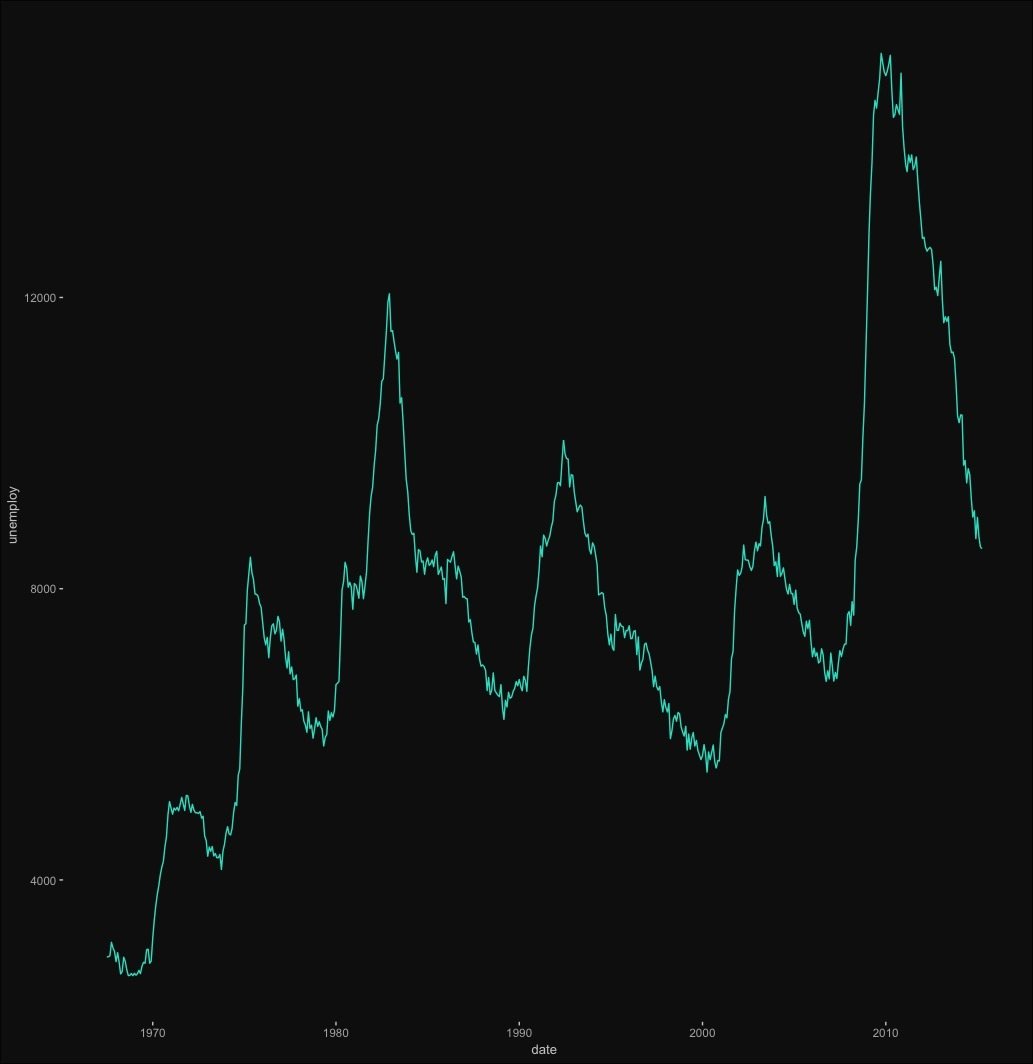

TIME SERIES



03

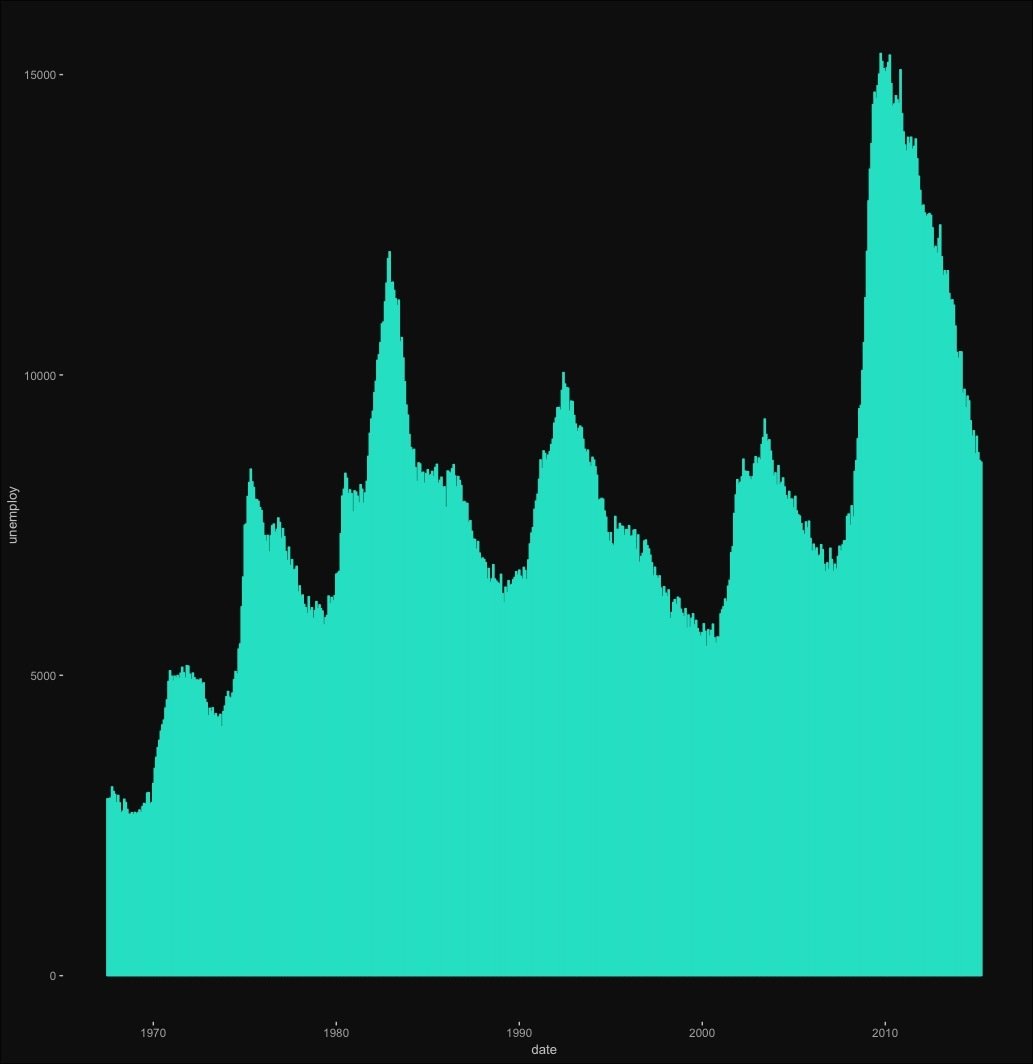

LINE CHART - FILLED OR DOTTED



03

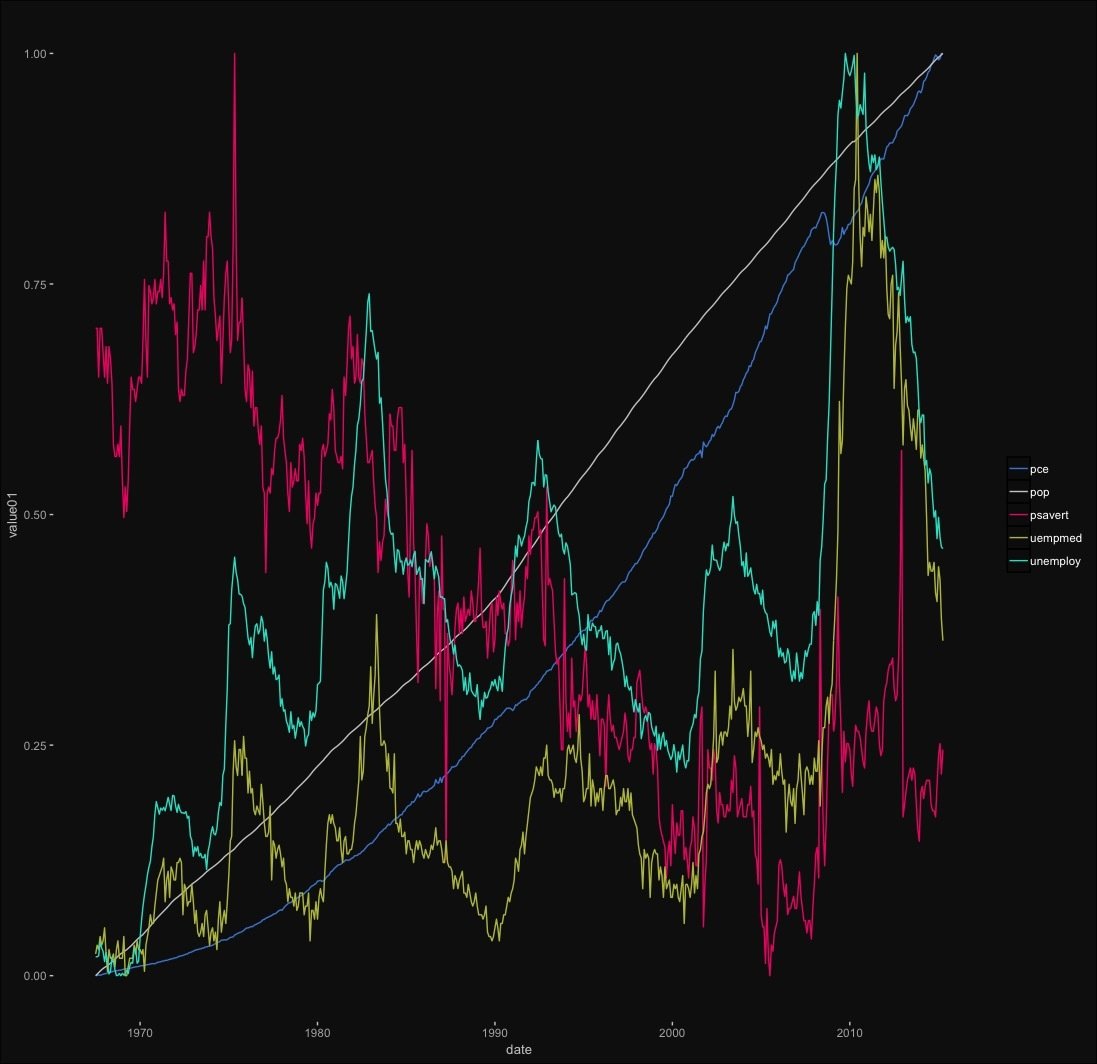

ADDING COLOR AS VISUAL ENCODING



03



SMALL MULTIPLE TO DECLUTTER



03



ADDING A REFERENCE LINE



03

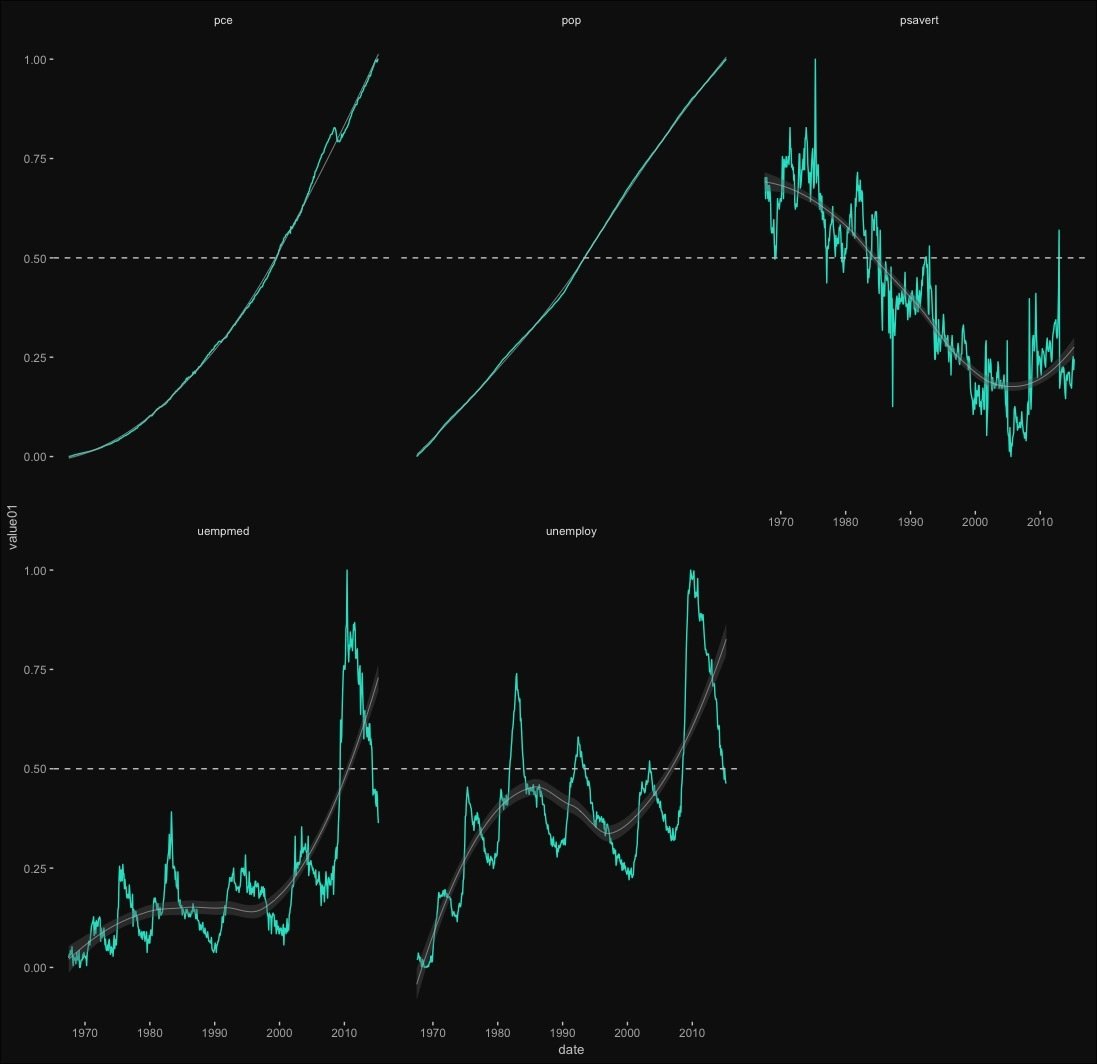

ADDING A TREND ESTIMATION



03



FLOW

ANALYSIS



03

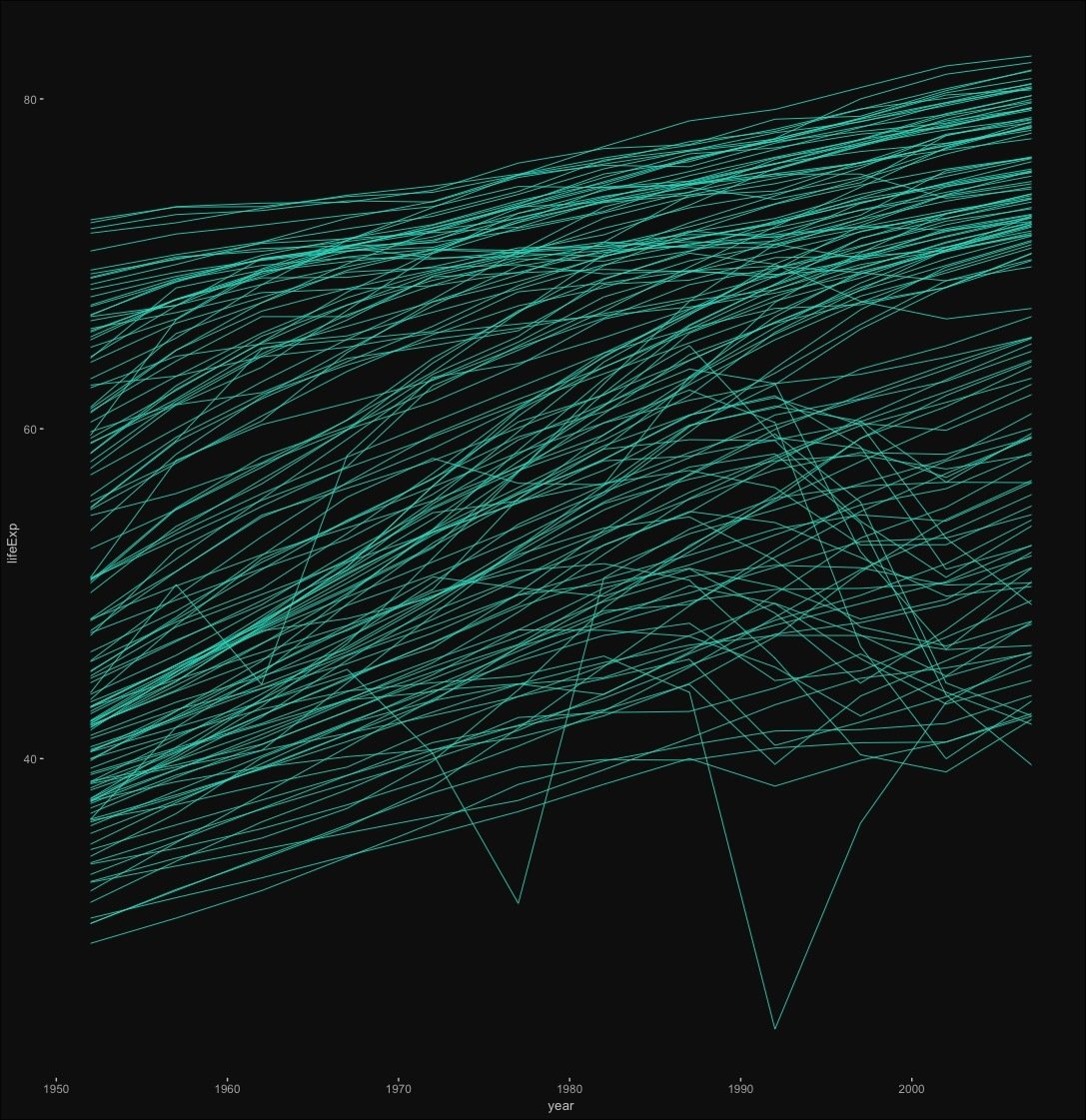

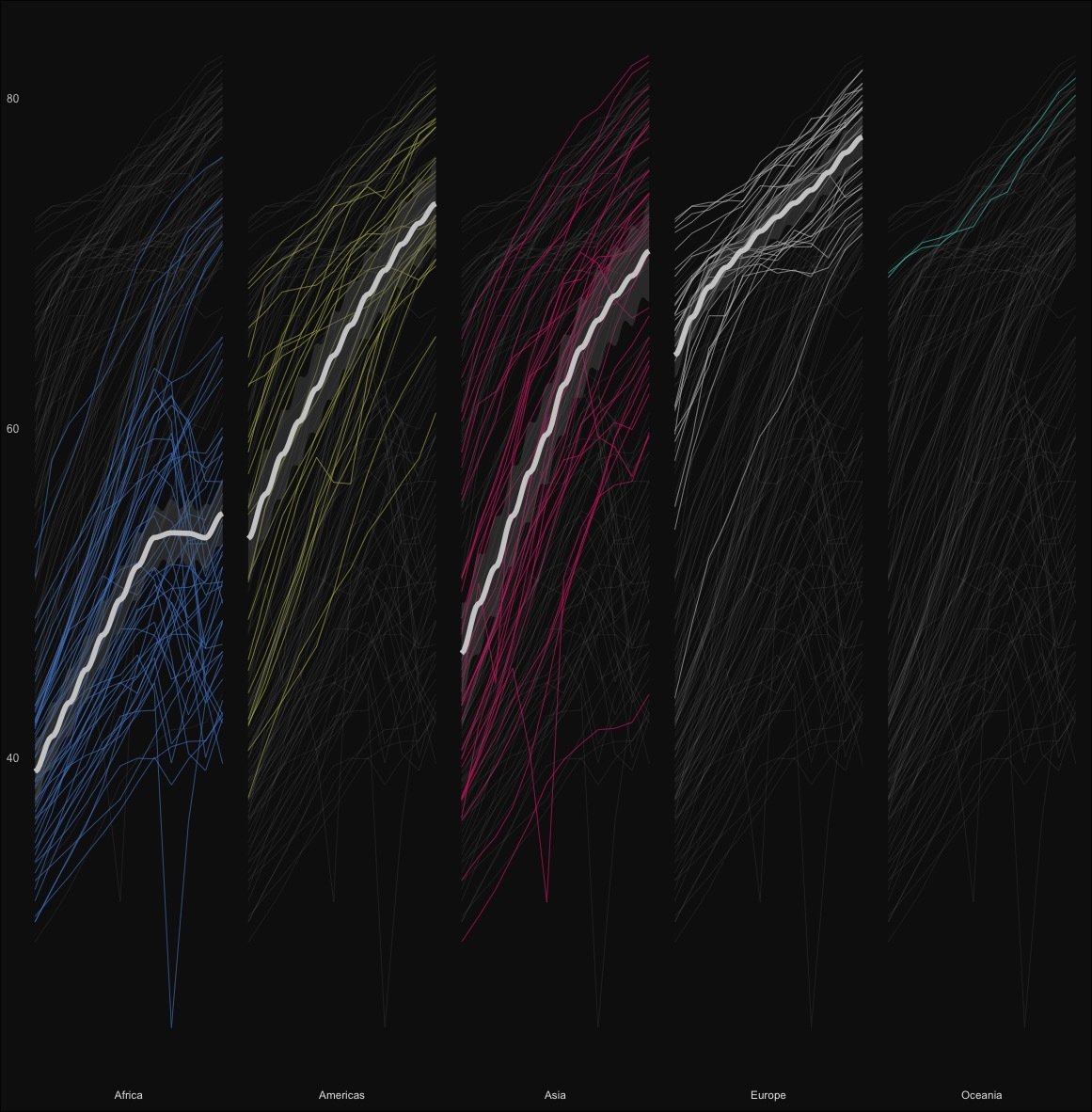

LIFE EXPECTANCY - ALL COUNTIRES



03

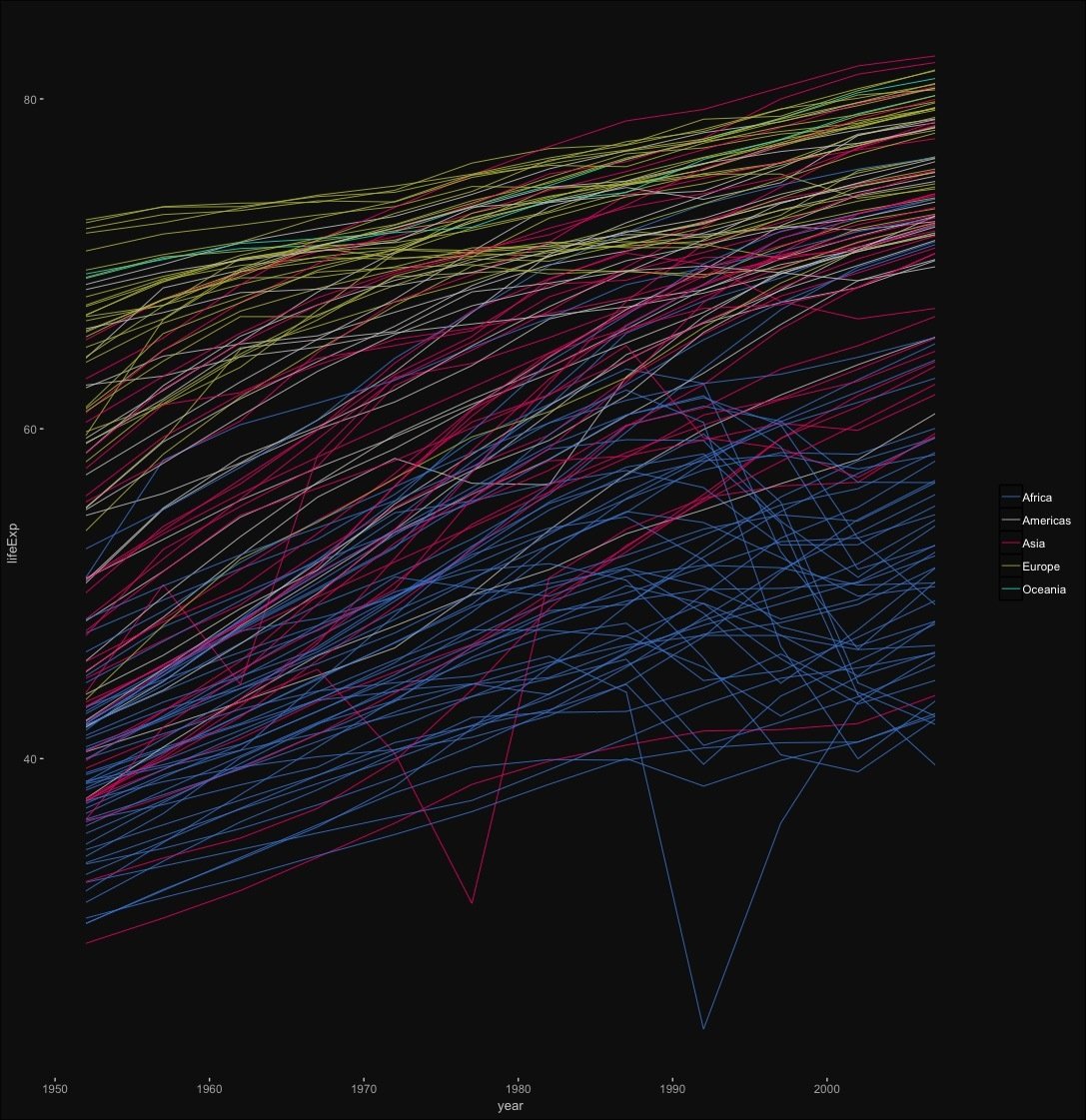

COLOR FOR ENCODING THE CONTINENT



03

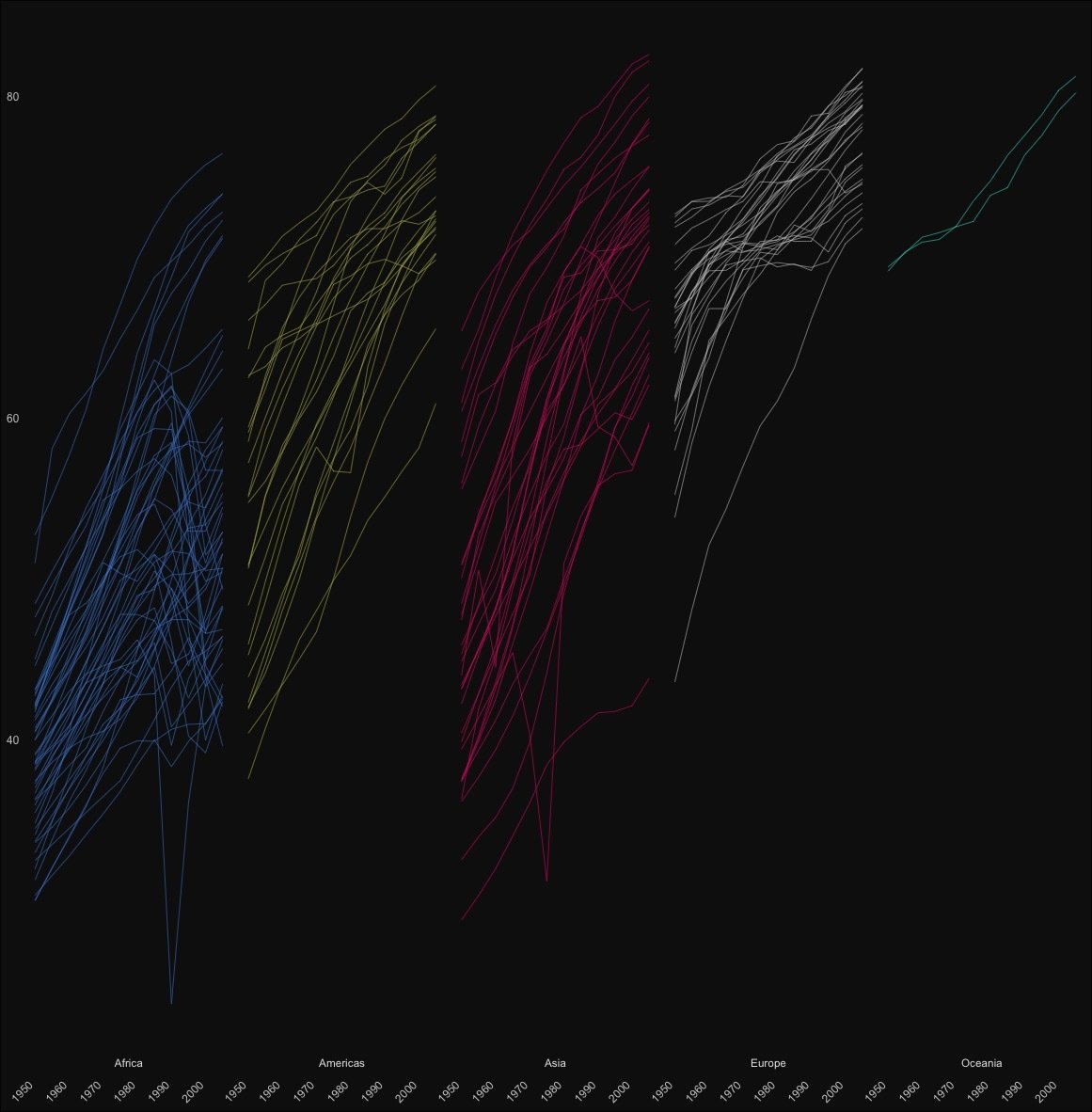

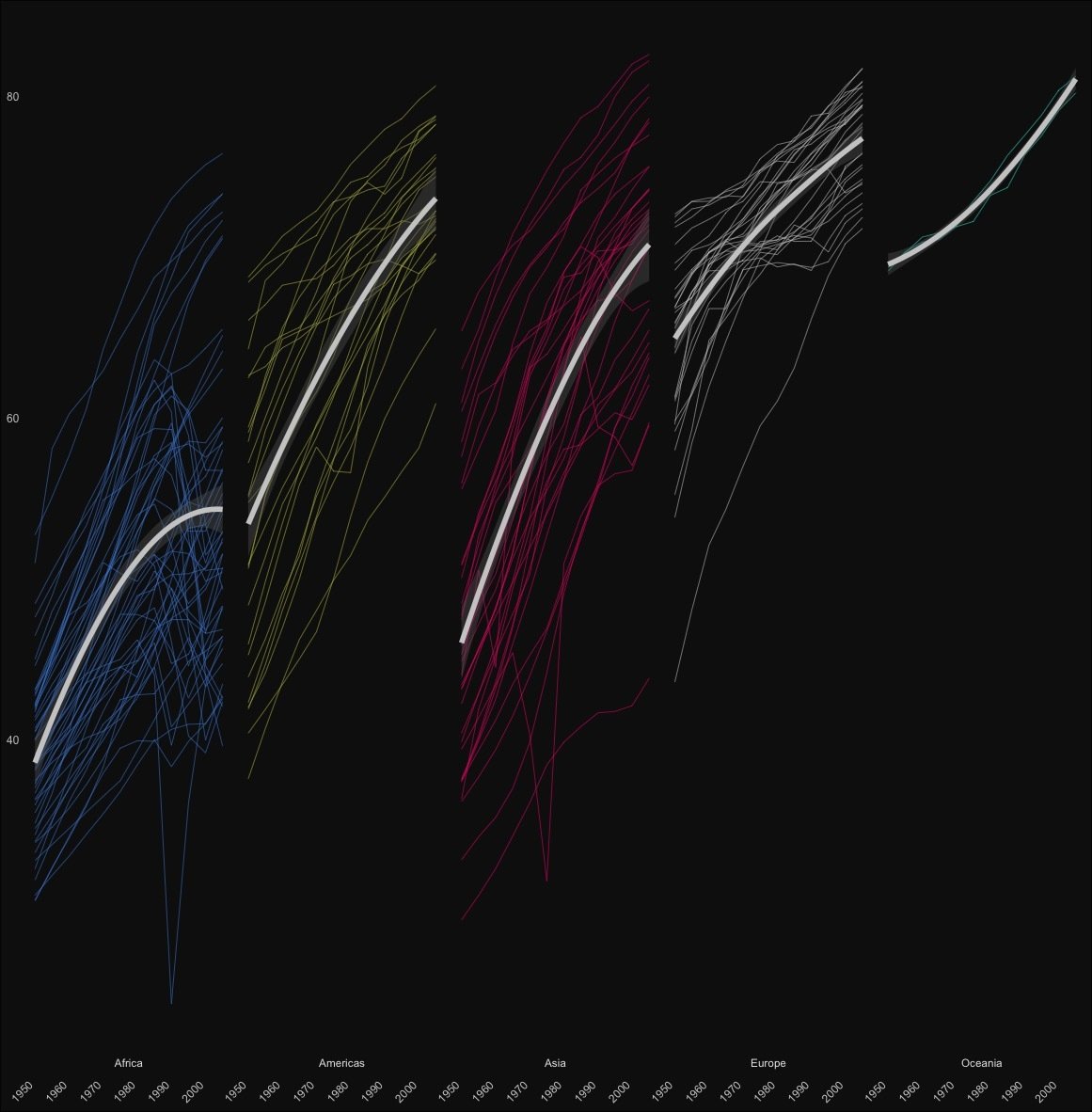

SMALL MULTIPLE TO DECLUTTER



03



ADDING A TREND ESTIMATION



03

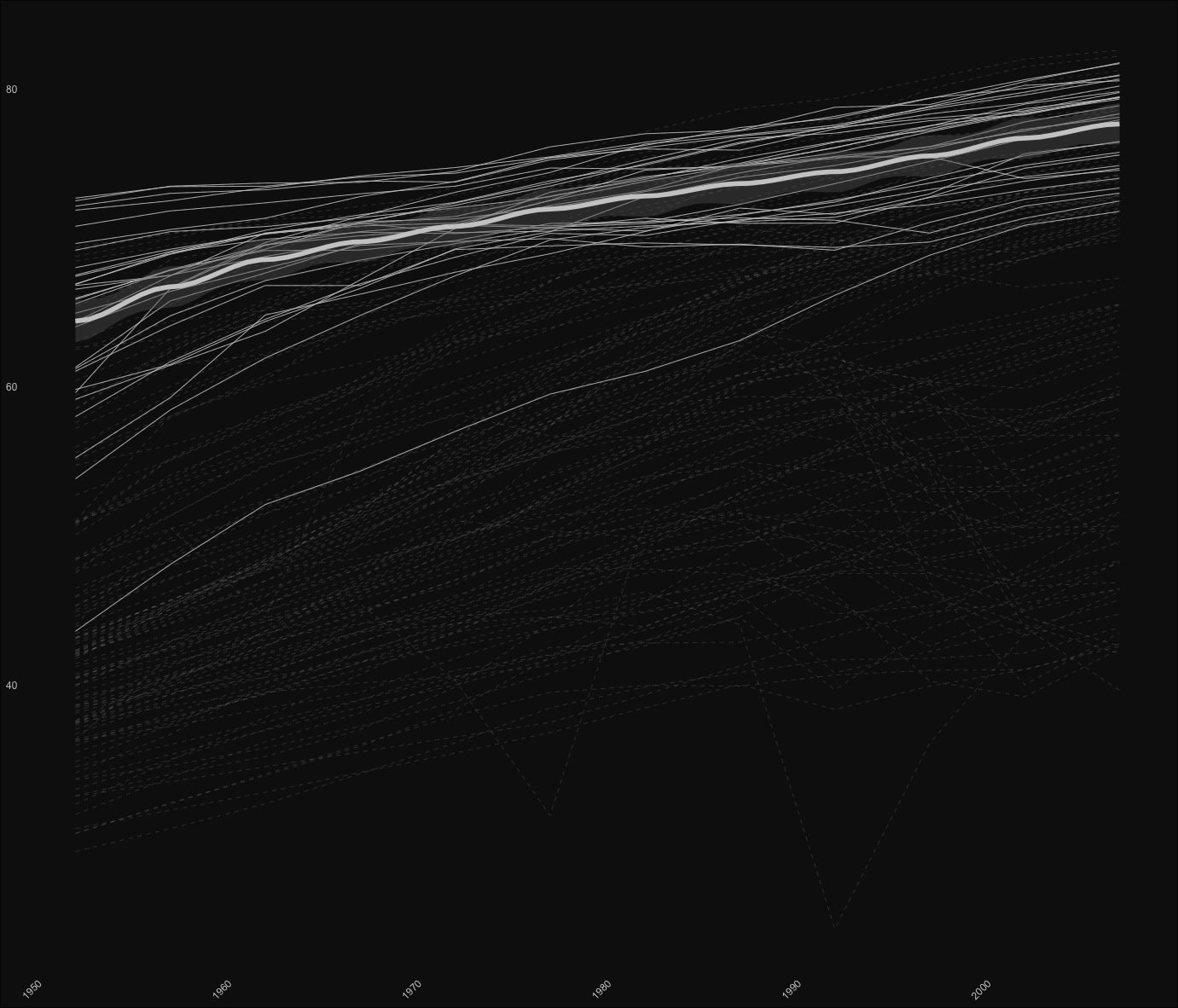

MORE CONTEXT - ADDING ALL DATA IN THE BACKGROUND



03

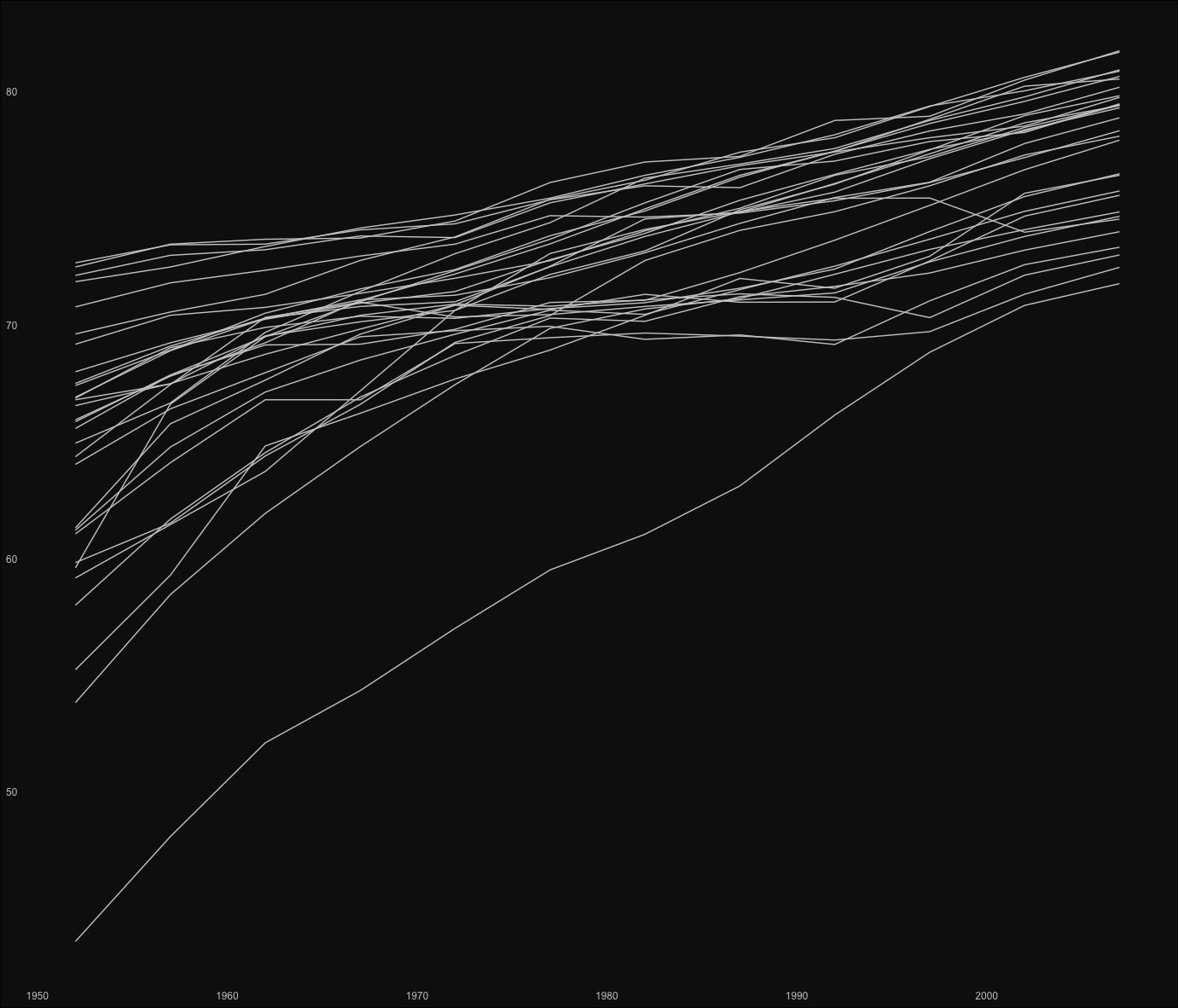

FOCUSING ON EUROPE



03



ADDING THE CONTEXT AGAIN



03

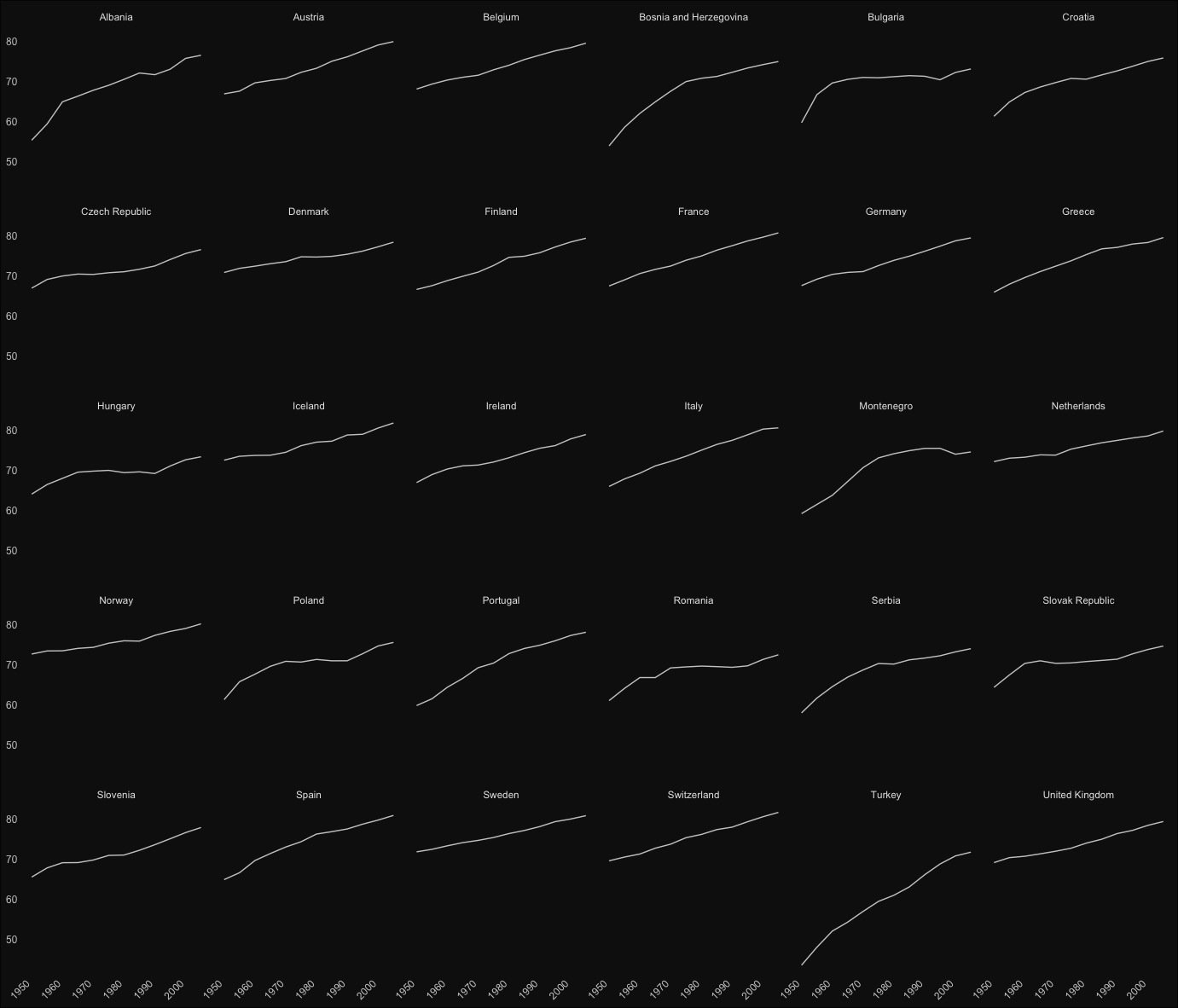

SMALL MULTIPLE - ZOOM IN COUNTRIES



03



VIZ

ADVANCED



03





03

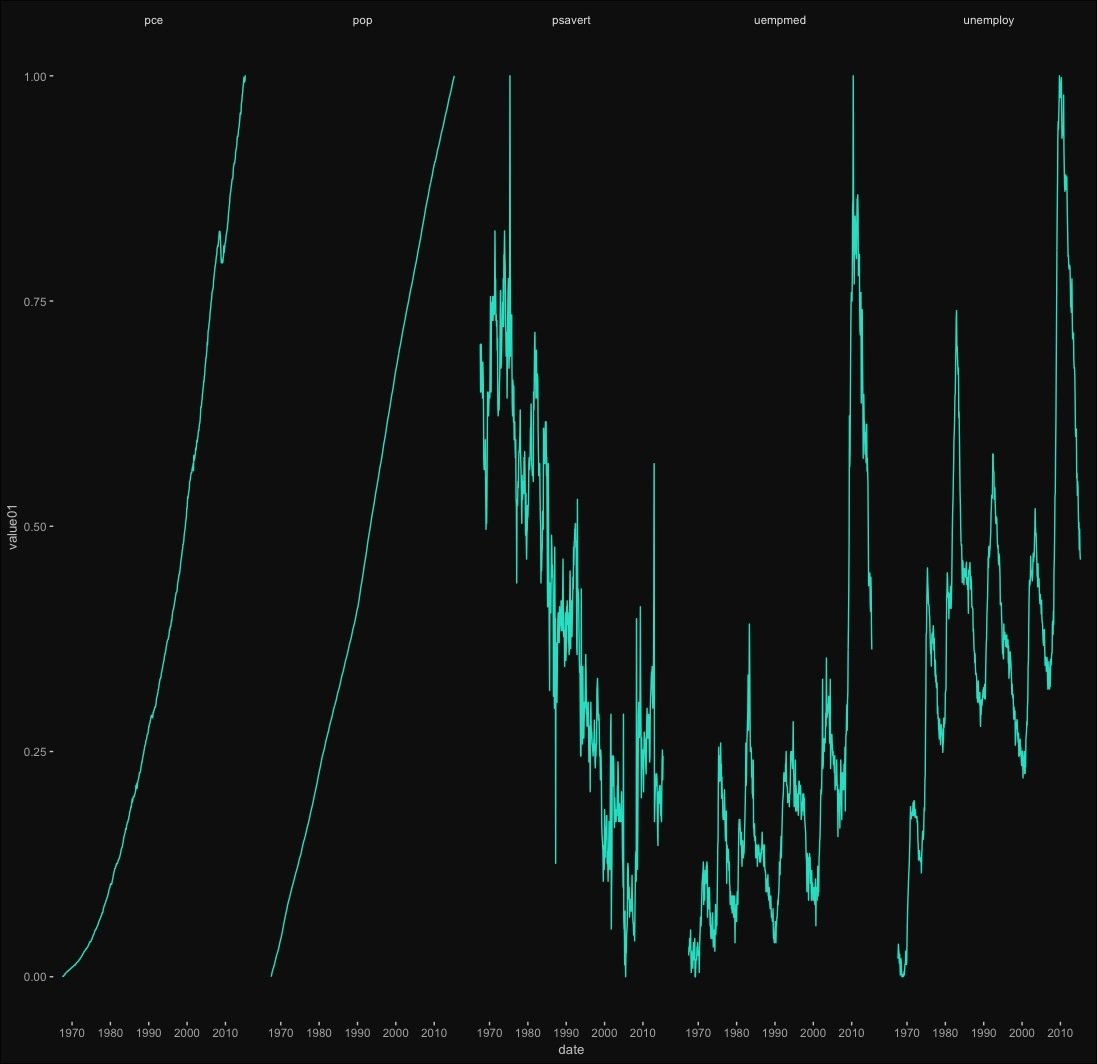

PARALLEL

COORDINATES



03



DEFAULT



03



ENCODING COLOR



03



ADDING DOTS



03





03



ADDING BOX-PLOT



03



DEFAULT



03



ENCODING COLOR



03



SMALL MULTIPLE TO DECLUTTER



03

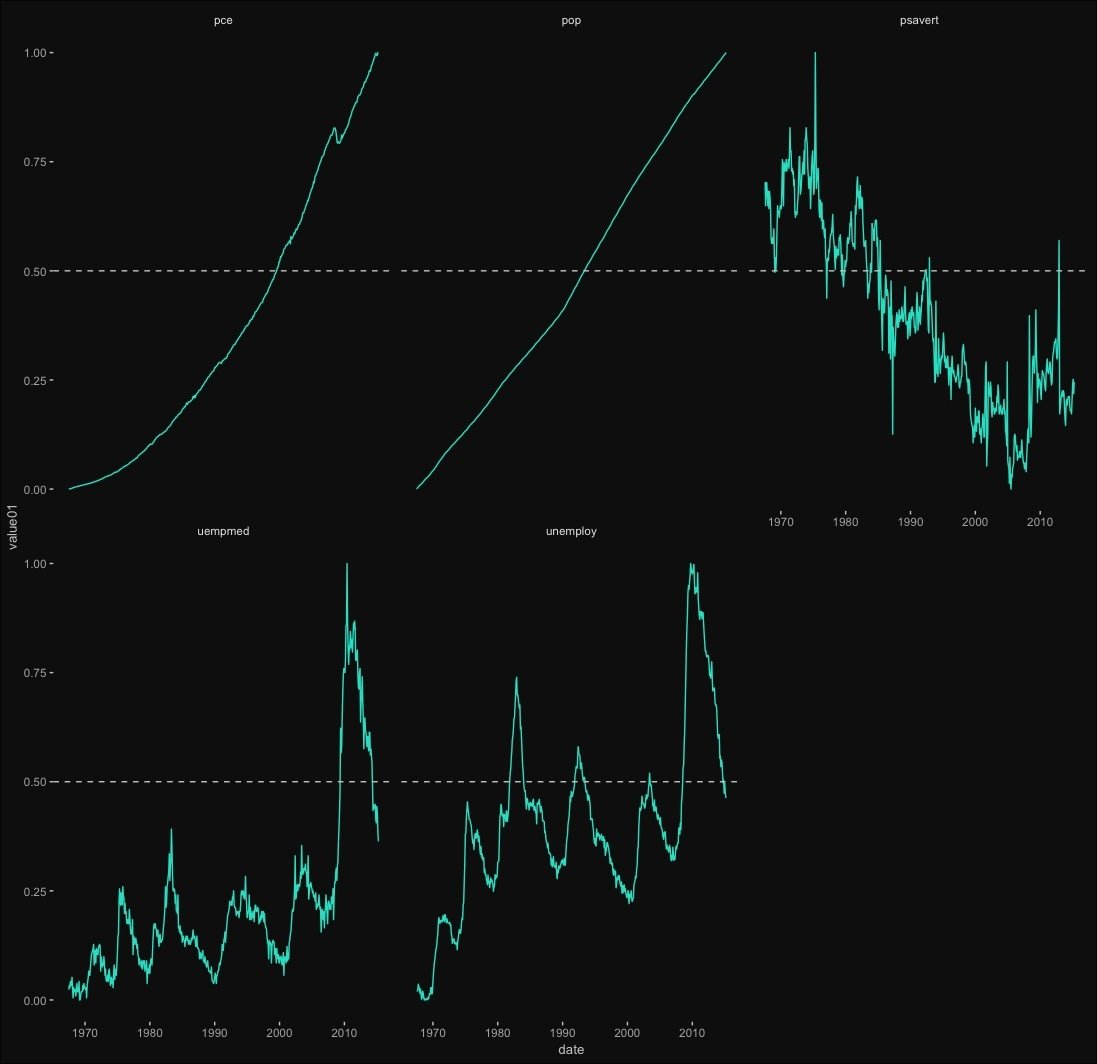

SCALE SO THE MIN OF THE VARIABLE IS 0 AND THE MAX IS 1



03

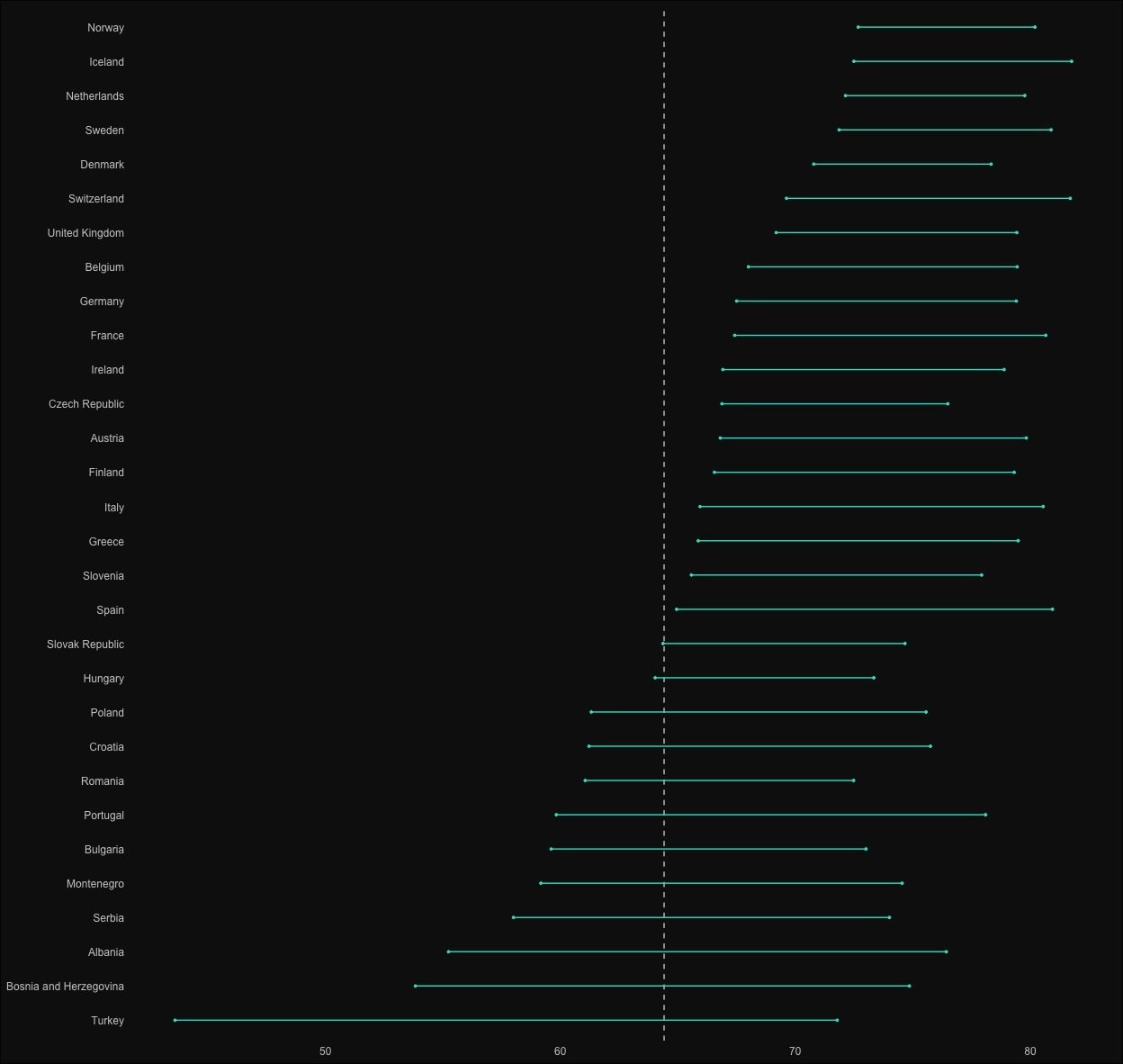

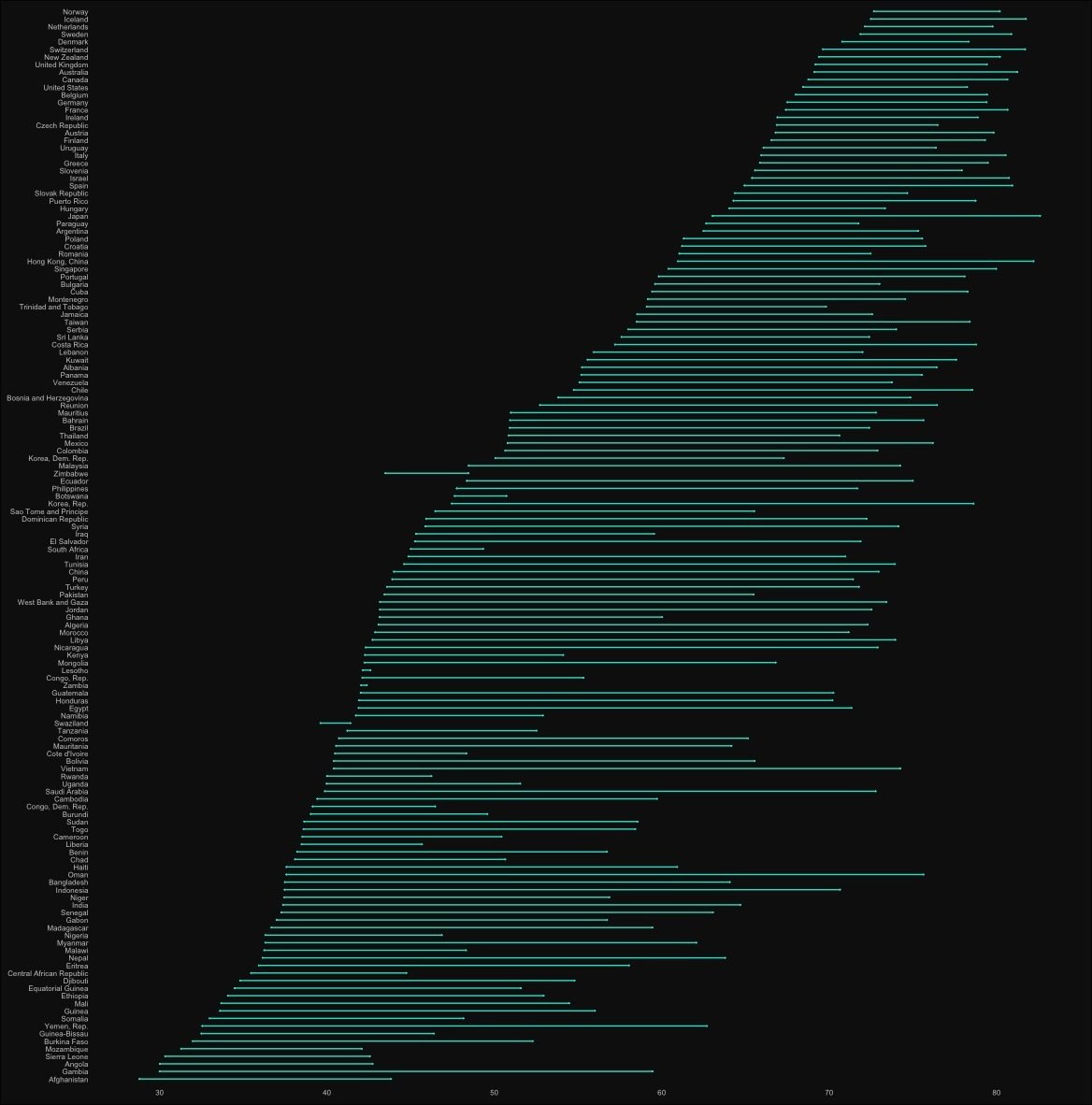

DUMBBELL

LET'S ADD A

DEFAULT



03

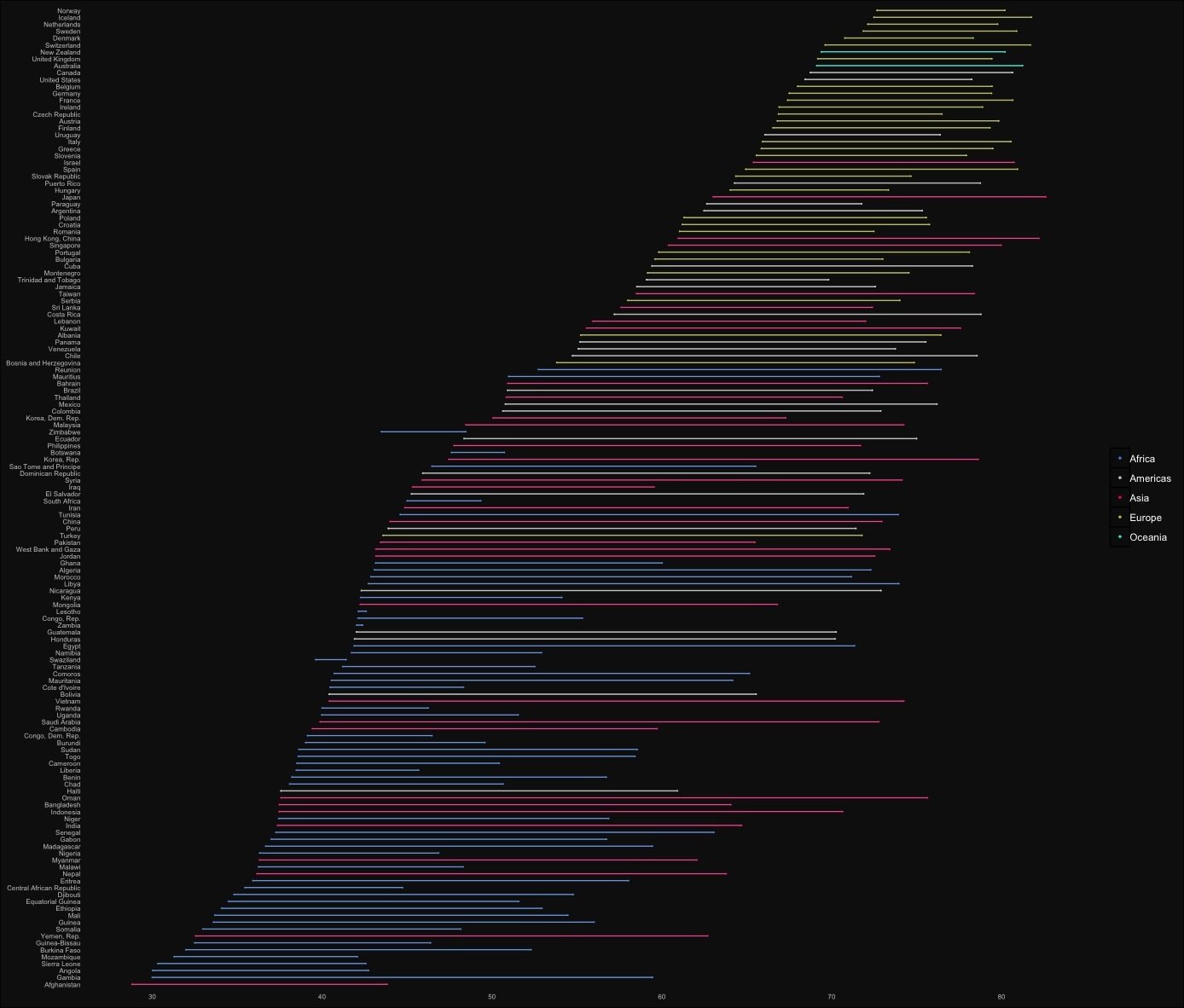

ADDING COLOR CODE



03

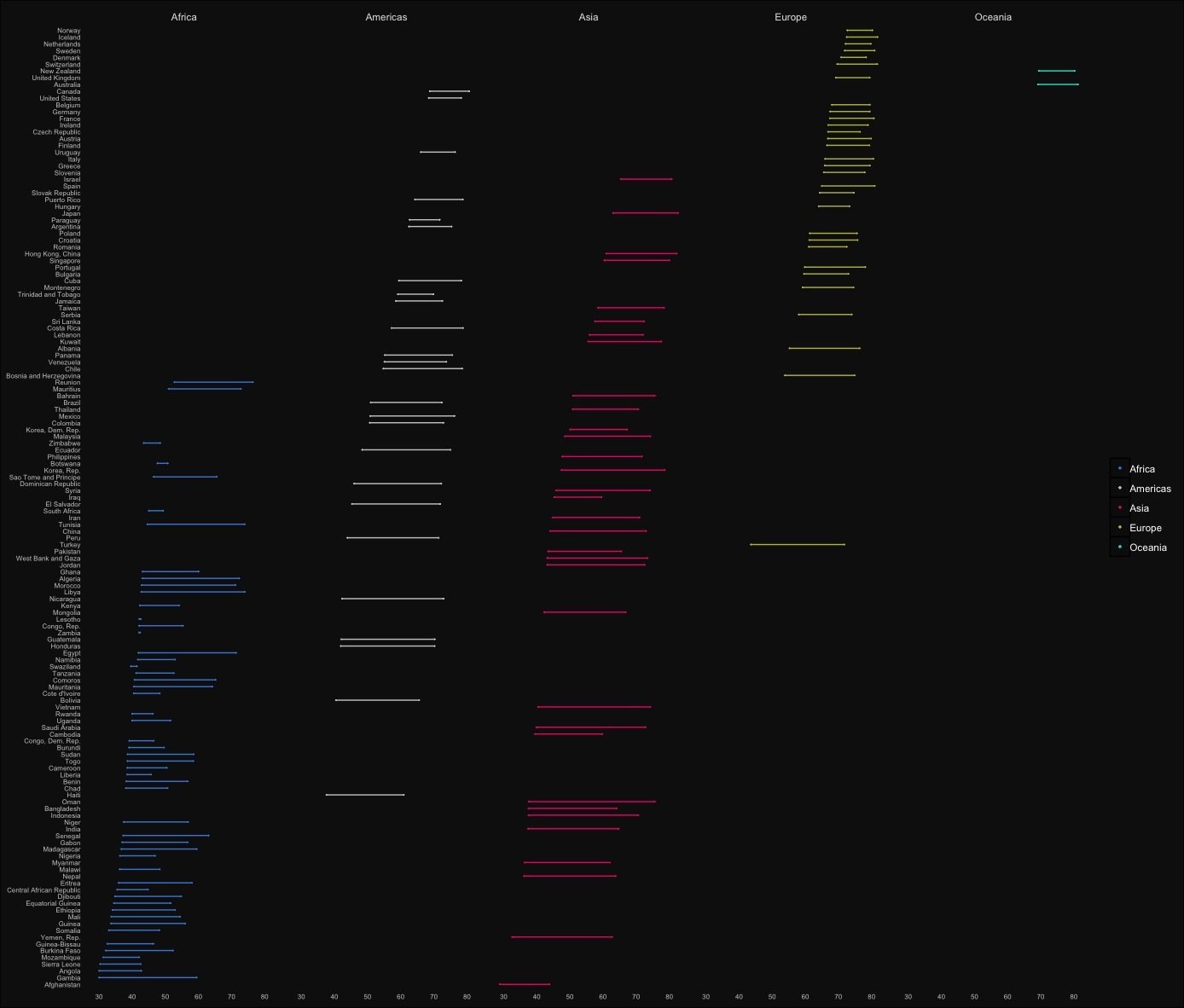

SNALL MULTIPLE TO DECLUTTER



03

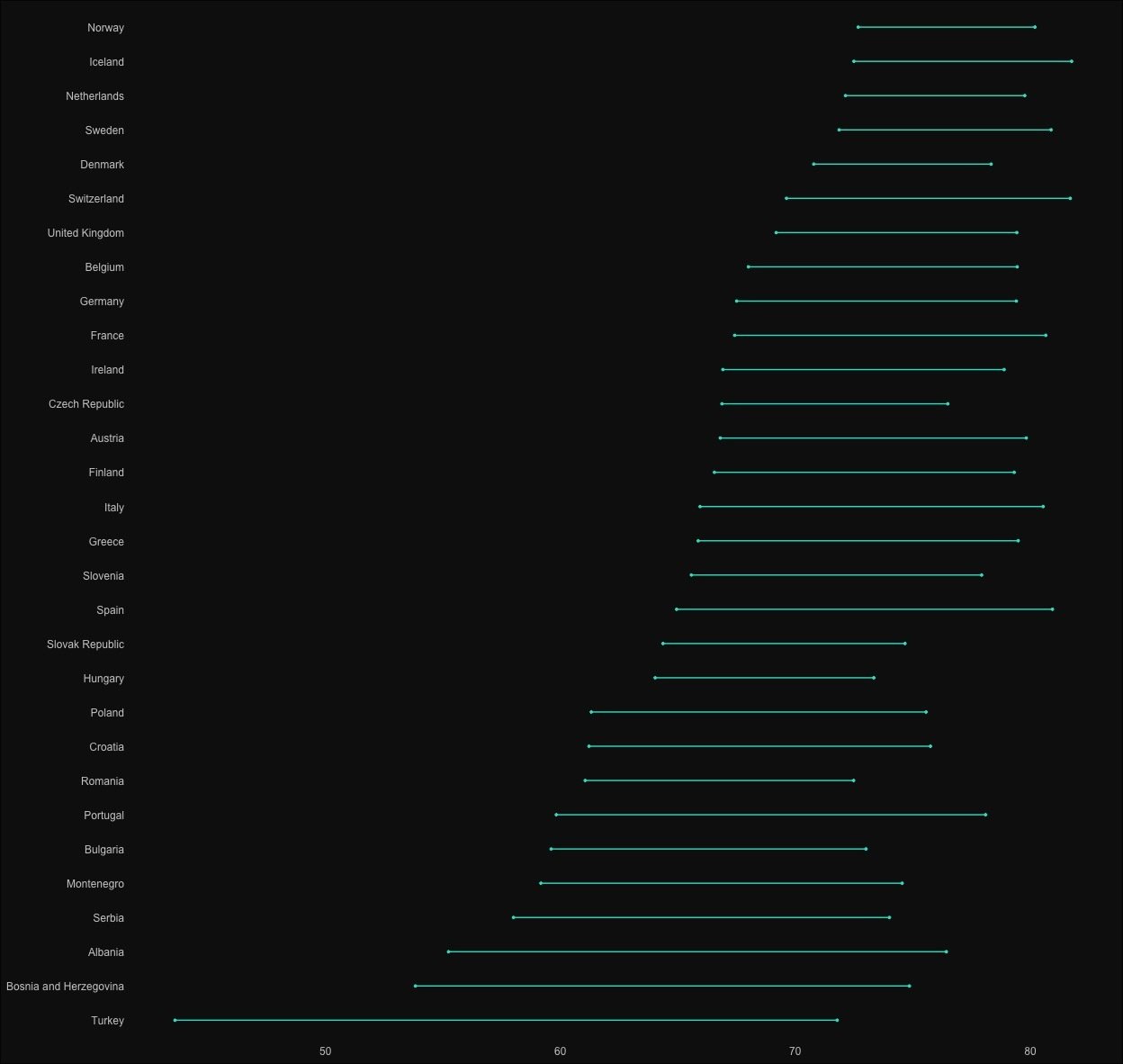

ZOOMING IN EUROPE



03



USING REFERENCE LINES



03





03

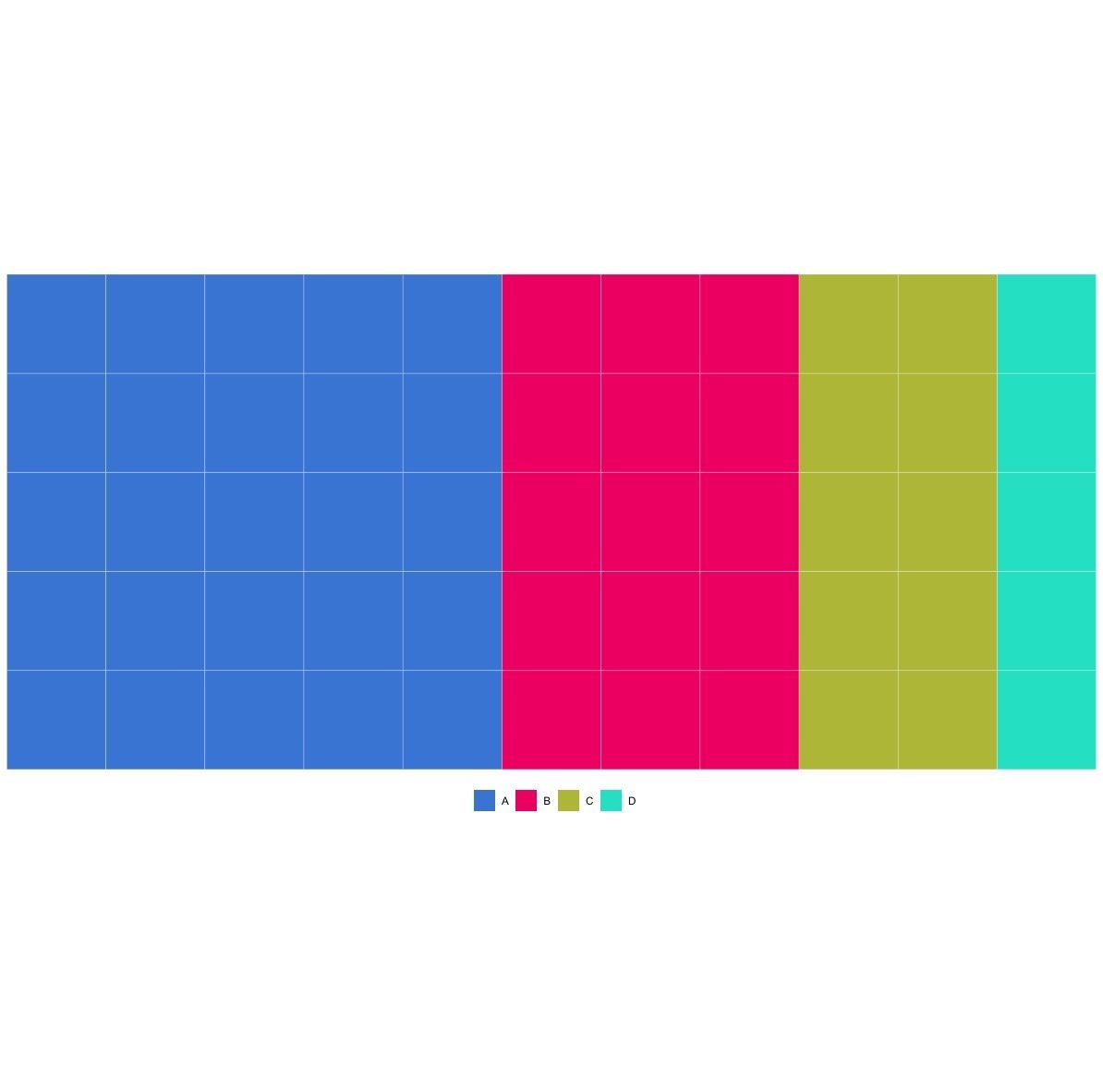

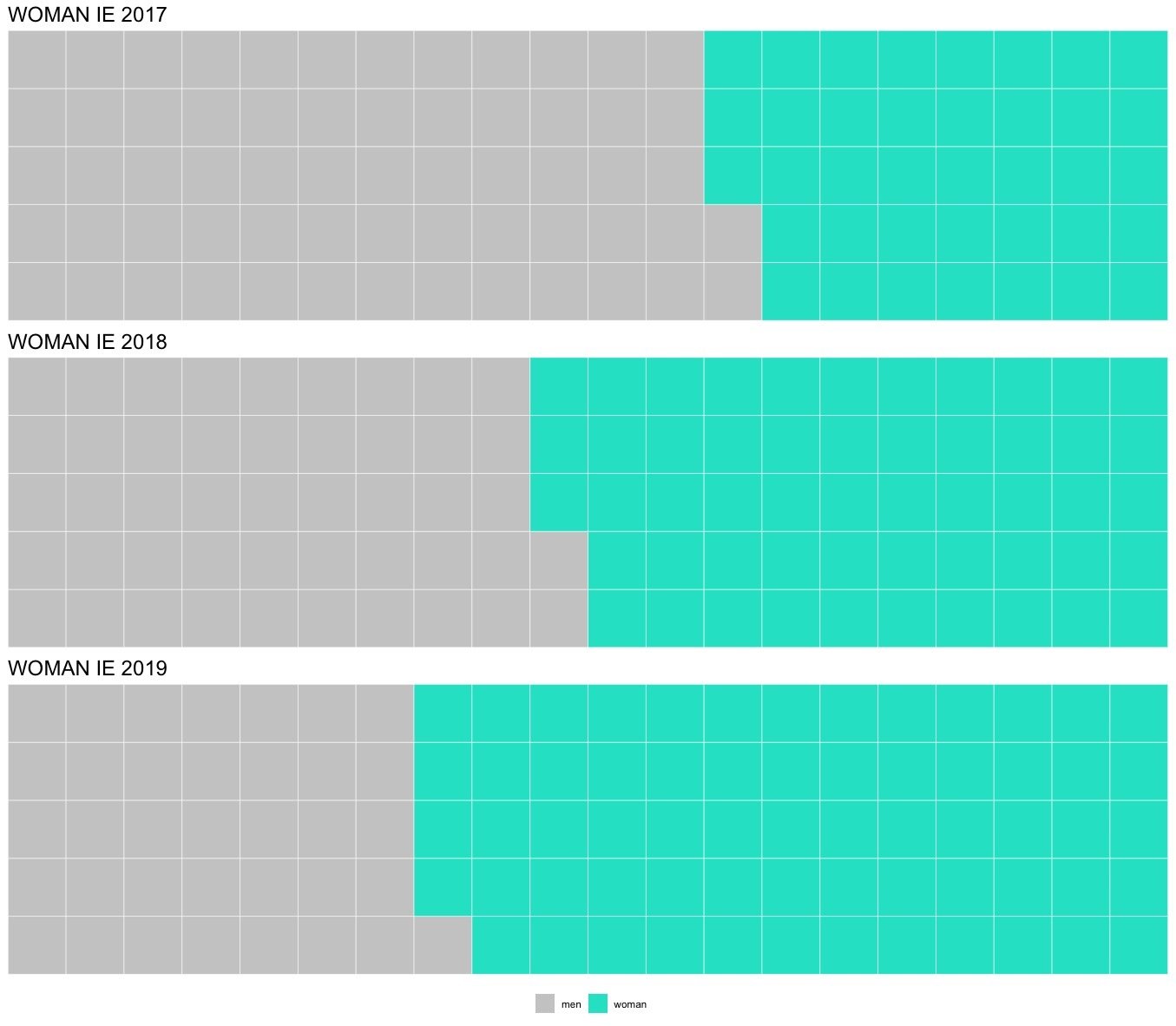

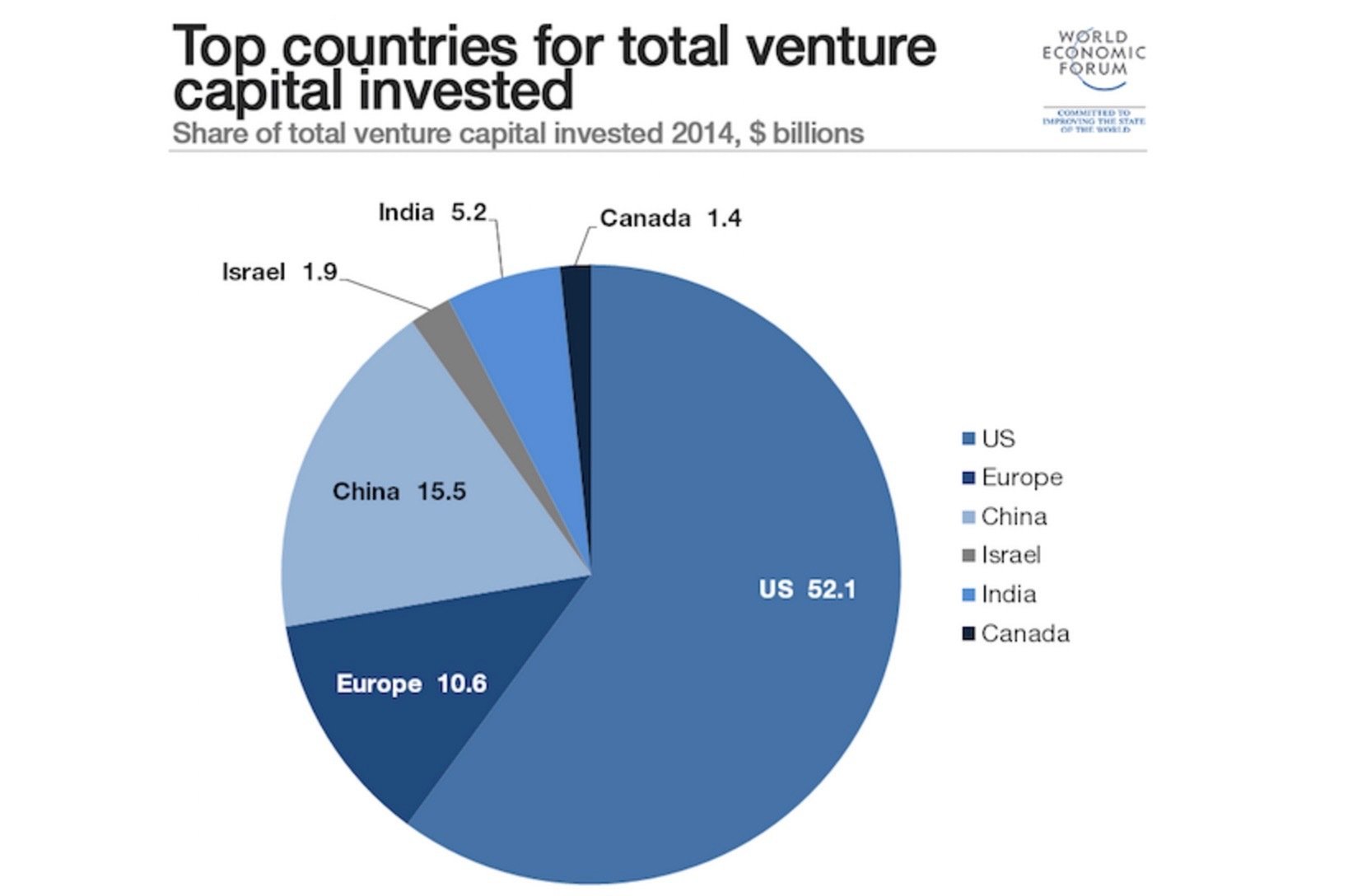

WAFFLE

NO PIE BUT A



03





03



DEFAULT



03



SMALL MULTIPLE



03



MARKDOWN

& SAVE EVERYTHING



03



RESUME OF THE EXPLORATION



03





03



INSPIRATION



03



DESIGN

VISUAL



04



HOW TO CREATE

DATAVIZ



04



DEFINE

OBJECTIVES

DATA

IDEA

RESULT



04



TOOL

EXPLORE

DESIGN

CREATE

REVIEW

TYPE

VIZUALISATION



04





04





04



1 DATASET 25 WAYS OF VISUALIZING



04



ENCODING

VISUAL



04





04



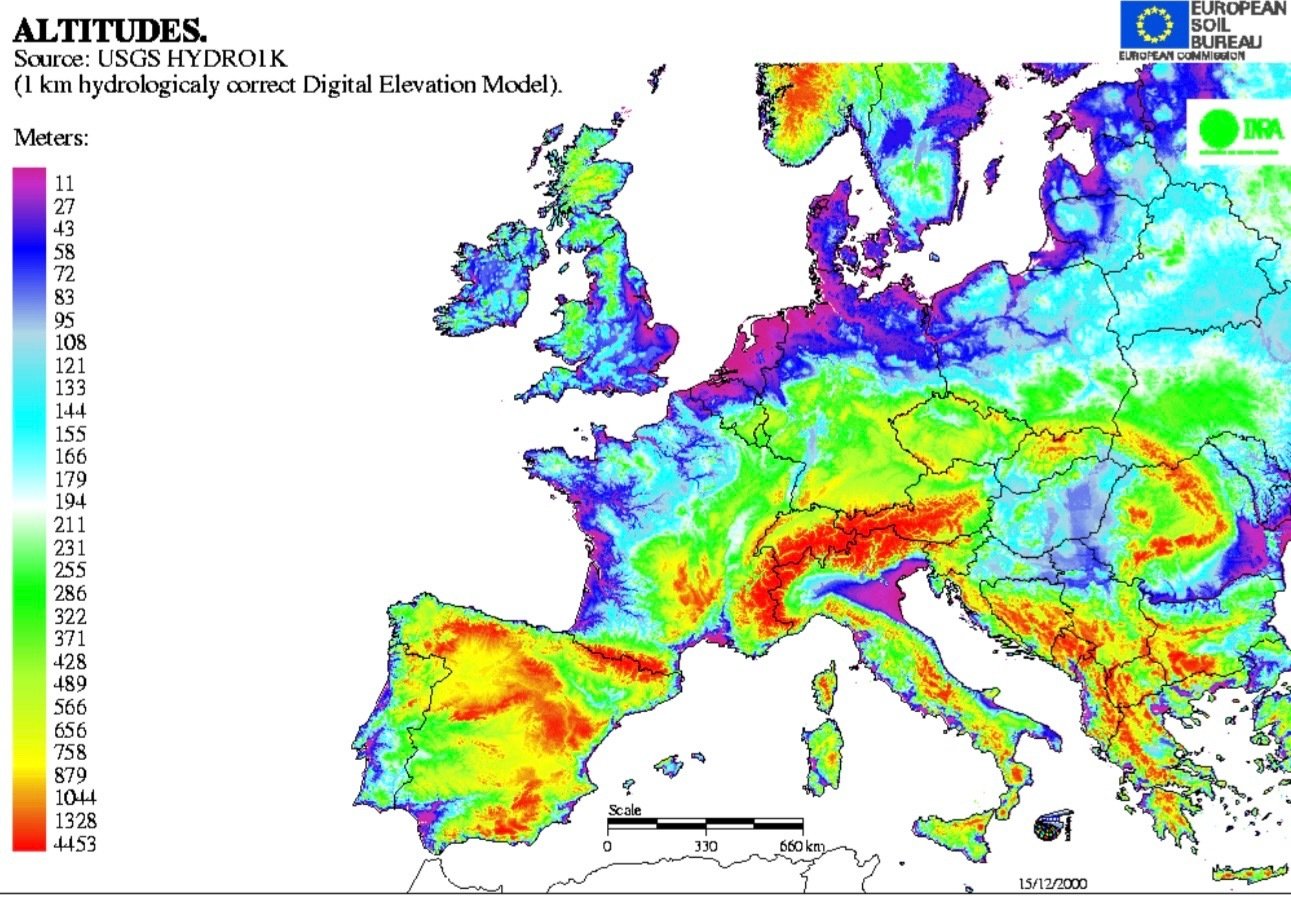

ENCODING

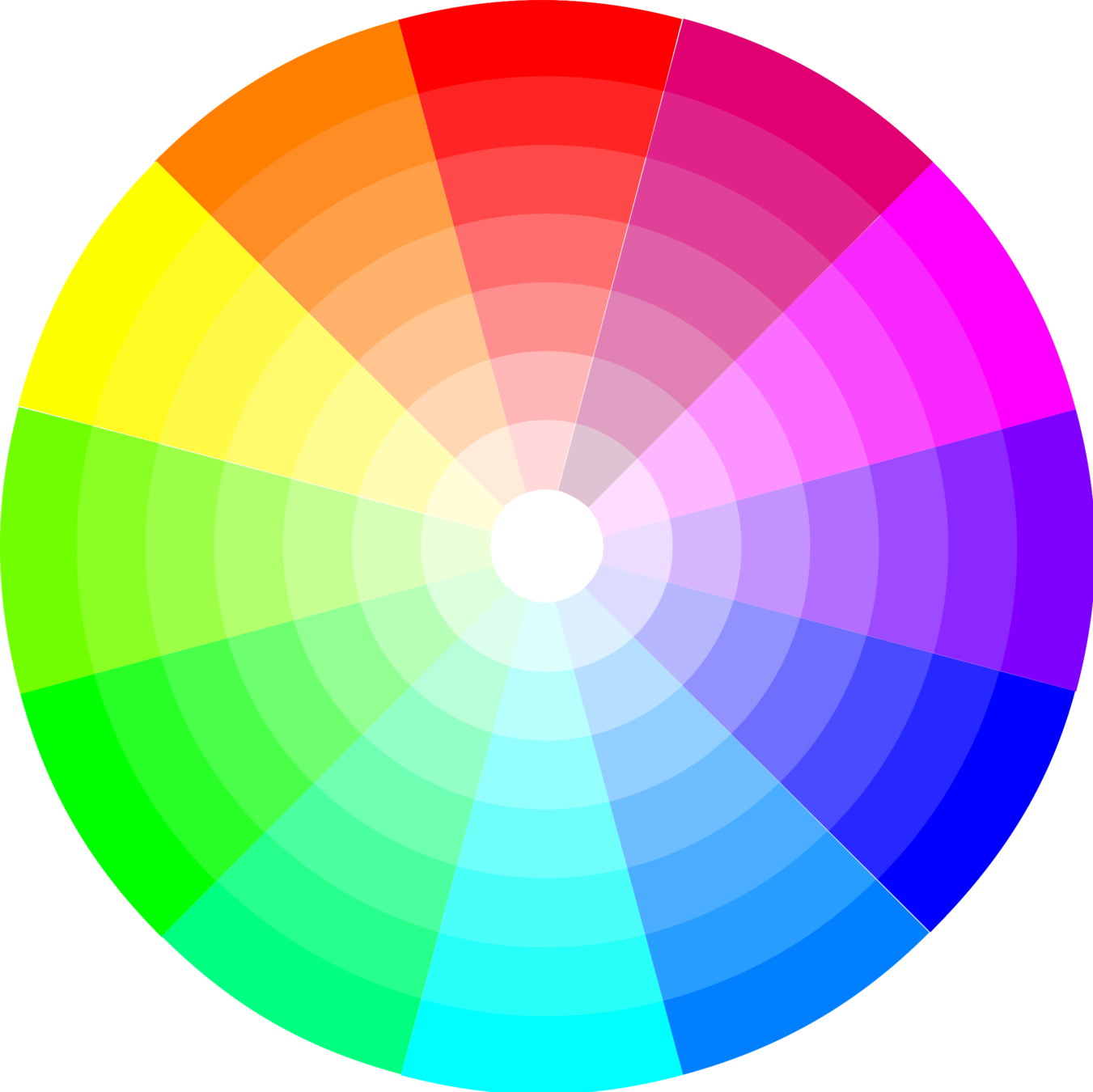

COLOR



04





04





04



DANGER | PASSION | BLOOD | LOVE | AGGRESSION



04





04





04



ENVIRONMENT | NATURE | PERMISSION



04





04



SUN | HAPPINESS | PLAYFUL



04





04



WATER | COOL | QUIETNESS | HOPE



04





04



DEATH | LUXURY | SOPHISTICATION



04





04



WEDDING | PURE | INNOCENT



04





04





04





04





04





04



ENCODING

POSITION



04





04





04





04



ENCODING

REDUNDANT



04





04





04



GOOD & BAD

VIZ



04





04



WTF

VIZ



04



VISUAL

COMPLEXITY



04



Even publications, such as NY Times, assume that people are intelligent enough to read complex prose, but too stupid to read complex graphics





04





E. TUFTE



04



NUMBER OF VISUAL ENCODINGS



04



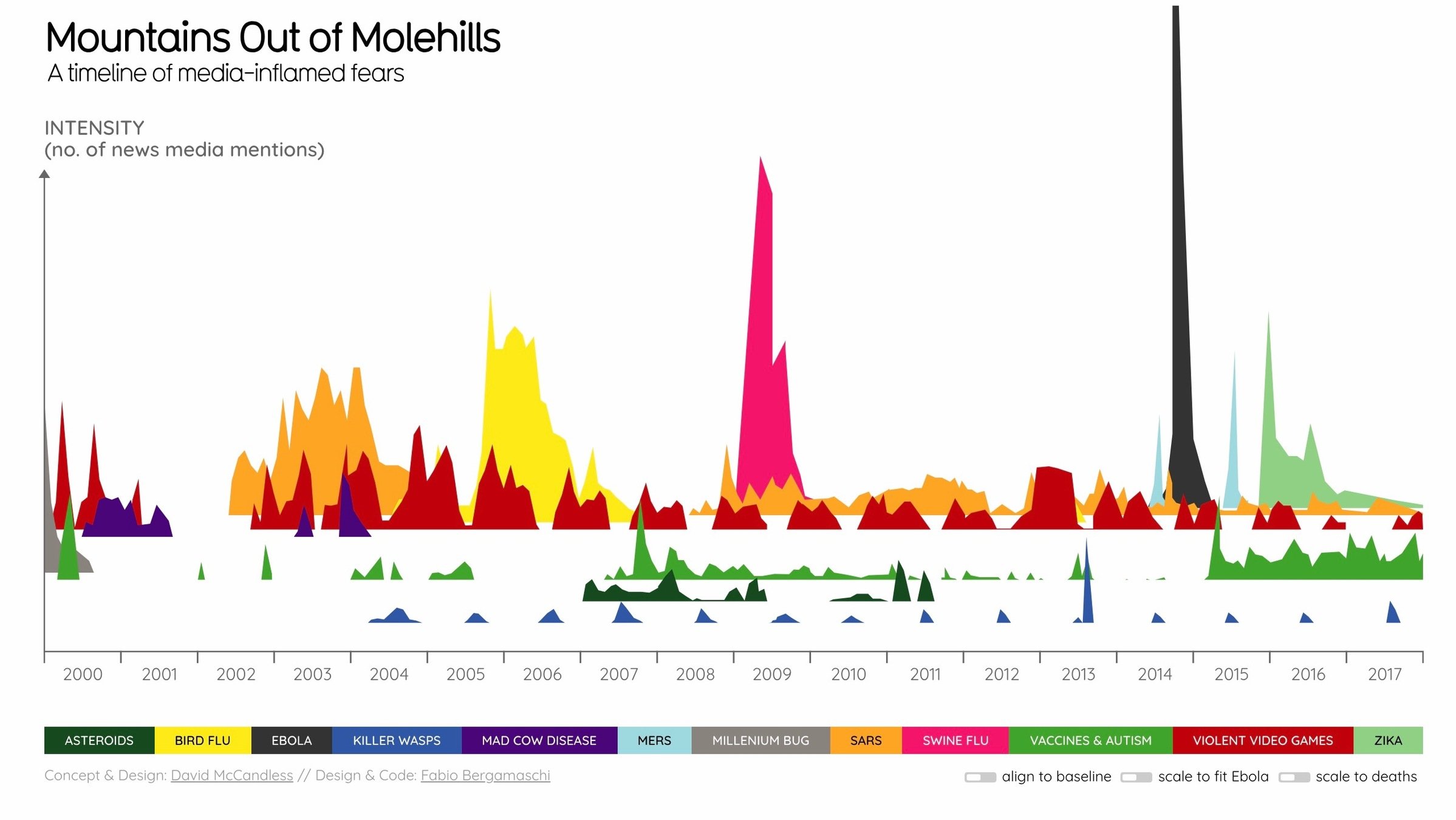

LEVEL OF INNOVATION

LEVEL OF INNOVATION



04



REVIEW

AUDIENCE



04





04



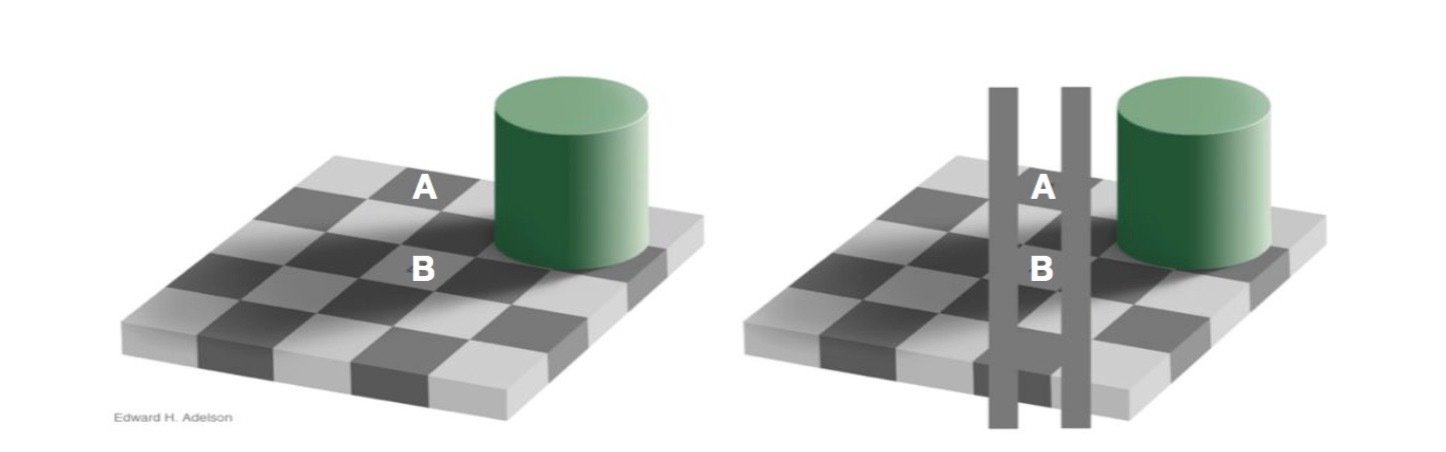

PERCEPTION

HUMAN



04



SEEING = UNDERSTNADING



04

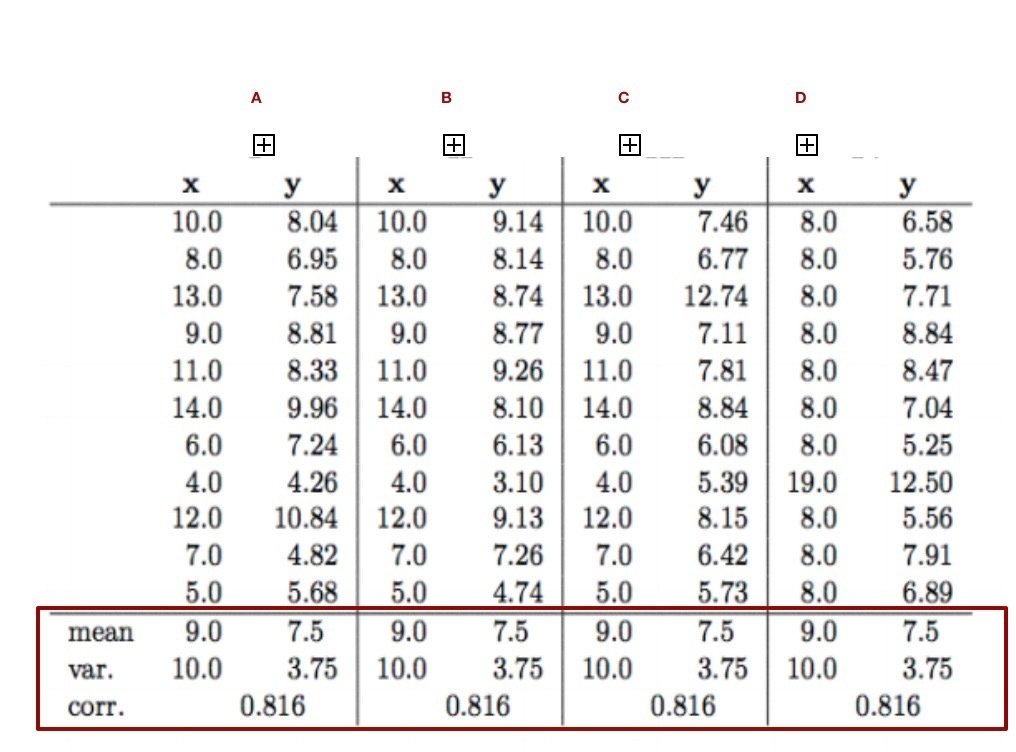

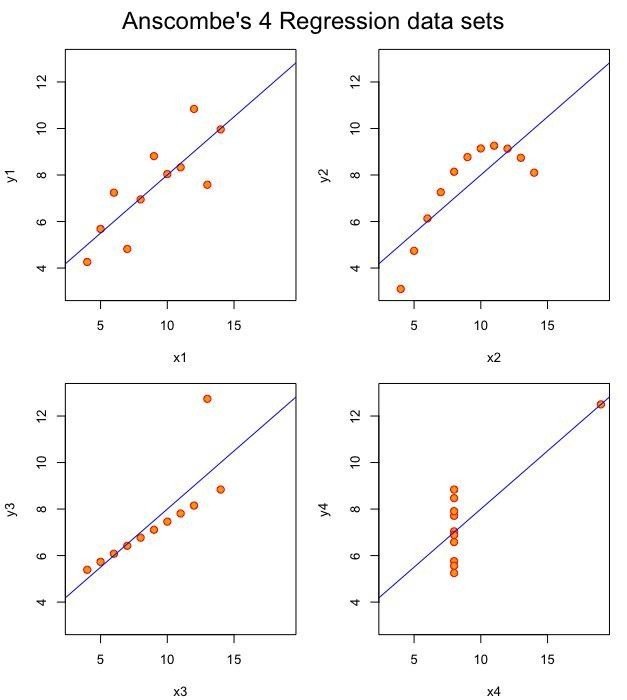

ANSCOMBES QUATRET



04



ANSCOMBES QUATRET

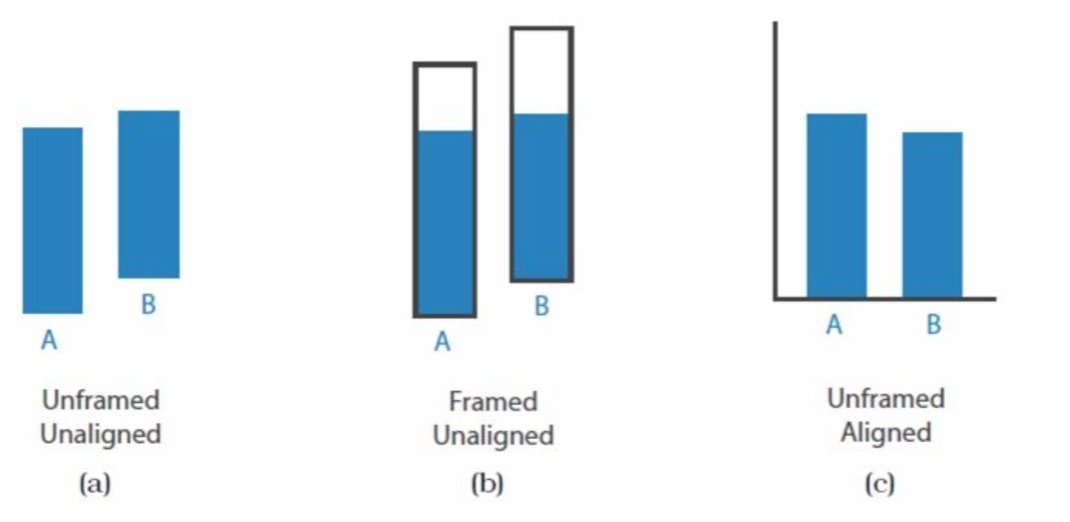

WEBER'S LAW



04





04



WEBER'S LAW



04



WEBER'S LAW



04



WEBER'S LAW



04



WEBER'S LAW

U X



04





04



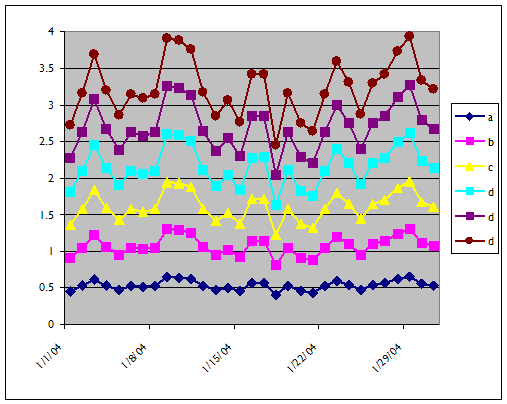

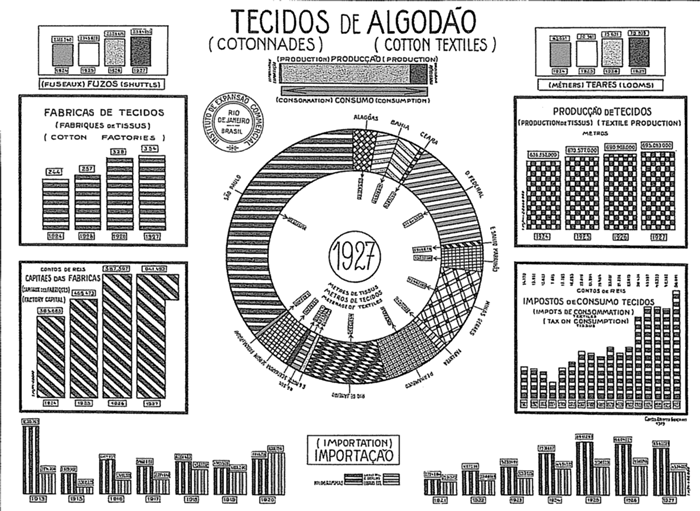

CHARTJUNK



04

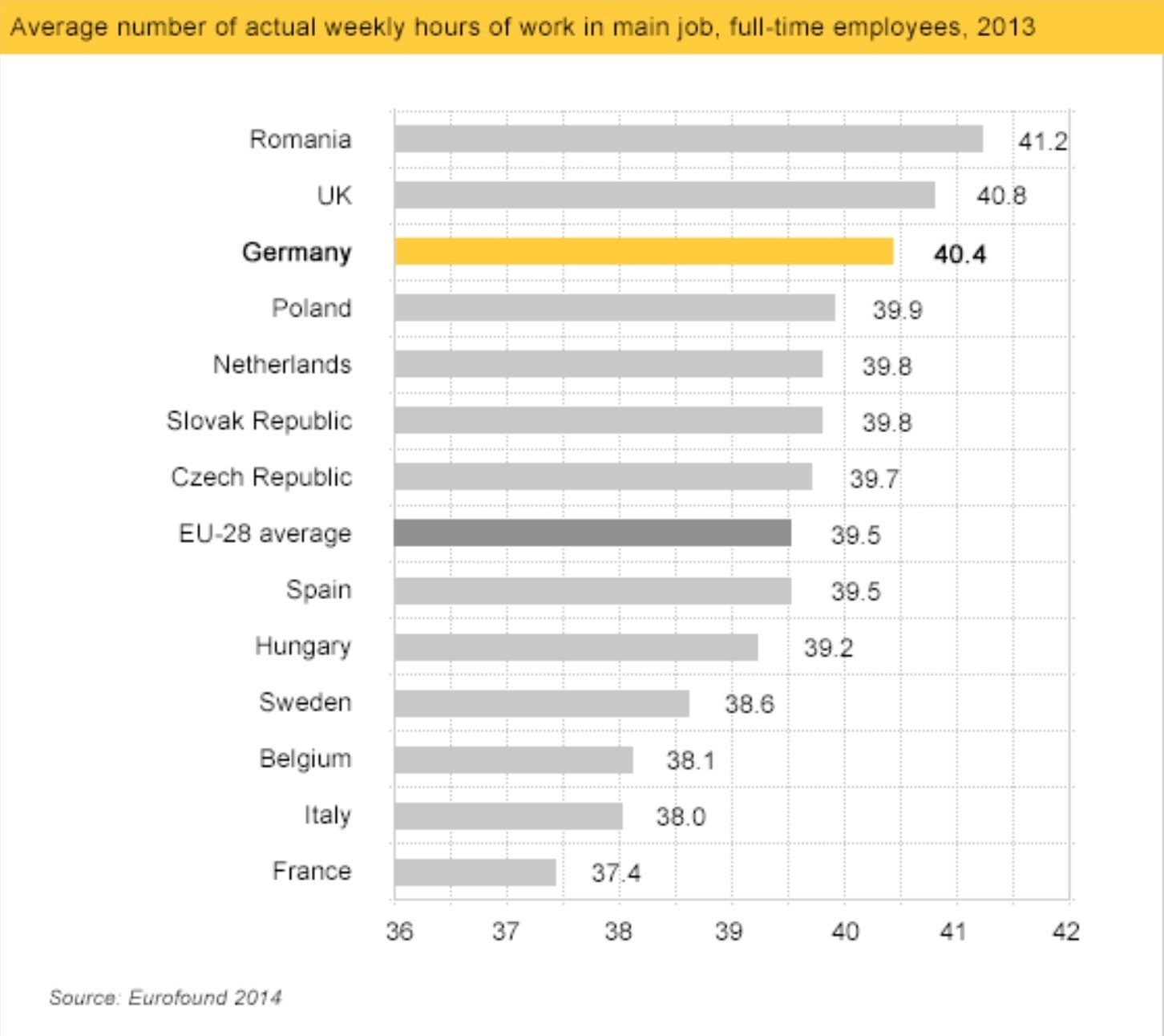

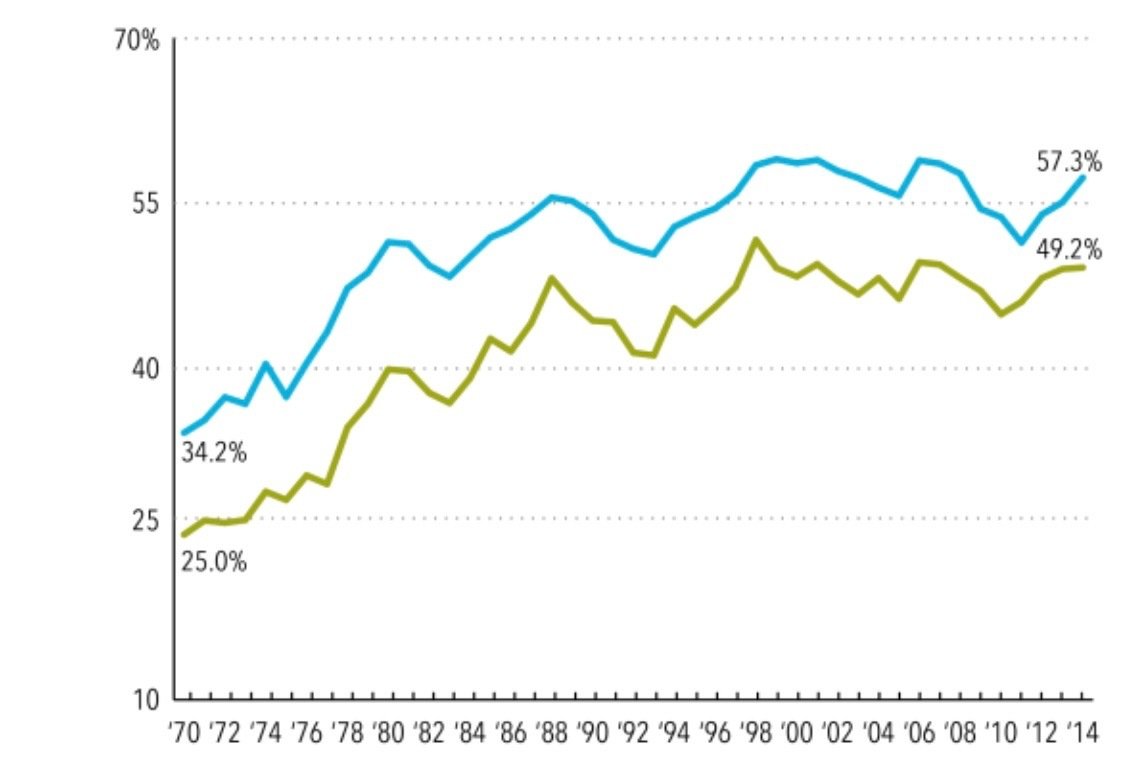

PRESENTING TRUTH

PRESENTING TRUTH



04





04



PRESENTING TRUTH

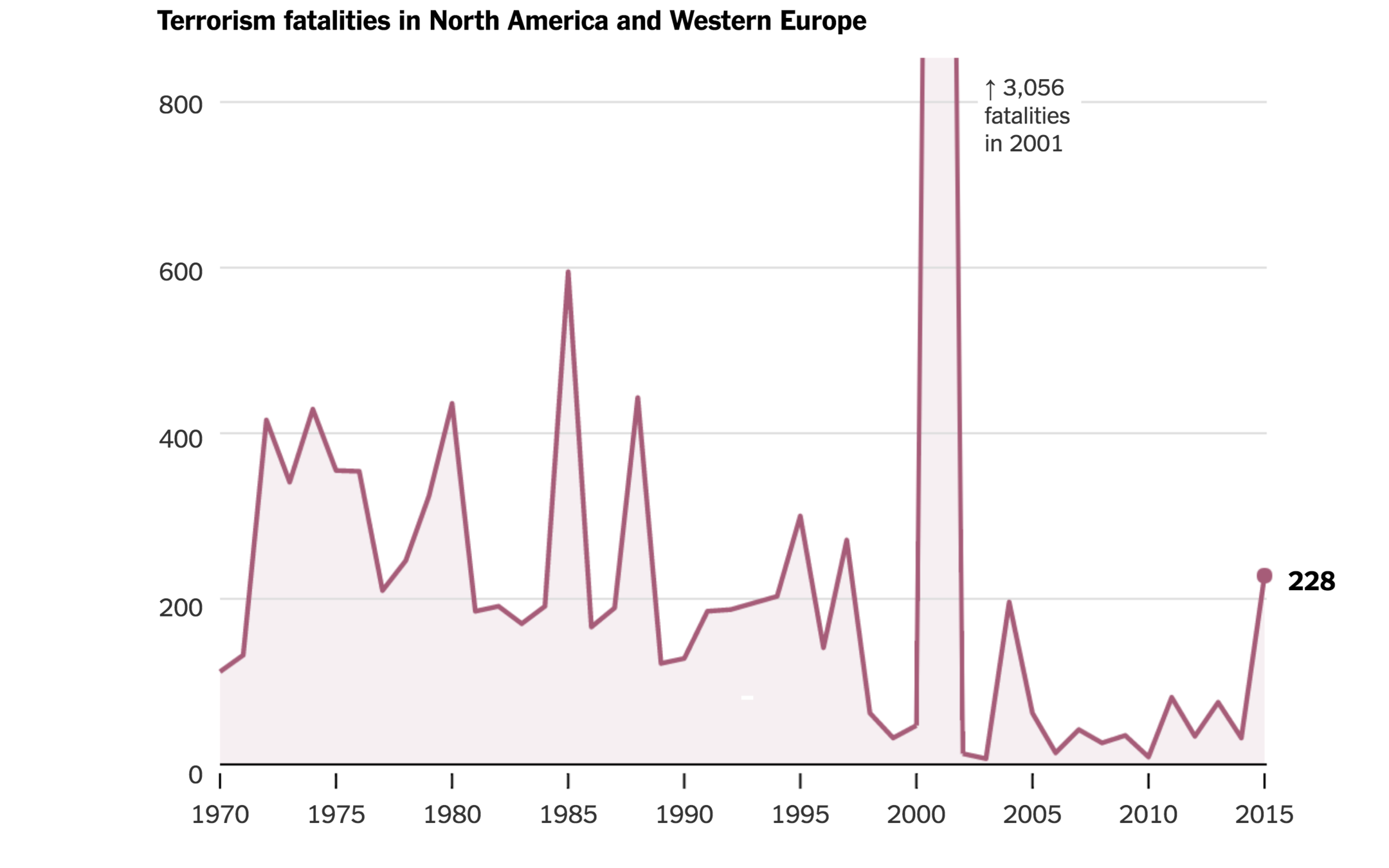

HANDELING OUTLIERS



04



HANDELING OUTLIERS



04





04



SHOW THE DATA

TELL THE TRUTH

HELP TO THINK ABOUT INFORMATION RATHER THE DESIGN

ENCOURAGE TO EYE TO COMPARE THE DATA

MAKE LARGE DATASETS COHERENT

GUIDANCE



PART 01





05



D3|JS

DYNAMIC

WHAT IS

D3 |. JS



05



EFFICIENT MANIPULATION OF DOCUMENTS BASED ON DATA





05



MIKE  BOSTOCK

TOOL

SOURCE

DEVELOPMENT

PHILOSOPHY

IDEA





05





CHARTING

OPEN

COMMUNITY

VISUAL

BRILLIANT



+

=



05





05



HOW TO LEARN



05



D3 |. JS



EXAMPLES



TUTORIALS



05





05



BLOCKBUILDER



05



JSBIN

HTML



<!-- -->

CSS



/**/

SCRIPT



// or /**/



05



COMMENTS



05



LEARNING PROCESS

WEB STANDARD

HTML



05



<html>

  <head>
    <title>My first HTML</title>
        <h1>My main title</h1>
        <h2>My top level heading</h2>
        <h3>My subheading</h3>
        <h4>My sub-subheading</h4>
  </head>

  <body>
   Heya there
  </body>

  <p>My cat is very grumpy</p>
  <p><strong>My cat is very</strong> grumpy.</p>

  <ul>
      <li>technologists</li>
      <li>thinkers</li>
      <li>builders</li>
  </ul>


</html>



05



BASICS

D3

SELECT



05



<html>


  <head>
    <script src="https://d3js.org/d3.v4.min.js"></script>
  </head>


  <body>
    <p>Hola Barcelona</p>
    <p>Como va con D3?</p>
    <p>My cat is <strong>very</strong> grumpy.</p>

    <script>
        d3.select("p")
          .style("color", "green");
    </script>
  </body>


</html>



05



TAG SELECT

<html>


  <head>
    <script src="https://d3js.org/d3.v4.min.js"></script>
  </head>

  <body>
    <p id="Hello"> Madrid</p>


    <script>
        d3.select("#Hello")
          .style("color", "green");
    </script>

  </body>


</html>



05



ID SELECT

SVG

WEB STANDARD



05





05



<html>

  <body>

  <svg width="250" height="250">
      <rect x="0"   y="0"   width="100" height="100" fill="#FF0000"></rect>
      <rect x="120" y="0"   width="100" height="100" fill="#00FF00"></rect>
      <rect x="0"   y="120" width="100" height="100" fill="#0000FF"></rect>
      <rect x="120" y="120" width="100" height="100" fill="#7837A3"></rect>
  </svg>

  </body>

</html>

SVG RECT



05





05



<html>


<head>
  <script src="https://d3js.org/d3.v4.min.js"></script>
</head>
<body>

<script>

  var width = 500;
  var height = 500;

  var svg = d3.select("body")
              .append("svg")
              .attr("width", width)
              .attr("height", height);

  svg.append("line")
     .attr("x1", 100)
     .attr("x2", 500)
     .attr("y1", 150)
     .attr("y2", 450)
     .attr("stroke", "black")

</script>

</body>


</html>

SELECT LINE



05



<html>


<head>
  <script src="https://d3js.org/d3.v4.min.js"></script>
</head>

<body>
<script>

    var width = 500;
    var height = 500;

    var svg = d3.select("body")
                .append("svg")
                .attr("width", width)
                .attr("height", height);

    svg.append("circle")
       .attr("cx", 0)
       .attr("cy", 0)
       .attr("r", 50)

</script>
</body>


</html>

SELECT CIRCLE



05



<html>


<head>
 <script src="https://d3js.org/d3.v4.min.js"></script>
</head>

<body>

<script>

   var test = d3.select("body")
                .append("svg")
                .attr("width", 500)
                .attr("height", 5000);

  test.append("rect")
      .attr("x", 10)
      .attr("y", 50)
      .attr("width", 200)
      .attr("height", 100)
      .attr("fill", "GREY")

</script>
</body>


</html>

SELECT RECT

CSS

WEB STANDARD



05





05



<html>


<head>
<style>

text {
   font-size: 2em;
  }

</style>
</head>

<body>

 <svg width="300" height="250">
  <text x="50" y="50">Hello SVG Text!</text>
 </svg>

</body>


</html>

SELECT TAG



05



<html>


<head>
<style>
      strong {
         background-color: red;
         font-size: 300%;
             }
</style>
</head>

<body>
   Hi <strong> how are you today? </strong>
</body>


</html>

SELECT TAG



05



<html>


<head>
<style>
        .important {
            font-weight: bold;
        }

        .footnote {
            font-size: 75%;
        }
</style>
</head>
<body>

<div class="important">Some text</div>
<div class="footnote">Some other text</div>
<div class="important footnote">And this is an important footnote!</div>

</body>


</html>

SELECT CLASS



05





05



<html>

<head>
<link href="https://fonts.googleapis.com/css?family=Raleway+Dots" rel="stylesheet">

<style>
 .my-text {
     font-size: 1em;
     font-family: 'Raleway Dots', cursive;
     fill:#40E0D0;
  }

body {
  background-color:black;
      }

</style>

</head>

<body>
    <svg width="1200" height="600">
      <text class="my-text" x="0" y="100">What is a visual encoding again?</text>
    </svg>
</body>

</html>

GOOGLE FONTS

VARIABLE

JS



05





05



var value = 12.3467;
console.log(value);


var active = true;
console.log("Is this really", active);


var text = "33.5";
console.log(text);


var IntoNumber = +"33.5";
console.log(IntoNumber);



05



JS

ARRAY



05





05



var Array = [ 5, 10, 15, 20, 25 ];
console.log(Array [2])


var AddArray = Array.push(5);
console.log(AddArray);


var SortArray = Array.sort((a, b) => b-a);
console.log(SortArray);


var ShortArray = Array.pop();
console.log(ShortArray);



05



JS

OBJECTIVE



05





05



var fruta = {type:"uva", color:"rojo", cantidad:12, dulce:true};
console.log(fruta);
console.log(fruta.type);

JS

FUNCTIONS



05





05



function square (x) {return x * x;}
console.log(square(5));


let myNumbers = [1, 2, 3, 4];
myNumbers = myNumbers.map(function(d){return d*2;});
console.log(myNumbers);


function numberFunction(myNumber) {
if (myNumber < 10) {return myNumber;} else {return myNumber * myNumber;}}
console.log(numberFunction(30));

DYNAMIC

D3|JS



06





PART 02





06



LIBRARY

CONNECTING



06



ONLINE

<html>

<script src="//d3js.org/d3.v3.min.js"></script>
<script src="//cdnjs.cloudflare.com/ajax/libs/d3/3.5.5/d3.min.js"></script>

</html>

D3

SELECTIONS



06





06



SELECTIONS

D3

DATA      BINDING



06





06



DATA BINDING

D3

DATA      LOADING



06





06



DATA LOADING



06



D3

SCALING



06



d3.scale.linear().domain([500000,13000000]).range([0, 500]);



06





06



SCALING



06



SCALED CRICLES



06



d3.scale.linear().domain([500000,13000000]).range(["blue","red"]);



06





06



COLOR SCALE

var sampleArray = [423,124,66,424,58,10,900,44,1];
d3.scale.quantile().domain(sampleArray).range([0,1,2]);



06



D3

AXIS



06





06



<script>

var width = 400,
    height = 100;

var data = [10, 15, 20, 25, 30];


var svg = d3.select("body")
            .append("svg")
            .attr("width", width)
            .attr("height", height);

var scale = d3.scaleLinear()
              .domain([d3.min(data), d3.max(data)])
              .range([0, width - 40]);

var x_axis = d3.axisBottom()
               .scale(scale);

svg.append("g")
   .call(x_axis);

</script>
















AXIS



06



AXIS

MARGIN

CONVENTION



06





06



MARGIN CONVENTION



01 DEFINE THE MARGIN OBJECT

02 WIDTH AND HEIGHT

03 SVG CONTAINER AS GROUP ELEMENTS BASED ON THE MARGINS



MARGIN CONVENTION



06



D3

BAR    CHART



06





06



<script>

d3.scaleBand()
  .domain(d3.range(data.length))
  .rangeRound([0, width])
  .paddingInner(0.05);

</script>
































SCALEBAND



06



SORTED



06



<style>

.bar {
  fill: #f20675;
  fill-opacity:0.6;
  stroke-width: 0.2px;
  stroke:#f20675;
}

.bar:hover {
  fill: #1ce3cd;
  fill-opacity:0.6;
}

</style>

























CSS HOVER



06



HOVER



06



<script>

var bar = svg.selectAll("g")
             .data(data).enter().append("g")
             .attr("transform",(d,i)=>"translate(10,"+i*20+")");

bar.append("rect")
   .attr("width",d=> x(d.Value))
   .attr("height", 18)
   .attr("class", "bars");

bar.append("text")
   .attr("x",-30)
   .attr("y", 18/2)
   .attr("dy", ".34em")
   .text(d=> d.LOCATION);

</script>






















AS GROUP ELEMENT



06



VERTICAL



06



<script>

svg.append("g")
   .attr("class", "x-axis")
   .attr("transform", "translate(0,"+height+")")
   .call(xAxis)
   .selectAll("text")
   .attr("y", 6)
   .attr("x", 0)
   .attr("transform", "rotate(35)")
   .style("text-anchor", "start");


var color = d3.scaleLinear()
              .domain([d3.min(data,d=> d.Value), d3.max(data,d=> d.Value)])
              .range(['#1ce3cd', '#f20675'])

svg.selectAll('rect')
   .data(data).enter()
   .append('rect')
   .style('fill',(d)=> color(d.Value))
   .attr('width', x.bandwidth())
   .attr('x',(d)=> x(d.LOCATION))
   .attr("y",d=> y(d.Value))
   .attr("height",d=> height-y(d.Value))

</script>













COLOR SCALE



06



COLOR SCALE



06



<script>

svg.selectAll('rect')
   .data(data).enter()
   .append('rect')
   .attr('class', 'bar')
   .attr("x", d => x(d.LOCATION))
   .attr("width", x.bandwidth())
   .attr("y",d=>{if(+d.Value<0){return height/2;}else{return y(+d.Value);}})
   .attr("height",d=> height/2-y(Math.abs(+d.Value)))
   .attr("fill",d=>{if(+d.Value>=0){return color(d.Value);}else{return color2(d.Value);}})});

</script>



























IF STATEMENT



06



NEGATIVE SCALE

D3

SCATTER     PLOT



06





06



<script>

var xAxis = d3.axisBottom().scale(x).ticks(5);

var yAxis = d3.axisLeft().scale(y).ticks(5);

svg.selectAll("circle")
	 .data(data)
	 .enter()
	 .append("circle")
	 .attr("cx",d=> x(d[0]))
	 .attr("cy",d=> y(d[1]))
	 .attr("r", 15);

svg.append("g")
	 .attr("class", "x-axis")
	 .attr("transform", "translate(0," + (height - 20) + ")")
	 .call(xAxis);

svg.append("g")
	 .attr("class", "y-axis")
	 .attr("transform", "translate(" + 20 + ",0)")
	 .call(yAxis);

</script>















USING CIRCLES



06



WITH AXIS



06



<script>

var rMin = 2;
var rMax = 12;
var xColumn = "sepal_length";
var yColumn = "petal_length";
var rColumn = "sepal_width";
var colorColumn = "species";

var circles = svg.selectAll("circle")
                 .data(data).enter().append("circle")
                 .attr("class", "circle")
                 .attr("cx",d=> x(d[xColumn]))
                 .attr("cy",d=> y(d[yColumn]))
                 .attr("r",d=>  r(d[rColumn]))
                 .attr("fill",d=> color(d[colorColumn]))
                 .attr("stroke",d=> color(d[colorColumn]));

</script>





















GLOBAL VARIABLES



06



COLOR& SIZE SCALE

DYNAMIC

D3|JS



PART 03





07



WHY

ANIMATE



07





07





07





07



D3

TRANSITIONS



07



<script>

  d3.select("body")
    .transition()
    .duration(2000)
    .delay(1000)
    .style("background-color", "red");

</script>































SIMPLE



07



.ease()



07



<script>

svg.selectAll("circle")
   .data(data)
   .enter()
   .append("circle")
   .style({fill:"#f20675"})
   .transition()
   .duration(2000)
   .ease("bounce")
   .style({fill:"#1ce3cd"})
   .attr("cx",(d,i)=>i*80)
   .attr("r",(d,i)=>d*2)
   .attr("cy","10%");

</script>


























07



COMPLETE



07



ANIMATED CIRCLES

ANIMATED

BAR      CHART



07



<script>

svg.selectAll(".bar")
   .data(data)
   .enter()
   .append("rect")
   .attr("class", "bar")
   .attr("x",d=>x(d.letter))
   .attr("width", x.rangeBand())
   .attr("y", 470)
   .attr("height",d=>height-470)
   .transition().duration(1000)
   .attr("y",d=>y(d.frequency))
   .attr("height",d=>height-y(d.frequency));

</script>


























07



HEIGHT



07



BARS WITH ANIMATED HEIGHT

<script>

svg.selectAll('rect')
   .data(data)
   .enter()
   .append('rect')
   .attr('class', 'bar')
   .attr("x", d=> x(d.LOCATION))
   .attr("width", x.bandwidth())
   .attr("y",d=> height)
   .attr("height",0)
   .transition()
   .duration(600)
   .delay((d,i)=> i*200)
   .attr("y",d=> y(d.Value))
   .attr("height",d=> height-y(d.Value));

</script>
























07



DELAY



07



SEQUENCE ANIMATION

<script>

d3.select("#start")
  .on("click", function() {

rect
  .transition()
  .attr("x", 30)
  .attr("y", 30)
  .attr("width", 50)
  .attr("height", 50)
  .attr("fill", "#1ce3cd")

});

</script>


























07



CLICK FUNCTION



07



BY CLICK

<script>

d3.select("#start")
  .on("click", function() {

data = [11, 12, 15, 20, 18, 17, 16, 18, 23, 25, 5, 10, 13, 19, 21, 25, 22, 18, 15, 13];

svg.selectAll("rect")
   .data(data)
   .transition()
   .ease(d3.easeLinear)
   .duration(1500)
   .delay(100)
   .attr("y",d=> y(d))
   .attr("height", d => height - y(d));

svg.selectAll("text")
   .data(data)
   .transition()
   .ease(d3.easeLinear)
   .duration(1500)
   .delay(100)
   .text(d=> d)
   .attr("x",(d,i)=> x(i) + x.bandwidth() / 2)
   .attr("y",d=> y(d) + 14);

});

</script>


















07



NEW DATA



07



BY CLICK ANIMATED BAR CHART



07



BY CLICK NEW DATASET



07



BY CLICK NEW DATASET NEGATIVE SCALE

ANIMATED

SCATTER     PLOT



07





07



BY CLICK ANIMATED SCATTER PLOT



07



BY CLICK ANIMATED SCATTER PLOT

D3

NEST



07



D3

GENERATORS



07



LINE

CHART



07





07



SIMPLE LINE CHART



07



LINE CHART HIGHLIGHTED



07



SVG ANIMATION



07



UPDATE BY CLICK



07



START BY CLICK



07



REALTIME ANIMATION



07



AREA

CHART



07





07





07





07



DYNAMIC

D3|JS



08





PART 04



WHY

INTERACT



08



NAVIGATE

IDENTIFY

COMPARE

REDUCE



08





08





08



D3

EVENT



08



<script>

var tt = d3.select("body")
           .append("div")
		   .attr("class", "tooltip")
           .style("position", "absolute")
           .text("yuhu tooltip");


d3.select("svg")
  .append("circle")
  .attr("class", "circle")
  .attr("r", 200)
  .attr("cx", 300)
  .attr("cy",300)
  .on("mouseover",()=> tt.style("visibility", "visible"))
  .on("mousemove",()=> tt.style("top", (event.pageY+10)+"px")
  .style("left",(event.pageX+10)+"px"))
  .on("mouseout",()=> tt.style("visibility", "hidden"));

</script>
























TOOLTIP



08





08





08



MOUSEOVER



08



MOUSEOVER WITH LABLE

SMALL

MULTIPLE



08





08



AREA CHART



08



AREA CHART



08



HISTOGRAM



08



RIDGED CHART



08



SMALL MULTIPLE LINE CHART



08



SETUP

OFFLINE



08





D3.V3





D3.V4





D3.V5



VERSIONS



08



LOCALHOST



08





python -m SimpleHTTPServer





WORKING OFFLINE



DOWNLOAD THE LIBARY/IES

MOVE THE LIBARY INTO YOUR WORKING FOLDER

CONNECT TO A LOCALHOST





08



ADVANCED

VISUALIZATIONS



08





08



HEXBIN

CHART



08



"IT VISUALLY CLUSTERS THE MOST POPULAR AREAS ON A SCATTERPLOT BY USING A CONTINUOUS COLOR OR SIZE SCALE



08





08



RAW



08





08



BEESWARM

CHART



08



IT DISTRIBUTES ELEMENTS HORIZONTALLY AVOIDING OVERLAP BETWEEN THEM AND ACCORDING TO A SELECTED DIMENSION







08





08



RAW



08





08





08





08



HORIZON

CHART



08



IT COMBINES POSITION AND COLOR TO REDUCE VERTICAL SPACE









08





08



RAW



08



LOCATION

CARTO



09





PART 01





09



WHAT IS

CARTO

VISUALIZE ANALYSE VISUALIZE ANALYSE VISUALIZE ANALYSE VISUALIZE

VISUALIZE ANALYSE VISUALIZE ANALYSE VISUALIZE

VISUALIZE ANALYSE VISUALIZE ANALYSE

VISUALIZE ANALYSE VISUALIZE

VISUALIZE ANALYSE

VISUALIZE

STOP!







09





09



HOW TO DEAL WITH

BIG       DATASET



09



AGGREGATE

FILTER

STYLE

HEXAGONAL BINNING & CLUSTERING

EXTREM & TARGET GROUP

SIZE & OPACITY



09



STYLE BY VALUE



09



AGGREGATION

HEXBIN



09



HEXAGONAL BINNING



09



EXTREM GROUP

FILTER



09



FILTER ON HIGH RISK



09



CREATE SPECIFIC STYLING
