Shamel Fahmi, Michele Focchi, Andreea Radulescu, Geoff Fink, Victor Barasuol and Claudio Semini
Dynamic Legged Systems (DLS) lab, Istituto Italiano di Tecnologia (IIT)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1171535/images/7371545/ICRA_2020_logo-flat-hd.png)
STANCE
Locomotion Adaptation over Soft Terrain
ICRA 2020
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1171535/images/6917088/AdobeStock_119482893.jpeg)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1171535/images/6917088/AdobeStock_119482893.jpeg)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1171535/images/6917052/pasted-from-clipboard.png)
taken from Andrea del Prete, 2019
Shamel Fahmi
-
Most WBCs are not terrain aware. They fail to generalize beyond rigid terrain.
-
Soft terrain locomotion by itself is difficult because of the induced contact dynamics
-
Mismatch between what the WBC assumes vs. what is actually happening
Shamel Fahmi
-
Drop the assumption of the rigid terrain. Use a more generic model that accounts for the terrain impedance
-
But that’s not enough, how do you know the impedance parameters of the terrain.
-
Hmm, estimate it?
Shamel Fahmi
Shamel Fahmi
Soft Terrain Adaptation aNd Compliance Estimation
(STANCE)
Shamel Fahmi
-
The Standard WBC (sWBC) framework:
- Locomotion Planner
- State Estimator
- WBC
- Low-level Control
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1171535/images/7356140/all.png)
Shamel Fahmi
-
Execute the planned trajectories of the body and swinging leg(s) (a.k.a control tasks)
Goals:
-
Keep the robot balanced
-
Consistent contact forces and accelerations with the dynamics
-
Respect the robot's dynamics and actuation limits
-
Respect the contact interaction constraints
Maintain contact consistency
1. Control Tasks Tracking
2. Physical Consistency
3. Joint & Torque Limits
4. Friction Constraints
5. Unilaterality Constraints
6. Stance Task
-
Casted as an optimization problem via Quadratic Programming (QP)
-
Mapped using inverse dynamics
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1171535/images/7356140/all.png)
Shamel Fahmi
6. Stance Task
5. Unilaterality Constraints
4. Friction Constraints
3. Joint & Torque Limits
2. Physical Consistency
1. Control Tasks Tracking
Goals:
Shamel Fahmi
-
Using the KV model
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1171535/images/6917239/pasted-from-clipboard.png)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1171535/images/6917251/pasted-from-clipboard.png)
-
The stance task does not hold anymore
-
Compliant contact consistent (c3)
-
Soft contact dynamics must be taken into account
-
c3 Stance Task
Shamel Fahmi
Shamel Fahmi
-
Estimate the terrain parameters online
-
Based on the current measurements (states)
-
Decoupled from the C3WBC but uses the same contact model
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1171535/images/7356140/all.png)
Shamel Fahmi
Shamel Fahmi
Shamel Fahmi
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1171535/images/7373657/g28460.png)
Shamel Fahmi
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1171535/images/7373637/Screenshot_from_2020-05-18_11-17-33.png)
Shamel Fahmi
-
Unlike previous work on WBC, we do not assume that the ground is rigid.
-
Adapt online to any type of terrain compliance
-
C3WBC
-
Extends the sWBC but incorporating soft contact dynamics
-
C3WBC can adapt to the given terrain compliance
-
-
TCE
-
Estimate the terrain compliance online
-
Not computationally expensive
-
Shamel Fahmi
-

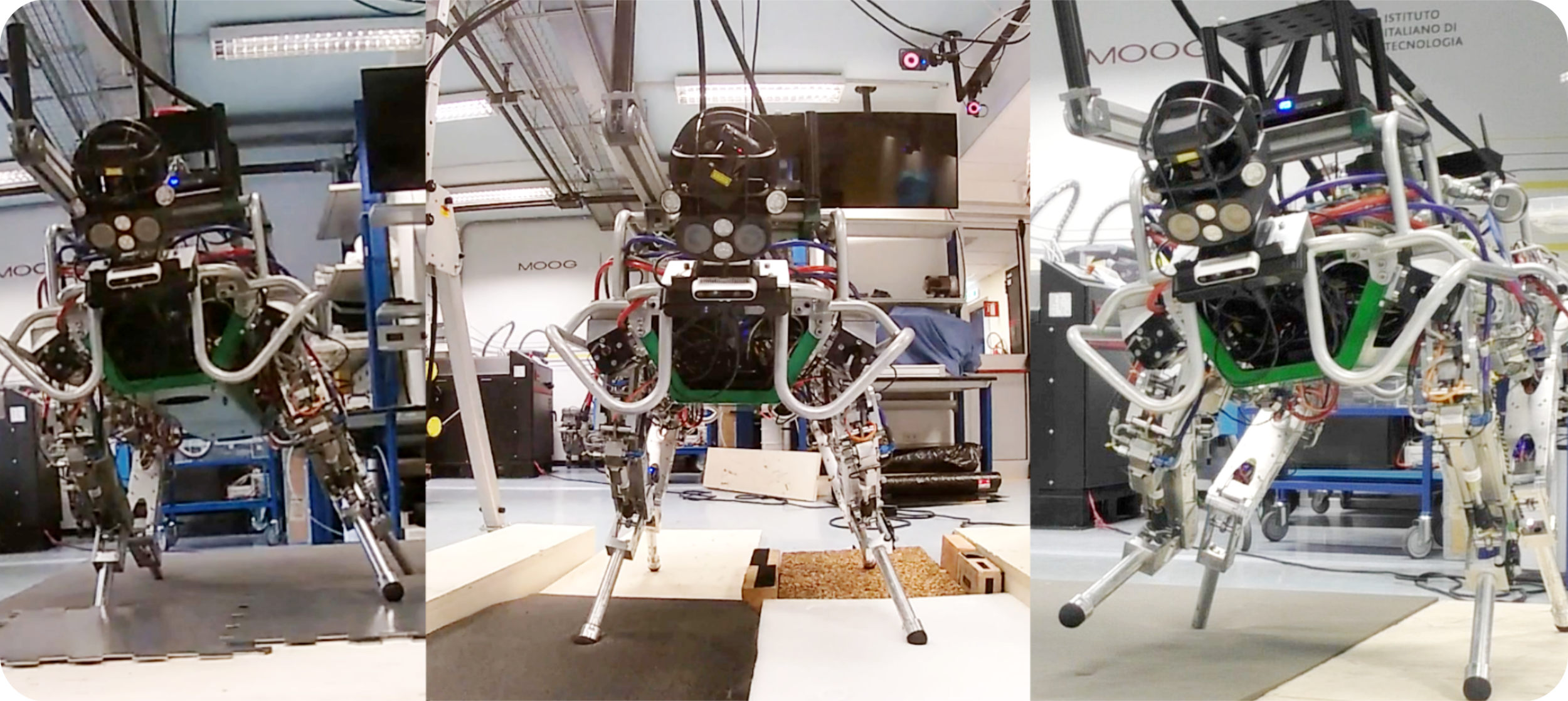

With STANCE, HyQ can traverse and transition between multiple terrains with different compliance without pre-tuning.
-
STANCE makes the locomotion strategy c3. It allowed HyQ to remain consistent with ground, and thus more robust in challenging and scenarios.
-
Each leg independently senses and adapts to changes in terrain compliance.
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1171535/images/7362685/shamel_low.jpg)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1171535/images/7362684/victor_crop.jpg)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1171535/images/7362682/michele_crop.jpg)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1171535/images/7362681/claudio_crop.jpg)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1171535/images/7362680/andreea_crop.jpg)
