RO-Crate

A lightweight approach to Research Object data packaging

Eoghan Ó Carragáin, Carole Goble,
Peter Sefton, Stian Soiland-Reyes

eScience lab, The University of Manchester

BOSC 2019, Basel, CH

2019-07-24


This work is licensed under a
Creative Commons Attribution 4.0 International License.

researchobject.org

@soilandreyes

https://orcid.org/0000-0001-9842-9718
https://slides.com/soilandreyes/

Abstract: https://doi.org/10.5281/zenodo.3250687

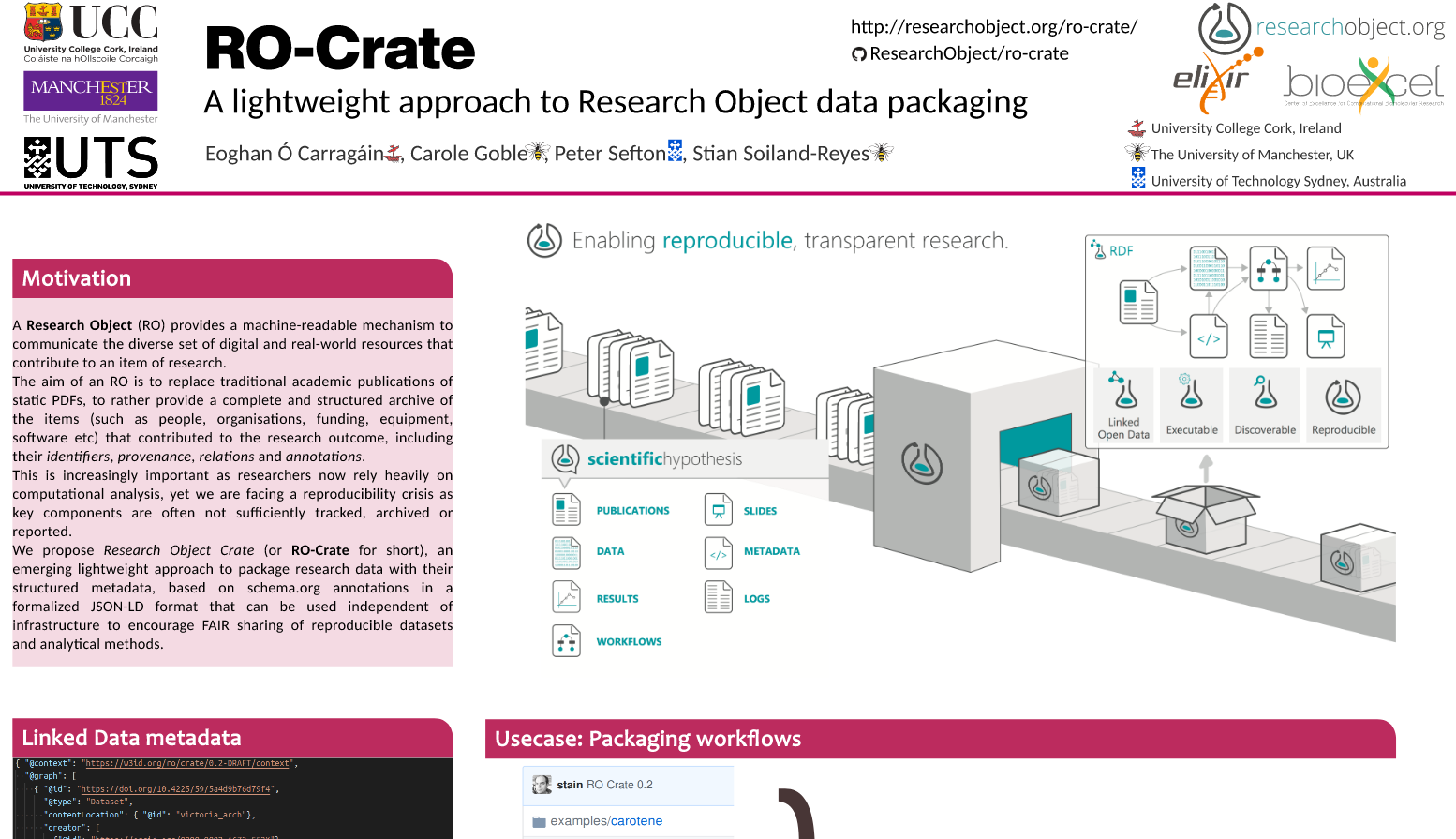

Poster: https://doi.org/10.5281/zenodo.3343031

https://doi.org/10.1038/sdata.2016.18

Findable

Accessible

Interoperable

Reusable

https://doi.org/10.1038/sdata.2016.18

F1. (meta)data are assigned a globally unique and persistent identifier



F2. data are described with rich metadata (defined by R1 below)



F3. metadata clearly and explicitly include the identifier of the data it describes



F4. (meta)data are registered or indexed in a searchable resource



To be Findable:

https://doi.org/10.1038/sdata.2016.18

A1. (meta)data are retrievable by their identifier using a
    standardized communications protocol


  A1.1 the protocol is open, free, and universally implementable


  A1.2 the protocol allows for an authentication and authorization
           procedure, where necessary



A2. metadata are accessible, even when the data are no longer available

To be Accessible:

https://doi.org/10.1038/sdata.2016.18

I1. (meta)data use a formal, accessible, shared, and
    broadly applicable language for knowledge representation.



I2. (meta)data use vocabularies that follow FAIR principles



I3. (meta)data include qualified references to other (meta)data

To be Interoperable:

https://doi.org/10.1038/sdata.2016.18

R1. meta(data) are richly described with a plurality of
    accurate and relevant attributes



  R1.1. (meta)data are released with a clear and accessible data usage license


  R1.2. (meta)data are associated with detailed provenance



  R1.3. (meta)data meet domain-relevant community standards

To be Reusable:

https://doi.org/10.1038/d41586-019-01307-2

They ride with what I refer to as the four horsemen of the reproducibility apocalypse:
  1. Publication bias
  2. Low statistical power
  3. P-value hacking
  4. HARKing (hypothesizing after results are known)





https://doi.org/10.1038/s41586-019-0965-1

State of art in reproducibility

Reproducibility?

http://researchobject.org/ro-crate/

https://www.w3.org/TR/json-ld/

https://json-ld.org/

https://doi.org/10.4225/59/5a4d9b76d79f4
https://data.research.uts.edu.au/examples/ro-crate/0.2/Victoria_Arch_pub/

https://doi.org/10.4225/59/5a4d9b76d79f4
https://data.research.uts.edu.au/examples/ro-crate/0.2/Victoria_Arch_pub/

{
  "@context": "https://w3id.org/ro/crate/0.2-DRAFT/context",
  "@graph": [
    {
      "@id": "https://dx.doi.org/10.4225/59/5a4d9b76d79f4",
      "@type": "Dataset",
      "contactPoint": {
        "@id": "mike.lake@uts.edu.au"
      },
      "contentLocation": {
        "@id": "victoria_arch"
      },
      "path": "./",
      "creator": [
        { "@id": "http://orcid.org/0000-0002-1672-552X" },
        { "@id": "http://orcid.org/0000-0003-4953-0830" },
        { "@id": "#LukasKaul" }
      ],
      "datePublished": "2017-10-01",
      "description": "This data is part of a project by Michael Lake and supported by the Australian Speleological Federation. Data was acquired at Wombeyan Caves by Robert Zlot in January 2014 using the Zebedee 3D Mapping System developed by CSIRO.",
      "hasPart": [
        { "@id": "data/README.txt" },
        { "@id": "data/CSIRO_Wombeyan_Caves_Data.txt" },
        { "@id": "data/LICENSE.txt" },
        { "@id": "data/wcc02_arch_traj2.ply" },
        { "@id": "data/wcr03_victoria_arch_traj.txt" },
        { "@id": "data/wcr03_victoria_arch.laz" },
        { "@id": "data/wcr03_victoria_arch_3cm_shape.ply" },
        { "@id": "data/wcr03_victoria_arch_traj2.ply" },
        { "@id": "data/wcc02_arch.laz" },
        { "@id": "data/victoria_arch_V.ply" },
        { "@id": "data/wcc08_archencentre2_9pct.ply" },
        { "@id": "data/wcc04_archentrance_9pct.ply" },
        { "@id": "data/wcc02_arch_9pct.ply" },
        { "@id": "data/wcc08_archencentre2.laz" },
        { "@id": "data/wcc04_archentrance_traj.txt" },
        { "@id": "data/wcc02_arch_traj.txt" },
        { "@id": "data/wcc04_archentrance_traj2.ply" },
        { "@id": "data/wcc06_archencentre1_traj2.ply" },
        { "@id": "data/wcc06_archencentre1_3cm_shape.ply" },
        { "@id": "data/wcc06_archencentre1.laz" },
        { "@id": "data/wcc04_archentrance.laz" },
        { "@id": "data/wcc02_arch_3cm_shape.ply" },
        { "@id": "data/wcc06_archencentre1_9pct.ply" },
        { "@id": "data/wcc04_archentrance_3cm_shape.ply" },
        { "@id": "data/wcc08_archencentre2_traj2.ply" },
        { "@id": "data/wcr03_victoria_arch_9pct.ply" },
        { "@id": "data/wcc08_archencentre2_3cm_shape.ply" },
        { "@id": "data/wcc08_archencentre2_traj.txt" },
        { "@id": "data/wcc06_archencentre1_traj.txt" },
        { "@id": "data/shaders.log" },
        { "@id": "data/06a.zebedee_mvi_0058_vm-2.mp4" },
        { "@id": "data/Cave.mp4" },
        { "@id": "data/README.html" },
      ],
      "identifier": [
        "https://dx.doi.org/10.4225/59/5a4d9b76d79f4",
      ],
      "license": {
        "@id": "License"
      },
      "name": "Survey of Victoria Arch, Wombeyan Caves NSW",
      "publisher": "University of Technology Sydney",
      "distribution": [
        {
          "@id": "https://data.research.uts.edu.au/examples/ro-crate/0.2Victoria_Arch_pub.zip"
        }
      ]
    },

    {
      "@id": "data/06a.zebedee_mvi_0058_vm-2.mp4",
      "@type": "File",
      "contentSize": "16171022",
      "path": "data/06a.zebedee_mvi_0058_vm-2.mp4",
      "creator": {
        "@id": "http://orcid.org/0000-0003-4953-0830"
      },
      "description": "Video of bentwing instrument being used in Victorial Arch, Wombeyan Caves NSW",
      "encodingFormat": "MPEG-4 Media File",
      "fileFormat": "http://www.nationalarchives.gov.uk/PRONOM/fmt/199",
      "license": "CC BY-NC-SA 4.0",
      "name": "06a.zebedee_mvi_0058_vm-2.mp4"
    },
    {
      "@id": "70303a01-4e05-4546-bf76-62bc351e6bed",
      "@type": "GeoCoordinates",
      "latitude": "-34.31733",
      "longitude": "149.96454",
      "name": "Latitude:-34.31733, Longitude: 149.96454"
    },
    {
      "@id": "Bruce Welch",
      "@type": "Person",
      "familyName": "Welch",
      "givenName": "Bruce",
      "identifier": "Bruce Welch",
      "name": "Bruce Welch"
    },
    {
      "@id": "data/CSIRO_Wombeyan_Caves_Data.txt",
      "@type": "File",
      "contentSize": "6732",
      "path": "data/CSIRO_Wombeyan_Caves_Data.txt",
      "creator": {
        "@id": "http://orcid.org/0000-0002-1672-552X"
      },
      "description": "General description of this data from CSIRO.",
      "encodingFormat": "Plain Text File",
      "fileFormat": "http://www.nationalarchives.gov.uk/PRONOM/x-fmt/111",
      "name": "CSIRO_Wombeyan_Caves_Data.txt"
    },
    {
      "@id": "data/Cave.mp4",
      "@type": "File",
      "contentSize": "153667560",
      "path": "data/Cave.mp4",
      "encodingFormat": "MPEG-4 Media File",
      "fileFormat": "http://www.nationalarchives.gov.uk/PRONOM/fmt/199",
      "name": "Cave.mp4"
    },
    {
      "@id": "Conversion_wcc02",
      "@type": "CreateAction",
      "agent": {
        "@id": "http://orcid.org/0000-0002-1672-552X"
      },
      "identifier": "Conversion_wcc02",
      "object": {
        "@id": "data/wcc02_arch.laz"
      },
      "result": [
        {
          "@id": "data/wcc02_arch_3cm_shape.ply"
        },
        {
          "@id": "data/wcc02_arch_9pct.ply"
        }
      ]
    },
    {
      "@id": "Conversion_wcc02_traj",
      "@type": "CreateAction",
      "agent": {
        "@id": "http://orcid.org/0000-0002-1672-552X"
      },
      "identifier": "Conversion_wcc02_traj",
      "object": {
        "@id": "data/wcc02_arch_traj.txt"
      },
      "result": {
        "@id": "data/wcc02_arch_traj2.ply"
      }
    },
    {
      "@id": "Conversion_wcc03",
      "@type": "CreateAction",
      "agent": {
        "@id": "http://orcid.org/0000-0002-1672-552X"
      },
      "identifier": "Conversion_wcc03",
      "object": {
        "@id": "data/wcr03_victoria_arch.laz"
      },
      "result": [
        {
          "@id": "data/wcr03_victoria_arch_9pct.ply"
        },
        {
          "@id": "data/wcr03_victoria_arch_3cm_shape.ply"
        }
      ]
    },
    {
      "@id": "Conversion_wcc04",
      "@type": "CreateAction",
      "agent": {
        "@id": "http://orcid.org/0000-0002-1672-552X"
      },
      "identifier": "Conversion_wcc04",
      "object": {
        "@id": "data/wcc04_archentrance.laz"
      },
      "result": [
        {
          "@id": "data/wcc04_archentrance_3cm_shape.ply"
        },
        {
          "@id": "data/wcc04_archentrance_9pct.ply"
        }
      ]
    },
    {
      "@id": "Conversion_wcc04_traj",
      "@type": "CreateAction",
      "agent": {
        "@id": "http://orcid.org/0000-0002-1672-552X"
      },
      "identifier": "Conversion_wcc04_traj",
      "object": "wcc04_arch_traj.txt",
      "result": {
        "@id": "data/wcc04_archentrance_traj2.ply"
      }
    },
    {
      "@id": "Conversion_wcc06",
      "@type": "CreateAction",
      "agent": {
        "@id": "http://orcid.org/0000-0002-1672-552X"
      },
      "identifier": "Conversion_wcc06",
      "object": {
        "@id": "data/wcc06_archencentre1.laz"
      },
      "result": [
        {
          "@id": "data/wcc06_archencentre1_3cm_shape.ply"
        },
        {
          "@id": "data/wcc06_archencentre1_9pct.ply"
        }
      ]
    },
    {
      "@id": "Conversion_wcc06_traj",
      "@type": "CreateAction",
      "agent": {
        "@id": "http://orcid.org/0000-0002-1672-552X"
      },
      "identifier": "Conversion_wcc06_traj",
      "object": {
        "@id": "data/wcc06_archencentre1_traj.txt"
      },
      "result": {
        "@id": "data/wcc06_archencentre1_traj2.ply"
      }
    },
    {
      "@id": "Conversion_wcc08",
      "@type": "CreateAction",
      "agent": {
        "@id": "http://orcid.org/0000-0002-1672-552X"
      },
      "identifier": "Conversion_wcc08",
      "object": {
        "@id": "data/wcc08_archencentre2.laz"
      },
      "result": [
        {
          "@id": "data/wcc08_archencentre2_3cm_shape.ply"
        },
        {
          "@id": "data/wcc08_archencentre2_9pct.ply"
        }
      ]
    },
    {
      "@id": "Conversion_wcc08_traj",
      "@type": "CreateAction",
      "agent": {
        "@id": "http://orcid.org/0000-0002-1672-552X"
      },
      "identifier": "Conversion_wcc08_traj",
      "object": {
        "@id": "data/wcc08_archencentre2_traj.txt"
      },
      "result": "/wcc08_archencentre2_traj2.ply"
    },
    {
      "@id": "Conversion_wcr03_traj",
      "@type": "CreateAction",
      "agent": {
        "@id": "http://orcid.org/0000-0002-1672-552X"
      },
      "identifier": "Conversion_wcr03_traj",
      "object": {
        "@id": "data/wcr03_victoria_arch_traj.txt"
      },
      "result": {
        "@id": "data/wcr03_victoria_arch_traj2.ply"
      }
    },
    {
      "@id": "DataCapture_wcc02",
      "@type": "CreateAction",
      "agent": {
        "@id": "http://orcid.org/0000-0002-1672-552X"
      },
      "identifier": "DataCapture_wcc02",
      "instrument": {
        "@id": "https://confluence.csiro.au/display/ASL/Hovermap"
      },
      "object": {
        "@id": "victoria_arch"
      },
      "result": [
        {
          "@id": "data/wcc02_arch.laz"
        },
        {
          "@id": "data/wcc02_arch_traj.txt"
        }
      ]
    },
    {
      "@id": "DataCapture_wcc04",
      "@type": "CreateAction",
      "agent": {
        "@id": "http://orcid.org/0000-0002-1672-552X"
      },
      "identifier": "DataCapture_wcc04",
      "instrument": {
        "@id": "https://confluence.csiro.au/display/ASL/Hovermap"
      },
      "object": {
        "@id": "victoria_arch"
      },
      "result": [
        {
          "@id": "data/wcc04_archentrance.laz"
        },
        "/Users/124411/working/Victoria_Arch_pub/wcc04_archentrance_traj.txt"
      ]
    },
    {
      "@id": "DataCapture_wcc06",
      "@type": "CreateAction",
      "agent": {
        "@id": "http://orcid.org/0000-0002-1672-552X"
      },
      "identifier": "DataCapture_wcc06",
      "instrument": {
        "@id": "https://confluence.csiro.au/display/ASL/Hovermap"
      },
      "object": {
        "@id": "victoria_arch"
      },
      "result": [
        {
          "@id": "data/wcc06_archencentre1.laz"
        },
        {
          "@id": "data/wcc06_archencentre1_traj.txt"
        }
      ]
    },
    {
      "@id": "DataCapture_wcc08",
      "@type": "CreateAction",
      "agent": {
        "@id": "http://orcid.org/0000-0002-1672-552X"
      },
      "identifier": "DataCapture_wcc08",
      "instrument": {
        "@id": "https://confluence.csiro.au/display/ASL/Hovermap"
      },
      "object": {
        "@id": "victoria_arch"
      },
      "result": [
        {
          "@id": "data/wcc08_archencentre2.laz"
        },
        {
          "@id": "data/wcc08_archencentre2_traj.txt"
        }
      ]
    },
    {
      "@id": "DataCapture_wcr03",
      "@type": "CreateAction",
      "agent": {
        "@id": "http://orcid.org/0000-0002-1672-552X"
      },
      "identifier": "DataCapture_wcr03",
      "instrument": {
        "@id": "https://confluence.csiro.au/display/ASL/Hovermap"
      },
      "object": {
        "@id": "victoria_arch"
      },
      "result": [
        {
          "@id": "data/wcr03_victoria_arch.laz"
        },
        {
          "@id": "data/wcr03_victoria_arch_traj.txt"
        }
      ]
    },
    {
      "@id": "data/LICENSE.txt",
      "@type": "File",
      "contentSize": "972",
      "path": "data/LICENSE.txt",
      "creator": {
        "@id": "http://orcid.org/0000-0002-1672-552X"
      },
      "description": "The license that this data is released under.",
      "encodingFormat": "Plain Text File",
      "fileFormat": "http://www.nationalarchives.gov.uk/PRONOM/x-fmt/111",
      "license": "CSIRO: available for research and academic purposes.",
      "name": "LICENSE.txt"
    },
    {
      "@id": "License",
      "@type": "CreativeWork",
      "description": "The data included in this data collection is copyright 2014 CSIRO and available for research and academic purposes. Please contact Robert Zlot / CSIRO to request usage for other purposes. \r\nPlease credit CSIRO when using any of this data in publications or external communications (and where possible/appropriate please inform or coordinate such communications with CSIRO). The minimum requirement for acknowledgment is to state the date, location, equipment used, and technology developers (CSIRO), as in: \"Data was acquired at Wombeyan Caves in January 2014 using the Zebedee 3D Mapping System and the bentwing Aerial Scanning System developed by CSIRO Australia.\"\r\n",
      "identifier": "License",
      "name": "Copyright CSIRO 2014:  Available for research and academic purposes"
    },
    {
      "@id": "#LukasKaul",
      "@type": "Person",
      "familyName": "Kaul",
      "givenName": "Lukas",
      "identifier": "Lukas Kaul",
      "name": "Lukas Kaul"
    },
    {
      "@id": "data/README.html",
      "@type": "File",
      "contentSize": "304",
      "path": "data/README.html",
      "encodingFormat": "Hypertext Markup Language",
      "fileFormat": "http://www.nationalarchives.gov.uk/PRONOM/fmt/96",
      "name": "README.html"
    },
    {
      "@id": "data/README.txt",
      "@type": "File",
      "contentSize": "1200",
      "path": "data/README.txt",
      "creator": {
        "@id": "http://orcid.org/0000-0003-4953-0830"
      },
      "description": "General description of this data by Mike Lake",
      "encodingFormat": "Plain Text File",
      "fileFormat": "http://www.nationalarchives.gov.uk/PRONOM/x-fmt/111",
      "name": "README.txt"
    },
    {
      "@id": "Rowena Larkins",
      "@type": "Person",
      "familyName": "Larkins",
      "givenName": "Rowena",
      "identifier": "Rowena Larkins",
      "name": "Rowena Larkins"
    },
    {
      "@id": "http://orcid.org/0000-0002-1672-552X",
      "@type": "Person",
      "familyName": "Zlot",
      "givenName": "Robert",
      "identifier": "http://orcid.org/0000-0002-1672-552X",
      "name": "Robert Zlot"
    },
    {
      "@id": "http://orcid.org/0000-0003-4953-0830",
      "@type": "Person",
      "contactPoint": {
        "@id": "mike.lake@uts.edu.au"
      },
      "familyName": "Lake",
      "givenName": "Mike",
      "identifier": "http://orcid.org/0000-0003-4953-0830",
      "name": "Mike Lake"
    },
    {
      "@id": "http://www.uts.edu.au/partners-and-community/initiatives/data-arena/overview",
      "@type": "IndividualProduct",
      "description": "The UTS Data Arena is a 360-degree interactive data visualisation facility",
      "identifier": "http://www.uts.edu.au/partners-and-community/initiatives/data-arena/overview",
      "name": "Data Arena"
    },
    {
      "@id": "https://confluence.csiro.au/display/ASL/Hovermap",
      "@type": "IndividualProduct",
      "description": "The CSIRO bentwing is an unmanned aerial vehicle (UAV, commonly known as a drone) with a LIDAR mounted underneath to capture 3D information on the surroundings.",
      "identifier": "https://confluence.csiro.au/display/ASL/Hovermap",
      "name": "bentwing"
    },
    {
      "@id": "mike.lake@uts.edu.au",
      "@type": "ContactPoint",
      "URL": "http://orcid.org/0000-0003-4953-0830",
      "contactType": "customer service",
      "email": "mike.lake@uts.edu.au",
      "identifier": "mike.lake@uts.edu.au",
      "name": "Contact Mike Lake"
    },
    {
      "@id": "data/shaders.log",
      "@type": "File",
      "contentSize": "1831",
      "path": "data/shaders.log",
      "creator": {
        "@id": "http://orcid.org/0000-0002-1672-552X"
      },
      "description": "Logfile from a meshlab run",
      "encodingFormat": "Log File",
      "fileFormat": "http://www.nationalarchives.gov.uk/PRONOM/x-fmt/62",
      "license": "CSIRO: available for research and academic purposes.",
      "name": "shaders.log"
    },
    {
      "@id": "victoria_arch",
      "@type": "Place",
      "address": "Wombeyan Caves, NSW 2580",
      "description": "This is the GDA94 datum, which is for most situations is close to WGS84",
      "geo": {
        "@id": "70303a01-4e05-4546-bf76-62bc351e6bed"
      },
      "identifier": "victoria_arch",
      "name": "Victoria Arch"
    },
    {
      "@id": "data/victoria_arch_V.ply",
      "@type": "File",
      "contentSize": "228316983",
      "path": "data/victoria_arch_V.ply",
      "contributor": {
        "@id": "Lukas Kaul"
      },
      "creator": {
        "@id": "http://orcid.org/0000-0002-1672-552X"
      },
      "description": "Victoria Arch point file data",
      "encodingFormat": "Polygon File Format",
      "fileFormat": "http://www.nationalarchives.gov.uk/PRONOM/fmt/831",
      "license": "CSIRO: available for research and academic purposes.",
      "name": "victoria_arch_V.ply"
    },
    {
      "@id": "data/wcc02_arch.laz",
      "@type": "File",
      "contentSize": "74565487",
      "path": "data/wcc02_arch.laz",
      "contributor": {
        "@id": "Lukas Kaul"
      },
      "creator": {
        "@id": "http://orcid.org/0000-0002-1672-552X"
      },
      "description": "Victoria Arch point file in LASF format.",
      "encodingFormat": "ASPRS Lidar Data Exchange Format",
      "fileFormat": "http://www.nationalarchives.gov.uk/PRONOM/fmt/370",
      "license": "CSIRO: available for research and academic purposes.",
      "name": "wcc02_arch.laz"
    },
    {
      "@id": "data/wcc02_arch_3cm_shape.ply",
      "@type": "File",
      "contentSize": "194398424",
      "path": "data/wcc02_arch_3cm_shape.ply",
      "contributor": {
        "@id": "Lukas Kaul"
      },
      "creator": {
        "@id": "http://orcid.org/0000-0002-1672-552X"
      },
      "description": "Victoria Arch point file data",
      "encodingFormat": "Polygon File Format",
      "fileFormat": "http://www.nationalarchives.gov.uk/PRONOM/fmt/831",
      "license": "CSIRO: available for research and academic purposes.",
      "name": "wcc02_arch_3cm_shape.ply"
    },
    {
      "@id": "data/wcc02_arch_9pct.ply",
      "@type": "File",
      "contentSize": "18315254",
      "path": "data/wcc02_arch_9pct.ply",
      "contributor": {
        "@id": "Lukas Kaul"
      },
      "creator": {
        "@id": "http://orcid.org/0000-0002-1672-552X"
      },
      "description": "Victoria Arch point file data, reduced to 9% content.",
      "encodingFormat": "Polygon File Format",
      "fileFormat": "http://www.nationalarchives.gov.uk/PRONOM/fmt/831",
      "license": "CSIRO: available for research and academic purposes.",
      "name": "wcc02_arch_9pct.ply"
    },
    {
      "@id": "data/wcc02_arch_traj.txt",
      "@type": "File",
      "contentSize": "2646949",
      "path": "data/wcc02_arch_traj.txt",
      "contributor": {
        "@id": "Lukas Kaul"
      },
      "creator": {
        "@id": "http://orcid.org/0000-0002-1672-552X"
      },
      "description": "Victoria Arch, bentwing trjectory data",
      "encodingFormat": "Plain Text File",
      "fileFormat": "http://www.nationalarchives.gov.uk/PRONOM/x-fmt/111",
      "license": "CSIRO: available for research and academic purposes.",
      "name": "wcc02_arch_traj.txt"
    },
    {
      "@id": "data/wcc02_arch_traj2.ply",
      "@type": "File",
      "contentSize": "636772",
      "path": "data/wcc02_arch_traj2.ply",
      "contributor": {
        "@id": "Lukas Kaul"
      },
      "creator": {
        "@id": "http://orcid.org/0000-0002-1672-552X"
      },
      "description": "Victoria Arch, bentwing trjectory data",
      "encodingFormat": "Polygon File Format",
      "fileFormat": "http://www.nationalarchives.gov.uk/PRONOM/fmt/831",
      "license": "CSIRO: available for research and academic purposes.",
      "name": "wcc02_arch_traj2.ply"
    },
    {
      "@id": "data/wcc04_archentrance.laz",
      "@type": "File",
      "contentSize": "50214667",
      "path": "data/wcc04_archentrance.laz",
      "contributor": {
        "@id": "Lukas Kaul"
      },
      "creator": {
        "@id": "http://orcid.org/0000-0002-1672-552X"
      },
      "description": "Victoria Arch entrance, point file data",
      "encodingFormat": "ASPRS Lidar Data Exchange Format",
      "fileFormat": "http://www.nationalarchives.gov.uk/PRONOM/fmt/370",
      "license": "CSIRO: available for research and academic purposes.",
      "name": "wcc04_archentrance.laz"
    },
    {
      "@id": "data/wcc04_archentrance_3cm_shape.ply",
      "@type": "File",
      "contentSize": "131274216",
      "path": "data/wcc04_archentrance_3cm_shape.ply",
      "contributor": {
        "@id": "Lukas Kaul"
      },
      "creator": {
        "@id": "http://orcid.org/0000-0002-1672-552X"
      },
      "description": "Victoria Arch entrance, point file data",
      "encodingFormat": "Polygon File Format",
      "fileFormat": "http://www.nationalarchives.gov.uk/PRONOM/fmt/831",
      "license": "CSIRO: available for research and academic purposes.",
      "name": "wcc04_archentrance_3cm_shape.ply"
    },
    {
      "@id": "data/wcc04_archentrance_9pct.ply",
      "@type": "File",
      "contentSize": "14549269",
      "path": "data/wcc04_archentrance_9pct.ply",
      "contributor": {
        "@id": "Lukas Kaul"
      },
      "creator": {
        "@id": "http://orcid.org/0000-0002-1672-552X"
      },
      "description": "Victoria Arch entrance, point file data",
      "encodingFormat": "Polygon File Format",
      "fileFormat": "http://www.nationalarchives.gov.uk/PRONOM/fmt/831",
      "license": "CSIRO: available for research and academic purposes.",
      "name": "wcc04_archentrance_9pct.ply"
    },
    {
      "@id": "data/wcc04_archentrance_traj.txt",
      "@type": "File",
      "contentSize": "2353571",
      "path": "data/wcc04_archentrance_traj.txt",
      "contributor": {
        "@id": "Lukas Kaul"
      },
      "creator": {
        "@id": "http://orcid.org/0000-0002-1672-552X"
      },
      "description": "Victoria Arch entrance, bentwing trjectory data",
      "encodingFormat": "Plain Text File",
      "fileFormat": "http://www.nationalarchives.gov.uk/PRONOM/x-fmt/111",
      "license": "CSIRO: available for research and academic purposes.",
      "name": "wcc04_archentrance_traj.txt"
    },
    {
      "@id": "data/wcc04_archentrance_traj2.ply",
      "@type": "File",
      "contentSize": "547332",
      "path": "data/wcc04_archentrance_traj2.ply",
      "contributor": {
        "@id": "Lukas Kaul"
      },
      "creator": {
        "@id": "http://orcid.org/0000-0002-1672-552X"
      },
      "description": "Victoria Arch entrance, bentwing trjectory data",
      "encodingFormat": "Polygon File Format",
      "fileFormat": "http://www.nationalarchives.gov.uk/PRONOM/fmt/831",
      "license": "CSIRO: available for research and academic purposes.",
      "name": "wcc04_archentrance_traj2.ply"
    },
    {
      "@id": "data/wcc06_archencentre1.laz",
      "@type": "File",
      "contentSize": "96594989",
      "path": "data/wcc06_archencentre1.laz",
      "contributor": {
        "@id": "Lukas Kaul"
      },
      "creator": {
        "@id": "http://orcid.org/0000-0002-1672-552X"
      },
      "description": "Victoria Arch centre, point file data",
      "encodingFormat": "ASPRS Lidar Data Exchange Format",
      "fileFormat": "http://www.nationalarchives.gov.uk/PRONOM/fmt/370",
      "license": "CSIRO: available for research and academic purposes.",
      "name": "wcc06_archencentre1.laz"
    },
    {
      "@id": "data/wcc06_archencentre1_3cm_shape.ply",
      "@type": "File",
      "contentSize": "257376500",
      "path": "data/wcc06_archencentre1_3cm_shape.ply",
      "contributor": {
        "@id": "Lukas Kaul"
      },
      "creator": {
        "@id": "http://orcid.org/0000-0002-1672-552X"
      },
      "description": "Victoria Arch centre, point file data",
      "encodingFormat": "Polygon File Format",
      "fileFormat": "http://www.nationalarchives.gov.uk/PRONOM/fmt/831",
      "license": "CSIRO: available for research and academic purposes.",
      "name": "wcc06_archencentre1_3cm_shape.ply"
    },
    {
      "@id": "data/wcc06_archencentre1_9pct.ply",
      "@type": "File",
      "contentSize": "28047478",
      "path": "data/wcc06_archencentre1_9pct.ply",
      "contributor": {
        "@id": "Lukas Kaul"
      },
      "creator": {
        "@id": "http://orcid.org/0000-0002-1672-552X"
      },
      "description": "Victoria Arch centre, point file data",
      "encodingFormat": "Polygon File Format",
      "fileFormat": "http://www.nationalarchives.gov.uk/PRONOM/fmt/831",
      "license": "CSIRO: available for research and academic purposes.",
      "name": "wcc06_archencentre1_9pct.ply"
    },
    {
      "@id": "data/wcc06_archencentre1_traj.txt",
      "@type": "File",
      "contentSize": "4145794",
      "path": "data/wcc06_archencentre1_traj.txt",
      "contributor": {
        "@id": "Lukas Kaul"
      },
      "creator": {
        "@id": "http://orcid.org/0000-0002-1672-552X"
      },
      "description": "Victoria Arch centre, bentwing trjectory data",
      "encodingFormat": "Plain Text File",
      "fileFormat": "http://www.nationalarchives.gov.uk/PRONOM/x-fmt/111",
      "license": "CSIRO: available for research and academic purposes.",
      "name": "wcc06_archencentre1_traj.txt"
    },
    {
      "@id": "data/wcc06_archencentre1_traj2.ply",
      "@type": "File",
      "contentSize": "974836",
      "path": "data/wcc06_archencentre1_traj2.ply",
      "contributor": {
        "@id": "Lukas Kaul"
      },
      "creator": {
        "@id": "http://orcid.org/0000-0002-1672-552X"
      },
      "description": "Victoria Arch centre, bentwing trjectory data",
      "encodingFormat": "Polygon File Format",
      "fileFormat": "http://www.nationalarchives.gov.uk/PRONOM/fmt/831",
      "license": "CSIRO: available for research and academic purposes.",
      "name": "wcc06_archencentre1_traj2.ply"
    },
    {
      "@id": "data/wcc08_archencentre2.laz",
      "@type": "File",
      "contentSize": "100605543",
      "path": "data/wcc08_archencentre2.laz",
      "contributor": {
        "@id": "Lukas Kaul"
      },
      "creator": {
        "@id": "http://orcid.org/0000-0002-1672-552X"
      },
      "description": "Victoria Arch centre, point file data",
      "encodingFormat": "ASPRS Lidar Data Exchange Format",
      "fileFormat": "http://www.nationalarchives.gov.uk/PRONOM/fmt/370",
      "license": "CSIRO: available for research and academic purposes.",
      "name": "wcc08_archencentre2.laz"
    },
    {
      "@id": "data/wcc08_archencentre2_3cm_shape.ply",
      "@type": "File",
      "contentSize": "302032245",
      "path": "data/wcc08_archencentre2_3cm_shape.ply",
      "contributor": {
        "@id": "Lukas Kaul"
      },
      "creator": {
        "@id": "http://orcid.org/0000-0002-1672-552X"
      },
      "description": "Victoria Arch centre, point file data",
      "encodingFormat": "Polygon File Format",
      "fileFormat": "http://www.nationalarchives.gov.uk/PRONOM/fmt/831",
      "license": "CSIRO: available for research and academic purposes.",
      "name": "wcc08_archencentre2_3cm_shape.ply"
    },
    {
      "@id": "data/wcc08_archencentre2_9pct.ply",
      "@type": "File",
      "contentSize": "28857270",
      "path": "data/wcc08_archencentre2_9pct.ply",
      "contributor": {
        "@id": "Lukas Kaul"
      },
      "creator": {
        "@id": "http://orcid.org/0000-0002-1672-552X"
      },
      "description": "Victoria Arch centre, point file data",
      "encodingFormat": "Polygon File Format",
      "fileFormat": "http://www.nationalarchives.gov.uk/PRONOM/fmt/831",
      "license": "CSIRO: available for research and academic purposes.",
      "name": "wcc08_archencentre2_9pct.ply"
    },
    {
      "@id": "data/wcc08_archencentre2_traj.txt",
      "@type": "File",
      "contentSize": "4479215",
      "path": "data/wcc08_archencentre2_traj.txt",
      "contributor": {
        "@id": "Lukas Kaul"
      },
      "creator": {
        "@id": "http://orcid.org/0000-0002-1672-552X"
      },
      "description": "Victoria Arch centre, bentwing trjectory data",
      "encodingFormat": "Plain Text File",
      "fileFormat": "http://www.nationalarchives.gov.uk/PRONOM/x-fmt/111",
      "license": "CSIRO: available for research and academic purposes.",
      "name": "wcc08_archencentre2_traj.txt"
    },
    {
      "@id": "data/wcc08_archencentre2_traj2.ply",
      "@type": "File",
      "contentSize": "1047252",
      "path": "data/wcc08_archencentre2_traj2.ply",
      "contributor": {
        "@id": "Lukas Kaul"
      },
      "creator": {
        "@id": "http://orcid.org/0000-0002-1672-552X"
      },
      "description": "Victoria Arch centre, bentwing trjectory data",
      "encodingFormat": "Polygon File Format",
      "fileFormat": "http://www.nationalarchives.gov.uk/PRONOM/fmt/831",
      "license": "CSIRO: available for research and academic purposes.",
      "name": "wcc08_archencentre2_traj2.ply"
    },
    {
      "@id": "data/wcr03_victoria_arch.laz",
      "@type": "File",
      "contentSize": "317734747",
      "path": "data/wcr03_victoria_arch.laz",
      "contributor": {
        "@id": "Lukas Kaul"
      },
      "creator": {
        "@id": "http://orcid.org/0000-0002-1672-552X"
      },
      "description": "Victoria Arch point file data",
      "encodingFormat": "ASPRS Lidar Data Exchange Format",
      "fileFormat": "http://www.nationalarchives.gov.uk/PRONOM/fmt/370",
      "license": "CSIRO: available for research and academic purposes.",
      "name": "wcr03_victoria_arch.laz"
    },
    {
      "@id": "data/wcr03_victoria_arch_3cm_shape.ply",
      "@type": "File",
      "contentSize": "591006805",
      "path": "data/wcr03_victoria_arch_3cm_shape.ply",
      "contributor": {
        "@id": "Lukas Kaul"
      },
      "creator": {
        "@id": "http://orcid.org/0000-0002-1672-552X"
      },
      "description": "Victoria Arch point file data, sampled to 3cm resolution.",
      "encodingFormat": "Polygon File Format",
      "fileFormat": "http://www.nationalarchives.gov.uk/PRONOM/fmt/831",
      "license": "CSIRO: available for research and academic purposes.",
      "name": "wcr03_victoria_arch_3cm_shape.ply"
    },
    {
      "@id": "data/wcr03_victoria_arch_9pct.ply",
      "@type": "File",
      "contentSize": "97395862",
      "path": "data/wcr03_victoria_arch_9pct.ply",
      "contributor": {
        "@id": "Lukas Kaul"
      },
      "creator": {
        "@id": "http://orcid.org/0000-0002-1672-552X"
      },
      "description": "Victoria Arch point file data",
      "encodingFormat": "Polygon File Format",
      "fileFormat": "http://www.nationalarchives.gov.uk/PRONOM/fmt/831",
      "license": "CSIRO: available for research and academic purposes.",
      "name": "wcr03_victoria_arch_9pct.ply"
    },
    {
      "@id": "data/wcr03_victoria_arch_traj.txt",
      "@type": "File",
      "contentSize": "15983162",
      "path": "data/wcr03_victoria_arch_traj.txt",
      "contributor": {
        "@id": "Lukas Kaul"
      },
      "creator": {
        "@id": "http://orcid.org/0000-0002-1672-552X"
      },
      "description": "Victoria Arch point file data",
      "encodingFormat": "Plain Text File",
      "fileFormat": "http://www.nationalarchives.gov.uk/PRONOM/x-fmt/111",
      "license": "CSIRO: available for research and academic purposes.",
      "name": "wcr03_victoria_arch_traj.txt"
    },
    {
      "@id": "data/wcr03_victoria_arch_traj2.ply",
      "@type": "File",
      "contentSize": "3759381",
      "path": "data/wcr03_victoria_arch_traj2.ply",
      "contributor": {
        "@id": "Lukas Kaul"
      },
      "creator": {
        "@id": "http://orcid.org/0000-0002-1672-552X"
      },
      "description": "Victoria Arch point file data",
      "encodingFormat": "Polygon File Format",
      "fileFormat": "http://www.nationalarchives.gov.uk/PRONOM/fmt/831",
      "license": "CSIRO: available for research and academic purposes.",
      "name": "wcr03_victoria_arch_traj2.ply"
    },
    {
      "@id": "https://data.research.uts.edu.au/examples/ro-crate/0.2Victoria_Arch_pub.zip",
      "contentUrl": "https://data.research.uts.edu.au/examples/ro-crate/0.2Victoria_Arch_pub.zip",
      "@type": "DataDownload",
      "encodingFormat": "zip"
    }
  ]
}

Calcyte

Create RO-Crate by editing CSVs

http://www.eosc-life.eu/

http://www.eosc-life.eu/

Join us - tomorrow night!

http://researchobject.org/ro-crate/

Join RO-Crate!

GitHub issue #1

github.com/researchobject/ro-crate

Poster P-32

https://doi.org/10.5281/zenodo.3343031

Poster P-32

CWL Birds of a Feather

12:45 Room Kairo ground floor

Extra Slides
