It Takes a Village to Find a Village:

Solving complex problems with diverse geospatial tools



Stace Maples

Stanford Geospatial Center

https://link.springer.com/article/10.1186/s41018-018-0030-y

Hannah:

"I can see the settlements in Google Earth, but I know that those images are old and those villages are long gone,.."

Me:

"You have come to the right place!"

Where should we look?

Obtaining and Preparing Imagery

~5000 sqkm
200gb+

(before pansharpening)

ArcMap crashed after 9 hrs processing

With the Geospatial Data Abstraction Library

(or, GDAL)

http://www.gdal.org/

So I wrote a python script...

#Import modules
import glob, os, gdal, fnmatch

#Set base directory to location of script
base_directory = os.path.abspath('')

#Make a list of Multispectral directories with 'MUL' in the path
multi_directory_list = glob.glob(os.path.join(base_directory, '*MUL'))

#Make Panchromatic directory [pan_directory] path by replacing 'MUL' with 'PAN'
for multi_directory in multi_directory_list:
    pan_directory = multi_directory.replace('MUL','PAN')
    print(multi_directory)
    print(pan_directory)
    #Make a list of TIF files in the multi_directory
    multi_tiffs_list = fnmatch.filter((os.listdir(multi_directory)), '*.TIF')
    for multi_tiff_name in multi_tiffs_list:
        print(multi_tiff_name)
#Get the matching panchromatic image for the current multispectral by searching for the RowCol
        multi_rowcol_wildcard = '*'+multi_tiff_name[19:24]+'*'
        #print(multi_rowcol)
        pan_tiffs_list = fnmatch.filter((os.listdir(pan_directory)), '*.TIF')
        pan_tiff_name = fnmatch.filter(pan_tiffs_list, multi_rowcol_wildcard)
        #print(pan_tiff_name[0])
#Pan-sharpen the multispectral using it's corresponding panchromatic image using JPEG compression and internal tiles
        print('pansharpen')
        os.system('python gdal_pansharpen.py -co NBITS=12 -co COMPRESS=JPEG -co JPEG_QUALITY=50 -co PHOTOMETRIC=YCBCR -co TILED=YES ' + os.path.join(pan_directory,pan_tiff_name[0]) + ' ' + os.path.join(multi_directory,multi_tiff_name) + ',band=7 ' + os.path.join(multi_directory,multi_tiff_name) + ',band=5 ' + os.path.join(multi_directory,multi_tiff_name) + ',band=3 ' + base_directory + '/sharp_' + multi_tiff_name)
#Add overviews for resulting tiffs
        os.system('gdaladdo --config COMPRESS_OVERVIEW JPEG --config PHOTOMETRIC_OVERVIEW YCBCR --config INTERLEAVE_OVERVIEW PIXEL -r average ' + base_directory + '/sharp_' + multi_tiff_name + ' 2 4 8 16')
#Create a Virtual Raster Mosaic of VRT type from all resulting sharpened TIFF images
print('create VRT mosaic from SHARP images')
os.system('gdalbuildvrt sharpmosaic.vrt *.TIF')
#Haven't finished figuring out how to get a decently stretched image out of this part. More to do!
print('MBtiles out')
print('gdal_translate sharpmosaic.vrt sharpmosaic.mbtiles -of MBTILES')
print('gdaladdo -r average sharpmosaic.mbtiles 2 4 8 16')

https://github.com/mapninja/DGF_parser

Which took 45 minutes to process the imagery

http://www.gdal.org/

Reconnaissance

HIVE

13440 x 5400 x .53m pixels
=
20 sq km



Typical Monitor

1440 x 900 x .53m pixels
=
.7 sq km



Or,...
250 shift+arrow pans vs. 7000+



~ 6 hrs

Outcomes

  • Completed 2 weeks from the DGF imagery capture date
  • ~6hrs for the recon
  • 5,000+ sq km
  • 225 settlements



  • We surveyed 347 women of reproductive age & 824 of their children 15 years of age and younger

  • 572 of whom were under five.

  • QGIS
  • GDAL
  • Python
  • ArcMap
  • ArcGIS Online

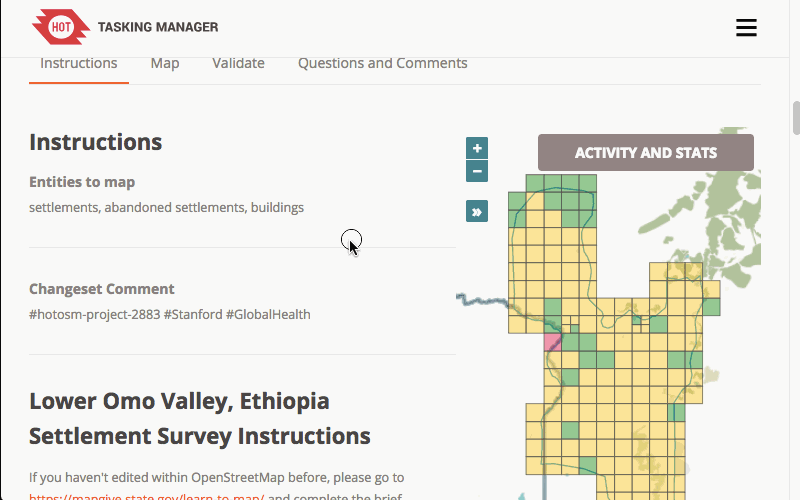

  • Humanitarian OpenStreetMap Task Manager

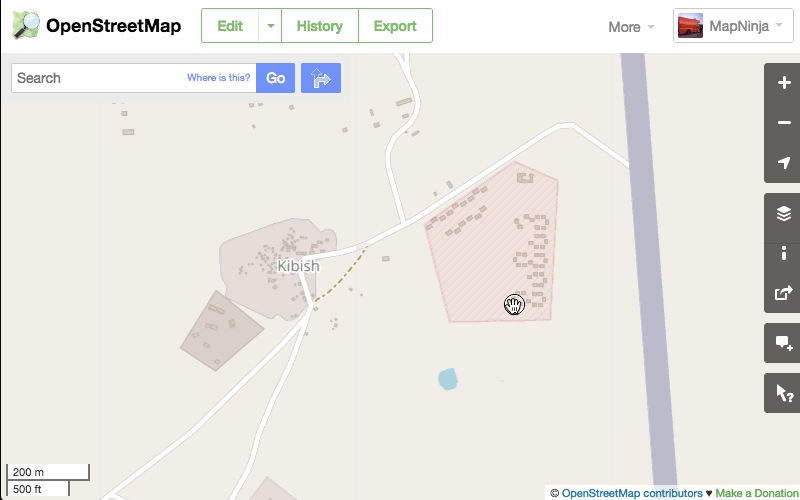

  • OpenStreetmap.org
  • CartoDB
  • Garmin
  • DigitalGlobe Foundation
  • HIVE @ICME Stanford
  • David Rumsey Map Center

Machine Learning?

  • Daily 3m Planet Imagery

  • Excellent OSM-Based Training Data

  • Cheap GPUs and ML Cloud Infrastructure...

  • Working with DescartesLabs to automate the process


Relationships were as important in this project as technology...


DigitalGlobe Foundation

ICME

David Rumsey Map Center

Humanitarian OpenStreetMap Team

OSM Community
