Veil Series
01
Family of Products
Course Overview
02
Features & Applications
03
Ordering & Support
Family of Products
Exterior: Veil EX
Interior: Veil LCL

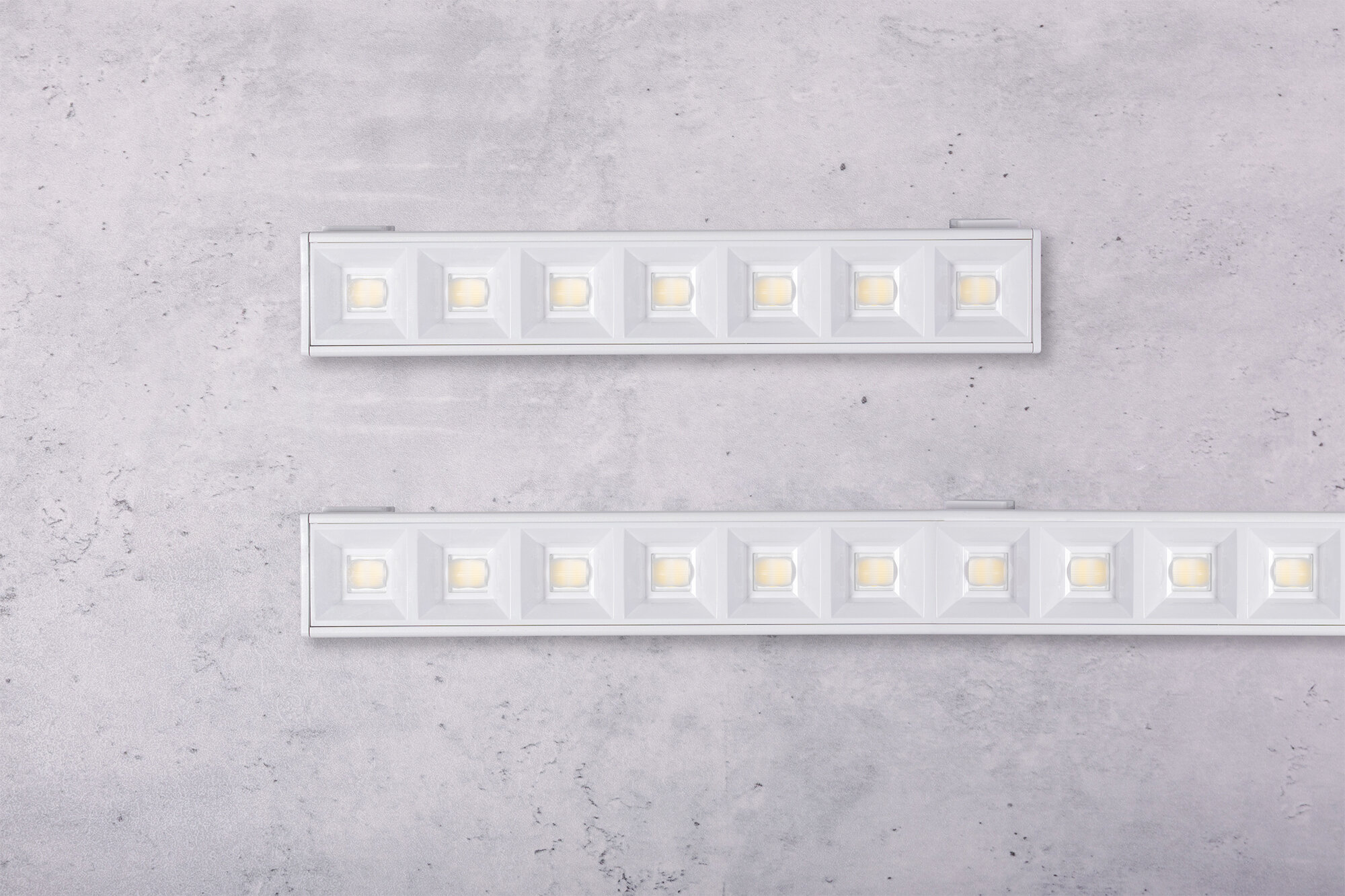

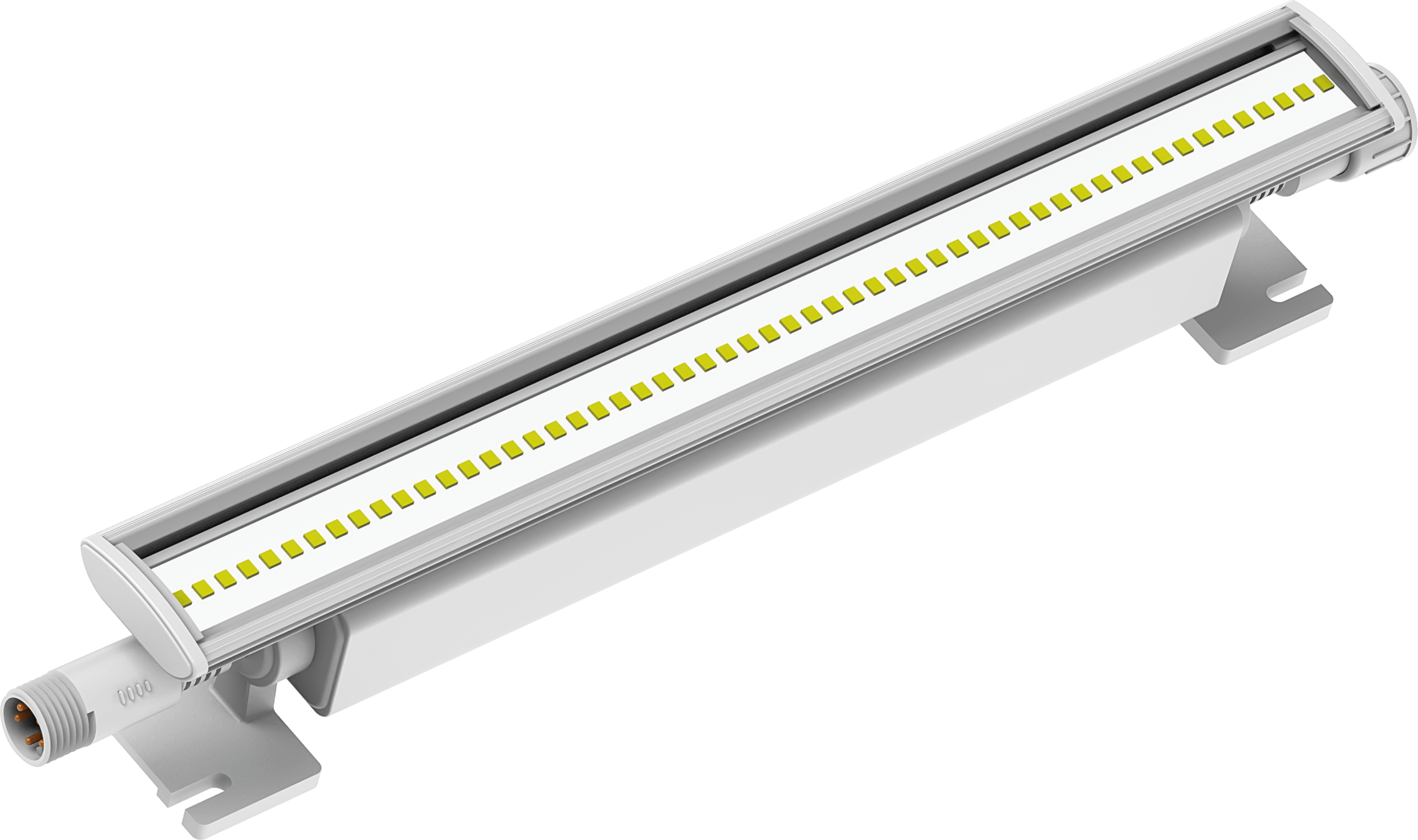

Veil LCL Interior Linear Cove Light
Lengths
1 foot or 4 foot
Finish
Anodized Aluminum
Beam Angle of Shown Product: 25º x 70º
3000K
3500K
4000K
Beam Angle Shown: 25º x 70º
1 FT: 5W (600 lm)
4 FT: 20W (2,400 lm)
1 FT: 7.5W (900 lm)
4 FT: 30W (3,600 lm)
1 FT: 10W (1,200 lm)
4 FT: 40W (4,800 lm)
Line Voltage
Extruded Aluminum Housing
+/-90º Rotatable Mounting
0-10V Dimming
| Input Wattage | 5W | 7.5W | 10W | 20W | 30W | 40W |
|---|---|---|---|---|---|---|
| Maximum Length (120V) | 144' | 96' | 72' | 144' | 96' | 72' |
| Maximum Length (277V) | 330' | 220' | 165' | 332' | 220' | 165' |
Run Length Limit
1 Foot
4 Feet

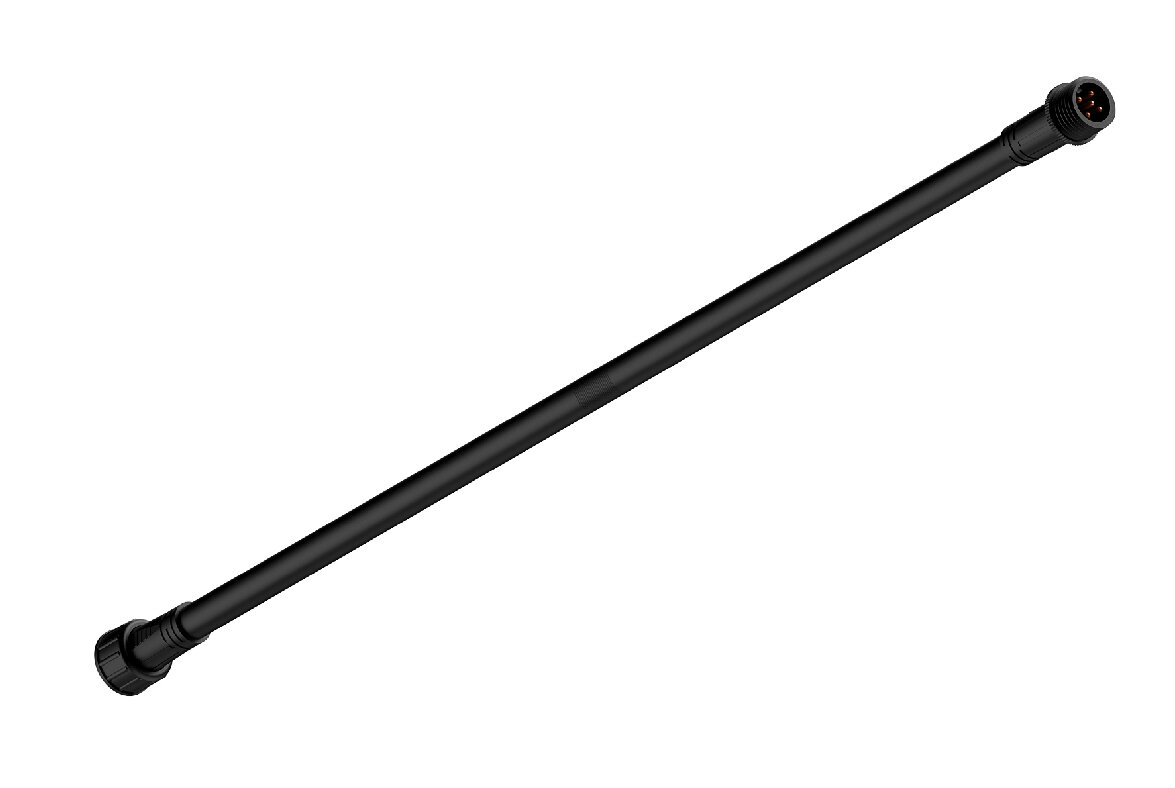

Extension Cable
1' | 3' | 12'
Power Harness Box
Included
Accessories

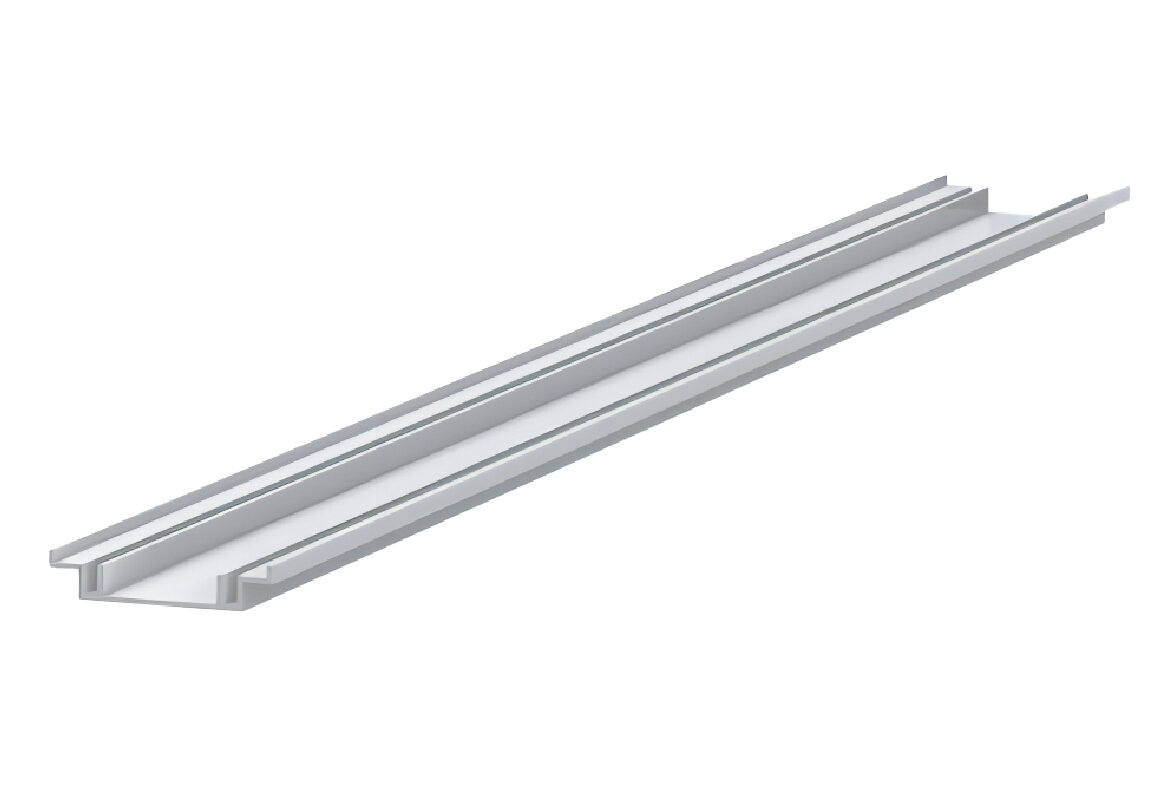

Positioning Track
Aluminum 7.97'

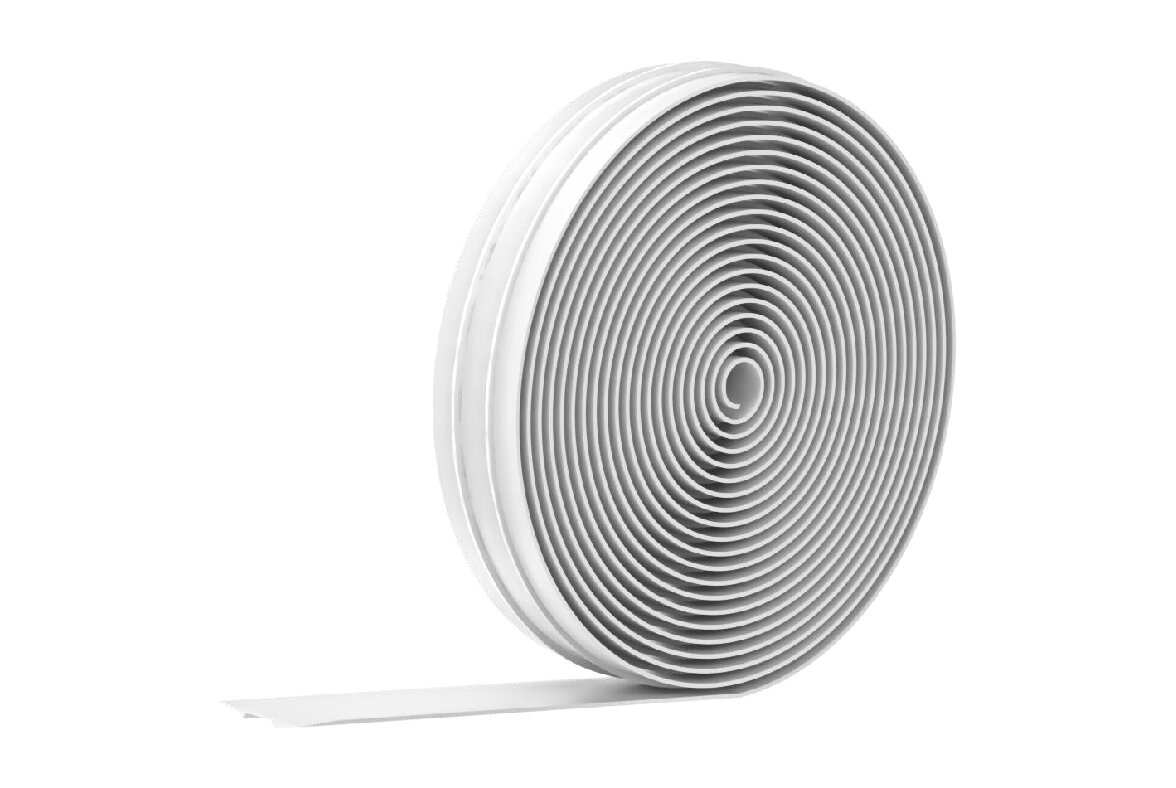

Positioning Track
PC 82' / Roll

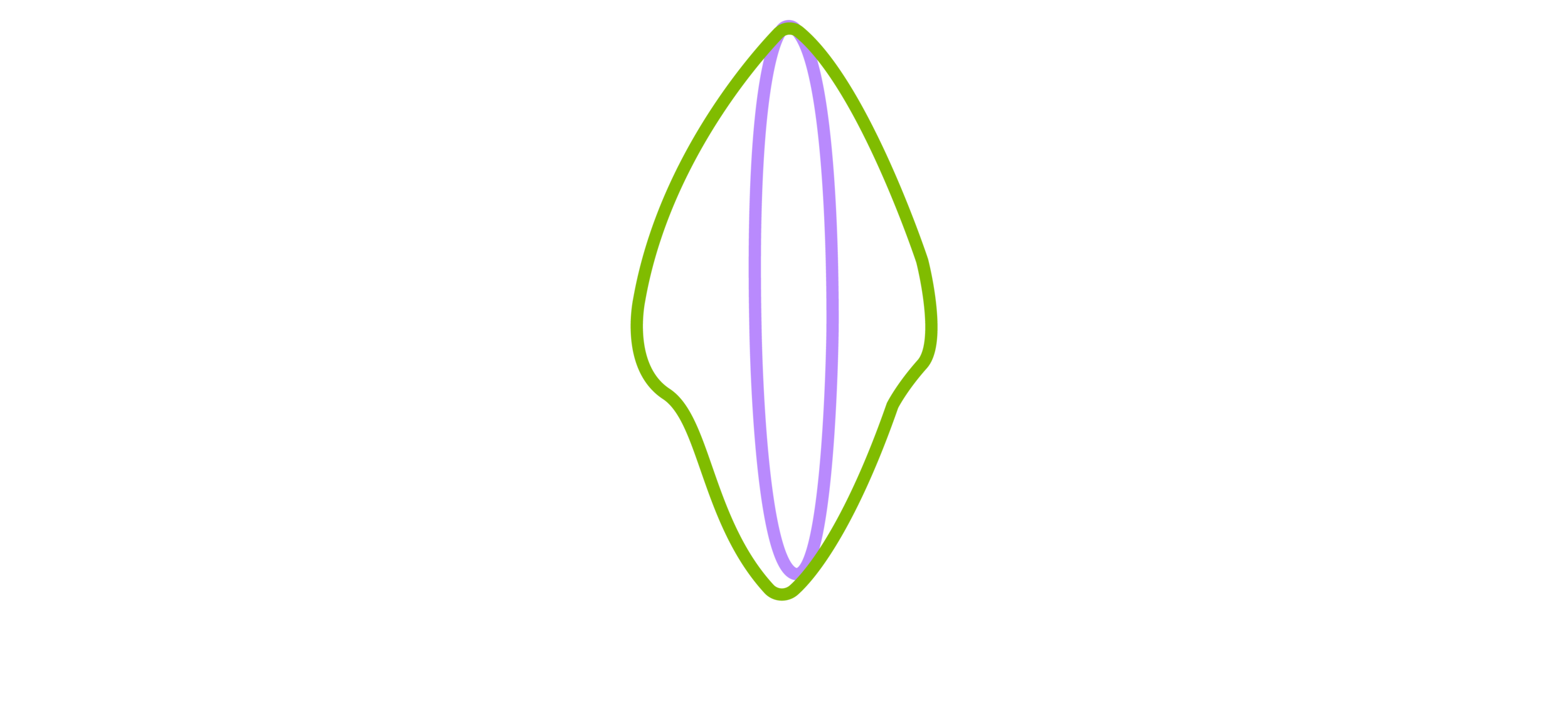

Beam Angles
80º | 40º x 70º | 50º

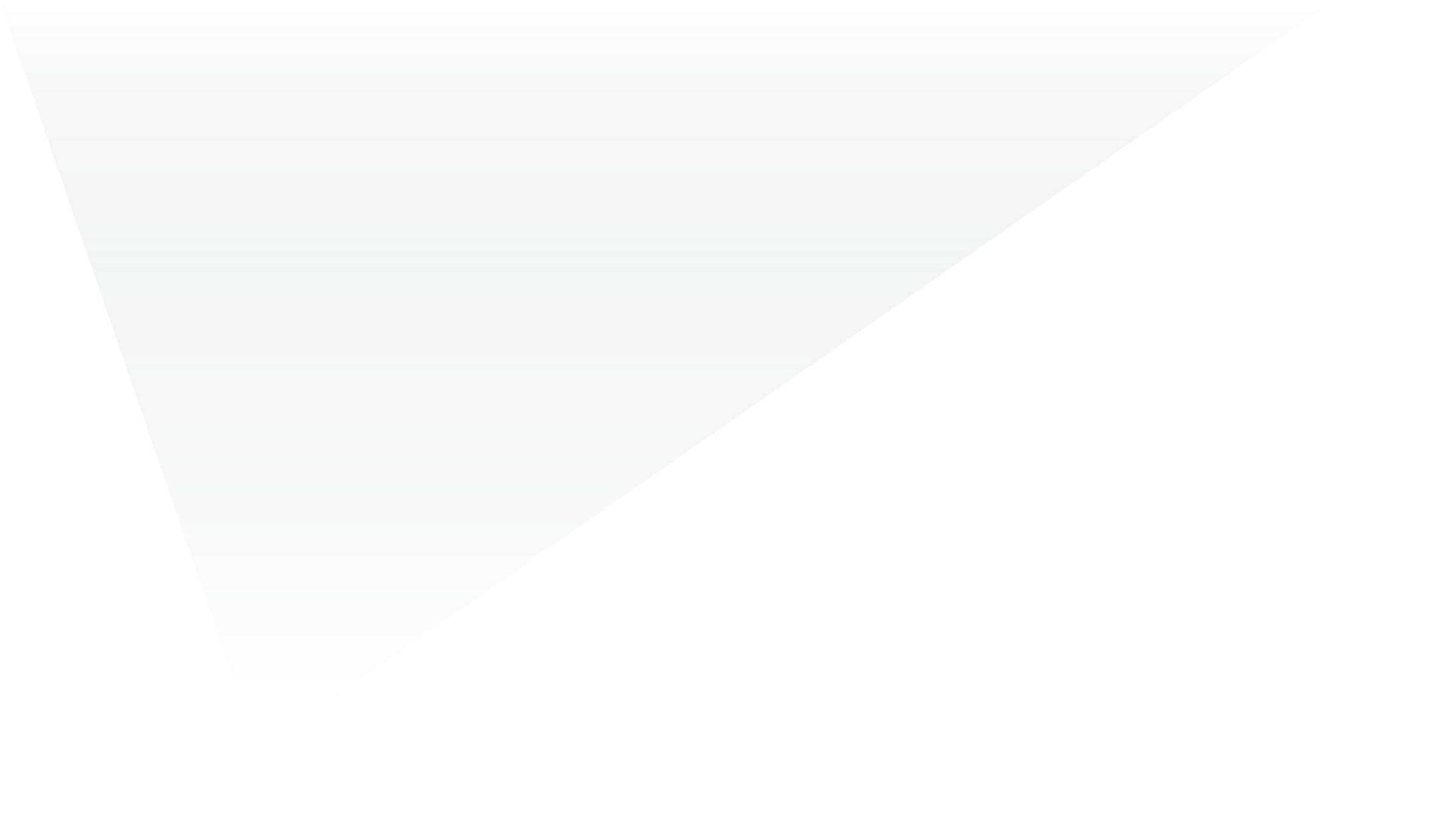

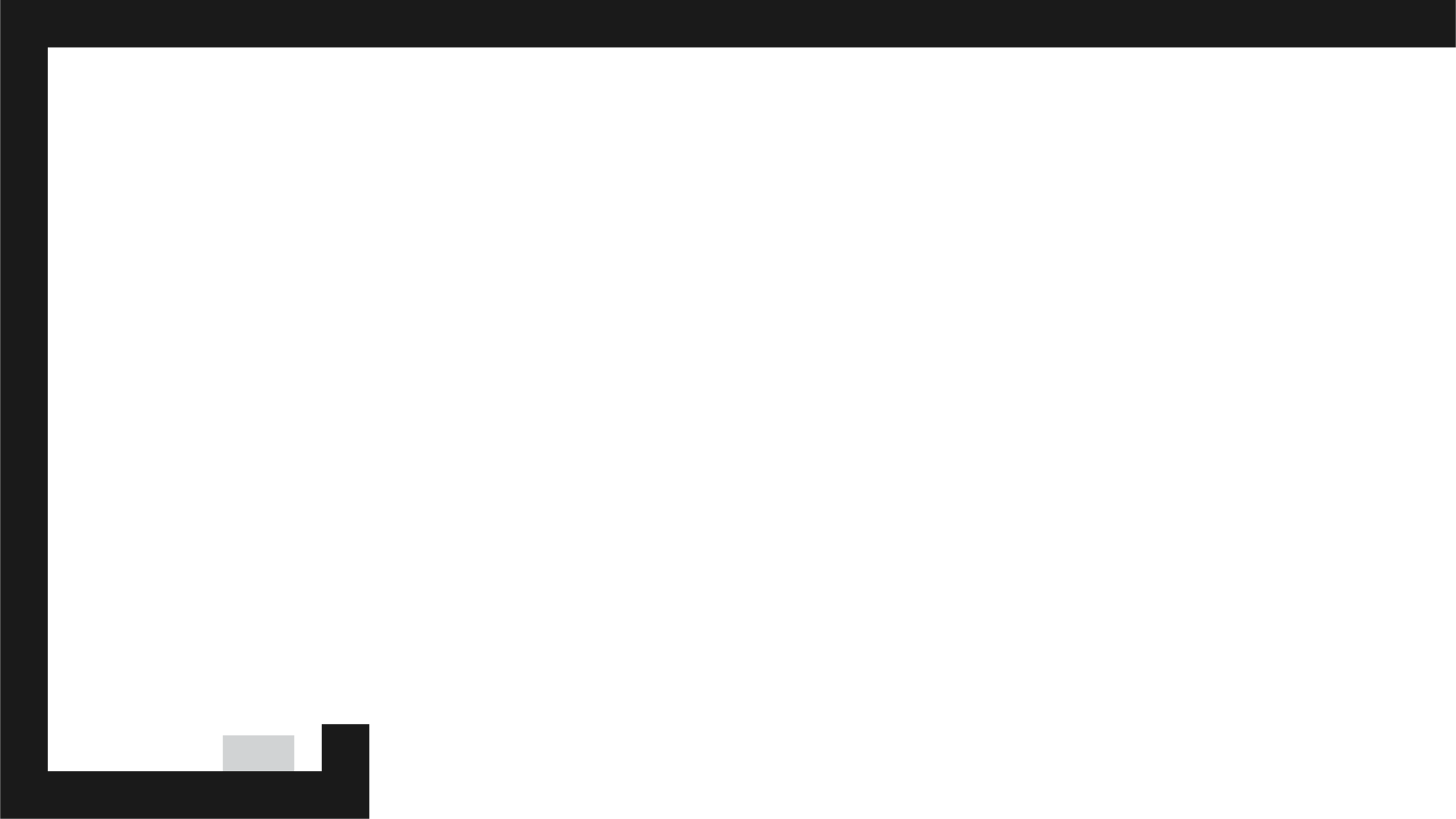

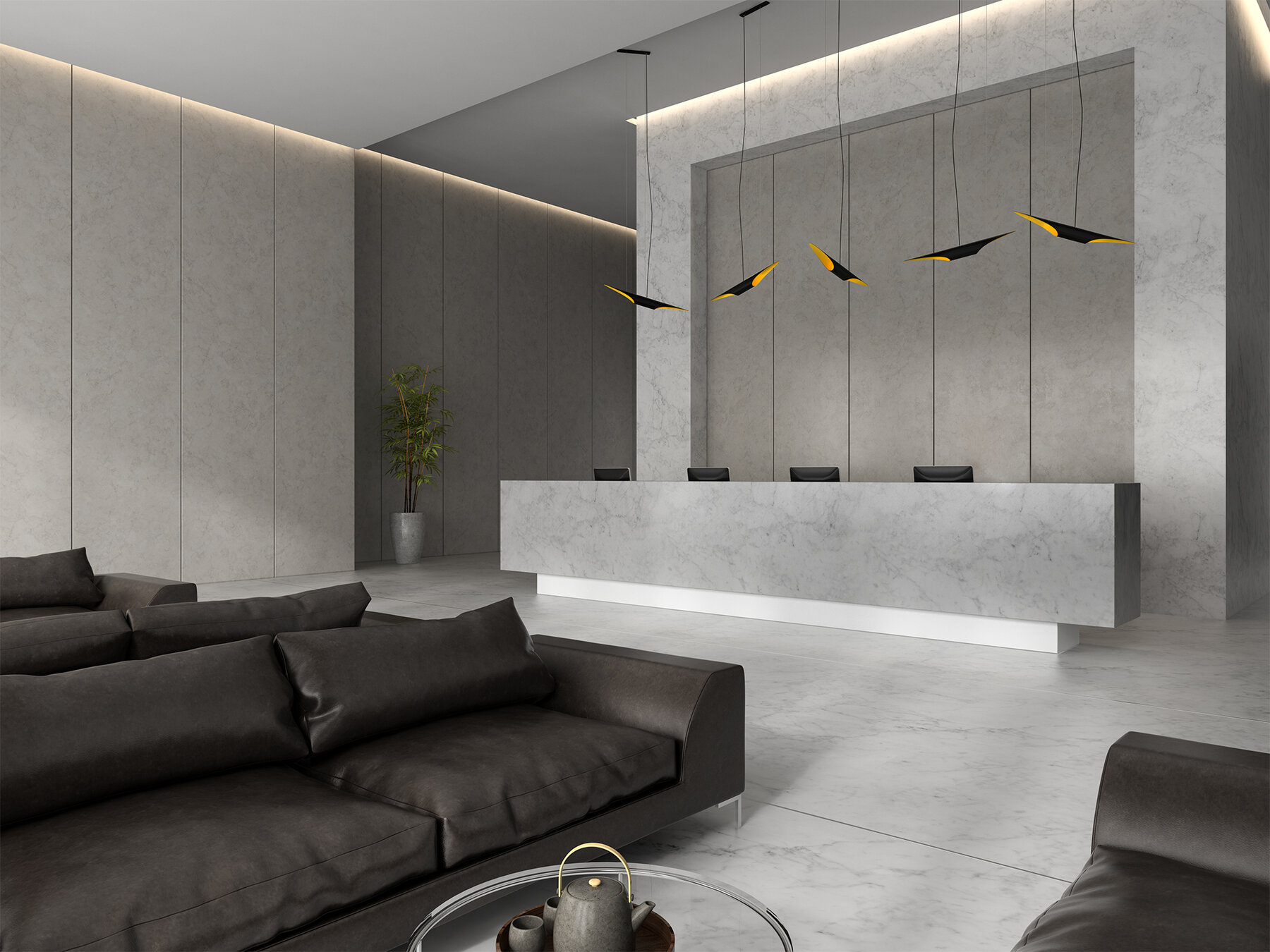

Cove
Beam Angles
25º x 70º | 40º x 70º | 20º

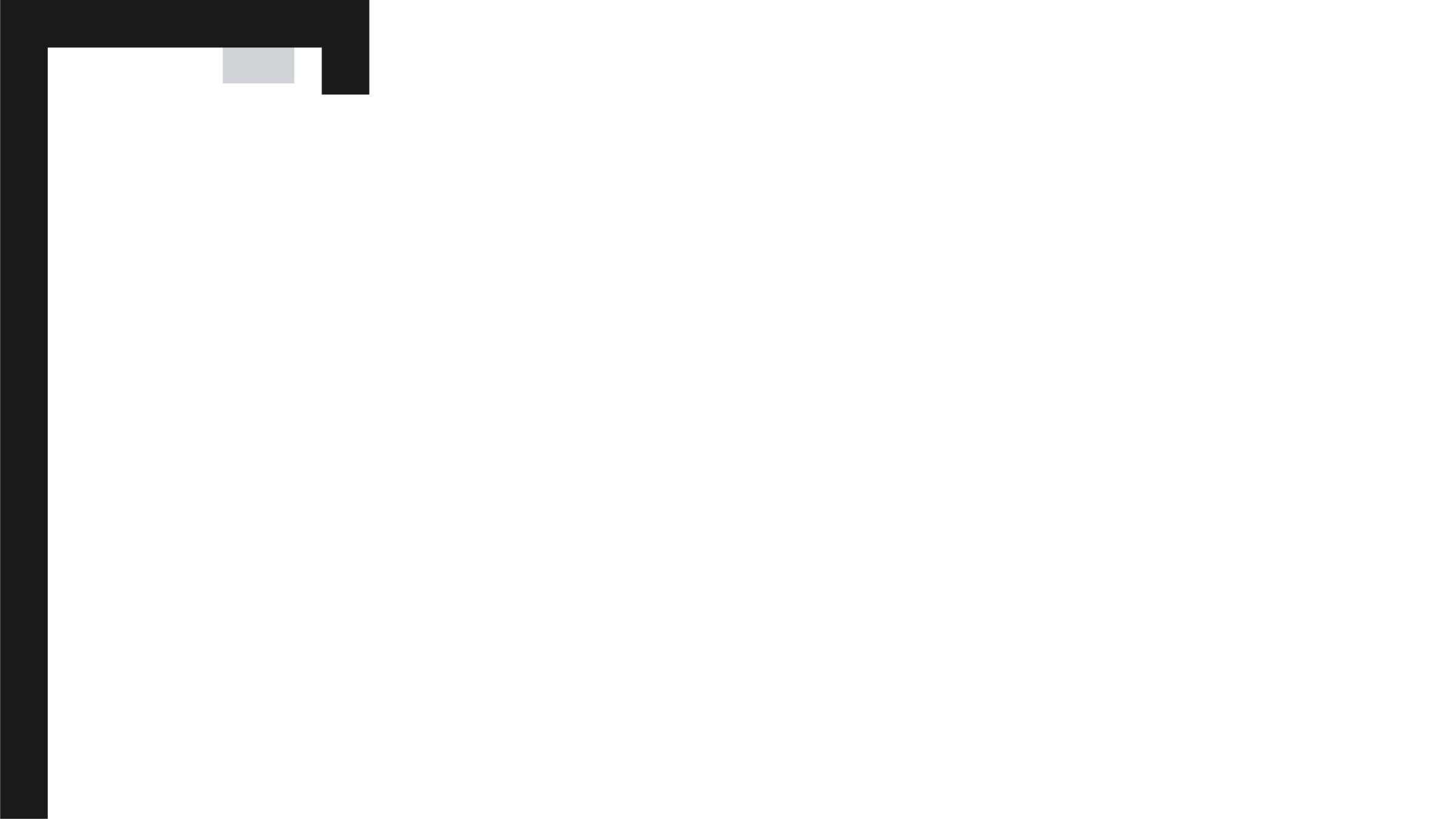

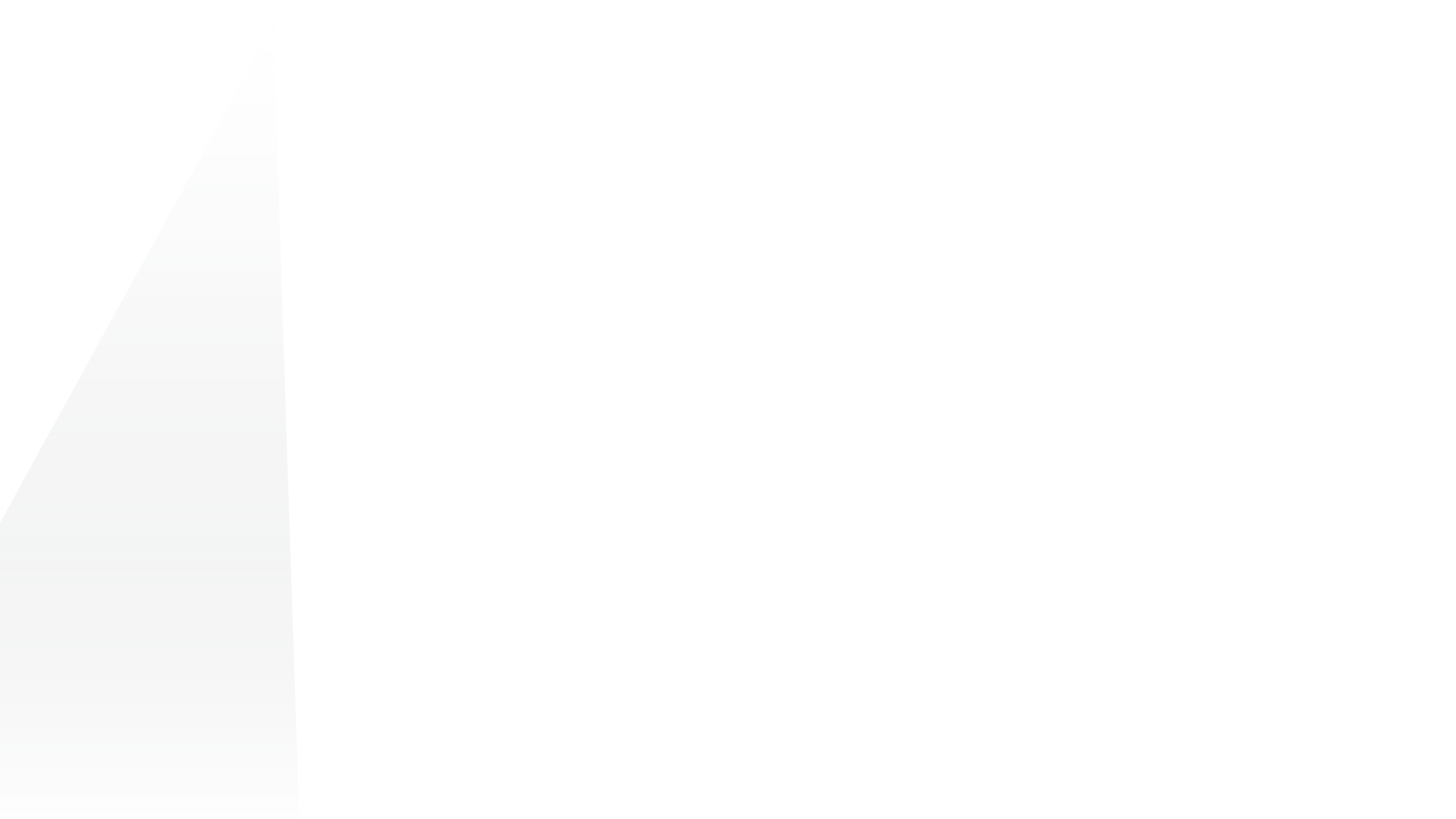

Graze
Beam Angles
110º | 80º | 50º

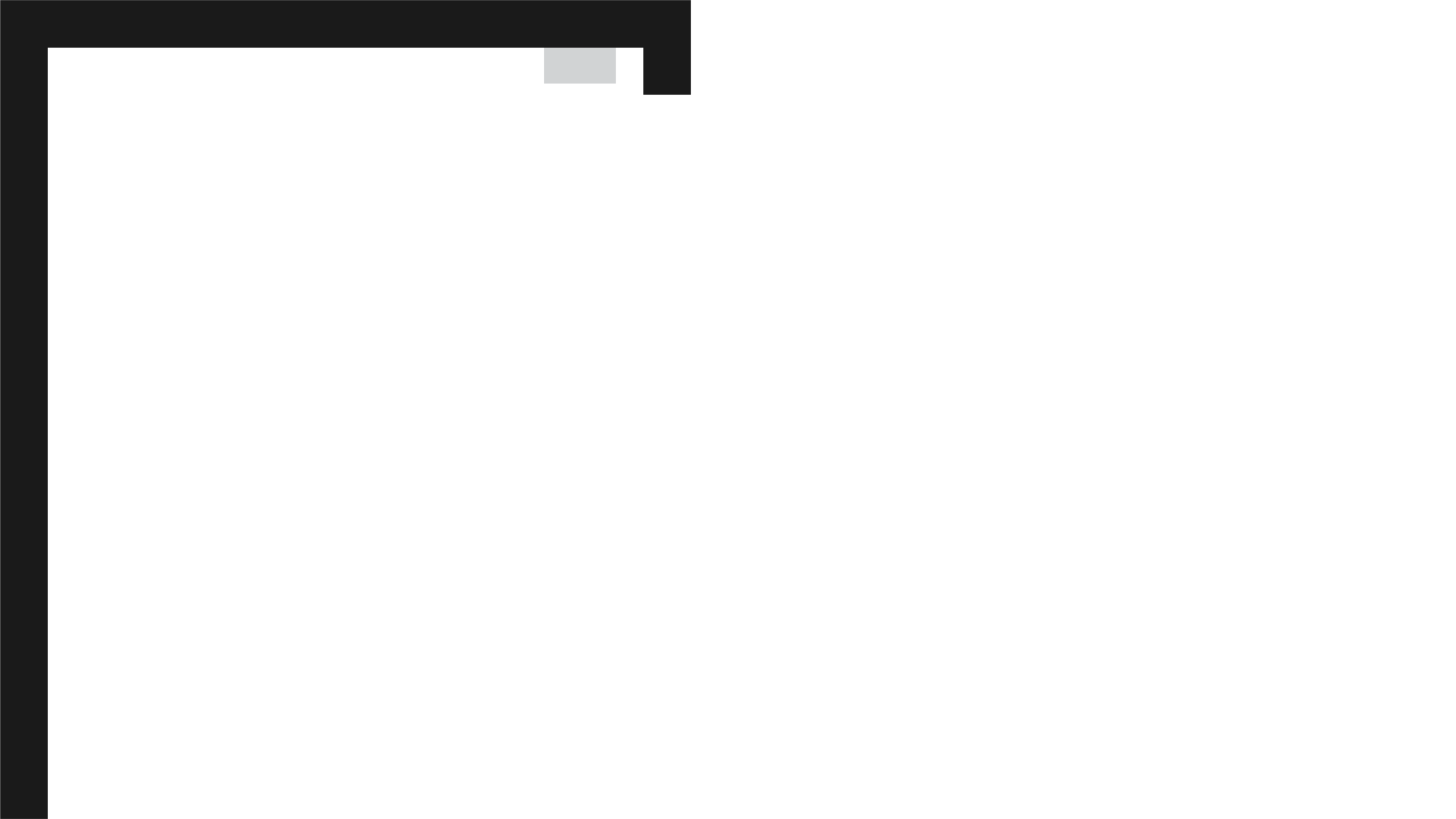

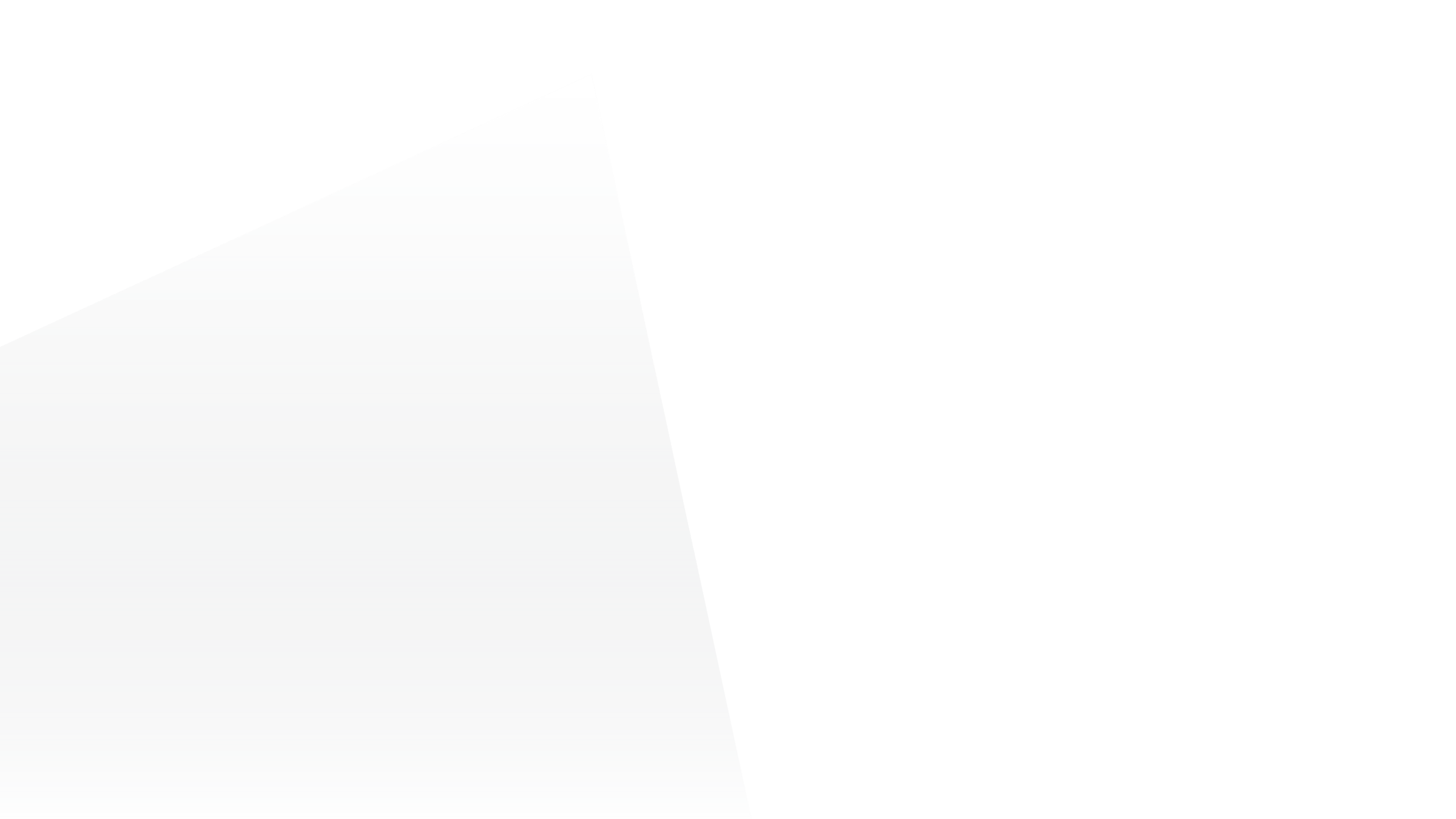

Wash
Beam Angles
25º x 70º | 40º x 70º

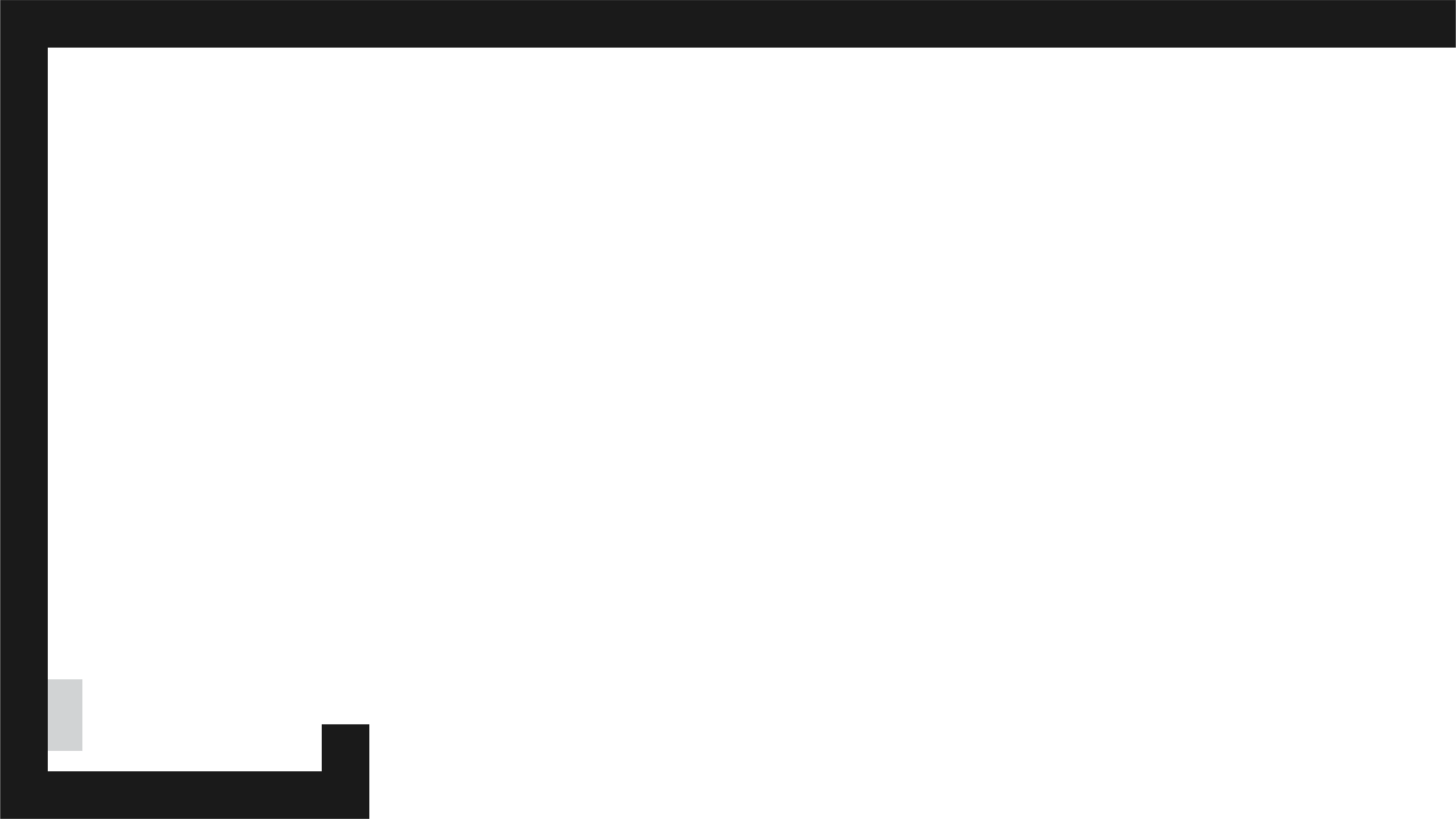

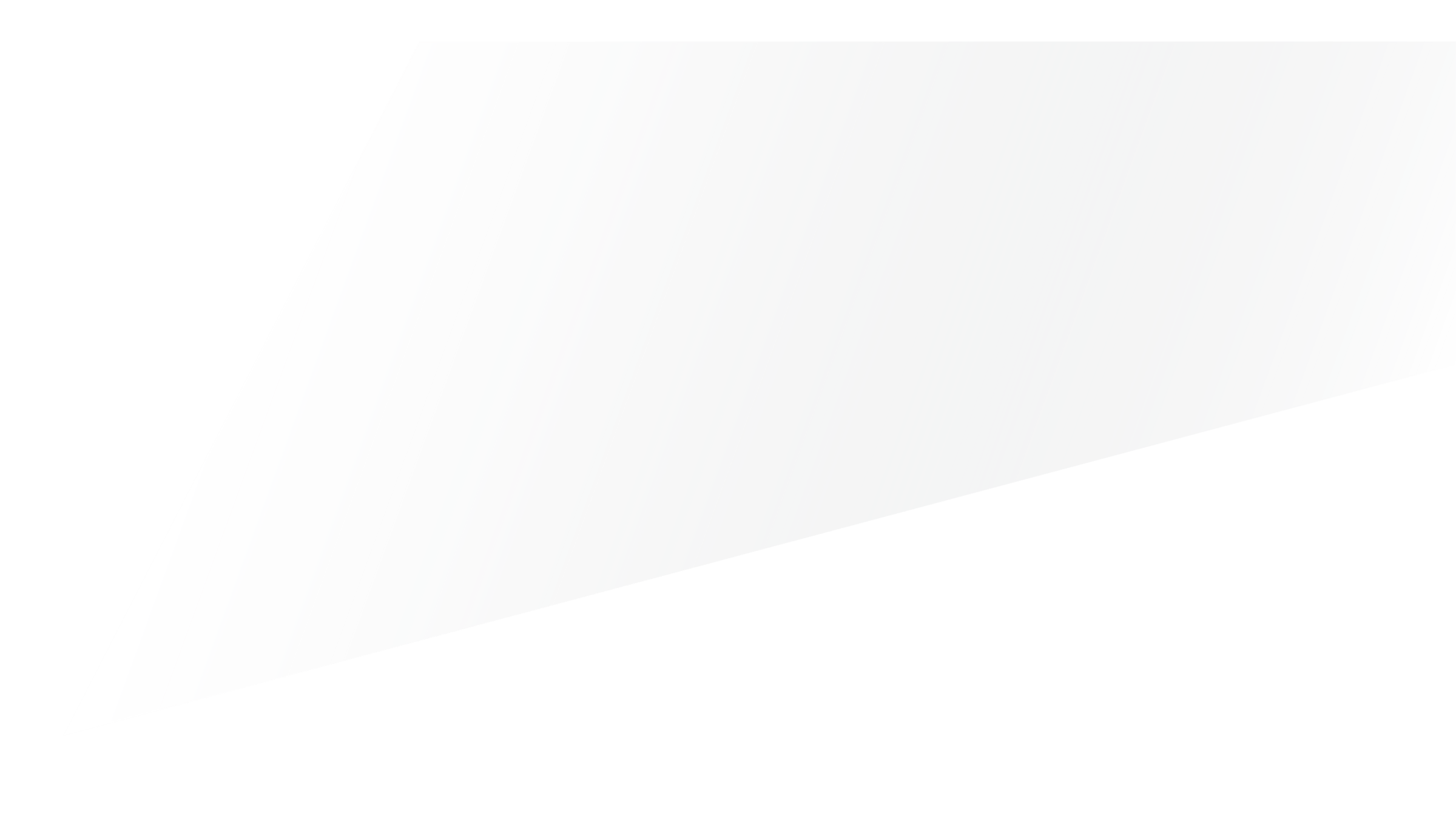

Asymmetric
Lengths
1 foot or 4 foot
Finish
Anodized Aluminum

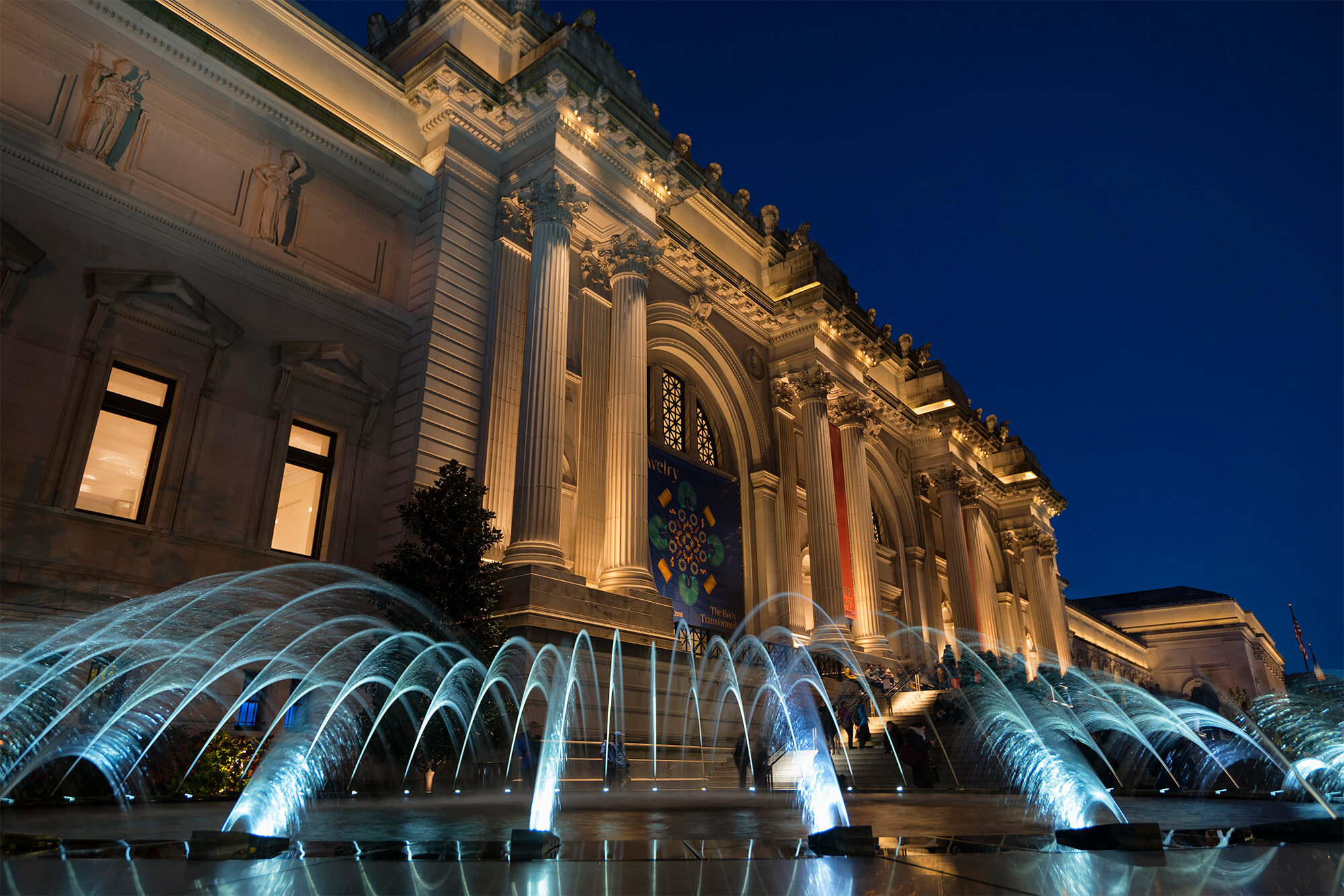

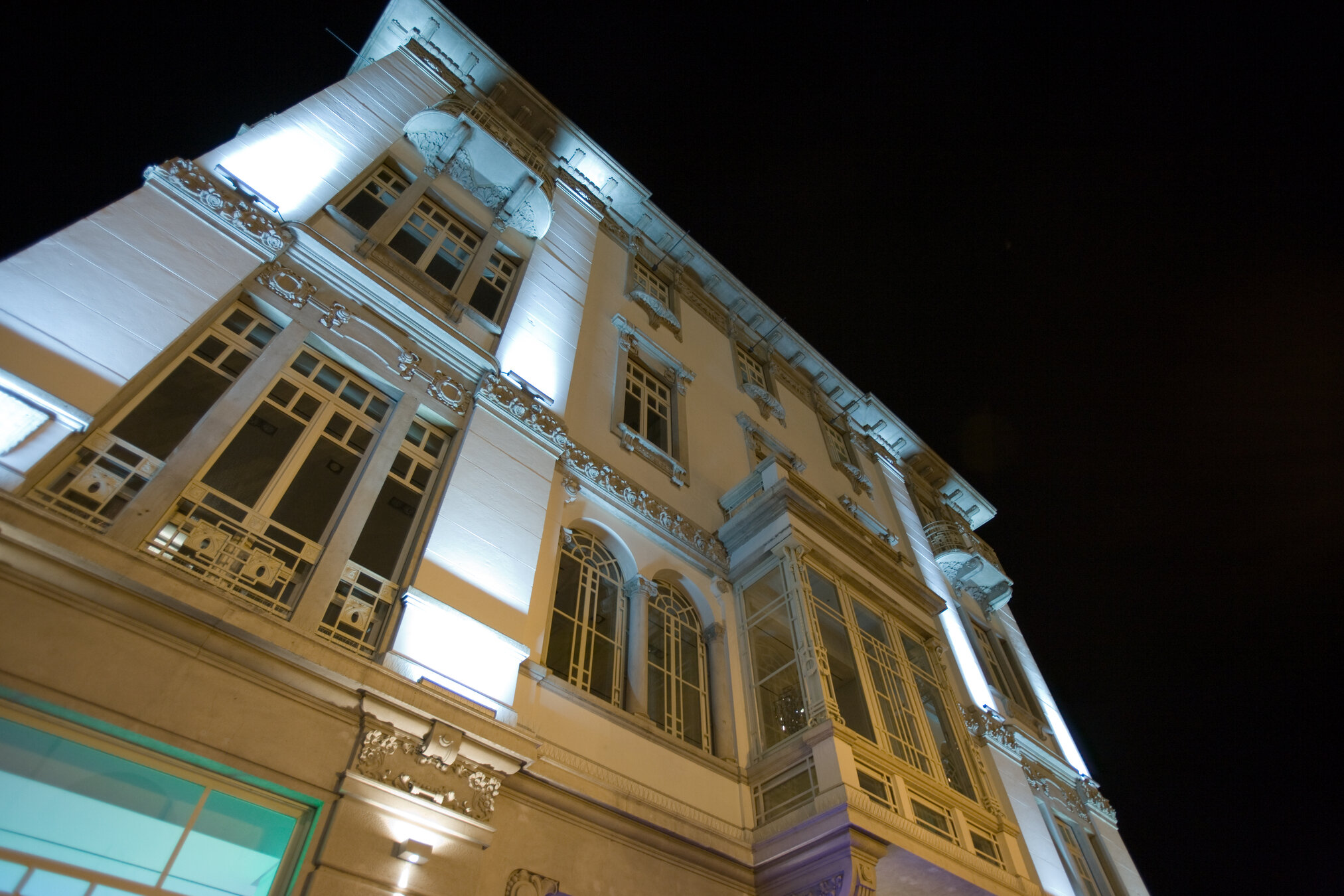

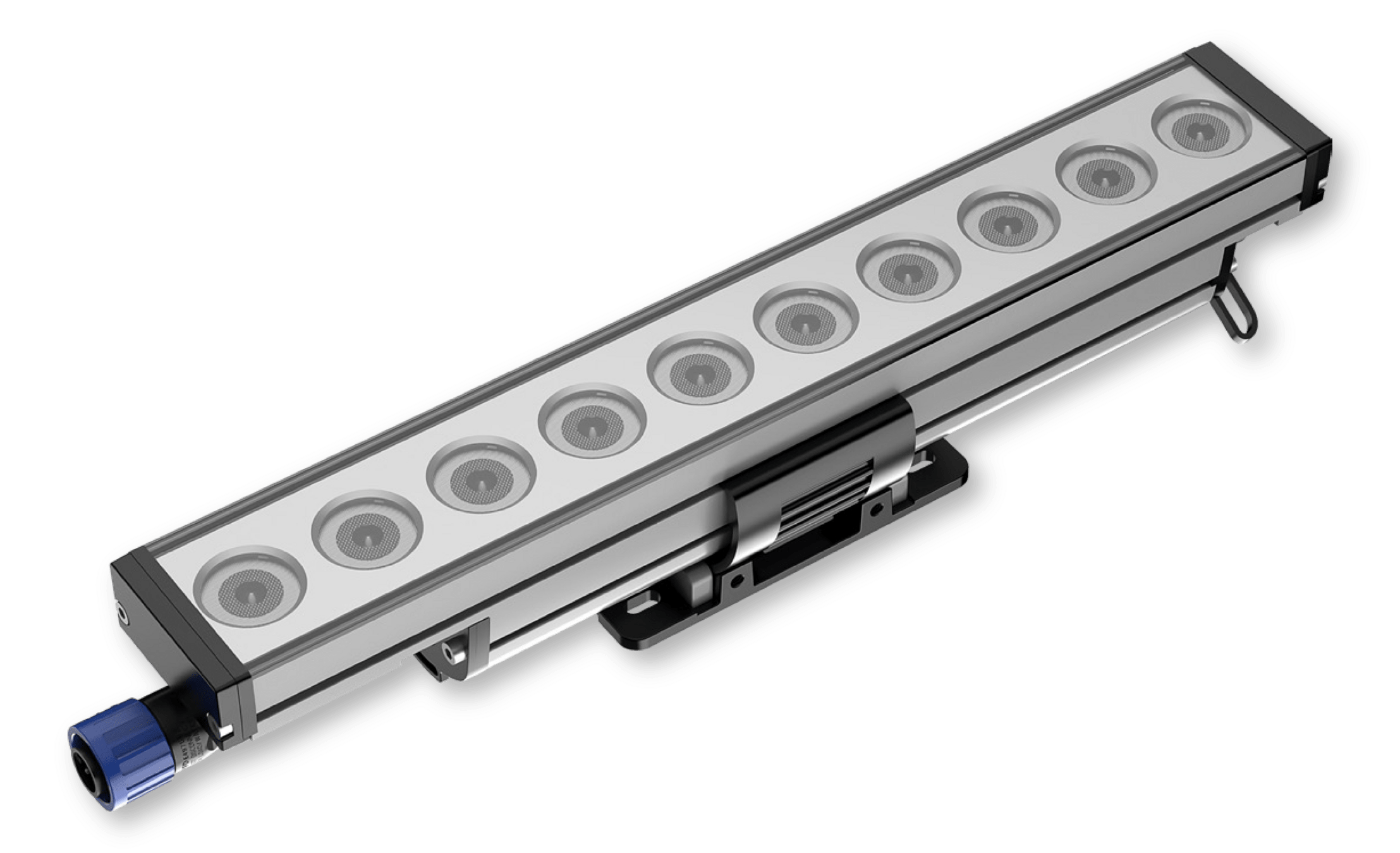

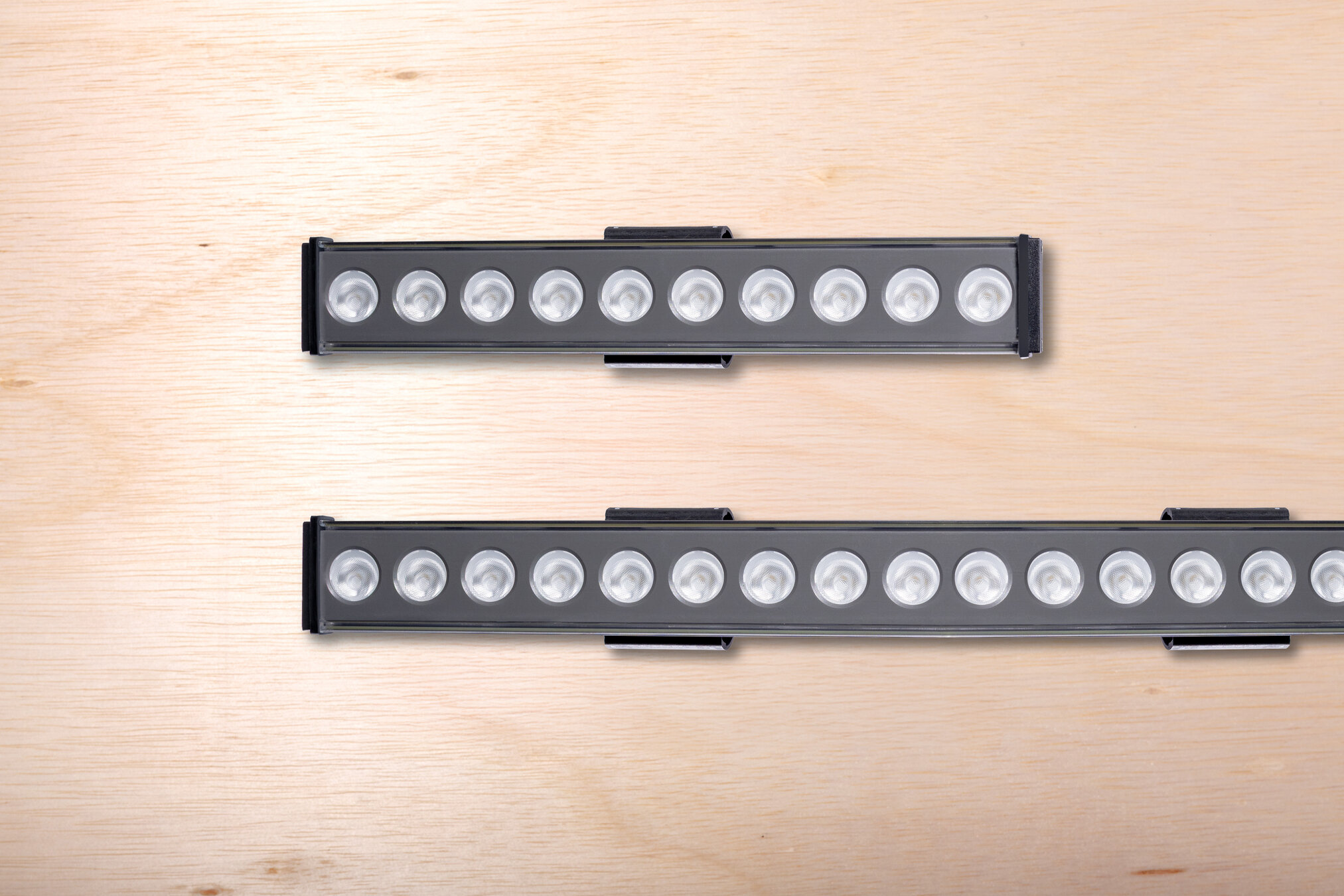

Veil EX Exterior Building & Façade Light
Beam Angle of Shown Product: 15º x 40º
Features

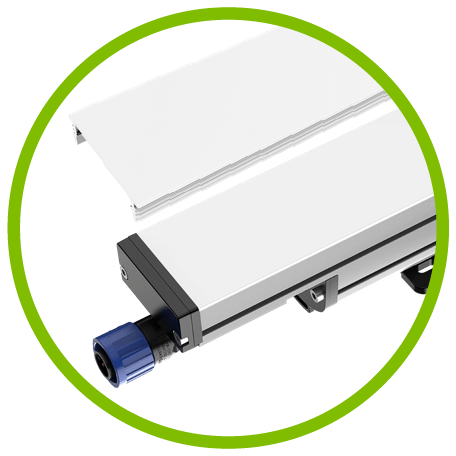

CO-Extruded Diffuser

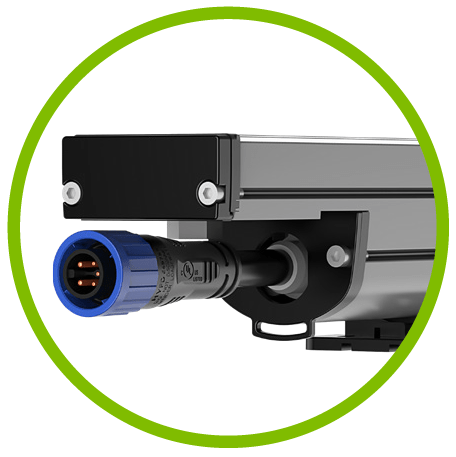

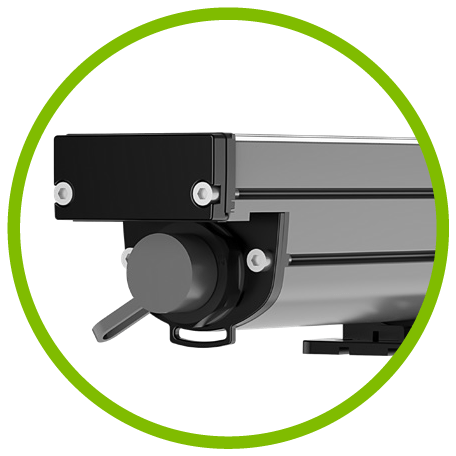

Waterproof Connectors
1 FT: 10W (900 lm)
4 FT: 40W (3,600 lm)
2700K
3000K
3500K
4000K
5000K
Operating Temp: -13ºF to 122ºF
Line Voltage
| Input Wattage | 10W | 40W |
|---|---|---|
| Maximum Length (120V) | 72' | 72' |
| Maximum Length (277V) | 165' | 165' |
Run Length Limit
1 Foot
4 Feet
Anodized Extruded Aluminum Housing & Die-Cast End Caps
0-10V Dimming
Self-Locking, Double-Ended Connectors

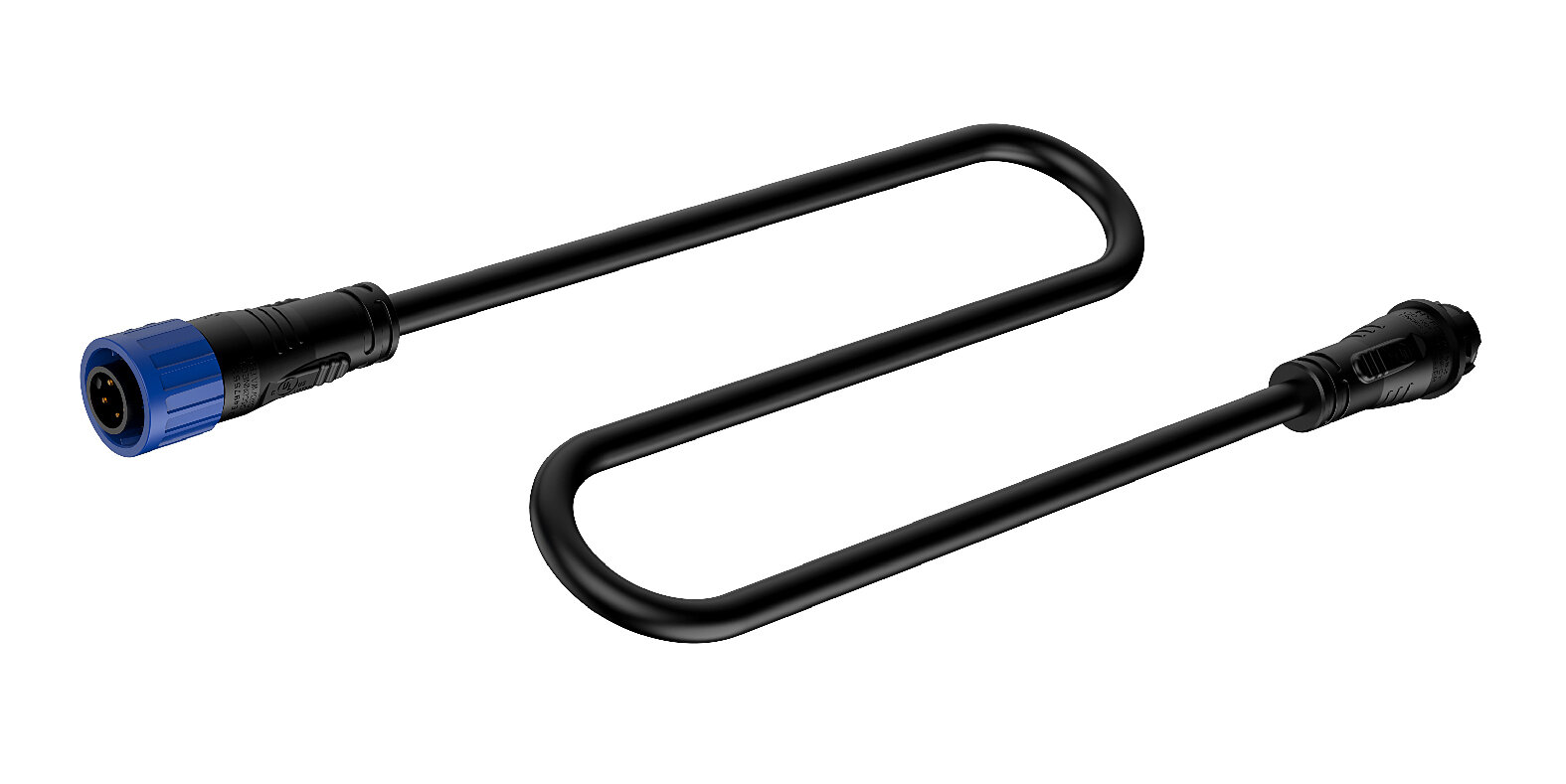

Extension Cable
1' | 3' | 12'

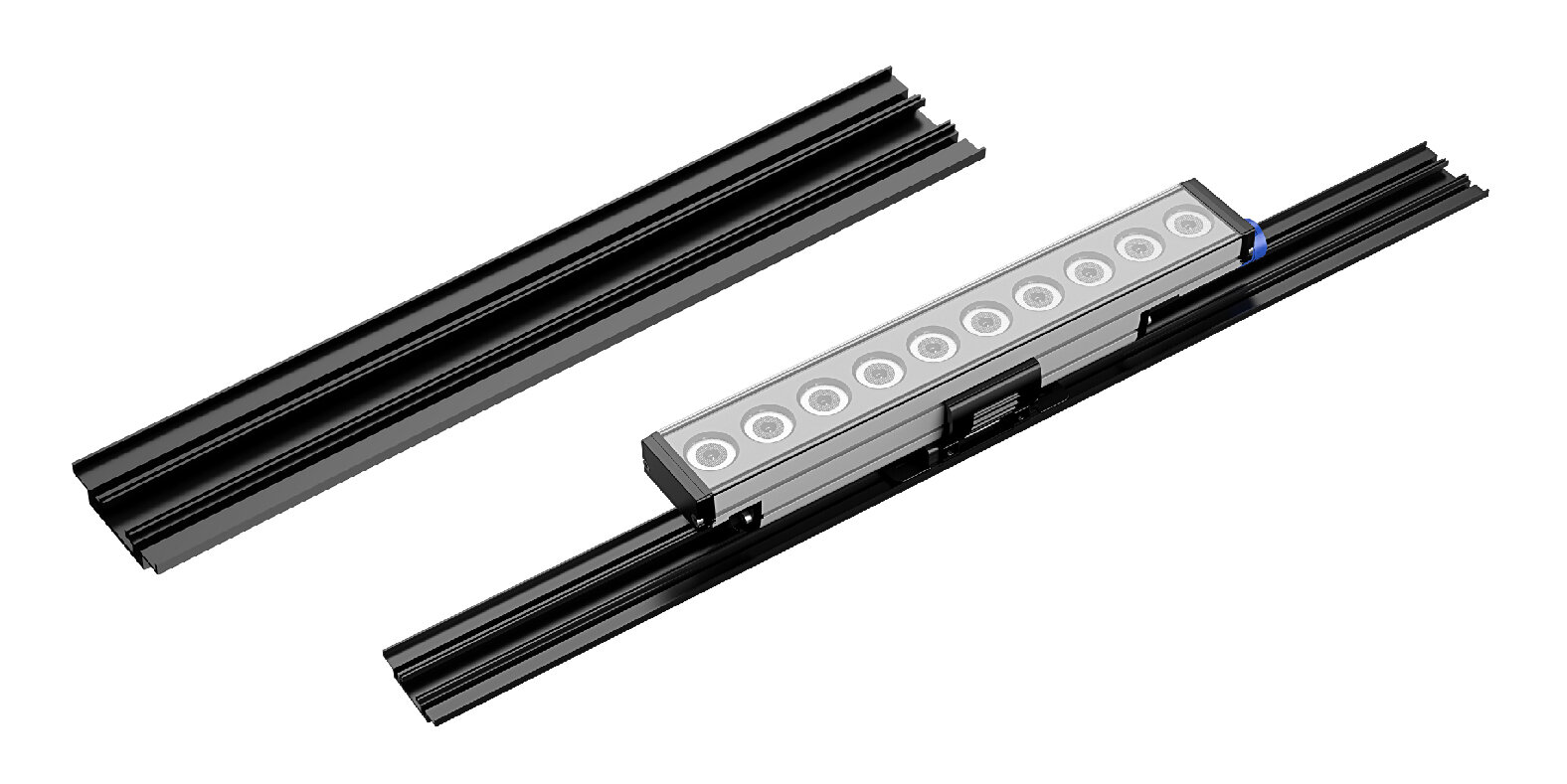

Positioning Track
Aluminum 8'

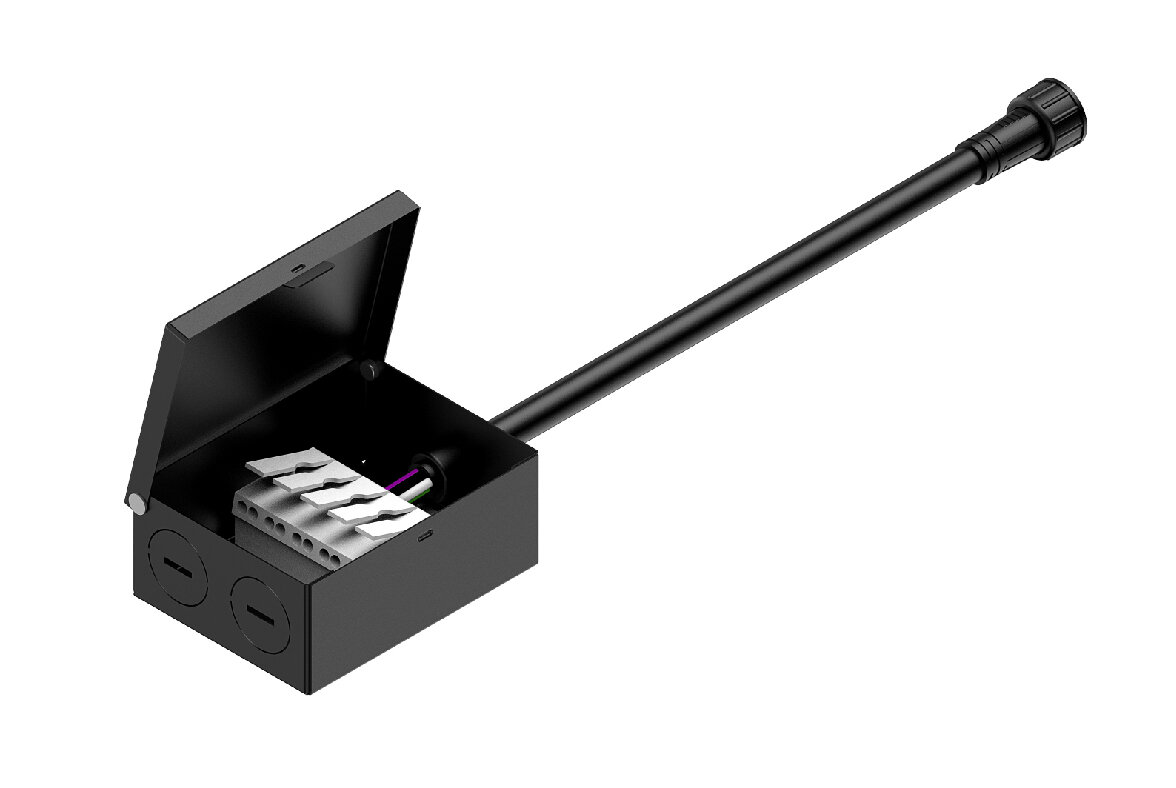

IP65 Power Harness Box
Included
Accessories
Wattages: 10W
CCT: 4000K

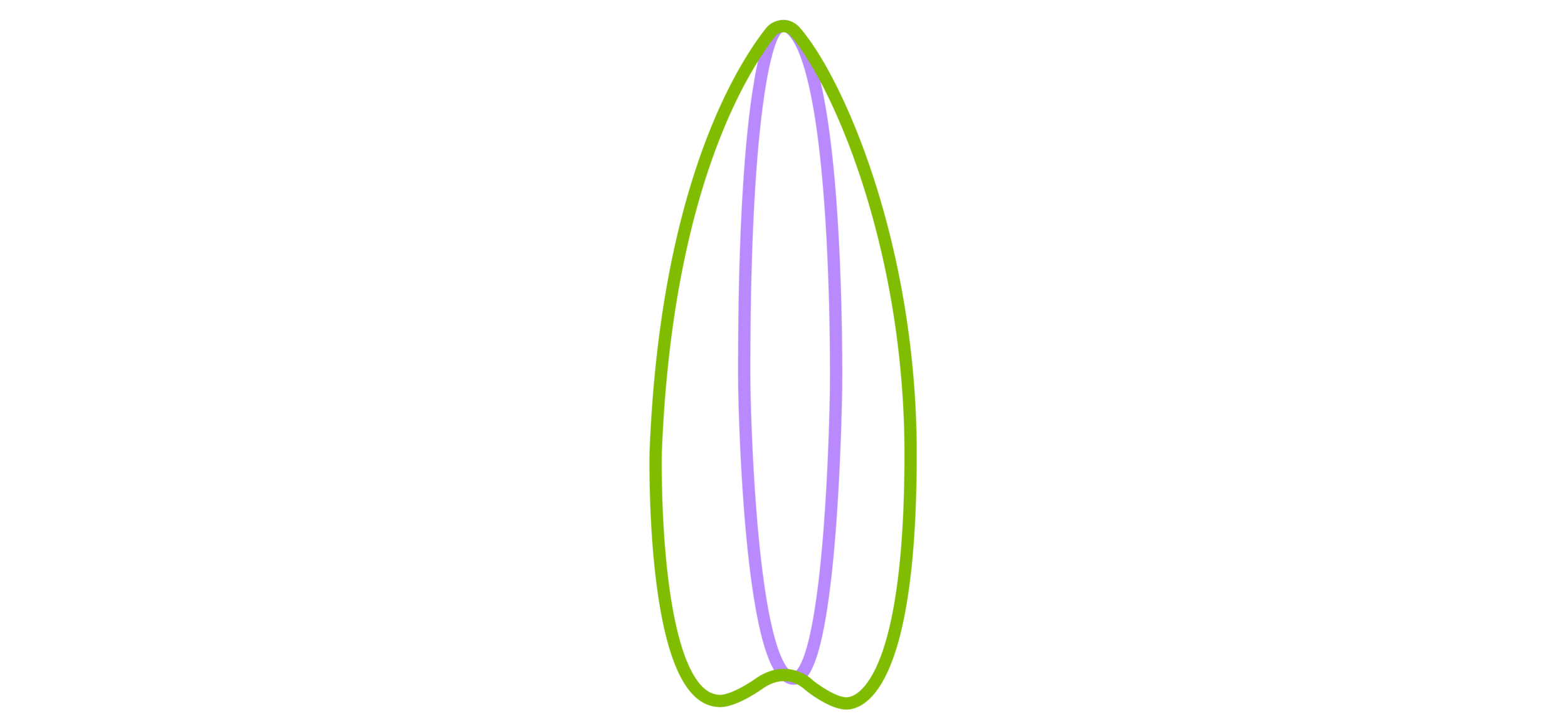

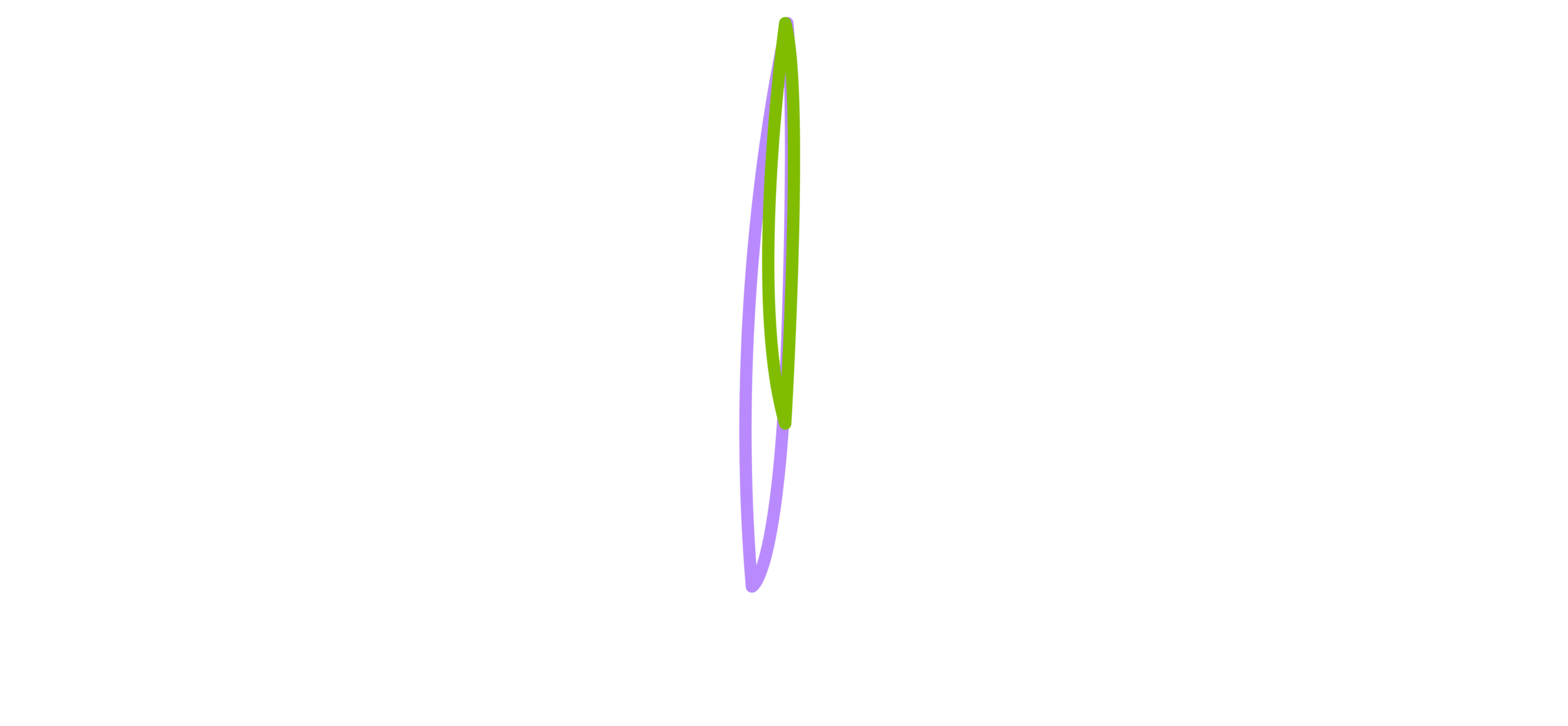

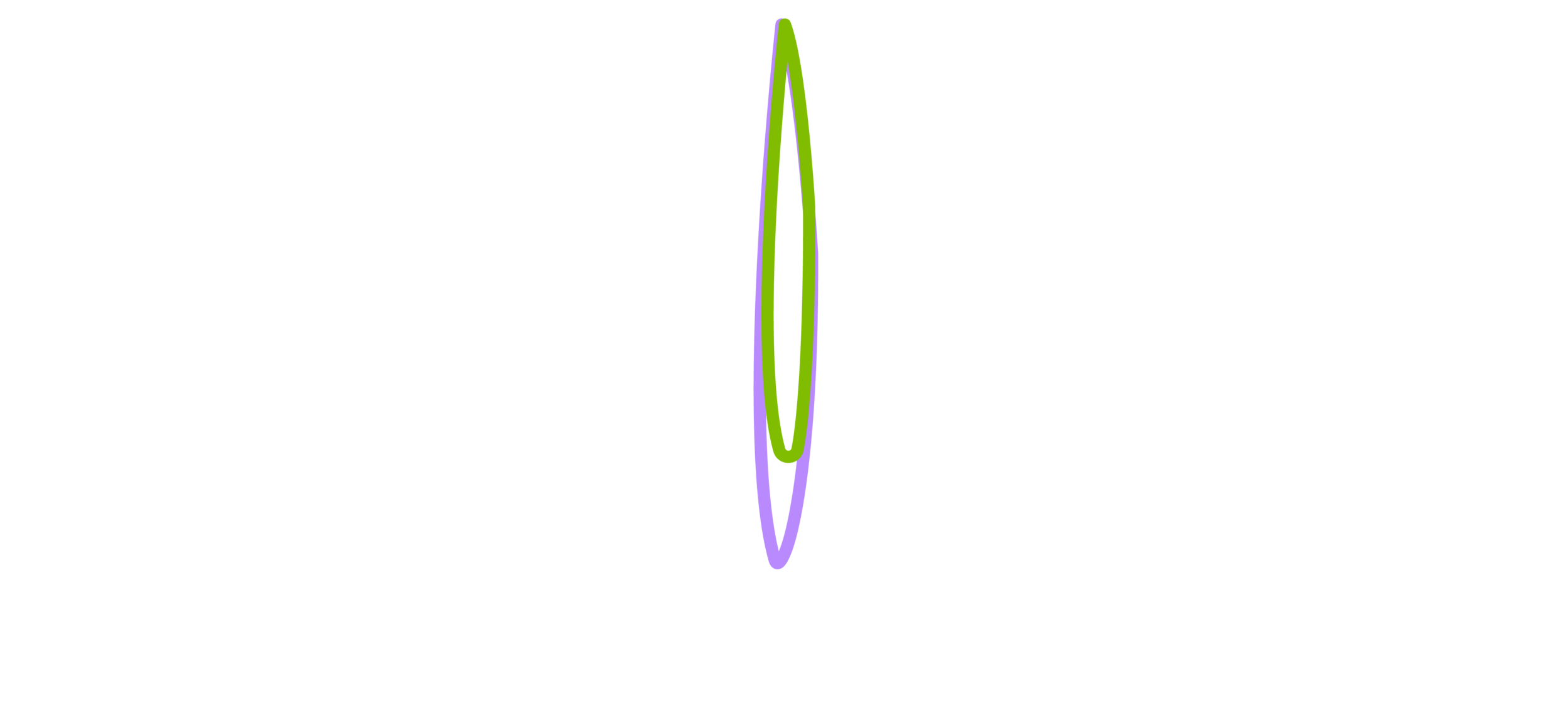

Distributions
7.1º
10.9º
14.5º
Distribution: 7º x 7º
Distribution: 10º x 10º
Distribution: 36º x 36º

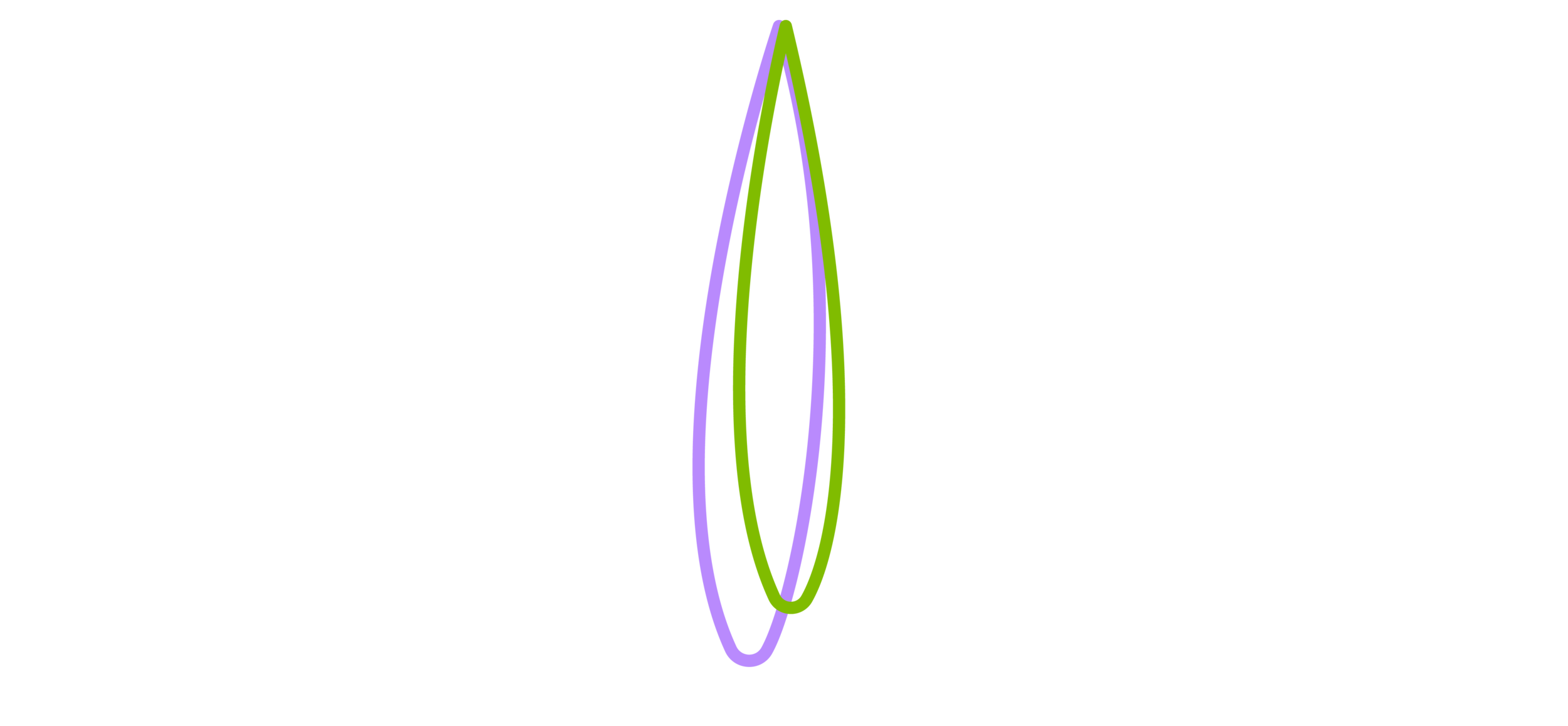

Distributions
18.3º
23.6º
35.5º
Distribution: 18º x 18º
Distribution: 24º x 24º
Distribution: 36º x 36º
Wattages: 10W
CCT: 4000K

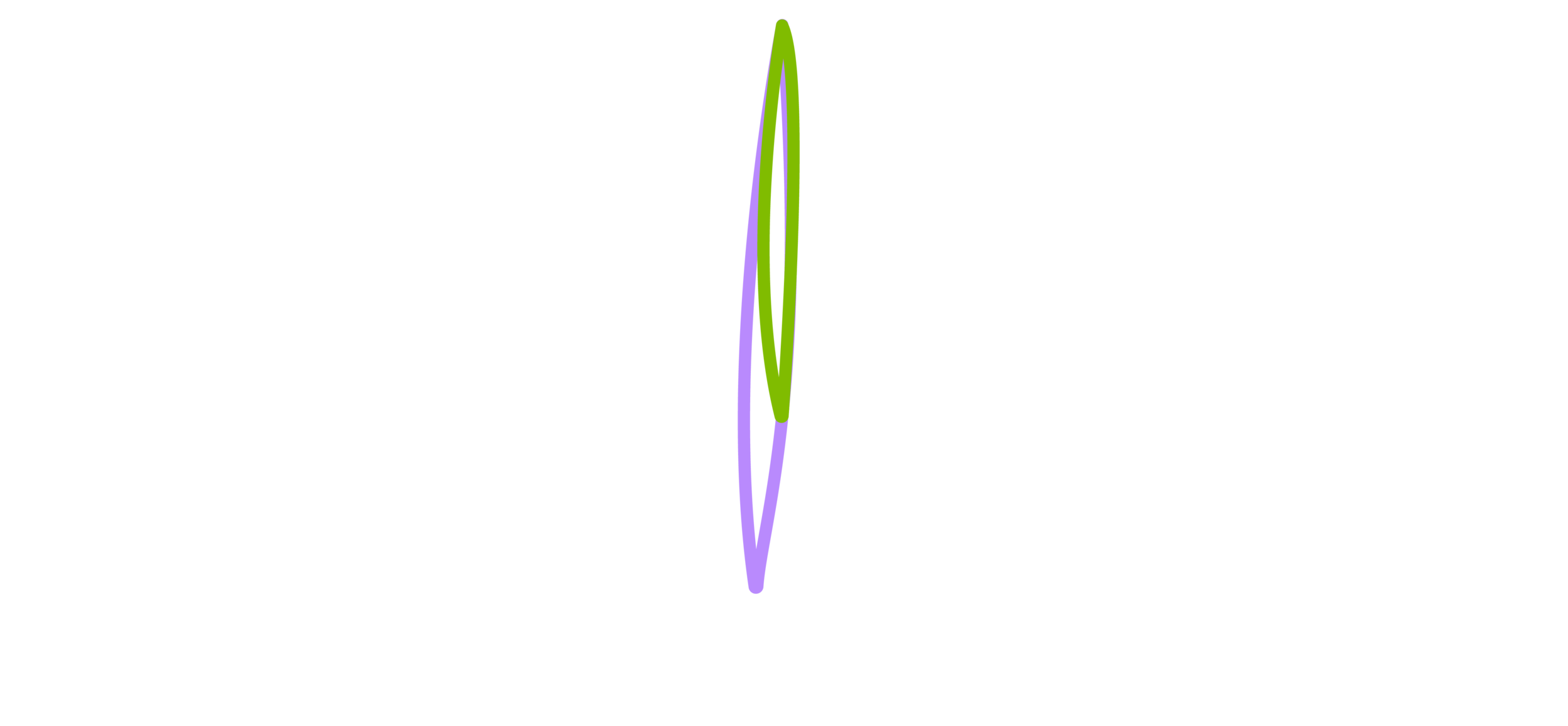

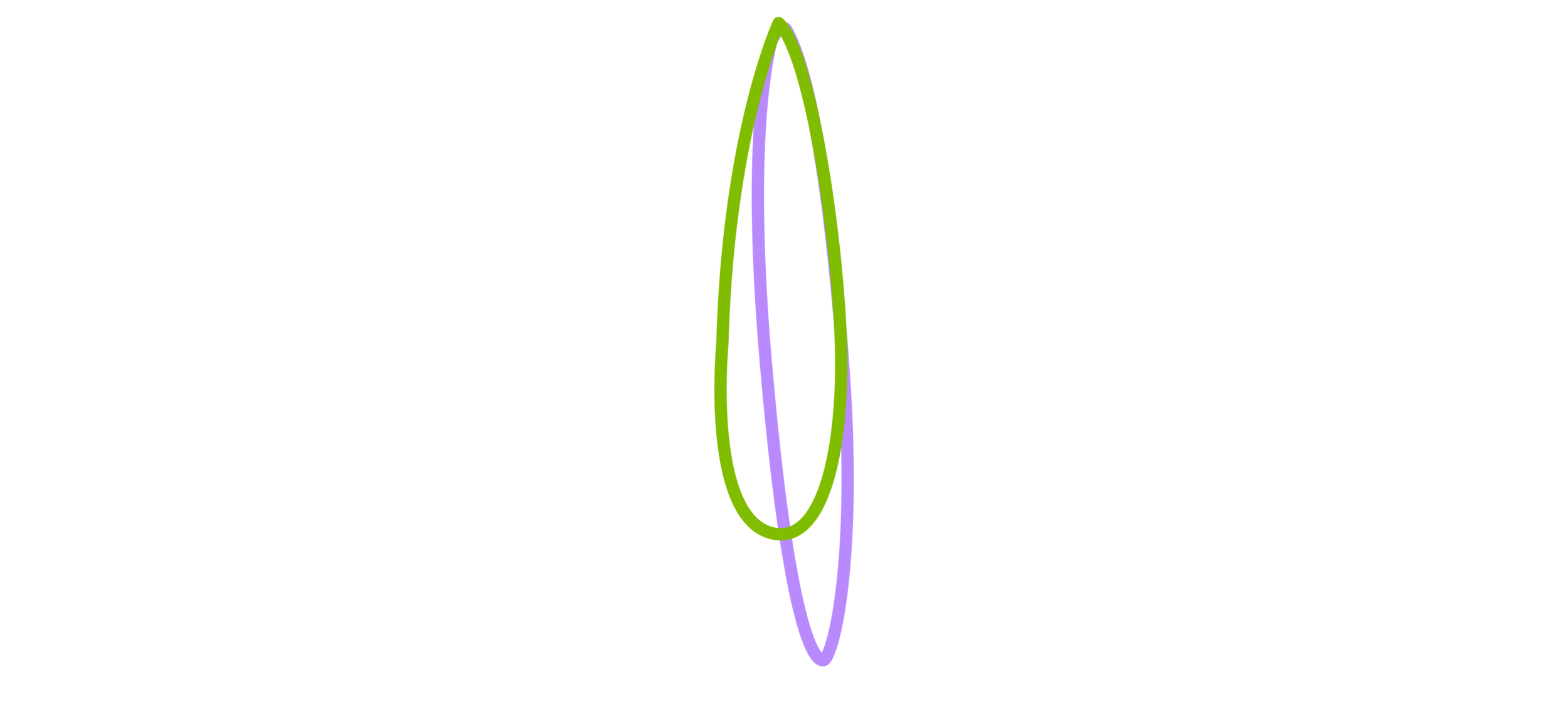

Distributions
17.7º
28.2º
35.3º
Distribution: 12º x 24º
Distribution: 15º x 40º
Distribution: 15º x 55º
Wattages: 10W
CCT: 4000K
Competitors

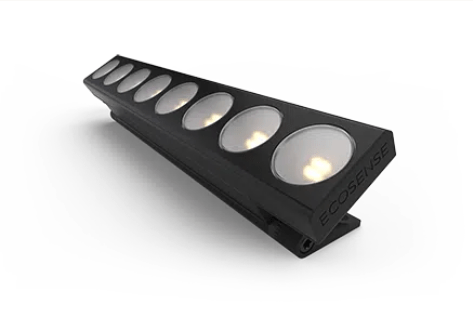

EcoSense
TROV Series
Interior & Exterior
Interior & Exterior

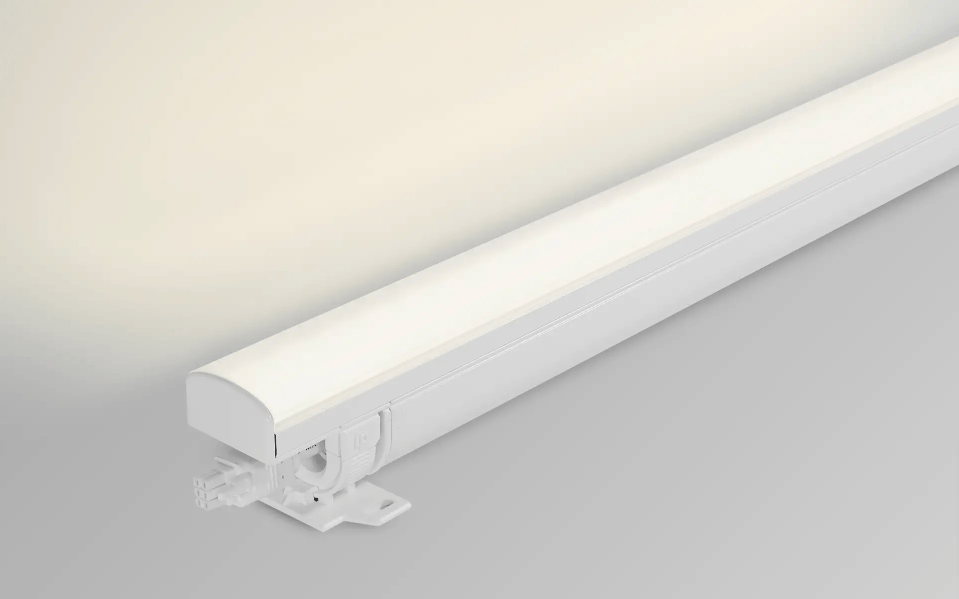

LumenPulse
Lumencore Series
Indoor Only

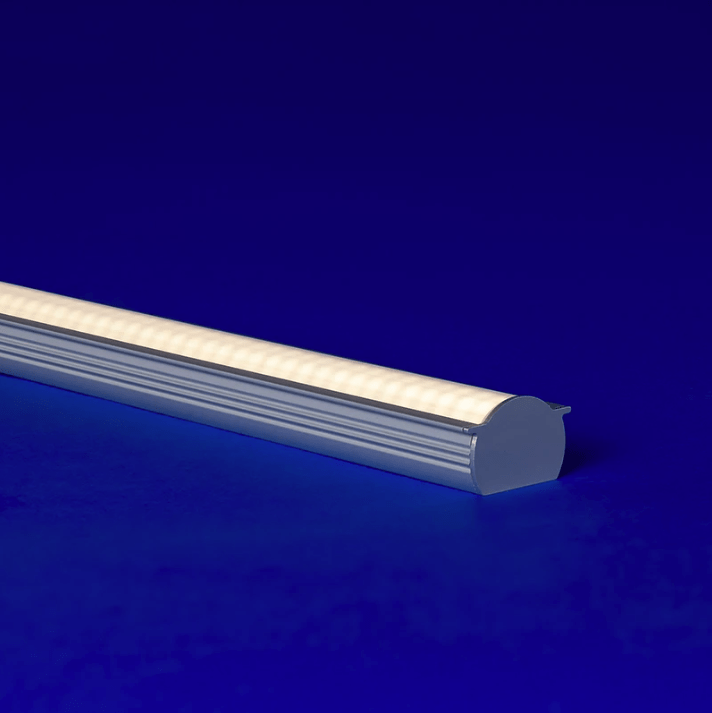

QTL Lighting
Quova Series

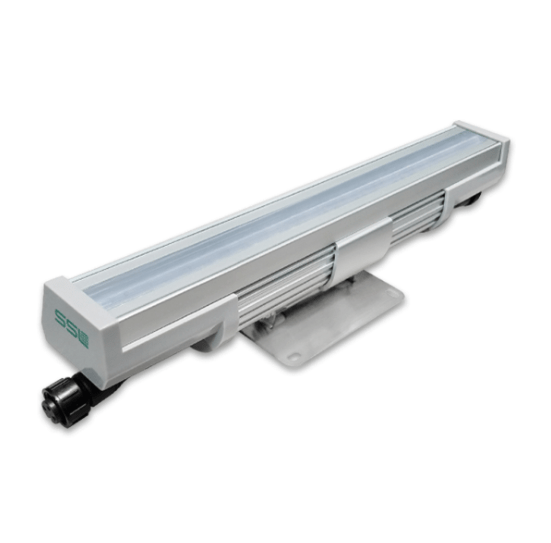

Solid State Luminaires
CoveLine & ColourLine
Interior & Exterior
