Almost cloud NAtive Deployment with AWS Fargate

James Alexander

jamesralexander.com

QR Link to Slides:

fargate

By JeremyA at English Wikipedia - Transferred from en.wikipedia to Commons by Gavin.perch., CC BY 3.0, https://commons.wikimedia.org/w/index.php?curid=13488176

Fargate

AWS Fargate

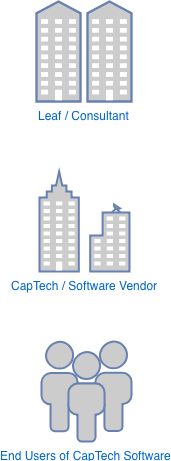

ORG CHART

Leaf is a Consultant

Leaf's Client is a Software Vendor: e.g. "CapTech"

"CapTech" has clients that use the Software

Products

  • Product1: Internal Tool to Manage Stock trades
    • EC2 & RDS Instances
    • EC2 Instances treated as "pets" (customized in production after initial configuration)
  • Product2: Client facing tool to allow for clients
    • Single On-prem server running IIS using remote SQL Server
    • Re-writing app using .NET Core and PostgreSQL

Existing App

  • C# .NET Framework
  • IIS / Windows Colo-Server
  • SQL Server
  • Bulk Uploads once per day of many files
  • Relatively low incoming Web Traffic monthly (<600 reqs per day)

New App

  • AWS Hosted
  • C# .NET Core
  • Docker / ECS / Fargate
  • PostgreSQL

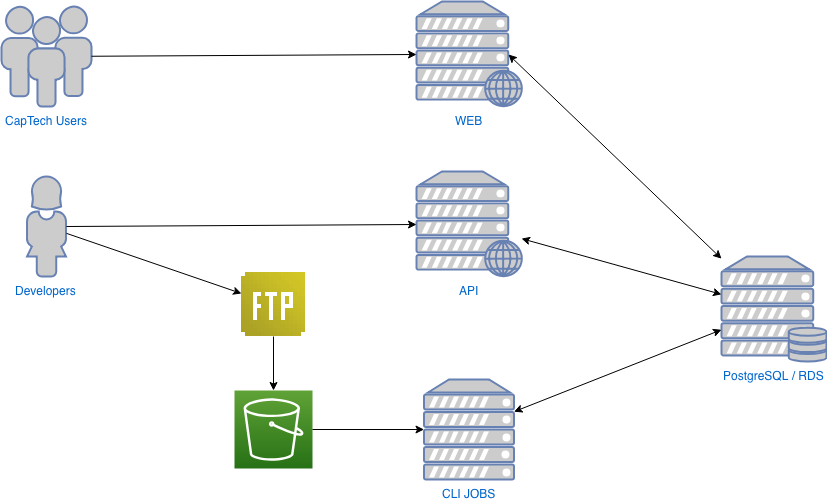

Architecture diagram

S3

Overview

Infrastructure - Cloud Formation

  • Provides a thin Ruby layer of abstraction above Cloud Formation JSON syntax
  • Use Common Variables to repeated patterns
  • Generate JSON locally output for input into Cloud formation
  • Can be feed into additional scripts that automate Cloud Formation

Infrastructure - Cloud Formation

cfntemplate-to-ruby [EXISTING_CFN] > [NEW_NAME.rb]
template.rb create --stack-name my_stack \
    --parameters "BucketName=bucket-s3-static;SnsQueue=mysnsqueue"

Infrastructure - Cloud Formation

AWS configuration provided by Cloud Formation Templates:

  • S3 - Buckets and Permissions
  • Network Topology Including Security Groups
  • Production and DR RDS Instances
  • Fargate Cluster Configuration
  • EC2 Jumpbox

Step Function

Step Function

Step Function

C# Source

[assembly : LambdaSerializer (typeof (Amazon.Lambda.Serialization.Json.JsonSerializer))]
public class LambdaParameters {
    public string Name { get; set; }
    public string Comment { get; set; }
    public bool ShouldRun { get; set; }
    public int QueueDepth { get; set; }
    public int ActiveRunningLoaders { get; set; }
    public int LoadersToRun { get; set; }
    public int MaxLoaders { get; set; }
    public string Bucket { get; set; }
    public string Key { get; set; }

    public override string ToString()
    {
        return $"Parameters: Comment: {Comment} - QueueDepth: {QueueDepth}";
    }
}

C# Lambda Source

public class LoaderLambda {

    public int Trigger (SNSEvent evnt, ILambdaContext context) { ... }

    public LambdaParameters ShouldContinueRunning(LambdaParameters p, ILambdaContext context) { ... }

    public LambdaParameters GetQueueDepth(LambdaParameters p, ILambdaContext context) { ... }

    public LambdaParameters GetActiveRunningLoaders(LambdaParameters p, ILambdaContext context) { ... }

    public LambdaParameters GetMaxLoaders(LambdaParameters p, ILambdaContext context) { ... }

    public LambdaParameters StartLoaders(LambdaParameters p, ILambdaContext context) { ... }
}

C# Lambda Source

public LambdaParameters StartLoaders(LambdaParameters p, ILambdaContext context) {
    var runningLoaders = GetActiveRunningLoaders(p, context).ActiveRunningLoaders;
    var tasksToRun = Math.Min(p.MaxLoaders - runningLoaders, p.QueueDepth);

    for (int i = 0; i < tasksToRun; i++)
    {
        var runParameters = ReceiveMessageOnQueue(context);
        StartLoaderTask(runParameters, context);
    }

    return p;
}

C# Lambda Source

public void StartLoaderTask(LambdaParameters p, ILambdaContext context) {
    using (var client = new AmazonECSClient ()) {

        var taskName = GetSsmParameter("LOADER_TASK_NAME");
        var clusterName = GetSsmParameter("ECS_CLUSTER");
        var taskRequest = new RunTaskRequest {
            TaskDefinition = taskName,
            Count = 1,
            LaunchType = new LaunchType ("FARGATE")
        };
        // ... Populate Network Config
        taskRequest.Overrides = new TaskOverride {
            ContainerOverrides = new List<ContainerOverride> {
                new ContainerOverride {
                    Name = "file-loader",
                    Command = new List<string> (
                        new string[] {
                            "/app/startloader.sh",
                            p.Bucket,
                            p.Key
                        }
                    )
                }
            }
        };
        context.Logger.LogLine($"Triggering Task: {taskName} on cluster: {clusterName}");
        var response = client.RunTaskAsync (taskRequest, new CancellationToken ()).Result;
        // ... Logging for Errors / Failures
    }
}

C# Lambda Source

# /app/startloader.sh

#!/bin/sh

env
cd CommandLine
/app/chamber exec $ENVIRONMENT -- dotnet MyNamespace.Interface.CommandLine.dll -j \
    import -b $1 -k $2

Lambda Deployment

dotnet lambda deploy-function $ENVIRONMENT-ldr-trigger -fh \
    AwsLambda::AwsLambda.LoaderLambda::Trigger

dotnet lambda deploy-function $ENVIRONMENT-ldr-should-continue-running -fh \
    AwsLambda::AwsLambda.LoaderLambda::ShouldContinueRunning

dotnet lambda deploy-function $ENVIRONMENT-ldr-get-queue-depth -fh \
    AwsLambda::AwsLambda.LoaderLambda::GetQueueDepth

dotnet lambda deploy-function $ENVIRONMENT-ldr-get-max-loaders -fh \
    AwsLambda::AwsLambda.LoaderLambda::GetMaxLoaders

dotnet lambda deploy-function $ENVIRONMENT-ldr-start-loaders -fh \
    AwsLambda::AwsLambda.LoaderLambda::StartLoaders

Managing Environments

Cross account role assumption

awsume

awsume client1-source-profile

Exports "client1-source-profile" credentials into current shell, will ask for MFA if needed

aws s3 ls

awsume

~/.aws/config
[default]
region = us-east-1

[profile internal-admin]
role_arn = arn:aws:iam::<your aws account id>:role/admin-role
source_profile = joel
region = us-east-1

[profile client1-source-profile]
role_arn = arn:aws:iam::<client #1 account id>:role/admin-role
mfa_serial = arn:aws:iam::<your aws account id>:mfa/joel
source_profile = joel
region = us-west-2

[profile client2-admin]
role_arn = arn:aws:iam::<client #2 account id>:role/admin-role
mfa_serial = arn:aws:iam::<your aws account id>:mfa/joel
source_profile = joel
region = us-east-1

Manage Environments with chamber

  • Abstracts the AWS System Parameter Store
  • Written in Go
  • Supports any number of "services" (aka, build environments)

Manage Environments with chamber

chamber write <service> <key> <value|->

chamber write dev myVariable myValue

chamber list dev

chamber export dev --format json --output-file myValues.json

chamber import dev myValues.json



# For those that read comments, here's a Pun:
# Boss: How good are you at Power Point?
# Me: I Excel at it

# Boss: Was that a Microsoft Office pun?
# Me: Word

Manage Environments with chamber

# build.sh - more from our build later

case "$BITBUCKET_BRANCH" in
  develop)
    echo Build a Dev build for devolop branch;
    RELEASE_TAG="development";
    ENVIRONMENT="dev";;
  test/*)
    echo Build a QA build for the test branch
    export RELEASE_TAG=${BITBUCKET_BRANCH#test/};
    ENVIRONMENT="test";;
  master)
    echo Build a prod build for master branch;
    RELEASE_TAG="production"
    ENVIRONMENT="prd"
    DEPLOY_DR="true"
    ;;
  *)
    echo Invalid Branch, cannot proceed with Build and deployment.
    exit 1;;
esac


/chamber exec $ENVIRONMENT -- AWS/build-app.sh;
/chamber exec $ENVIRONMENT -- AWS/build-container.sh $RELEASE_TAG;
/chamber exec $ENVIRONMENT -- AWS/deploy-app.sh $RELEASE_TAG $ENVIRONMENT

Overview

AWS ECS

  • Standard AWS ECS requires the "Amazon ECS container Agent" to be running and connected to a Cluster
  • Intent is to run your own EC2 instance using the above agent

AWS fargate

  • Removes Requirement for an Agent
  • Runs on AWS EC2 instances

AWS fargate

Example Task Definition:

http://bit.ly/fargate-task



Web task (1 of 2 )

#!/bin/bash

# web-task-definition.sh

cat <<JSON
{
  "family": "capnet-web",
  "networkMode": "awsvpc",
  "taskRoleArn": "${WEB_TASK_ROLE_ARN}",
  "containerDefinitions": [
    {
      "name": "capnet-web",
      "logConfiguration": {
        "logDriver": "awslogs",
        "options": {
          "awslogs-group": "${WEB_TASK_LOGS_GROUP}",
          "awslogs-region": "${WEB_TASK_LOGS_REGION}",
          "awslogs-stream-prefix": "${WEB_TASK_LOGS_PREFIX}"
        }
      },
      "image": "${IMAGE}",
      "portMappings": [
        {
          "containerPort": 80,
          "hostPort": 80,
          "protocol": "tcp"
        }
      ],
      "essential": true,
      ......

Web task (2 of 2 )

#!/bin/bash (continued)
# web-task-definition.sh

      .....
      "command": [
        "/app/startweb.sh"
      ],
      "environment": [
        {
          "name": "ENVIRONMENT",
          "value": "${ENVIRONMENT}"
        }
      ]
    }
  ],
  "requiresCompatibilities": [
    "FARGATE"
  ],
  "cpu": "${WEB_TASK_CPU}",
  "memory": "${WEB_TASK_MEMORY}",
  "executionRoleArn": "arn:aws:iam::123456789912:role/ecsTaskExecutionRole"
}
JSON

Web service definition

#!/bin/bash
# web-service-definition.sh

cat <<JSON
{
    "cluster": "${ECS_CLUSTER}",
    "serviceName": "capnet-webserver",
    "taskDefinition": "capnet-web:135",
    "loadBalancers": [
        {
            "targetGroupArn": "${WEB_TARGETGROUP_ARN}",
            "containerName": "capnet-web",
            "containerPort": 80
        }
    ],
    "desiredCount": 0,
    "deploymentConfiguration": {
        "maximumPercent": 200,
        "minimumHealthyPercent": 50
    },
    "launchType": "FARGATE",
    "networkConfiguration": {
        "awsvpcConfiguration": {
            "subnets": [
                "subnet-1qaz2wsx",
                "subnet-0okmnji9"
            ],
            "securityGroups": [
              "${WEB_SECURITY_GROUP_ID}"
            ]
        }
    }
}
JSON

BitBucket Pipelines

pipelines yml

pipelines:
  branches:
    develop:
      - step:
          name: Build and Deploy to Dev
          deployment: staging
          services:
            - docker
          caches:
            - dotnetcore
            - bowerlib
          script:
            - AWS/build.sh
    test/*:
      - step:
          name: Build and Deploy to QA
          deployment: test
          ... (same as develop for test and prod)

Remember this from before?

# build.sh

case "$BITBUCKET_BRANCH" in
  develop)
    echo Build a Dev build for devolop branch;
    RELEASE_TAG="development";
    ENVIRONMENT="dev";;
  test/*)
    echo Build a QA build for the test branch
    export RELEASE_TAG=${BITBUCKET_BRANCH#test/};
    ENVIRONMENT="test";;
  master)
    echo Build a prod build for master branch;
    RELEASE_TAG="production"
    ENVIRONMENT="prd"
    DEPLOY_DR="true"
    ;;
  *)
    echo Invalid Branch, cannot proceed with Build and deployment.
    exit 1;;
esac


/chamber exec $ENVIRONMENT -- AWS/build-app.sh;
/chamber exec $ENVIRONMENT -- AWS/build-container.sh $RELEASE_TAG;
/chamber exec $ENVIRONMENT -- AWS/deploy-app.sh $RELEASE_TAG $ENVIRONMENT

build-app.sh

# build-app.sh

...

echo "register new web task definition"
AWS/web-task-definition.sh > AWS/web-task-definition.json
cat AWS/web-task-definition.json

task_definition_arn=$(
  aws ecs register-task-definition \
    --cli-input-json file://AWS/web-task-definition.json \
    | jq -r '.taskDefinition.taskDefinitionArn'
)

# Update the existing service to use the new task definition
aws ecs update-service \
  --cluster $ECS_CLUSTER \
  --service capnet-webserver \
  --task-definition $task_definition_arn \
  > /dev/null

...

build-container.sh

# build-container.sh

...

mkdir -p docker

mkdir -p docker/Web
cp -a Capnet.Interface.WebServer/* docker/Web
cp -f AWS/startweb.sh docker
chmod 755 docker/startweb.sh

...

cp -f AWS/Dockerfile docker/Dockerfile
docker build -t ${AWS_APP_REPOSITORY}:$BUILD_ID ./docker
docker push ${AWS_APP_REPOSITORY}:$BUILD_ID
docker tag ${AWS_APP_REPOSITORY}:$BUILD_ID ${AWS_APP_REPOSITORY}:${IMAGE_TAG}
docker push ${AWS_APP_REPOSITORY}:${IMAGE_TAG}


# JA: We're almost done, promise, have another pun:
# I remember the first time I saw a universal remote control.

# I thought to myself: "Well, this changes everything."

Conclusion



1vCPU @ $0.04048 / hr * 24 * 30 = $29.1456

4GB @ 0.004445 / hr * 24 * 30 = $12.8016

FIn

Find me at: jamesralexander.com
