January 2024
THERE'S SOMETHING IN THE AIR...
ISOLITE
THERE'S SOMETHING IN THE AIR...
Chalk Talk
The Difference Between Industrial & Architectural
- Construction, Color & Finish
- Design
- Beam Angles & Throw
Sleek Design
Advanced Optics
Flexible Feature-set
THERE'S SOMETHING IN THE AIR...
OVERVIEW
ARCHITECTURAL EM
MEET THE AIR
MARKETING & SALES
Options & Ordering Guide
Where Does It Fit?
Release Schedule
Additional Information
INDUSTRIAL VS. ARCHITECTURAL
INDUSTRIAL VS. ARCHITECTURAL EMERGENCY LIGHTS
ISOLITE
THERE'S SOMETHING IN THE AIR...
Chalk Talk
ARCHITECTURAL
INDUSTRIAL
ISOLITE
THERE'S SOMETHING IN THE AIR...
Chalk Talk
- Nearly always folded sheet metal
- Finish is always "whiteish" or "doesn't matter"
- Generally just an ugly large box
- Can be implemented with sealing for wet locations
CONSTRUCTION, COLOR & FINISH
INDUSTRIAL VS. ARCHITECTURAL EMERGENCY LIGHTS

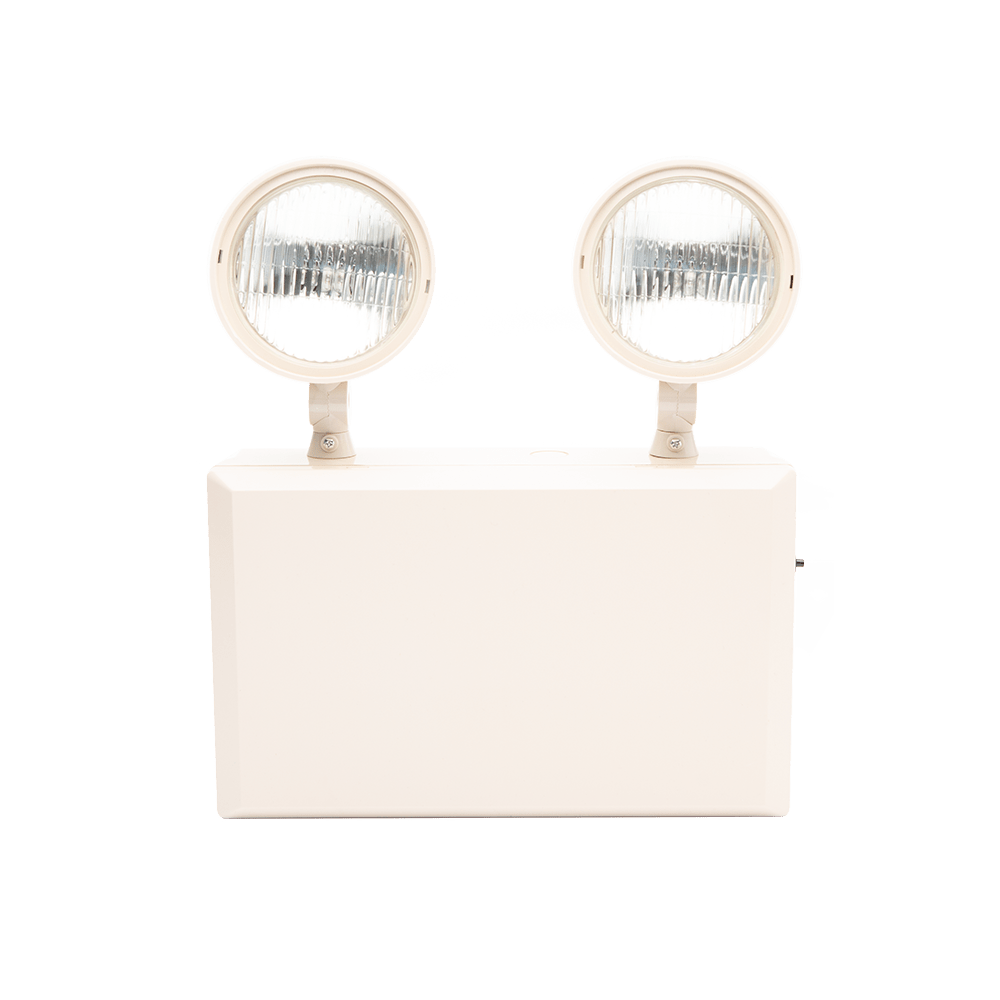

INDUSTRIAL
- Sometimes are die cast metal, but more often constructed of plastics
- Usually nicely textured and available in "controlled' white and black (sometimes even a custom color)
- Plastic designs are generally not compatible with gasketing/sealing for wet locations (damp locations are generally okay)

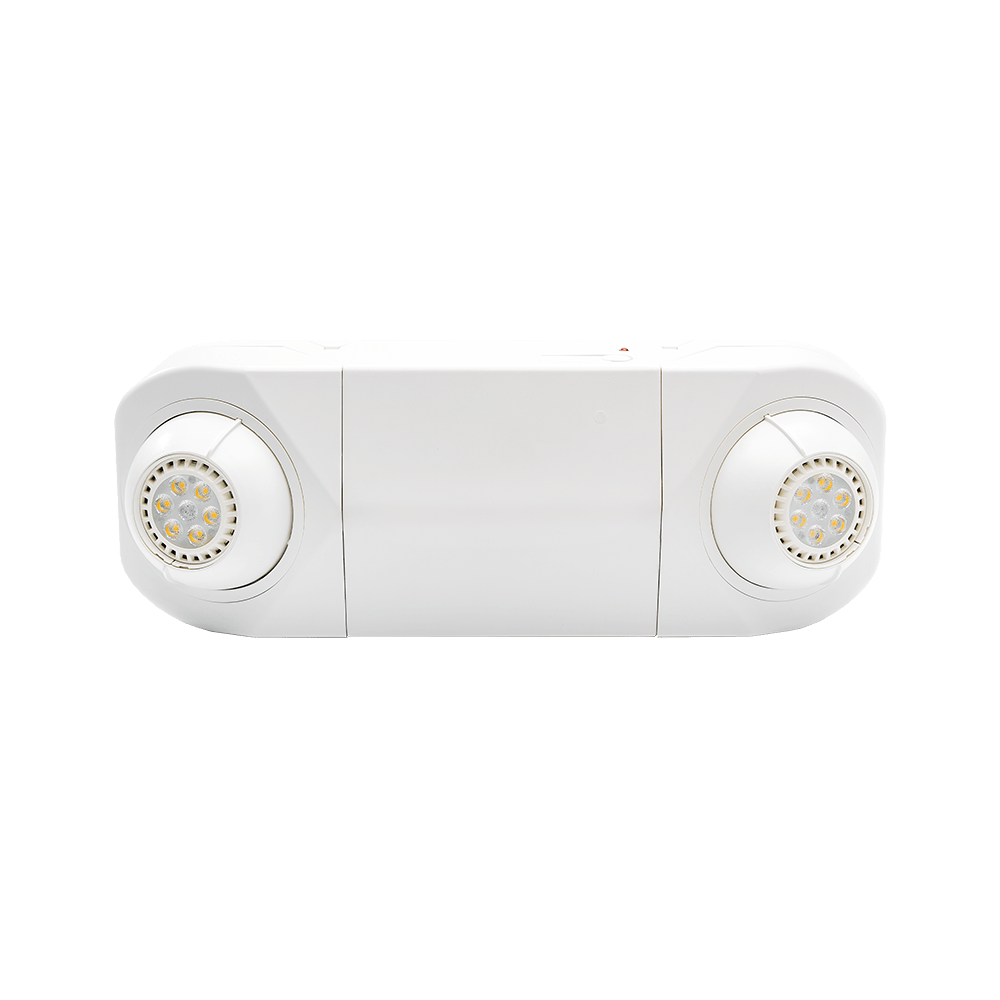

ARCHITECTURAL
ISOLITE
THERE'S SOMETHING IN THE AIR...
Chalk Talk
- Not designed...
- For industrial spaces
- Big ugly lamp heads with standard lamps
- Smaller, flatter
- Attempts to hide the light sources
- Moving parts for installation flexibility, but not all the way to large bulky lamp heads
- Attempting to be inconspicuous
DESIGN
INDUSTRIAL VS. ARCHITECTURAL EMERGENCY LIGHTS
INDUSTRIAL
ARCHITECTURAL
ISOLITE
THERE'S SOMETHING IN THE AIR...
Chalk Talk
- Basic off-the-shelf lights
- Basic off-the-shelf broad beam patterns
- Okay for most applications, not great in any of them...
BEAM ANGLES & THROW
INDUSTRIAL VS. ARCHITECTURAL EMERGENCY LIGHTS
INDUSTRIAL
- Highly optimized for indoor spaces
- Often utilize custom lenses for non-generic beam patterns
ARCHITECTURAL

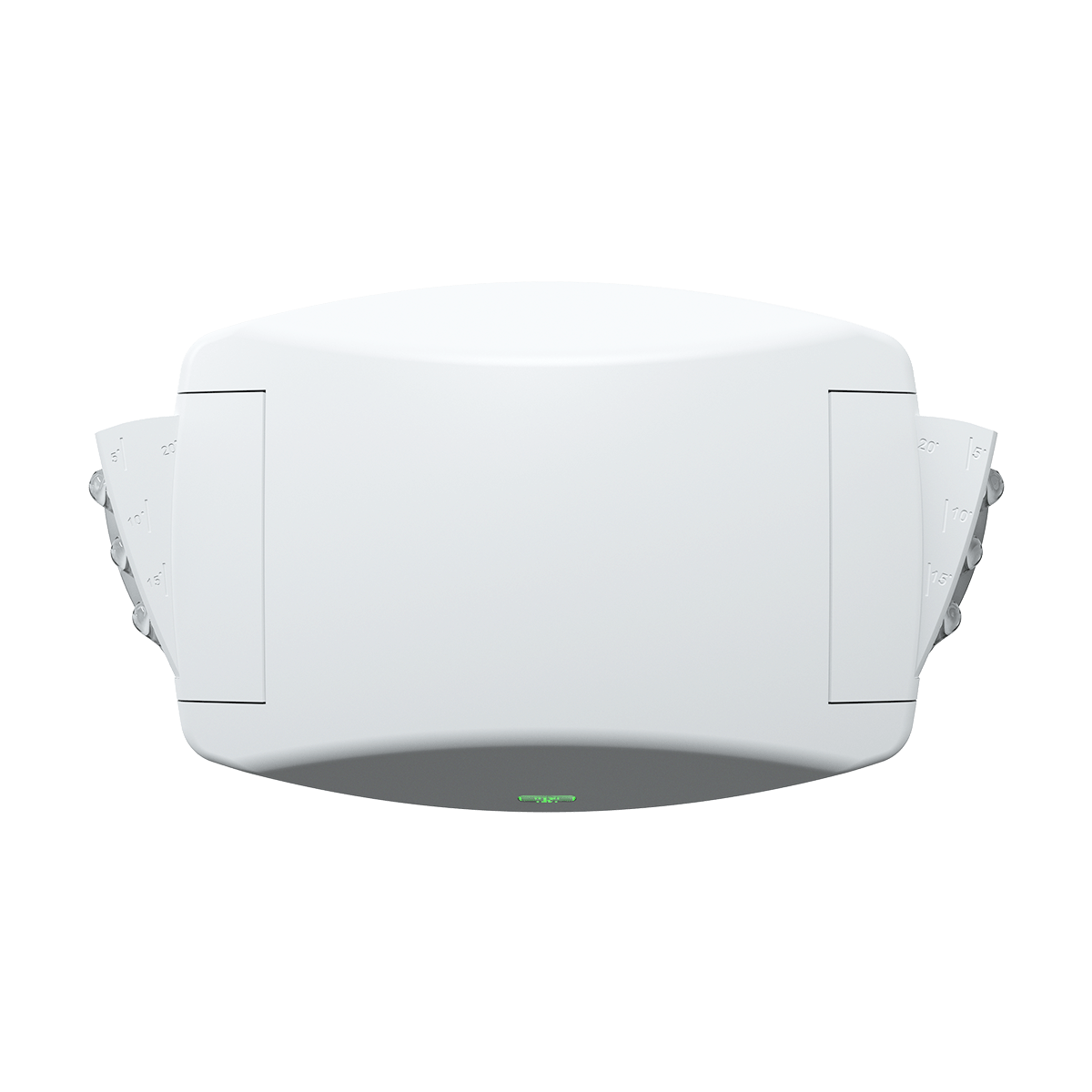

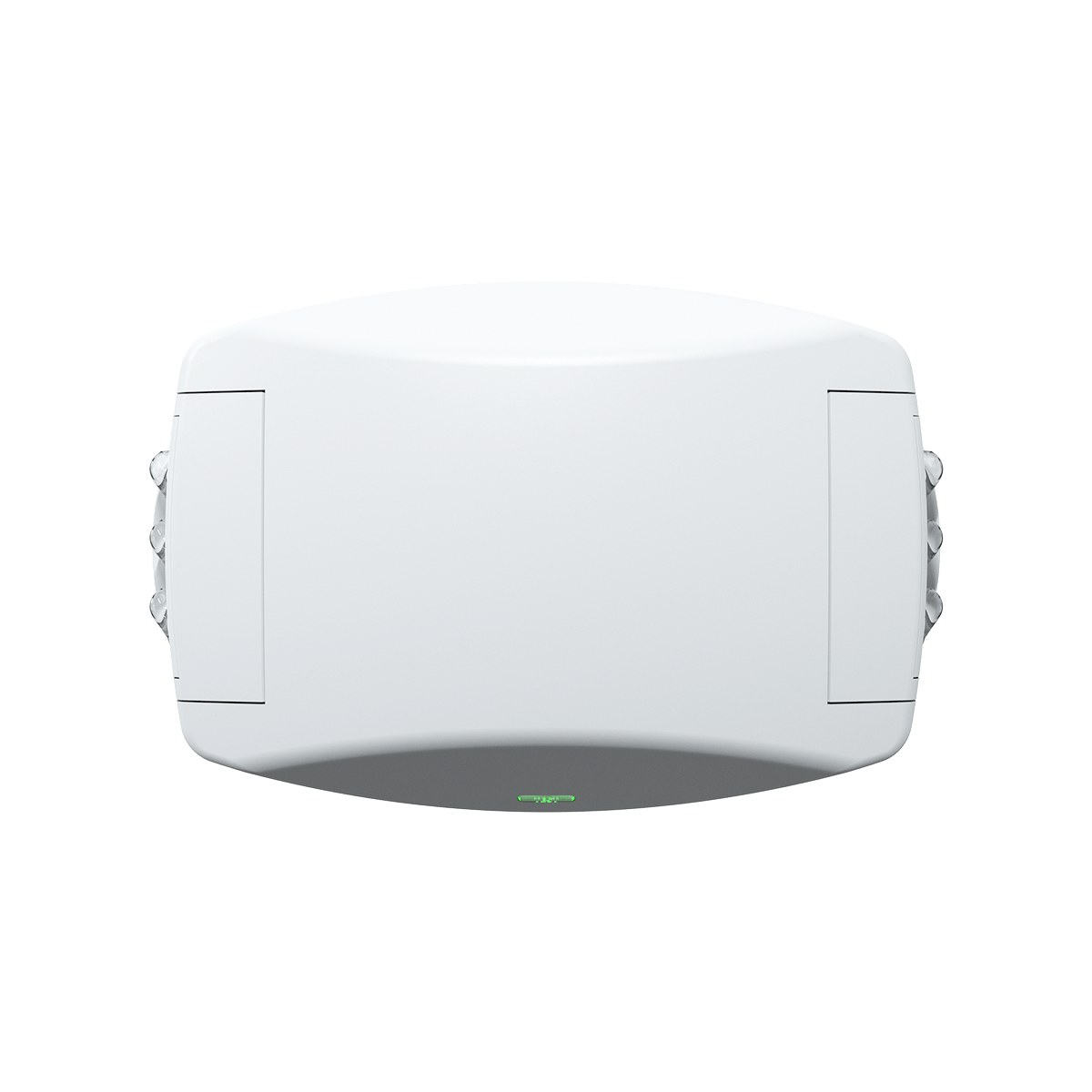

INTRODUCING THE AIR
- Un-obtrusive design allows the AIR to stay close to the wall
- Most jobs won't require the LEDs to be moved at all
- Available in black and white finishes
DESIGN
MEET THE AIR
ISOLITE
THERE'S SOMETHING IN THE AIR...
Chalk Talk
- This took more time and effort than the entire rest of the project
The star of the AIR is the custom designed optics
OPTICS & PERFORMANCE
Accommodates many mounting scenarios
- Max mounting height: 28'
- Max Spacing: 121'
- Lumens: 1680 (!)
Optics are designed to throw light long and narrow
ISOLITE
THERE'S SOMETHING IN THE AIR...
Chalk Talk
MEET THE AIR
Design
FLEXIBILITY
Remote Capacity
- The unit can auto-detect the presence of a remote lamp head
- The AIR will reduce local power and provide 5W of remote lamp capacity
ISOLITE
THERE'S SOMETHING IN THE AIR...
Chalk Talk
MEET THE AIR

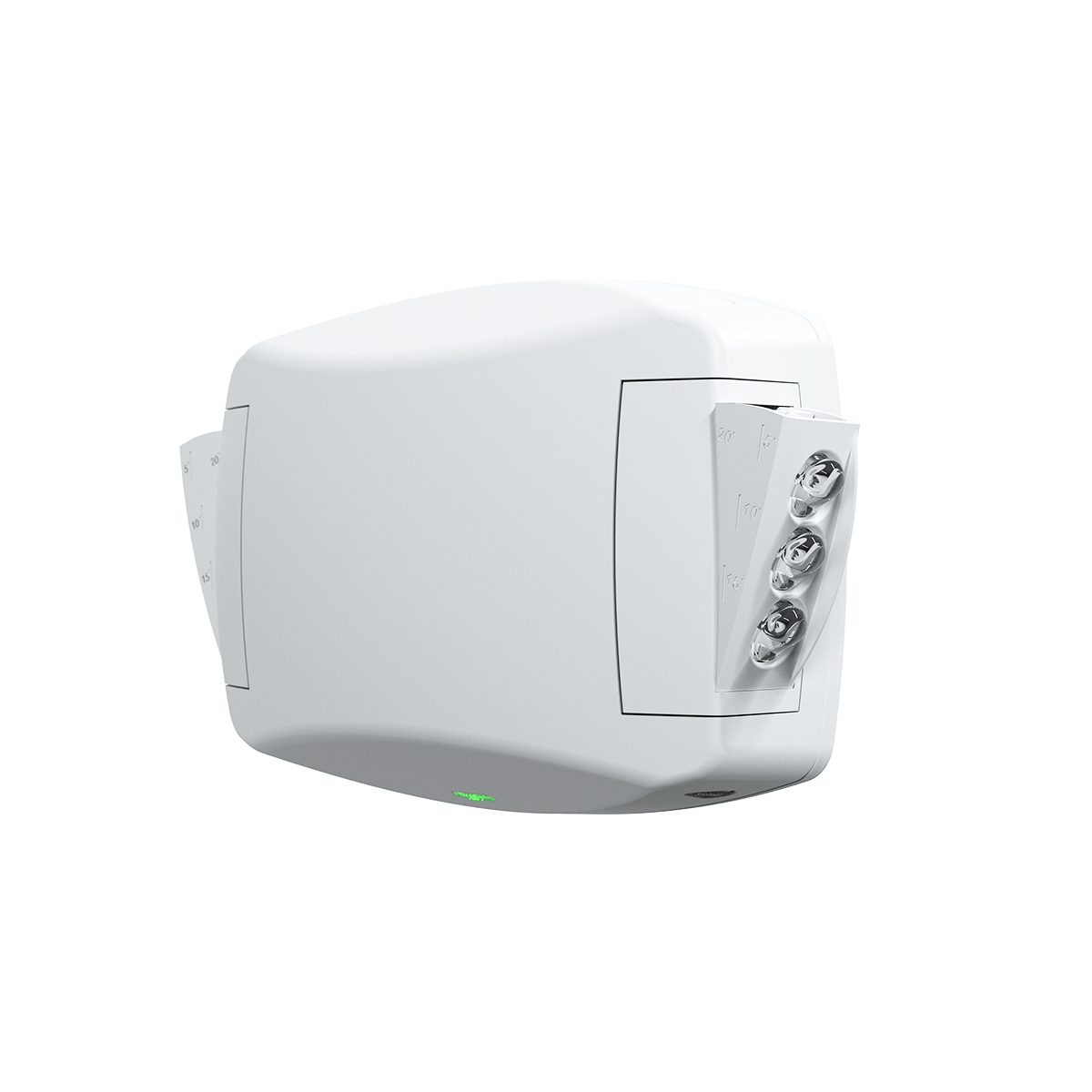

- Lamp heads fold out for high-mounting applications
- Lamp heads fold forward for perpendicular throw applications
- Lamp heads fold out as well as forward to accommodate multiple applications

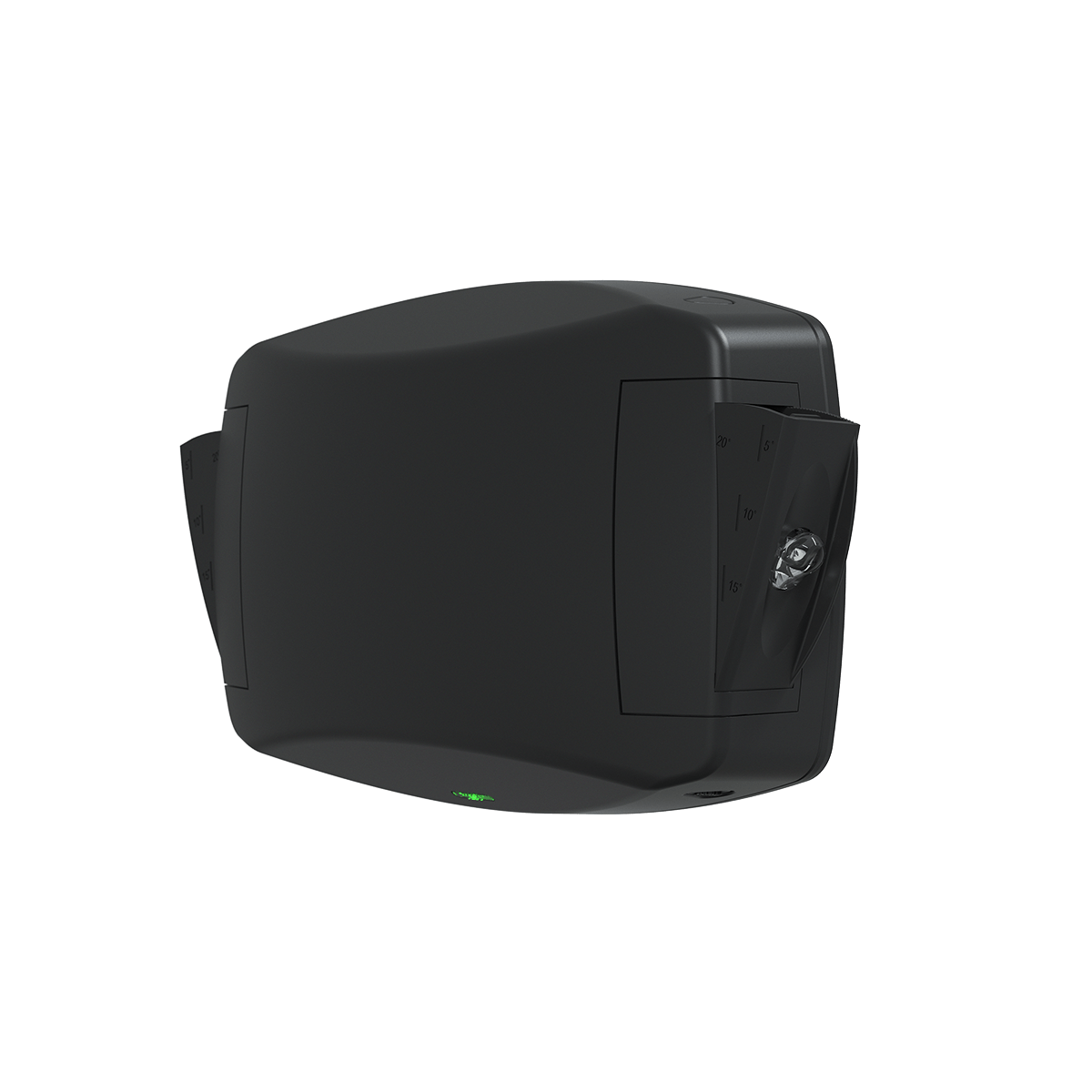

- Black
- White
Colors
OPTIONS & ORDERING GUIDE
- 9W
- 16W (Or 10W with Remote Capacity)
Capacity/Wattage
Additional Options
- 15 Minute Time Delay
- Defeat Self-Diagnostics
ISOLITE
THERE'S SOMETHING IN THE AIR...
Chalk Talk
MARKETING & SALES
AIR-9W
AIR-16W
WHERE DOES IT FIT?
ISOLITE
THERE'S SOMETHING IN THE AIR...
Chalk Talk
MARKETING & SALES
GOOD
BETTER
BEST
BESTEST
RELEASE SCHEDULE
ISOLITE
THERE'S SOMETHING IN THE AIR...
Chalk Talk
MARKETING & SALES

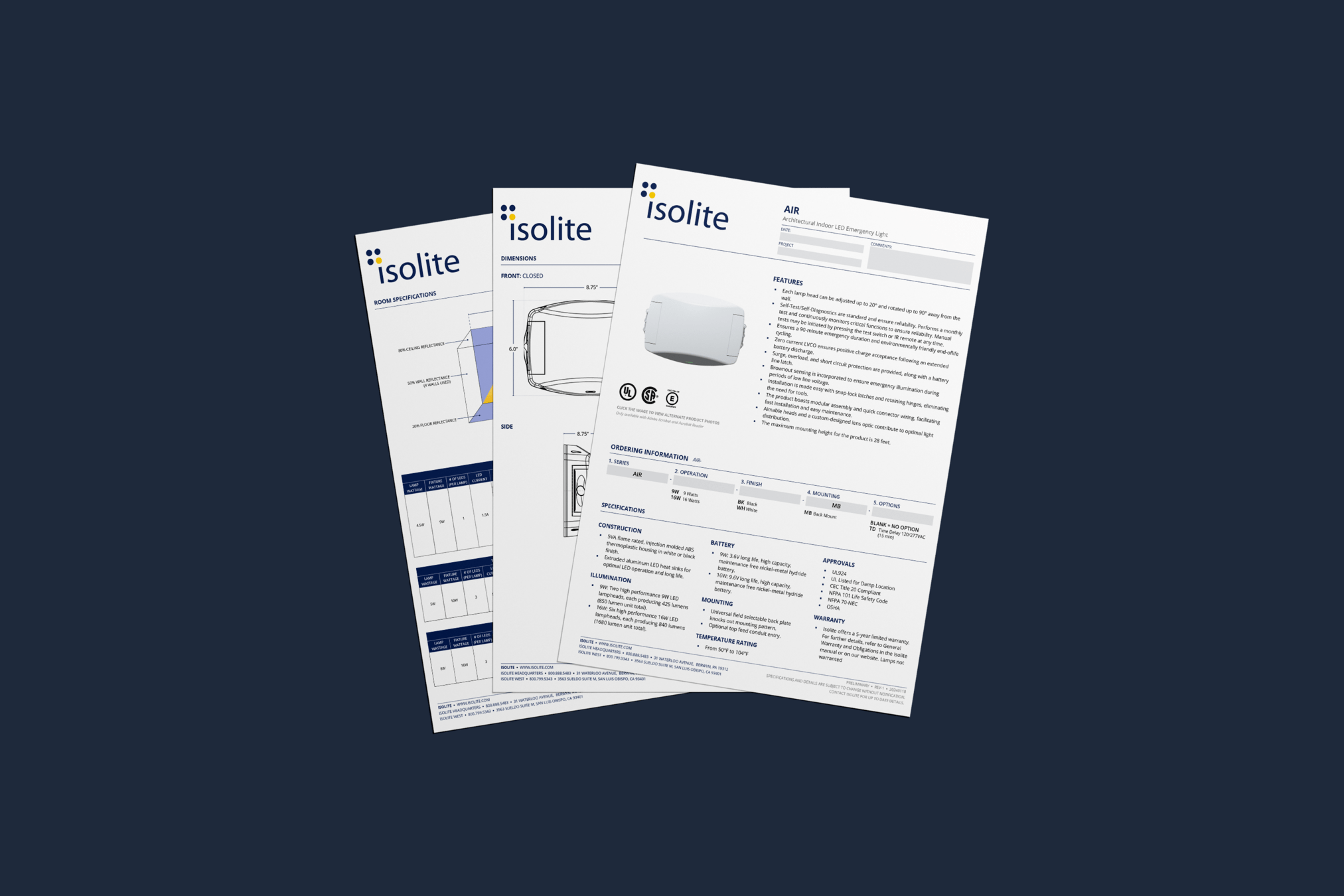

- Specs Sheet
- Installation Guide
- The Web Page
Available on the Website Feb 1st
- Training Video Link
- Sales Presentation PDF
- Updated Price Guide
Available Within Follow-Up Sales Packet
SALES MATERIALS
SUPPORT
ISOLITE
THERE'S SOMETHING IN THE AIR...
Chalk Talk
NEED FURTHER ASSISTANCE?
SUPPORT
- Schedule a Webinar for Advanced Sales & Engineering Training
Team of Experts
ISOLITE
THERE'S SOMETHING IN THE AIR...
Chalk Talk
For Additional Training, Please Contact Your
Local Sales Representative
THANK YOU
