February 2024
INTRODUCING THE E3U
ISOLITE
INTRODUCING THE E3U
Chalk Talk
Emergency Driver Architecture
Inverter Architecture
The Tradeoffs
Chocolate in my peanut butter? Peanut butter in my chocolate?
INTRODUCING THE E3U
OVERVIEW
THE WORLD OF THE SMALL
A BETTER BATTERY PACK
MARKETING & SALES
The E3U Micro Inverter
The Inverter Lineup
Release Information
Sales Follow Up
Wiring Diagram

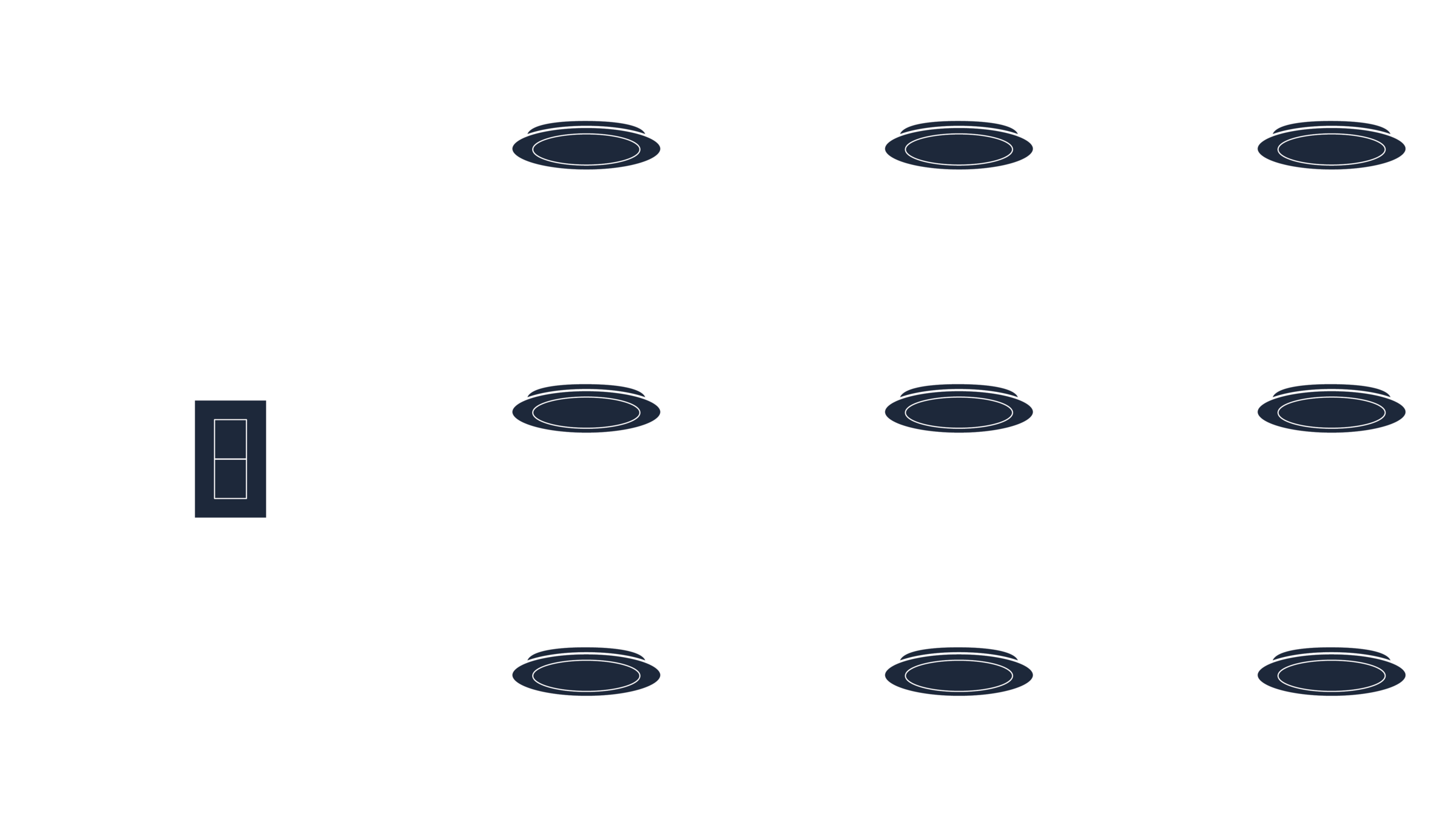

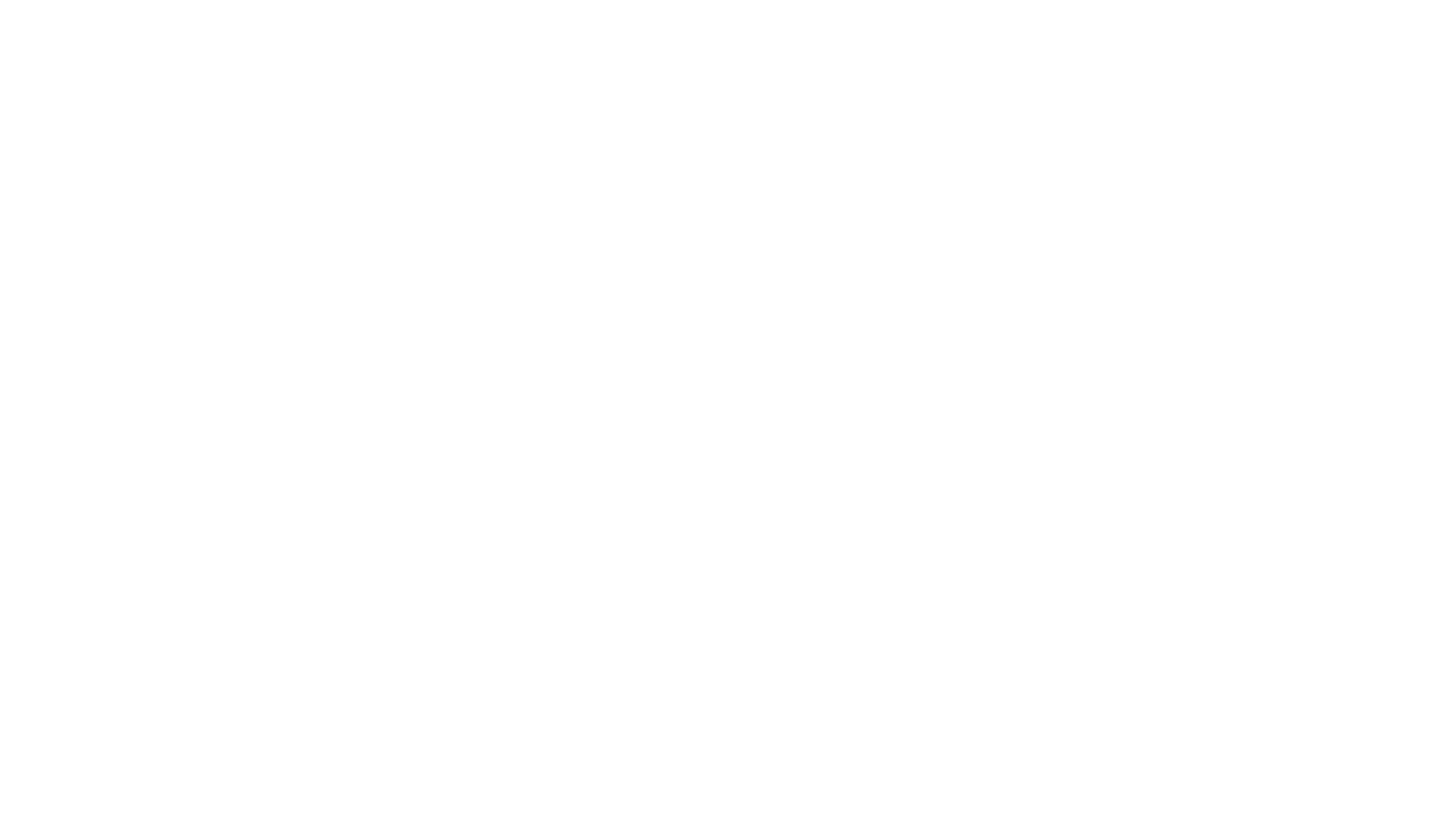

THE BUILDING
THE WORLD OF THE SMALL
ISOLITE
INTRODUCING THE E3U
Chalk Talk

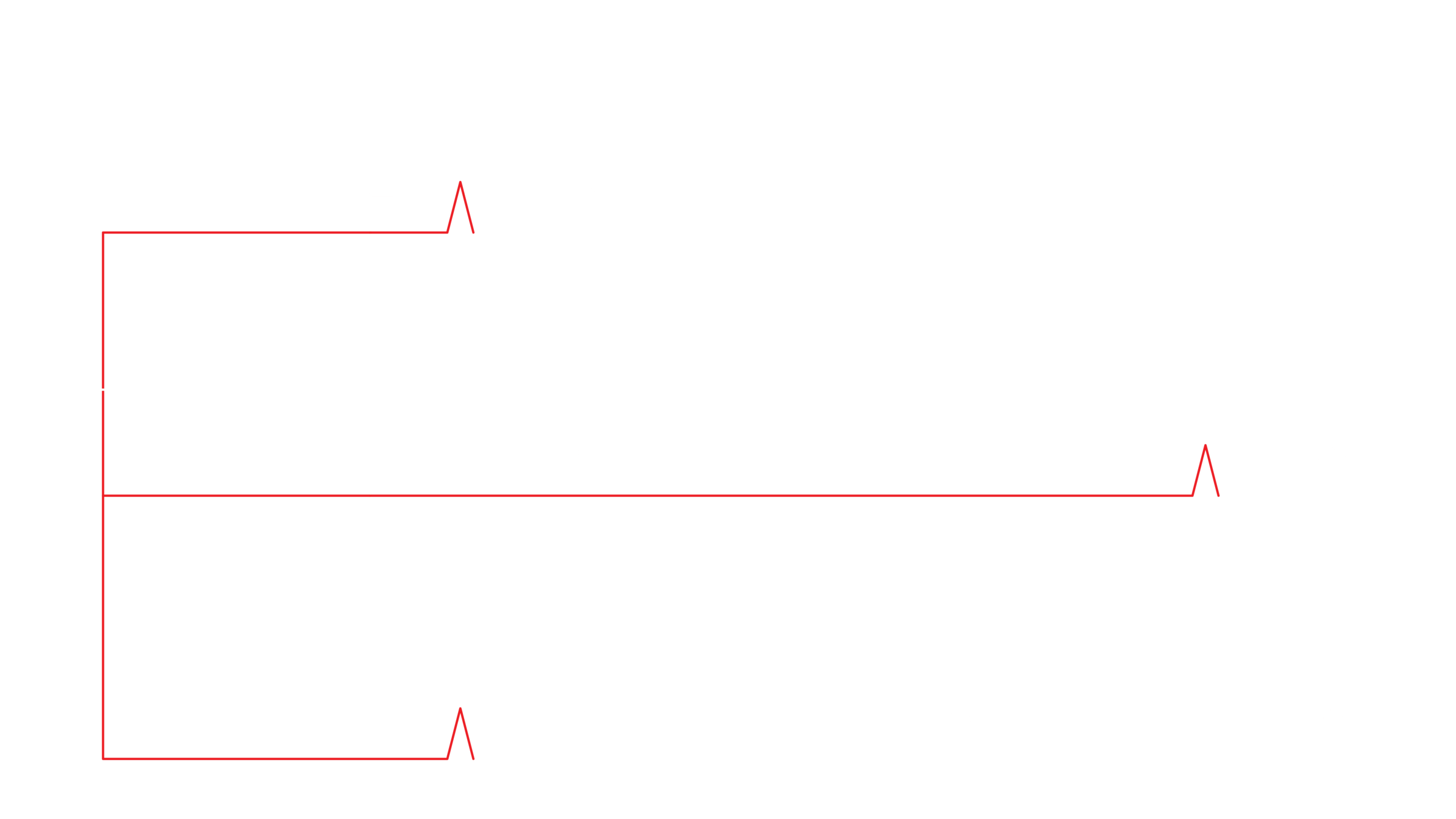

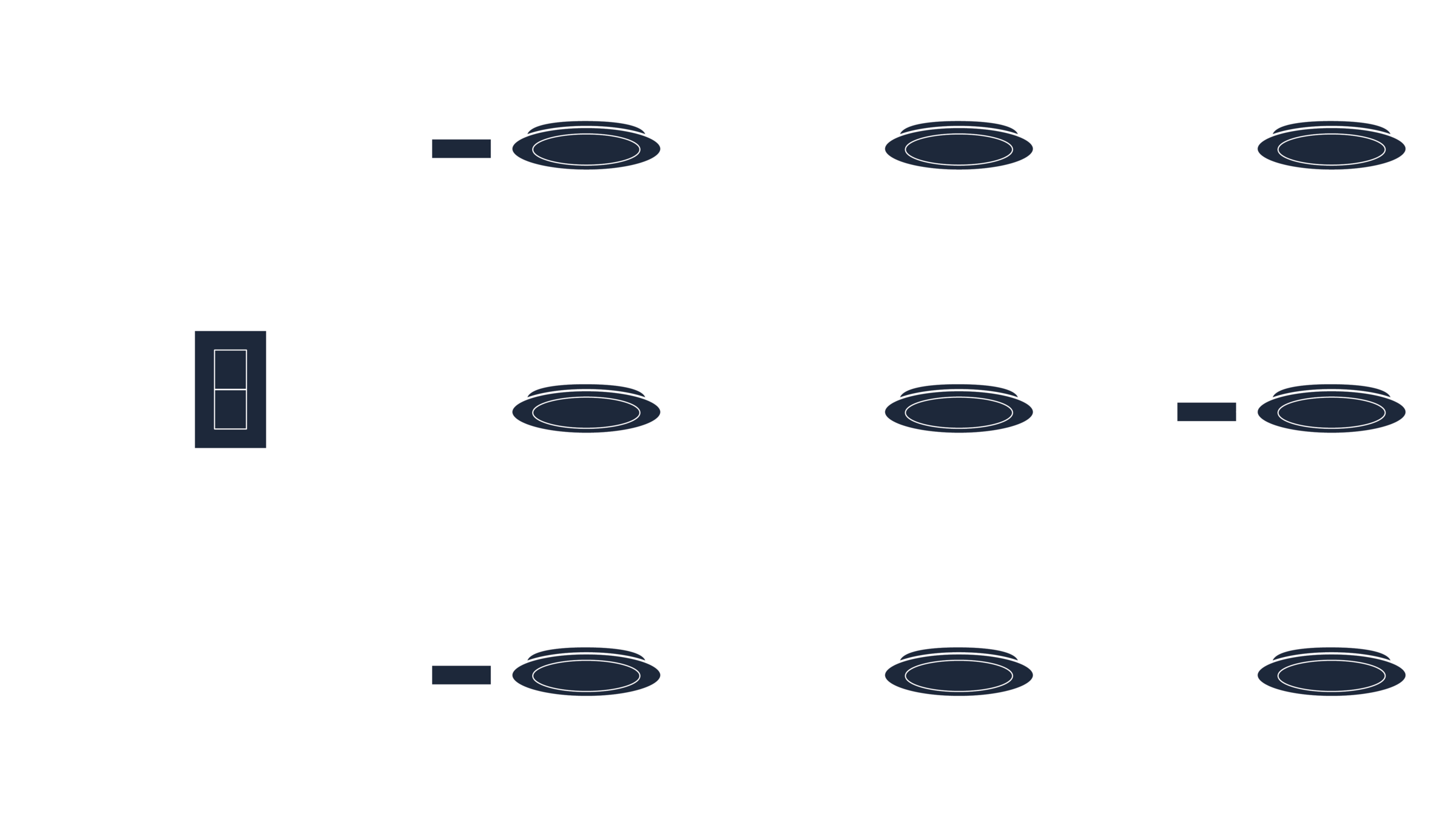

EMERGENCY DRIVER ARCHITECTURE
THE WORLD OF THE SMALL
ISOLITE
INTRODUCING THE E3U
Chalk Talk

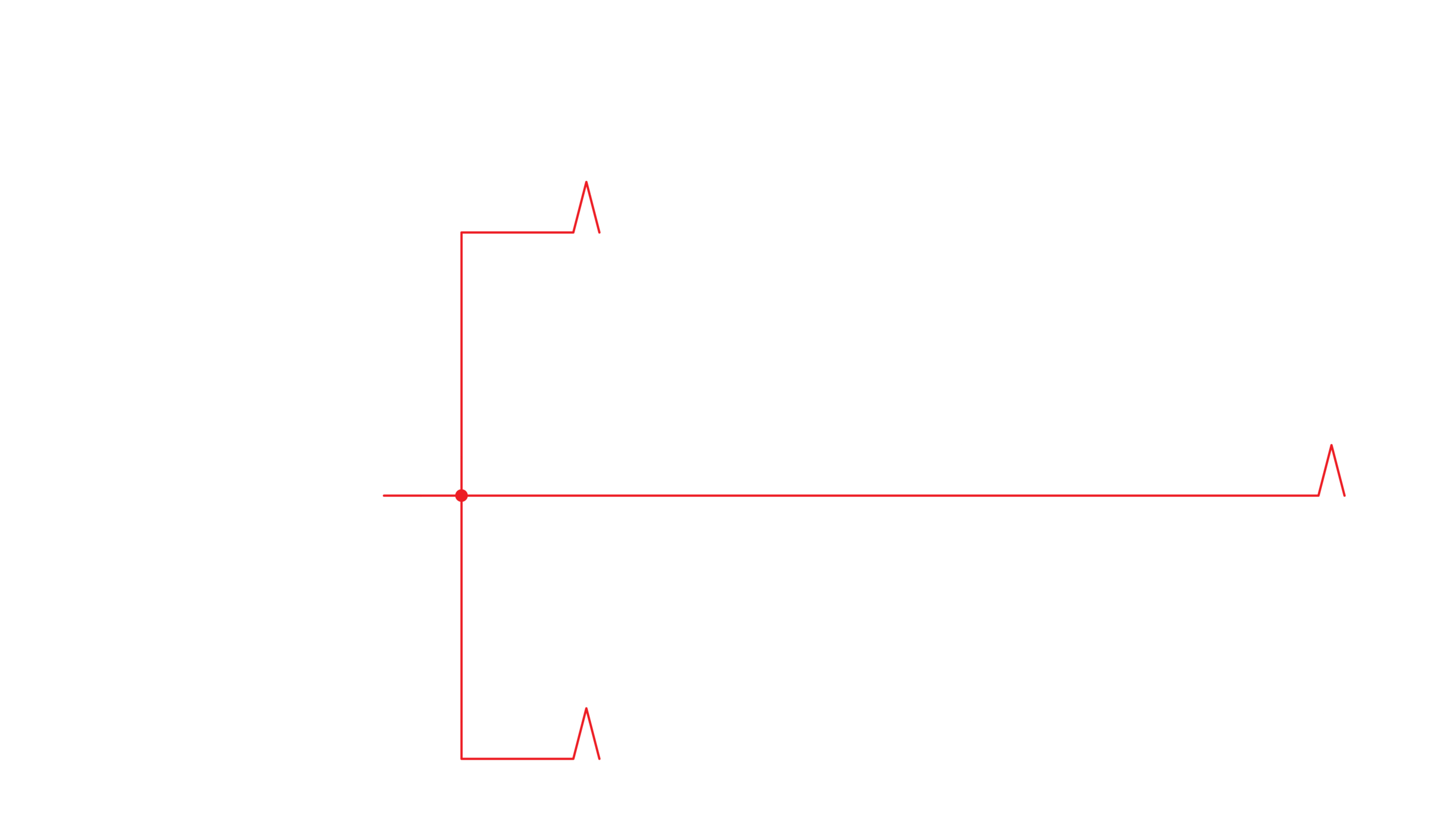

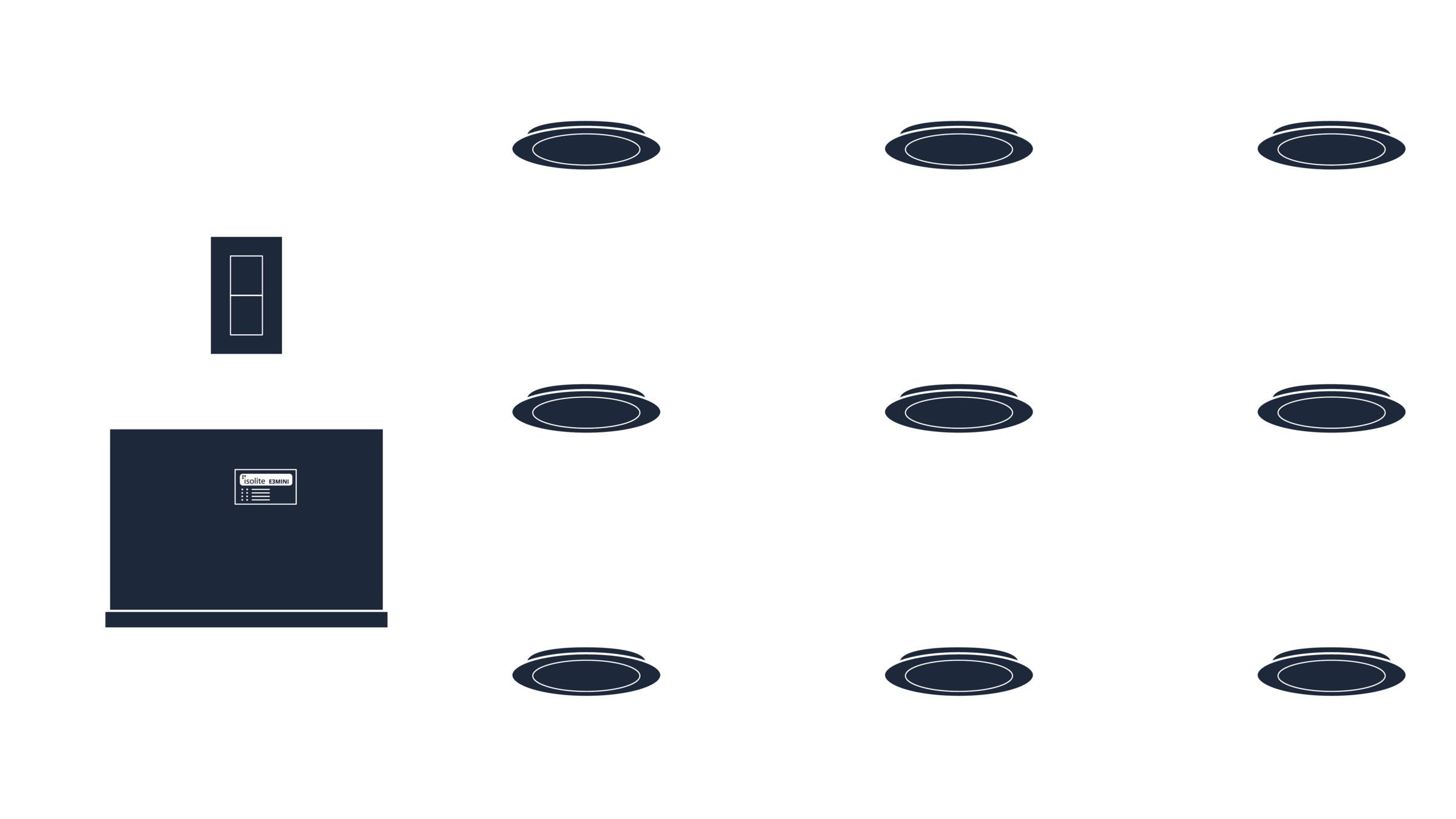

TRADITIONAL INVERTER ARCHITECTURE
THE WORLD OF THE SMALL
ISOLITE
INTRODUCING THE E3U
Chalk Talk
Emergency Drivers
TRADITIONAL TRADEOFFS
A BETTER BATTERY PACK
ISOLITE
INTRODUCING THE E3U
Chalk Talk
Inverters
+ Can be mounted inside the fixture
+ Doesn't require an isolated emergency circuit
+ No additional hardware
- Limited applicability (LED Sources only)
- Complicated compatibility
- Inflexible, limited light output
- Maintenance headaches
- Potential compliance issues
+ Centralized testing/monitoring
+ Economies of scale lower cost
+ Compatible with all load types
+ Fixtures wire as usual
- Requires dedicated emergency circuit
- Requires wall/floor space for installation
- Additional run for control signals
- Mounts in the fixture/on the fixture
- Compatible with all load types (it's just AC)
- Simplify on-site wiring
- Similar cost/watt for comparable emergency driver
- Doesn't solve the maintenance problem
Micro Inverters
BRINGING 2 GREAT THINGS TOGETHER
A BETTER BATTERY PACK
ISOLITE
INTRODUCING THE E3U
Chalk Talk
+ Can be mounted inside the fixture
+ Doesn't require an isolated emergency circuit
+ No additional hardware
- Limited applicability (LED Sources only)
- Complicated compatibility
- Inflexible, limited light output
- Maintenance headaches
- Potential compliance issues
Emergency Drivers
A BETTER BATTERY PACK
ISOLITE
INTRODUCING THE E3U
Chalk Talk
Inverters
+ Centralized testing/monitoring
+ Economies of scale lower cost
+ Compatible with all load types
+ Fixtures wire as usual
- Requires dedicated emergency circuit
- Requires wall/floor space for installation
- Additional run for control signals
CHOCOLATE IN MY PEANUT BUTTER
INTRODUCING THE E3U (E3 'MICRO') INVERTER
A BETTER BATTERY PACK
ISOLITE
INTRODUCING THE E3U
Chalk Talk

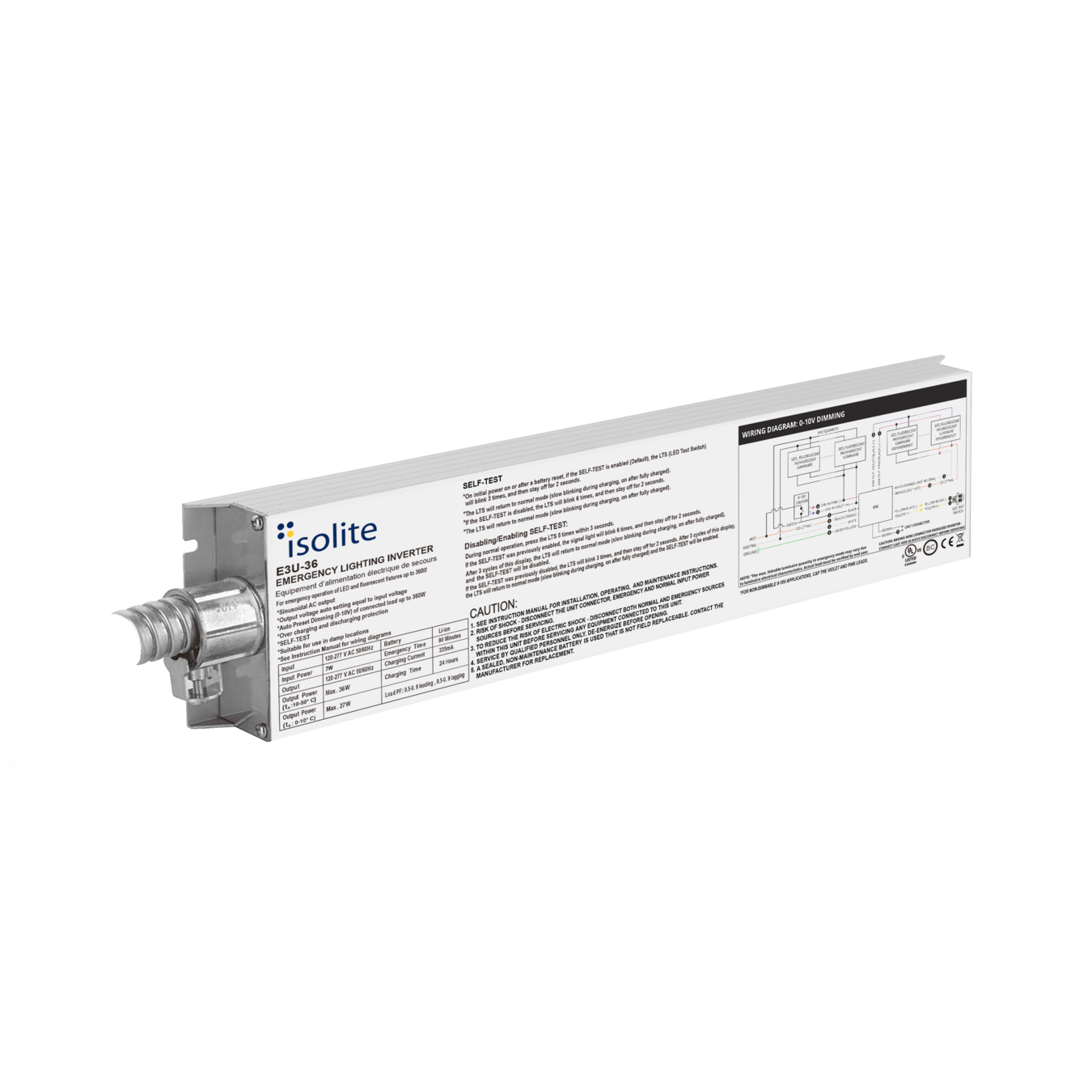

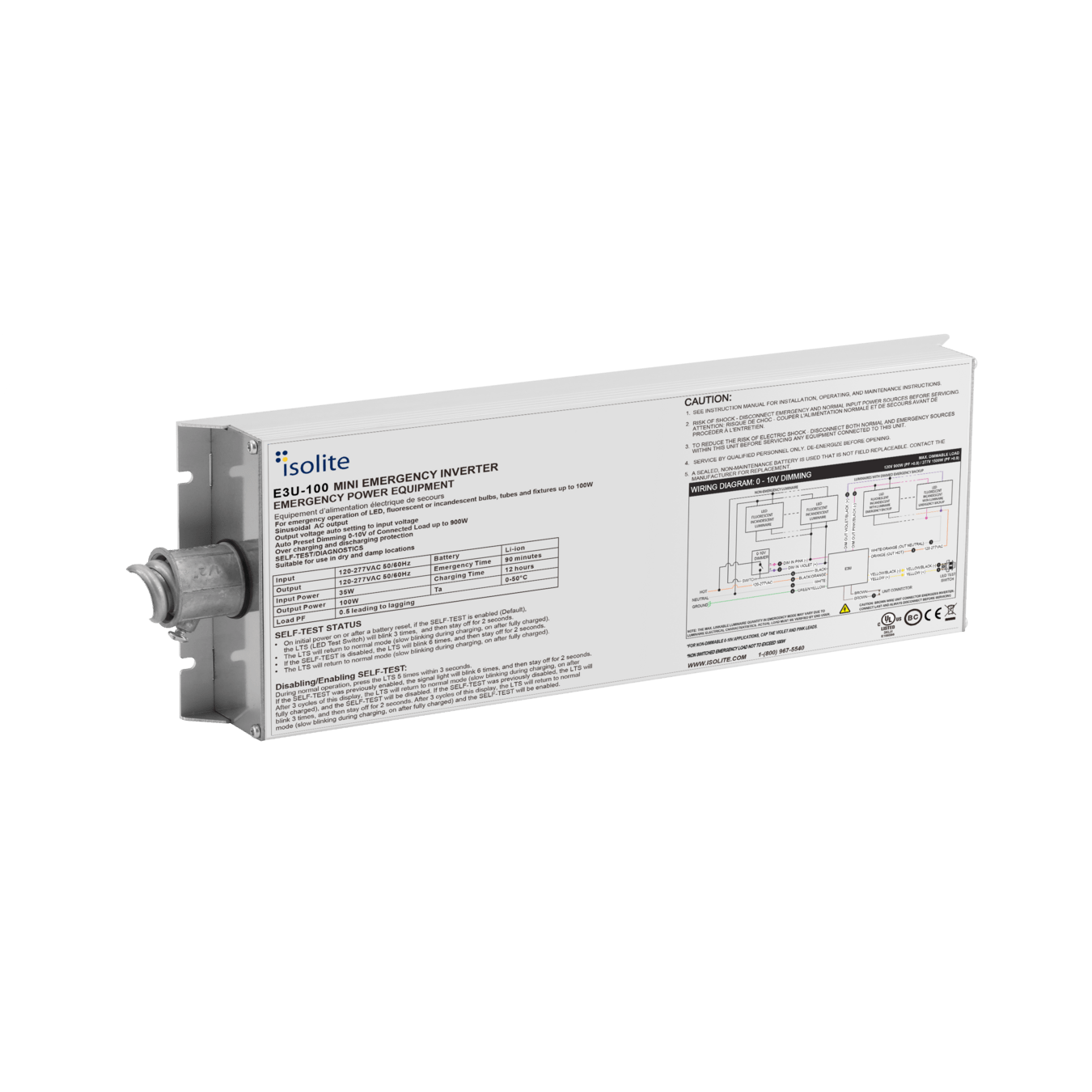

- 36W & 100W Variants
- 0-10V Dimming

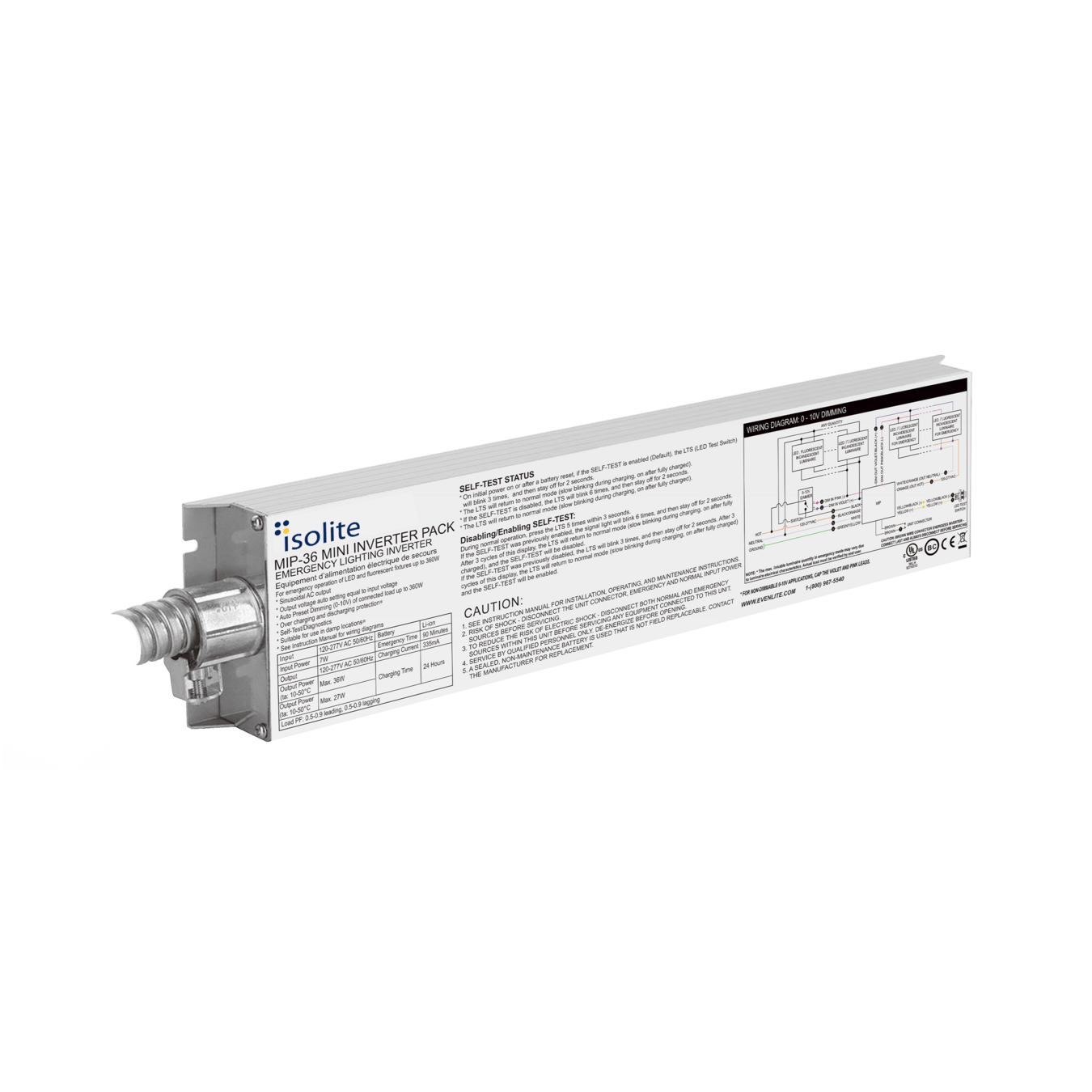

The E3U
- Max Passthrough 360W/900W
- Self Diagnostics standard on all units
- Defeat switch included on all units
- 120VAC/277VAC Auto Detecting Input/Output
- Long-lasting LiCoO2 battery
A BETTER BATTERY PACK
ISOLITE
INTRODUCING THE E3U
Chalk Talk

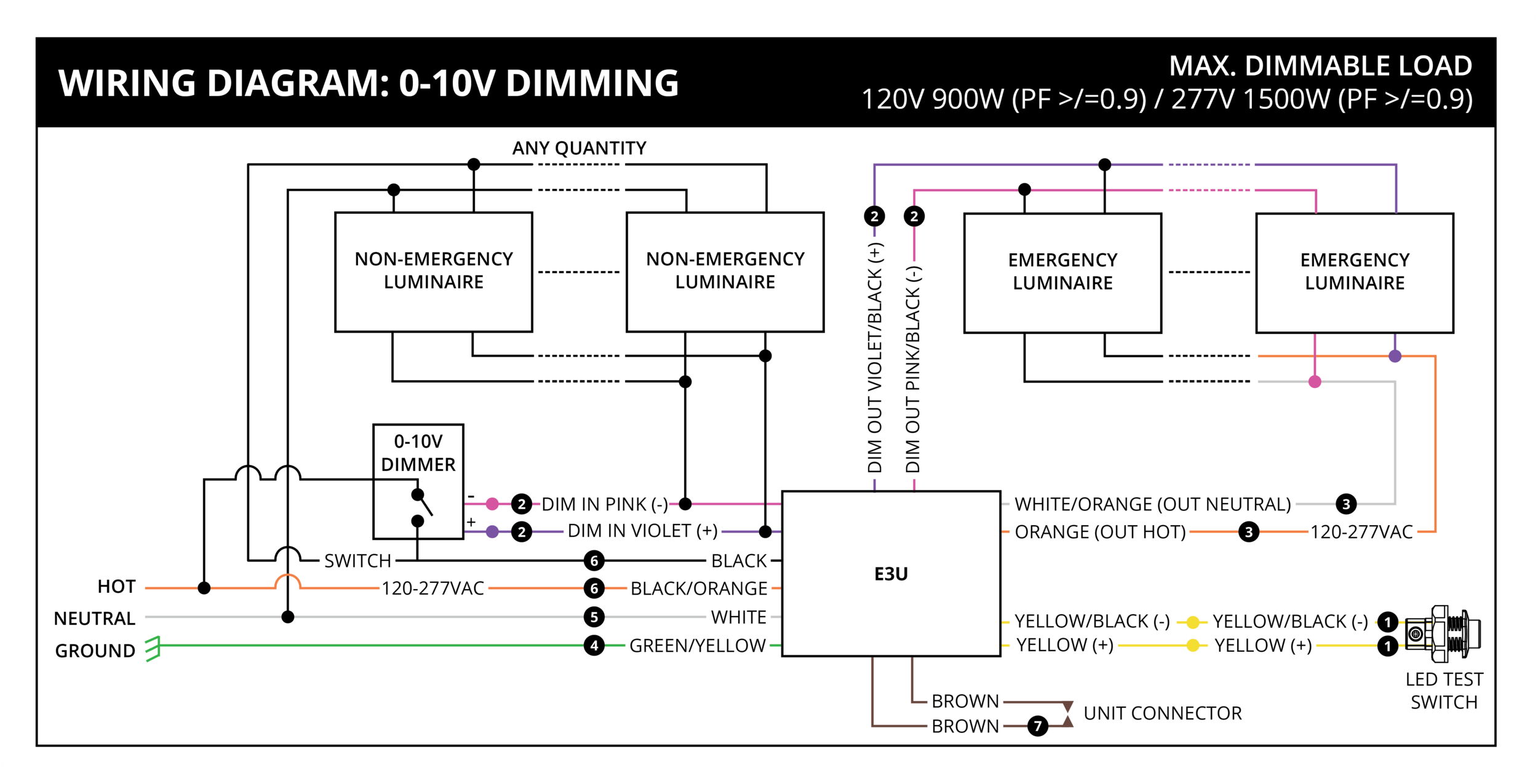

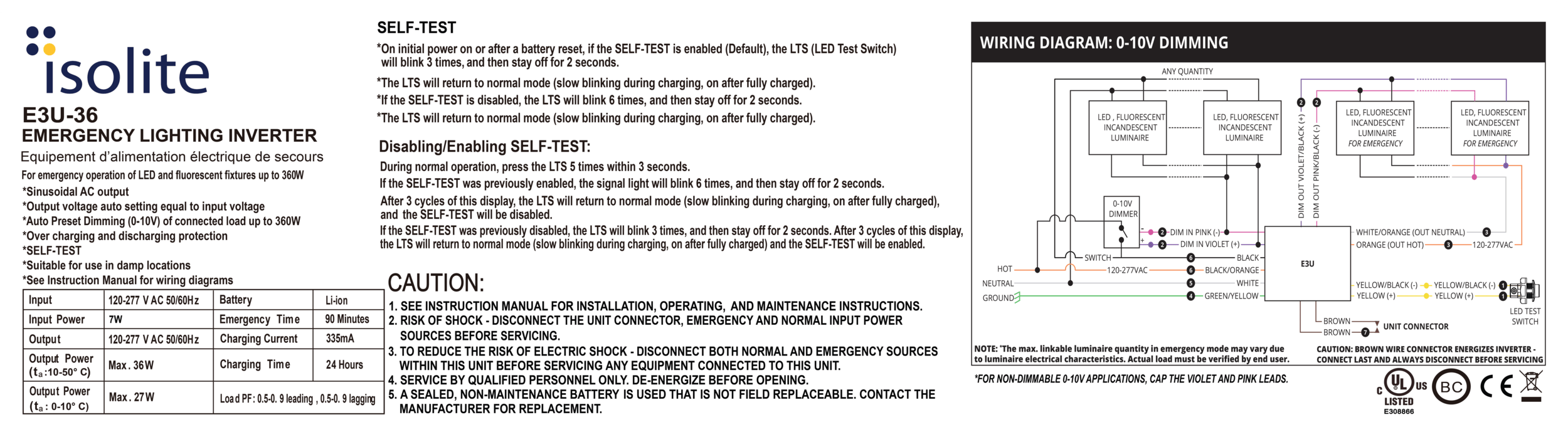

E3U WIRING
THE UPDATED INVERTER LINEUP
A BETTER BATTERY PACK
ISOLITE
INTRODUCING THE E3U
Chalk Talk
E3MAC
E3MAX
E3X
E3MINI
E3
E3U

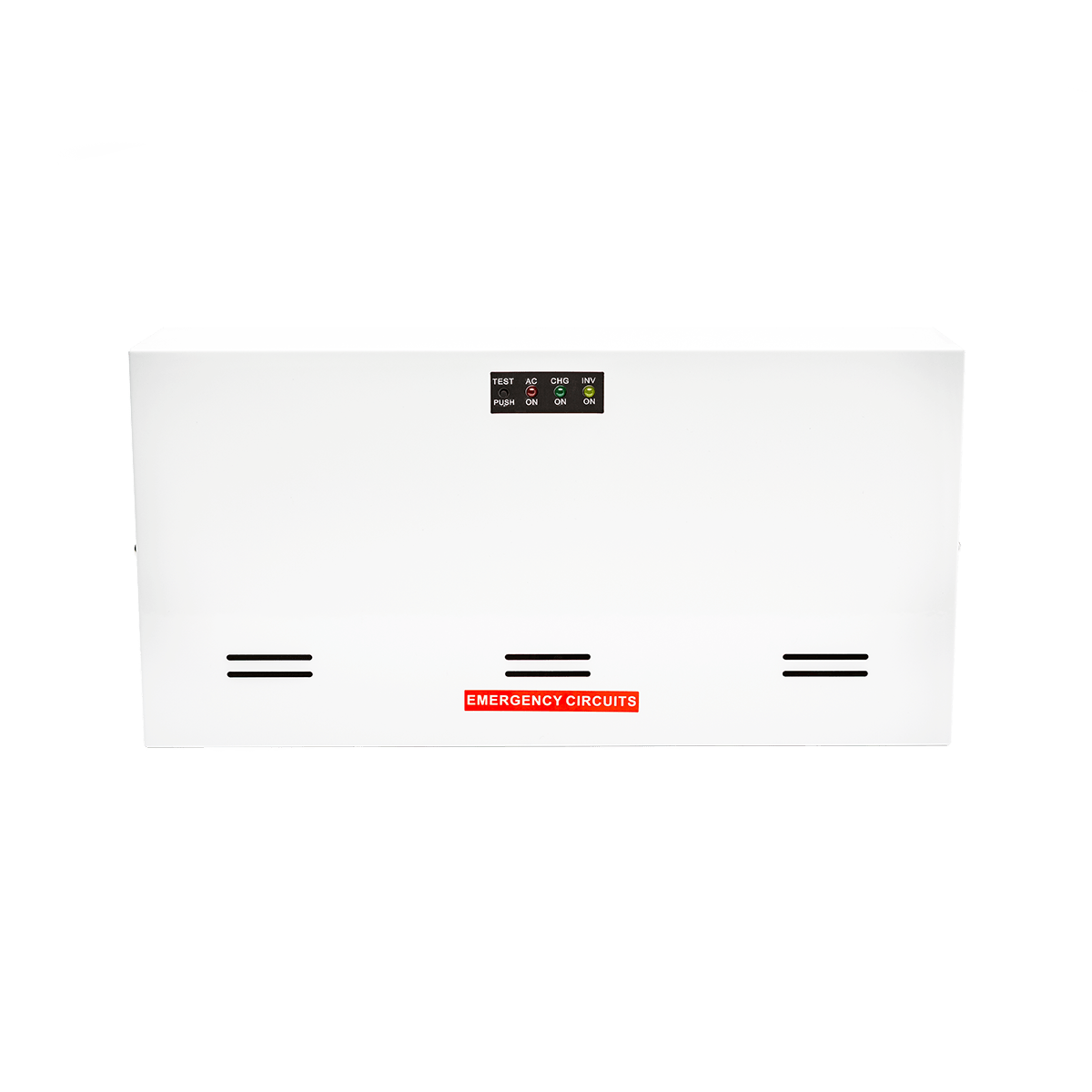

MPS
Still around but subject to potential discontinuation...
RELEASE INFORMATION
MARKETING & SALES
ISOLITE
INTRODUCING THE E3U
Chalk Talk
- Specs Sheets & Drawings
- Wiring Diagrams
- Sell Sheet
Available on the Website
- Training Video Link
- Sales Presentation PDF
- Sell Sheet & Marketing Assets
- Announcement of Chalk Talk Raffle Winner
Available Within Follow-Up Sales Packet
SALES MATERIALS
SUPPORT
ISOLITE
INTRODUCING THE E3U
Chalk Talk
NEED FURTHER ASSISTANCE?
SUPPORT
- Schedule a Webinar for Advanced Sales & Engineering Training
Team of Experts
ISOLITE
INTRODUCING THE E3U
Chalk Talk
For Additional Training, Please Contact Your
Local Sales Representative
