Introducing the

WXPM & WXP

JUNE 2025

INTRODUCING THE WXPM & WXP | June 2025

- More decorative colors are offered, particularly "bronze"

- More aesthetic shapes are used

- More intentional "full-cutoff" beam patterns are employed

- Integrated photocells are included

In this application, an "Outdoor Wall Pack" is different from a "Wet Location Emergency Light"

Existing Outdoor Emergency "Wall Packs"

THE HISTORY

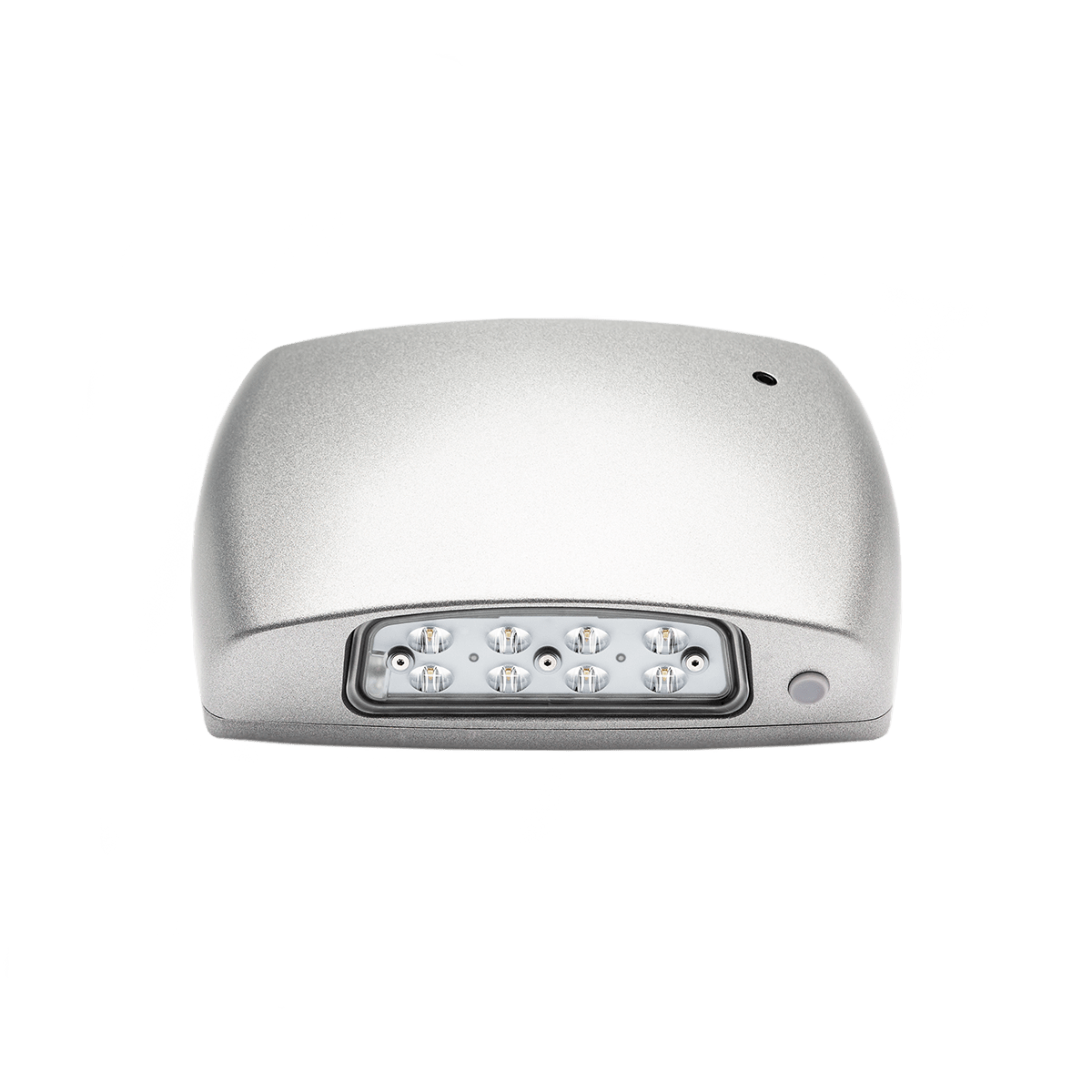

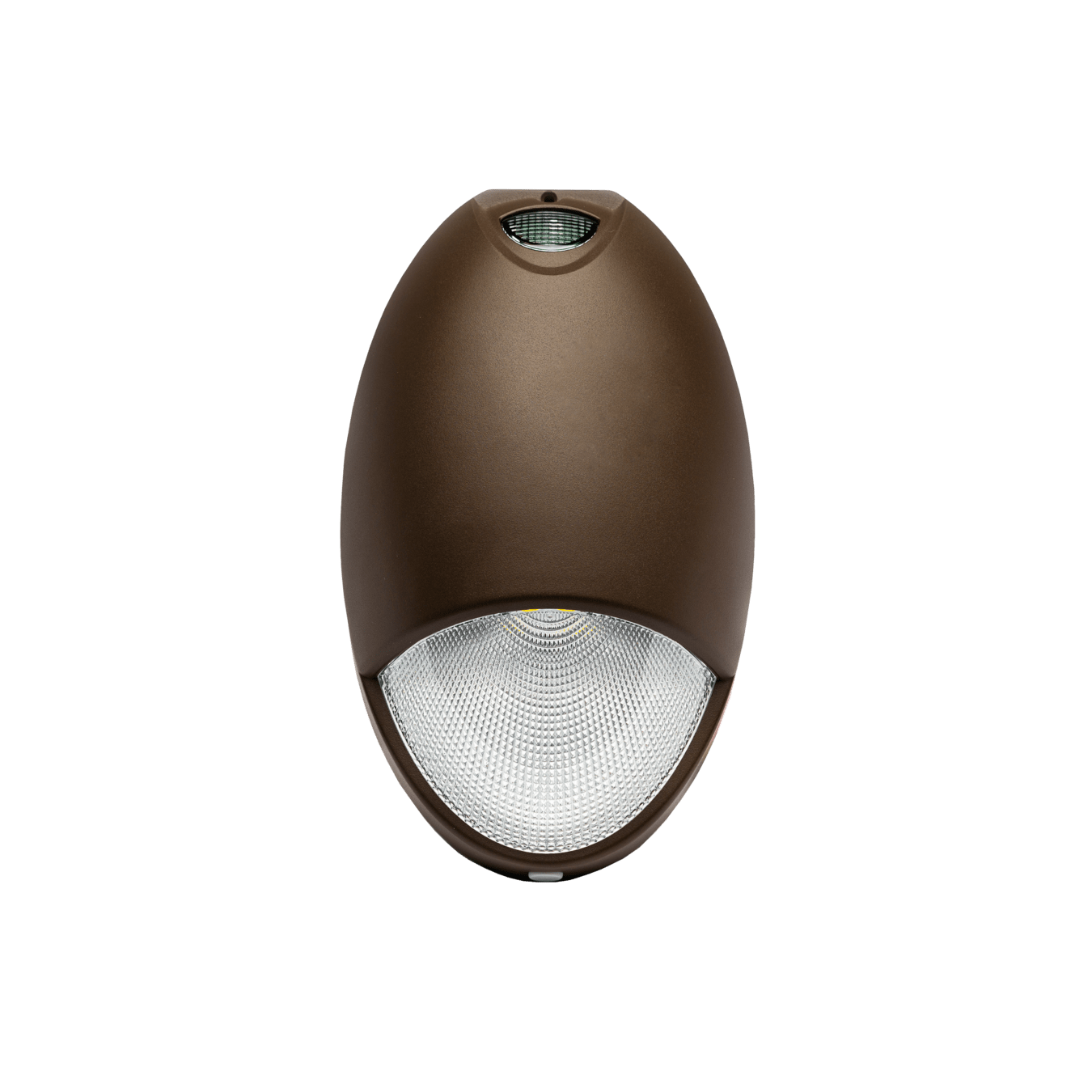

It's really just the ELED and OWL

This has some overlap with "traditional" and "non-emergency" wall packs

INTRODUCING THE WXPM & WXP | June 2025

THE HISTORY

Opportunities

for Expansion

- This is okay in most applications, but larger structures require more light

The OWL tops out at ~17W, the ELED at ~11W

The beam patterns is fairly short/wide to get reasonable spacing for emergency applications

This means that buildings will generally require 2 different types of wall packs, the emergency wall packs and the non-emergency wall packs

- This isn't the world we want to live in

- Consistent look and feel as well as consistent "specifications" are critical for well designed buildings

- Even slight differences in color temperature are noticeable on this scale

200'

CENTER TO CENTER SPACING

MOUNTING HEIGHT

30' CEILING HEIGHT

ROOM WIDTH

6' PATH OF EGRESS

INTRODUCING THE WXPM & WXP | June 2025

Introducing the

WXPM & WXP

THE PRESENT

A new matching line of outdoor wall packs, emergency and "non-emergency"

INTRODUCING THE WXPM & WXP | June 2025

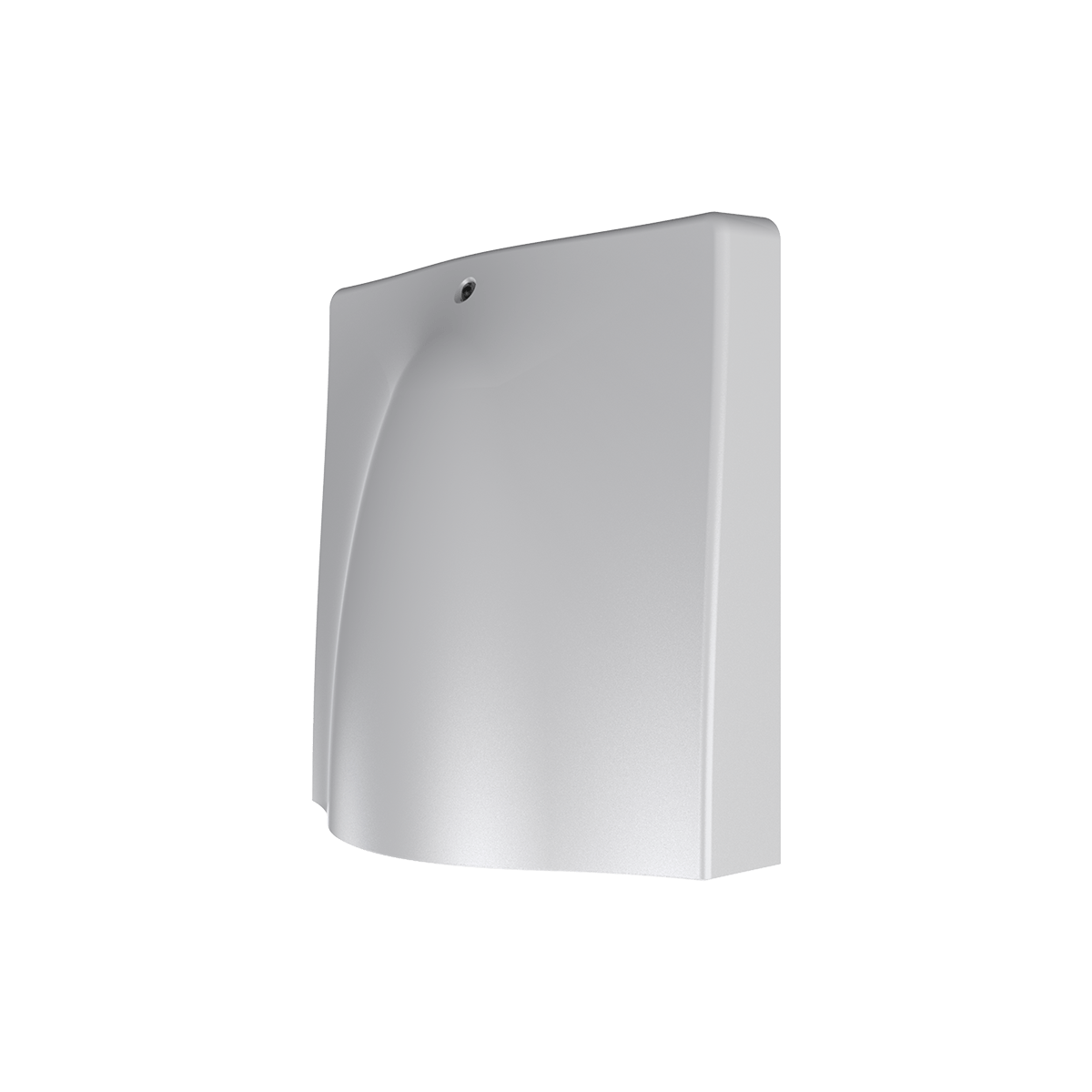

The WXPM is the smaller version of the new wall packs

Available as an "EM" battery-backed wall pack

Available as an "AC" only wall pack

THE PRESENT

The WXPM

Mini Outdoor Emergency Light

- This would also work as an inverter-backed emergency wall pack

Available as a remote lamp for a traditional emergency light

- Such as an OLLO

INTRODUCING THE WXPM & WXP | June 2025

Available in white, black, and bronze

AC and EM versions have 9W outputs

INTRODUCING THE WXPM & WXP | June 2025

THE PRESENT

The WXPM

Additional Specifications

Remote versions feature 3W output (selectable 1W, 2W or 3W)

- Optimized for "over door" applications

LiFePO4 batteries (EM versions)

IP65 / IK08 rating for all units

- EM: 5ºC to 50ºC

- AC: -20ºC to 50ºC

- Remote Lamp: -30º to 50ºC

AC version is CCT selectable

5"

2.125"

5"

AC and EM high-performance wall packs

2 housing sizes and 4 wattage ratings

THE PRESENT

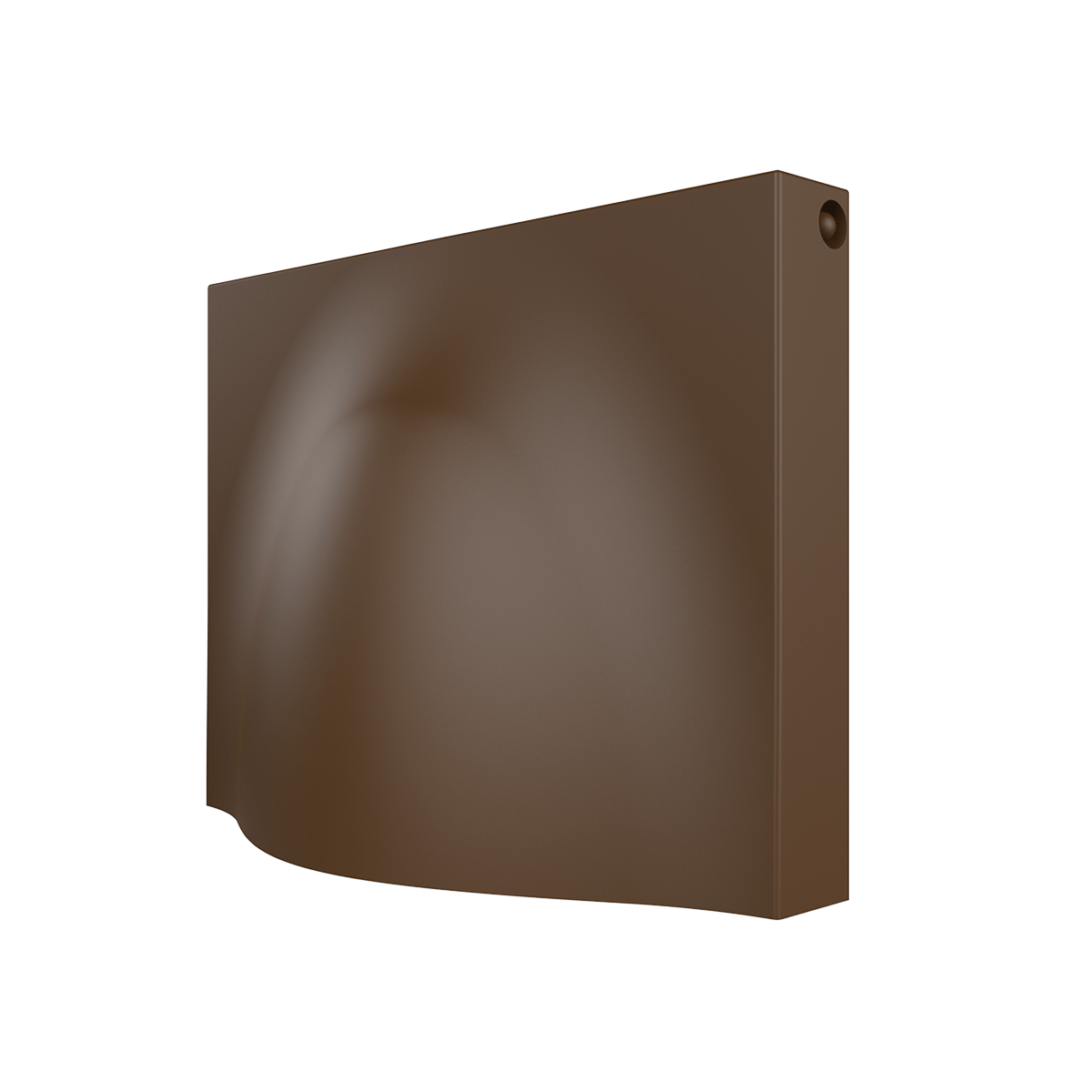

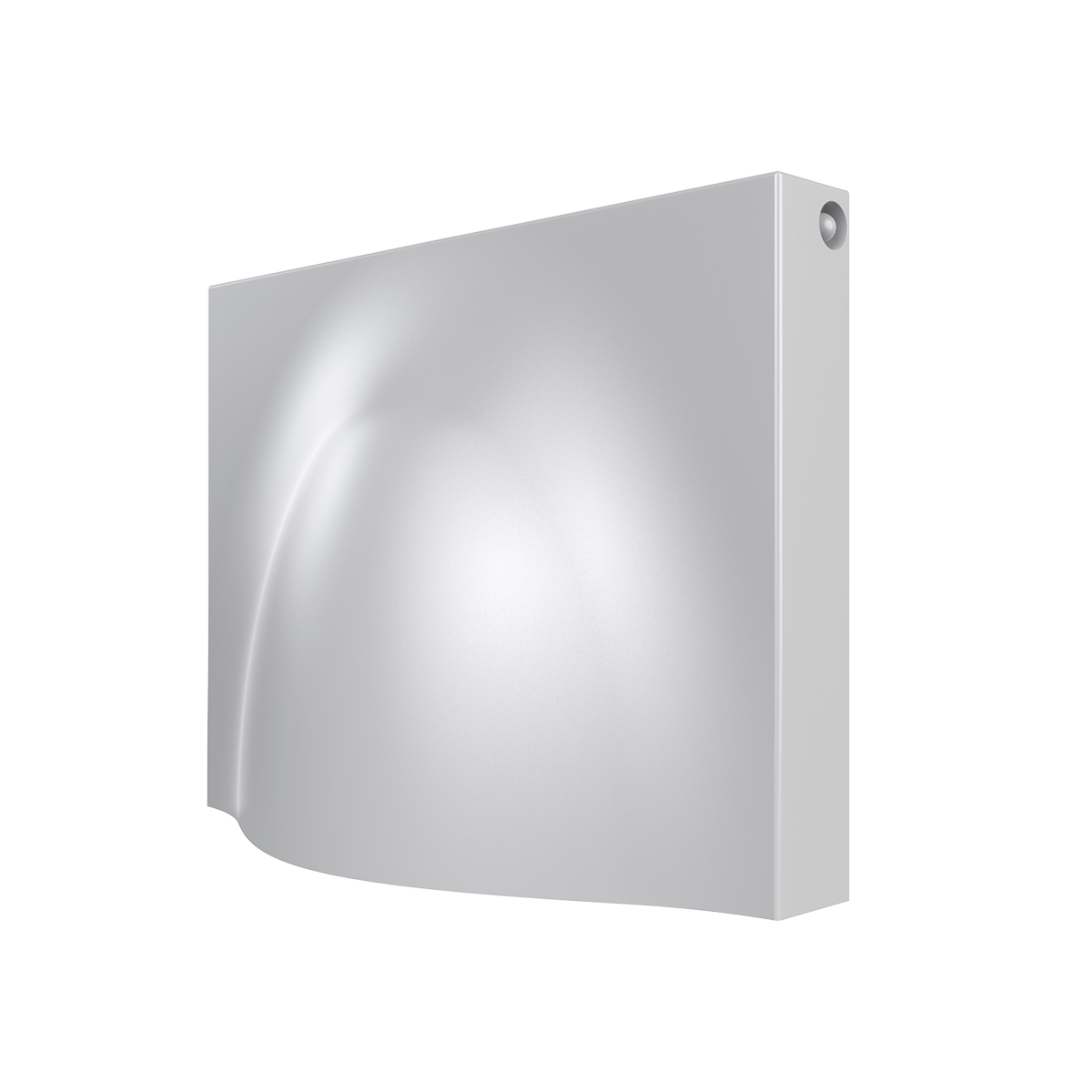

The WXP

High-Performance Outdoor Emergency Light

- 25W and 55W in smaller housing

- 75W and 100W in larger housing

- Power level is nominally adjustable via an internal switch

Power output is limited in emergency mode

Field selectable CCT

All unites feature an internal photocell

INTRODUCING THE WXPM & WXP | June 2025

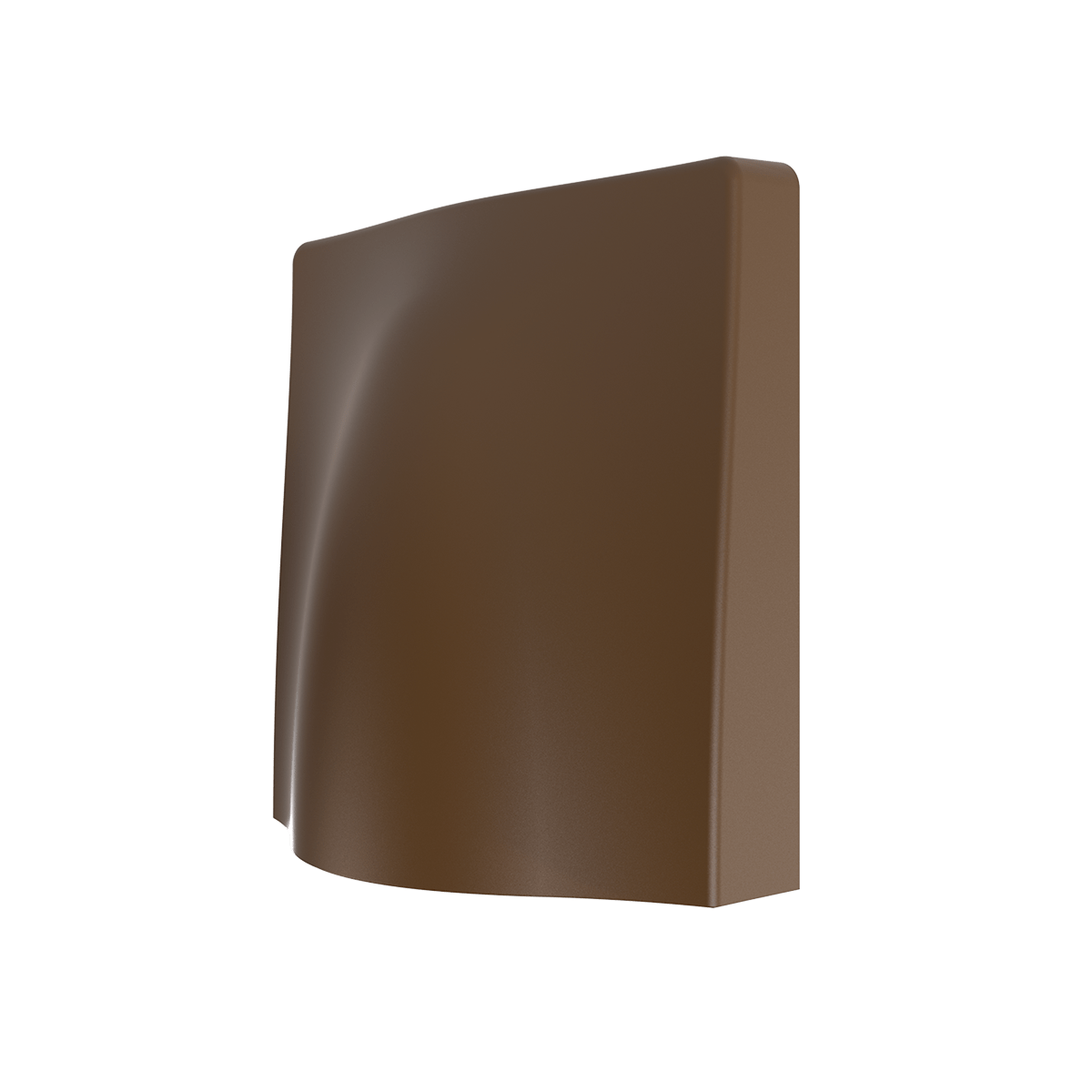

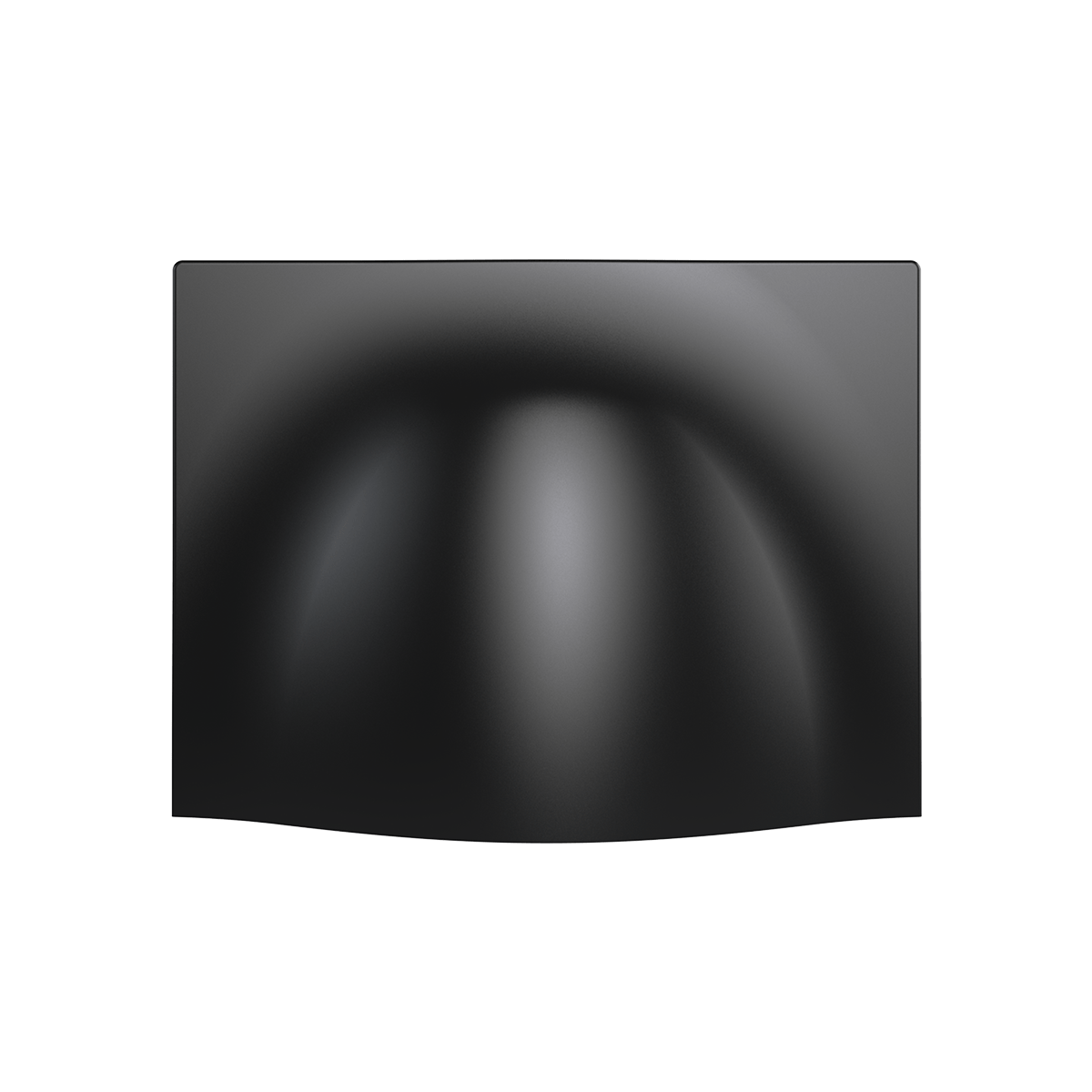

Available in white, black, and bronze die-cast, powder-coated finishes

INTRODUCING THE WXPM & WXP | June 2025

THE PRESENT

Reduced wattages in EM mode

LifePO4 battery

IP65 rated

- (-20ºC to 50ºC)

8.25"

11.125"

4.5"

11.1"

5.25"

9.5"

25W / 55W

75W / 100W

The WXP

Additional Specifications

Availability

& Pricing

THE FUTURE

- We're ready to take orders in July

- Pricing is available in the new price book

Available August 1st

INTRODUCING THE WXPM & WXP | June 2025

INTRODUCING THE WXPM & WXP | June 2025

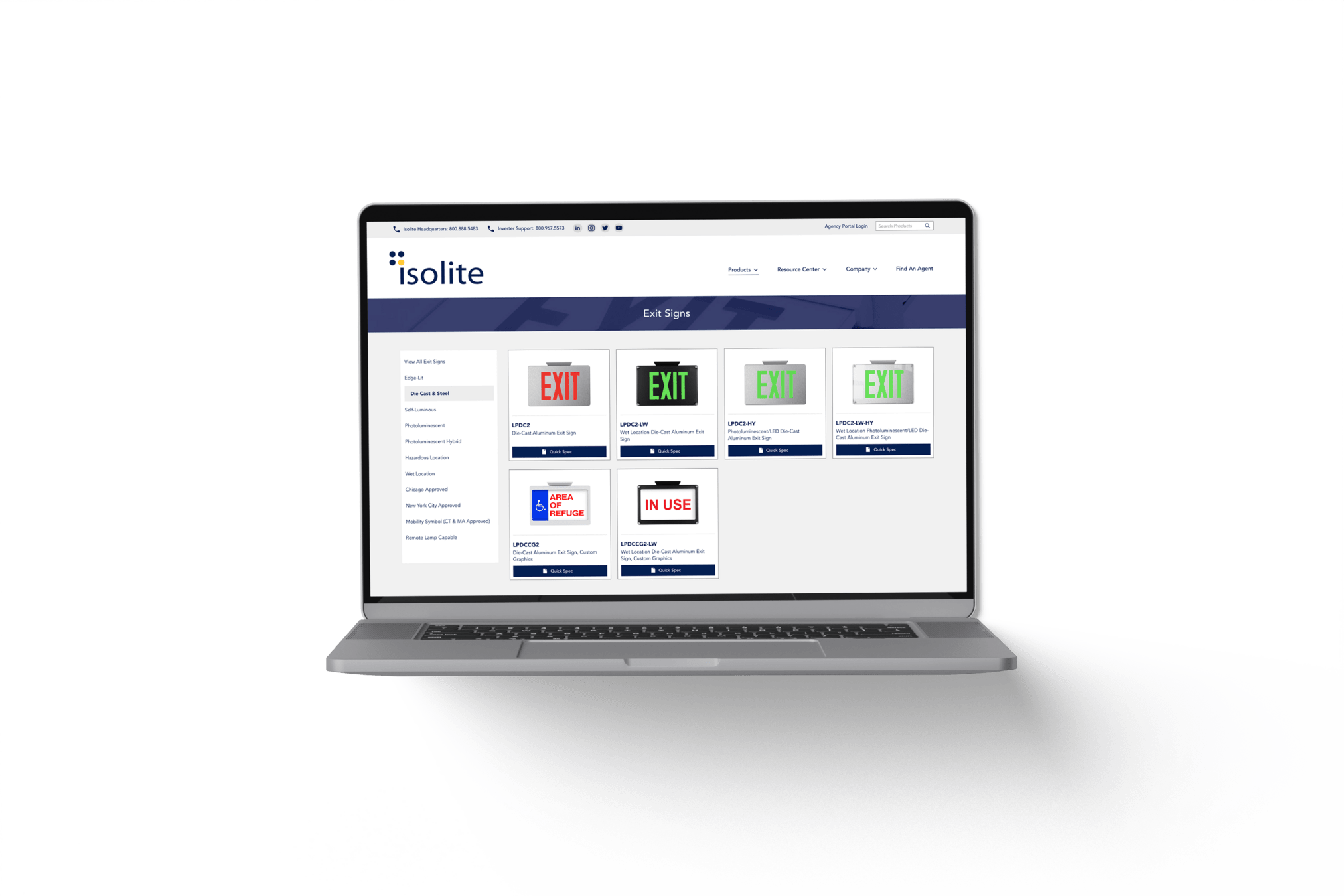

LPDC2

HOUSEKEEPING

2025 Price Book

- Specification Sheets & Drawings

- Wiring Diagrams

Available on the Website

- Training Video Link

- Sales Presentation PDF

- Sell Sheet & Marketing Assets

Available Within Follow-Up Email

Sales

Material

SUPPORT

INTRODUCING THE WXPM & WXP | June 2025

Schedule a webinar for advanced sales and engineering training

Team of

Experts

NEED FURTHER ASSISTANCE?

Director of Product Development

Evan Ackmann

eackmann@isolite.com

Sales Support Engineer

Tom Deutsch

tdeutsch@isolite.com

Vice President

Greg Keil

gkeil@isolite.com

Vice President

Matt Bird

mbird@isolite.com

INTRODUCING THE WXPM & WXP | June 2025

THANK YOU

For additional training, please contact your local sales representative
