Background on BAA
Isolite Products Meeting BAA/TAA
What's the Deal with BABA
Why Do We Need Breakers in Inverters?
(And When Don't We)
BAA & INVERTER BREAKERS
OVERVIEW
BAA & TAA
BREAKERS
SUMMARY
Types of Breakers & Options
Custom Breaker Options
Product Line Summary
Marketing & Follow-Up
Applicable for federal procurement
(Federal agencies buying materials for their own usage)
Gives preference and requirement for "Domestic end products" in construction
Buy American Act
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/11354277/CERTS_ISOLITE-BAA.png)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/7383400/Isolite_Logo-Dots-White-04.png)
WHAT IS BAA? TAA?
BAA & TAA
ISOLITE
INVERTER BREAKERS
Chalk Talk
- Manufactured of 50% U.S. made components - or -
- Commercially available off-the-shelf items manufactured in the U.S.
Ref: USC T41 BAA Ch. 83
Ref: FAR 25.2 Buy American Construction Materials
TAA requirements lose the domestic content rules to include Trade Agreement Act countries
Trade Agreement Act
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/10112000/TL2.png)

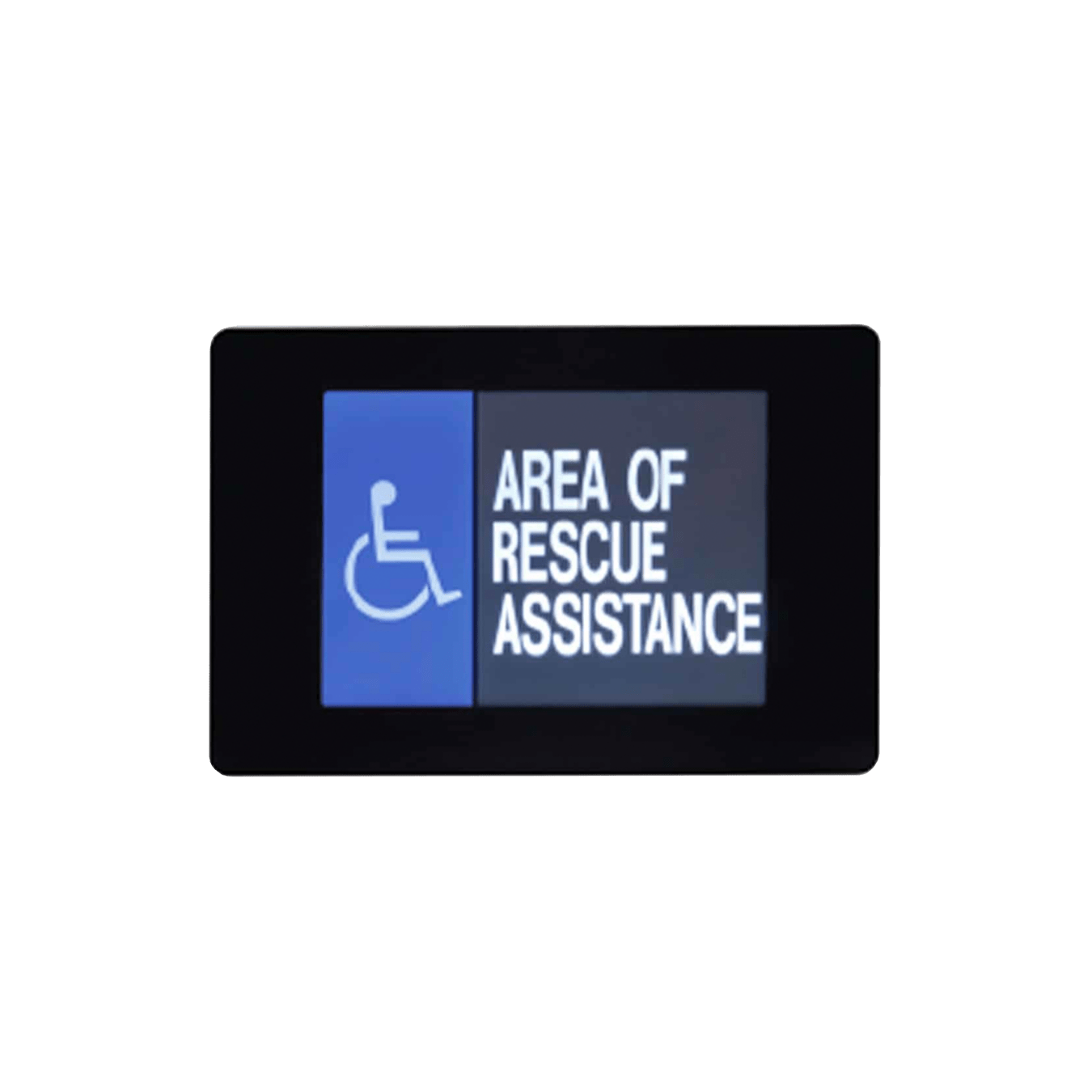

TLMR2
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/11356468/TLCG2.png)
TLCG2
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/10112000/TL2.png)
TL2
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/10606050/SLX-60-RED.png)

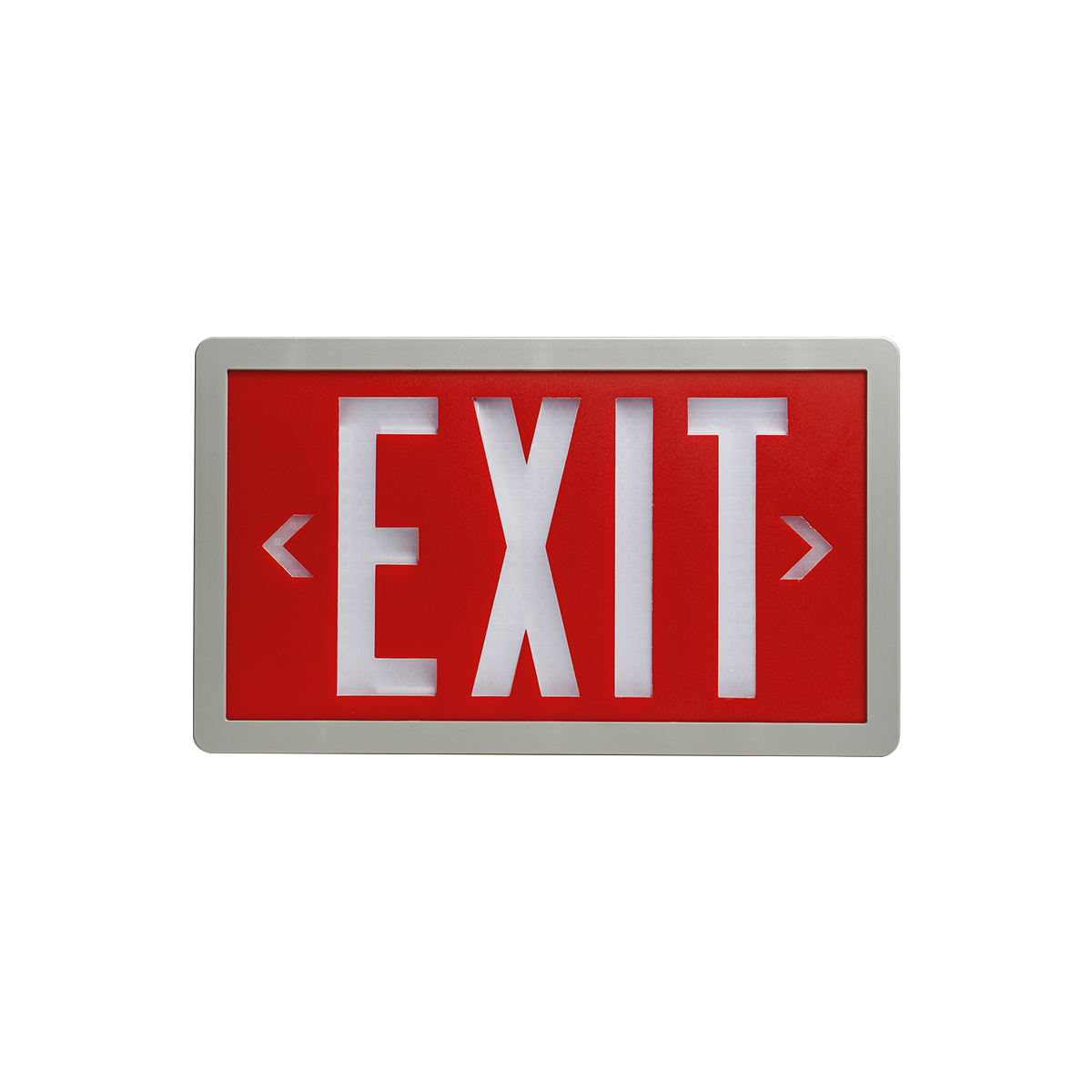

SLX-60
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/11356465/PHL.png)

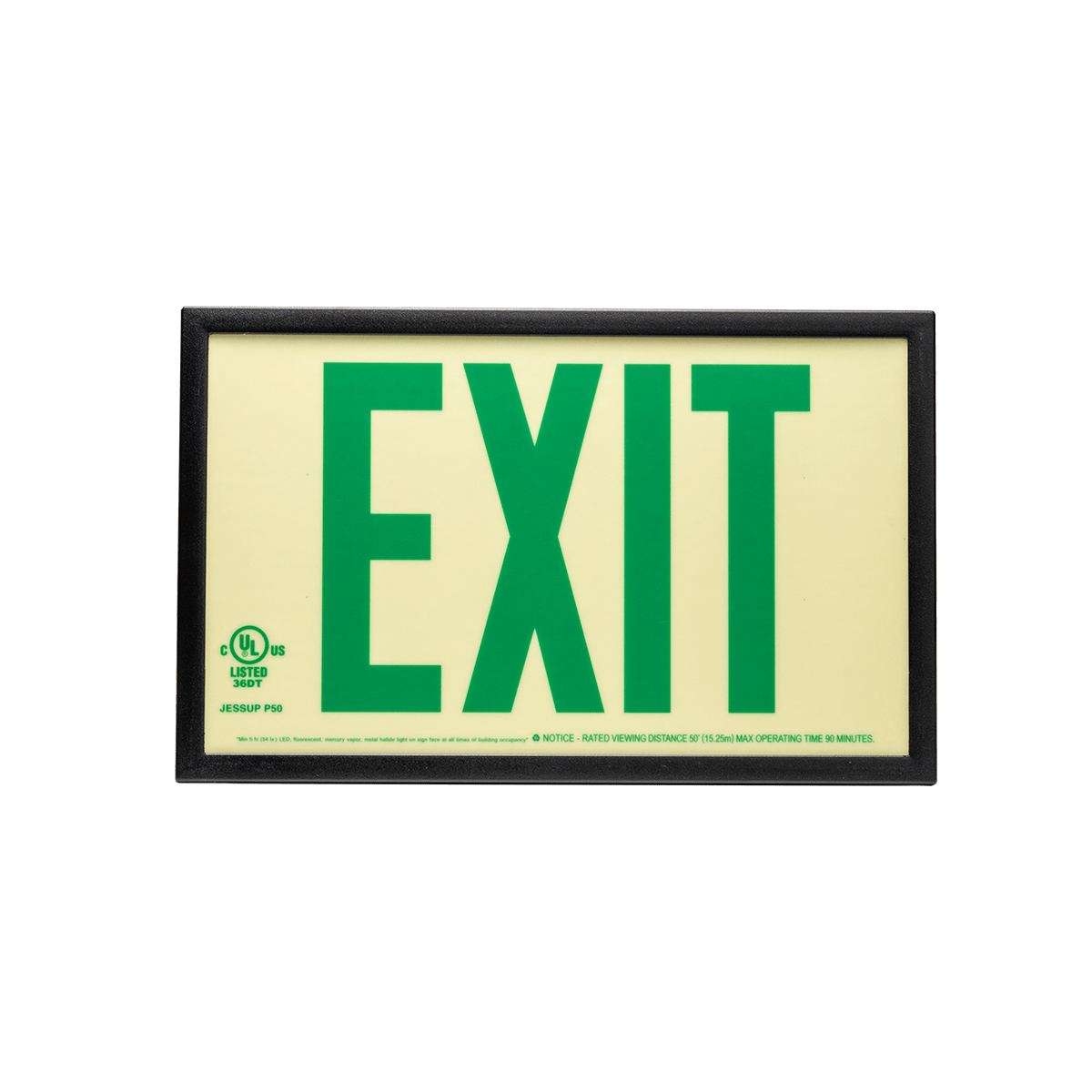

PHL

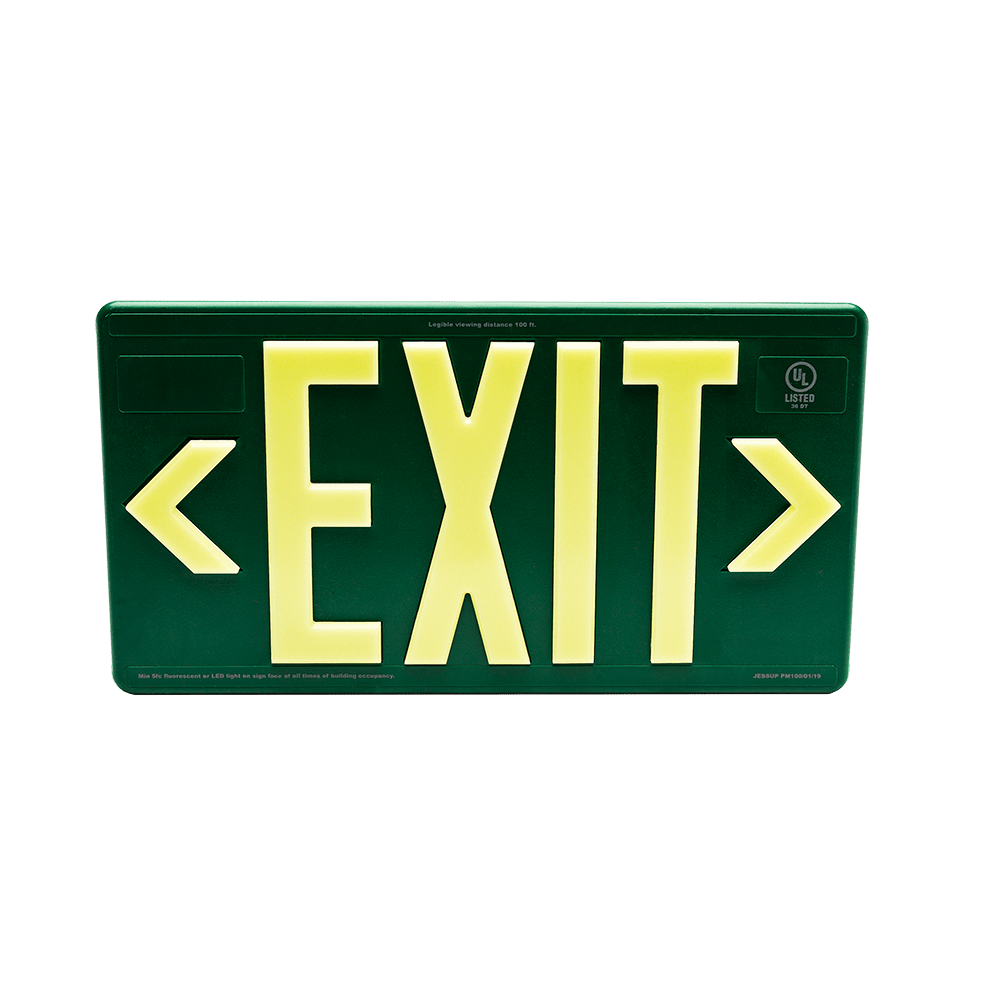

![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/10970048/PH100.png)
PH100

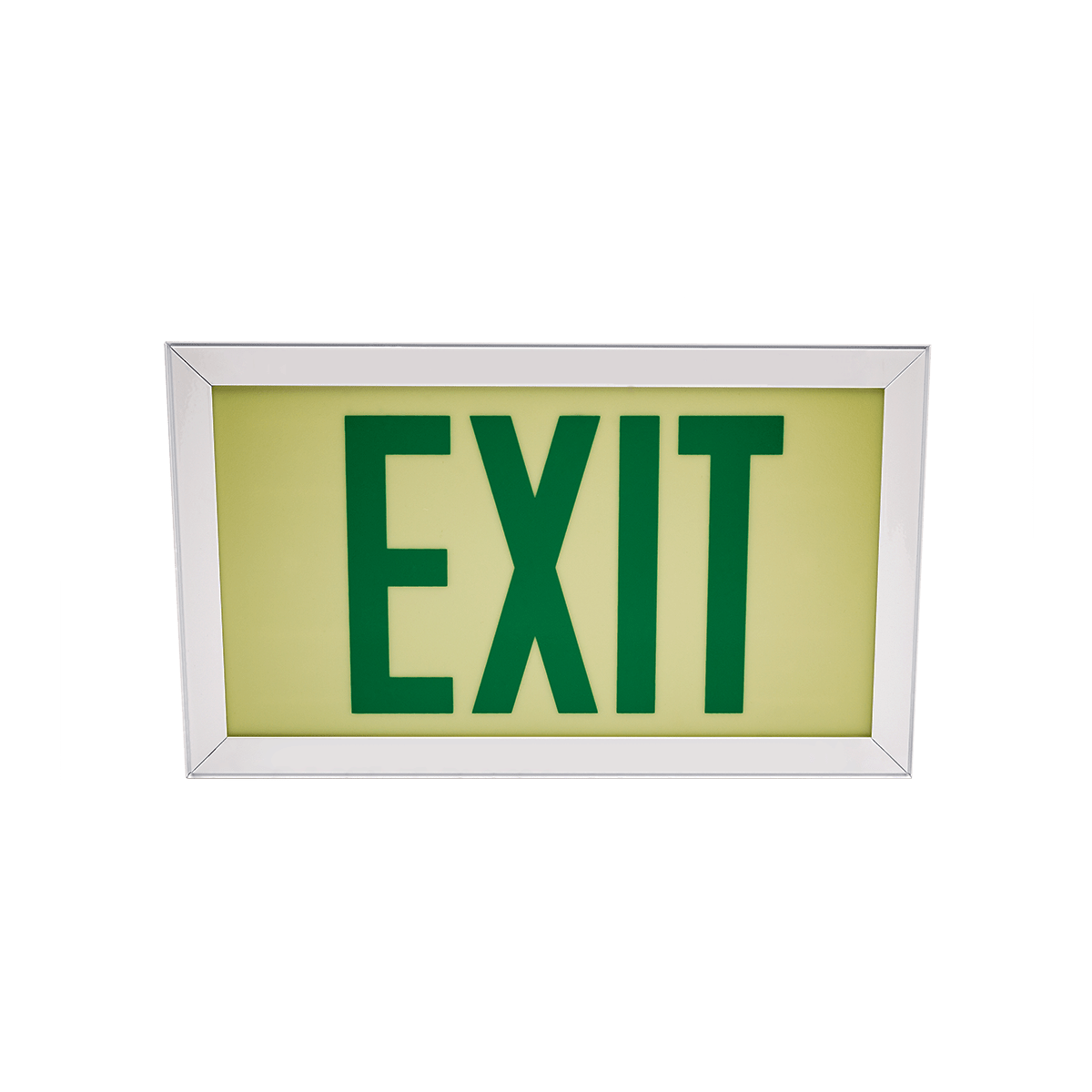

![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/11356457/PH.png)
PH
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/11356317/PG2-BACK-MOUNT-BRUSHED-ALUMINUM-isolite-image1.png)

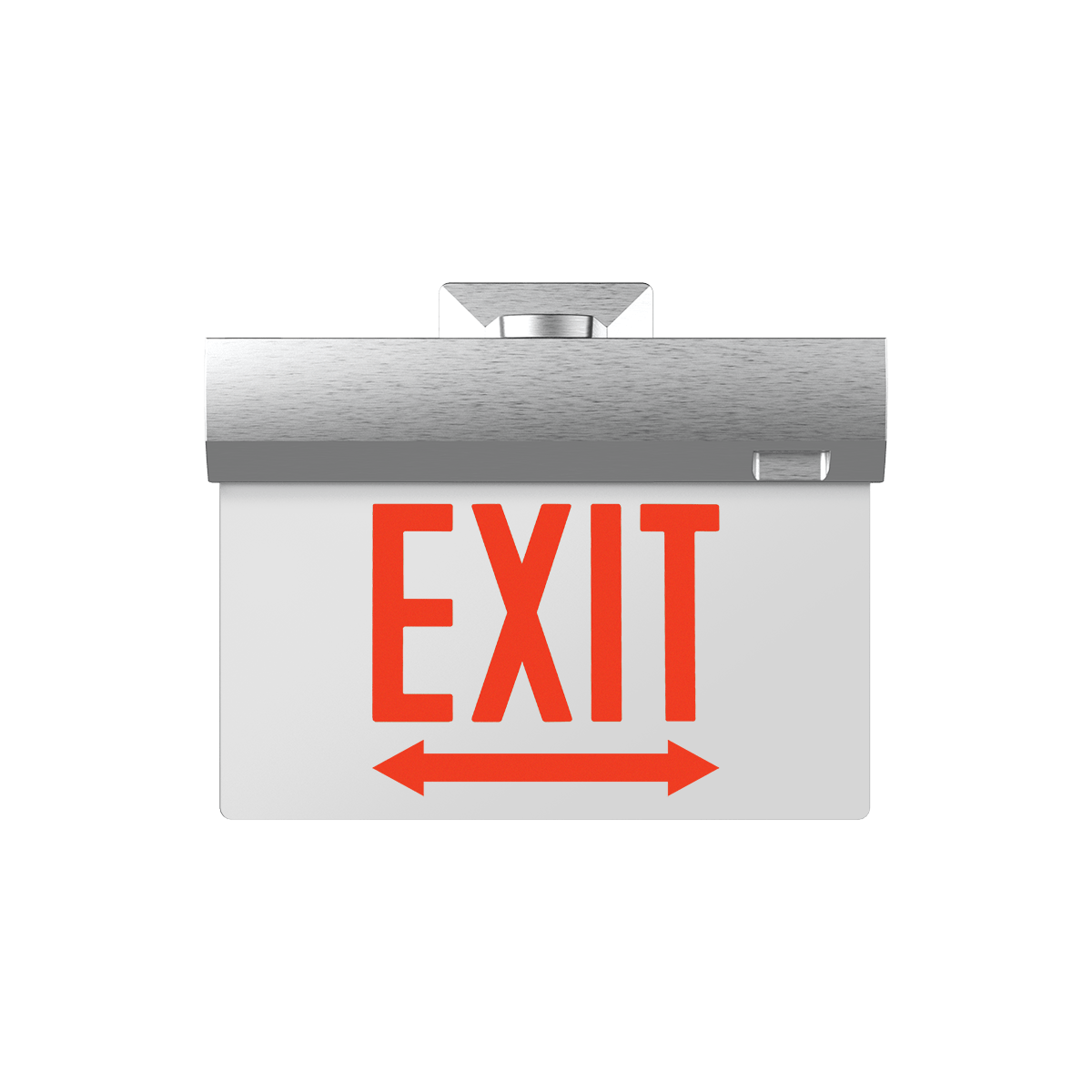

PG2
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/11258018/MAX2.0.png)
MAX2.0
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/11258021/MAX.png)
MAX

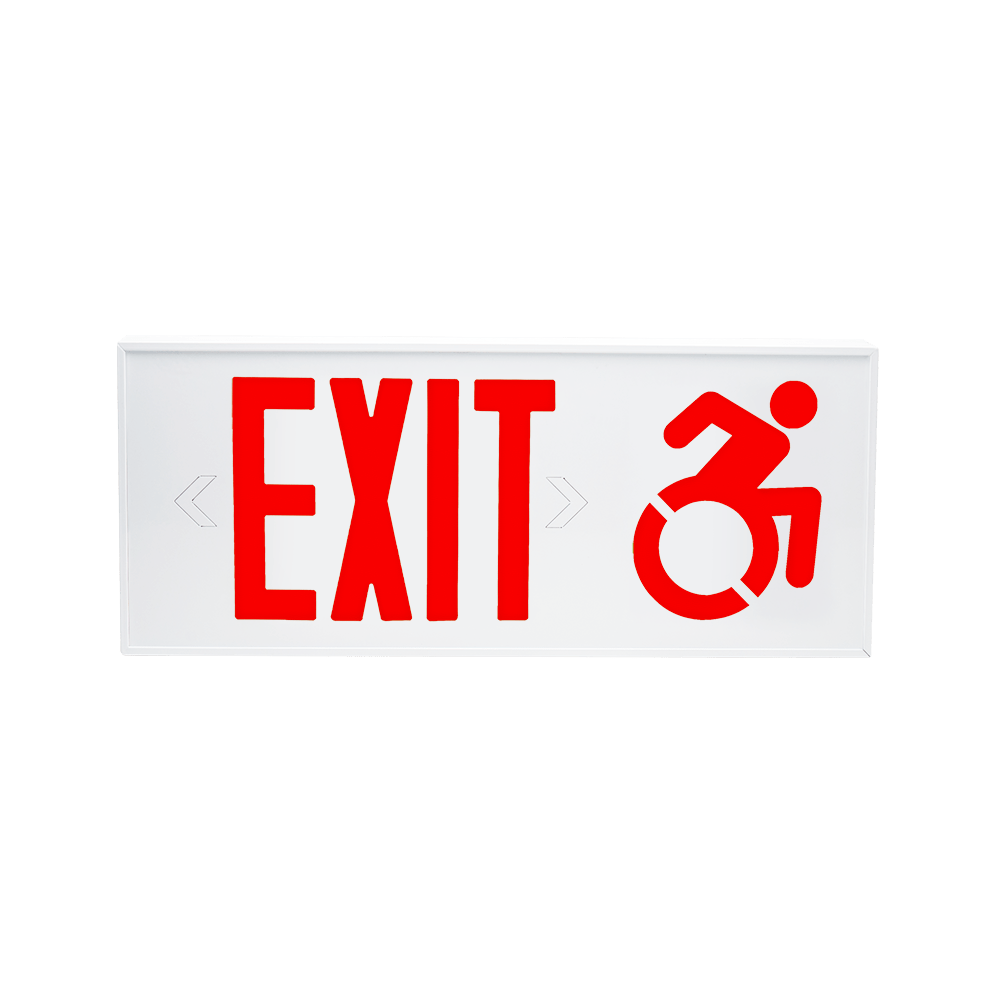

LPX
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/11356455/LPX.png)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/11356452/LPX-CTMA.png)

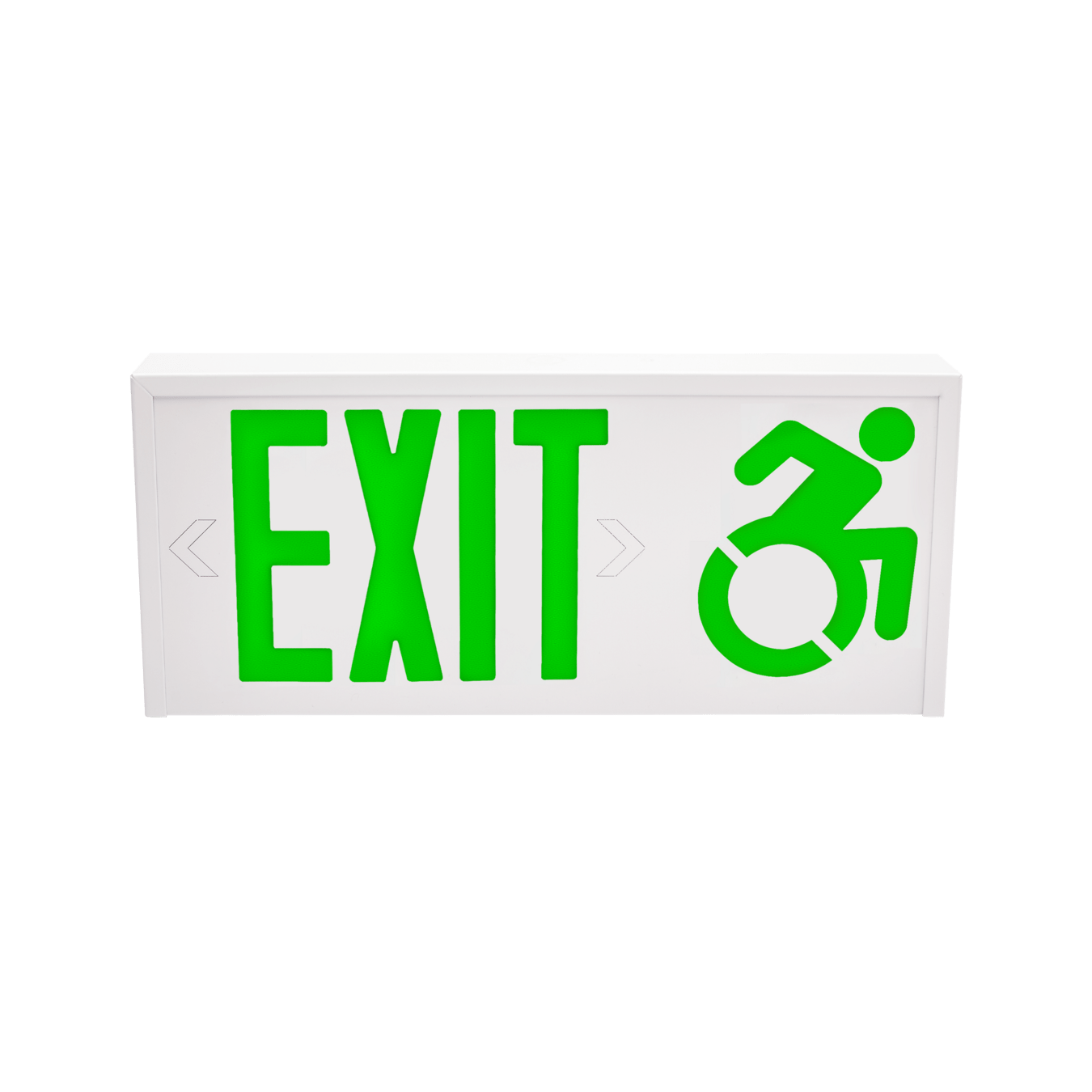

LPX-CTMA
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/11356416/LPDC.png)
LPDCREM
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/11356416/LPDC.png)
LPDCMR
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/11356420/LPDCCG.png)

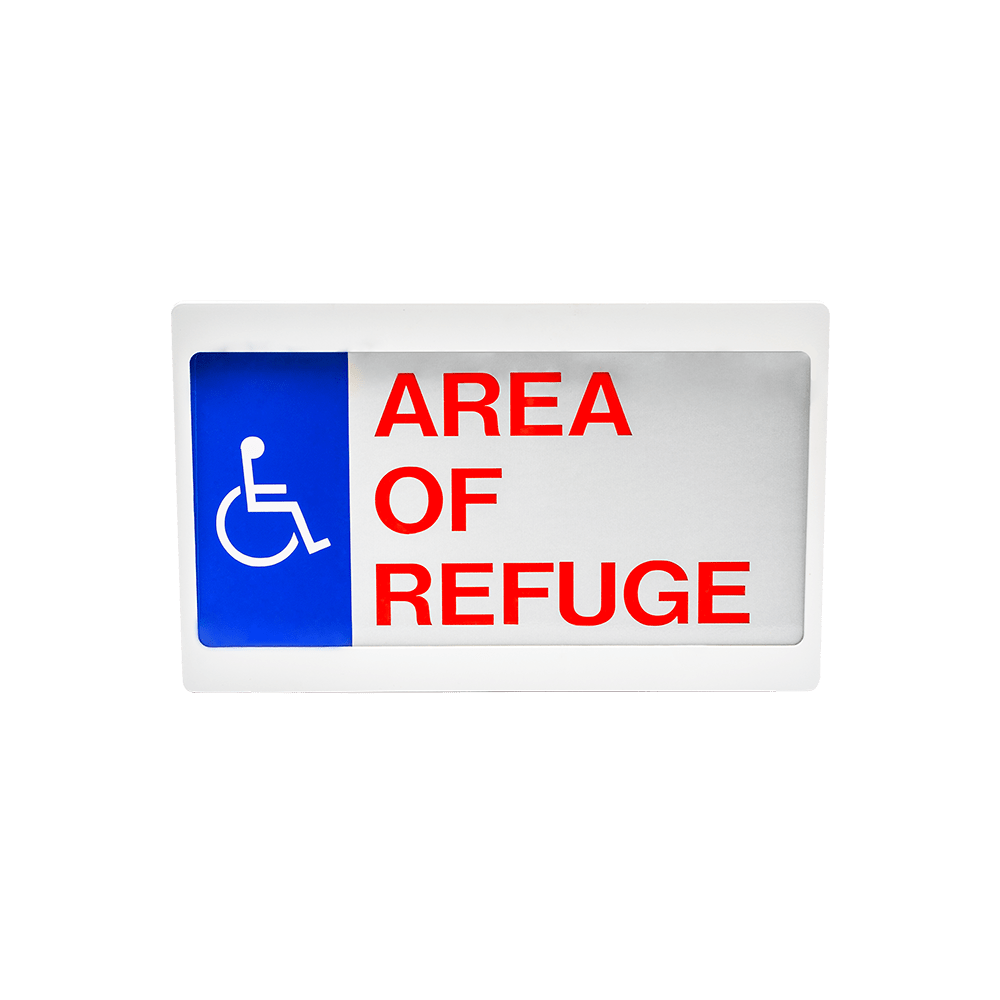

LPDCCG
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/11356416/LPDC.png)
LPDC
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/11356408/LPDC-HD.png)
LPDC-HD
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/11356379/LP.png)

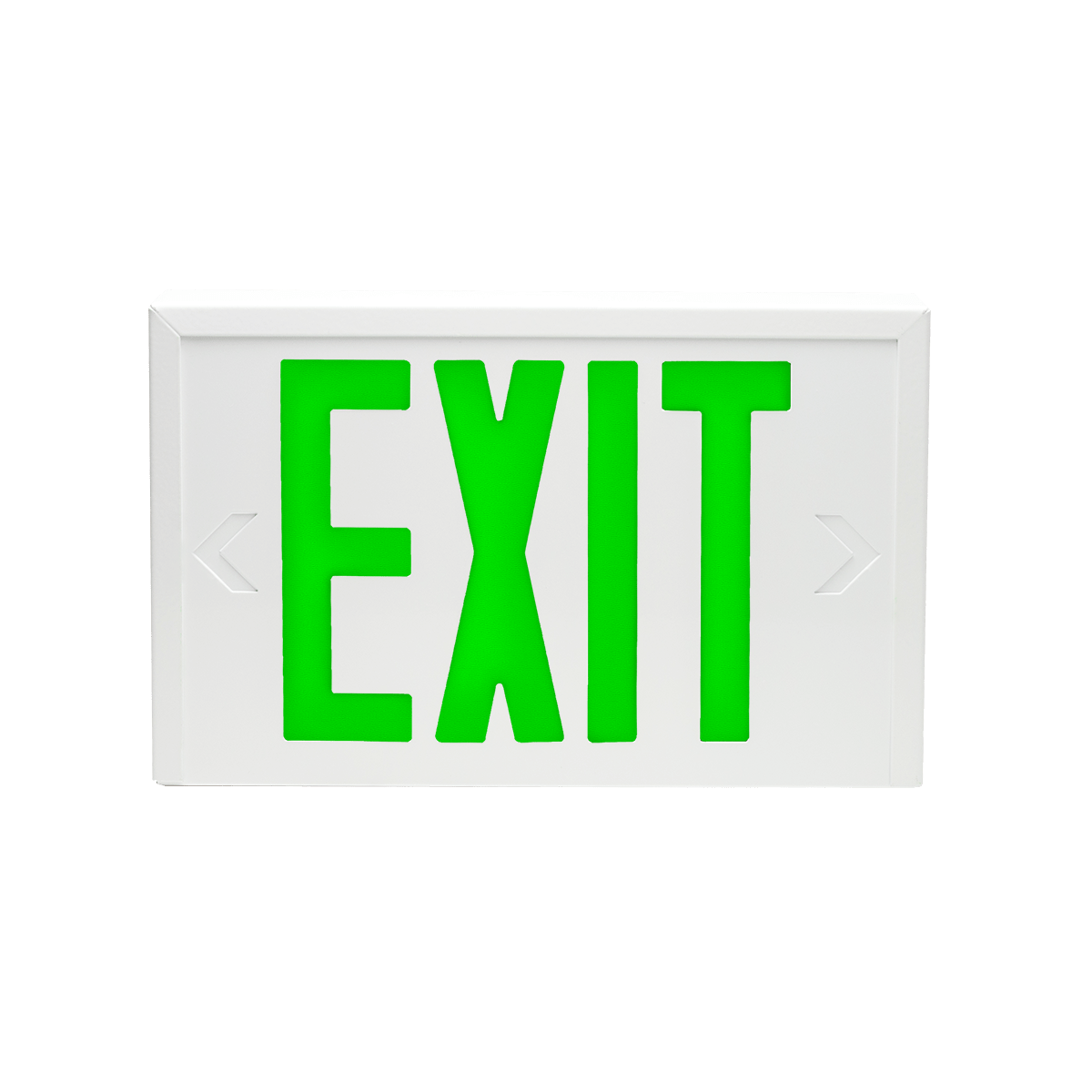

LP
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/11356371/LP-CTMA.png)
LP-CTMA
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/11356364/HZE.png)

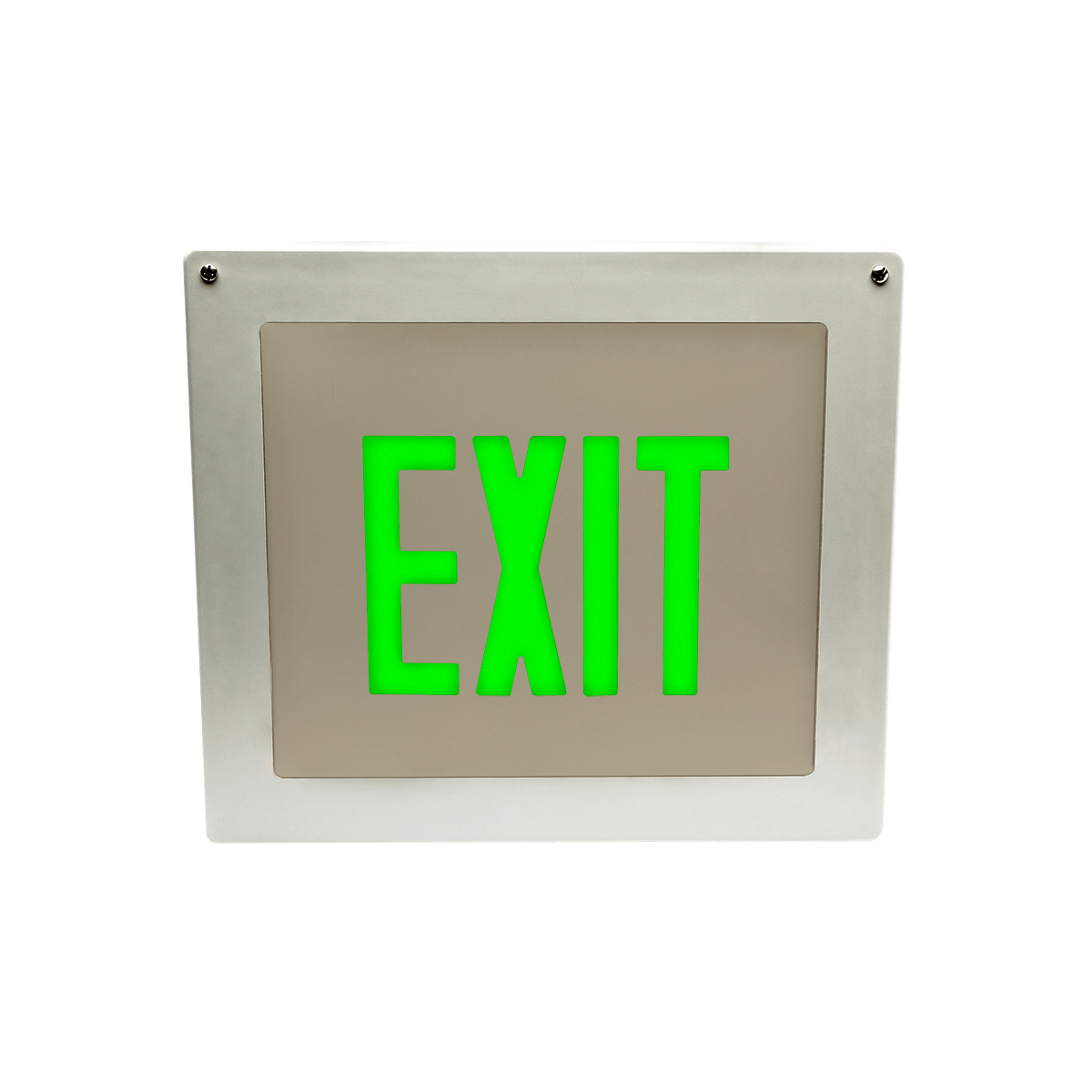

HZE
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/11258045/HLX.png)

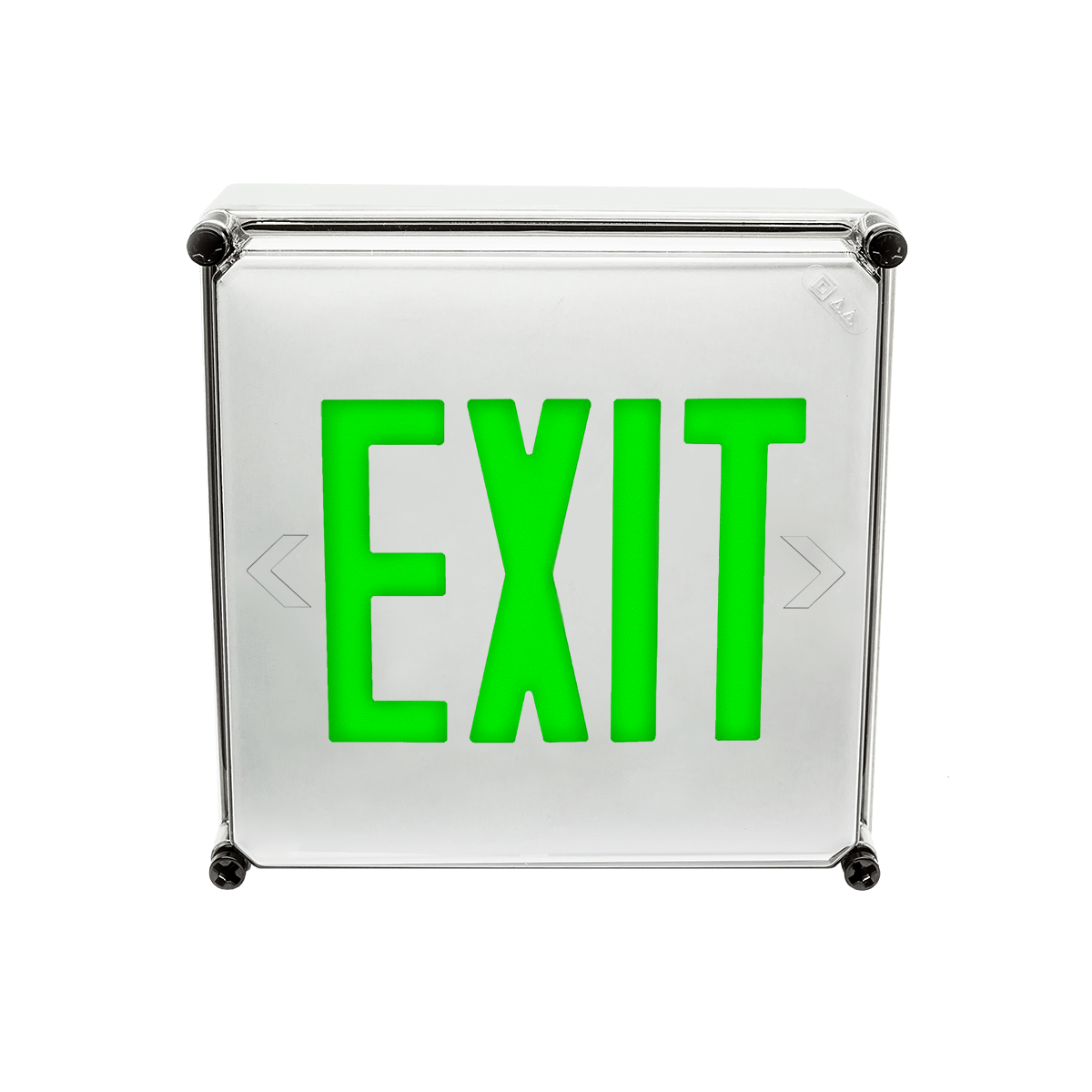

HLX
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/7571875/ISO-PRODUCT-EXP.png)
EXP
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/11356211/2040-07.png)

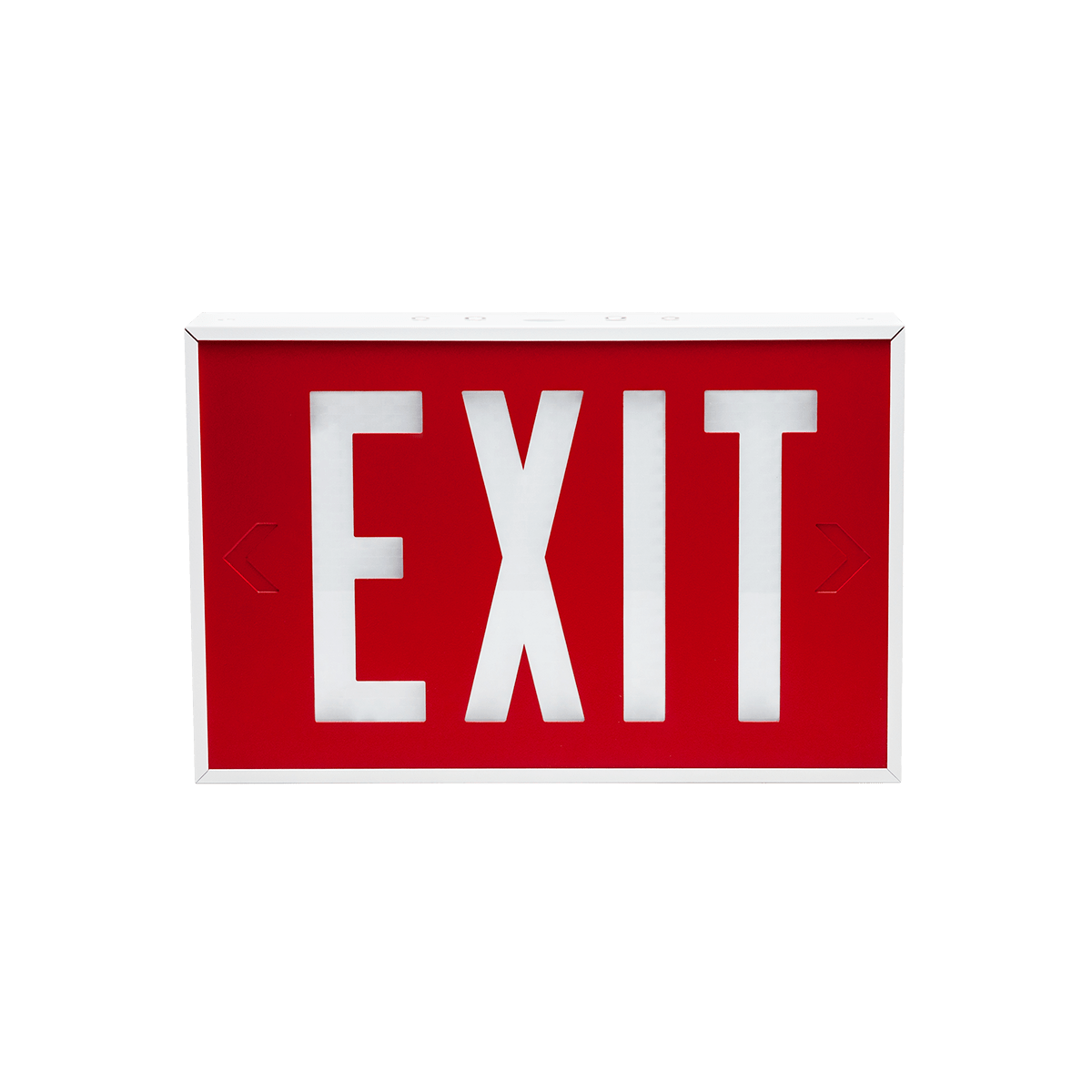

2040-07
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/11356232/2040-70.png)

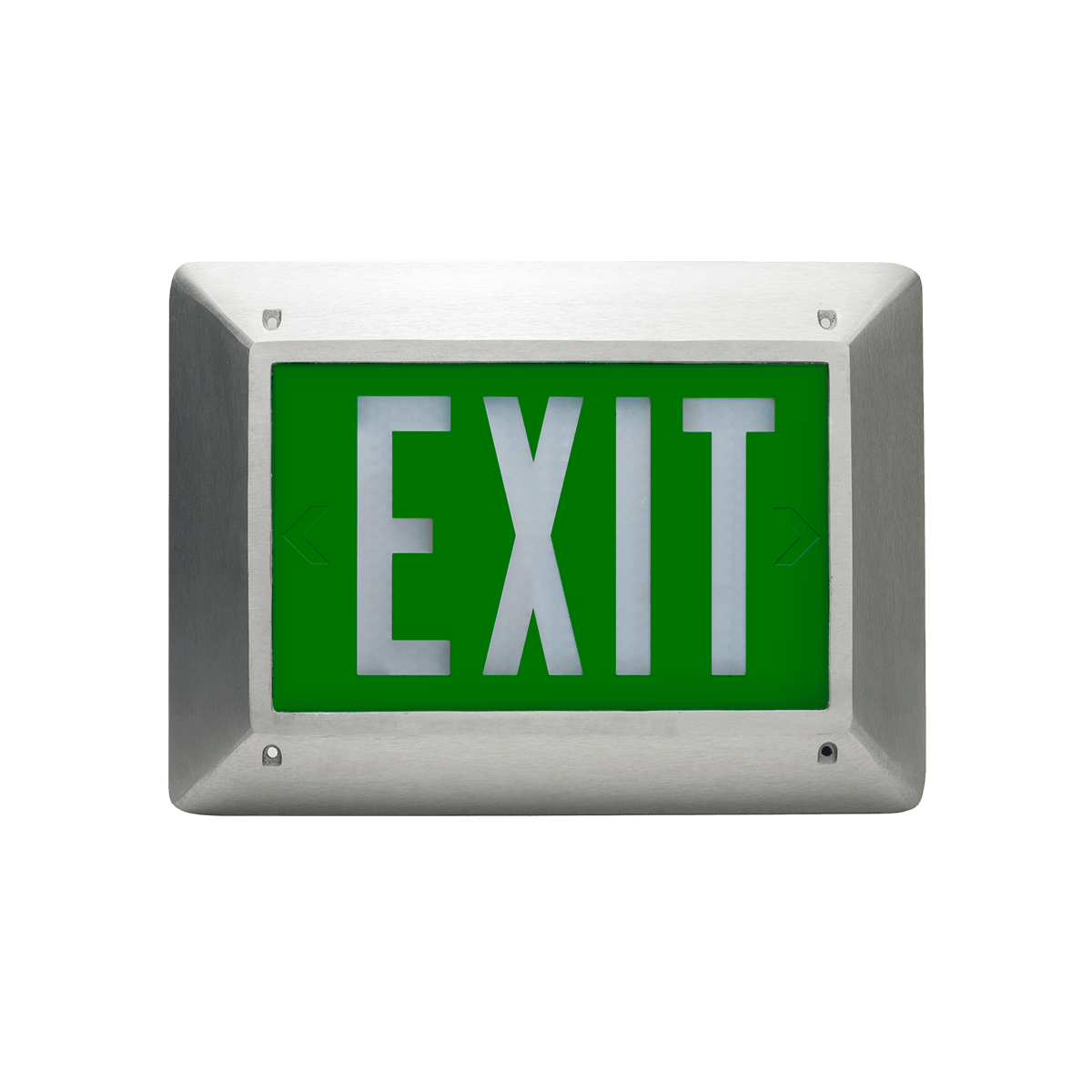

2040-70
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/11354303/2040-80.png)

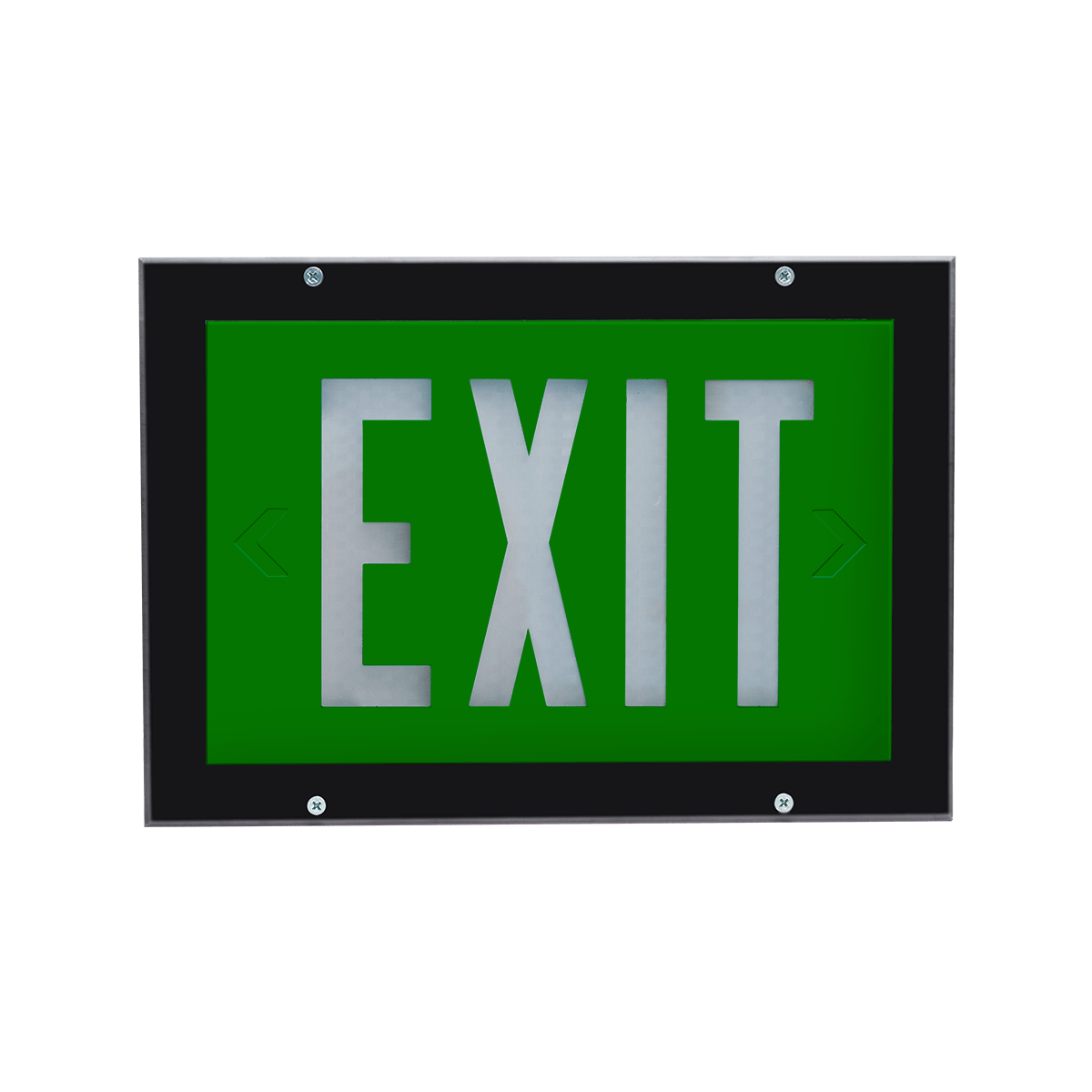

2040-80
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/11354304/2040-95.png)

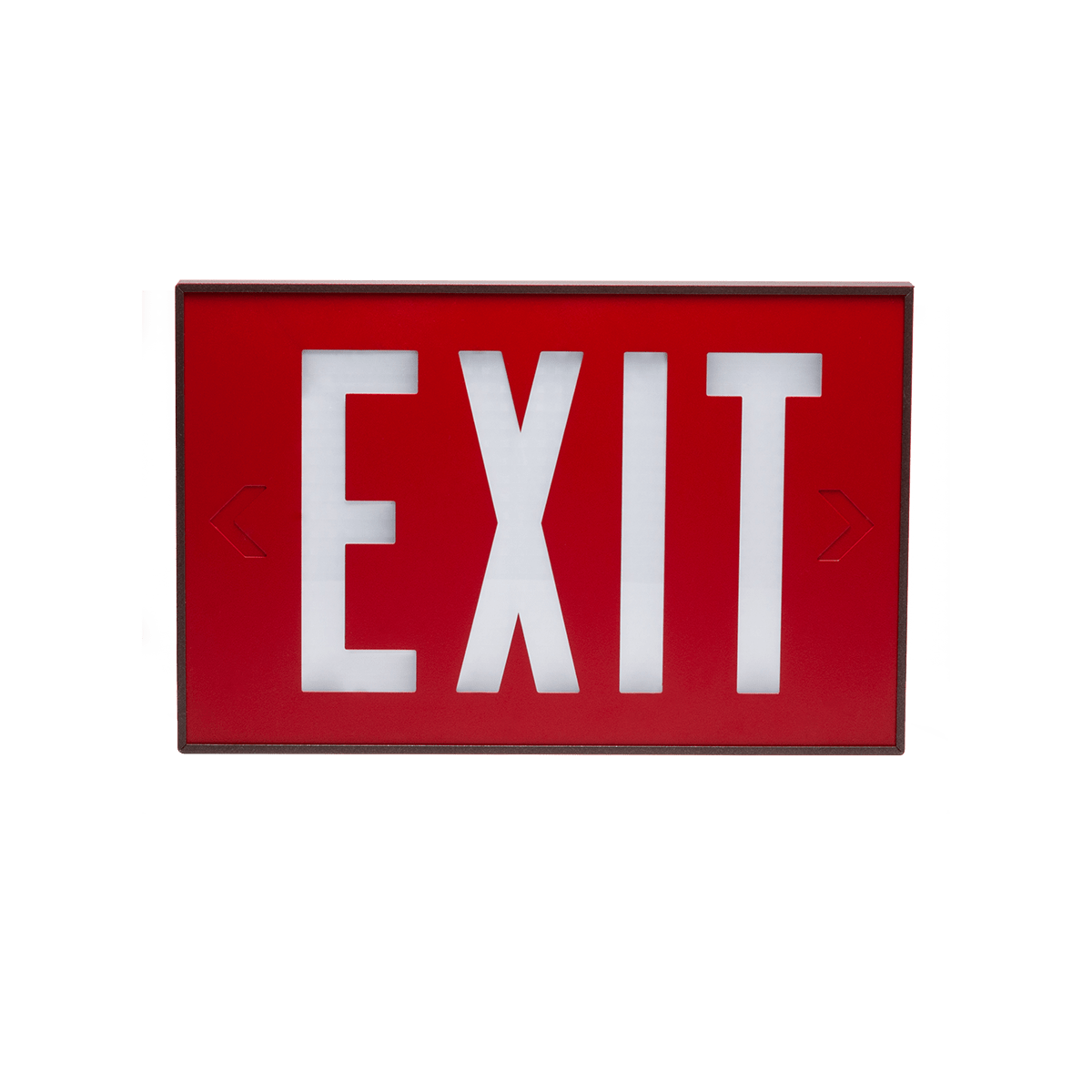

2040-95
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/10606049/DTH2-ISOLITE-image1.png)
DTH
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/10606049/DTH2-ISOLITE-image1.png)
DTH2
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/11356316/ECTMA.png)

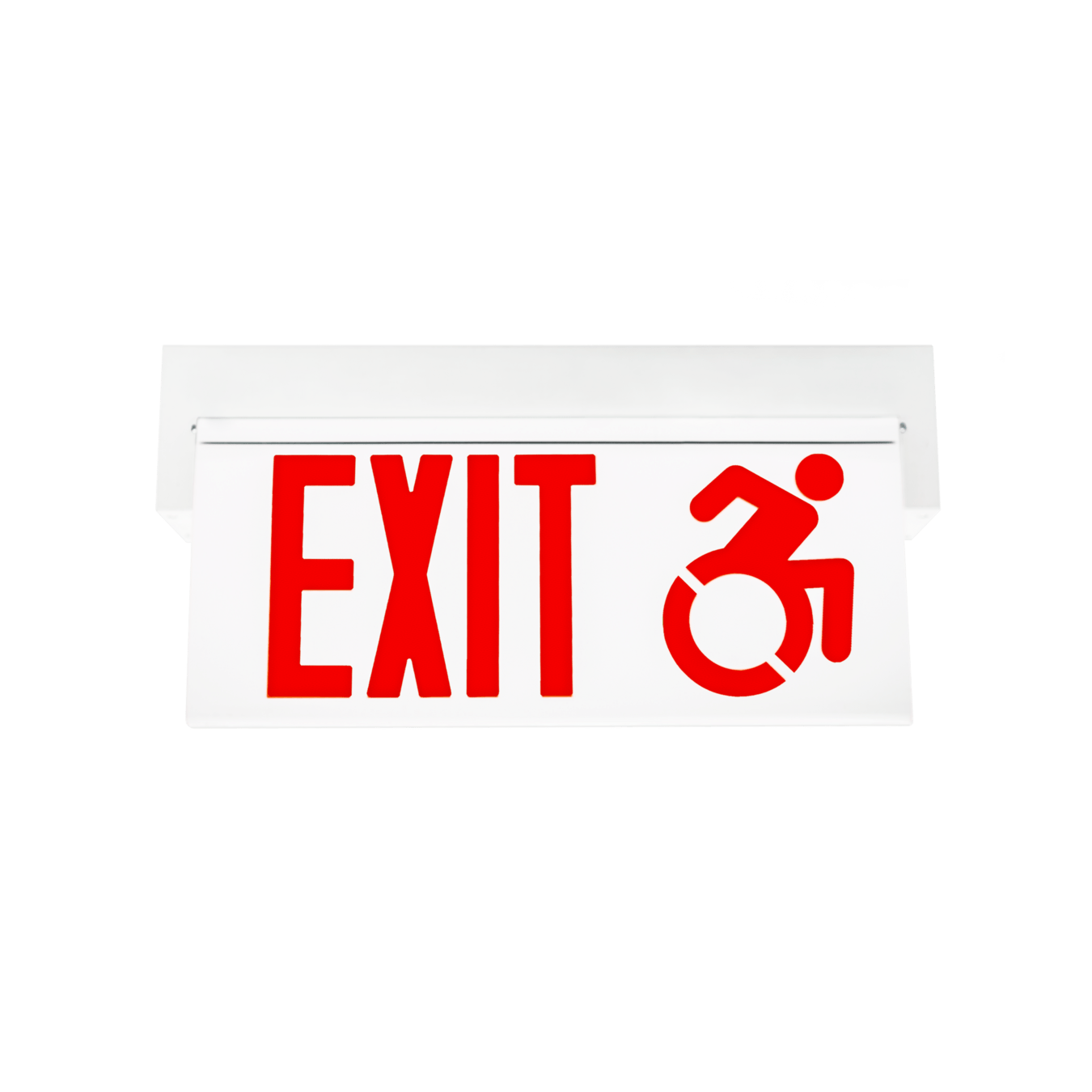

ECTMA
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/11356315/ELT2.png)
ELT2
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/11356318/ELTCG2.png)

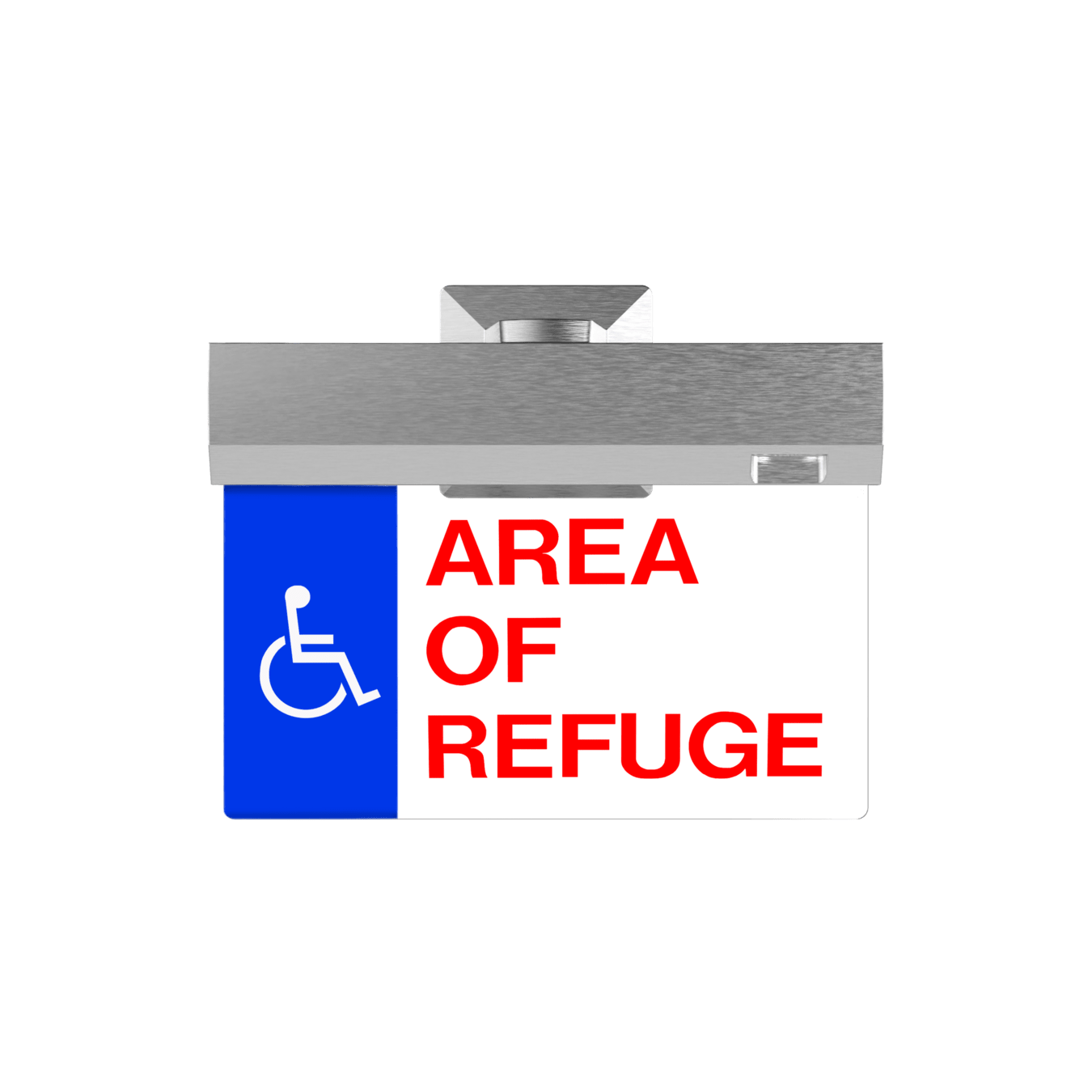

ELTCG2
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/11356350/EU-CTMA.png)

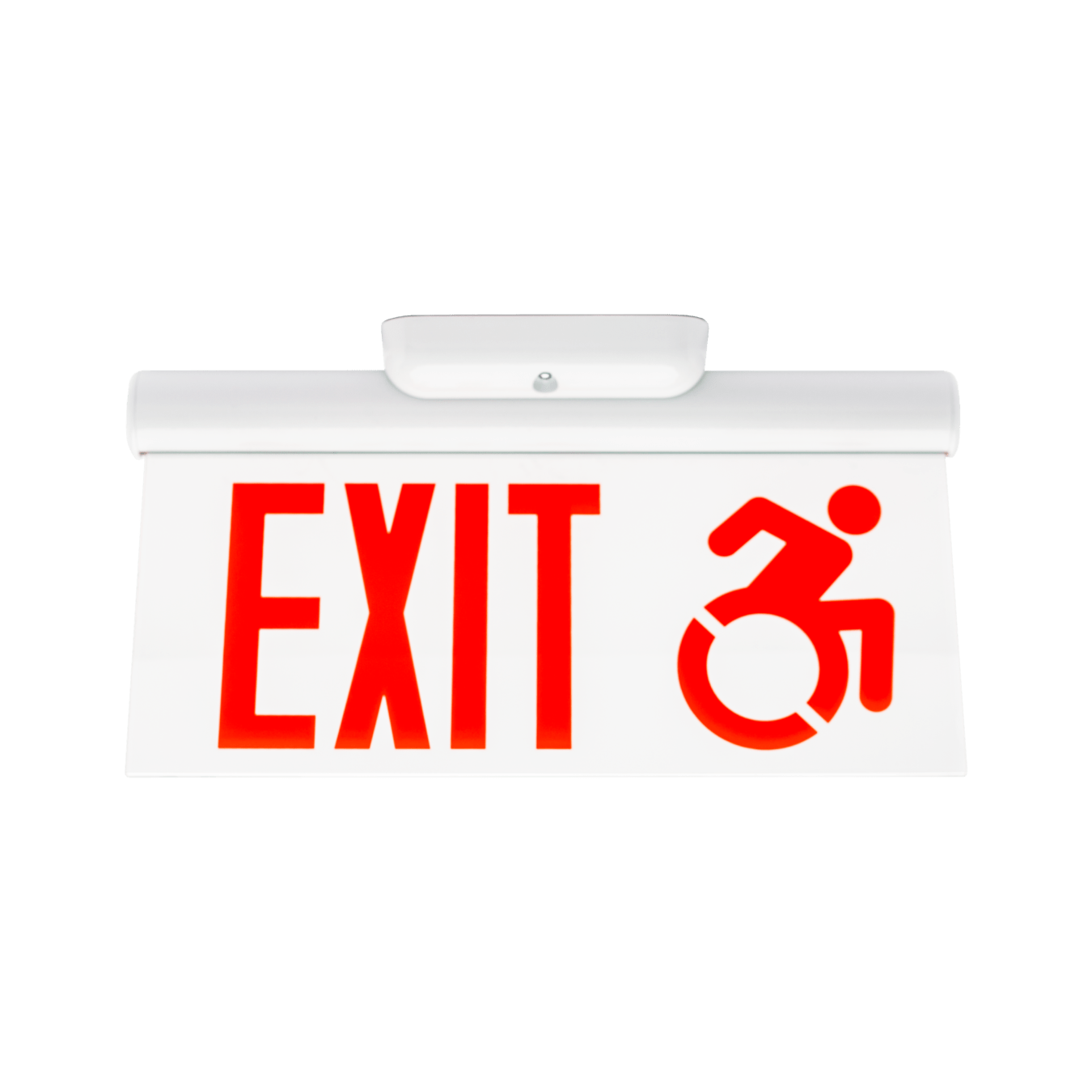

EU-CTMA
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/11356900/ERG.png)
ERG
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/11356899/ELS.png)

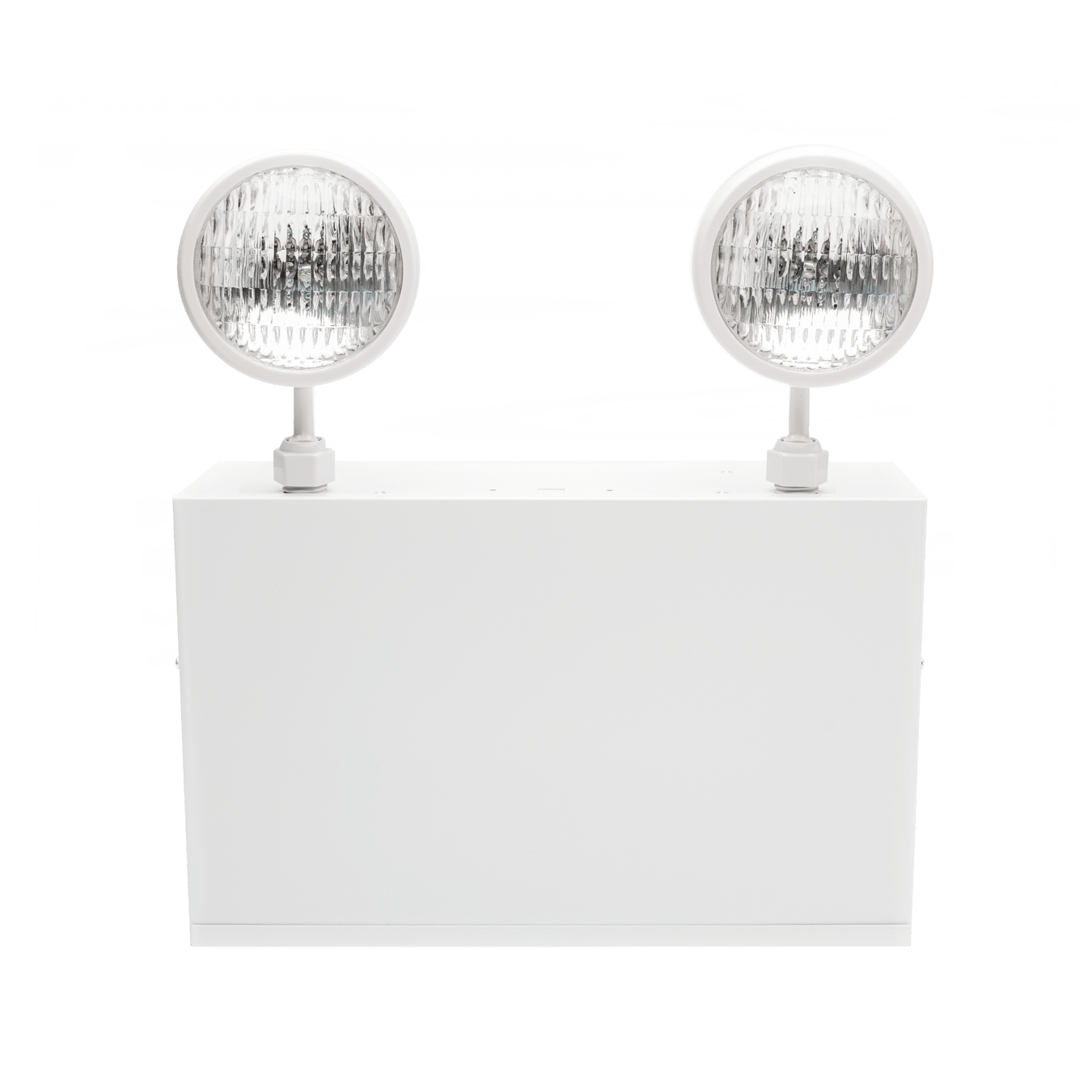

ELS
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/11063859/ELL.png)
ELL
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/11063852/ELH.png)
ELH

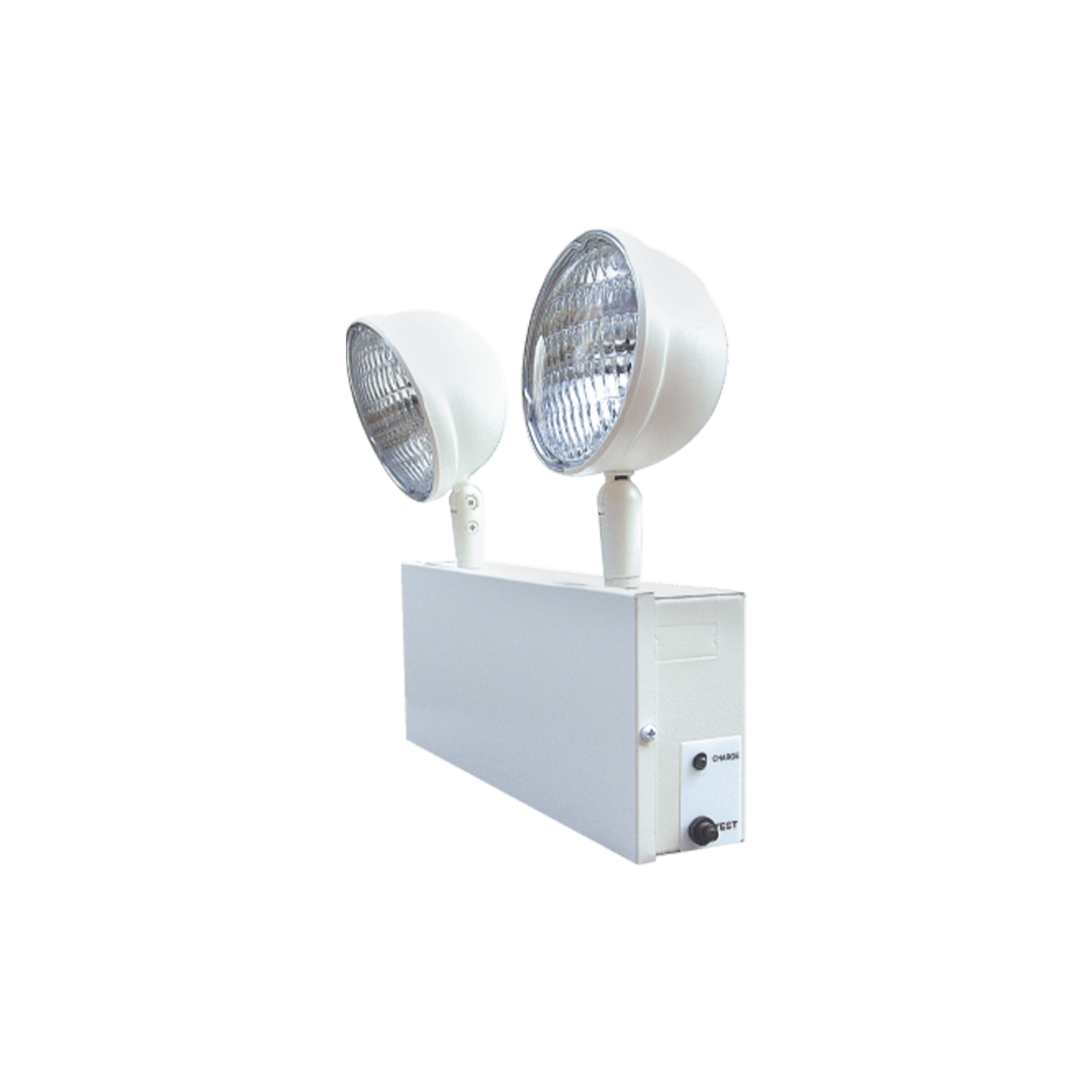

![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/11356898/CLS.png)
CLS
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/11098991/AIR-ISOLITE-image3.png)
AIR

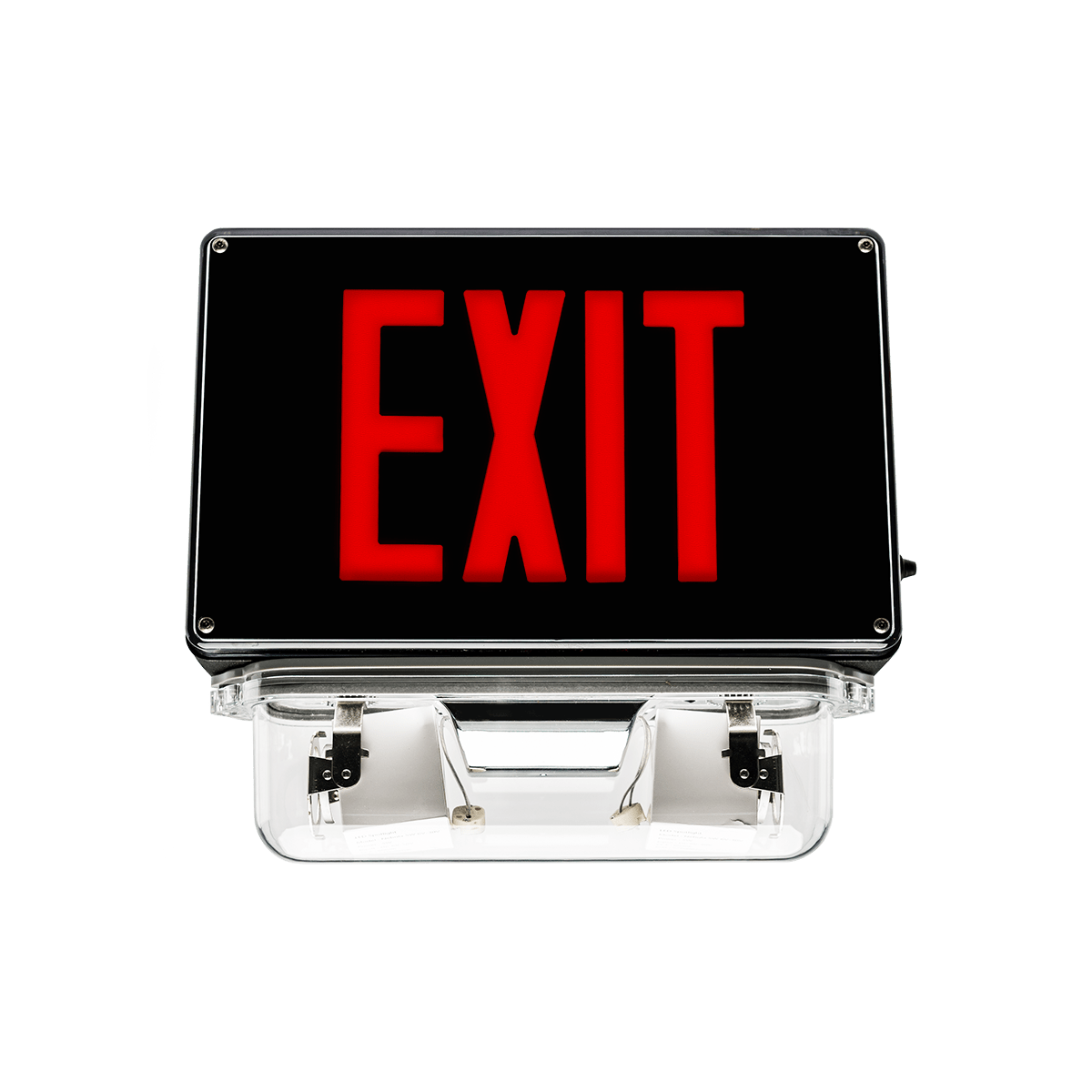

![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/11356894/MAX-C.png)
MAX-C
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/11356892/LP2H.png)

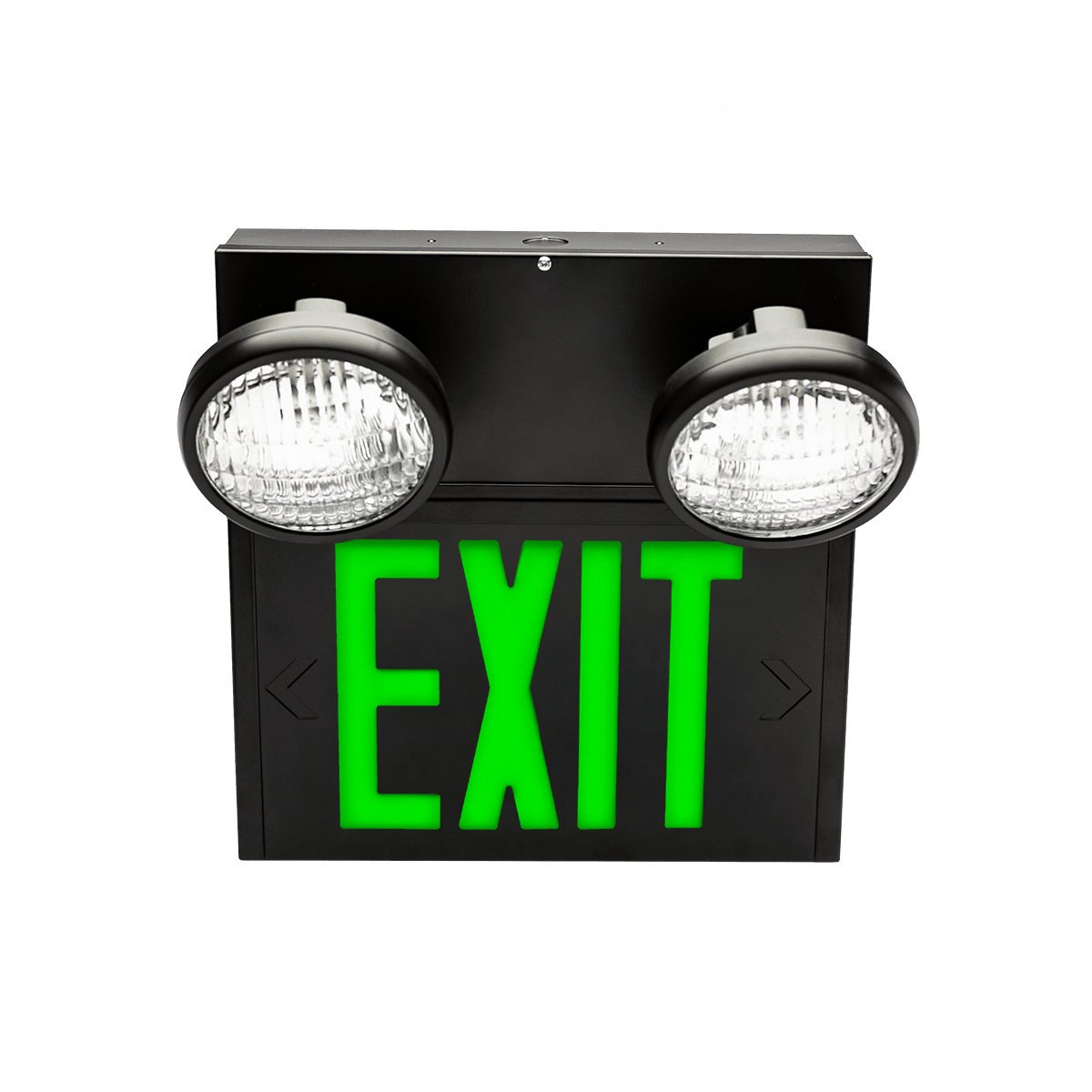

LP2H
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/11356890/HZC.png)

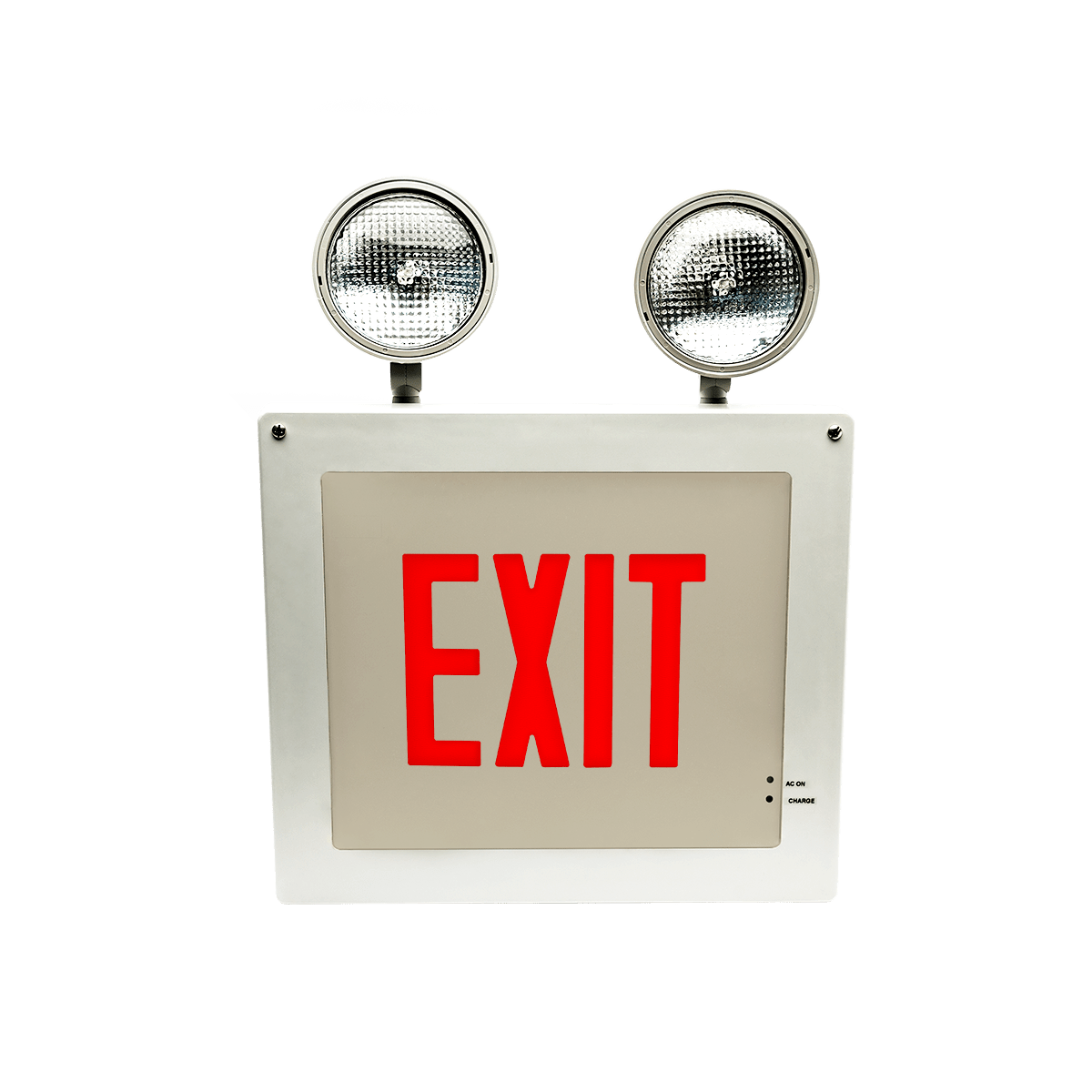

HZC
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/11284315/HLX-C.png)

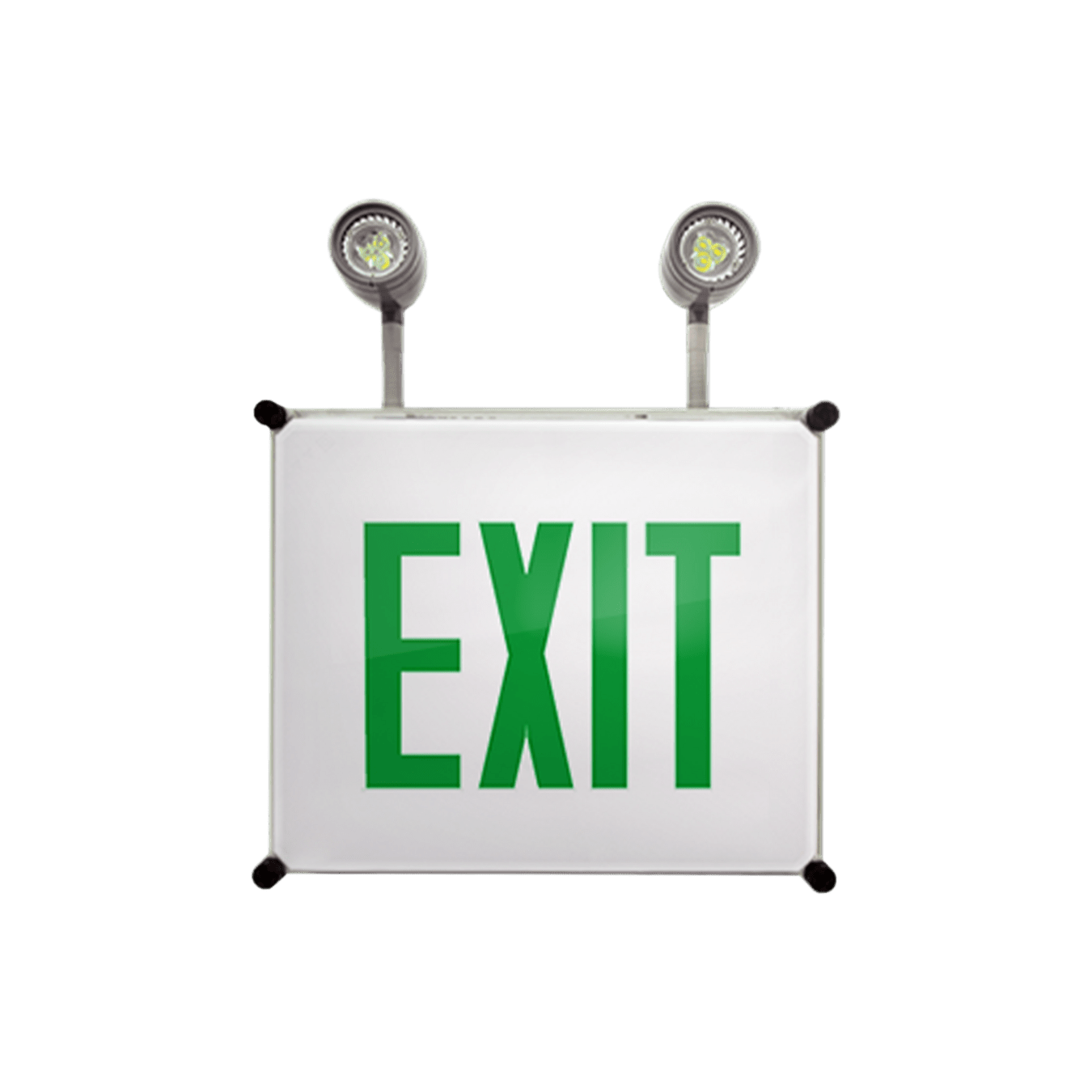

HLX-C
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/11356901/ERT.png)
ERT
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/10413253/GNSD.png)

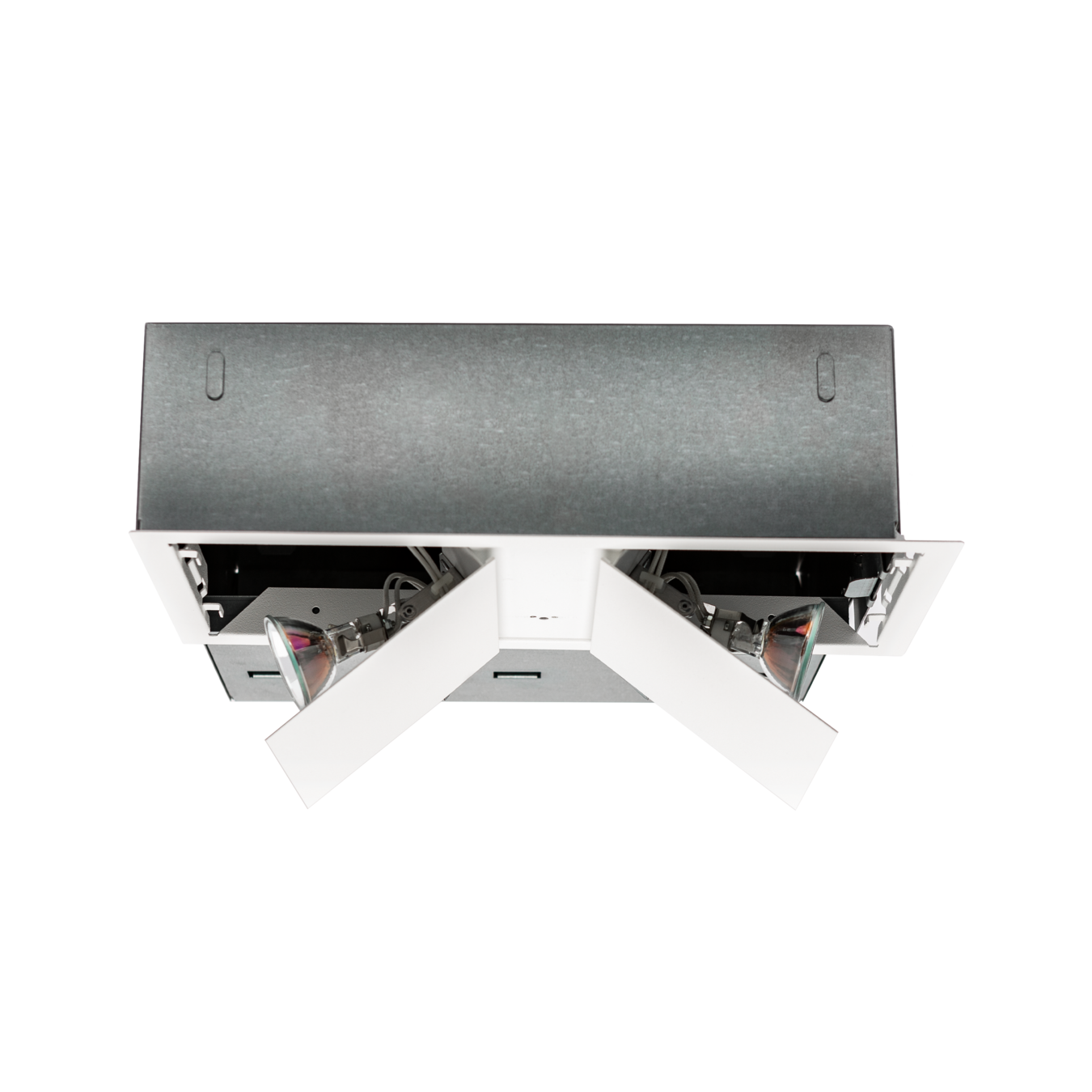

GNSD
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/11054159/HL.png)
HL
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/11356893/HZL.png)

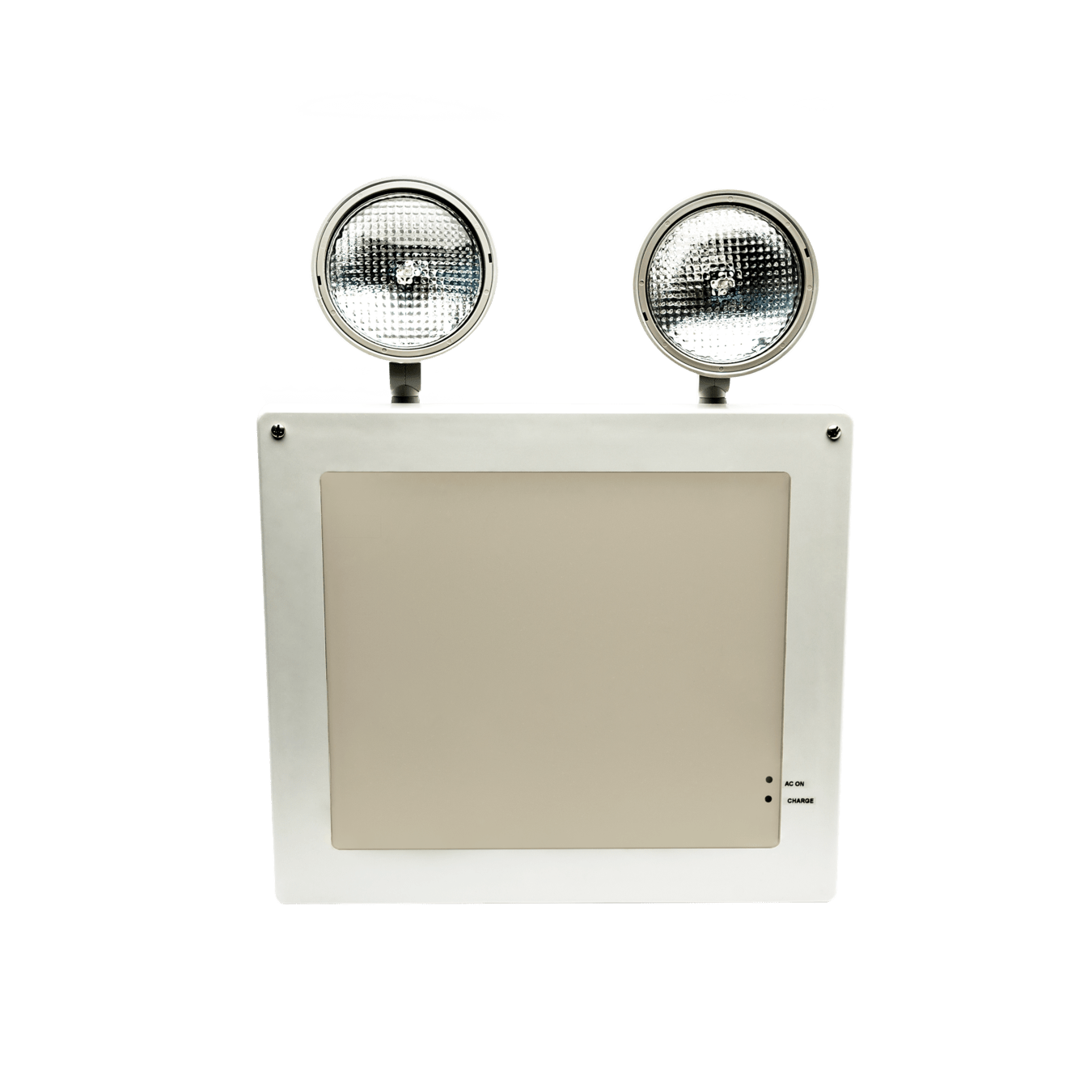

HZL
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/11260821/HZN.png)
HZN
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/11260821/HZN.png)
HZZ
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/9861799/LMIGN2.png)
LMIGN2
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/10481878/LTP.png)
LTP
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/10413242/MIGN2.png)
MIGN2
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/10226329/ODLE.png)

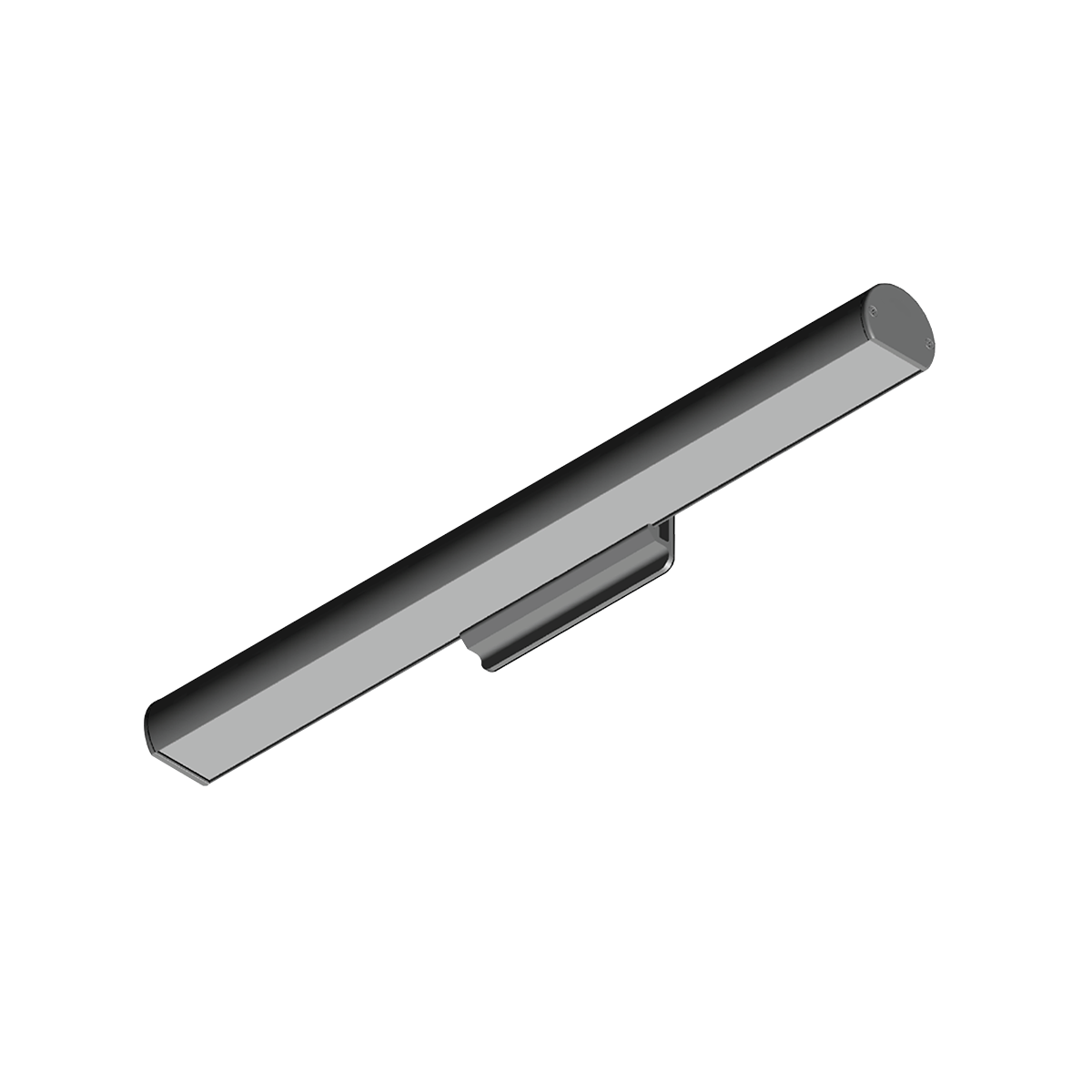

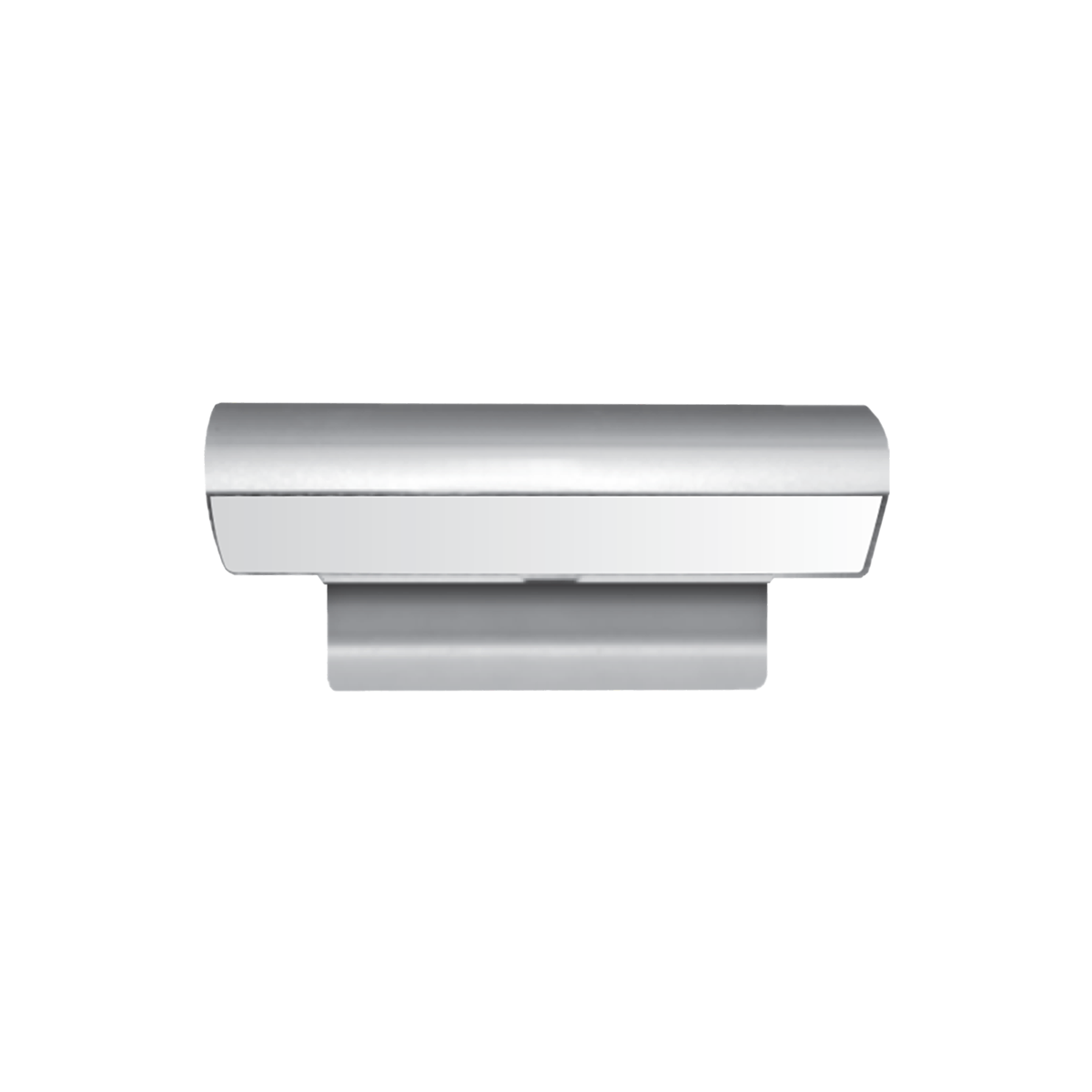

ODLE
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/10272813/ODLM-ISOLITE-image2.png)
ODLM
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/11356913/VTF-LED.png)

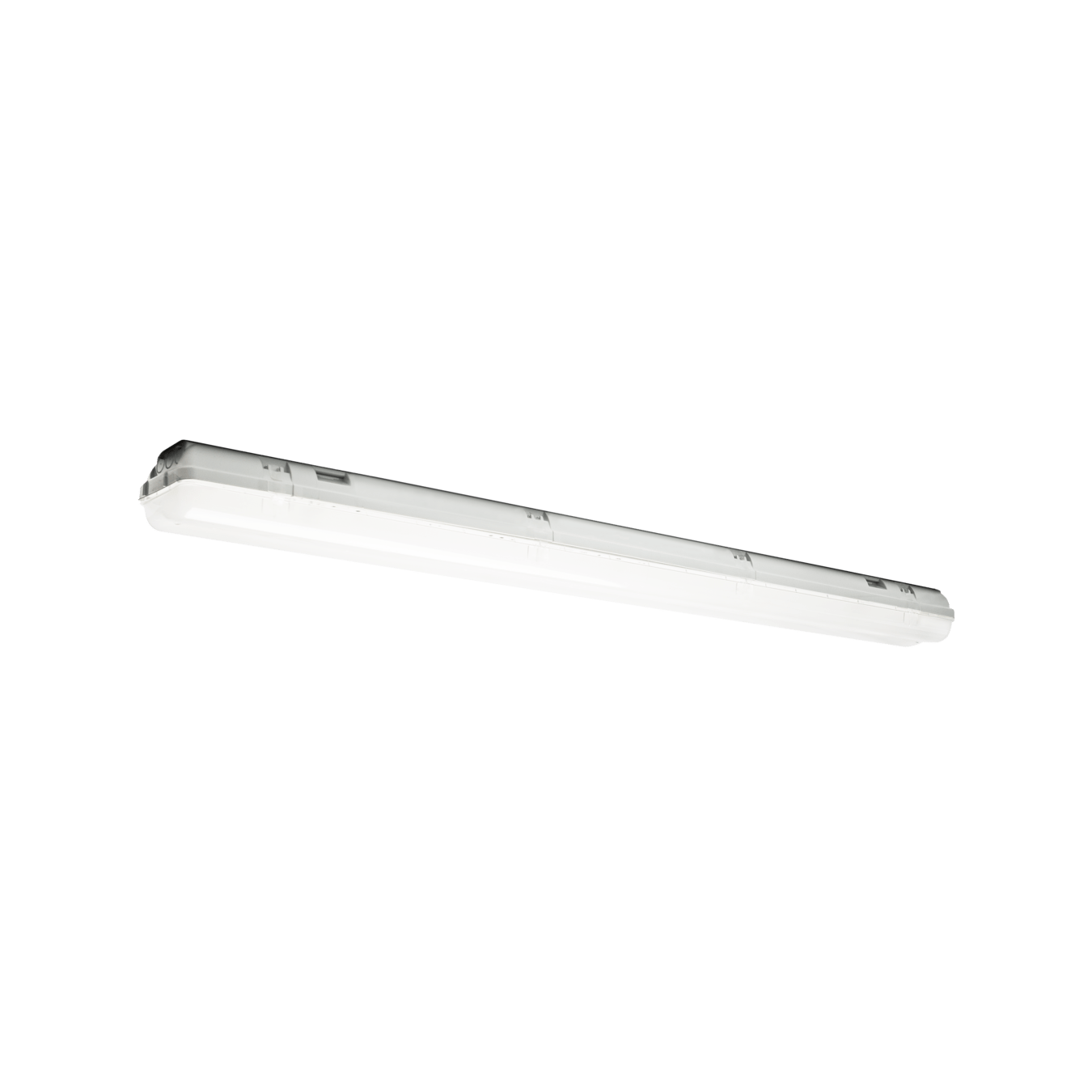

VTF-LED
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/10422835/E3MAX-isolite-image1.png)
E3MAX
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/10161866/E3MAC.png)
E3MAC
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/10411222/E3X.png)
E3X
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/11134037/E3.png)
E3
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/10065903/E3MINI-isolite-image2.png)

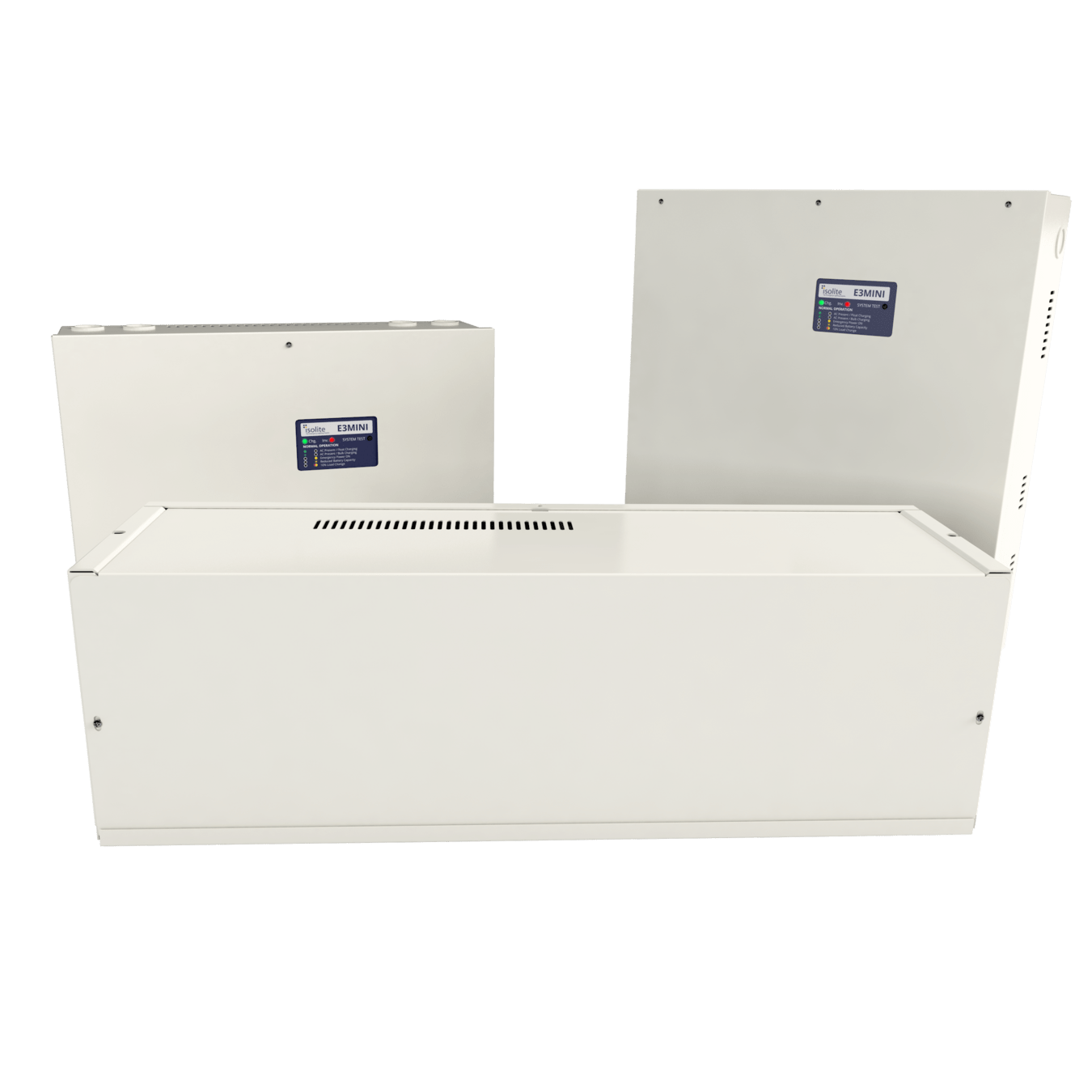

E3MINI
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/11283881/HNS.png)

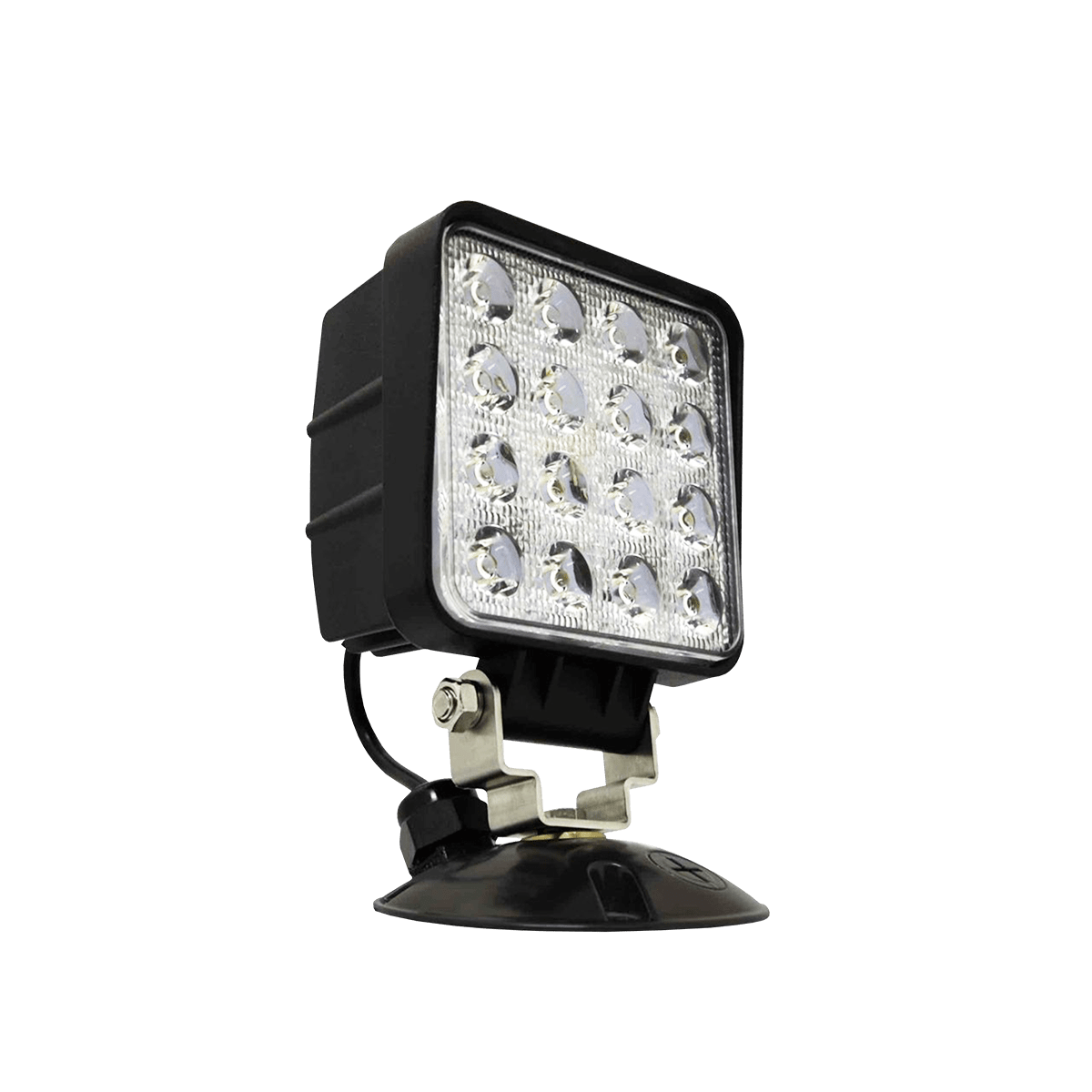

HNS
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/11283880/NRH.png)

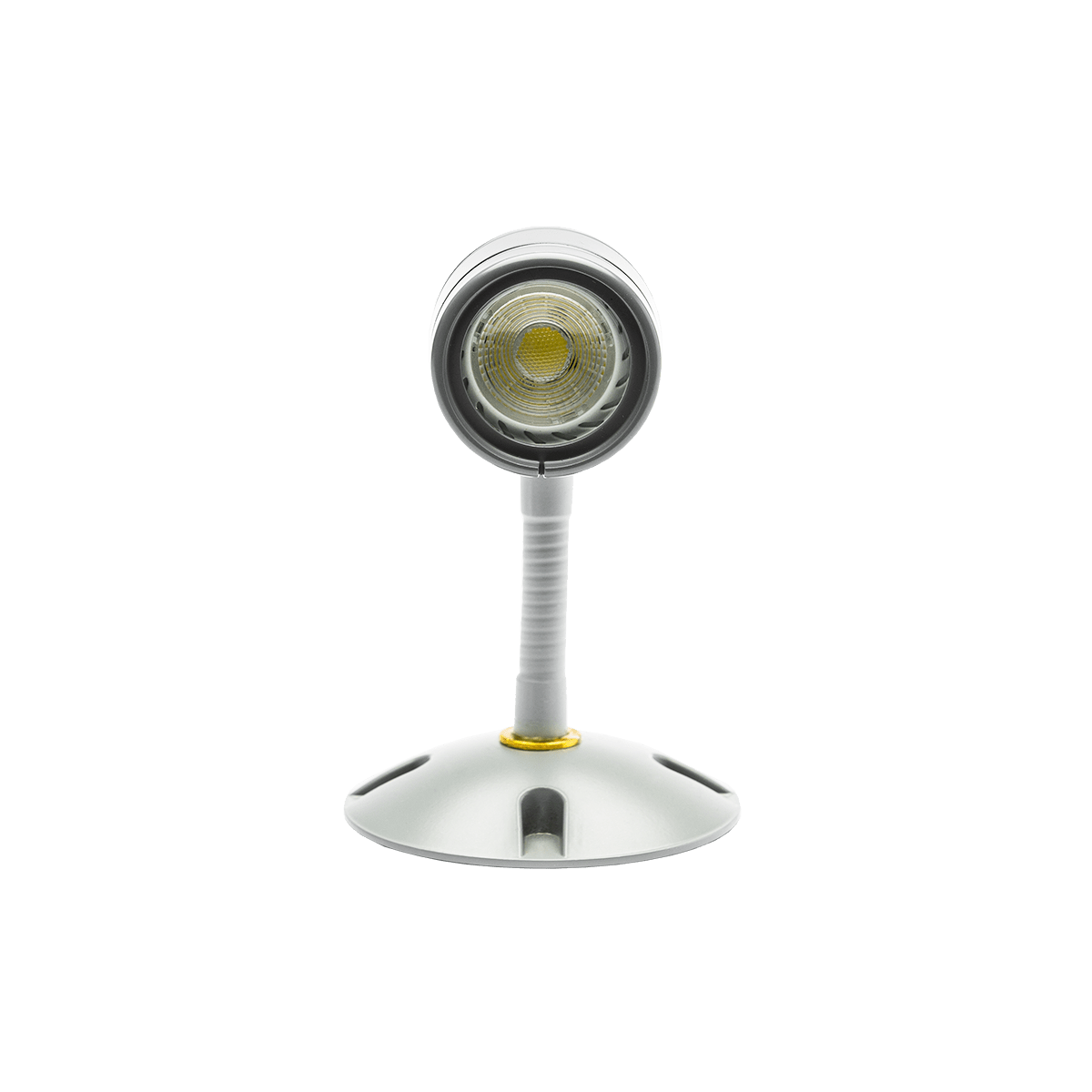

NRH

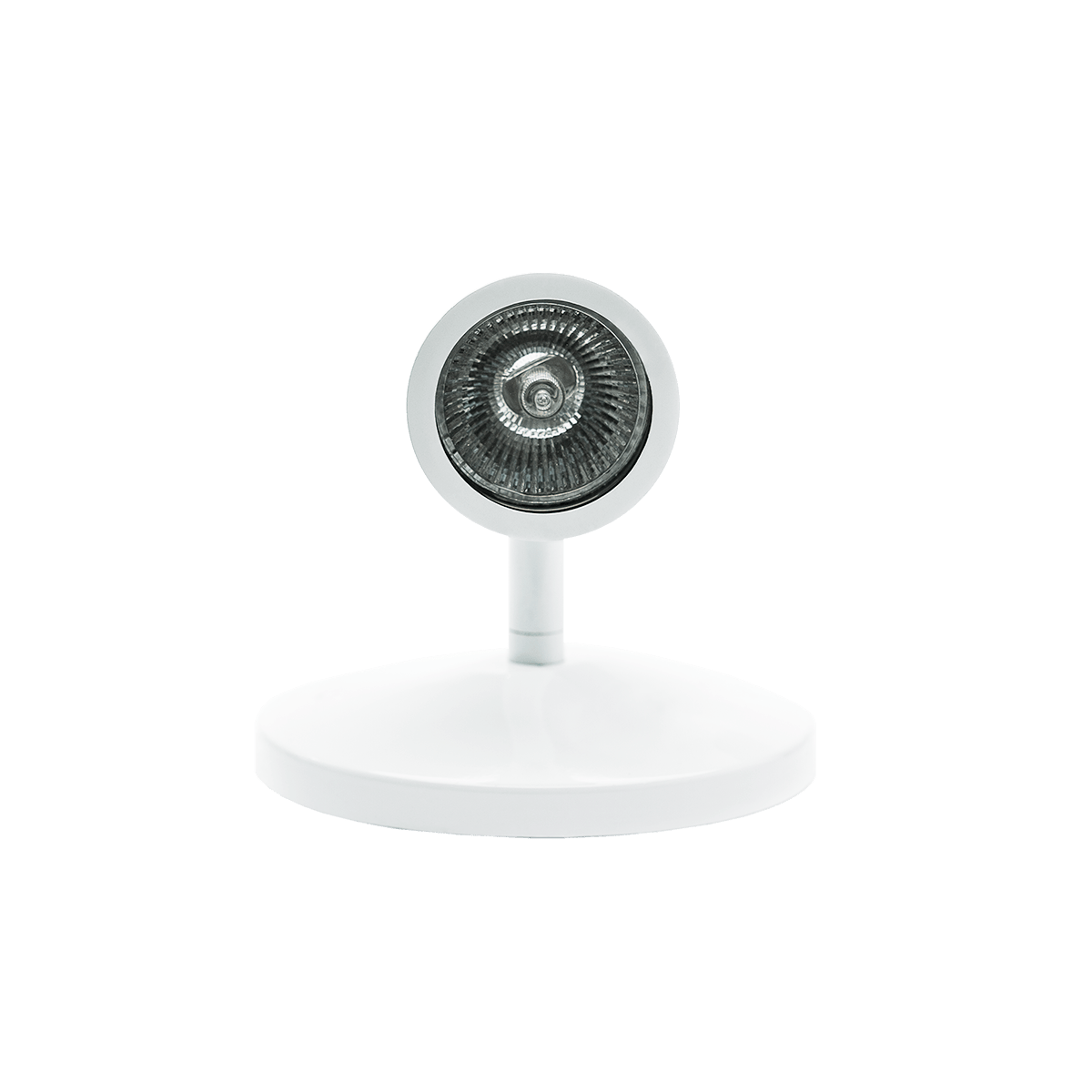

![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/11283882/XRH.png)
XRH
ISOLITE COMPLIANT PRODUCTS
BAA & TAA
- Applies to infrastructure projects which receive Federal financial assistance/grants
- Forces all subcomponents to be constructed of >55% domestically sources materials
Build America, Buy America
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/7383400/Isolite_Logo-Dots-White-04.png)
WHAT ABOUT BABA?
BAA & TAA
ISOLITE
INVERTER BREAKERS
Chalk Talk
- Makes no allowance for products that are manufactured in the US but from foreign sourced subcomponents
- We are not able to make the statement that our BAA/TAA compliant products are also BABA
- Waivers and exemptions exist, reach out to us and we can work with you
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/11355850/ISOLITE_BABA.png)
NOW WE'RE TALKING ABOUT BREAKERS
GEAR SHIFT...
- Over current protection is required for branch circuits
- Small inverters are fed by branch circuit protection
Safety
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/7383400/Isolite_Logo-Dots-White-04.png)
WHY DO WE NEED BREAKERS?
BREAKERS
ISOLITE
INVERTER BREAKERS
Chalk Talk
Isolation & Maintenance
- Emergency lights must be disconnected to do electrical work
- Having zones isolated allows for maintenance of smaller groups of fixtures
Functionality & Control
- Breakers allow for switched and normally off behavior in larger inverters
- Breakers allow for switched and normally off behavior in larger inverters
- Smaller inverters do this without breakers
- E3MINI and E3U products don't have breaker options, they're protected internally and by the 20A branch circuit breaker
Smaller Inverters
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/7383400/Isolite_Logo-Dots-White-04.png)
WHEN MIGHT WE NOT NEED BREAKERS
BREAKERS
ISOLITE
INVERTER BREAKERS
Chalk Talk
Downstream Breaker Infrastructure
- Larger inverters can provide all their power on a non- breakered output if it's feeding a MLO/main breaker panel downstream
- The inverter is protected by the feed breaker and input breaker, the loads are protected by the downstream branch circuit breakers
- Maintenance requires de-energizing the inverter
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/11358938/E3MINI.png)
- Generally ABB for branch circuit breakers
We Designed E3, E3MAC, E3MAX With Specific Breakers
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/7383400/Isolite_Logo-Dots-White-04.png)
BREAKERS AND OPTIONS
BREAKERS
ISOLITE
INVERTER BREAKERS
Chalk Talk
Circuit Breaker Options
- Normally On - Downstream ELCD devices or exit signs
- Normally Off - Emergency Only Lighting
- Switched - Controlled Lighting without ELCD devices
Trip Alarms Are Available in E3MAC and E3MAX
Option selection does impact the number of breakers available
- Set number of breakers for each output voltage in a mixed voltage system
- Multi-pole output breakers
We can accommodate requests for custom breaker configurations...
Generally, come up with some other type of customization
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/7383400/Isolite_Logo-Dots-White-04.png)
CUSTOM BREAKERS OPTIONS
BREAKERS
ISOLITE
INVERTER BREAKERS
Chalk Talk
Custom Size Breakers
- 2A, 3A, 4A, 5A, 6A, 7A, 8A, 10A, 13A, 15A, 16A, 20A, 25A, 30A, 32A, 40A, 50A, 60A and 63A are generally available
- That is x single-pole breakers, y three-pole breakers and z two-pole breakers
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/7383400/Isolite_Logo-Dots-White-04.png)
PRODUCT LINE SUMMARY
SUMMARY
ISOLITE
INVERTER BREAKERS
Chalk Talk
PRODUCTS WITHOUT BREAKERS
E3U
Normally On
Normally Off
Switched
PRODUCTS WITH BREAKERS
Normally Off
Switched
E3MINI
X
X
X
X
X
X
E3
E3X
E3MAC
E3MAX
Normally On
X
X
X
X
X
X
X
X
X
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/11076928/E3U.png)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/10065903/E3MINI-isolite-image2.png)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/11134037/E3.png)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/10411222/E3X.png)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/10161866/E3MAC.png)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/10422835/E3MAX-isolite-image1.png)
- BAA/TAA Quick Reference

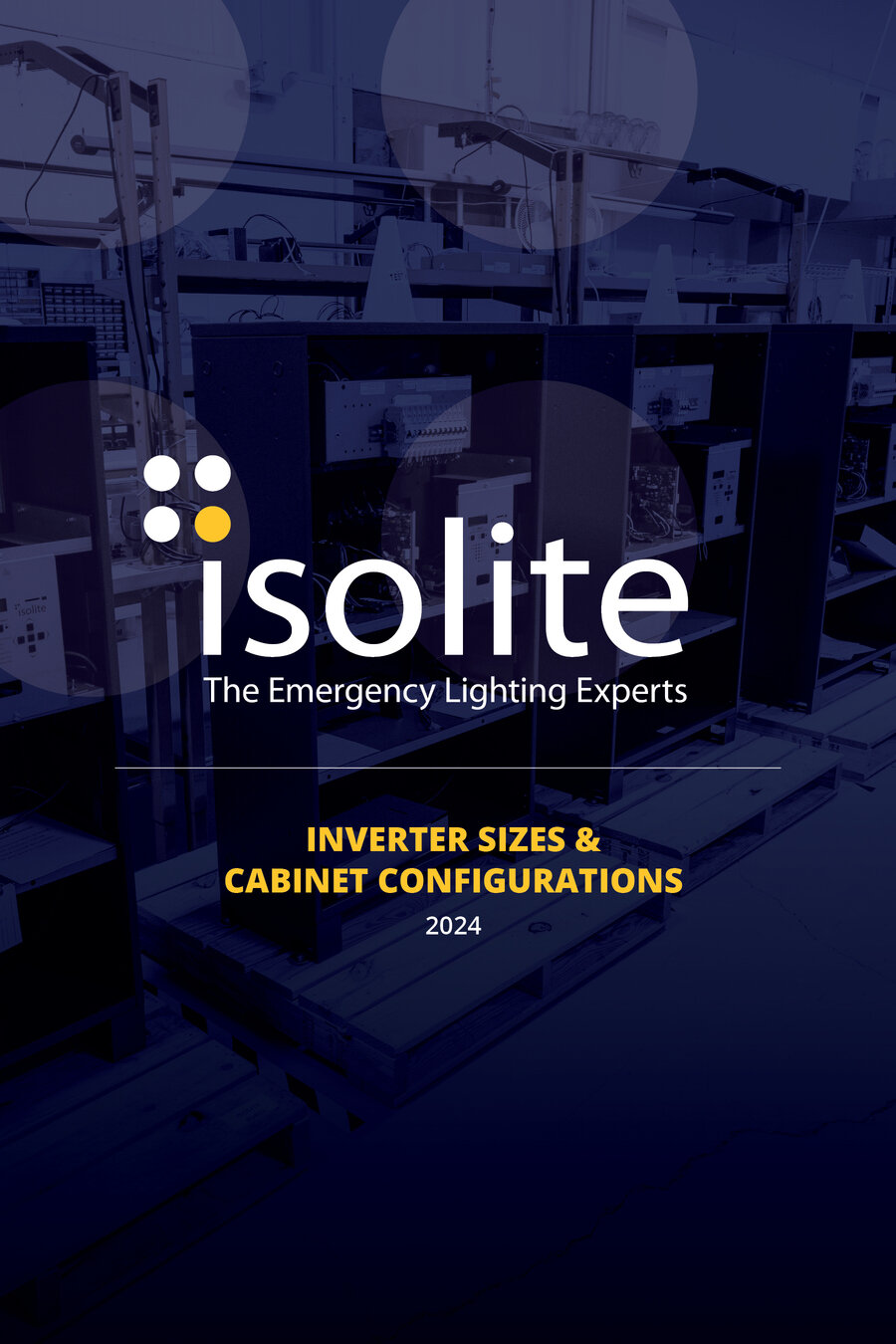

- Inverter Size & Configurations Reference
Available on the Website
- Training Video Link
- Sales Presentation Slides
- Reference Guides
Available Within Follow-Up Sales Packet
SALES MATERIALS
SUPPORT
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/7383400/Isolite_Logo-Dots-White-04.png)
ISOLITE
INVERTER BREAKERS
Chalk Talk

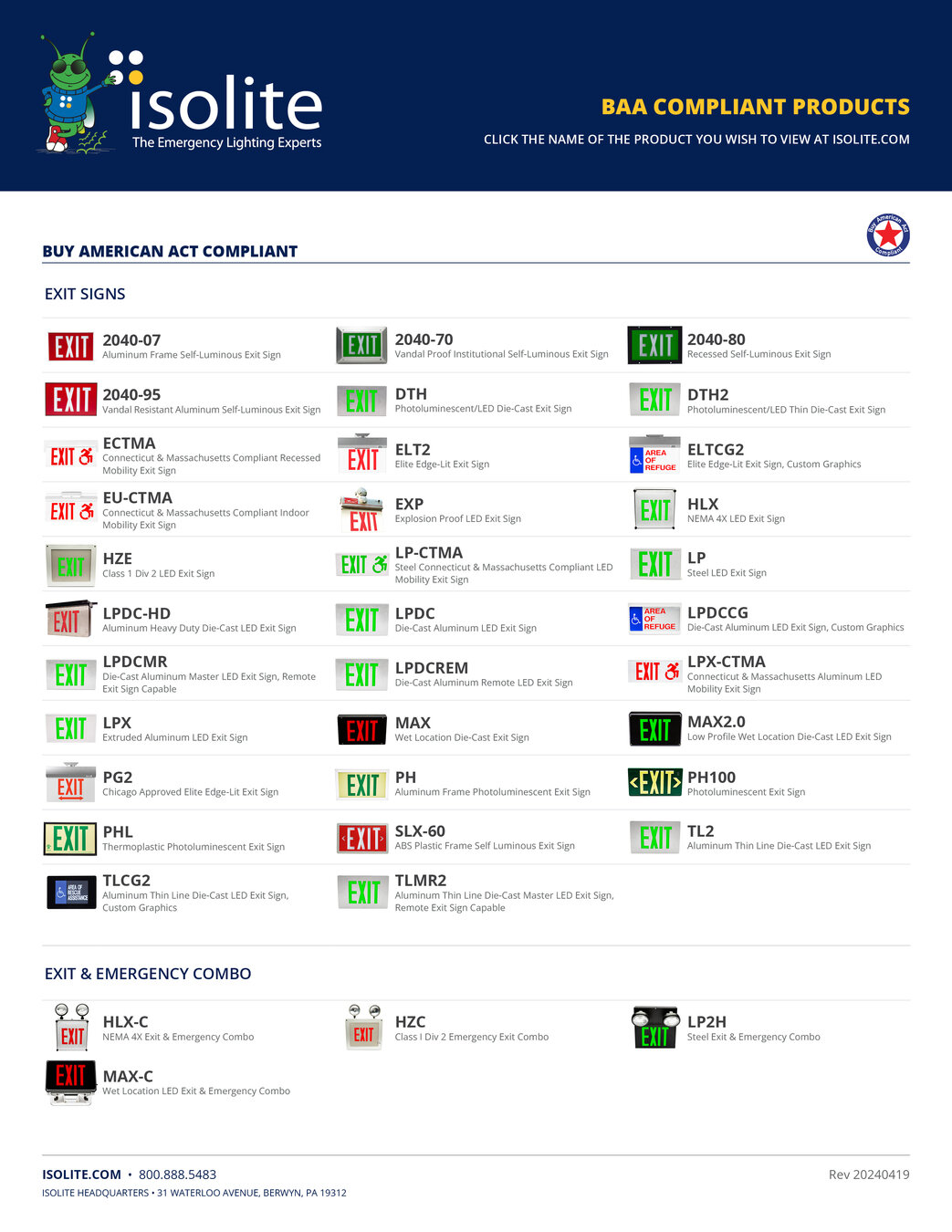

![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/11356965/ISOLITE-BAA-COMPLIANT-PRODUCTS.jpg)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/11356963/ISOLITE-INVERTER-SIZES-AND-CABINET-CONFIGURATIONS.jpg)
NEED FURTHER ASSISTANCE?
SUPPORT
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/7383400/Isolite_Logo-Dots-White-04.png)
- Schedule a Webinar for Advanced Sales & Engineering Training
Team of Experts
ISOLITE
INVERTER BREAKERS
Chalk Talk
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/11177685/ISOLITE-DIGITAL-BUSINESS-CARDS_EVAN.jpg)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/11177686/ISOLITE-DIGITAL-BUSINESS-CARDS_GREG.jpg)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/11177688/ISOLITE-DIGITAL-BUSINESS-CARDS_MATT.jpg)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/11275066/ISOLITE-DIGITAL-BUSINESS-CARDS_TOM.jpg)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/11286544/IMG_4848.jpeg)
For Additional Training, Please Contact Your
Local Sales Representative
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/9883996/ChalkTalk_TitlePage_2.png)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/9883995/ChalkTalk_TitlePage_1.png)
![](https://s3.amazonaws.com/media-p.slid.es/uploads/1325111/images/7383400/Isolite_Logo-Dots-White-04.png)
THANK YOU
