ISOLITE

MORE MINI THAN EVER: THE E3MINI EXPANSION

Chalk Talk

Simplification

The E3MINI 125 & 250

- Alternate Mounting

Timing & Release Information

MORE MINI THAN EVER

OVERVIEW

BENEFITS OF ALL IN ONE

THE E3MINI LINEUP

SUPPORT

- Specification

- Ordering

- Installation

Design Flexibility

Some Limitations

Introducing the E3MINI 375 & 550

The Future of E3 (Non-Mini)

Assets & Raffle Entry

- Don't need to know if it's a 120 or 277VAC system before installing the units

Selectable Voltage

SIMPLIFICATION OF SPECIFICATION & ORDERING

THE BENEFITS OF ALL IN ONE

ISOLITE

MORE MINI THAN EVER: THE E3MINI EXPANSION

Chalk Talk

Multiple Controlled Outputs

- Mix controlled loads, normally off loads and normally on loads such as exit signs on one unit

- Doesn't require additional UL924 devices for proper operation

Superior Electrical Specs

- High crest factor means loads always turn on in an emergency

- Advanced diagnostics allows for quick troubleshooting if installation issues arise

DESIGN FLEXIBILITY

THE BENEFITS OF ALL IN ONE

ISOLITE

MORE MINI THAN EVER: THE E3MINI EXPANSION

Chalk Talk

E3MINI

Multiple Zones of Controlled Architectural Lights

Normally Off Outdoor
Emergency Floodlight

Architectural Dimming in Normal Mode

DIMMING

THE BENEFITS OF ALL IN ONE

ISOLITE

MORE MINI THAN EVER: THE E3MINI EXPANSION

Chalk Talk

Fixed Reduction in Emergency Mode

- Unit Can "Overloaded" In Normal Mode

Supports 0-10V & DALI Dimming

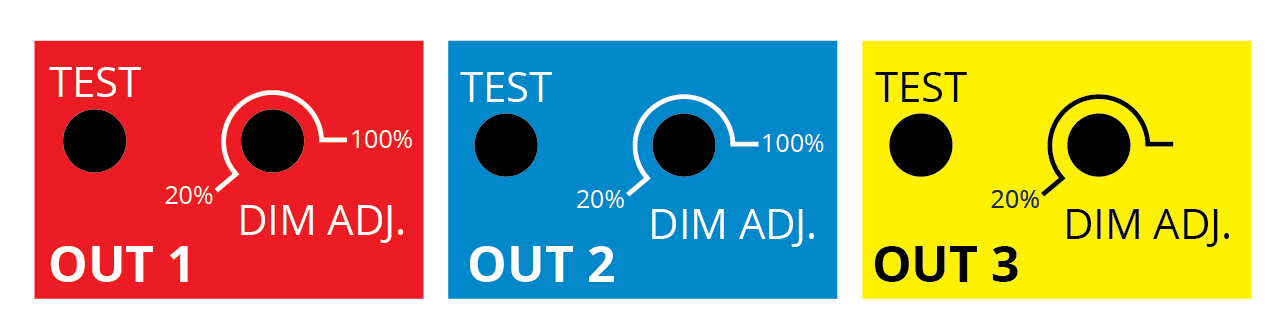

EMERGENCY 1-10V / DALI DIMMER INTERFACE

How would an all-in-one work on a 33kVA Unit?

Size Limitations

WHAT'S GOOD OF THE GOOSE ISN'T ALWAYS GOOD FOR THE GANDER

THE BENEFITS OF ALL IN ONE

ISOLITE

MORE MINI THAN EVER: THE E3MINI EXPANSION

Chalk Talk

So, These Make Sense

in Smaller Sizes

Lights on a big inverter could be very far away...

Distance/Installation Limitations

How many zones would even be required for this...

Pragmatic Limitations

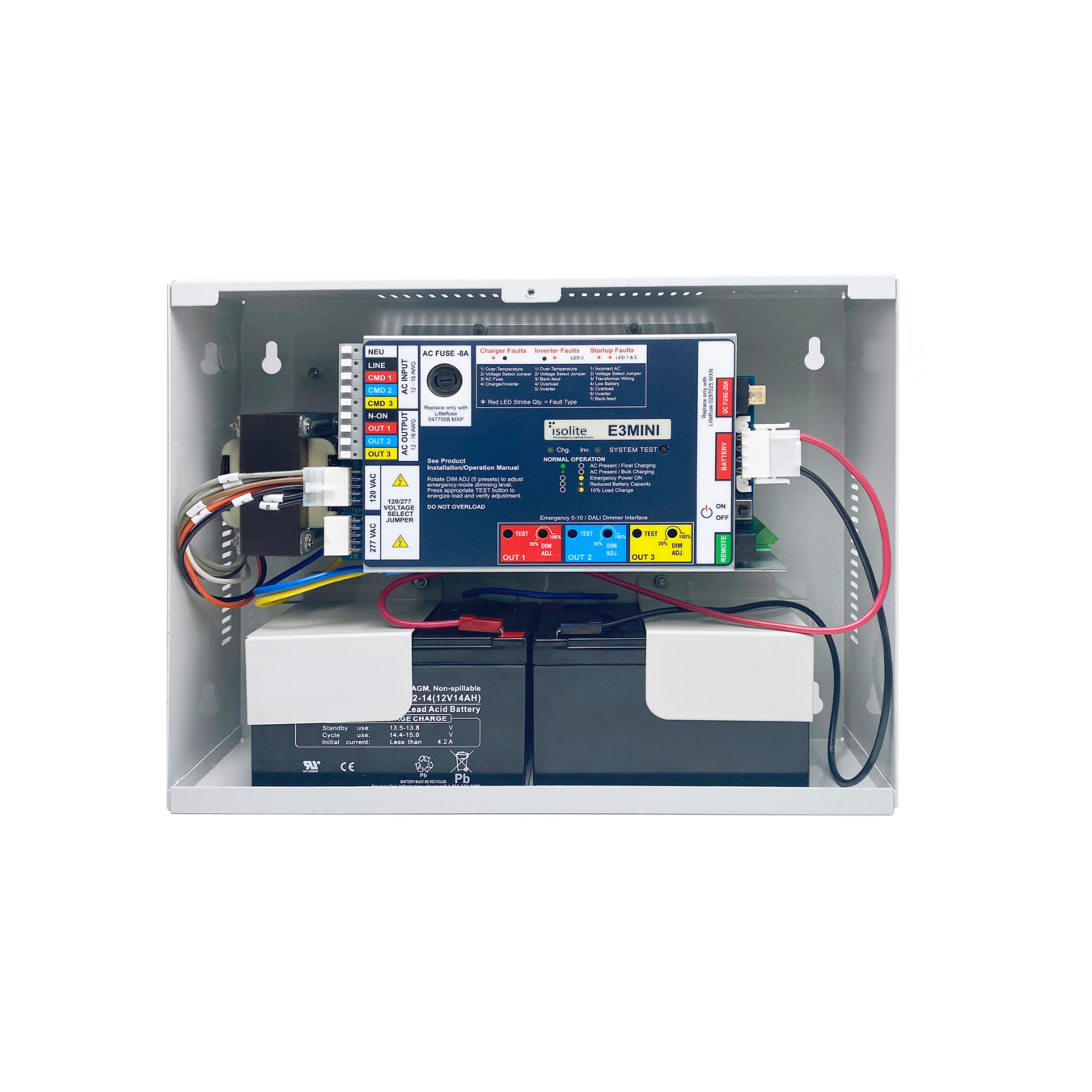

125VA and 250VA Variants

120/277 Selectable At Install Time

375W "Overload" In Normal Mode

3 + 1 Controlled Output Configuration

E3MINI 125 & 250

THE E3MINI LINEUP

ISOLITE

MORE MINI THAN EVER: THE E3MINI EXPANSION

Chalk Talk

- 3 Normally Off or Switched Outputs

- 1 Normally On Output

0-10V Dimming Option

Ceiling Grid Mounting Option at 125VA

We think the all-in-one philosophy can go bigger than 250VA...

INTRODUCING THE E3MINI 375 & 550

THE E3MINI LINEUP

ISOLITE

MORE MINI THAN EVER: THE E3MINI EXPANSION

Chalk Talk

We're going up to 550VA in the E3MINI Line

All the benefits of the E3MINI all-in-one solution, now in larger sizes.

A few other modifications were required

- Both sizes are 20" wide x 20" tall x 7.1" deep

- Units are wall-mountable (no ceiling grid mount)

The Mechanical Size

WHAT'S CHANGED AT 375 & 550

THE E3MINI LINEUP

The Number of Zones

- 4 + 1 Output Configuration

- 4 Normally off or switched outputs

- 1 Normally on output

The "Overload" Capacity

- 1,125VA in normal mode

ISOLITE

MORE MINI THAN EVER: THE E3MINI EXPANSION

Chalk Talk

Nothing, Yet...

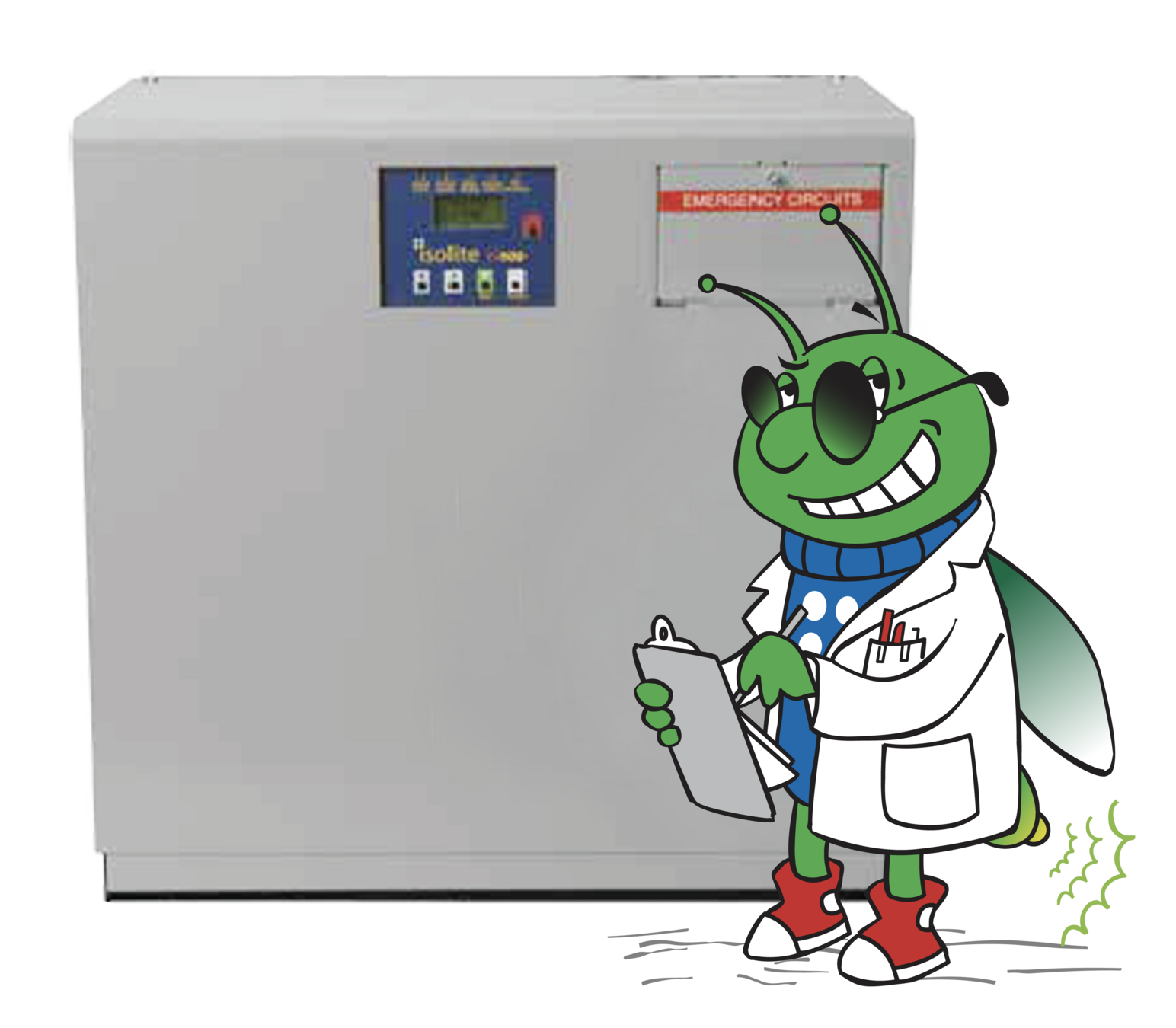

WHAT'S HAPPENING TO THE E3

THE E3MINI LINEUP

ISOLITE

MORE MINI THAN EVER: THE E3MINI EXPANSION

Chalk Talk

The E3 is going to atrophy, but we're not killing it

There's a feature set difference that's important...

- Self-Documentation

- Output Breakers

- BMS Integration

- LCD Display

Taking Orders November 1st

RELEASE INFORMATION

SUPPORT MATERIALS

ISOLITE

MORE MINI THAN EVER: THE E3MINI EXPANSION

Chalk Talk

Deliveries in the second week of November

Documentation

- Cut Sheets Updated Now

- Pricing Page Going Out with Follow Up Email

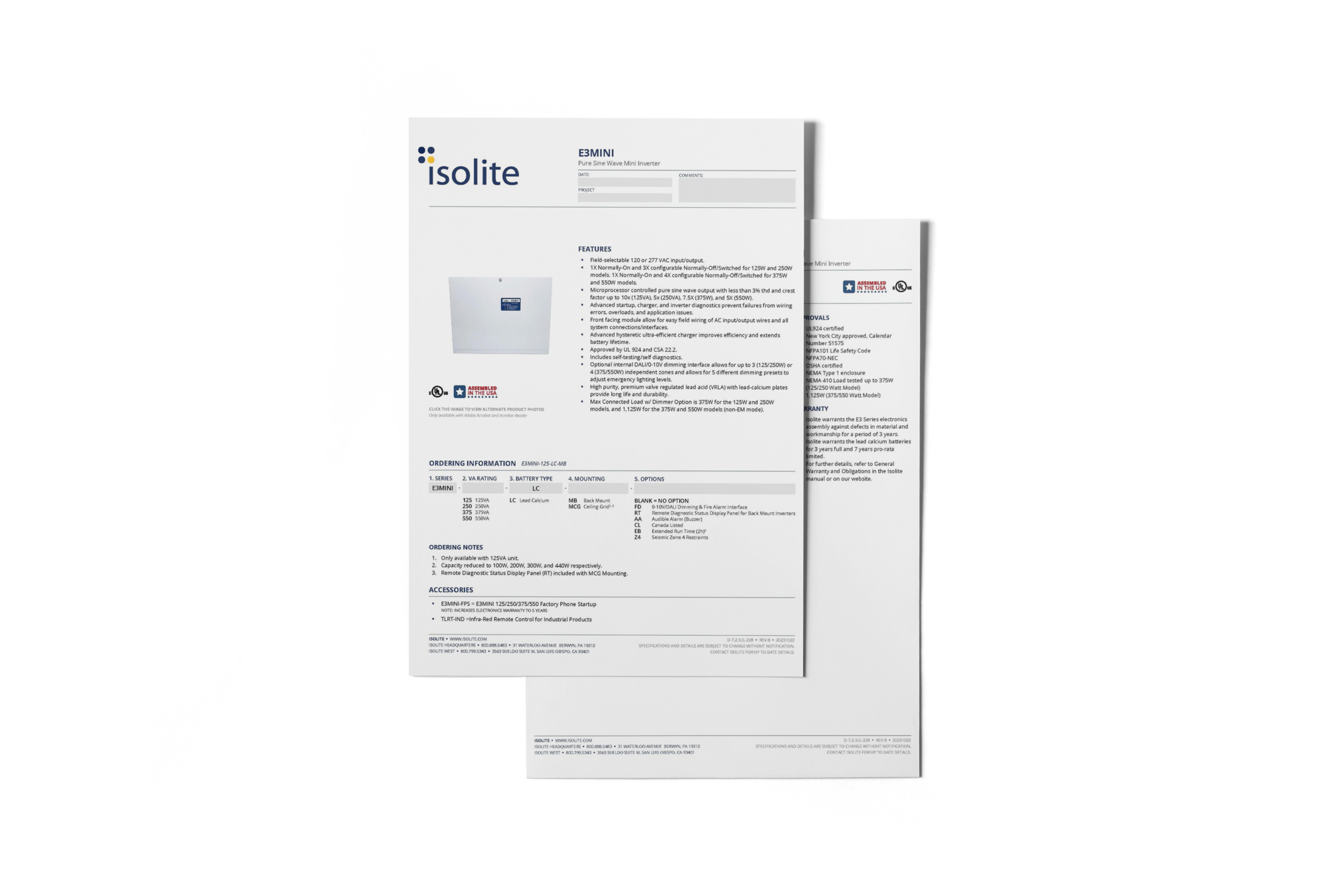

- Updated Spec Sheet & Drawings

- Updated Wiring Diagrams

- Updated Sell Sheet (Next Week)

Available on the Website

- Training Video Link

- Sales Presentation

- Sell Sheet & Marketing Assets

Available Within Follow-Up Sales Packet

SALES MATERIALS

SUPPORT

ISOLITE

MORE MINI THAN EVER: THE E3MINI EXPANSION

Chalk Talk

NEED FURTHER ASSISTANCE?

SUPPORT

- Schedule a Webinar for Advanced Sales & Engineering Training

Team of Experts
