TOPIC
June 2022
TRANSFERRING POWER, THE ELCDs
Chalk Talk
Overview
NFPA 101 & Emergencies
ELCDs In General
Code Refresher
Isolite's ELCD Offering
ALCR vs BCELTS
ELCD-924
The Nuance Of Local Failures
The Wiring Diagram
ELCD-1008
Would You Like To Know More?
I. NFPA 101 & EMERGENCIES
ISOLITE
TRANSFERRING POWER, THE ELCDs
Chalk Talk
Code Refresher
NFPA 101 - 7.9.2.3
- Failure of a public utility or other outside electrical power supply
- Opening of a circuit breaker or fuse
The emergency lighting system shall be arranged to provide the required illumination automatically in the event of any interruption of normal lighting due to any of the following:
- Manual act(s), including accidental opening of a switch controlling normal lighting facilities
I. NFPA 101 & EMERGENCIES
ISOLITE
TRANSFERRING POWER, THE ELCDs
Chalk Talk
Localized Failure
The ELCDs go as close to the lights as possible
Some Things to Keep In Mind
The Inverter may not be in "emergency mode" at the same time as the downstream lights
- They should be observing the power feed that goes to the lights
- They should not be observing the power feed going to the inverter
II. ELCDS IN GENERAL
Emergency Lighting Control Devices
ISOLITE
TRANSFERRING POWER, THE ELCDs
Chalk Talk
Emergency lighting control devices enable general illumination lighting fixtures to act as emergency lighting fixtures when an emergency is occurring.
Automatic Load
Control Relay
Branch Circuit Emergency Lighting Transfer Switch
Vs.

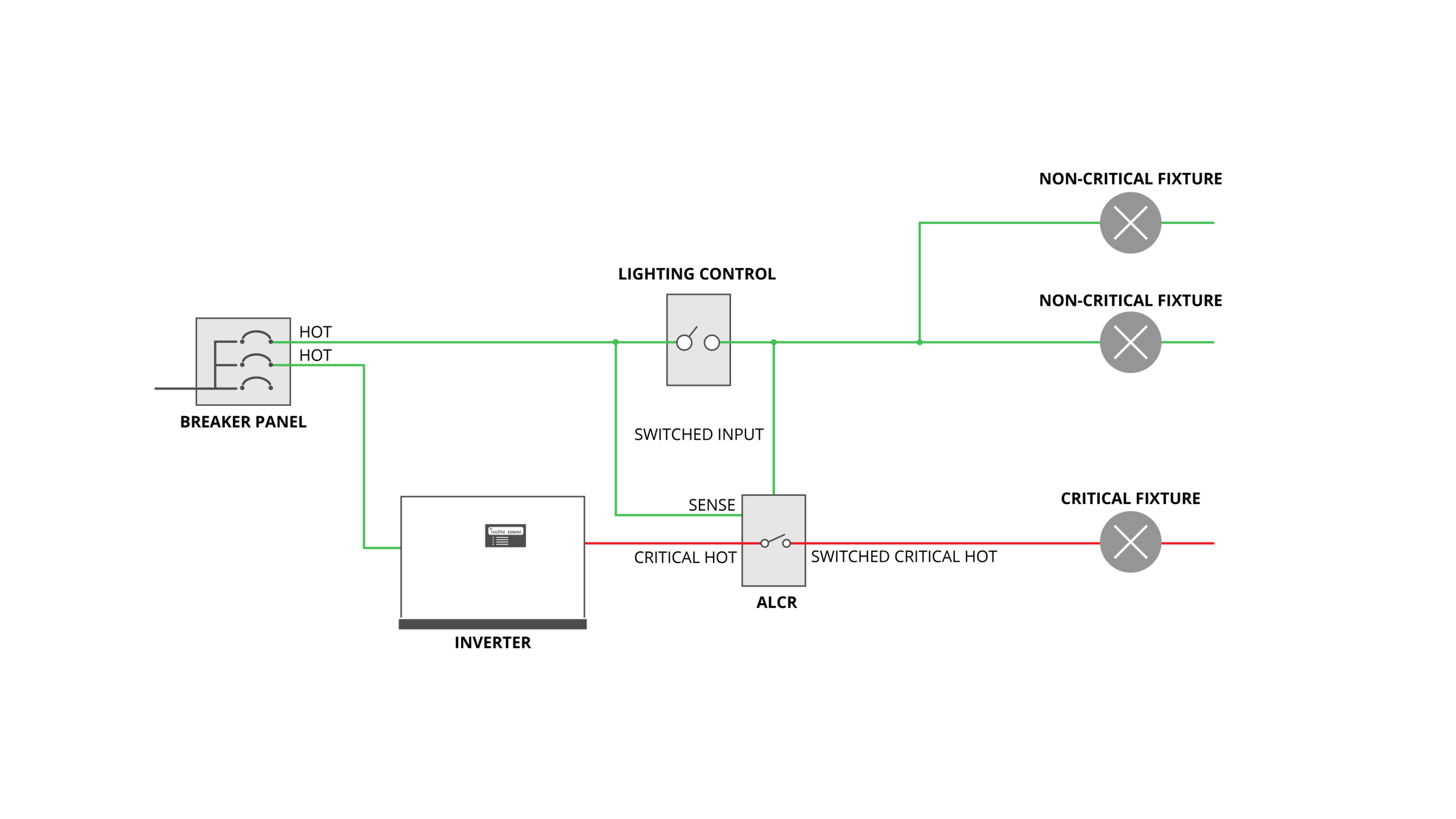

Automatic Load Control Relay
ISOLITE
TRANSFERRING POWER, THE ELCDs
Chalk Talk
A device used to set normally dimmed or normally-off switched emergency lighting equipment to full power illumination levels in the event of a loss of the normal supply by bypassing the dimming/switching controls, and to return the emergency lighting equipment to normal status when the device senses the normal supply has been restored.
Definition
ALCR Devices are used to override dimming/switching controls. They require a Normally On power source.
In Plain English
II. ELCDS IN GENERAL

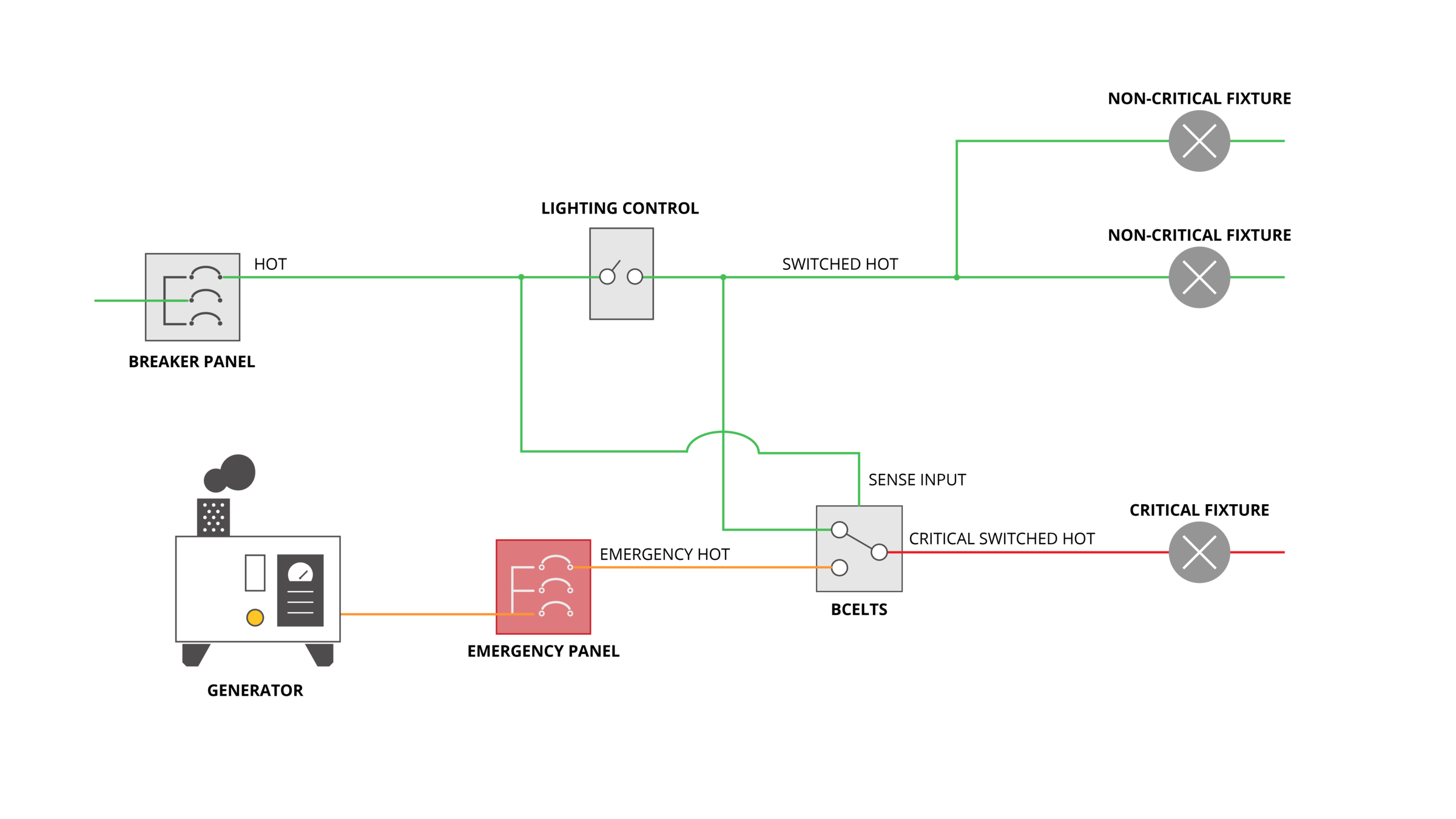

Branch Circuit Emergency Lighting Transfer Switch
ISOLITE
TRANSFERRING POWER, THE ELCDs
Chalk Talk
A device connected on the load side of a branch-circuit over-current protective device that transfers only emergency lighting loads from the normal supply to an emergency supply.
Definition
BCELTS devices change the power source that supplies power to a fixture. They convert Normally Off sources into Normally On sources.
In Plain English
II. ELCDS IN GENERAL
Automatic Load Control Relay
ISOLITE
TRANSFERRING POWER, THE ELCDs
Chalk Talk
II. ELCDS IN GENERAL
Branch Circuit Emergency Lighting Transfer Switch
ISOLITE
TRANSFERRING POWER, THE ELCDs
Chalk Talk
II. ELCDS IN GENERAL
ISOLITE
TRANSFERRING POWER, THE ELCDs
Chalk Talk
Sources of Power for the Lights
Always Emergency
Changes Based on Building Condition
Dimming Ingration
Low Voltage
0-10V, DALI/EcoSystem, DSI, PWM
Low Voltage & High Voltage
2-Wire, 3-Wire, PLC
Cost
$
$$$
II. ELCDS IN GENERAL
Similarities & Differences
III. ISOLITE'S ELCD OFFERING
ISOLITE
TRANSFERRING POWER, THE ELCDs
Chalk Talk
ELCD 924
Product Features
50A Relay With Zero-Crossing Switching, The Device Will Last Forever
Flexible Mounting, This Family Of Devices Replaces Several Different Devices From Our Competition
Auto-Test On Turn Off, Provides Verification That Emergency Loads Are Operational On An Ongoing Basis
Fire Alarm Integration and Dimming Integration Available as Options
ISOLITE
TRANSFERRING POWER, THE ELCDs
Chalk Talk
ELCD 1008
Product Features
Simplified Wiring Using Terminal Blocks, This Device Is Faster To Wire Than the Competition
20A Rating Across All Load Types, No Specification Games, This Is Always the Right Product To Use
Fire Alarm Integration and Dimming Integration Included In Base Unit
III. ISOLITE'S ELCD OFFERING
ISOLITE
TRANSFERRING POWER, THE ELCDs
Chalk Talk
ELCD Series
III. ISOLITE'S ELCD OFFERING
ELCD 1008
UL 1008 Transfer Device With Fire Alarm Interface & 0-10V/DALI Interface
ELCD-FD
UL 924 Transfer Device With Fire Alarm Interface & 0-10V/DALI Interface
ELCD-F
UL 924 Transfer Device With Fire Alarm Interface
ELCD 924
UL 924 Transfer Device
Sales Materials
- Training Video Link (Public - For Agent Only)
- Sales Presentation PDF (Public - For Agent Sales Presentations)

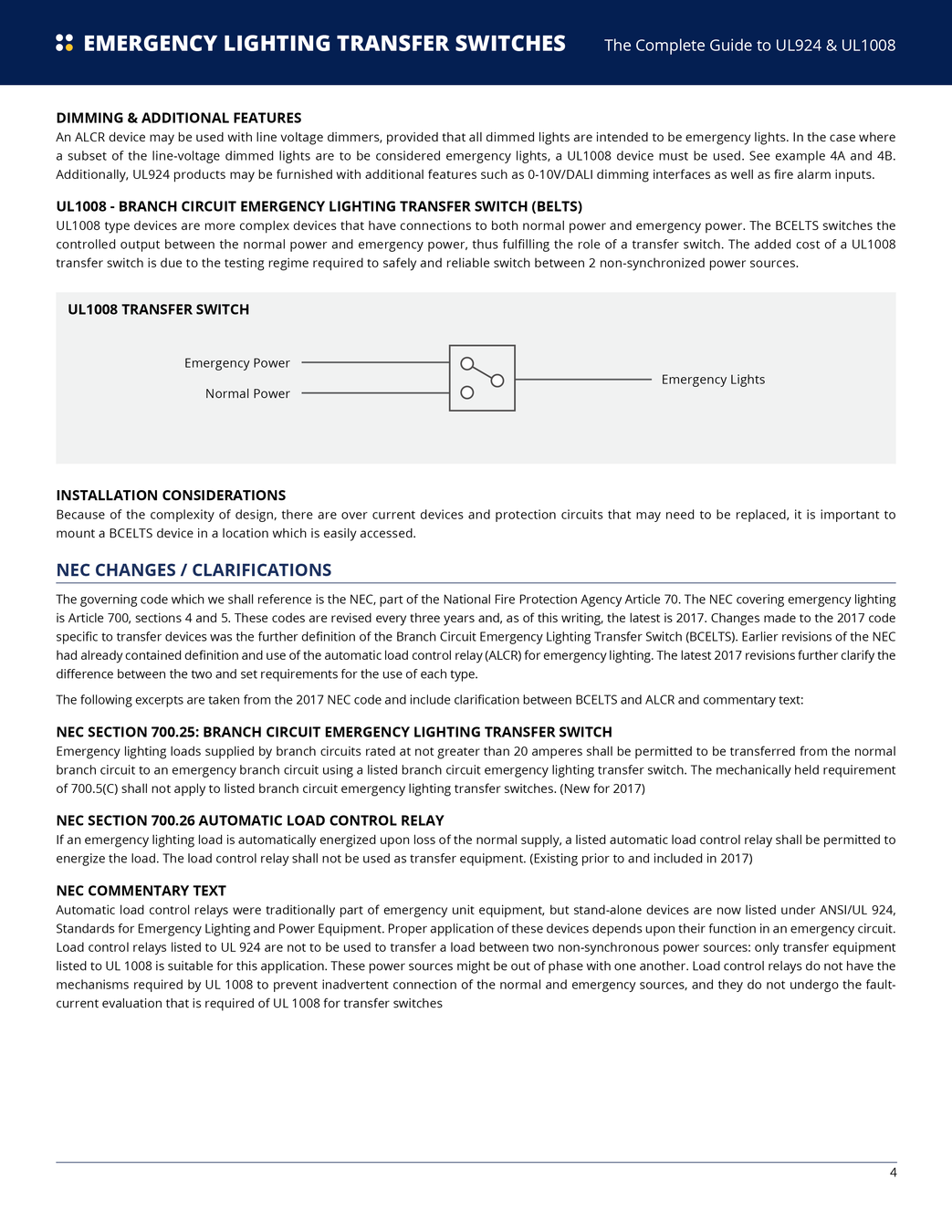

- White Paper
- Spec Sheets & Drawings
- Wiring Diagrams
- White Paper
Available on the Website
Available within Follow-up Sales Packet
IV. SUPPORT MATERIALS
ISOLITE
TRANSFERRING POWER, THE ELCDs
Chalk Talk
Need Further Assistance?
Team of Experts
Schedule a Webinar for Advanced Sales & Engineering Training
IV. SUPPORT MATERIALS
ISOLITE
TRANSFERRING POWER, THE ELCDs
Chalk Talk
THANK YOU
