MAY 2026
924 & 1008 Devices
924 & 1008 DEVICES | May 2026
Centralized Solutions
- Basics
924 & 1008 Devices
OVERVIEW
BACKGROUND
ELCDs
- What are they
- How do they work
COMPARISON
Diagrams
- 0-10V
- Controls
- Phase Control
DIMMING
EMERGENCY LIGHTS
BATTERY PACKS
GENERATORS
INVERTERS
BACKGROUND
Centralized Solutions
924 & 1008 DEVICES | May 2026
POWER LOSS
POWER LOSS
UTILITY
POWER
NORMALLY ON
NORMALLY OFF
SWITCHED
924 & 1008 DEVICES | May 2026
BACKGROUND
Centralized Outputs
Emergency Lighting Control Devices (ELCDs) override lighting control (switches, dimmers, oc sensors, controllers) during an emergency, providing a path of egress that cannot be dimmed or turned off.
What are Emergency Lighting Control Devices?
924 - "ALCR", "Shunt Switch", "Emergency Relay"
1008 - "BCELTS", "Emergency Transfer Switch"
There are 2 Types
924 & 1008 DEVICES | May 2026
EMERGENCY LIGHTING CONTROL DEVICES
What Are They?
INVERTERS VS. GENERATORS | April 2026
- UL 924 device DOES NOT switch between two power sources
- UL 1008 device DOES switch between two power sources

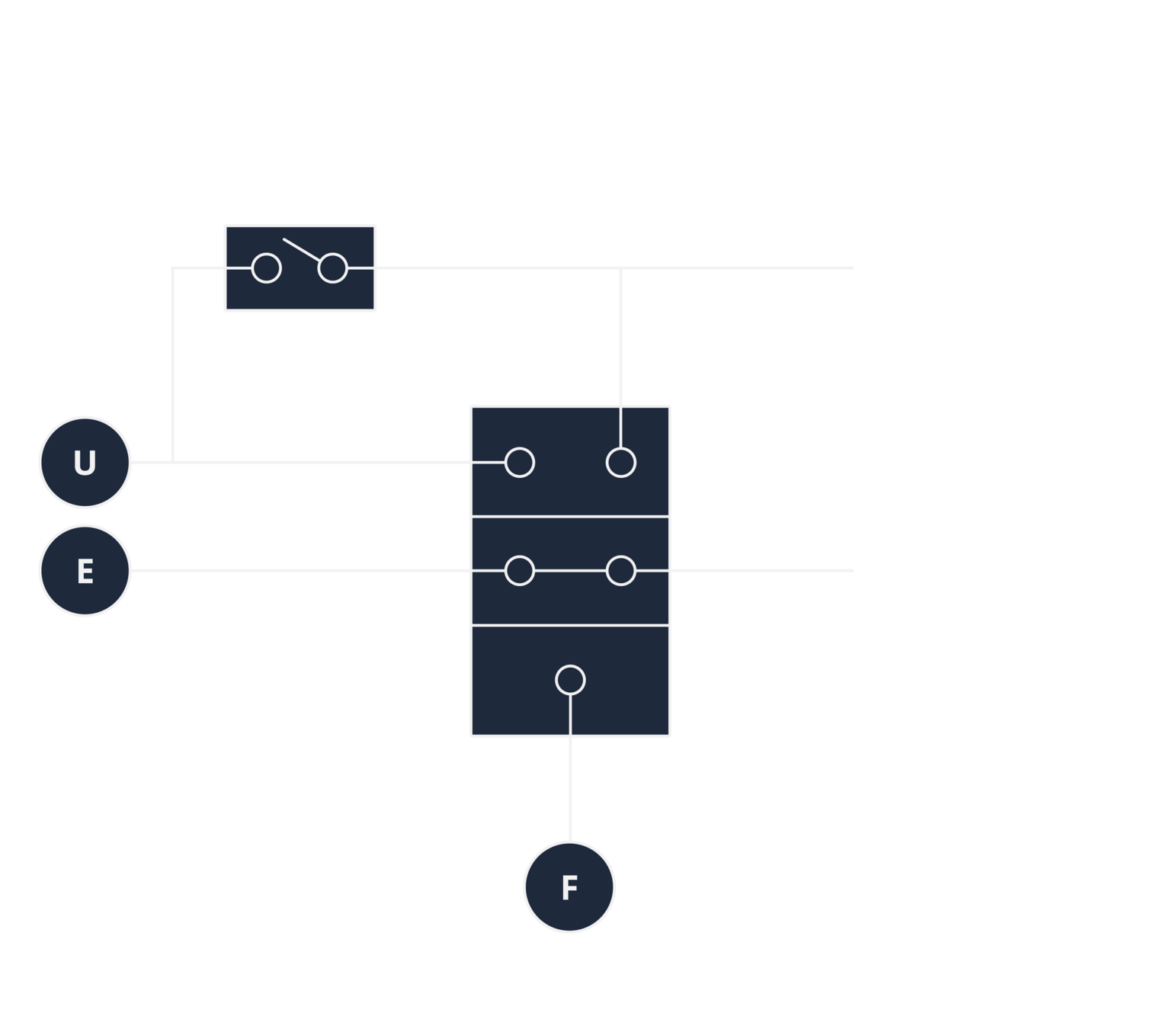

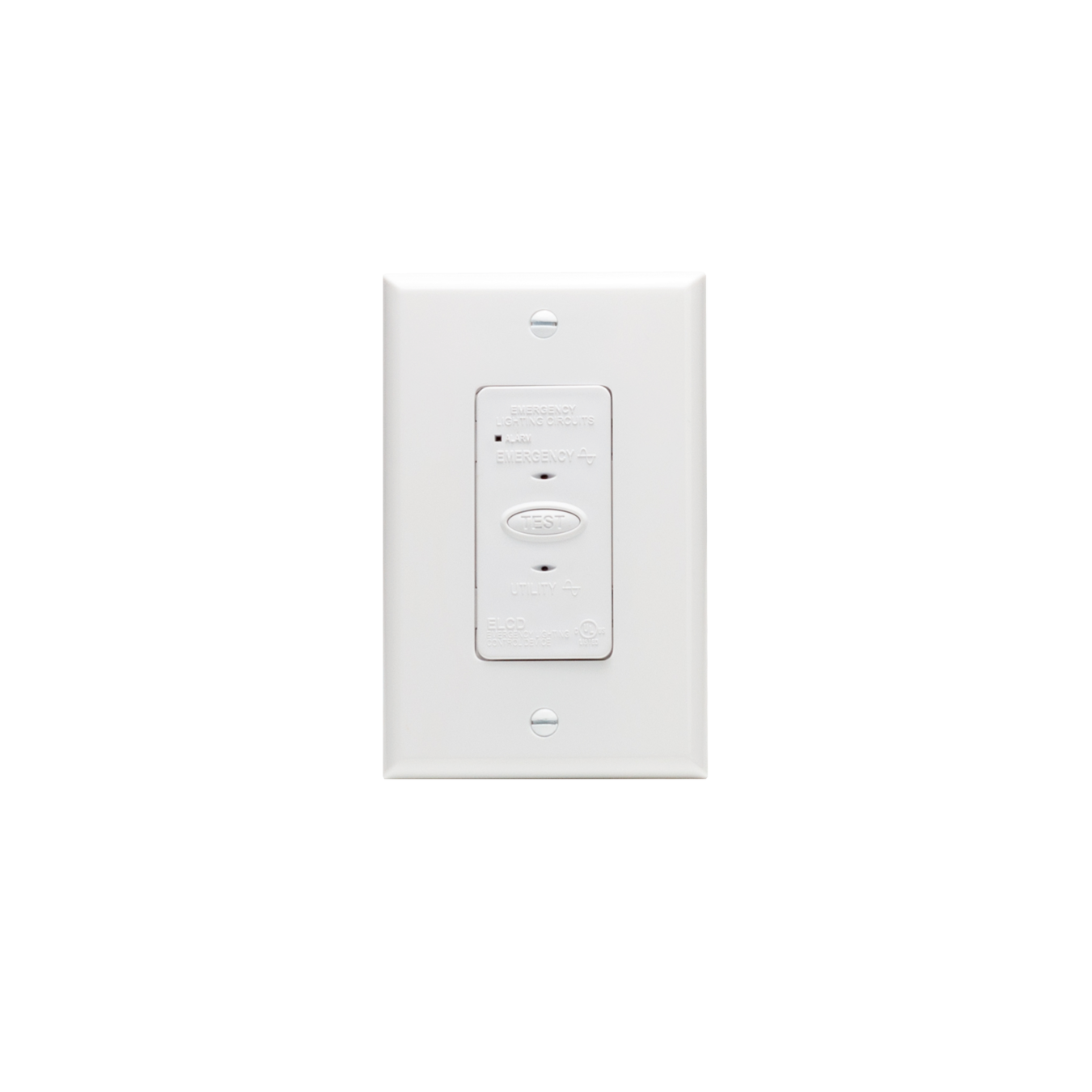

ELCD 924
ELCD 1008
924 & 1008 DEVICES | May 2026
COMPARISON
UL 924 vs. UL 1008
INVERTERS VS. GENERATORS | April 2026
924 & 1008 DEVICES | May 2026
- UL 924 device DOES NOT switch between two power sources
COMPARISON
UL 924 vs.
UL 1008
INVERTERS VS. GENERATORS | April 2026
- UL 924 device DOES NOT switch between two power sources
UL 924 vs.
UL 1008
924 & 1008 DEVICES | May 2026
COMPARISON
924 & 1008 DEVICES | May 2026
- UL 924 device DOES NOT switch between two power sources
UL 924 vs.
UL 1008
COMPARISON
924 & 1008 DEVICES | May 2026
- UL 924 device DOES NOT switch between two power sources
UL 924 vs.
UL 1008
COMPARISON
924 & 1008 DEVICES | May 2026

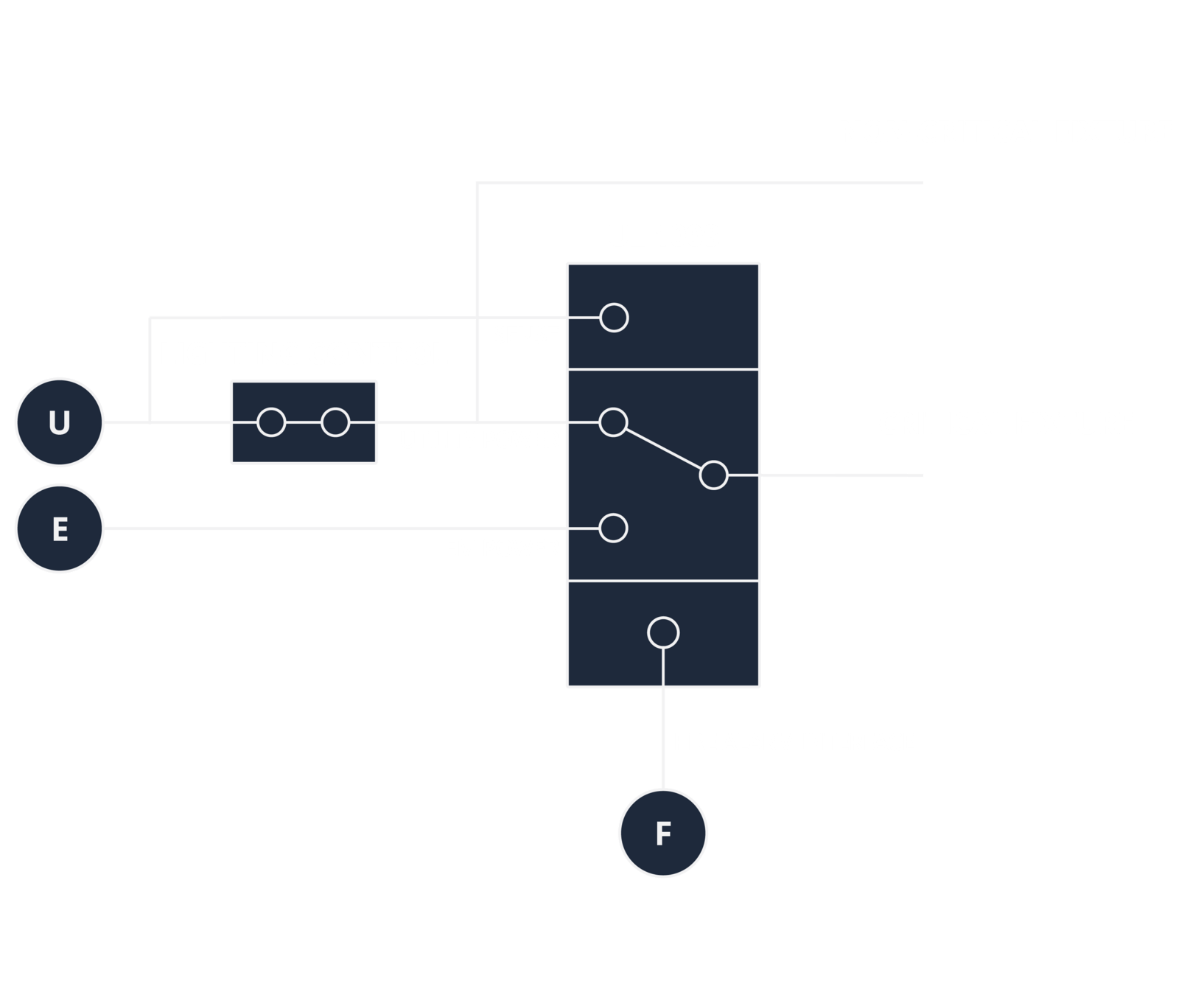

- UL 1008 device DOES switch between two power sources
UL 924 vs.
UL 1008
COMPARISON
924 & 1008 DEVICES | May 2026
- UL 1008 device DOES switch between two power sources
UL 924 vs.
UL 1008
COMPARISON
924 & 1008 DEVICES | May 2026
- UL 1008 device DOES switch between two power sources
UL 924 vs.
UL 1008
COMPARISON
924 & 1008 DEVICES | May 2026
- UL 1008 device DOES switch between two power sources
UL 924 vs.
UL 1008
COMPARISON
Are you using a generator to provide emergency power?
General Considerations
- If yes, you most likely require at least one UL 1008 type device
Is phase control dimming being used?
- If yes, you most likely require a UL 1008 type device
All other scenarios are most likely UL 924 devices
924 & 1008 DEVICES | May 2026
ELCD 924
ELCD 1008
COMPARISON
UL 924 vs. UL 1008
924 & 1008 DEVICES | May 2026
DIMMING

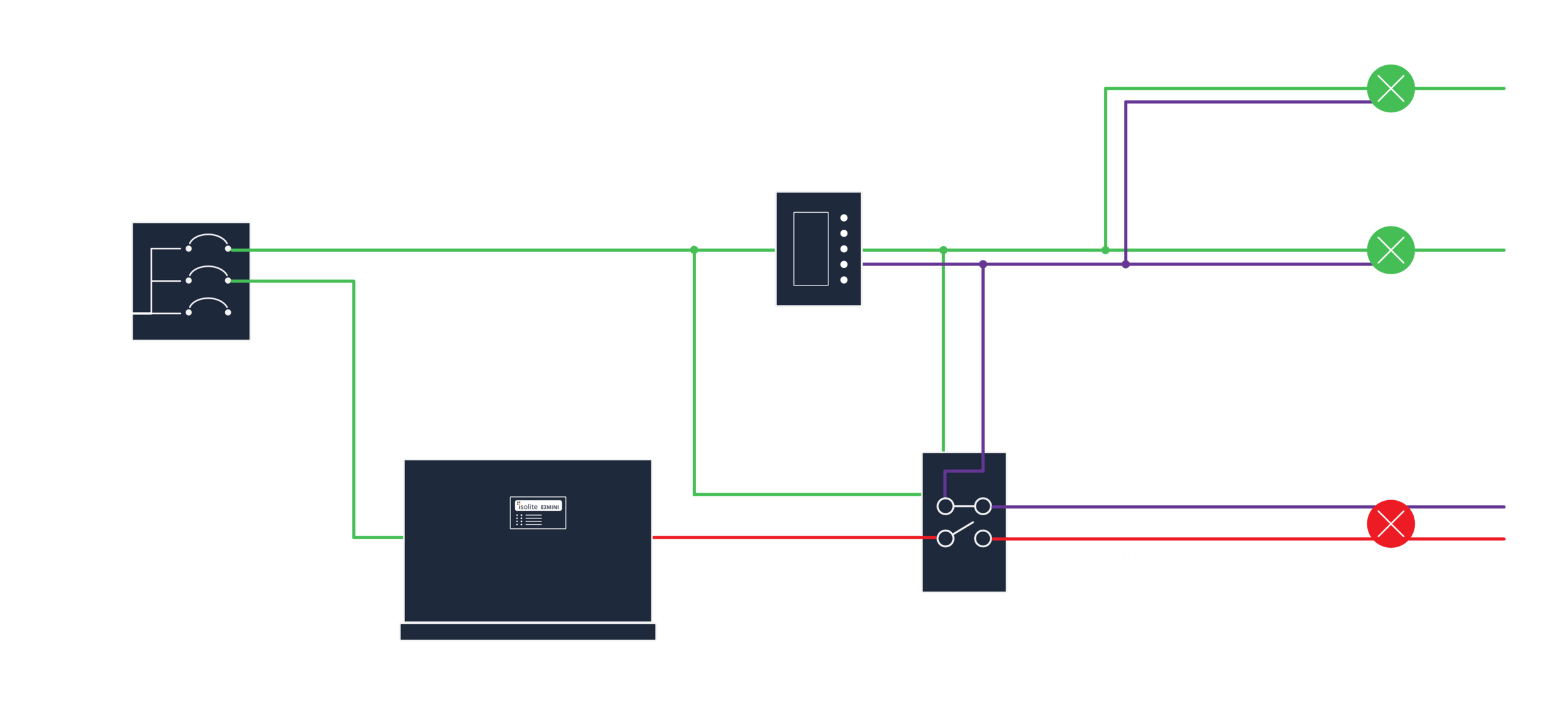

0-10V With UL 924
924 & 1008 DEVICES | May 2026
DIMMING WITH UL 924

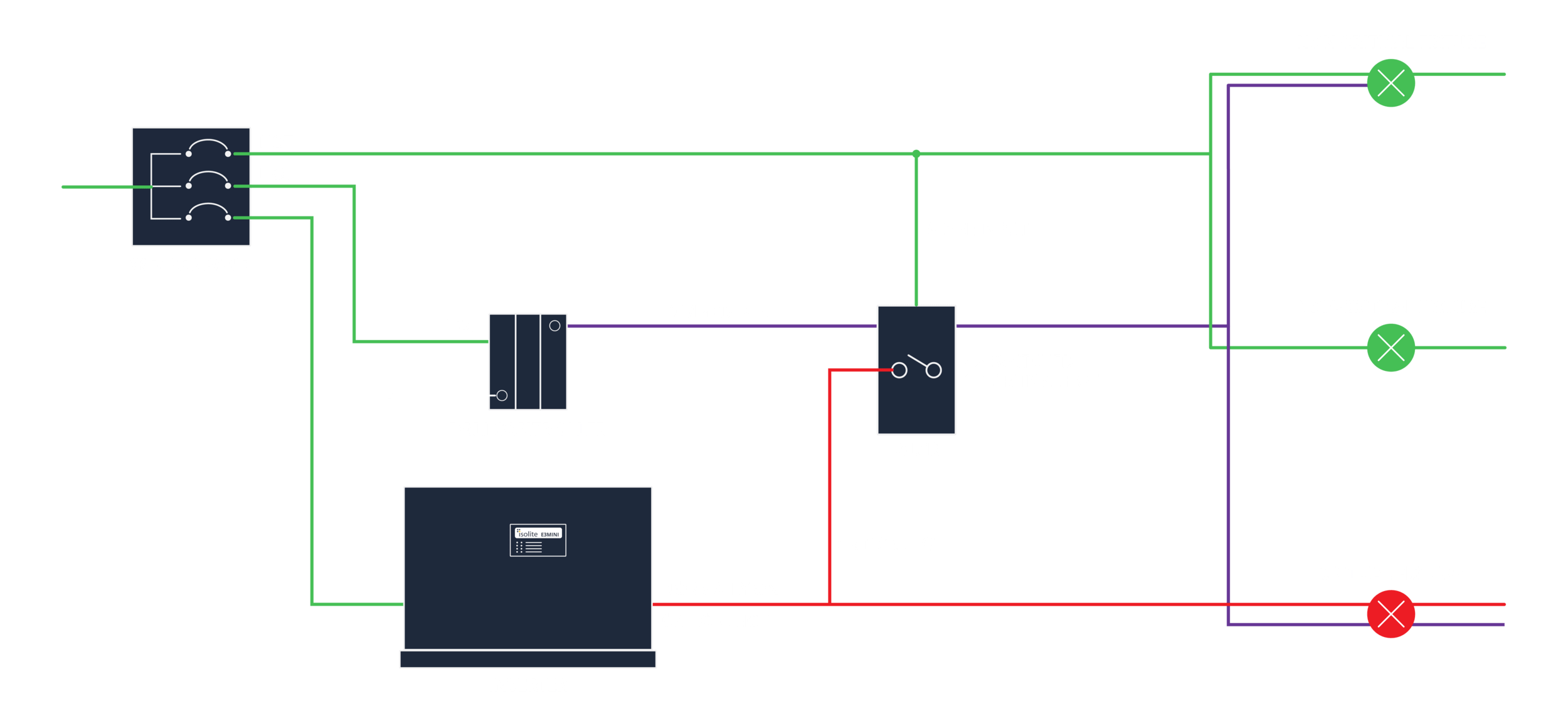

DALI/Ecosystem With ALCR
924 & 1008 DEVICES | May 2026
DIMMING

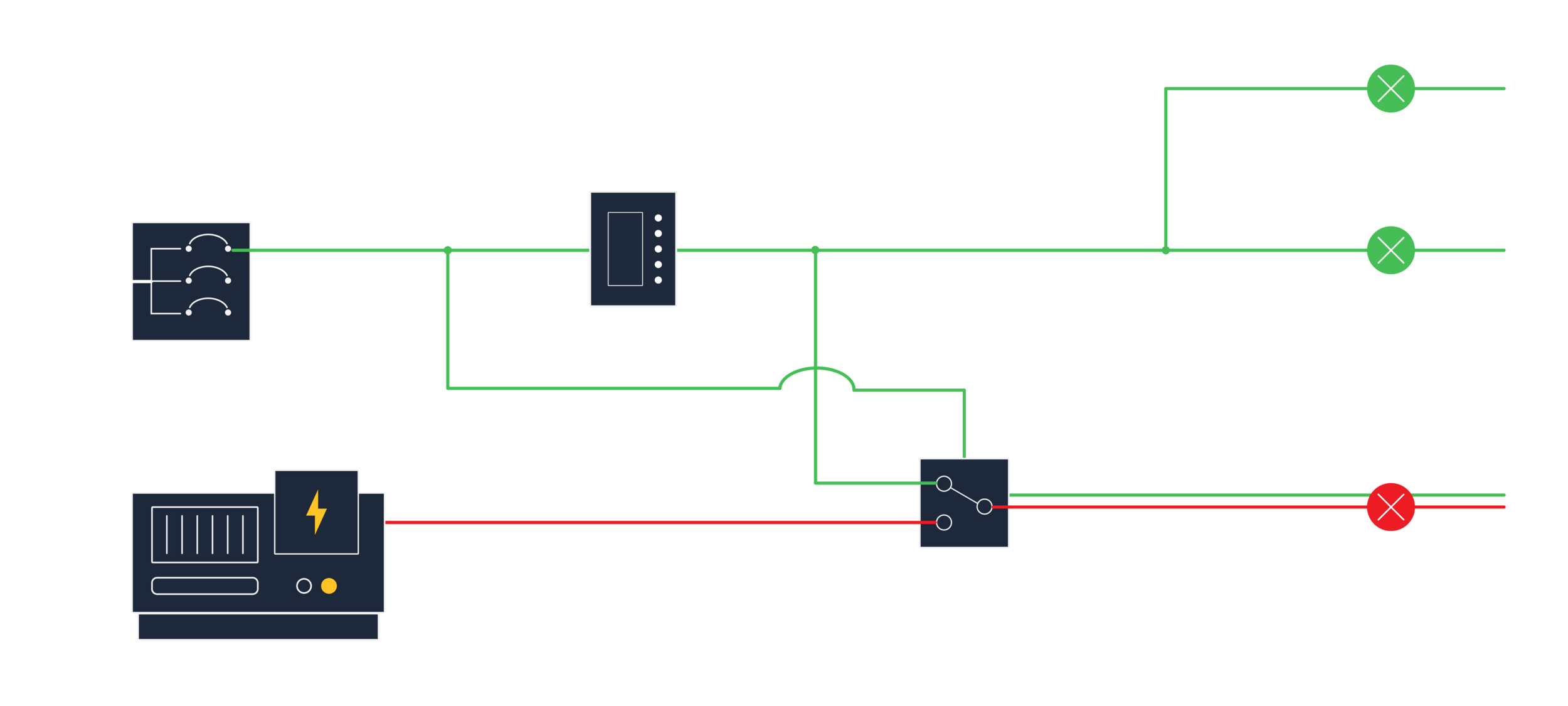

Phase Control With UL 1008
- Inverters and generators allow any architectural lights to be used for emergency purposes.
- In all common lighting plans, ELCDs are required to override a lighting control in emergency mode.
- 924 devices are less expensive, 1008 devices allow phase control dimming
924 & 1008 DEVICES | May 2026
EMERGENCY LIGHTING CONTROL DEVICES
Summary
