November 2024
WHY SEISMIC TESTING IS IMPORTANT
ISOLITE
WHY SEISMIC TESTING IS IMPORTANT
Chalk Talk
External/Agency Requirements
Internal Design Requirements
Where is this Actually Required?
- Battery Security
- Inverter Mounting
- "Rack" Strength
WHY SEISMIC TESTING IS IMPORTANT
OVERVIEW
PRODUCT REQUIREMENTS
DESIGN & TESTING
RESOURCES & SUPPORT
Relevant Products
Where to Look on the Cutsheets
Available Documentation
- And where do they actually get used?
Product Requirements
- Exemptions
Testing Example
Traditional Products
Inverter Modifications
- Office of Statewide Health Planning and Development (CA)
- International Code Council/International Building Code
There Are 2 Organizations Who Provide Standards Related Seismic-Rated Devices
EXTERNAL/AGENCY REQUIREMENTS
PRODUCT REQUIREMENTS
ISOLITE
WHY SEISMIC TESTING IS IMPORTANT
Chalk Talk
These standards are required in certain jurisdictions and in certain building types
- California Healthcare Facilities are the most obvious requirement
These standards mostly mandate that devices (at least) remain functional through an earthquake. Continued operation is not always required.
We often have "Seismic" additions for products that don't require It
To the extent possible, we build in the seismic resistance
INTERNAL DESIGN REQUIREMENTS
PRODUCT REQUIREMENTS
ISOLITE
WHY SEISMIC TESTING IS IMPORTANT
Chalk Talk
- Obviously cost and aesthetics temper this desire
We Like For Our Products to Outperform the Standards

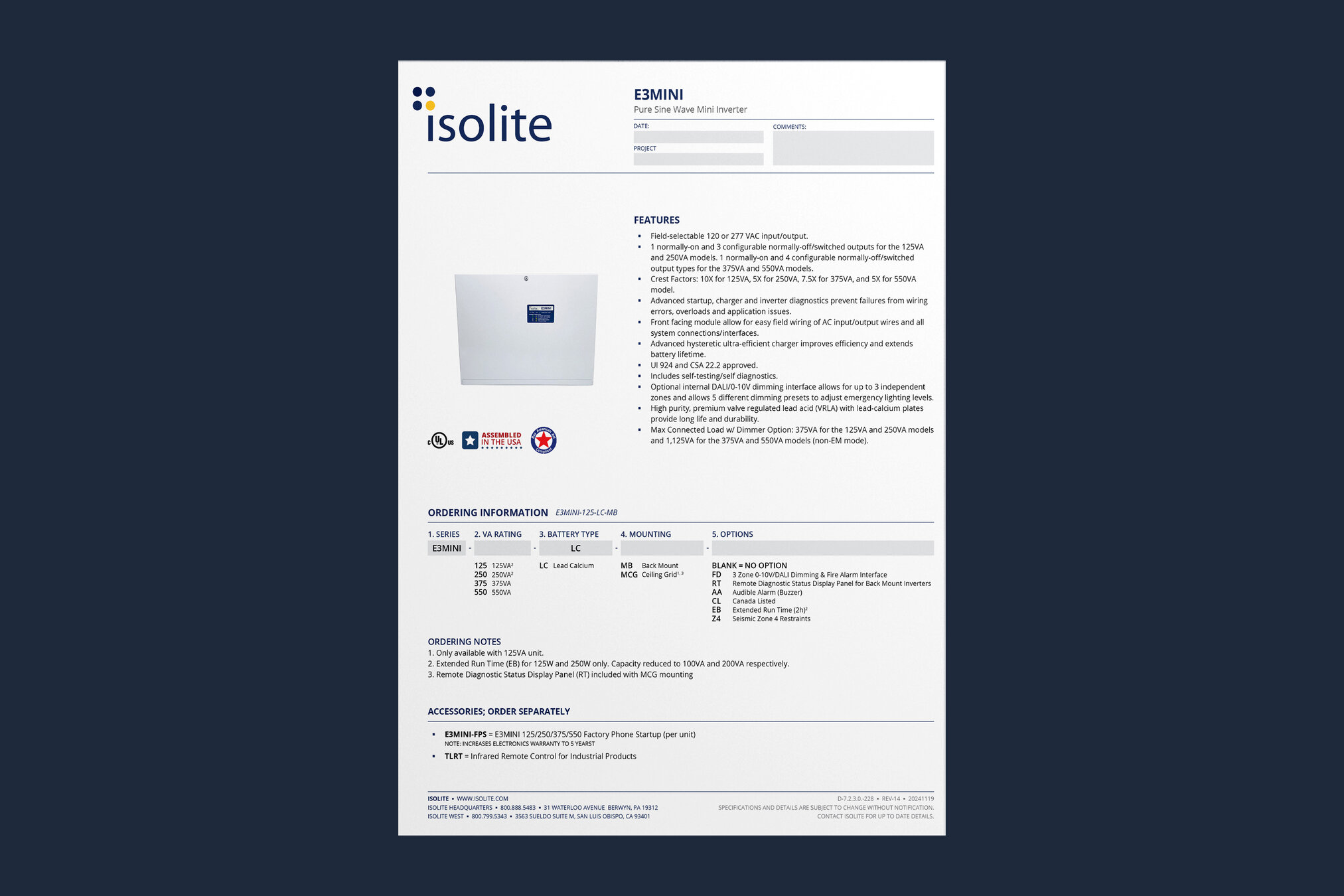

Ordering Information
1. SERIES
E3MINI
2. VA RATING
125 125VA
250 250VA
375 375VA
550 550VA
3. BATTERY TYPE
LC Lead Calcium
4. MOUNTING
MB Back Mount
MCG Ceiling Grid
LC
8. OPTIONS
FD 3 Zone 0-10V/DALI Dimming & Fire Alarm Interface
RT Remote Diagnostic Status Display Panel for Back Mount Inverters
AA Audible Alarm (Buzzer)
CL Canada Listed
EB Extended Run Time (2h)
Z4 Seismic Zone 4 Restraints
- And probably in most privately funded ones, too
Office of Statewide Health Planning and Development
WHERE IS THIS REQUIRED
PRODUCT REQUIREMENTS
ISOLITE
WHY SEISMIC TESTING IS IMPORTANT
Chalk Talk
California
Healthcare Facilities
Used more generally as the requirement for most publicly funded buildings in California
Used in specifications generated from California
Really, many things attached to California end up requiring OSHPD approval

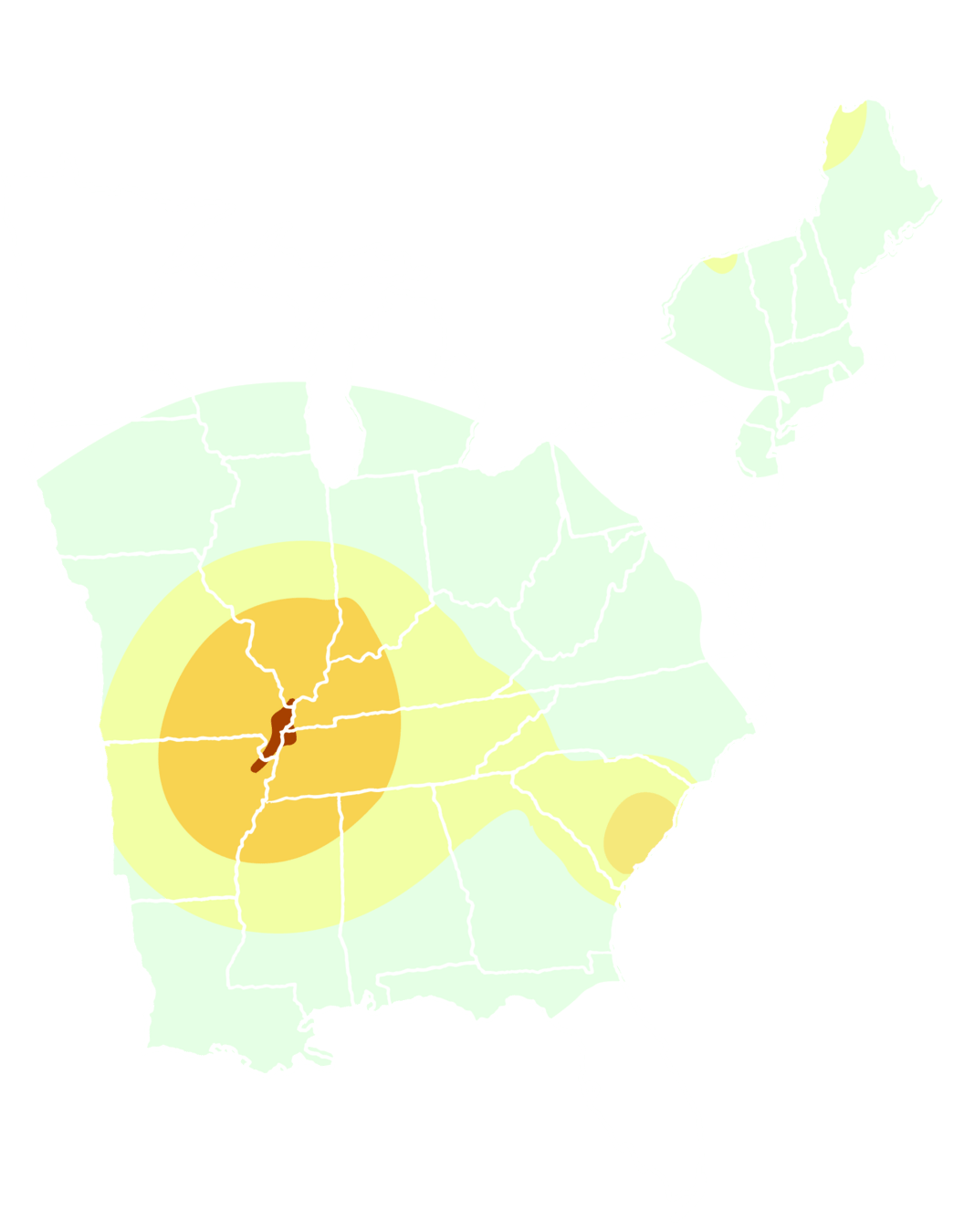

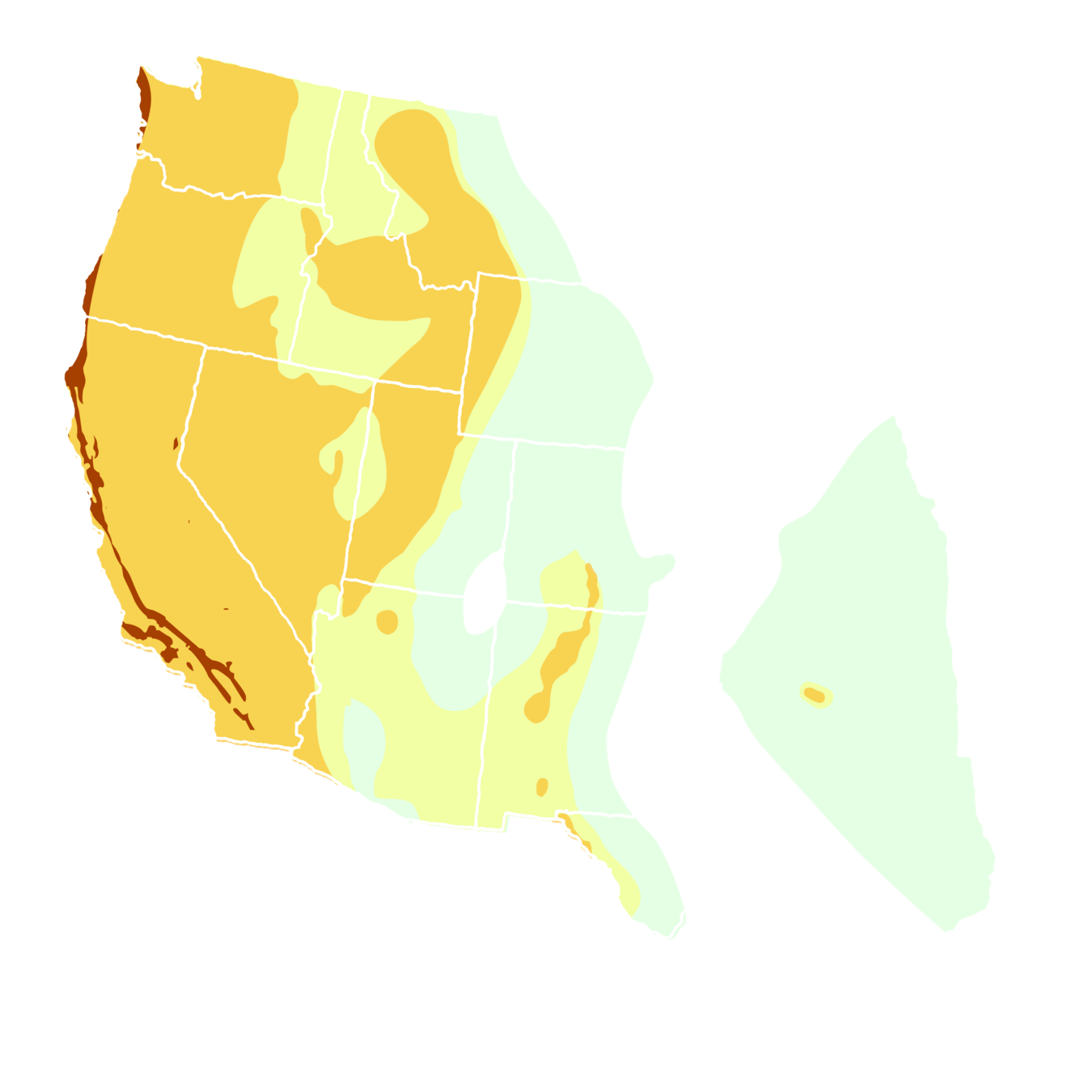

The earthquake map you see is just the last 30 days...
As buildings get larger, they also shake more...
Jurisdictions which standardize on IBC codes, also require seismic ratings on products
AND WHERE DOES IT GET USED
PRODUCT REQUIREMENTS
ISOLITE
WHY SEISMIC TESTING IS IMPORTANT
Chalk Talk
Earthquakes happen everywhere...
It's not quite "best practice" to always specify the seismic products, but it is "belt and suspenders"
- Even our specification grade/architectural pendants
Seismic Discussions Mostly Focus on Inverters, But There Are Additional Requirements For Traditional Products
PRODUCT REQUIREMENTS
DESIGN & TESTING
ISOLITE
WHY SEISMIC TESTING IS IMPORTANT
Chalk Talk
For exit signs and emergency lights we "overbuild" the mounting mechanisms so that the attachment points aren't vulnerable to shaking
Internal batteries and transformers are always hard-fixed to the product body instead of floating

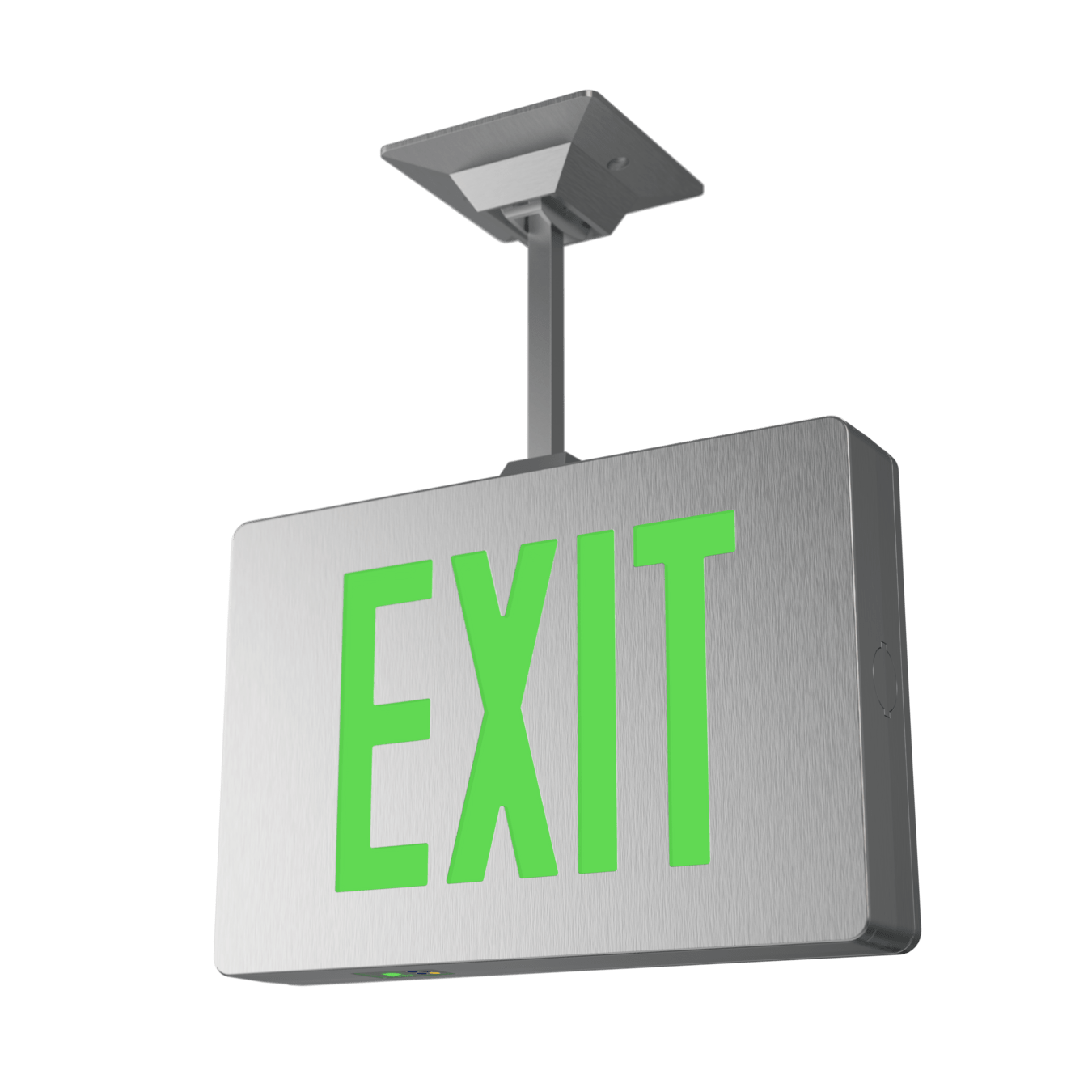

Pendants are capable of swinging a full 90º
For "smaller" products, these mechanisms are standard and inherent to the design
Inverters Require More Thought, However...
INVERTER MODIFICATIONS
DESIGN & TESTING
ISOLITE
WHY SEISMIC TESTING IS IMPORTANT
Chalk Talk
- If 3 tons, tips over, bad things happen...
- Seismic inverters ship with special brackets to hold them to the ground
Inverters have large, heavy batteries sitting on shelves
- If 100 lb batteries start flopping around, bad things happen...
- Seismic inverters ship with battery brackets to secure them the structure of the cabinet
Inverters have latched doors
- If the latch shakes loose and the door falls off, bad things happen...
- Seismic inverters ship with keyed latches to secure the door
Keyed Lock
Inverters are heavy, 33kVA is more than 3 tons
Seismic Feet
1. Project specific approval, stamped by a seismic engineer.
OSHPD Is The Standard, But There Are 2 Ways To Get Approval For Use On a Project
TESTING REQUIREMENTS
DESIGN & TESTING
ISOLITE
WHY SEISMIC TESTING IS IMPORTANT
Chalk Talk
Construction/design team provides detailed mounting information and construction materials
This is a pain...
Seismic engineer approves the product for use in the specified building at the specified location
Product manufacturer provides detailed mechanical drawings of the product in question
OSHPD Is The Standard, But There Are 2 Ways To Get Approval For Use On a Project
TESTING REQUIREMENTS
DESIGN & TESTING
ISOLITE
WHY SEISMIC TESTING IS IMPORTANT
Chalk Talk
2. OSHPD pre-approval
Product manufacturer submits for testing of desired units and a desired seismic zone
Important Note: No approval or testing is required for products weighing less than 50 lbs
Third party lab shakes the products in a way that would make a real
earthquake jealous
Seismic engineer review the results of the shake-test
Product is approved for all installations in the prescribed seismic zone (or less)
ISOLITE
WHY SEISMIC TESTING IS IMPORTANT
Chalk Talk
Remember, products under 50 lbs. are exempt from testing, so no modifications are required for traditional products.
PRODUCT WITH SEISMIC RATINGS
DESIGN & TESTING
ISOLITE
WHY SEISMIC TESTING IS IMPORTANT
Chalk Talk
All E3MAX Inverters
All E3MAC Inverters
All E3 Inverters
All Wall Mount E3MINI Inverters (even though the small ones are exempt)
- The T-Bar Unit doesn't stand a chance

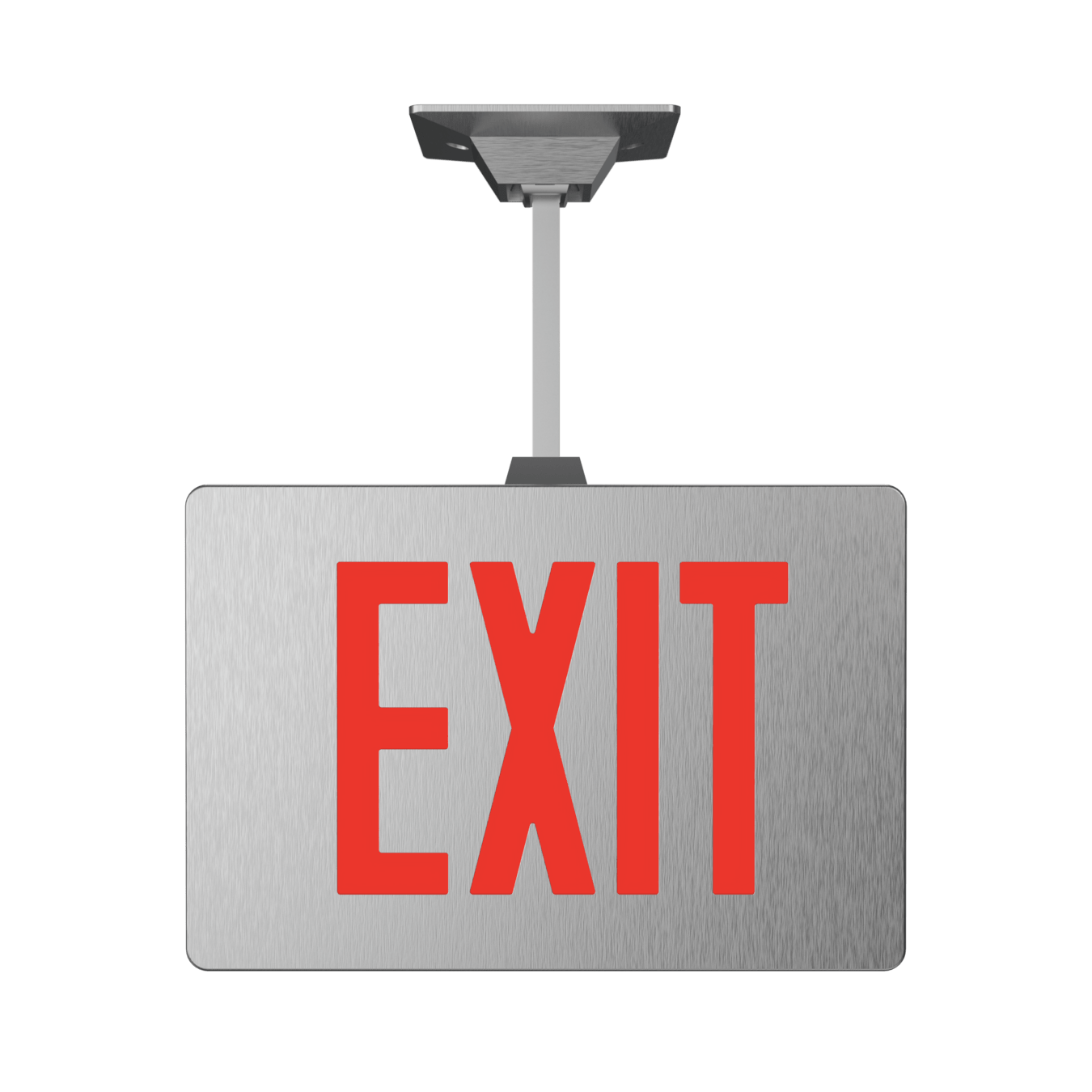

All specification grade exits and emergency lights with pendants use swivels as standard
E3MAC
E3MAX

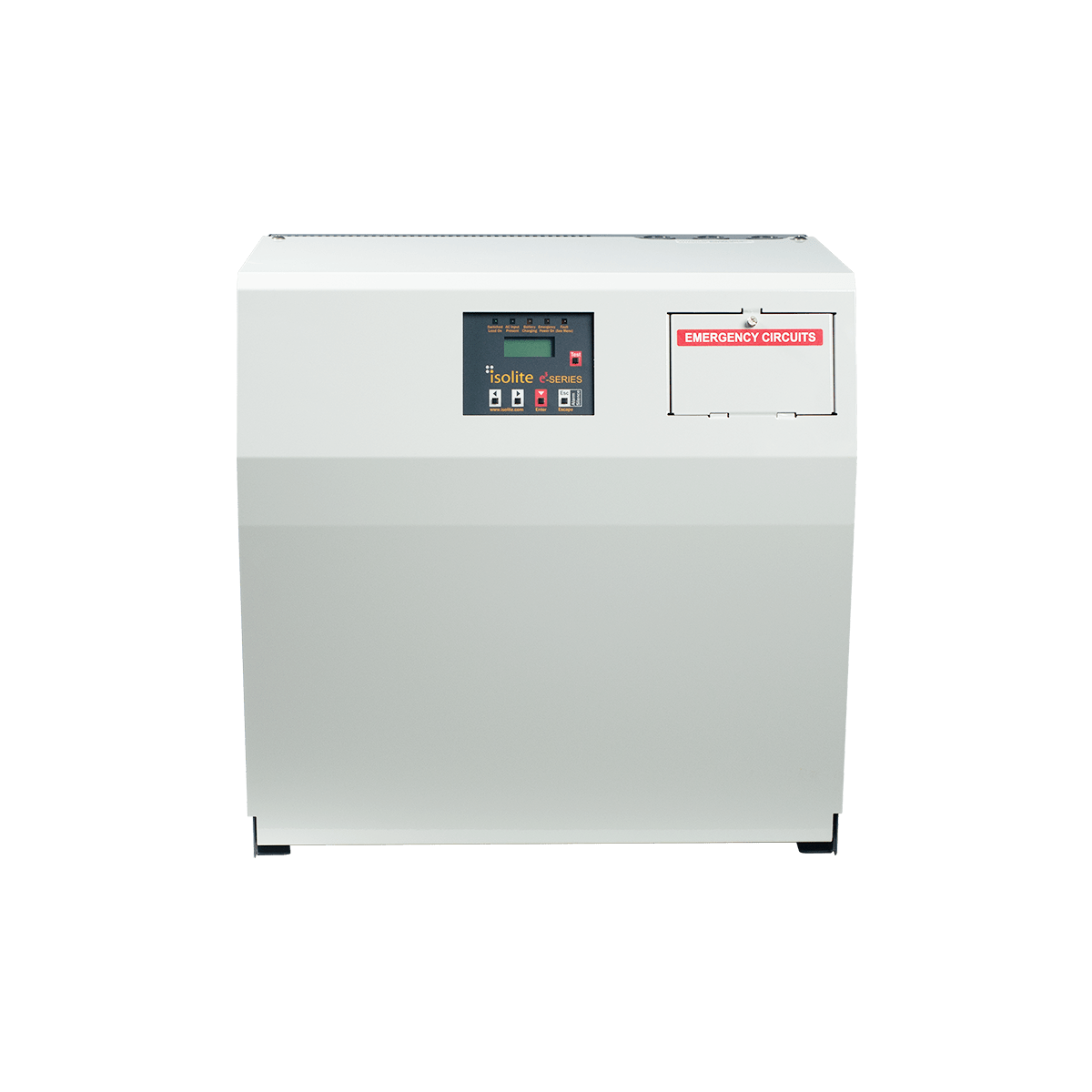

E3
NEW!
- Specs Sheets & Drawings
Available on the Website
- Training Video Link
- Sales Presentation PDF
- Sell Sheet & Marketing Assets
Available Within Follow-Up Sales Packet
SALES MATERIALS
SUPPORT
ISOLITE
WHY SEISMIC TESTING IS IMPORTANT
Chalk Talk
NEED FURTHER ASSISTANCE?
SUPPORT
- Schedule a Webinar for Advanced Sales & Engineering Training
Team of Experts
ISOLITE
WHY SEISMIC TESTING IS IMPORTANT
Chalk Talk
For Additional Training, Please Contact Your
Local Sales Representative
THANK YOU
