Pure CSS cross browser animations for fun and profit

Camp Digital

Thursday April 23rd

'Sup

Ben Holden

@BenHoldenPrime

Liam Richardson

@meevil

What you'll learn...

By the end of this presentation, you'll have learned how to...

• Create subtle transitions
• Create complex animations
• Animate SVG's

Let's begin our whistle stop tour!

A brief history of animation on the web

GIF's FTW

All hail Flash

... Oh

R.I.P in peace, Flash

The open web

A note about code...

Onto the fun stuff...

6 essential lessons

Want to do animation? Pure CSS is the way forward

Lesson 1

Transitions

Transitions allow you to create smooth, subtle animations with ease

Lesson 2

.button {
    transition: background 1s ease;
}

The transition property can be triggered by any kind of "state" change

:hover

JavaScript prompted class change

The transition property allows you to smoothly affect an element when changing from one state to another

Hover me!

Hover me!

.button{
    transition: background 1s all;

    background: white;
}

.button:hover{
    background: pink;
}

Hover

That was easy! What's the code?

.button {
    transition: background 1s ease;

    background: white;
}

Animation made easy

.button {
    transition: background 1s ease;

    background: white;
}

.button:hover {
    background: pink;
}

transition-property: width;
transition-duration: 1s;
transition-timing-function: linear;
transition-delay: 2s;

transition: width 1s linear 2s;

transition: width 2s, height 2s, transform 2s;

transition: all 2s linear;

Sass <3

@mixin transition($transition-property, $transition-time, $method) {
    transition: $transition-property $transition-time $method;
}

What can you use it on?

Supports 81 properties

Classed as "Animatable"

Ok, so what CAN'T you use it on?

http://oli.jp/2010/css-animatable-properties/

• background-image (sort of works, sometimes)
• ​float
• height or width using the value auto (currently both values must be a length or percentage)
• display between none and anything else
• position between static and absolute

When should you use it?

On the majority of projects?

• As little as possible
• As subtly as possible

Buttons and links

Image transitions

Smooth UI

What about "REAL" animation?

Keyframes

@keyframes mymove {
    from {top: 0px;}
    to {top: 200px;}
}

Keyframes allow you to create amazing animations that work

seamlessly across

modern browsers

Lesson 3

How do keyframes work?

Keyframes are essentially a  list of what the animation should do over a defined period of time

Let's see them in action

How did that work?

.car {
  animation-name: drive;
  animation-duration: 2s;
}

@keyframes drive {
  from {margin-left: 0px;}
  to {margin-left: 400px;}
}

CSS @keyframes

@keyframes drive {
  from {margin-left: 0px;}
  to {margin-left: 400px;}
}

@keyframes %

@keyframes drive {
  0% {margin-left: 0px;}
  50%{margin-left: 400px;}
  100% {margin-left: -200px;}
}

Properties, properties, properties

• animation-delay
• animation-direction
• animation-duration
• animation-fill-mode
• animation-iteration-count
• animation-name
• animation-play-state
• animation-timing-function

animation-timing-function

linear

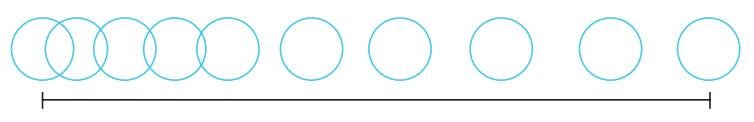

ease-in

ease-out

So many options

• linear
• ease
• ease-in
• ease-out
• ease-in-out
• cubic-bezier(n,n,n,n)

What can you change using @keyframes?

The same 81 properties that you can influence with transition can be changed with @keyframes as well

When should you use it?

On projects that require additional visual "flair" or engagement that traditional methods can't provide.

• As little as possible
• As subtly as possible
• Ensure the design doesn't rely on it

Adding fluidity to an otherwise static design

Creating visual flair

Enhancing dull UI's

Doing something crazy

http://codepen.io/Xpressive_Team/full/LeHGF/

Seriously, do something crazy

SVG + CSS animation = Awesomeness

SVG's are potentially the future of web graphics, and give CSS animation

super powers

Lesson 4

My god, it's full of code...

Code you can apply classes too!

  <rect class="background" fill="#D03E27" width="400" height="400" />

  <path class="letter" fill="#F4F4F4" d="M60.858,129...." />
  <path class="letter" fill="#F4F4F4" d="..." />

Allowing you to do cool stuff!

.path {
  stroke-dasharray: 1000;
  stroke-dashoffset: 1000;
  animation: dash 5s linear alternate infinite;
}

@keyframes dash {
  from {
    stroke-dashoffset: 1000;
  }
  to {
    stroke-dashoffset: 0;
  }
}

A larger playset - SVG

only properties

clip-rule, flood-color, flood-opacity, stop-opacity, kerning, tech-anchor, color-profile, color-rendering, fill, fill-opacity, fill-rule, marker, marker-end, marker-mid, marker-start, stroke, stroke-width, stop-color, lighting-color, enable-background, dominant-baseline, color-interpolation-filters, color-interpolation, glyph-orientation-horizontal, glyph-orientation-vertical, shape-rendering, baseline-shift, alignment-baseline, stroke-miterlimit, stroke-linejoin, stroke-linecap, stroke-dashoffset, stroke-dasharray, stroke-opacity

...but what about the profit?!

Lesson 5

Animation + UX = Conversion = Profit

"When used as more than just a subtle design detail, animation can provide cues, guide the eye, and soften the sometimes-hard edges of web interactions. It can improve the user experience."

http://alistapart.com/article/ui-animation-and-ux-a-not-so-secret-friendship

Val Head, A List Apart

Subtle cues...

Stop waiting around, get creating!

Lesson 6

Get experimenting

with transitions!

Get creating with @keyframes!

Webkit, you silly thing

/* Chrome, Safari, Opera */
@-webkit-keyframes myfirst {
    0%   {background: red;}
    25%  {background: yellow;}
    50%  {background: blue;}
    100% {background: green;}
}

/* Standard syntax */
@keyframes myfirst {
    0%   {background: red;}
    25%  {background: yellow;}
    50%  {background: blue;}
    100% {background: green;}
}

Additional reading

• http://valhead.com/book/
• http://slides.com/sarasoueidan/styling-animating-svgs-with-css#/
• http://www.smashingmagazine.com/2014/11/03/styling-and-animating-svgs-with-css/
• http://www.smashingmagazine.com/2014/04/15/understanding-css-timing-functions/
