# Topiary and the Art of Origami

## Exploring decision trees with recursion schemes

@_zainabali_

Zainab Ali

## Predicting survival on the Titanic

- Shipwreck
- Over 60% died
- Not enough lifeboats
- Stochastic
- Can we predict survival?

## The Journey

- basic predictions
- use decision trees
- matryoshka
- anamorphisms
- catamorphisms
- hylomorphisms
- cost complexity pruning

## Input Example

## Output Label

```
case class Example(
gender: Gender,
age: Age,
ticketClass: TicketClass,
familySize: FamilySize
)
```

```
sealed trait Label
case object Survived
extends Label
case object Died
extends Label
```

1000 examples

binary classification

## Hypothesis

```
def predict(example: Example): Label
```

- train on a subset of examples
- test on the rest

## Hypothesis: Everyone Dies

```
def predict(example: Example): Label = Died
```

## Risk

```
def risk(predictions: Map[Int, Label],
actual: Map[Int, Label]): Double = {
predictions.map {
case (id, prediction) =>
if (prediction != actual(id)) 1.0 else 0.0
} / predictions.size
}
```

Fraction of incorrect predictions

# Risk: Everyone Dies

## 39.5%

## Females Survive

```
def predict(example: Example): Label =
example.gender match {
case Female => Survived
case Male => Died
}
```

# Risk: Females Survive

## 24% (-15.5)

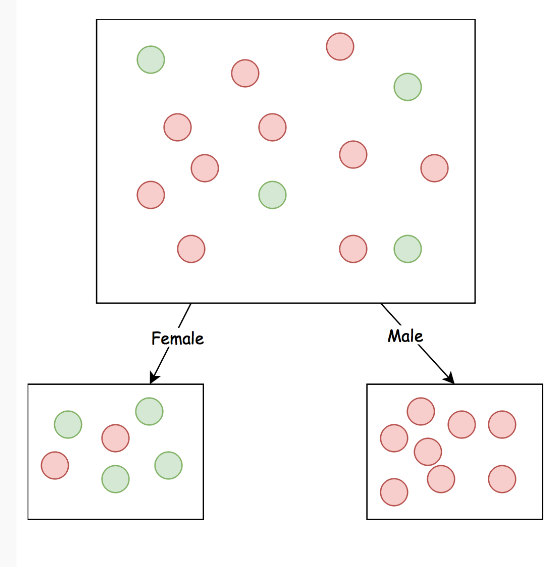

## Entropy

# Matryoshka

## Recursion schemes

## Decision tree

```
sealed trait Tree
case class Leaf(label: Label) extends Tree
case class Node(feature: Feature,
children: Map[Value, Tree]) extends Tree
```

```
sealed trait TreeF[A]
case class Leaf[A](label: Label) extends TreeF[A]
case class Node[A](feature: Feature,
children: Map[Value, A]) extends TreeF[A]
```

## Fix

```
case class Fix[F[_]](unFix: F[Fix[F]])
```

```
val tree: Fix[TreeF] = Fix(Node(gender, Map(
"male" -> Fix(Leaf[Fix[TreeF]](Died)),
"female" -> Fix(Leaf[Fix[TreeF]](Survived))
)))
```

```
type Tree = Fix[TreeF]
```

## It needs a Functor

```
implicit val treeFunctor: Functor[TreeF] =
new Functor[TreeF] {
def map[A, B](fa: TreeF[A])(f: A => B): TreeF[B] =
fa match {
case Leaf(l) => Leaf(l)
case Node(feature, children) =>
Node(feature, children.mapValues(f))
}
}
```

## Anamorphism

```
type Coalgebra[F[_], A] = A => F[A]
def ana[F[_]: Functor, A](a: A)(
coalgebra: Coalgebra[F, A]): Fix[F]
```

Generalized unfold

## Building the tree

```
type Input = (List[Example], Set[Feature])
val build: Coalgebra[TreeF, Input] = {
case (examples, features) =>
if(features.nonEmpty) {
val (feature, maxGain) = maxGain(examples, features)
val nextFeatures = features - feature
val nextExamples = groupByValue(examples, feature)
Node(feature, nextExamples.mapValues(xs =>
(xs, nextFeatures)))
} else {
Leaf(mostCommonLabel(examples))
}
}
val tree: Tree = (examples, features).ana(build)
```

## Anamorphism

```
val tree: Tree = (examples, features).ana(build)
```

## Prediction: exploring a path

```
def explore(example: Example):
Coalgebra[Label Either ?, Tree] =
_.unFix match {
case Leaf(label) => Left(label)
case Node(feature, children) =>
Right(children(value(feature, example)))
}
```

Anamorphism with Either

## Prediction: exploring a path

```
val lizWalton: Example = Example(Adult, Female, ...)
val path: Fix[Label Either ?] = tree.ana(explore(lizWalton))
//path = Fix(Right(Fix(Right(...(Fix(Left(Label.Survived))))
```

## Catamorphism

```
type Algebra[F[_], A] = F[A] => A
def cata[F[_]: Functor, A](fix: Fix[F])(
algebra: Algebra[F, A]): A
```

Generalized fold

## Prediction: collapsing the path

```
val collapse: Algebra[Label Either ?, Label] = _.merge
val prediction = path.cata(collapse)
//prediction = Survived
```

## Hylomorphism

```
def hylo[F[_]: Functor, A, B](a: A)(
algebra: Algebra[F[_], B],
coalgebra: Coalgebra[F[_], A]): B
```

Generalized refold

## Hylomorphism

```
def predict(tree: Tree)(example: Example): Label =
tree.hylo(collapse, explore(example))
```

# Risk: Decision Tree (training)

## 15.1%

# Risk: Decision Tree

# (test)

## 24.0% (-0.0)

# Overfitting

## topiary time!

## Cost Complexity Pruning

- Annotate T0 with label counts
- Annotate with cost
- Find minimum cost
- Snip off node with minimum cost to create T1
- Repeat 3 and 4 to get T2 ...
- Create a series of subtrees T0, T1, T2 ... Leaf

## Cost

- current risk
- resubstitution risk of replacing node with leaf
- number of leaves removed

## Tagging

```
case class AttrF[A, B](a: A, tree: TreeF[B])
implicit def attrFunctor[A]: Functor[AttrF[A, ?]] = ...
```

## Tag with counts

```
type Counts = Map[Label, Int]
def buildCounts: Coalgebra[AttrF[Counts, ?], Input] = {
case (examples, features) =>
val counts = labelCounts(examples)
val tree = build((examples, features))
AttrF(counts, tree)
}
val tree = (examples, features).ana(buildCounts)
```

## Tag with cost

```
case class CostInfo(
leafCount: Int,
risk: Int,
counts: Counts
)
val costInfo: Algebra[AttrF[Counts, ?], Attr[CostInfo]] = {
case AttrF(counts, t: Leaf(_)) =>
Fix(AttrF(leafCostInfo(counts, t), t))
case AttrF(_, t @ Node(_, children)) =>
Fix(AttrF(nodeCostInfo(children), t))
}
tree.cata(costInfo)
```

## Another hylo!

```
val tree = (examples, features)
.ana(buildCounts)
.cata(costInfo)
```

```
val tree = (examples, features).hylo(buildCounts, costInfo)
```

## Find min cost

```
val minCost: Algebra[AttrF[CostInfo, ?], Double] = {
case AttrF(_, Leaf(_)) => Double.PositiveInfinity
case AttrF(info, Node(_, children)) =>
(info.cost :: children.values).min
}
tree.cata(minCost)
```

## Prune

```
def prune(minCost: Double):
Algebra[AttrF[CostInfo, ?], Attr[CostInfo]] = {
case AttrF(c, Leaf(l)) =>
Fix(AttrF(c, Leaf(l)))
case AttrF(info, n @ Node(_, children)) =>
if(info.cost == minCost) {
val leaf = makeLeaf(info)
Fix(AttrF(leafCostInfo(info.counts, leaf), leaf))
} else {
Fix(AttrF(nodeCostInfo(children), n))
}
}
tree.cata(prune(minCost))
```

## Cost Complexity Pruning

```
val tree = (examples, features)
.hylo(buildCounts, costInfo)
val cost1 = tree.cata(minCost)
val subTree1 = tree.cata(prune(cost1))
val cost2 = subTree1.cata(minCost)
val subTree2 = subTree1.cata(prune(cost2))
...
```

## Which subtree?

- Split data into training and validation
- Build trees on training data
- Validate on validation data
- Pick the subtree with the lowest risk

# Risk: Pruned Tree

## 22.4% (-1.6)

# Yay!

## We've come a long way

- Anamorphisms
- Catamorphisms
- Hylomorphisms

## Where to next?

- Dimensionality reduction
- Cross validation
- Ensemble methods

## You may be interested in

- The code https://github.com/zainab-ali/titanic
- Matryoshka https://github.com/slamdata/matryoshka

We're hiring!

# Thanks!

#### Topiary and the Art of Origami

By Zainab Ali

# Topiary and the Art of Origami

Recursive data structures are a core tool of any functional programmer's toolkit, but they are also one of the most challenging. Budding functional programmers are plagued with nightmares of infinite recursion, mental stack overflows, and the terrifying fixed point. Recursion schemes, generalised folds and unfolds with exotic names and signatures, are a further hurdle to overcome. But past this hurdle there are many rewards. This talk uses the power of recursion schemes to predict survival on the Titanic. We will show that recursion schemes can be used to grow a decision tree and make predictions from it. Furthermore, they give us far more benefits than the basic folds or unfolds we would otherwise use. You will make use of many folds, unfolds and even refolds. Be prepared to exercise your skills in origami!
