From OpenRPC to gRPC, the Rust way

Author:

Moncef AOUDIA

From OpenRPC to gRPC, the Rust way

07/02/2023

Summary 📋

OpenRPC, OpenAPI & gRPC
protobuf
ToolBox
OpenRPC to OpenAPI
OpenAPI to gRPC
Tonic + Prost
Demo
Questions

gRPC 📝

OpenAPI &

OpenRPC,

{
    "openrpc": "1.2.4",
    "info": {
    },
    "methods": {},
    "components": {
        "schemas": {},
        "contentDescriptors": {}
    }
}

{
    "openapi": "3.1.0",
    "info": {
    },
    "paths": {},
    "components": {
        "schemas": {}
    },
    "tags": []
}

syntax = "proto3";

package hello;

service HelloService {
  rpc SayHello (HelloRequest) returns (HelloResponse);
}

message HelloRequest {
  string greeting = 1;
}

message HelloResponse {
  string reply = 1;
}

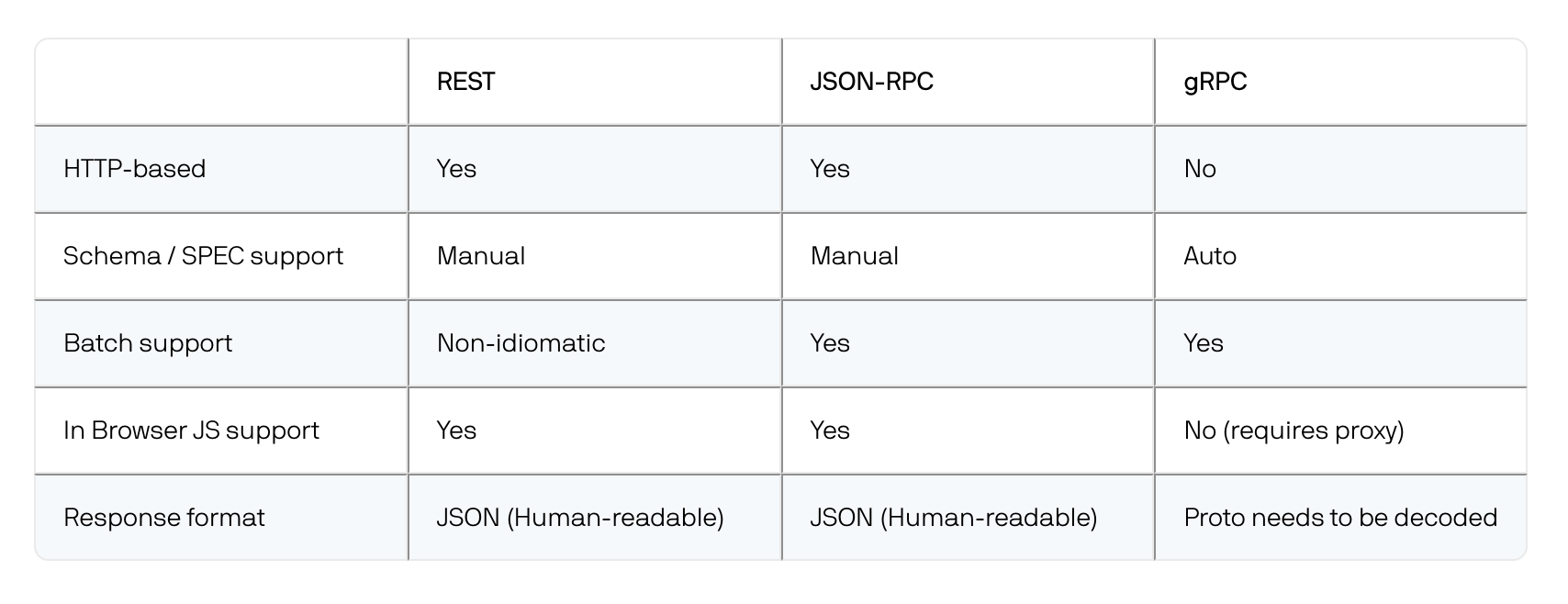

OpenAPI, OpenRPC & gRPC 📝

Protobuf & gRPC ✉️

syntax = "proto3";

package ecommerce.v1;

service ProductInfo {
   rpc getProduct(ProductID) returns (Product);
}

message Product {
   string id = 1;
   string name = 2;
   string description = 3;
   float price = 4;
}

message ProductID {
    string value = 1;
}

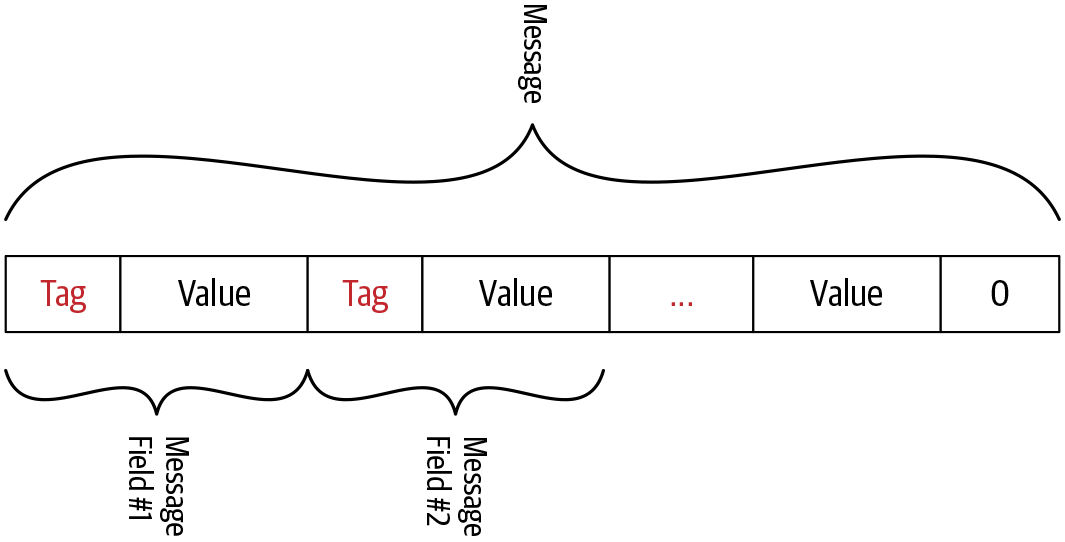

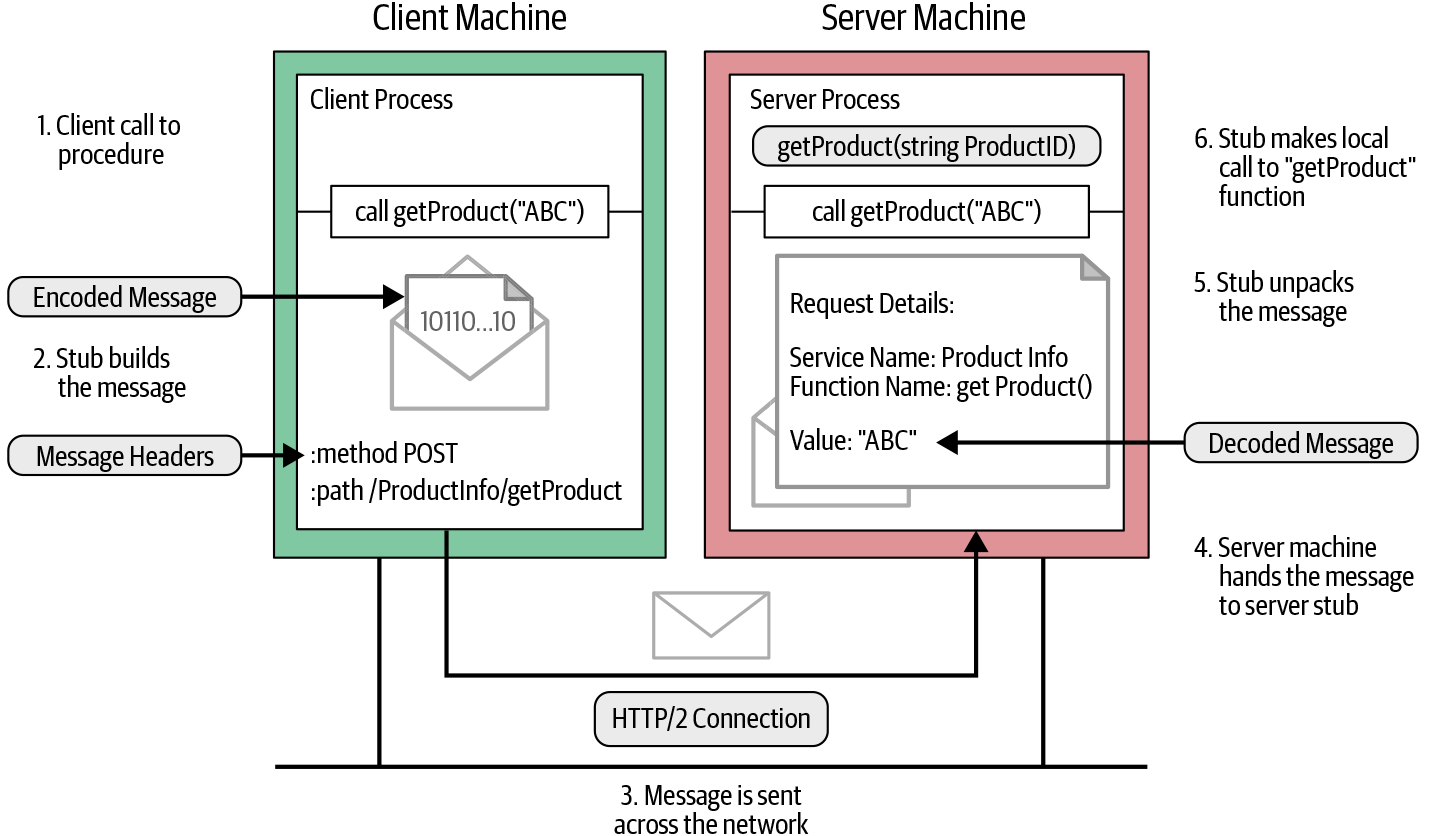

Message Encoding Using Protocol Buffers

Protobuf & gRPC ✉️

message Product {
    int32 id = 1;
    float price = 2;
}

Protobuf & gRPC ✉️

message Product {
    int32 id = 1;
    float price = 2;
}

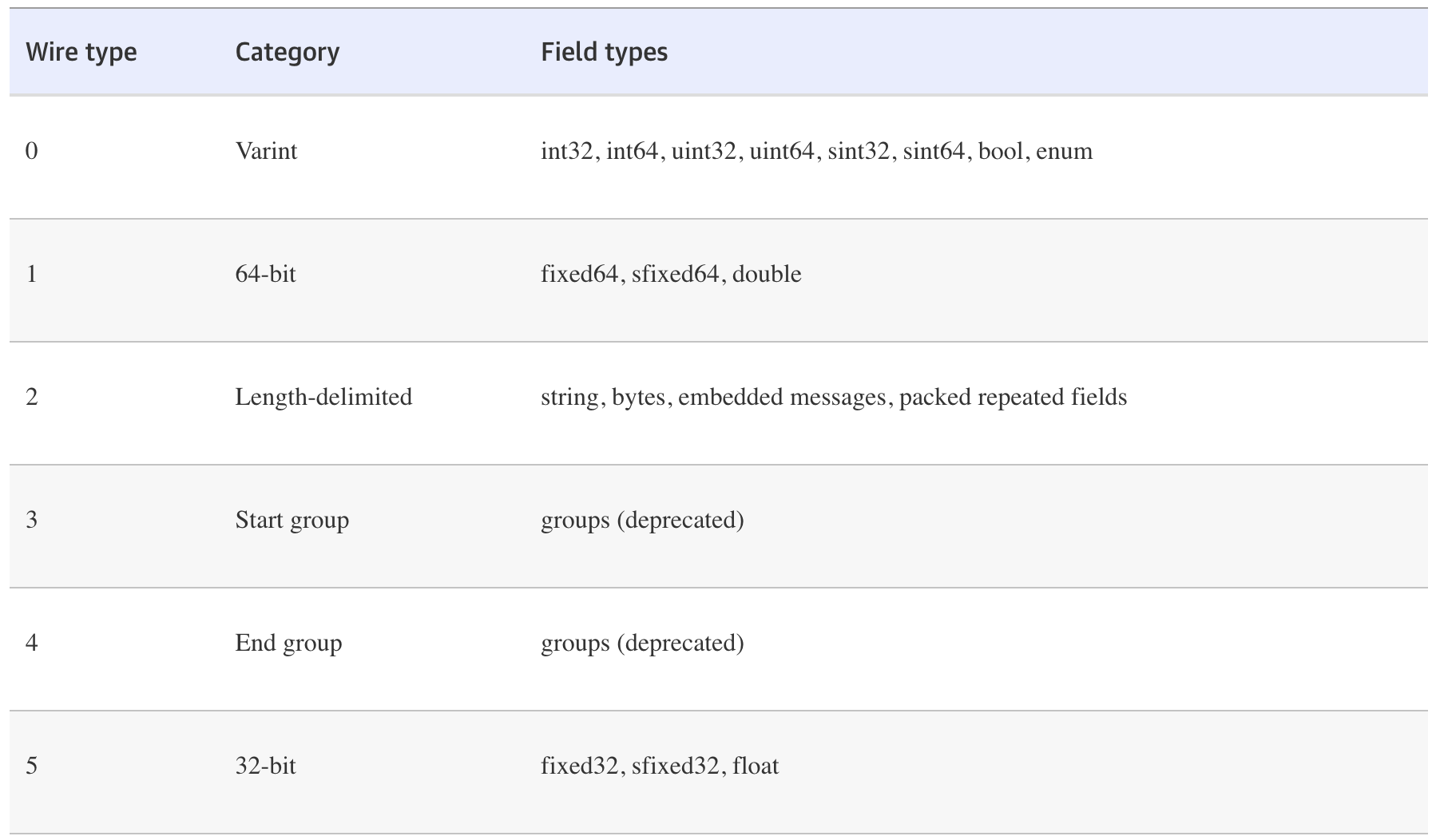

Available wire types and corresponding field types

Protobuf & gRPC ✉️

message OrderId {
    string value = 1;
}

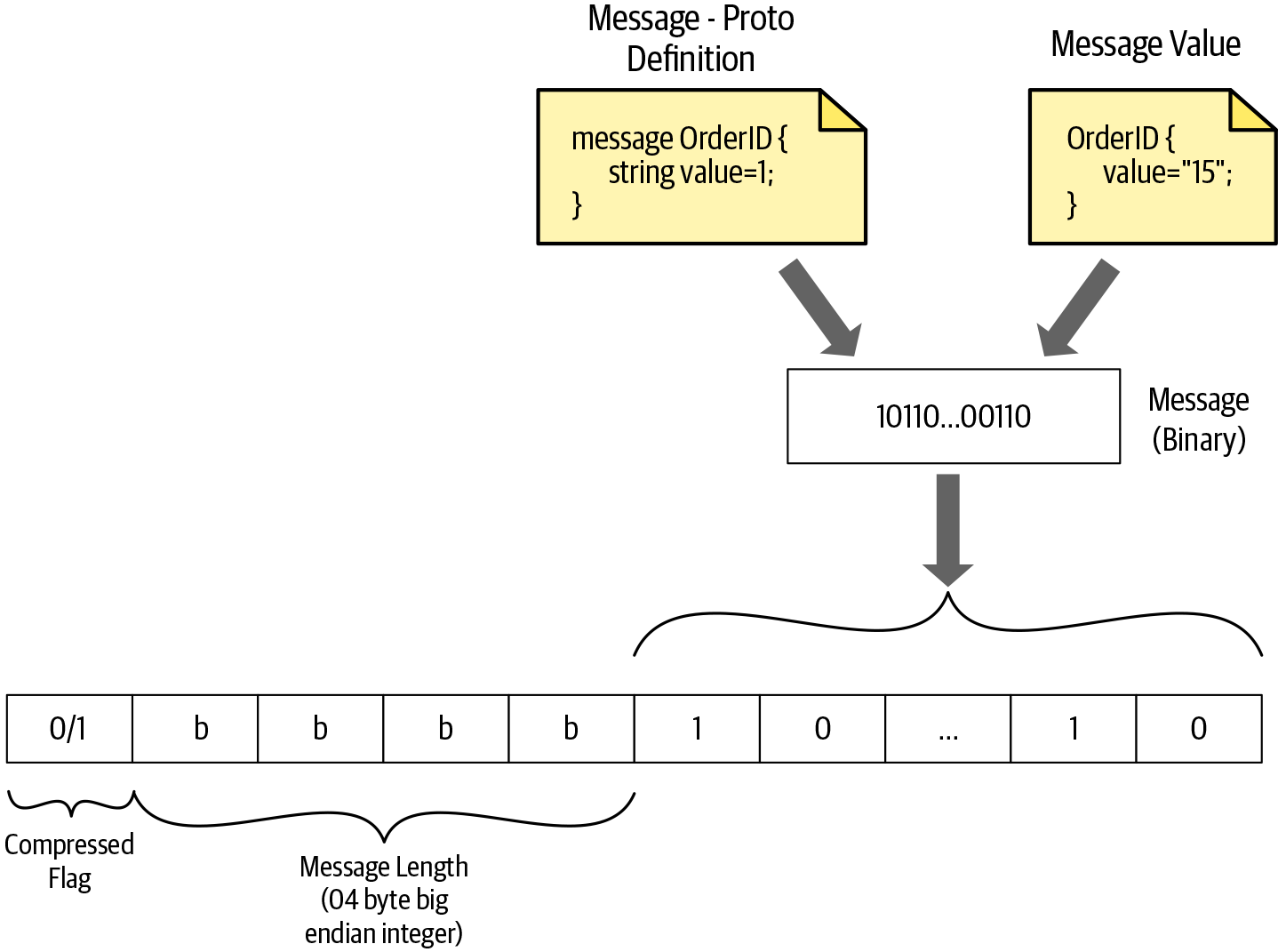

Length-Prefixed Message Framing

Protobuf & gRPC ✉️

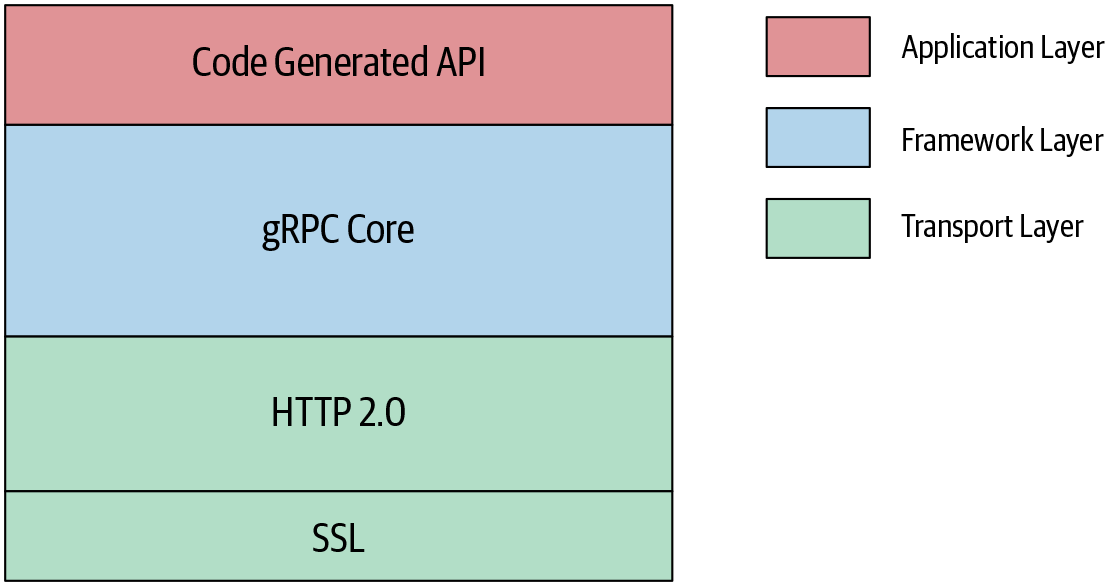

gRPC native implementation architecture

Protobuf & gRPC ✉️

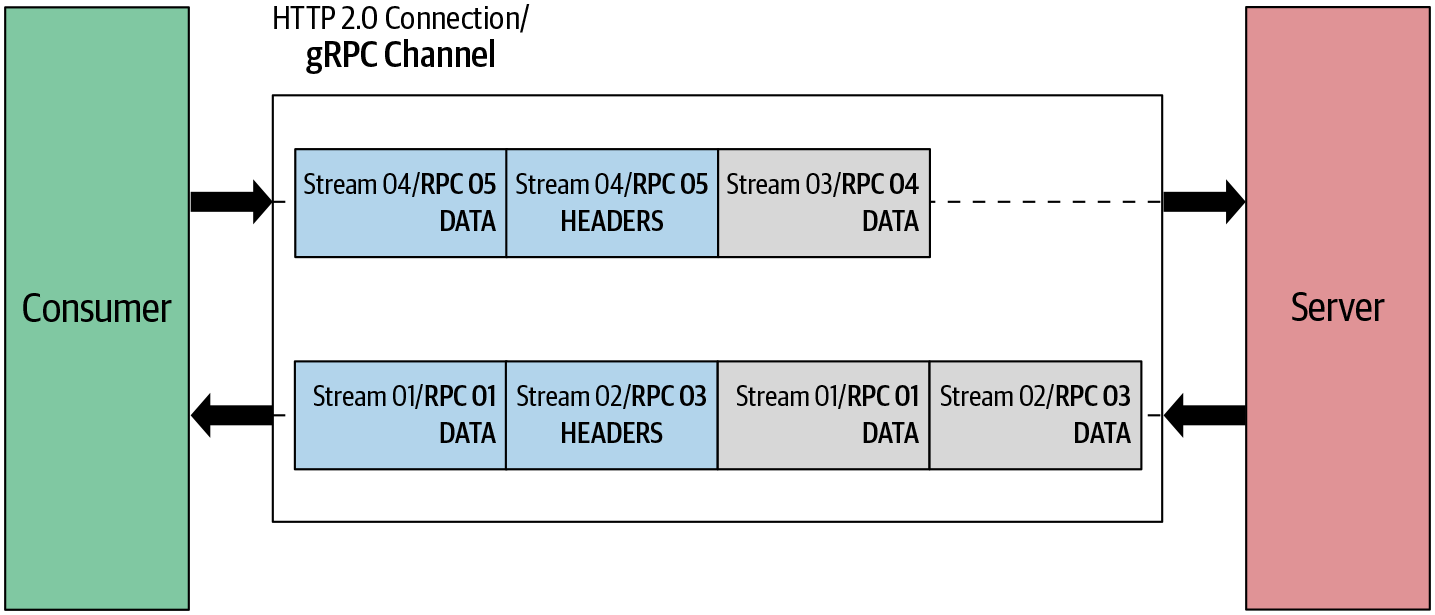

How gRPC semantics relate to HTTP/2

Protobuf & gRPC ✉️

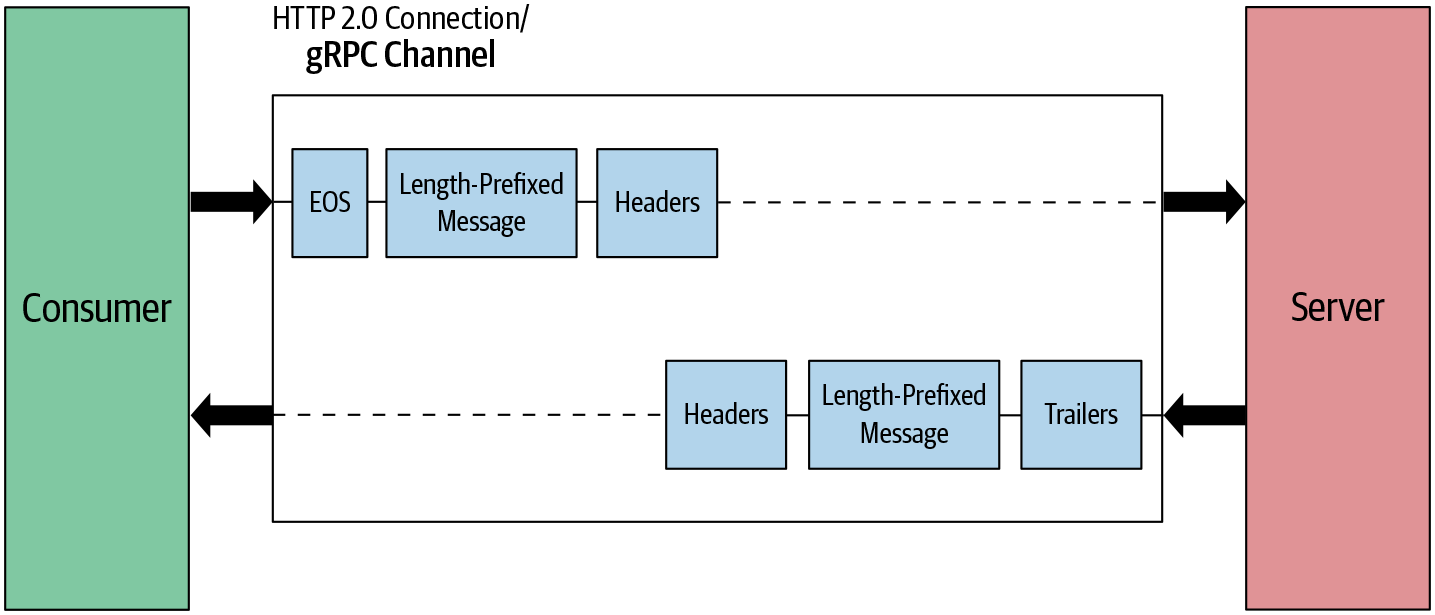

Simple RPC

Protobuf & gRPC ✉️

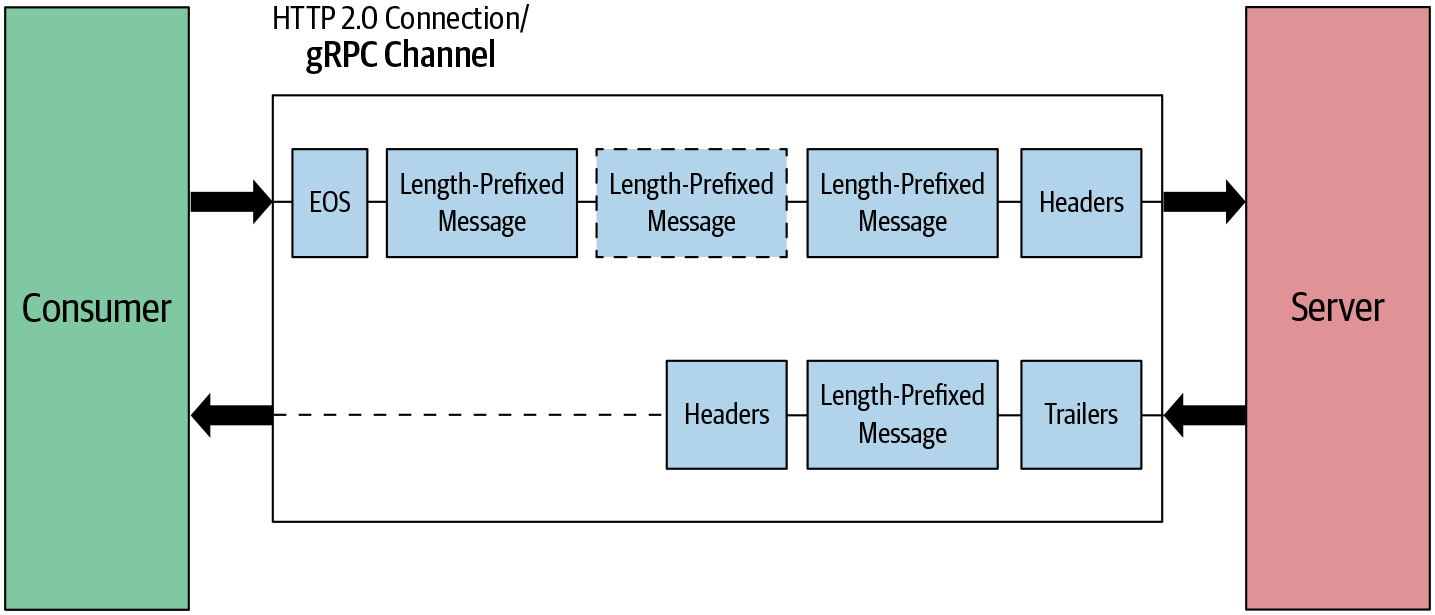

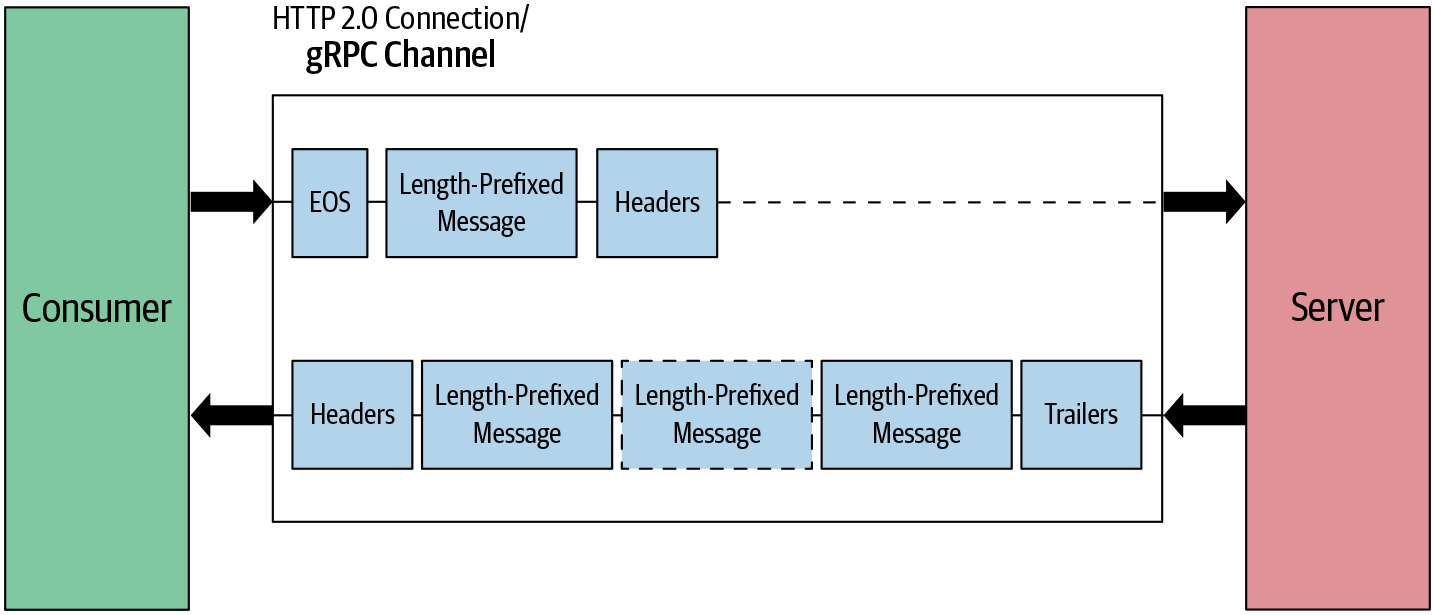

Server-streaming RPC

Protobuf & gRPC ✉️

Client-streaming RPC

Protobuf & gRPC ✉️

Bidirectional-streaming RPC

Toolbox 🧰

OpenRPC playground
OpenRPC VSCode
Protobuf VSCode
ApiCurio studio
protoc
gnostic
Prost
Tonic
Setup-protoc GitHub action

OpenRPC to OpenAPI ⚙️

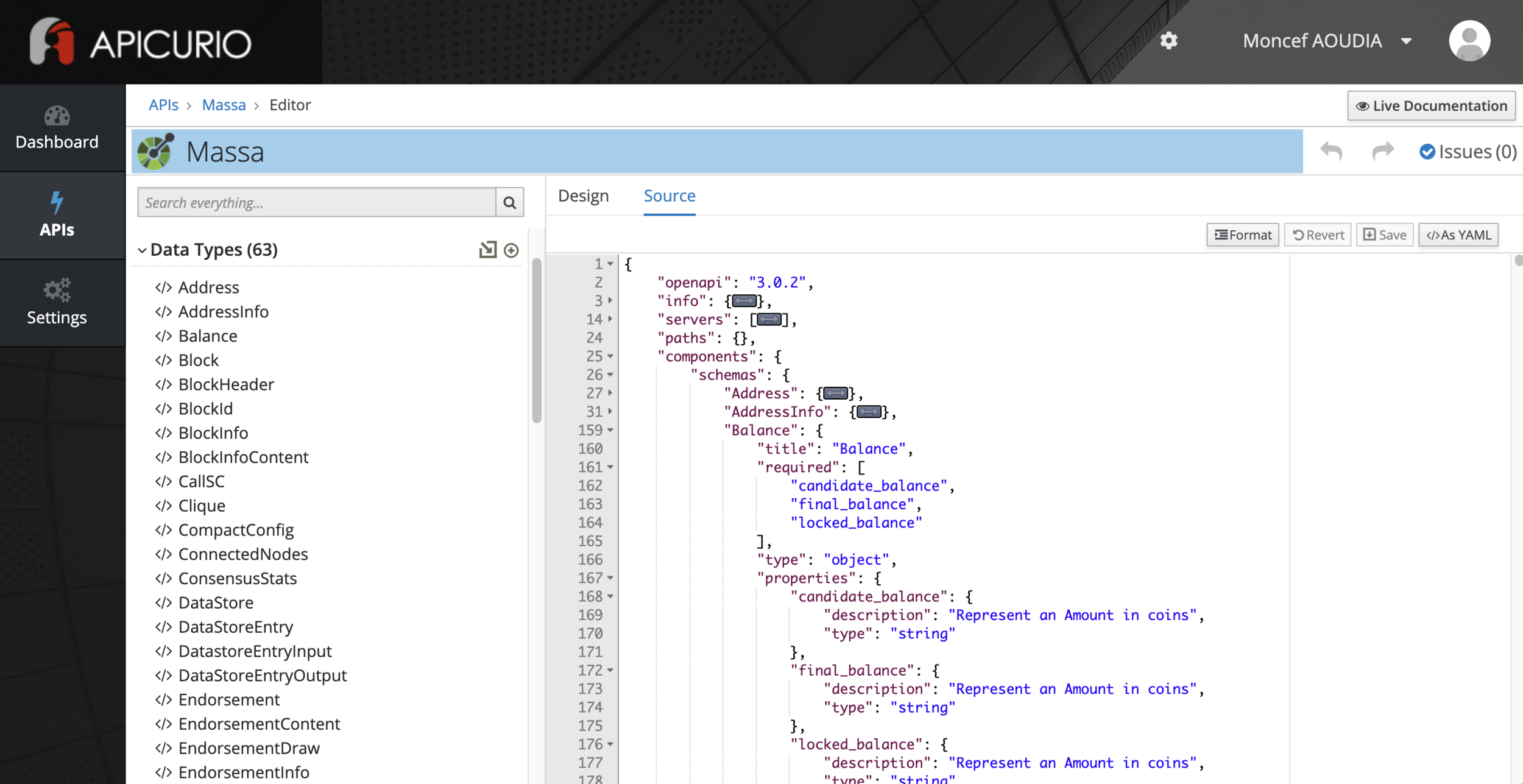

ApiCurio studio: OpenAPI 2&3 contracts editor

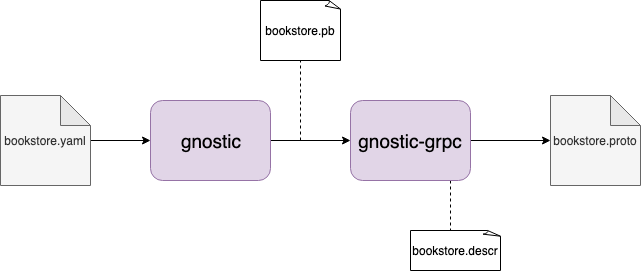

OpenAPI to gRPC ⚙️

Gnostic gRPC plugin: OpenAPI v3.0 API description into a description of a gRPC service using the Protocol Buffers language.

gnostic openapi.json --grpc-out=MY_OUTPUP_FOLDER

Demo 🖼️

Sources 📚

by Kasun Indrasiri, Danesh Kuruppu

Released January 2020

Publisher(s): O'Reilly Media, Inc.

ISBN: 9781492058335
