What is a graph?

Edge or Connection

Vertex or Node

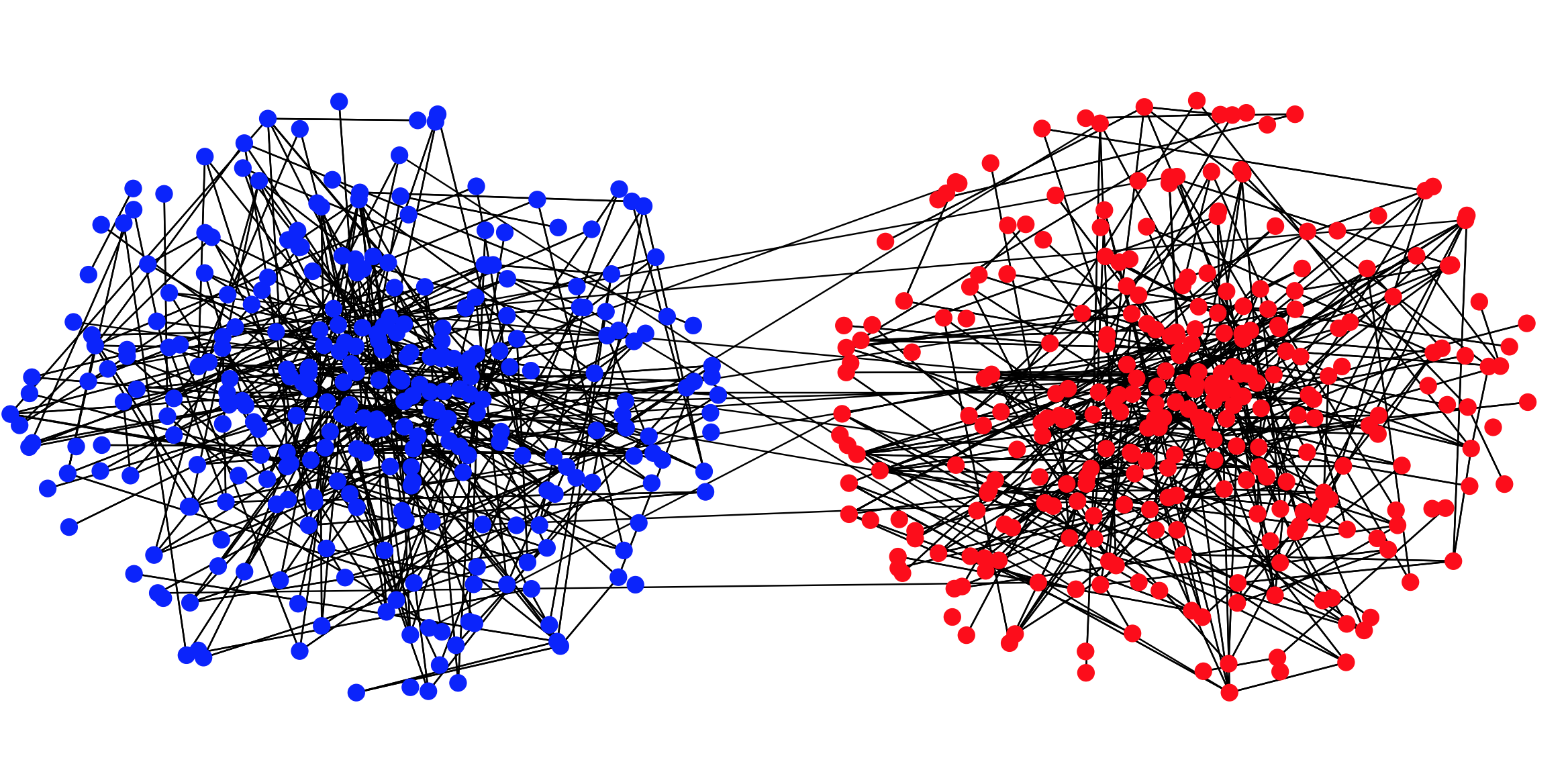

Our Problem: Finding communities in graphs

All possible combinations:

\mathcal{O}(2^n)

\mathcal{O}(2^n)

10^7

10^7

n= 20 more than

A generic clustering problem :

\underset{x}{\text{min}}

\underset{x}{\text{min}}

s.t.

s.t.

x_i = \{-1,1\}

x_i = \{-1,1\}

f(x)

f(x)

combinations

x \in \mathbb{R}^n

x \in \mathbb{R}^n

Relaxation a.k.a approximation

Difficult problem

Relaxed problem

Must hold:

\underset{x}{\text{min}}

\underset{x}{\text{min}}

s.t.

s.t.

x_i = \{-1,1\}

x_i = \{-1,1\}

f(x)

f(x)

\underset{x}{\text{min}}

\underset{x}{\text{min}}

s.t.

s.t.

-1 \leq x_i \leq 1

-1 \leq x_i \leq 1

f(x)

f(x)

\text{for}\ i=1,..n

\text{for}\ i=1,..n

\text{for}\ i=1,..n

\text{for}\ i=1,..n

Convex relaxation

In convex problems if optimal is found then is a global optimal

Community detection in many fields:

in biology finding groups of proteins with similar functionalities to explain biological processes
in social science to find groups that share traits. e.g finding potential research collaborations
in political science to find groups with a similar ideology
in ecology to find species
much more...

Graph theory 1: linear algebra representation

weighted edge

~~directed edge~~

~~self-loop~~

W := adjacency matrix

Example of adjacency matrix of a graph with communities

Graph theory 2: basic concepts

min-Distance:

\delta(1,4)=2

\delta(1,4)=2

\{v_1,v_3\}

\{v_1,v_3\}

\{v_2,v_3,v_4\}

\{v_2,v_3,v_4\}

Path-length 2:

Path-length 3:

Node-degree: nº of adjacent nodes

d_3=3

d_3=3

d_4=1

d_4=1

Path: ordered set of edges that join two nodes

Graph theory 3: counting walks of length-2

(W^2)_{ij} = \sum_{k=1}^N w_{ik}w_{kj}

(W^2)_{ij} = \sum_{k=1}^N w_{ik}w_{kj}

(W^2)_{25} = w_{21}w_{15}+w_{23}w_{35}+w_{22}w_{25}+w_{24}w_{45}+w_{25}w_{55}=2

(W^2)_{25} = w_{21}w_{15}+w_{23}w_{35}+w_{22}w_{25}+w_{24}w_{45}+w_{25}w_{55}=2

(W^2)_{44} = w_{43}w_{34} = d_4 = 1

(W^2)_{44} = w_{43}w_{34} = d_4 = 1

on undirected unweighted graphs

Graph theory 3: counting walks of length-n

(W^n)_{ij} = \sum_{k_1=1}^N \sum_{k_1=1}^N \sum_{k_{n-2}=1}^N \sum_{k_{n-1}=1}^N a_{i,k_1}a_{k_1,k_2}...a_{k_{n-2},k_{n-1}}a_{k_{n-1},j}

(W^n)_{ij} = \sum_{k_1=1}^N \sum_{k_1=1}^N \sum_{k_{n-2}=1}^N \sum_{k_{n-1}=1}^N a_{i,k_1}a_{k_1,k_2}...a_{k_{n-2},k_{n-1}}a_{k_{n-1},j}

(W^3)_{25} = w_{23}w_{31}w_{15}+w_{21}w_{13}w_{35}=2

(W^3)_{25} = w_{23}w_{31}w_{15}+w_{21}w_{13}w_{35}=2

on undirected unweighted graphs

Graph theory 4: Centrality, Communicability and Betweenness

Which vertices/edges are important?

Centrality: Importance of a node
Communicability: well-connectedness between 2 nodes
Betweenness: How much information flows through a node or edge

well-communicated

high centrality

high betweenness

Graph theory 4: Centrality, Communicability and Betweenness

Centrality node i:
Communicability node i and j:
Betweenness node r:

f(W) = \sum_{n=1}^{\infty}c_nW^n

f(W) = \sum_{n=1}^{\infty}c_nW^n

We can define in terms of walks

f(W)_{ii}

f(W)_{ii}

f(W)_{ij}

f(W)_{ij}

\frac{1}{(N-1)^2-(N-1)} {\sum\sum}_{i\neq j,j\neq r,\neq r}\frac{f(W)_{ij}-f(W-E(r))_{ij}}{f(W)_{ij}}

\frac{1}{(N-1)^2-(N-1)} {\sum\sum}_{i\neq j,j\neq r,\neq r}\frac{f(W)_{ij}-f(W-E(r))_{ij}}{f(W)_{ij}}

down-weighting parameter

walks of length n

Graph theory 4: Centrality, Communicability and Betweenness

f(W) = \Big(I + W + \frac{W^2}{2!} + ... + \frac{W^k}{k!} + ...\Big)

f(W) = \Big(I + W + \frac{W^2}{2!} + ... + \frac{W^k}{k!} + ...\Big)

c_n = \frac{1}{n!}

c_n = \frac{1}{n!}

Special case:

f(W) = e^W

f(W) = e^W

Then..

Graph theory 5: the graph-Laplacian

L := D-W

L := D-W

Very nice properties:

x^TLx = \frac{1}{2}\sum_{i,j}^n w_{ij}(x_i-x_j)^2

x^TLx = \frac{1}{2}\sum_{i,j}^n w_{ij}(x_i-x_j)^2

For any vector :

x \in \mathbb{R}^n

x \in \mathbb{R}^n

L is symmetric positive semidefinite:

x^TLx \geq 0

x^TLx \geq 0

is always a eigenvector with eigenvalue 0:

\overrightarrow{1}

\overrightarrow{1}

\overrightarrow{1}L = 0

\overrightarrow{1}L = 0

Back to our problem: Community detection

In terms of the graph-Laplacian

have trivial solution

We have to introduce a balancing constraint

but it becomes difficult to solve...

Spectral Relaxation

Expanded feasible set for

but still, non-convex...

\mathbb{R}^2

\mathbb{R}^2

Why is this non-convex relaxation good?

Eigendecomposition and :

From properties of L:

\overrightarrow{1}L = 0

\overrightarrow{1}L = 0

The second eigenvector is the solution for the relaxed problem!

Orthogonal matrix

Semidefinite relaxation (SDR)

change of variables

\sum_{ij}w_{ij}x_ix_j = \sum_{ij}w_{ij}y_{ij} = \text{tr}(LY)

\sum_{ij}w_{ij}x_ix_j = \sum_{ij}w_{ij}y_{ij} = \text{tr}(LY)

equivalent

relaxed problem

Convex problem!

Extracting solutions from SDR 1:

Low rank approximation + k-means

Low-rank approximation of Y

An optimal Y

Ordered spectrum of optimal Y

K-means with V rows as features

Extracting solutions from SDR 2: Randomization

X as a random variable

E[x] = 0

E[x] = 0

Stochastic Optimization Problem

equivalent to SDR

Sample
Make e.g
Reject unbalanced samples
Evaluate in objective
Repeat from 1

x_i = \text{sgn}(y_i)

x_i = \text{sgn}(y_i)

y

y

\zeta \sim \mathbb{N}(0,Y)

\zeta \sim \mathbb{N}(0,Y)

Augmented Adjacency Matrix 1: the idea

Recall

should :

Encourage pairing together alike nodes

Discourage pairing together dissimilar nodes

w_{ij}

w_{ij}

e.g

W:=

W:=

w_{ij}=1 \quad \text{if} \ i \ and \ j \ connected

w_{ij}=1 \quad \text{if} \ i \ and \ j \ connected

w_{ij}=0 \quad otherwise

w_{ij}=0 \quad otherwise

Augmented adjacency matrix 2: Communicability

C:=

C:=

c_{ij}=high \quad \text{if} \ i \ and \ j \ \text{well-connected}

c_{ij}=high \quad \text{if} \ i \ and \ j \ \text{well-connected}

c_{ij}=low \quad otherwise

c_{ij}=low \quad otherwise

C = f(W) = \sum_{n=1}^{\infty}c_nW^n

C = f(W) = \sum_{n=1}^{\infty}c_nW^n

Augmented adjacency matrix 3: Distance

D =

D =

W =

W =

S = W - D

S = W - D

Synthetic data: Stochastic Block Model (SBM)

Synthetic Data: degree-corrected(DC) -SBM

Results on synthetic data

Experiments on real datasets

Zachary Karate club

Bottlenose Dolphins network

Results on real datasets

Silhouette index:

Modularity:

Conclusions

SDP can approximate hard clustering problems making them computationally feasible while keeping high performance

Different definitions of the node connections can enhance separability. E.g: communicability, distance

Different metrics, lead to different partitions. There isn't universal definition of community.

Convex Relaxation Techniques
