Cómo buscar pienso para tu gato con MongoDB Atlas Search

Clara Jiménez Recio

¡Hola! 👋🏻

Free-time Alexa Skills Developer 🤓

Full Stack Developer & Lover 👩🏻‍💻❤️

Alexa Champion 🏆

Clara Jiménez Recio

¡Hola! 👋🏻

Free-time Alexa Skills Developer 🤓

Full Stack Developer & Lover 👩🏻‍💻❤️

Alexa Champion 🏆

Search Index

Analyzers

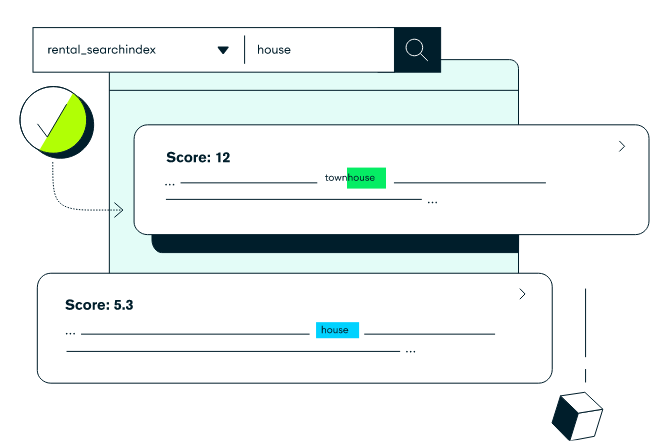

MongoDB Atlas Search

Search Query

Autocomplete

Hacks

Search Index

Analyzers

MongoDB Atlas Search

Search Query

Autocomplete

Hacks

Vector Search + LLMs

MongoDB Atlas Search

Fuzzy Searching
Synonyms
Rich Queries
Autocomplete

MongoDB Atlas Search

Apache Lucene
Fuzzy Searching
Synonyms
Rich Queries
Autocomplete

MongoDB Atlas Search

Fuzzy Searching
Synonyms
Custom Scoring
Rich Queries
Autocomplete

Search Index

{
  "name": {
    "type": "String"
  }
}

{
  "name": {
    "type": ["String"]
  }
}

{
  "analyzer": "lucene.standard",
  "mappings": {
    "dynamic": false,
    "fields": {
      "name": {
        "type": "string"
      }
    }
  }
}

string, array of strings

Search Index

{
  "translations": [
    {
      "lang": {
        "type": "String"
      },
      "name": {
        "type": "String"
      }
    }
  ]
}

{
  "analyzer": "lucene.standard",
  "mappings": {
    "dynamic": false,
    "fields": {
      "translations": {
        "dynamic": false,
        "type": "embeddedDocuments",
        "fields": {
          "name": {
            "type": "string"
          }
        }
      }
    }
  }
}

array of objects

Search Index

{
  "translations": [
    {
      "lang": {
        "type": "String"
      },
      "name": {
        "type": "String"
      }
    }
  ]
}

array of objects

{
  "analyzer": "lucene.standard",
  "mappings": {
    "dynamic": false,
    "fields": {
      "translations": {
        "dynamic": false,
        "type": "embeddedDocuments",
        "fields": {
          "name": {
            "type": "string"
          }
        }
      }
    }
  }
}

{
  "analyzer": "lucene.standard",
  "mappings": {
    "dynamic": false,
    "fields": {
      "translations": {
        "dynamic": false,
        "type": "embeddedDocuments",
        "fields": {
          "name": {
            "type": "string"
          },
          "lang": {
            "type": "string"
          }
        }
      }
    }
  }
}

Search Index

{
  "analyzer": "lucene.standard",
  "mappings": {
    "dynamic": false,
    "fields": {
      "translations": {
        "type": "document",
        "fields": {
          "es": {
            "type": "document",
            "fields": {
              "name": {
                "type": "string"
              }
            }
          },
          "en": {
            "type": "document",
            "fields": {
              "name": {
                "type": "string"
              }
            }
          }
          ...
        }
      }
    }
  }
}

{
  "translations": {
    "es": {
      "name": {
        "type": "String"
      }
    },
    "en": {
      "name": {
        "type": "String"
      }
    }
    ...
  }
}

dictionary

Analyzers

pienso

gatos

esterilizados

pienso

especial

para

gatos

esterilizados

🔎 Pienso gatos esterilizados

{
  "name": "Pienso especial para gatos ESTERILIZADOS"
}

Analyzer

Tokens

🕵️‍♀️

Analyzers

Analyzer	Separator	Transformation	Case sensitive	Only exact matches
Standard	word boundaries (language-neutral)	lowercase	No	No
Simple	non-letter characters	lowercase	No	No
Whitespace	whitespaces	none	Yes	No
Keyword	none	none	Yes	Yes

Language Analyzers

Custom Analyzers (stemming, stopwords,...)

Analyzers

Name	Standard	Simple	Whitespace	Keyword

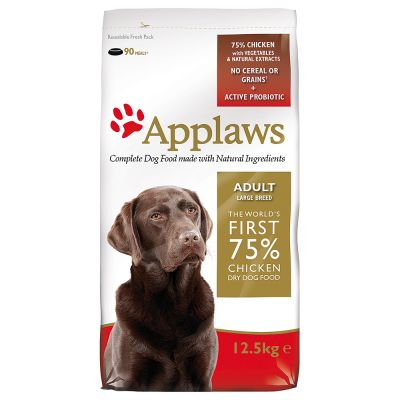

Applaws	applaws	applaws	Applaws	Applaws

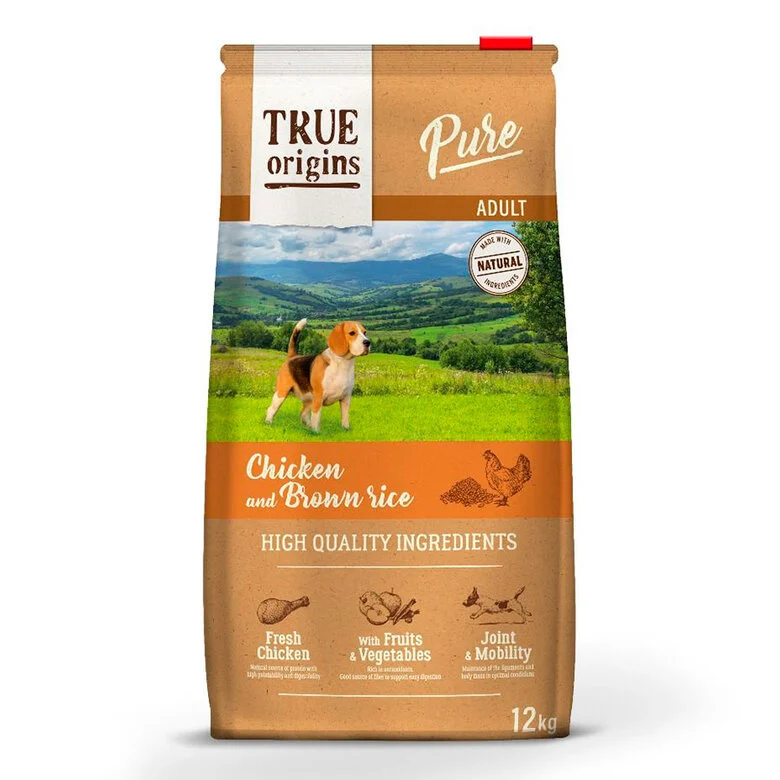

True Origins	true, origins	true, origins	True, Origins	True Origins

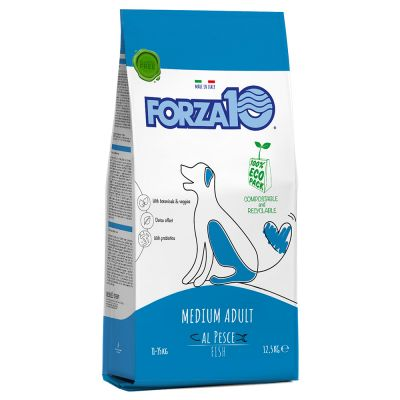

Forza 10	forza, 10	forza	Forza, 10	Forza 10
Nature's Variety	nature's, variety	nature, s, variety	Nature's, Variety	Nature's Variety

Tokens 🇦🇧🇨

Analyzers

Analyzer	Tokens	Matches
Standard	applaws	✅
Simple	applaws	✅
Whitespace	Applaws	✅
Keyword	Applaws	✅

🔎 Applaws

Analyzers

Analyzer	Tokens	Matches
Standard	applaws	✅
Simple	applaws	✅
Whitespace	Applaws	❌
Keyword	Applaws	❌

🔎 applaws

Analyzers

Analyzer	Tokens	Matches
Standard	true, origins	✅
Simple	true, origins	✅
Whitespace	True, Origins	✅
Keyword	True Origins	✅

🔎 True Origins

Analyzers

Analyzer	Tokens	Matches
Standard	true, origins	✅
Simple	true, origins	✅
Whitespace	True, Origins	✅
Keyword	True Origins	❌

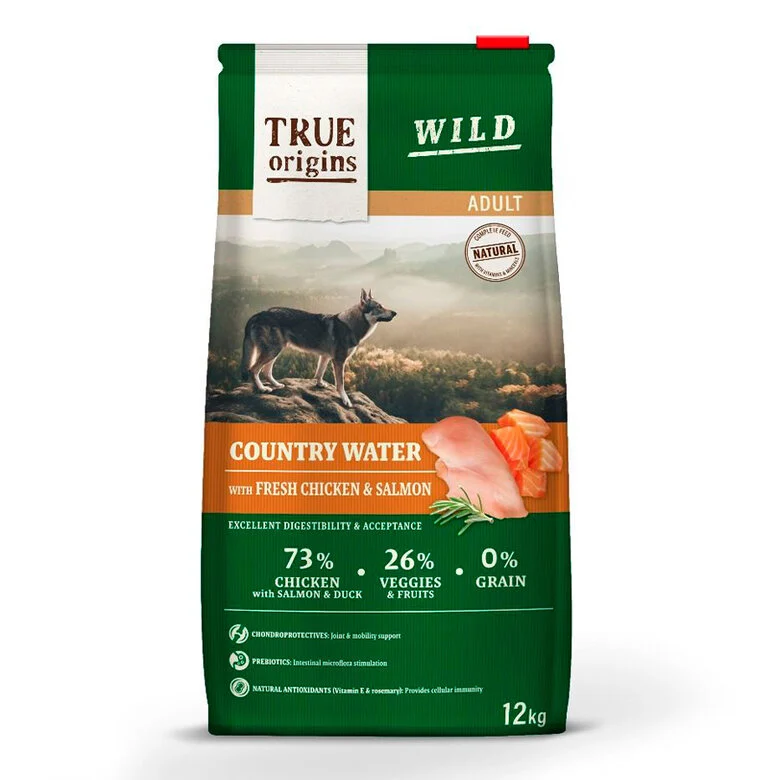

🔎 True Origins Wild

Analyzers

Analyzer	Tokens	Matches
Standard	nature's, variety	✅
Simple	nature, s, variety	✅
Whitespace	Nature's, Variety	✅
Keyword	Nature's Variety	✅

🔎 Nature's Variety

Analyzers

Analyzer	Tokens	Matches
Standard	nature's, variety	✅
Simple	nature, s, variety	✅
Whitespace	Nature's, Variety	✅
Keyword	Nature's Variety	❌

🔎 Nature's

Analyzers

🔎 Forza 10

Analyzer	Tokens	Matches
Standard	forza, 10	✅
Simple	forza	✅
Whitespace	Forza, 10	✅
Keyword	Forza 10	✅

Analyzers

🔎 10

Analyzer	Tokens	Matches
Standard	forza, 10	✅
Simple	forza	❌
Whitespace	Forza, 10	✅
Keyword	Forza 10	❌

Search Query

Operators:

text
phrase
compound
embeddedDocument
autocomplete

{
  "$search": {
    "text": {
      "query": "Pienso",
      "path": ["name", "description"],
      "fuzzy": {
        "maxEdits": 1,
        "maxExpansions": 10,
        "prefixLength": 0
      }
    }
  }
}

{
  "$search": {
    "phrase": {
      "query": "Pienso gatos esterilizados",
      "path": ["name", "description"],
      "slop": 2
    }
  }
}

{
  "$search": {
    "compound": {
      "must": [
        {
          "text": {
            "query": "Pienso",
            "path": "name",
            "fuzzy": {
              "maxEdits": 1,
              "maxExpansions": 10,
              "prefixLength": 0
            }
          }
        }
      ],
      "should": [
        {
          "phrase": {
            "query": "Pienso gatos esterilizados",
            "path": "description",
            "slop": 2
          }
        }
      ]
    }
  }
}

{
  "$search": {
    "autocomplete": {
      "query": "Pien",
      "path": "name",
      "fuzzy": {
        "maxEdits": 1,
        "maxExpansions": 10,
        "prefixLength": 2
      }
    }
  }
}

{
  "$search": {
    "embeddedDocument": {
      "path": "translations",
      "operator": {
        "text": {
          "path": "translations.name",
          "query": "Pienso"
        }
      }
    }
  }
}

Autocomplete

Check if a word or phrase contains a sequence of characters from an
incomplete input string
Search-as-you-type applications

Autocomplete

{
  "analyzer": "lucene.standard",
  "mappings": {
    "dynamic": false,
    "fields": {
      "name": [
        {
          "type": "autocomplete",
          "tokenization": "edgeGram",
          "minGrams": 2,
          "maxGrams": 8,
          "foldDiacritics": true
        }
      ]
    }
  }
}

Autocomplete Index (string, ~~array of strings~~)

Autocomplete

{
  "analyzer": "lucene.standard",
  "mappings": {
    "dynamic": false,
    "fields": {
      "name": [
        {
          "type": "autocomplete",
          "tokenization": "edgeGram",
          "minGrams": 2,
          "maxGrams": 8,
          "foldDiacritics": true
        }
      ]
    }
  }
}

standard
pienso, para, gatos

edgeGram

pi, pie, pien, piens, pienso, pienso[space], pienso p, pa, par, para, para[space], para g, para ga, para gat, ga, gat, gato, gatos

rightEdgeGram

os, tos, atos, gatos, [space]gatos, a gatos, ra gatos, ra, ara, para, [space]para, o para, so para, nso para, so, nso, enso, ienso, pienso

nGram

pi, pie, pien, piens, pienso, pienso[space], pienso p, ie, ien, iens, ienso, ienso[space], ienso p, ienso pa, en, ens, enso, enso[space], enso p, enso pa, enso par, ns, nso, nso[space], nso p, nso pa, nso par, nso para,... 😵

Autocomplete Index (string, ~~array of strings~~)

Autocomplete

{
  "analyzer": "lucene.standard",
  "mappings": {
    "dynamic": false,
    "fields": {
      "translations": {
        "dynamic": false,
        "type": "embeddedDocuments",
        "fields": {
          "name": {
            "type": "autocomplete",
            "tokenization": "edgeGram",
            "minGrams": 2,
            "maxGrams": 8,
            "foldDiacritics": true
          }
        }
      }
    }
  }
}

Autocomplete Index (array of objects)

Autocomplete

{
  "analyzer": "lucene.standard",
  "mappings": {
    "dynamic": false,
    "fields": {
      "translations": {
        "type": "document",
        "fields": {
          "es": {
            "type": "document",
            "fields": {
              "name": {
                "type": "autocomplete",
                "tokenization": "edgeGram",
                "minGrams": 2,
                "maxGrams": 8,
                "foldDiacritics": true
              }
            }
          },
          ...
        }
      }
    }
  }
}

Autocomplete Index (dictionary)

🇪🇸🇫🇷🇩🇪🇺🇲🏴󠁧󠁢󠁥󠁮󠁧󠁿󠁧󠁢󠁥󠁮󠁧󠁿🇵🇹🇳🇱🇨🇳

😶‍🌫️

Autocomplete

{
  "analyzer": "lucene.standard",
  "mappings": {
    "dynamic": false,
    "fields": {
      "translations": {
        "type": "document",
        "fields": {
          "es": {
            "type": "document",
            "fields": {
              "name": {
                "type": "autocomplete",
                "tokenization": "edgeGram",
                "minGrams": 2,
                "maxGrams": 8,
                "foldDiacritics": true
              }
            }
          },
          ...
        }
      }
    }
  }
}

Autocomplete Index (dictionary)

🇪🇸🇫🇷🇩🇪🇺🇲🏴󠁧󠁢󠁥󠁮󠁧󠁿󠁧󠁢󠁥󠁮󠁧󠁿🇵🇹🇳🇱🇨🇳

😶‍🌫️

{
  "$search": {
    "autocomplete": {
      "query": "Pien",
      "path": ["translations.es.name", "translations.en.name", ...]
    }
  }
}

compound 😵‍💫

Autocomplete

{
  "analyzer": "lucene.standard",
  "mappings": {
    "dynamic": false,
    "fields": {
      "translations": {
        "type": "document",
        "fields": {
          "es": {
            "type": "document",
            "fields": {
              "name": {
                "type": "autocomplete",
                "tokenization": "edgeGram",
                "minGrams": 2,
                "maxGrams": 8,
                "foldDiacritics": true
              }
            }
          },
          ...
        }
      }
    }
  }
}

Autocomplete Index (dictionary)

{
  "$search": {
    "autocomplete": {
      "query": "Pien",
      "path": ["translations.es.name", "translations.en.name", ...]
    }
  }
}

compound 😵‍💫

Autocomplete

Name	Standard	Simple	Whitespace	Keyword
Applaws	ap, app, appl, appla, applaw, applaws	ap, app, appl, appla, applaw, applaws	Ap, App, Appl, Appla, Applaw, Applaws	Ap, App, Appl, Appla, Applaw, Applaws
True Origins	tr, tru, true, true[space], true o, true or, true ori, or, ori, orig, origi, origin, origins	tr, tru, true, true[space], true o, true or, true ori, or, ori, orig, origi, origin, origins	Tr, Tru, True, True[space], True O, True Or, True Ori, Or, Ori, Orig, Origi, Origin, Origins	Tr, Tru, True, True[space], True O, True Or, True Ori
Forza 10	fo, for, forz, forza, forza[space], forza 1, forza 10, 10	fo, for, forz, forza	Fo, For, Forz, Forza, Forza[space], Forza 1, Forza 10, 10	Fo, For, Forz, Forza, Forza[space], Forza 1, Forza 10
Nature's Variety	na, nat, natu, natur, nature, nature', nature's, va, var, vari, varie, variet, variety	na, nat, natu, natur, nature, nature', nature's, va, var, vari, varie, variet, variety	Na, Nat, Natu, Natur, Nature, Nature', Nature's, Va, Var, Vari, Varie, Variet, Variety	Na, Nat, Natu, Natur, Nature, Nature', Nature's

Tokens 🇦🇧🇨

(usando edgeGram)

Hacks

{
  "$search": {
    "autocomplete": {
      "query": "Pienso gatos",
      "path": "name"
    }
  }
}

{
  "$search": {
    "autocomplete": {
      "query": "Pienso",
      "path": "name"
    }
  }
}

Hacks

{
  "$search": {
    "compound": {
      "must": [
        {
          "autocomplete": {
            "query": "Pienso",
            "path": "name"
          }
        },
        {
          "autocomplete": {
            "query": "gatos",
            "path": "name"
          }
        }
      ]
    }
  }
}

{
  $search: {
    autocomplete: {
      query: "Pienso gatos",
      path: "name",
      tokenOrder: "sequential"
    }
  }
}

MongoDB Atlas Vector Search

Embedding

[0.9, 0.02, 0.1,...]

🔎 Question

[0.9, 0.08, 0.1,...]

Embedding

Answer

$vectorSearch

MongoDB Atlas

Store

Context Documents

Prompt

LLM

MongoDB Atlas Vector Search

[0.9, 0.02, 0.1,...]

🔎 Question

[0.9, 0.08, 0.1,...]

Answer

MongoDB Atlas

Prompt

LLM

Embedding

Store

Embedding

$vectorSearch

Retrieval-augmented generation (RAG)

Context Documents

Vector Search + LLMs

[0.9, 0.02, 0.1,...]

🔎 Question

[0.9, 0.08, 0.1,...]

Answer

MongoDB Atlas

Prompt

LLM

Embedding

Store

Embedding

$vectorSearch

Retrieval-augmented generation (RAG)

Context Documents

¿Qué pienso tiene más proteína de origen animal? También quiero que tenga l-carnitina y taurina

composition_emb

composition
