GeoSHAPE: FOSS GIS Collaboration Platform with Web & Mobile Clients

slides.com/geoshape/geoshape

Who are we?

Syrus Mesdaghi

Co-Founder

syrusm@prominentedge.com

Daniel Berry

dberry@boundlessgeo.com

Software Engineer

What will we cover?



  • What is GeoSHAPE
  • GeoSHAPE Components
    • MapLoom
    • GeoNode
    • GeoServer
    • GeoGig
  • Installing GeoSHAPE
  • Software Components (RPMs)
  • Demo
  • Roadmap
  • Q&A

Developed Under ROGUE-JCTD Project



  • Part of a set of capabilities known as GeoSHAPE
  • geoshape.org
  • github.com/rogue-jctd
  • https://groups.google.com/forum/#!forum/geoshape
  • Goal: streamline collaboration on geospatial data between distributed partners
  • Since 'partners' can include different government agencies, organizations, volunteer groups
    • GeoSHAPE had to be free and open source
    • Easy to deploy
  • Each partner will have their own instance of GeoSHAPE
    • Can edit and synchronize with other instances
      • Initial funding of GeoGig
    • Fully operational in disconnected mode

GeoSHAPE Components

MapLoom

Web-based Viewer/Editor With GeoGIG integration



github.com/rogue-jctd/maploom

MapLoom

  • Developed to address our challenges with GeoExplorer
  • OpenLayers 3 + Angular + Bootstrap
  • We embed it in GeoNode, but can be stand alone
  • Bring in layers from local and remote servers
  • Supports time dimension
  • WGS84 Support (Raster Reprojection)
  • MGRS Support
  • GeoGIG Integration

GeoNode

Manage Layers, Maps, Users & Groups



github.com/GeoNode/geonode/

GeoNode

  • Hides GeoServer's complexity when dealing with layers and users
  • Allows you to customize your web application
  • Upload / Download Layers
  • Save / Load Maps
  • Manage Users and profiles
  • Manage Groups
  • Manage Permissions
  • Edit Styles

GeoServer

Serves GIS Vector & Raster data through OGC Standards



github.com/geoserver/geoserver

GeoServer

  • Does a lot of the heavy lifting behind the scenes
  • Manages data sources
  • Supports numerous spatial formats
  • Exposes OGC standards for accessing layers

GeoGig

  • A data source that focuses on versioning vector data
  • De-centralized Version Control System
  • Heavily inspired by Git, but it is not Git
  • Instead of versioning controlling text files, it versions layers / features
  • You can commit, pull, push, branch, merge, revert, clone, shallow clone, sparse clone, and many operation which exist in git
  • Should be used instead of PostGIS only when history matters
    • GeoGig optimized for history
    • PostGIS optimized for performance
  • github.com/locationtech/geogig

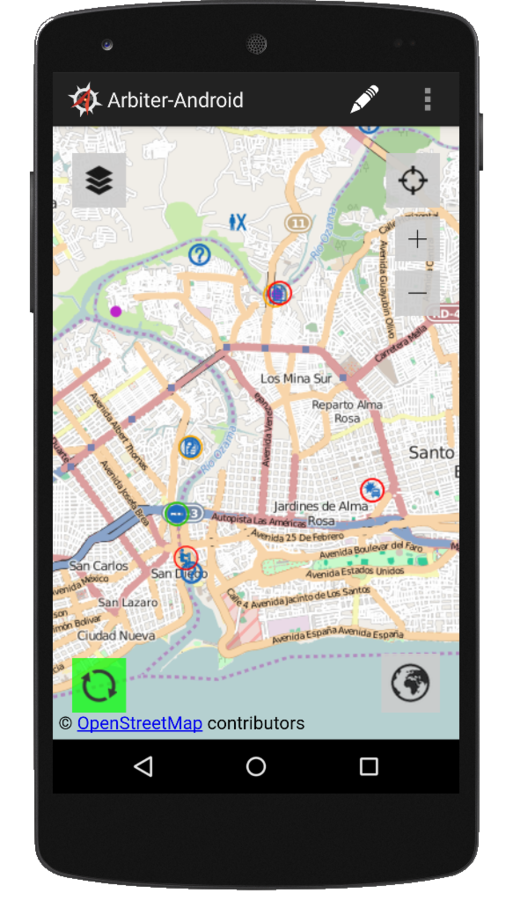

Arbiter

Mobile application for viewing / collecting data

Arbiter

  • Mobile application for viewing / collecting data
  • Allows you to easily attach photos to features
  • Designed to works in disconnected mode
  • It downloads the vector data based on your area of interest
  • Uses mbtiles for the basemap
  • Native Android UI + Open Layers

Installing GeoSHAPE

  • See doc on geoshape.org
  • Install git, virtual box, and vagrant
  • run vagrant up

Software Components (RPMs)

:8000

:80/443

:8009

:9200

:5672

:5432

GeoGig

GeoServer

GeoSHAPE

Demo!

Roadmap

  • Geogig support high-availability
  • PostgreSQL or SQLite backend storage for GeoGig
  • Docker Integration
  • osgeo-importer
  • Arbiter update
  • Powerful discovery of layers in maploom
  • Ability to bring in data from more remote sources
  • Security Updates

Final Thoughts

  • We contribute all changes back to each project
  • Use can use GeoSHAPE in whole or individual components
  • Several companies/organizations have been contributing back
  • Currently accepting pull requests ;)

Q&A
