Intro

For What?

No more teaching

Quickly figure out bug

As SPEC

End how to verify nightmare

Take over

...

Problem

• Everyone use different test method/framework
• Forget to run unittest
• Hard to deploy test envrionment
• No Report
• ...

Problem

• Everyone use different test method/framework
  • Uniform framework (python-unittest)
• Forget to run unittest
  • We run for you
• Hard to deploy test envrionment
  • Lots of libraries to setup environment and send webapi
• No Report
  • Website to show report and result

Two Parts

• CI
  • Union CI system
  • Both QC & RD can add test scripts
• Performance
  • Union environment & script
  • Simple UI to trigger
  • Visualisation queue & Job percentage

Object

• Waht is archtecture of SynoCI framework?
• How to write, run and check result of test?

What our framework would do?

• Trigger Time
  • DSM/SRM build
  • Package build
  • Manually
• Framework Do
  • Install DS/Router to specific version
• Framework Not Do
  • install package
  • create volume
  • create share ....

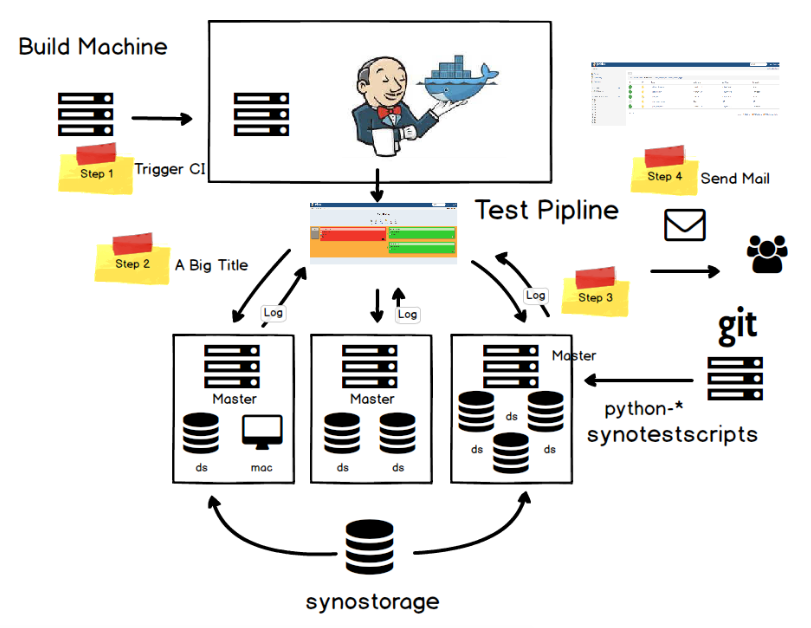

Arch Introduce

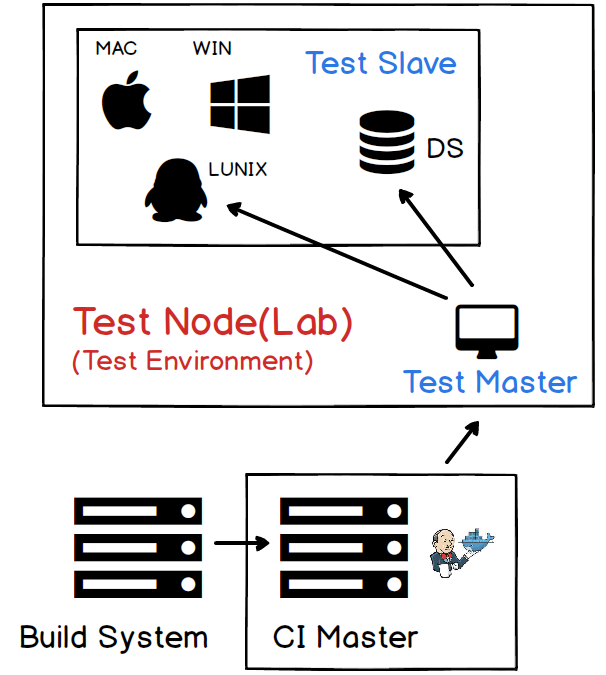

Role

• Jenkins + CI Master

• Test Master

• DS + Win + Mac

Jenkins + CI Master

• Entry point

• Maitain job queue

  • One lab exec one job at the same time

• Setup CI system environment

• Flow

  • update CI Master scripts code

  • create new jenkins job

  • update jenkins job confing

  • update pkg-dsm version mapping

• Command test Master to do things

Test Master

• Setup DS environemnt & Run test scripts

• Flow

  • update test scripts code to specific branch

  • Run SynoCI

• Code

  • pkgscripts-ng/ci_utils/*

  • lnxscripts/ci_utils/*

DS + Win + Mac

• Receive commands to run

  • ssh + telent
  • webapi
  • pyro

Test Master

• DSM
  • lnxscripts/SynoCI
• Package
  • pkgscripts-ng/SynoCI
• Run SynoCI would auto change to python virtual env

% ./SynoCI -h
usage: SynoCI [COMMAND] [OPTIONS]

optional arguments:
  -h, --help  show this help message and exit

commands:

  Genereral commands:
    list          List tasks of the suite
    update        Update CIENVS library include (python-synowebapi,python-synodeploy
                                                ,python-synopyro,python-synomail)
    log           Show last run result log of the suite
    list_suites   List all suites

  Code generate commands:
    new           Create a testsuites template
    gen           Generate a testcase
    gen_webapi    Generate a webapi testcase
    del           Undo code generate with "generate"

  Run the tests:
    run           Run tests

SynoCI Run

positional arguments:
  suite                 Run the testsuites

optional arguments:
  -h, --help            show this help message and exit
  -t testcase [testcase ...], --testcases testcase [testcase ...]
                        test case list
  -g PATH, --group PATH
                        specify group to run
  -c PATH, --config PATH
                        config file path [Default:
                        /synosrc/package/source/[Your
                        Project]/SynoTest/config.py]
  -d PATH, --dslist PATH
                        Config file of test DiskStation list [Default:
                        /synosrc/package/CIENVS/venv/etc/ds_conf.py]
  -w PATH, --winlist PATH
                        Config file of Windows list [Default:
                        /synosrc/package/CIENVS/venv/etc/win_conf.py]
  -m PATH, --maclist PATH
                        Config file of Mac list [Default:
                        /synosrc/package/CIENVS/venv/etc/mac_conf.py]
  -x PATH, --lnxlist PATH
                        Config file of Linux list [Default:
                        /synosrc/package/CIENVS/venv/etc/linux_conf.py]
  -l LEVEL, --loglevel LEVEL
                        debug|info|warning|error|critical [Default: info]
  -u, --unittest        Only run unittest
  -r, --regression      Only run regression test
  --ds_version DS_VERSION
                        specify ds version
  --pkg_version PKG_VERSION
                        package version store in
                        SYNOTESTCONF._SYNOCI_PKG_VERSION

SynoCI update

% ./SynoCI update -h
usage: SynoCI [COMMAND] [OPTIONS] update [-h] [-U] [-p PATH] [-v]

example:
  SynoCI update      // Update CIENVS and update local projects(python-syno*)

example:
  SynoCI update -U   // Update CIENVS but not update local project

optional arguments:
  -h, --help            show this help message and exit
  -U, --no_update_local
                        Not update python-* projects from git server or not
  -p PATH, --path PATH  The path to clone projs [Default:
                        /synosrc/package/source]
  -v, --verbosity       Show all update to stdout

Write Test

Naming & Structure

Simplest Webapi Test

• Find project to place scripts

• SynoCI new

• Write jenkins_job.yml

• Write test

• SynoCI run

import unittest
from synowebapi.webapi import WebAPI
from synodeploy.ds_deploy.remote_cmd_exec import RemoteCmdExec

class TestWebapiTest(unittest.TestCase):
    ''' This is a Python unittest Example'''
    DS = SYNOTESTCONF.DS

    @classmethod
    def setUpClass(cls):
        pass

    @classmethod
    def tearDownClass(cls):
        pass

    def test_utilization_webapi(self):
        params = {
            "method":"get",
            "version":1,
            "type":"current",
            "resource":[
                "cpu","memory",
                "network"
            ]
        }
        with WebAPI(host=self.DS.ip, usr=self.DS.usr, pwd=self.DS.pwd, port=5000) as webapi:
            ret = webapi.sendAPI(api='SYNO.Core.System.Utilization', **params)
            self.assertEqual(ret["success"], True)

    def test_synogetkeyvalue(self):
        with RemoteCmdExec(self.DS) as api:
            cmd = '/usr/syno/bin/synogetkeyvalue /etc/synoinfo.conf company_title'
            ret_code, out, err = api.remote_exec_cmd(cmd)
            self.assertEqual(ret_code, 0)
            self.assertEqual(out.strip(), 'Synology')

More example on synotestscripts

Check Result

CI Report

• Report Web

  • synotestscripts/ci-report-web/README.md

• Jenkins log

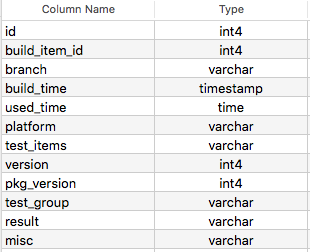

DB

• Postgres

  • Host: 10.12.12.182

  • Account: ci_report

  • Password: ci_report

  • Database: ci_report

Setup Self Test Lab

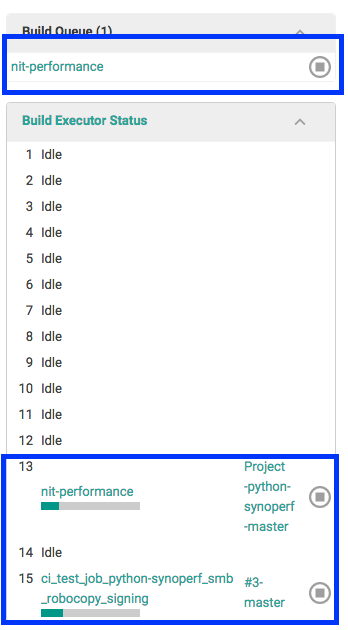

Build queue

Running Status

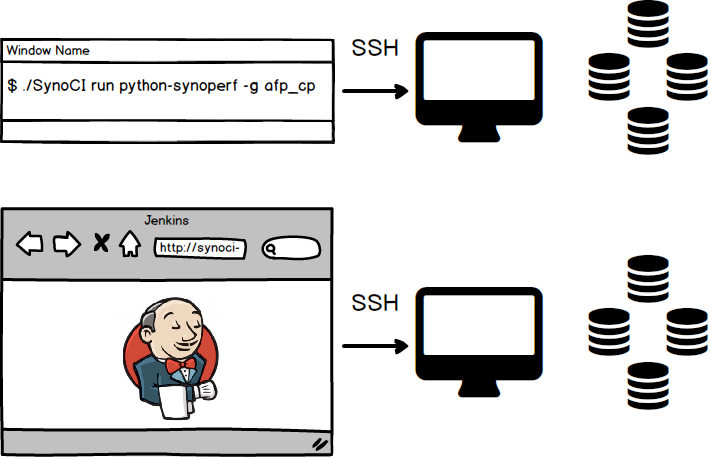

Why Using Jenkins?
