Data Manipulation

Buisness Analytics

Basics

Pandas DataFrame

Creating a DataFrame

Import the library

import pandas as pd

Create Dictionary

my_dict = {'vehicles': ['Toyota Camry', 'Ford Explorer', 'Ford F-150', 'Ford F-150', 'Ford Explorer', 'Toyota Prius', 'Toyota Tundra', 'Ford F-150'],
            'countries': ['USA', 'Canada', 'Ireland', 'Argentina', 'Ireland', 'Ireland', 'England', 'Ireland'],
            'sports': ['Basketball', 'Football', 'Soccer', 'Football', 'Hockley', 'Football', 'Football', 'Running']}

Create DataFrame

df = pd.DataFrame(my_dict)

Visualizing a DataFrame

Show first `n` Rows

df.head(5)

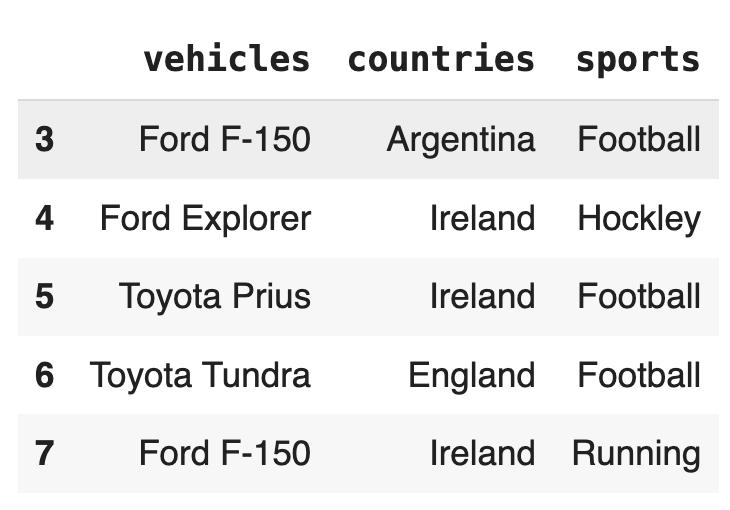

Show last `n` Rows

df.tail(5)

Visualizing a DataFrame

Frequency Table (Normalized)

df['countries'].value_counts(normalize=True)

Frequency Table (Counts)

df['countries'].value_counts()

Selecting Data From a DataFrame

Selecting a Row

df.loc[0]

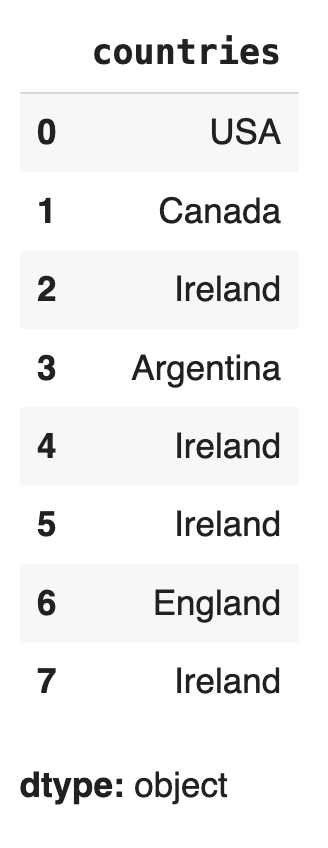

Selecting a Column

df['countries']

Selecting Data From a DataFrame

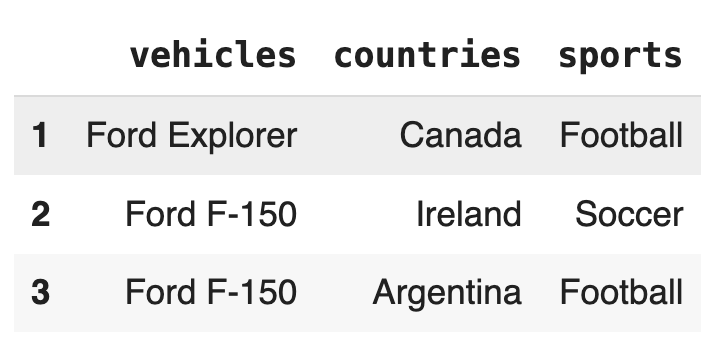

Selecting Multiple Rows

df.loc[1:3]

Selecting Multiple Columns

df[['countries', 'sports']]

Selecting Multiple Rows & Columns from a DataFrame

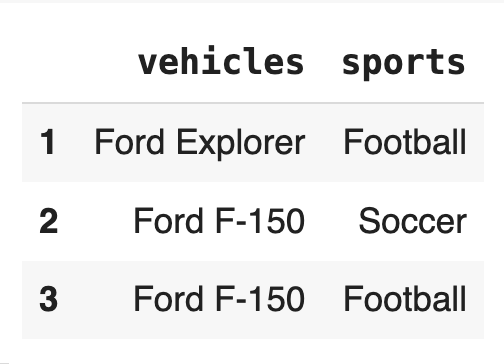

Selecting Multiple Rows and Columns

df.loc[1:3, ['vehicles', 'sports']]

Check Your Understanding

What happens if we write:

new_df = df.loc[1:3, ['vehicle', 'sports']]
new_df.loc[0]
# Try `new_df.iloc[0]` after

US Household Debt

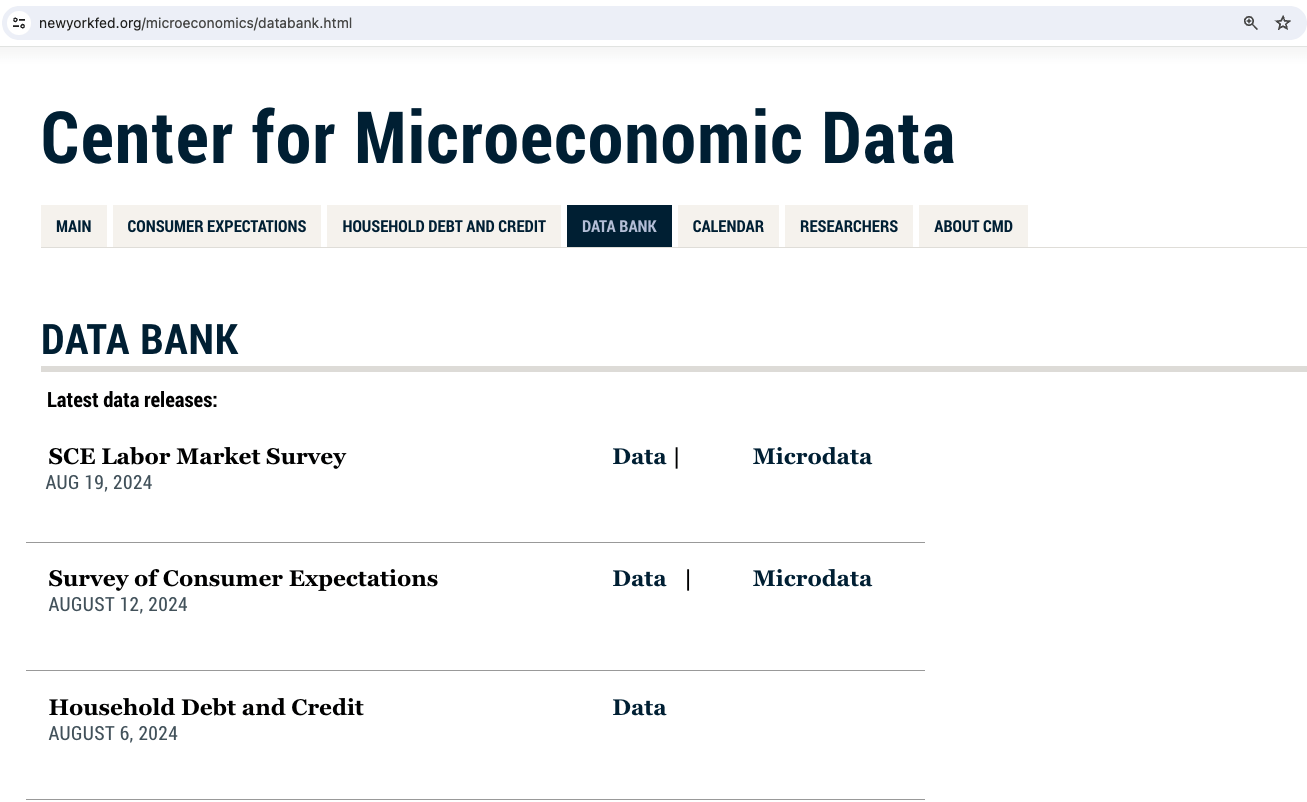

Website:

https://www.newyorkfed.org/microeconomics/databank.html

Click to download this data

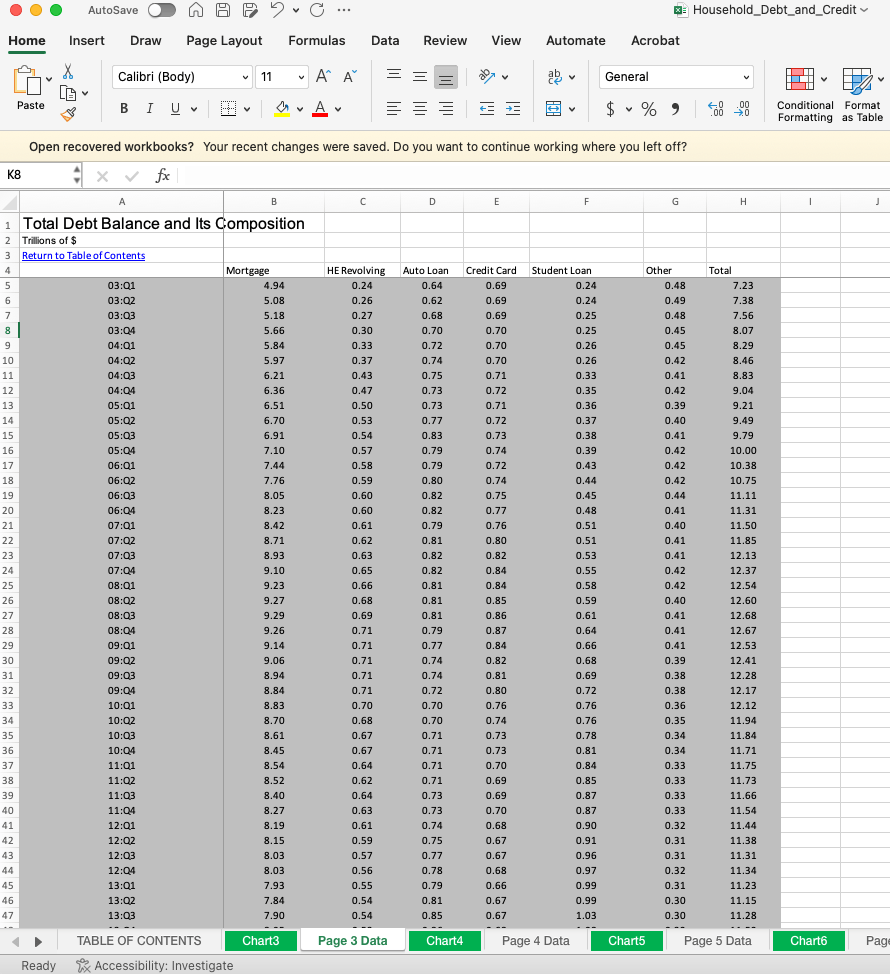

What Jumps out?

  • There are multiple tabs each corresponding to a different figure/dataset
  • The first column doesn't have a name
  • The column names are specified in the fourth row
df = pd.read_excel(io='/content/business-analytics/datasets/Household_Debt_and_Credit.xlsx',
                   sheet_name='Page 3 Data',
                   skiprows=3)

Read In Data

The file path (String)

io

The excel sheet (String)

sheet_name

The number of rows to skip when reading in the data (Int)

skiprows

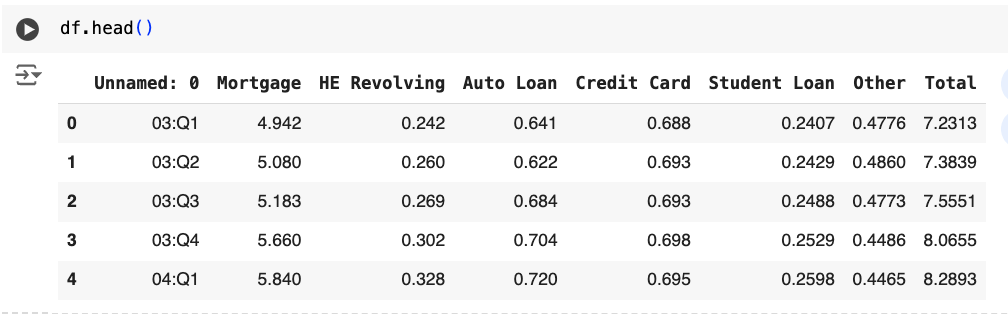

df.head()

Visualize the Dataset

df = df.rename(columns={'Unnamed: 0' : 'Period'})

Rename a Column

Original Name

New Name

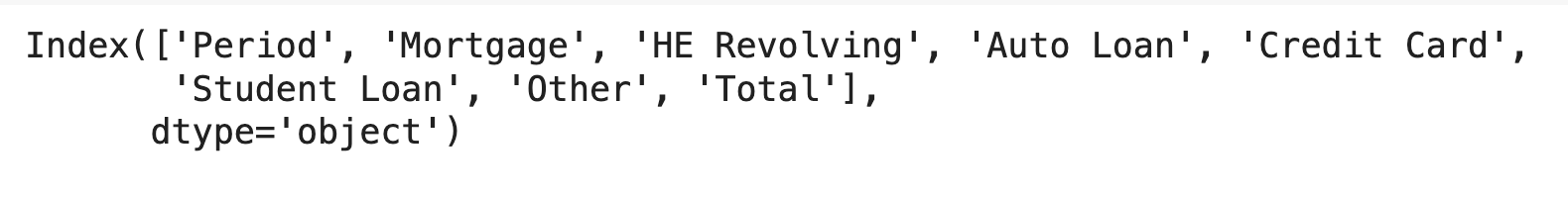

df.columns

All Columns

import matplotlib.pyplot as plt
plt.plot(df['Period'], df['Mortgage'])
plt.show()

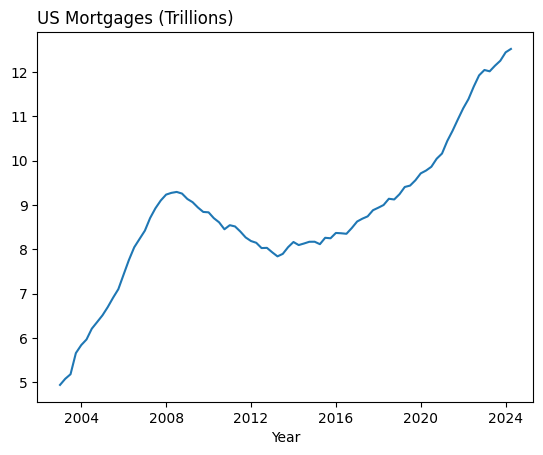

Time Line Plot

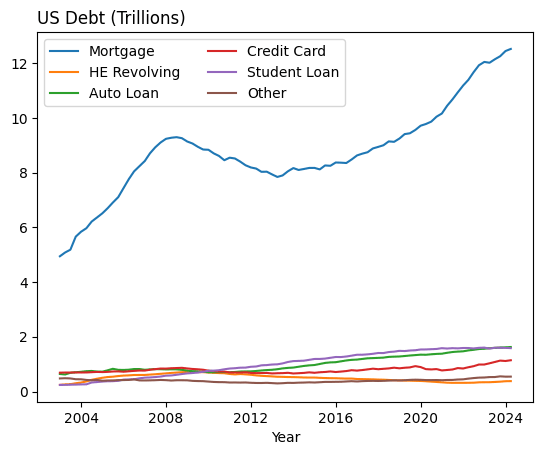

Check Your Understanding

Using a for loop, create the following figure

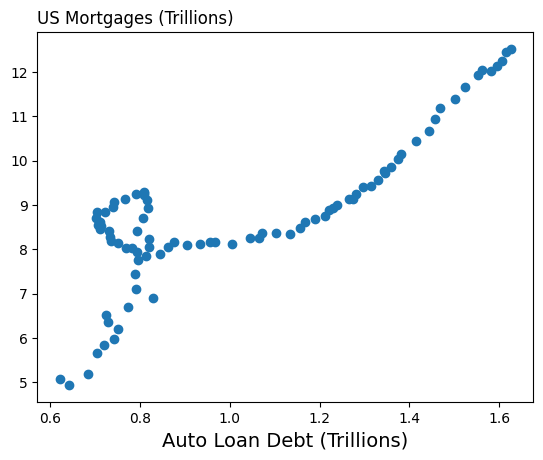

Scatter Plot

plt.scatter(df['Auto Loan'], df['Mortgage'])
plt.title('US Mortgages (Trillions)', loc='left')
plt.xlabel('Auto Loan Debt (Trillions)', size=14)
plt.show()

Correlation Coefficient

It’s a measure of how linearly related two variables are

r = \frac{\sum (x_i - \bar{x})(y_i - \bar{y})}{\sqrt{\sum (x_i - \bar{x})^2 \sum (y_i - \bar{y})^2}}

Interpretation

-1
1
0
.1
-.1
-.3
-.7
.3
.7

Negative

Positive

Strong

Strong

Moderate

Moderate

Weak

Weak

Not

df['Auto Loan'].corr(df['Mortgage'])

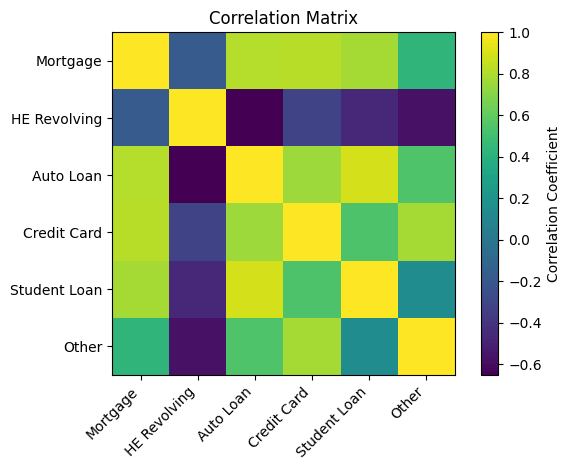

Check Your Understanding

Using a for loop, create the following figure

MASSACHUSETTS Mortgages

Frequency Table (Continuous Variables)

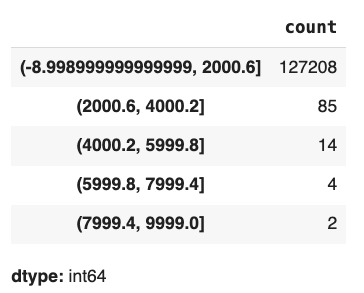

df['applicant_income_000s'].value_counts(bins=5)

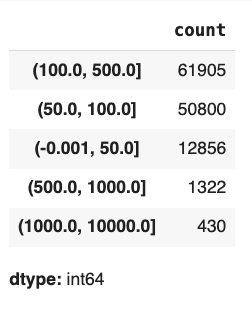

df['applicant_income_000s'].value_counts(bins=[0, 50, 100, 500, 1000, 10000])

Bar Plot

New DataFrame

new_df = df['applicant_income_000s'].value_counts(normalize=True,
                                                  bins=[0, 50, 100, 500, 1000, 10000])

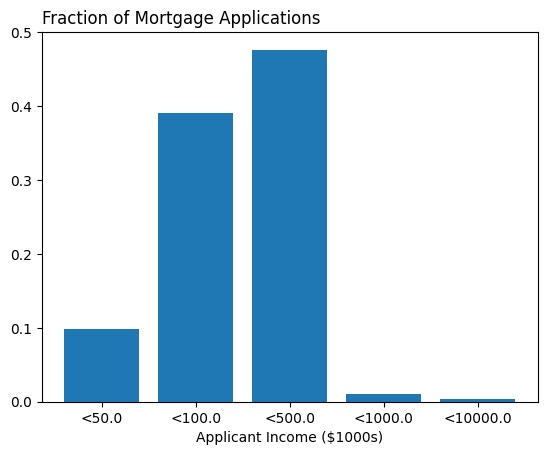

Bar Plot

plt.bar('<' + new_df.index.astype(str) , new_df.values)
plt.title('Fraction of Mortgage Applications', loc='left')
plt.xlabel('Applicant Income ($1000s)')
plt.show()
new_df = df['applicant_income_000s'].value_counts(normalize=True,
                                                  bins=[0, 50, 100, 500, 1000, 10000])
new_df.index = new_df.index.map(lambda x: x.right).sort_index()

New Index

(Ignore this for the time being)

Filtering

  •  Create a subset of a dataset where each observation satisfies some condition

Create a new data set that contains only loan types which are Conventional

Example

Process

(1) Create a Boolean Series

(2) Index the Data Frame with the Boolean Series

Boolean Series

  •  The term for a list like object in pandas is a series
  •  A boolean series is a essentially a series of values that are either True or False
  • We can create boolean series by applying logical operations follows

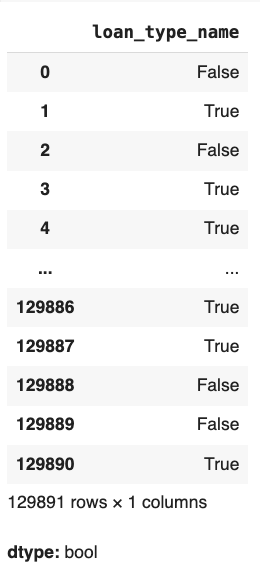

df['loan_type_name'] == 'Conventional'

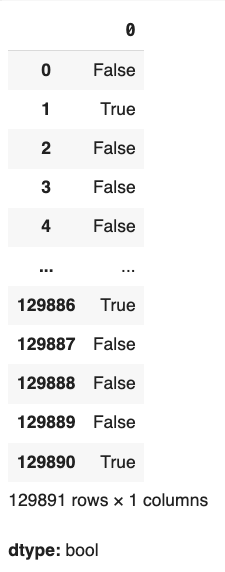

Boolean Series

  • We can create boolean series by applying logical conditionals to multiple boolean series
(df['loan_type_name'] == 'Conventional') & (df['loan_purpose_name'] == 'Home purchase')
& # And
| # Or
~ # Not

Check Your Understanding

Create a boolean series that takes the value True if the agency_abbr is not HUD

Indexing a DataFrame

  • Having created a boolean series, we can simply use it to index the DataFrame
df[df['loan_type_name'] == 'Conventional']
  • This will output only the observations which satisfy this condition
  • We can use .loc to also keep just a subset of the columns
df.loc[df['loan_type_name'] == 'Conventional', 'property_type_name']

Sorting

  • We can sort a DataFrame using the `sort_values()` method as follows
df.sort_values(by='loan_amount_000s')
  • By default, pandas will sort in ascending order (meaning from low to high). We can change this by specify:
df.sort_values(by='loan_amount_000s', ascending=False)

Groupby

  • Allows us to compute statistical measures across partitions of the data
df.groupby('loan_type_name')['loan_amount_000s'].mean()
  • Use `.agg()` method to apply compute multiple statistical measures
df.groupby('loan_type_name')['loan_amount_000s'].agg(['mean', 'median'])

Groupby

  • We can create temporary functions using `lambda`
lambda x: x**2
  • Use `.transform()` method to create new variables based on these within group statistical measures
df['normalized_loan_amount'] = df.groupby('loan_type_name')['loan_amount_000s'].transform(lambda x: (x - x.mean()) / x.std())

Atlanta Evictions

def f(x):
  return x**2

my_list = [0, 1, 2, 3, 4, 5]
new_list = []
for i in my_list:
  new_list.append(f(i))
print(new_list)

For Loops Revisited

my_list =

0
1
2
3
4
5

new_list =

0
1
4
9
16
25
f(0)
f(1)
f(2)
f(3)
f(4)
f(5)
def f(x):
  return x**2

For Loops Revisited

Map

map(f, my_list)

`map`: Built-in Python Function

`f`: Function we want to call

`my_list`: List we want to apply the function to

def f(x):
  return x**2

my_list = [0, 1, 2, 3, 4, 5]
new_list = []
for i in my_list:
  new_list.append(f(i))
print(new_list)

For Loop

def f(x):
  return x**2

my_list = [0, 1, 2, 3, 4, 5]
new_list = list(map(f, my_list))
print(new_list)

Map

def f(x, y):
  return x + y**2

my_list = [0, 1, 2, 3, 4, 5]
new_list = []
ans = 0
for i in my_list:
  ans = f(ans, i)
  new_list.append(ans)
print(new_list)

For Loops Revisited

Map

my_list =

0
1
2
3
4
5

new_list =

0
1
5
14
30
55
def f(x, y):
  return x + y**2
f
f
f
f
f
f
f
f
f
f
f

Kinds of Functions

Built-in

print()
+

Self-Made

def f(x):
  return x**2

Others

pd.read_csv()
pd.read_excel()

Temporary Functions

lambda x : x**2

Example:

x \longmapsto x^2
(lambda x : x**2)(4.)

Define and Call the function on the same line

my_list = [0, 1, 2, 3, 4, 5]
new_list = list(map(lambda x: x**2, my_list))
print(new_list)

Map & lambda

def f(x):
  return x**2

my_list = [0, 1, 2, 3, 4, 5]
new_list = list(map(f, my_list))
print(new_list)

Map

Map & lambda & Pandas

Transforming Columns to Create New Columns

mean = df['Jan 2020'].mean()
std = df['Jan 2020'].std()

df['Normalized Jan 2020'] = df['Jan 2020'].apply(lambda x: (x-mean)/std)

Apply & Filtering & lambda

Let's say I want to keep only the observations with more than 50 eviction filings during Jan & February of 2020

(1)

Create a new column that is equal to the number of Eviction Filings during Jan-February of 2020

(2)

Filter based on this column

df['First_Five'] = df.apply(lambda row: row['Jan 2020'] + row['Feb 2020'], axis=1)
condition = df['First_Five'] > 50
new_df = df[condition]

Interpretation

Distribution

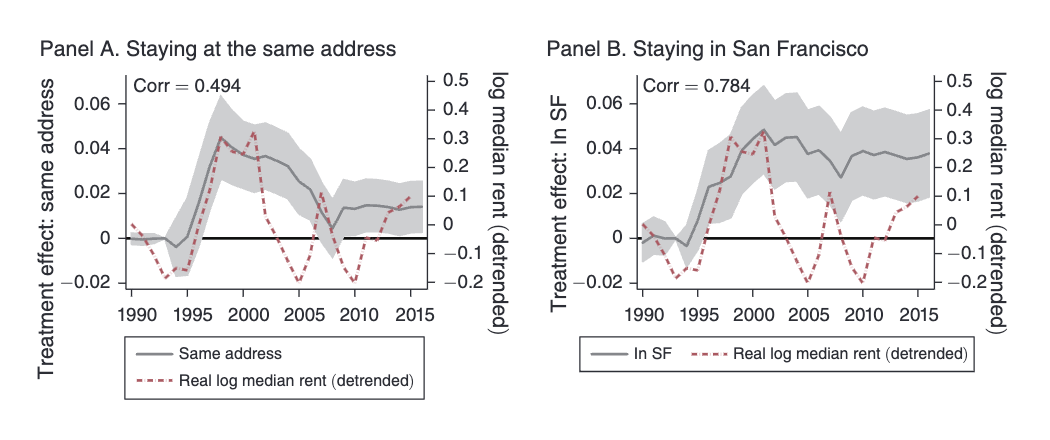

Soltas (20220

The Effects of Rent Control Expansion on Tenants, Landlords, and Inequality: Evidence from San Francisco
