Med Interface
CC2 Enhancements
New API's
Proposed Optimization
OUTLINE
What is it?
What is it?
Value added

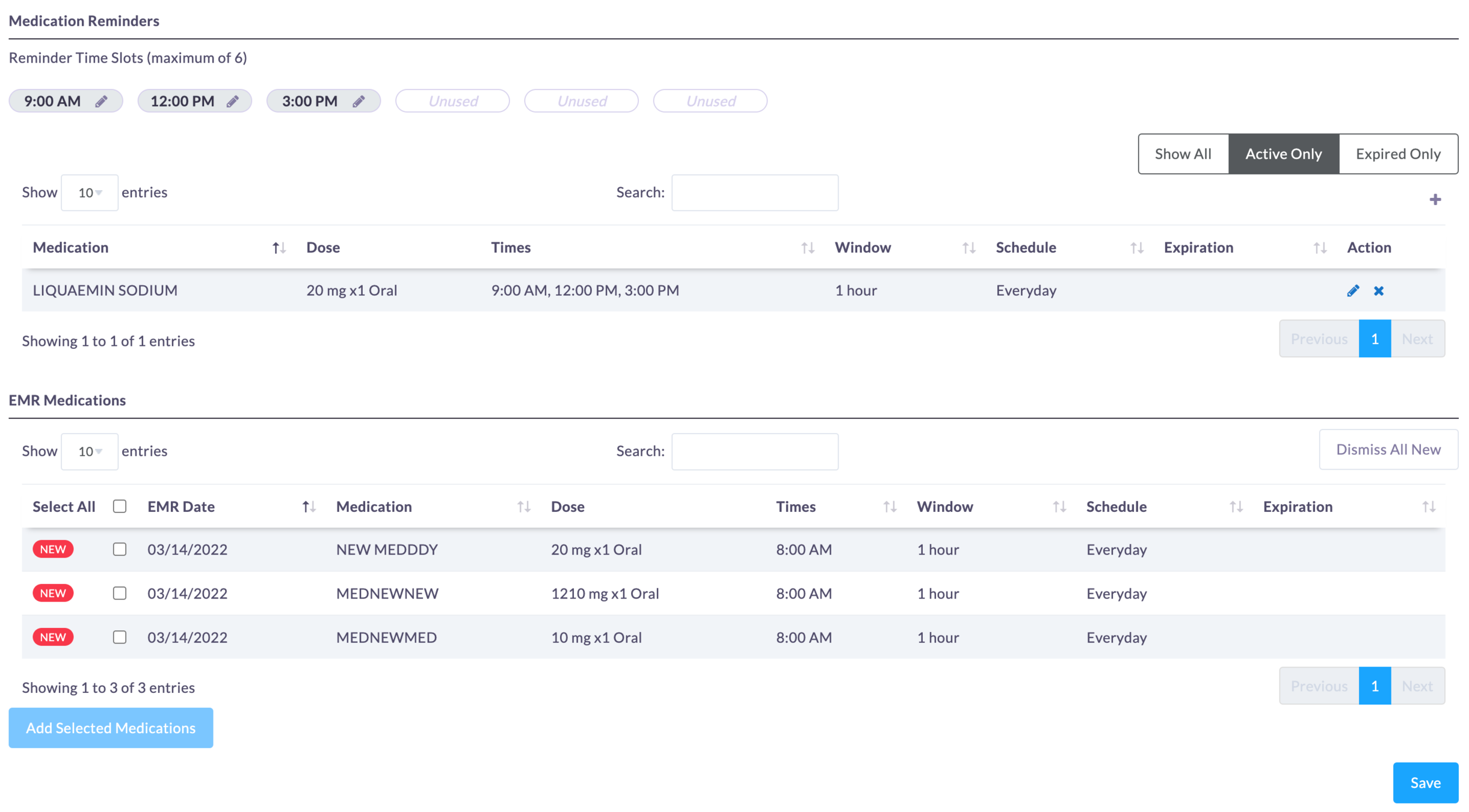

EMR Integration
What we're proud of
And Medication ORM/RDE's!
- FE Code
- almost 100% covered by unit tests
- robust TypeScript interfaces ubiquitously
- uses Async/Await promise syntax for all asynchronous code (in lieu of promise then/catch syntax)
- Rhapsody integration
- Restful Endpoint structure
Other technical accomplishments
What we're proud of
- Patients who take all of their Medications are 50% less likely to be re-admitted
- Should facilitate larger adoption of the medication reminders feature.
- EMR integration makes it much easier for medications to get into CC2
- Clinician control and acknowledgement before activation
- Major value added!
- Clients have been asking but due to legacy structure, it was not feasible until now
Benefits to the customer
What we're proud of
Complexity
| Name | Path | What |
|---|---|---|
| Medications | v1/medications | Environment list of medications |
| Prescribed Medications |
v1/prescribed-medications | Patient-specific list of medications with reconciliation status (relational to a user resource and medication resource) |
| User Tasks | v1/tasks | Reminders, schedule, active status (relational to a prescribed-medication resource) |
MEET The Endpoints
From /moduleinfo to a more restful structure

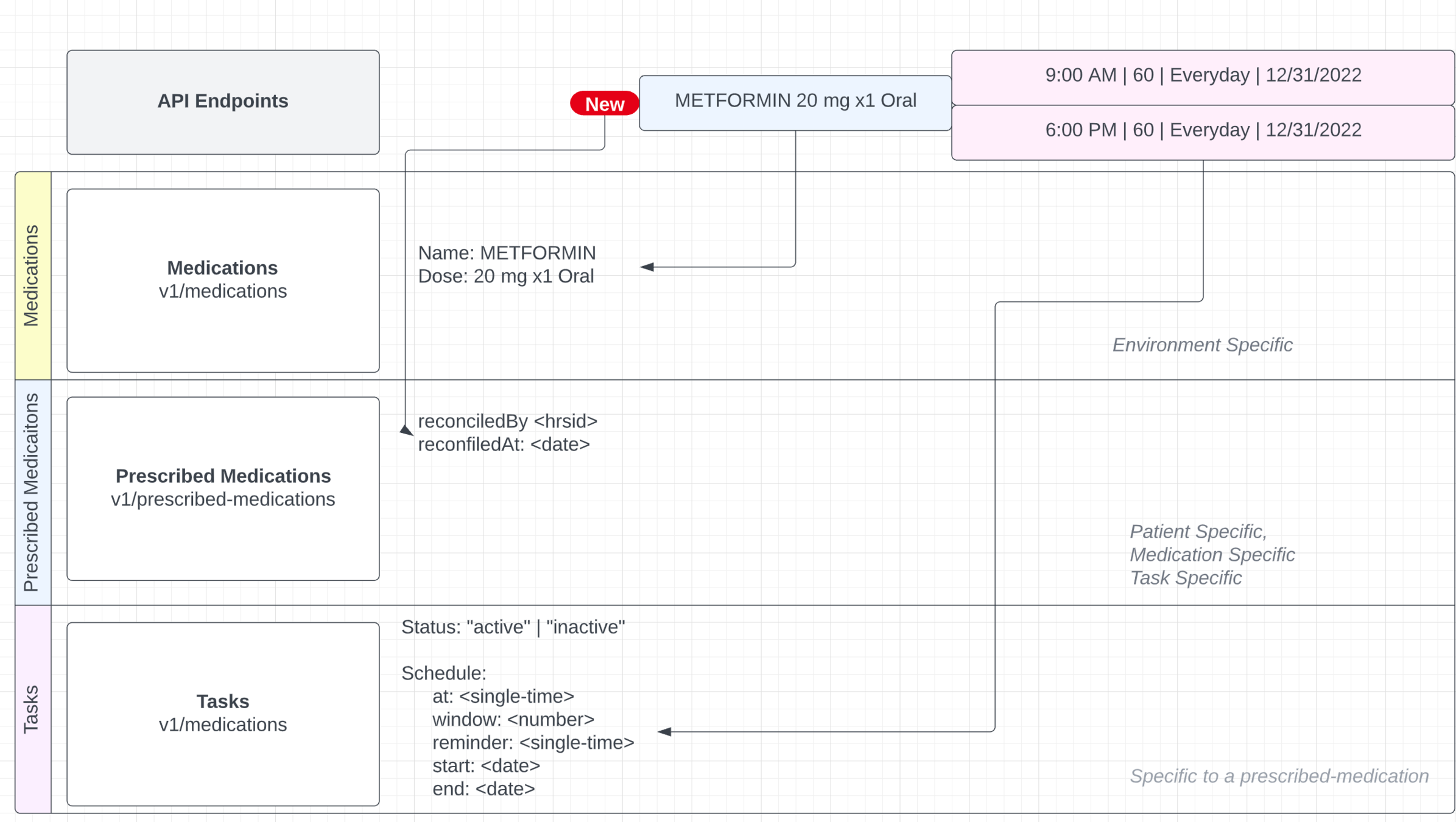

Anatomy of a CC2
Medication Reminder
9 Types of User Actions
POST medications
POST prescribed-medications
POST tasks
DELETE prescribed-medications
PATCH prescribed-medications
PATCH tasks
PATCH prescribed-medications
DELETE prescribed-medications
PATCH tasks
PATCH prescribed-medications
9 Types of User Actions (Cont'D)
PATCH prescribed-medications
PATCH tasks
POST medications
PATCH prescribed-medications
PATCH prescribed-medications
POST tasks
PATCH tasks
PATCH prescribed-medications
DELETE prescribed-medications
PATCH tasks
?

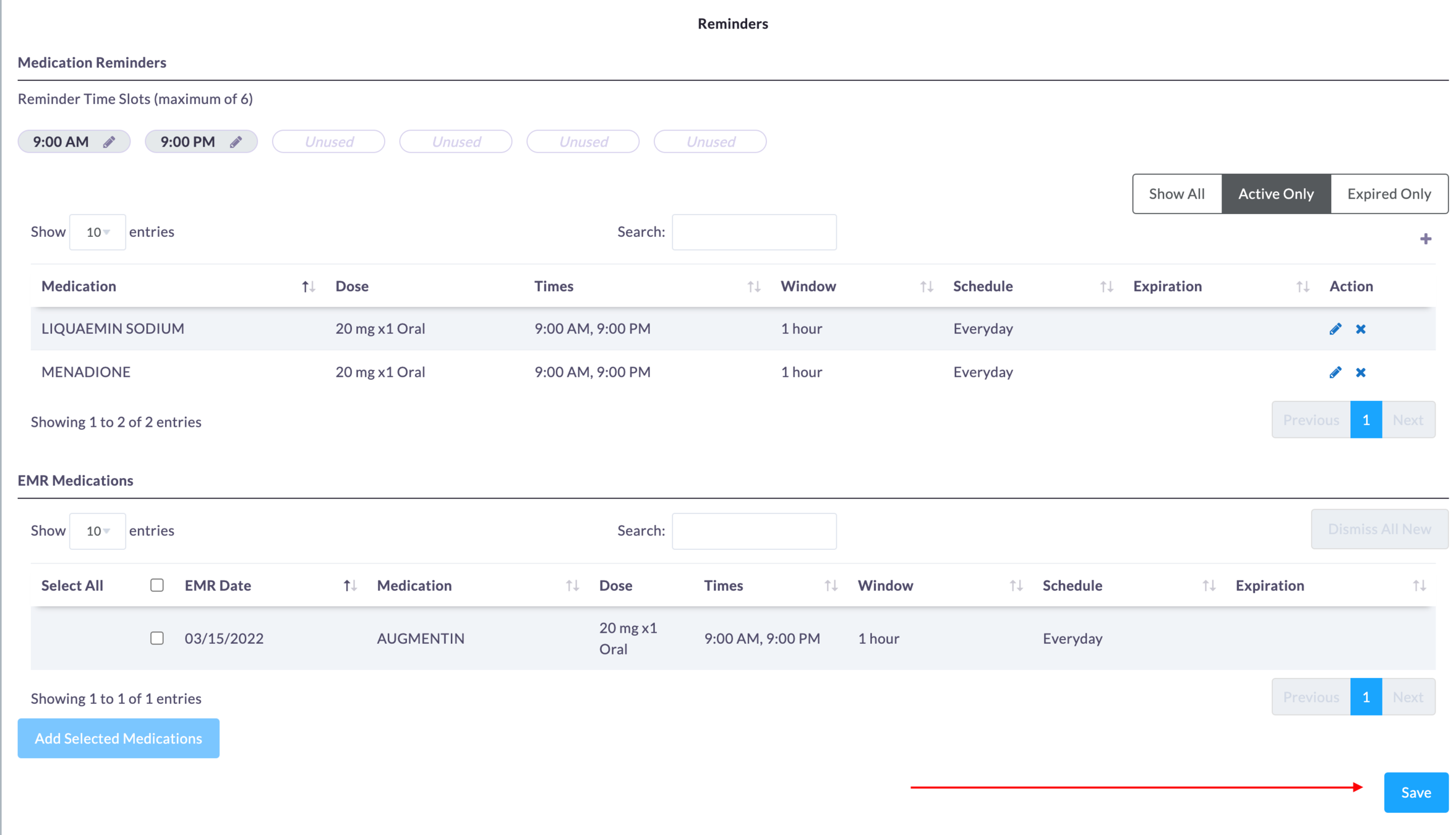

How many points to get the save button to work?

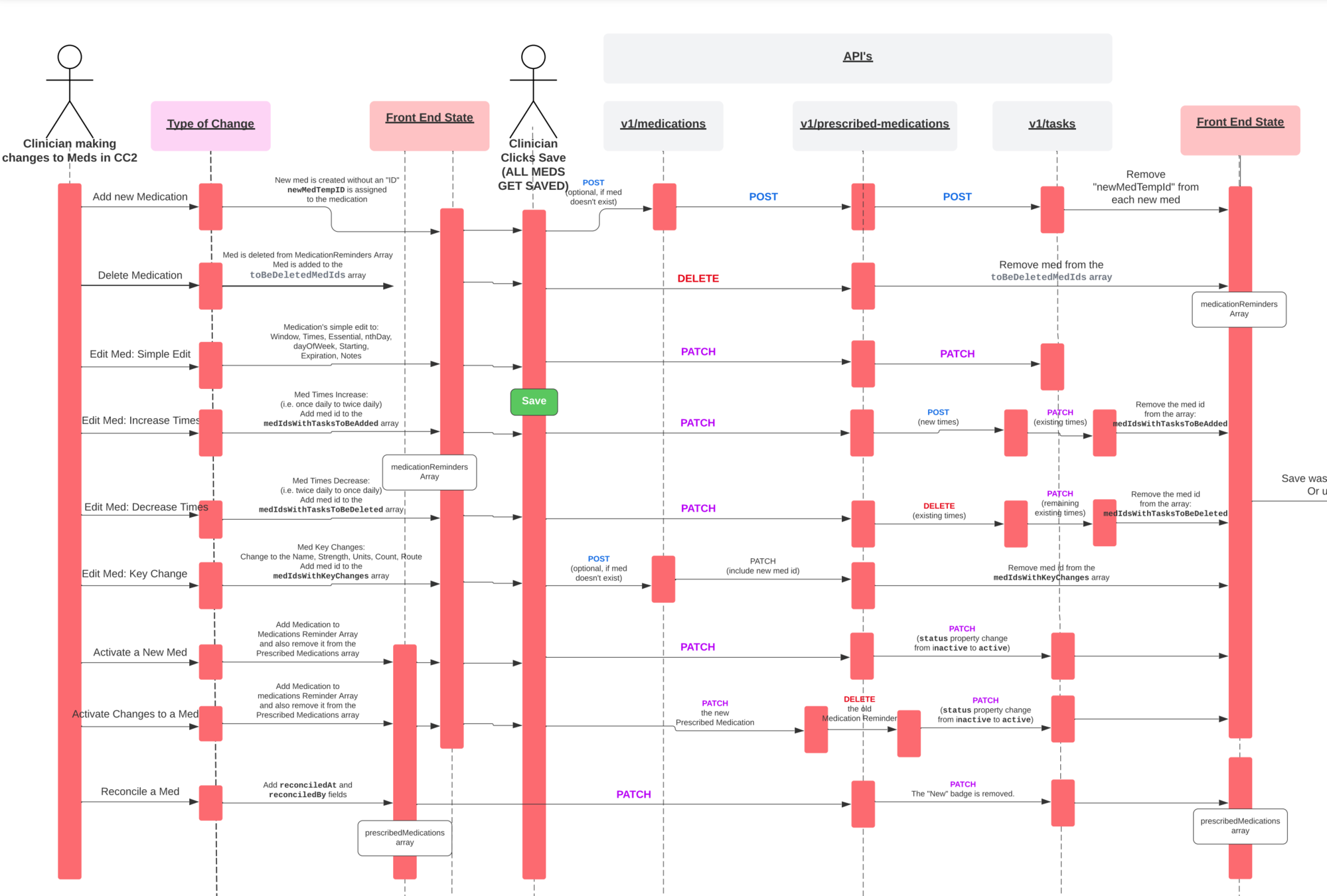

BULK SAVE PROCESS Overview

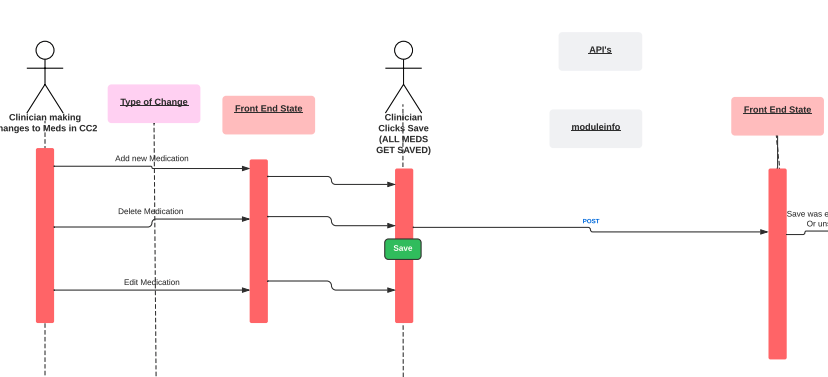

Previous SAVE PROCESS Overview
(POST to moduleinfo)
Complexity in bulk save process

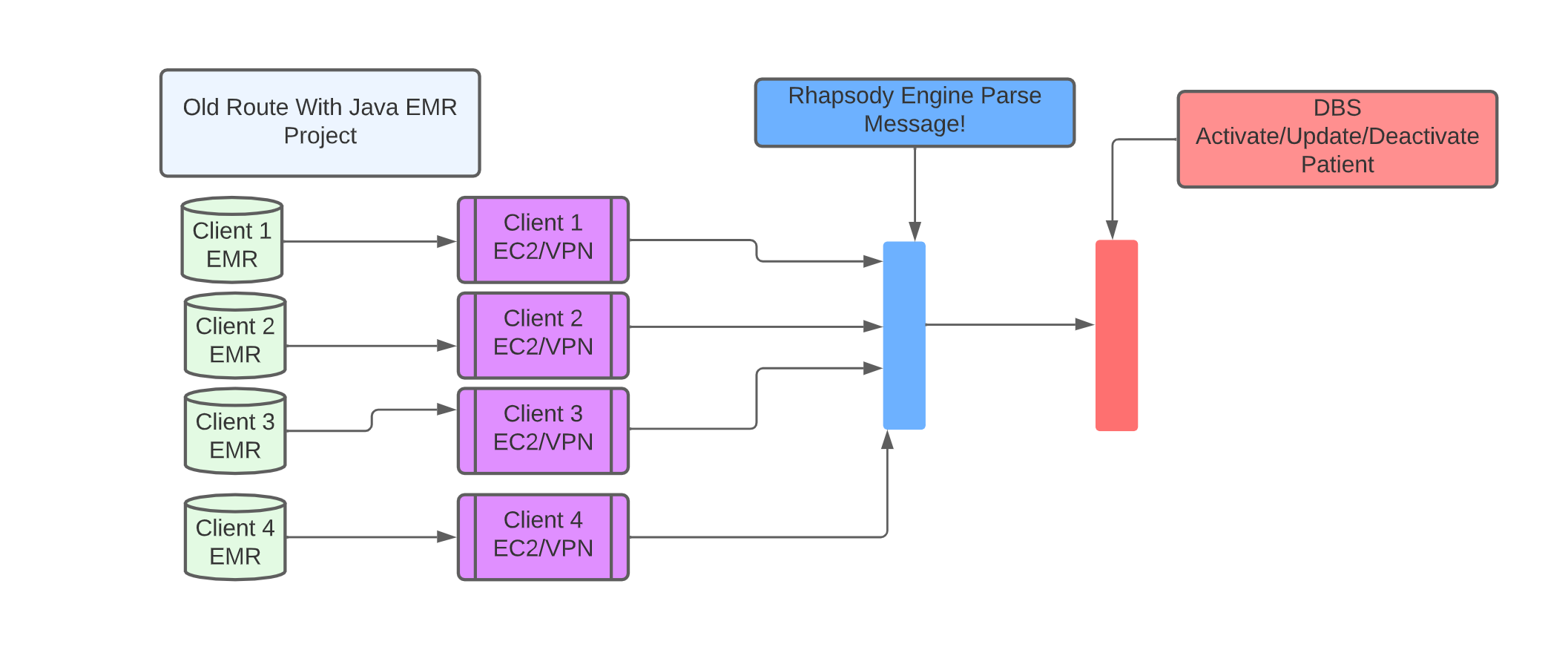

Rhapsody COmplexities
Optimizations
Potential solutions to complexity
Potential optimizations
OFFLOAD TO BE
Move complexity to the BE
Batching API Requests
OPTIMIZE FE LOGIC
Rewrite Save logic to group requests more efficiently and track state based on the original
SIMPLIFY UI
Remove the bulk save process for a save that occurs immediately after each action.
Take as Directed
Create a TAD frequency option!
Questions
Discussion & Questions
Some general notes:
Benefits of what we did to the user, how we're proud of it.
Quicker to the complexity,
potential ways of doing it differently (FE solutions, UI solutions, Gateway solutions, etc)
Leave time for conversation (20-30 minutes),
(this will be a potential issue with surveys, risk, educations)
Medications API
v1/medications
Environment-specific list of medications
GET (list, show), POST
<< Example shown is the GET response
{
data: [
{
"id": 1,
"resourceType": "medications",
"createdAt": "2020-02-03T20:01:26Z[Etc/UTC]",
"updatedAt": "2022-03-04T18:03:59Z[Etc/UTC]",
"attributes": {
"name": "TYLENOL",
"dose": "100 mg x1 Oral",
"codingSystem": "",
"codingSystemId": ""
}
},
{
"id": 2,
"resourceType": "medications",
"createdAt": "2020-02-03T20:01:26Z[Etc/UTC]",
"updatedAt": "2022-03-04T18:03:59Z[Etc/UTC]",
"attributes": {
"name": "METFORMIN",
"dose": "200 mg x2 Oral",
"codingSystem": "",
"codingSystemId": ""
}
},
]
}Prescribed Medication API
v1/prescribed-medications
Patient-specific medications
GET, POST, PATCH, DELETE
Filter: hrsid, reconciledBy, reconciledAt,
Include: tasks
<< Example shown is the GET response
{
data: [
{
"id": 1101,
"resourceType": "prescribed-medications",
"createdAt": "2021-01-02T15:55:11+00:00",
"updatedAt": "2021-01-02T15:55:11+00:00",
"attributes": {
"orderId": "1101",
"reconciledBy": "sampleClinHrsid",
"reconciledAt": "2021-02-06T15:55:11+00:00"
},
"relationships": {
"users": {
"data": {
"resourceType": "users",
"id": "sampleHrsid"
}
},
"medications": {
"data": {
"resourceType": "medications",
"id": 1
}
},
"tasks": {
"data": [
{
"resourceType": "tasks",
"id": 2101
},
{
"resourceType": "tasks",
"id": 2102
}
]
}
}
},
]
}tasks API
v1/tasks
Reminders, Schedule and details of a medication
POST, PATCH, DELETE
<< Example shown is the POST to v1/tasks payload
{
"data": [
{
"resourceType": "tasks",
"attributes": {
"type": "medication",
"essential": "true",
"instruction": "Take with food",
"action": {
"medicationId": 7,
"status": "inactive",
"name": "SYNTHROID",
"dosage": "10 ml x1 Oral",
"strength": 10,
"units": "ml",
"count": 1,
"route": "Oral"
},
"schedule": {
"start": "2022-03-11T05:00:00Z",
"end": "2025-03-31T04:00:00.000Z",
"at": "09:00:00",
"window": 60,
"reminder": "10:00:00",
"every": {
"measure": "nthDay",
"units": [
"1"
]
}
}
},
"relationships": {
"prescribedMedications": {
"data": {
"id": 1701,
"resourceType": "prescribed-medications"
}
}
}
},
{
"resourceType": "tasks",
"attributes": {
"type": "medication",
"essential": "true",
"instruction": "Take with food",
"action": {
"medicationId": 8,
"status": "inactive",
"name": "LISINOPRIL",
"dosage": "15 mg x1 Oral",
"strength": 15,
"units": "mg",
"count": 1,
"route": "Oral"
},
"schedule": {
"start": "2022-03-11T05:00:00Z",
"end": "2025-03-31T04:00:00.000Z",
"at": "21:00:00",
"window": 60,
"reminder": "22:00:00",
"every": {
"measure": "nthDay",
"units": [
"2"
]
}
}
},
"relationships": {
"prescribedMedications": {
"data": {
"id": 1801,
"resourceType": "prescribed-medications"
}
}
}
}
]
}Safeguarding against complexity
Simplify to solve

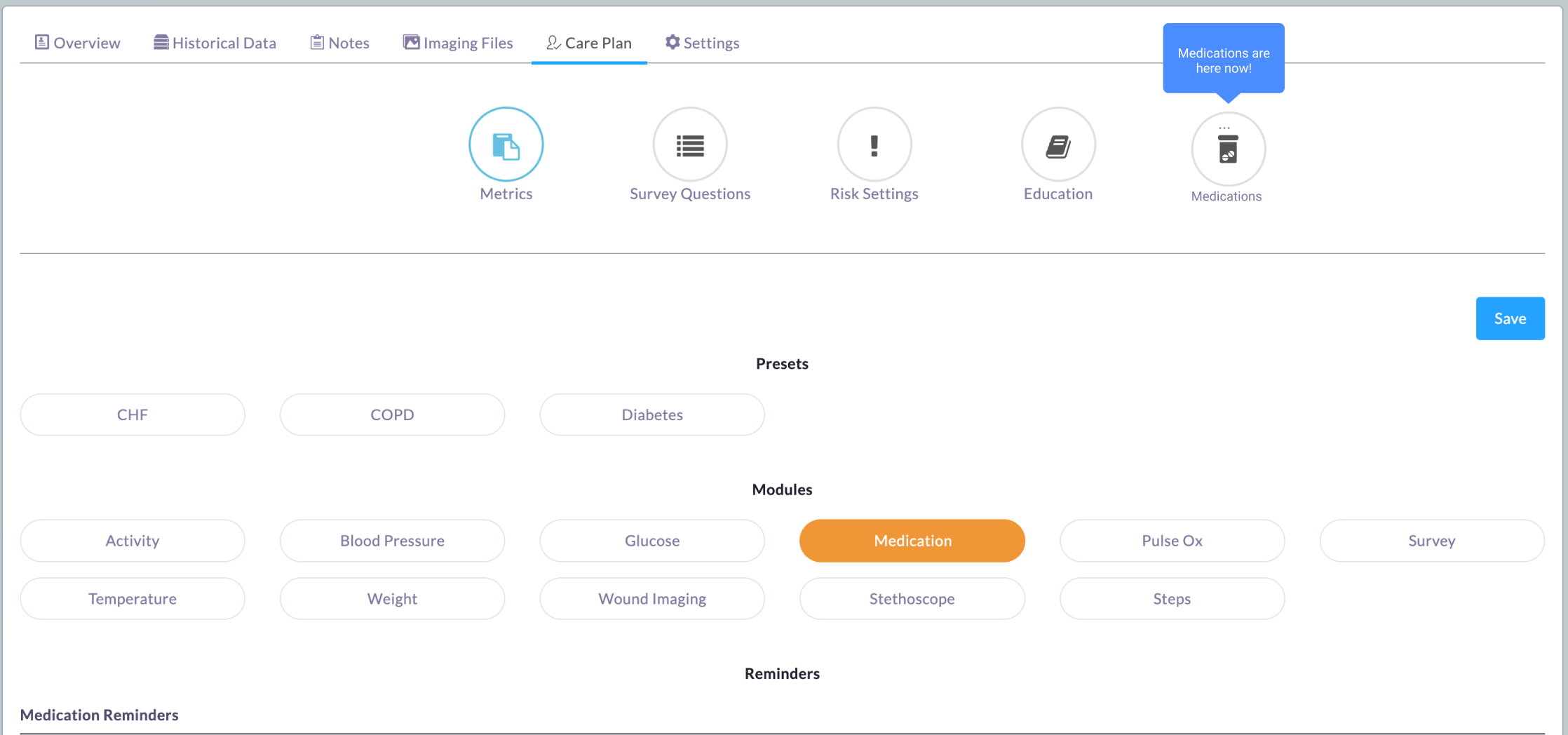

Move Medications to its own tab/component
Moving medications to its own tab and component, simplifies the UI. Allows, med int. code to be moved to its own component (benefits upgrade to CC3). Dialogue box can notify the user of the new location.

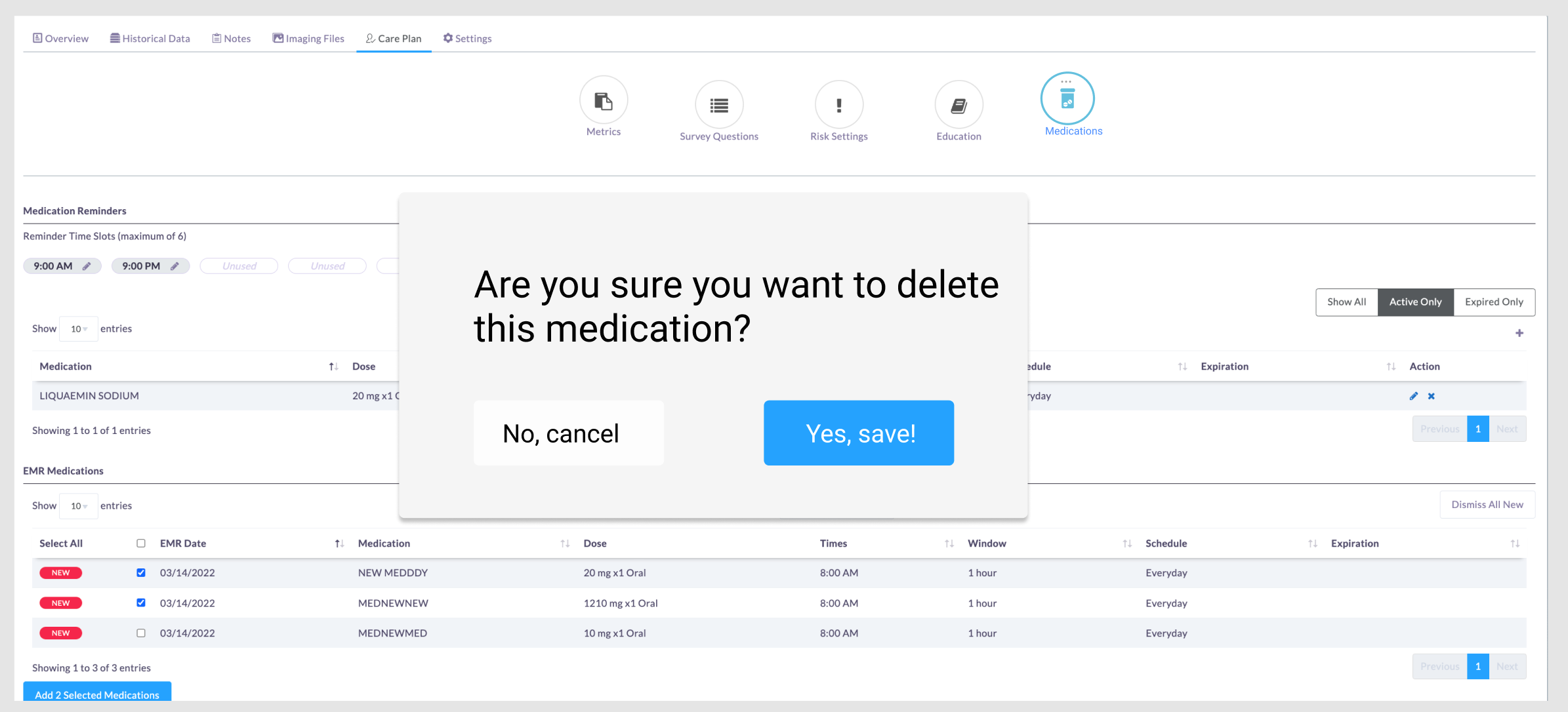

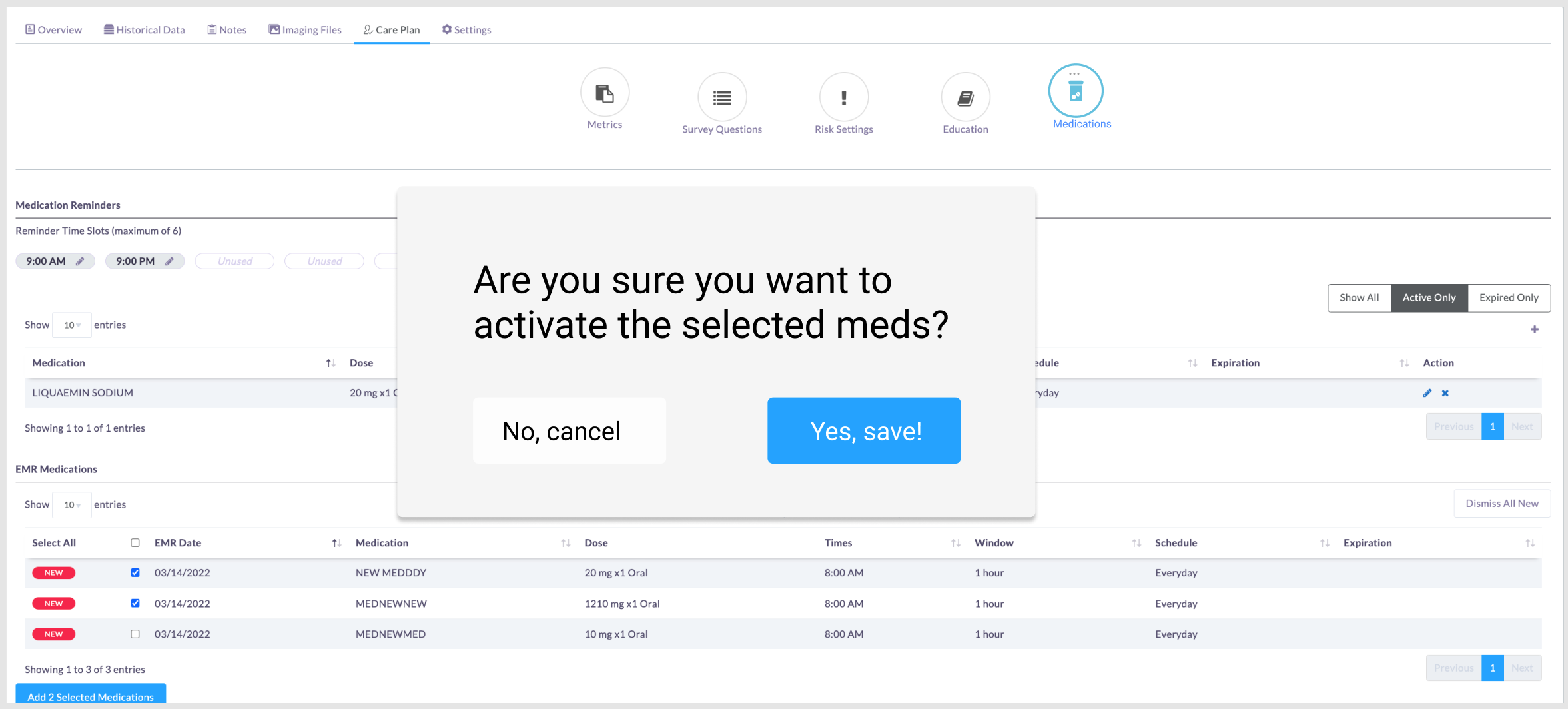

Remove Save button, add confirmation modals after each action. Modal triggers save.
Each action is its own save. Now the save process is simplified for each action.
Example regression test that can be deleted:
Add a medication. Edit that same medication and increase the times. Edit it again and decrease the times. Click save. Make sure the http requests for decreasing times is taken.
Many test cases like the above can be deleted b/c complex actions can no longer happen before a Save.
Saving after each action
Benefits to simplification
