Lots Collected, Little Analyzed

• Collection without analysis has negative ROI



Most IoT data are not used currently. For example, only 1 percent of data from an oil rig with 30,000 sensors is examined.

-- McKinsey & Company



• As difficult as it is to collect and capture data,
  gaining insights via analysis takes just as much effort



• Dependable, real-world on-line analytics take time to develop, tune, and test.

Not a Product Pitch...but

MATLAB: High-level data analytic language and interactive environment for data analysis, visualization, and algorithm development





Simulink: Block diagram environment for simulation and design. Simulate, generate code, and verify embedded systems





ThingSpeak: Analytic IoT Platform for storing sensor data and developing IoT applications

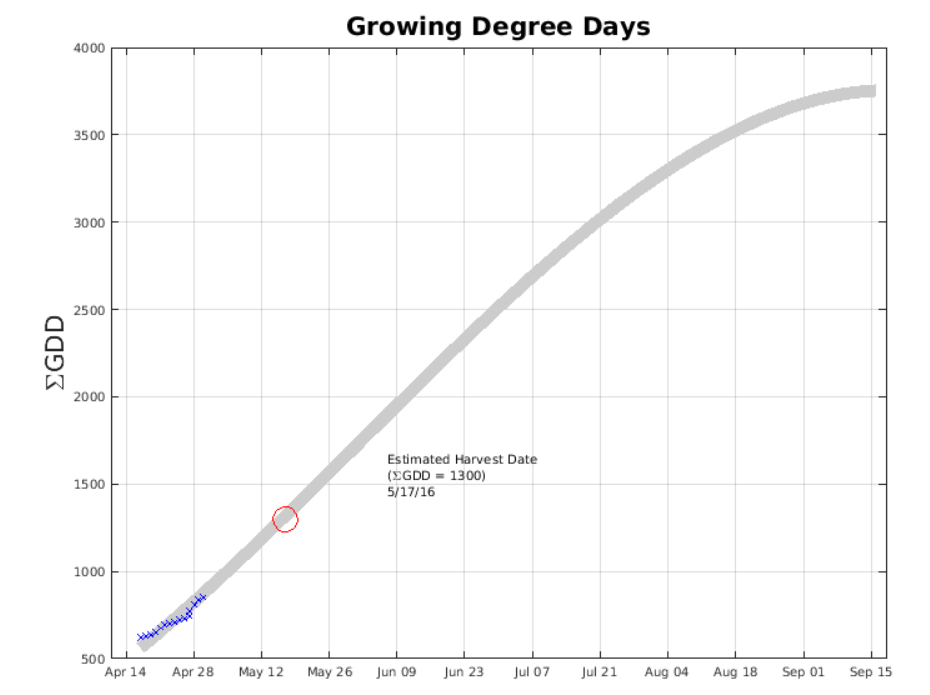

• Online analysis and visualization using the MATLAB Language
• Sensor data can be sent to ThingSpeak from any internet capable device using simple REST calls over HTTP or HTTPS.

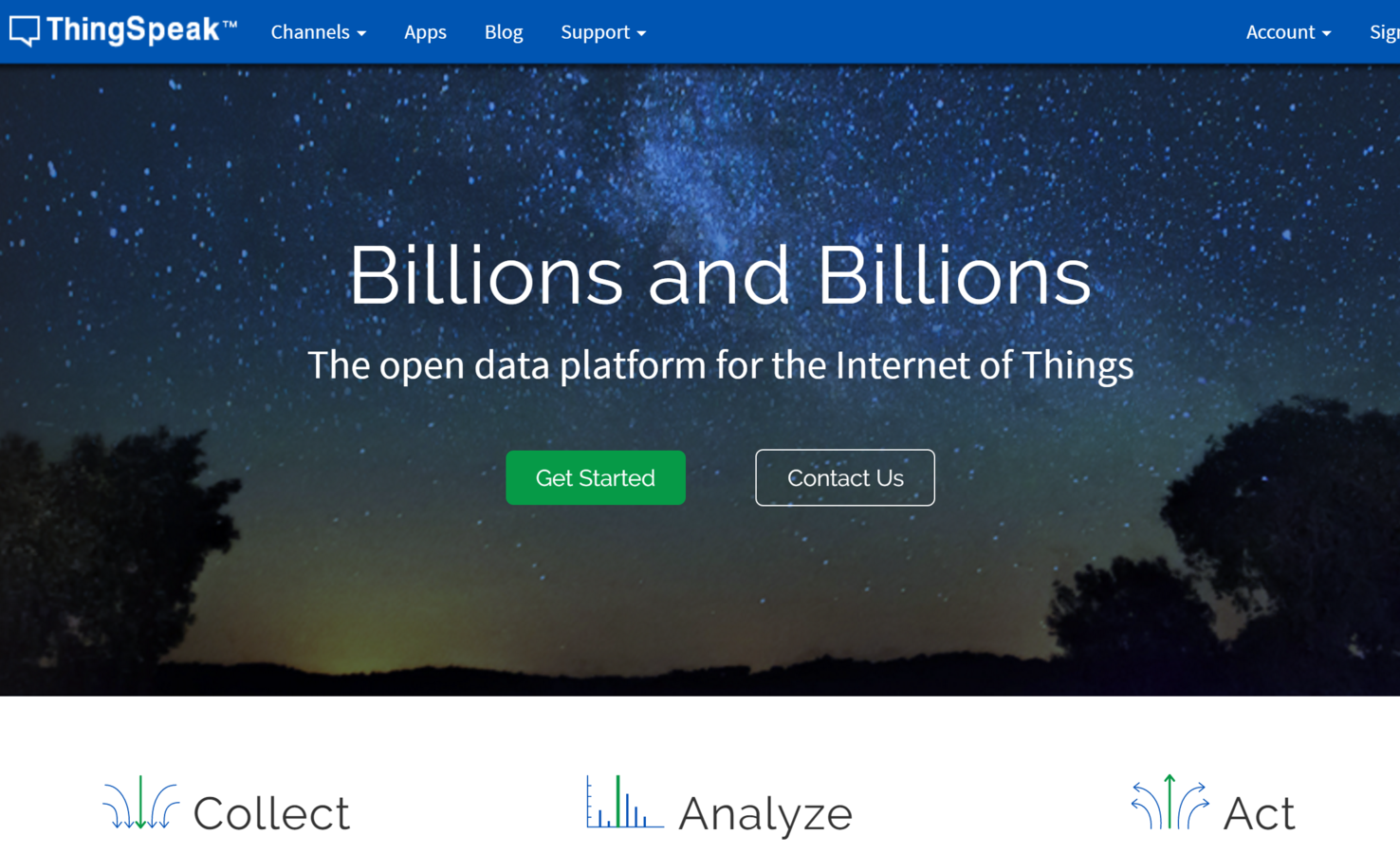

ThingSpeak.com

• Running for more than 6 years

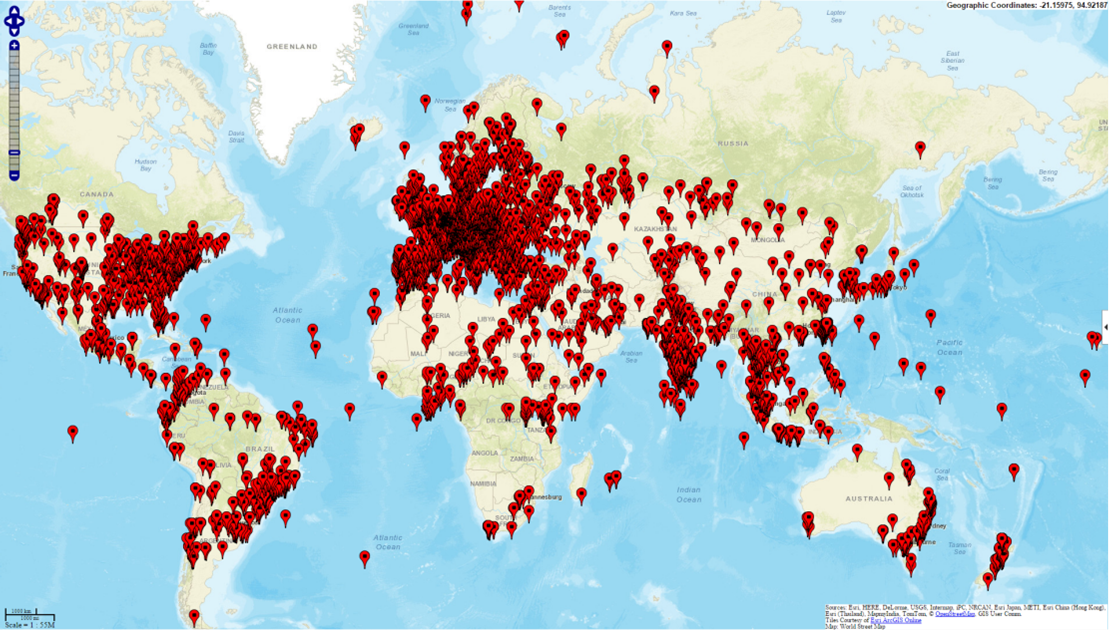

• >20,000 active users worldwide
• Designed for engineers and scientists developing analytic systems

• Free for pilot projects
• Leverages MATLAB skills in your organization
• Lots of examples and projects

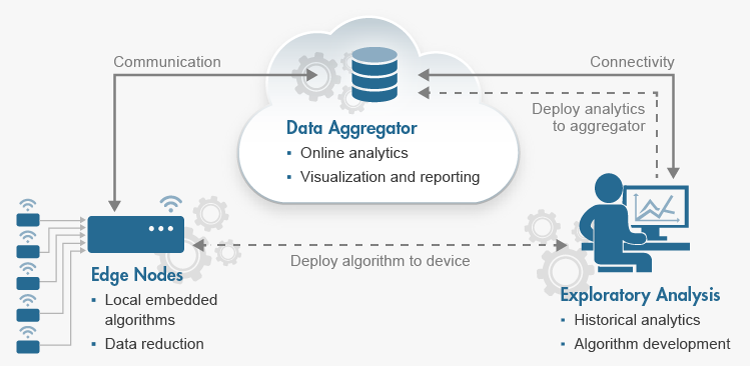

A Project Focused Tour

Tide Prediction - Online Analytics

Nighttime Noise - Historical Analytics

Weather - IoT Analytic Workflow

Counting Cars - Edge Node Analytics

A Project Focused Tour

Tide Prediction - Online Analytics

Nighttime Noise - Historical Analytics

Weather - IoT Analytic Workflow

Counting Cars - Edge Node Analytics

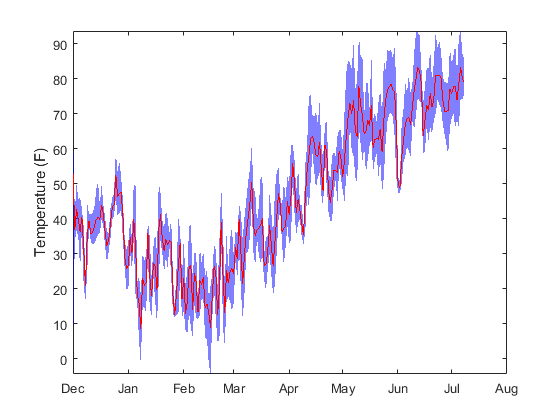

Weather - IoT Analytic Workflow

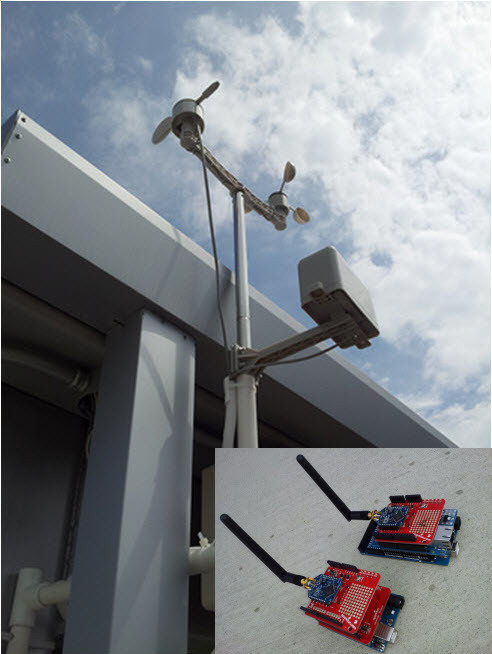

MathWorks Weather Station -- Revisited

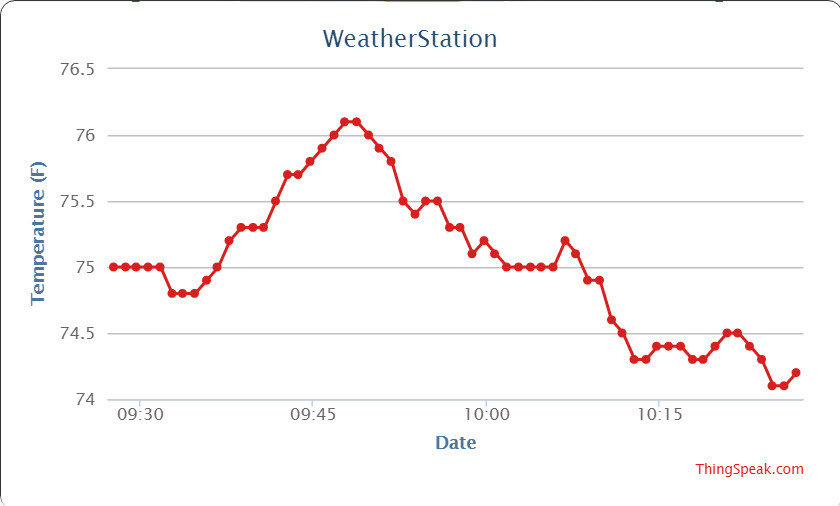

Classic IoT Maker Project with Machine Learning

Deep Dive: Google "mathworks weather revisit"

http://goo.gl/TVqiOD

Weather - IoT Analytic Workflow

Weather - IoT Analytic Workflow

Weather - IoT Analytic Workflow

Weather - IoT Analytic Workflow

Weather - IoT Analytic Workflow

A Project Focused Tour

Tide Prediction - Online Analytics

Nighttime Noise - Historical Analytics

Weather - IoT Analytic Workflow

Counting Cars - Edge Node Analytics

Car Counter - Edge Node Analytics

Embedded devices have always used:

• Signal processing
• Matrix math
• Closed loop control



Powerful mobile processors enable:

• Sensor fusion & analytics
• Computer vision & image processing
• Trained machine learning
• Statistical modeling
• Small vocabulary voice recognition

Car Counter - Edge Node Analytics

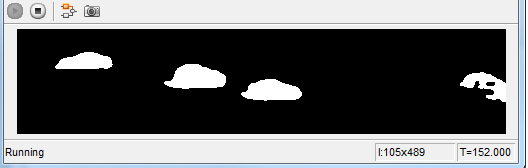

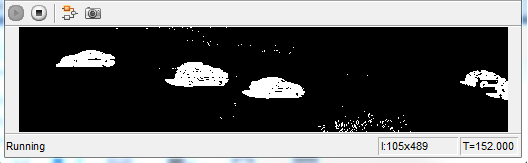

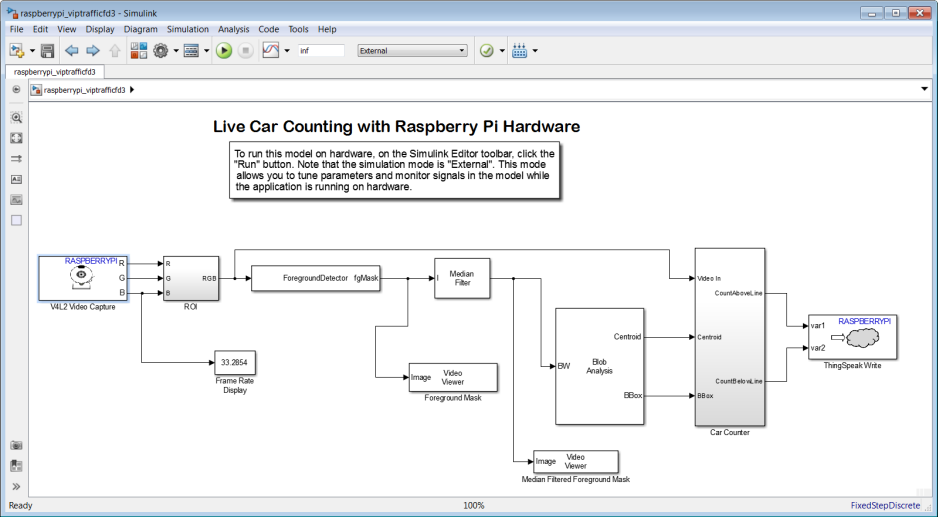

Foreground Detection, 2-D Median Filter, Blob Analysis

Feeds custom counting block and Transmit to ThingSpeak

Car Counter - Edge Node Analytics

Foreground Detection, 2-D Median Filter, Blob Analysis

Feeds custom counting block and Transmit to ThingSpeak

Car Counter - Edge Node Analytics

Foreground Detection, 2-D Median Filter, Blob Analysis

Feeds custom counting block and Transmit to ThingSpeak

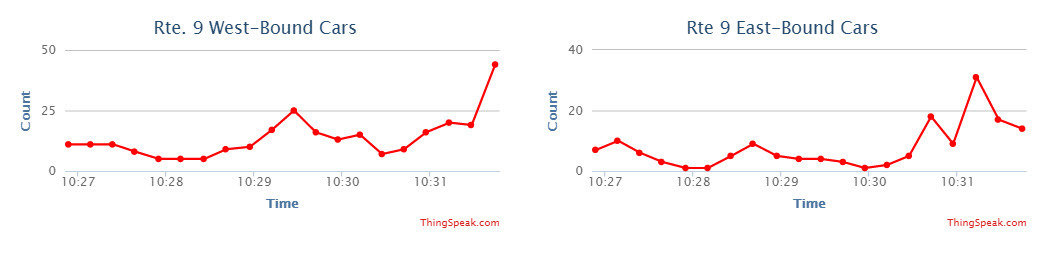

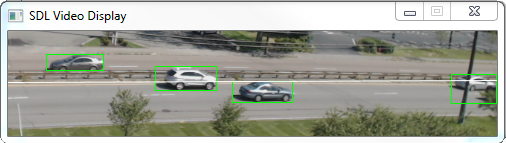

Car Counter - Edge Node Analytics

A Project Focused Tour

Tide Prediction - Online Analytics

Nighttime Noise - Historical Analytics

Weather - IoT Analytic Workflow

Counting Cars - Edge Node Analytics

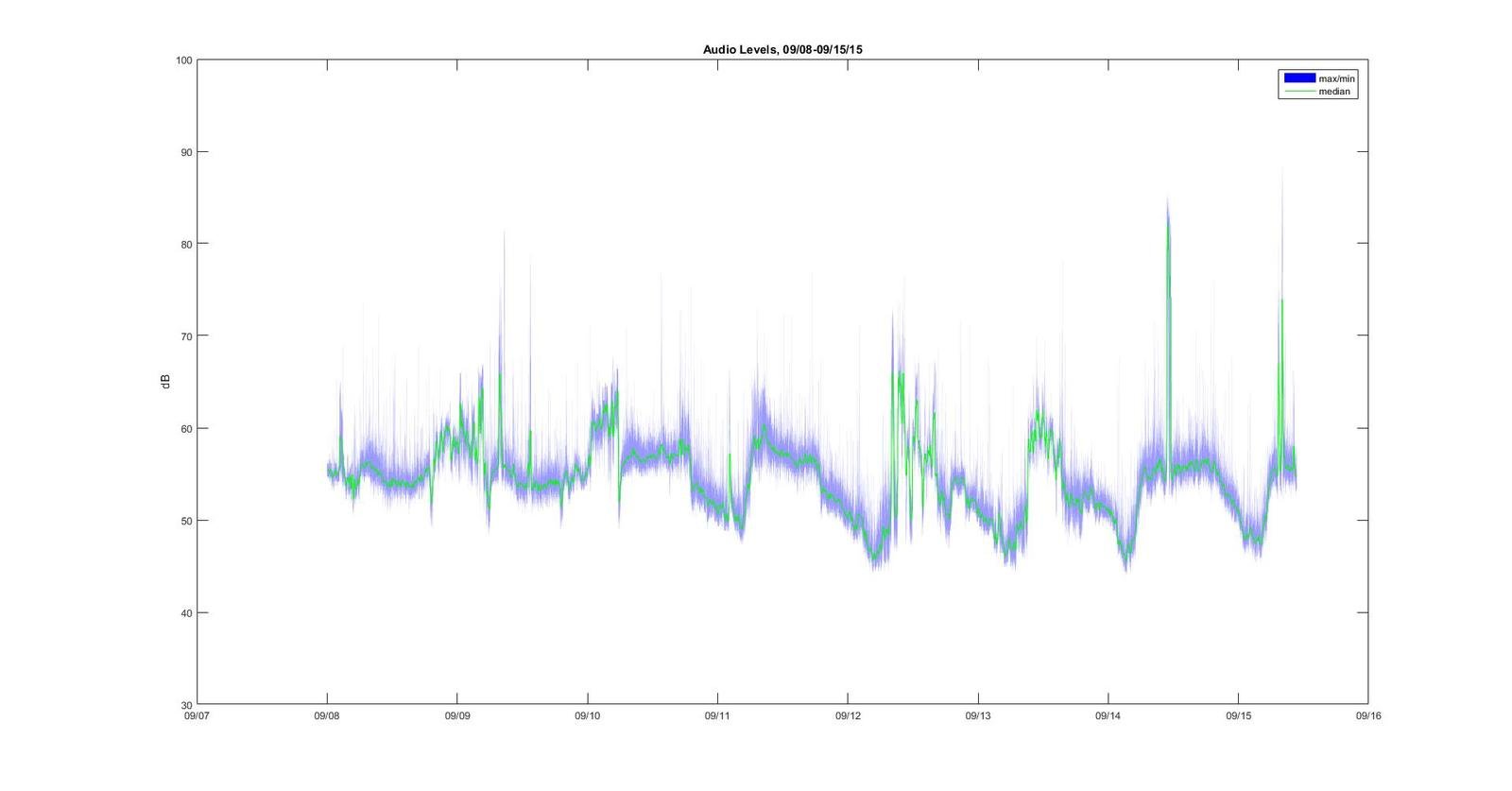

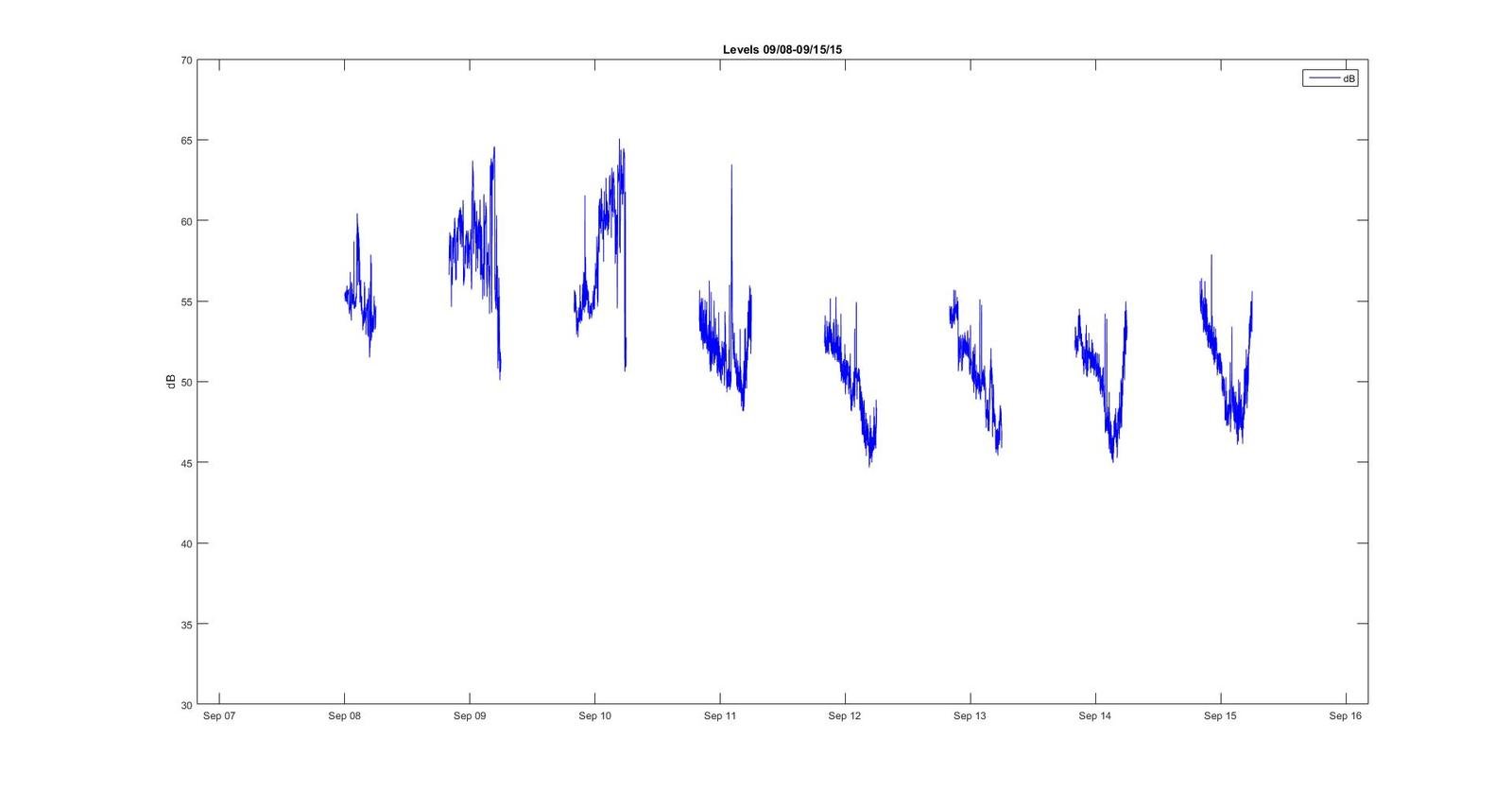

Night Noise - Exploratory Analysis

Night Noise Analysis

Identify unusual changes in ambient noise level at night

Night Noise - Exploratory Analysis

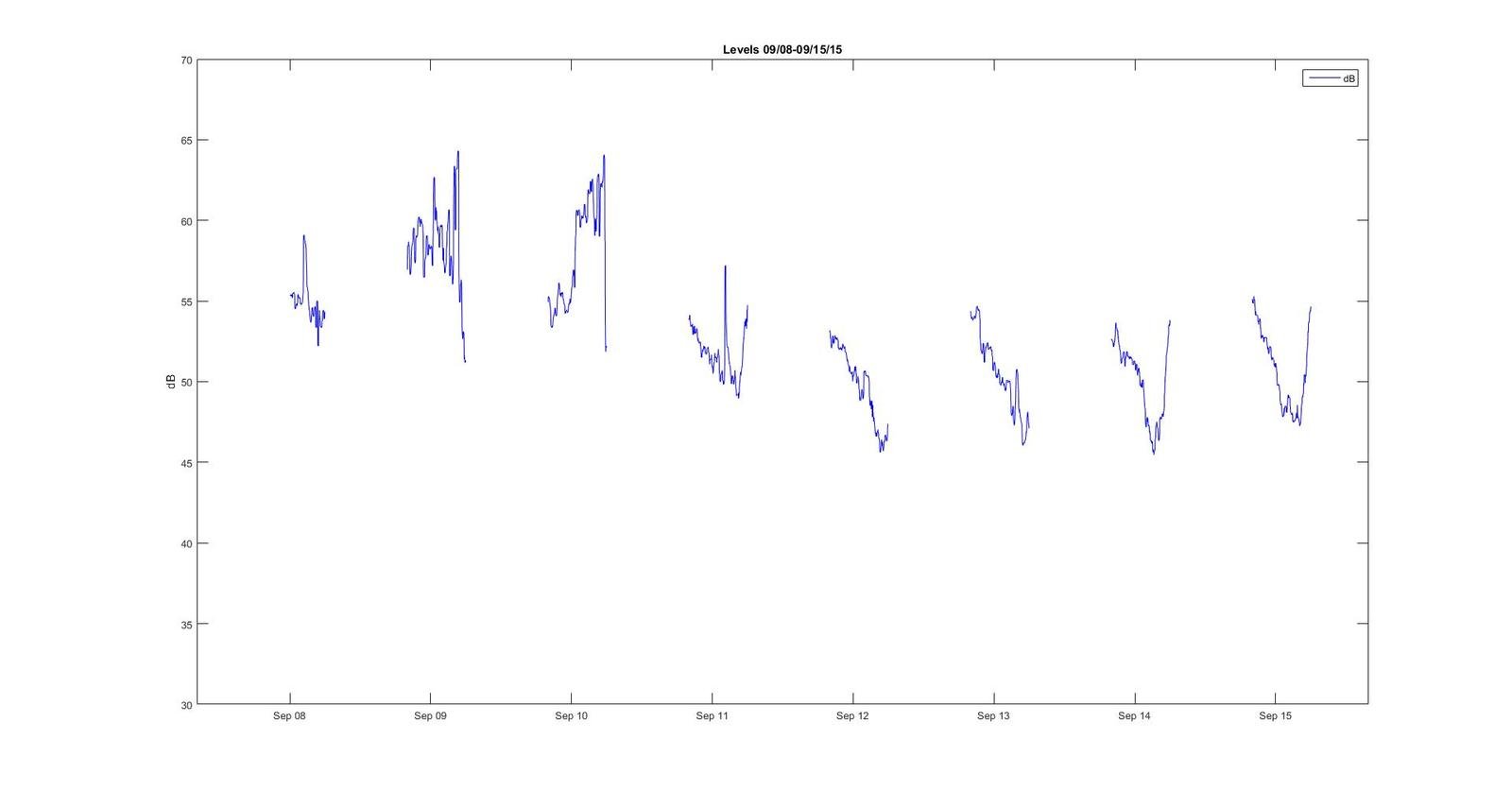

Median Filter

Night Noise - Exploratory Analysis

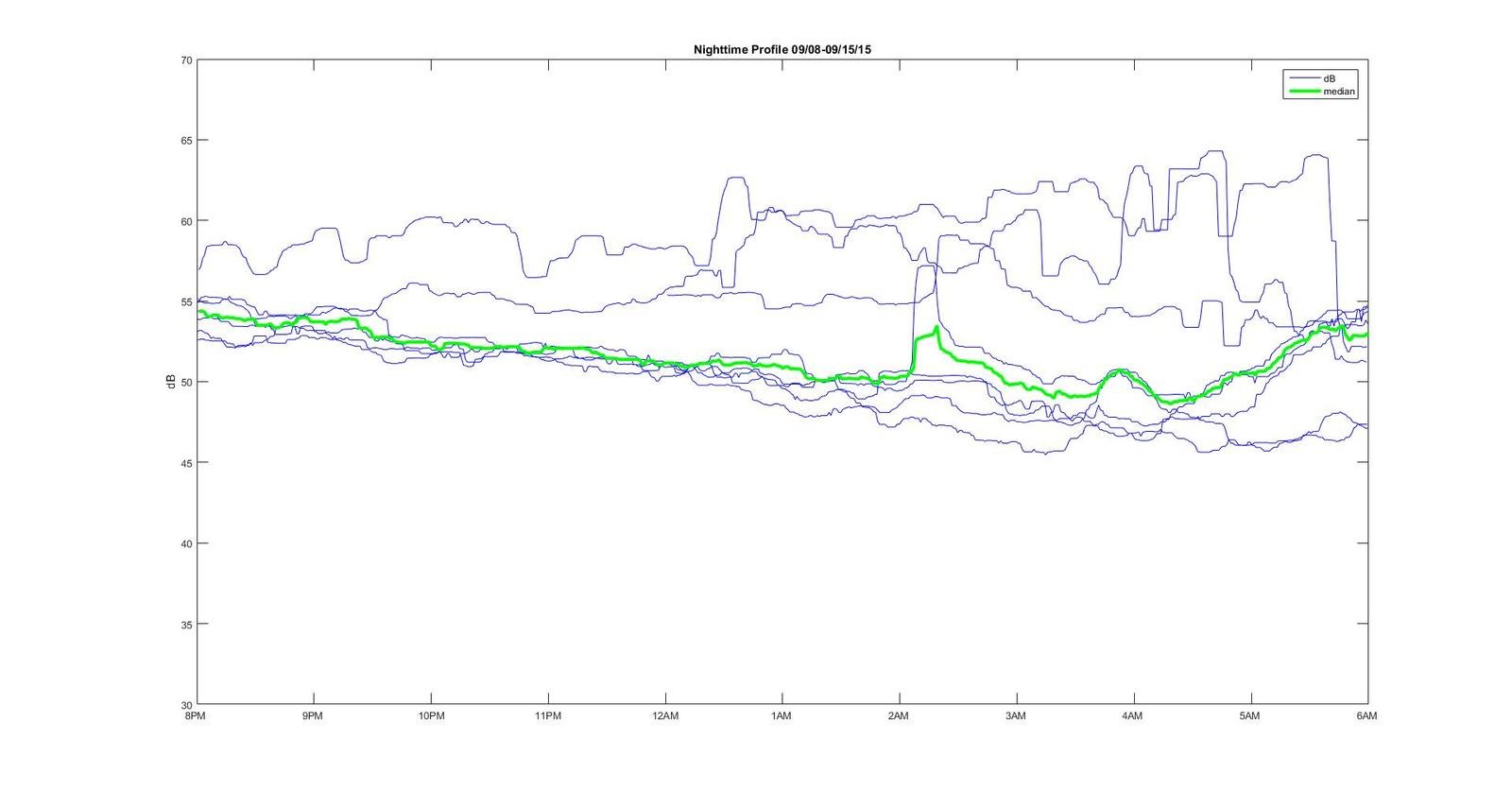

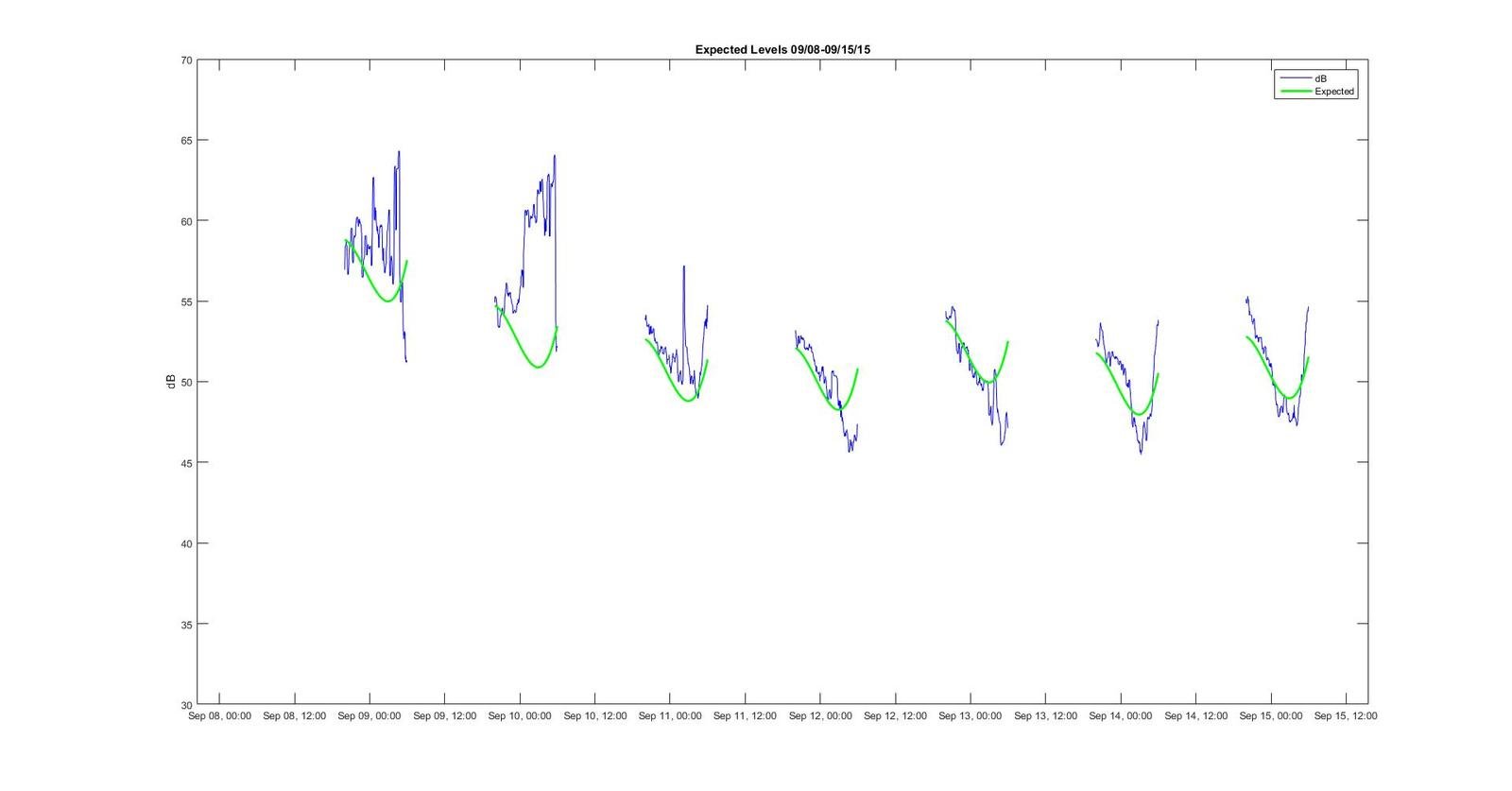

Overlaid with Expected Levels
Determined expected based on median at a given time

Night Noise - Exploratory Analysis

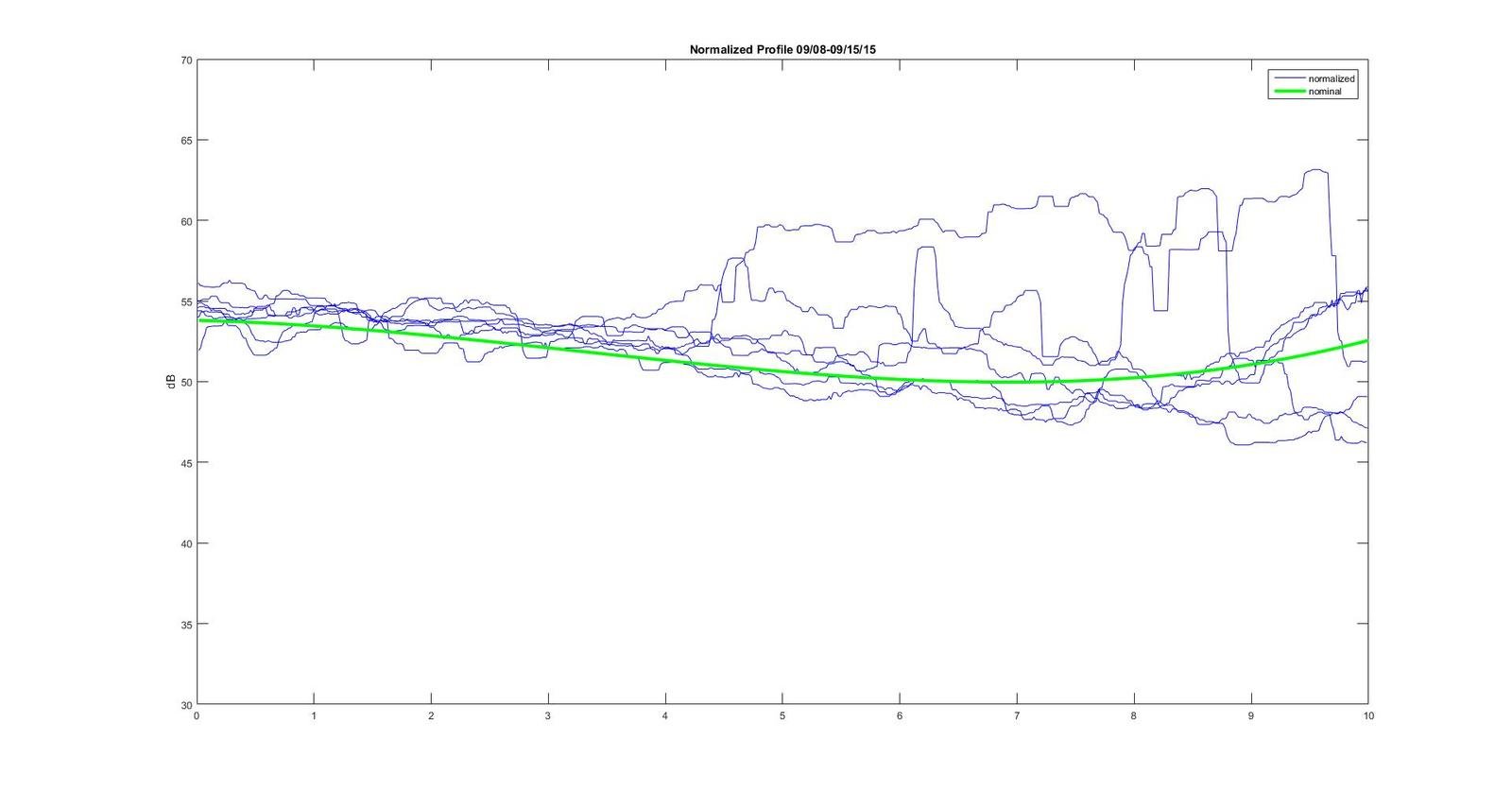

Normalized based on first 3 hours
Polynomial fit of expected noise levels

Night Noise - Exploratory Analysis

Set Expected Levels for a given night
Move polynomial up or down to compensate for variation

Night Noise - Exploratory Analysis

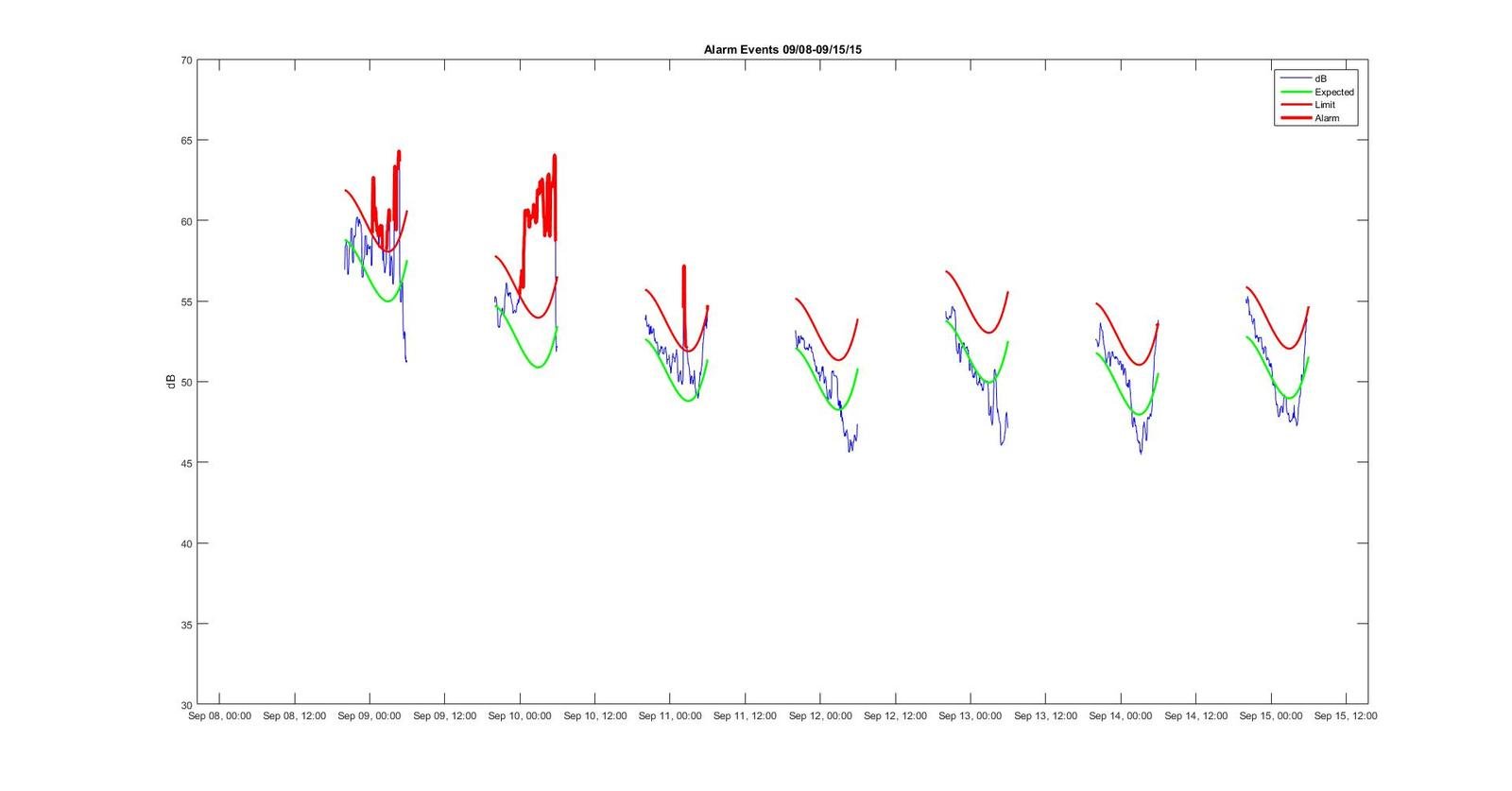

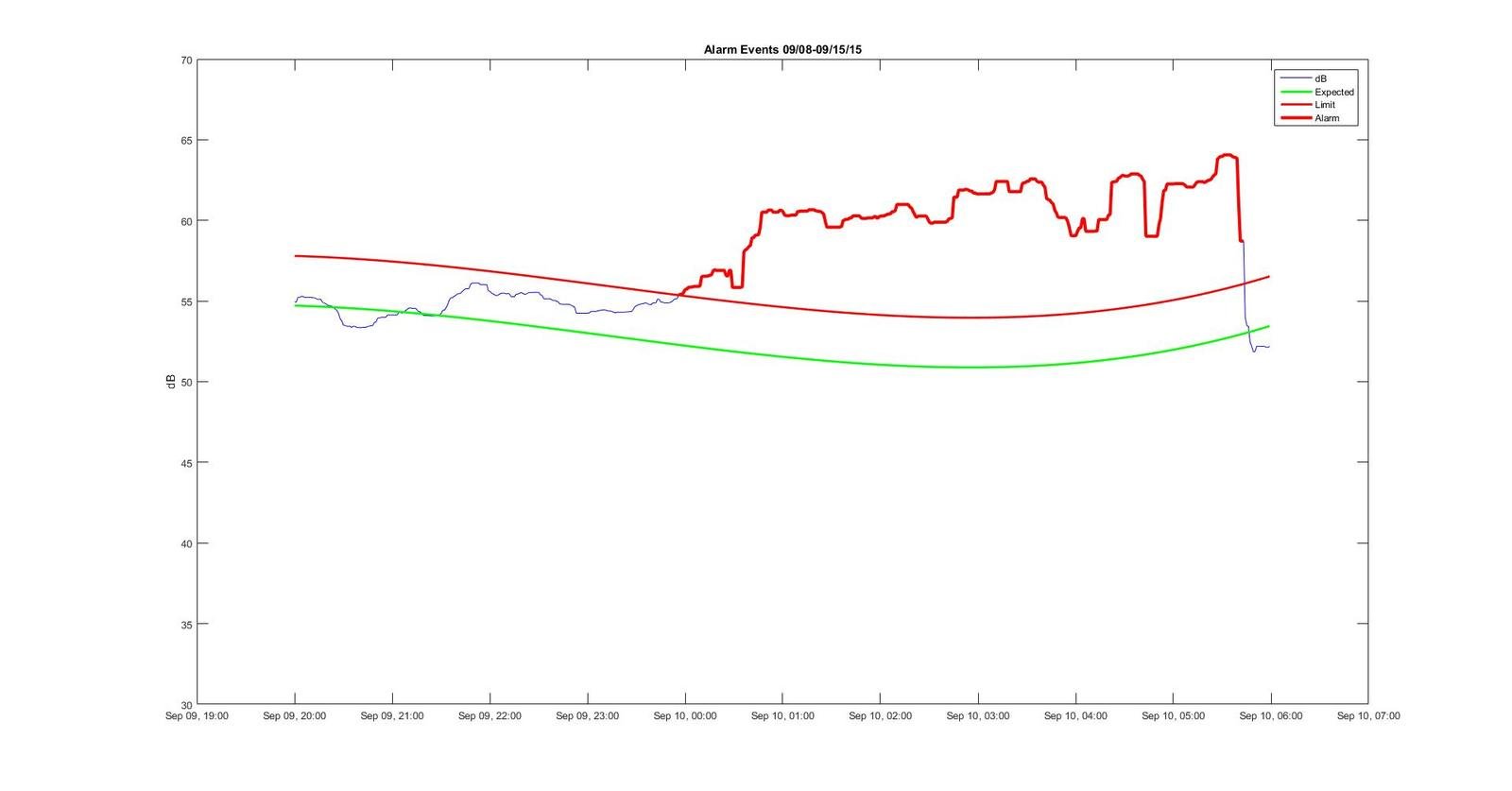

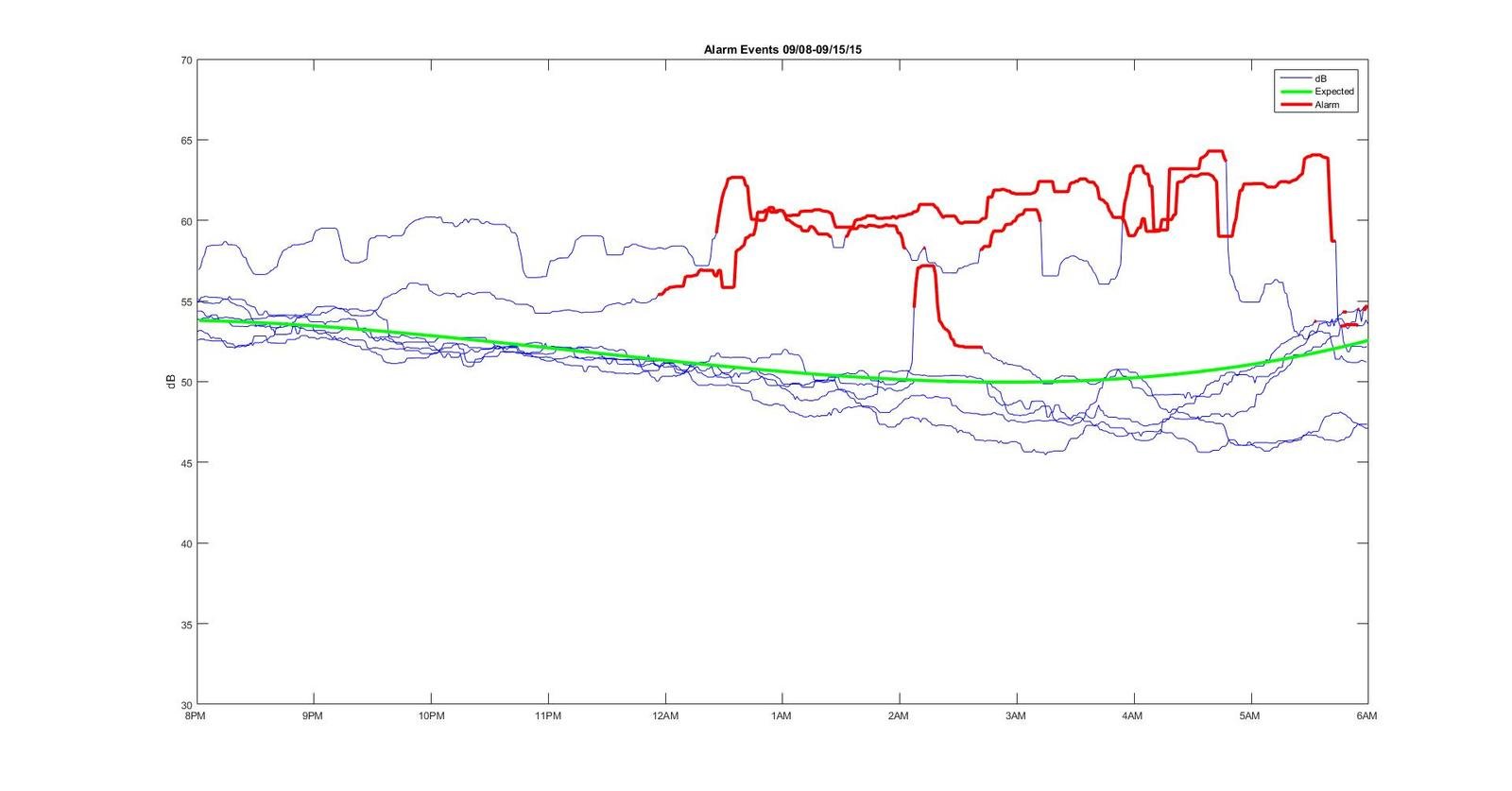

Identify alarm conditions

> 1 std deviation above expected

Night Noise - Exploratory Analysis

A Project Focused Tour

Tide Prediction - Online Analytics

Nighttime Noise - Historical Analytics

Weather - IoT Analytic Workflow

Counting Cars - Edge Node Analytics

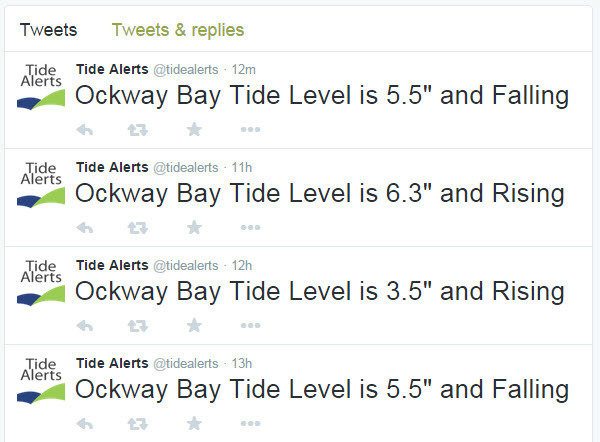

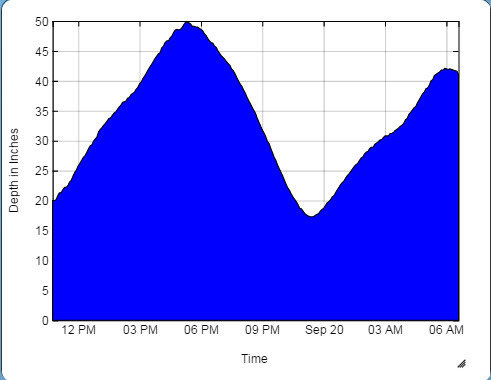

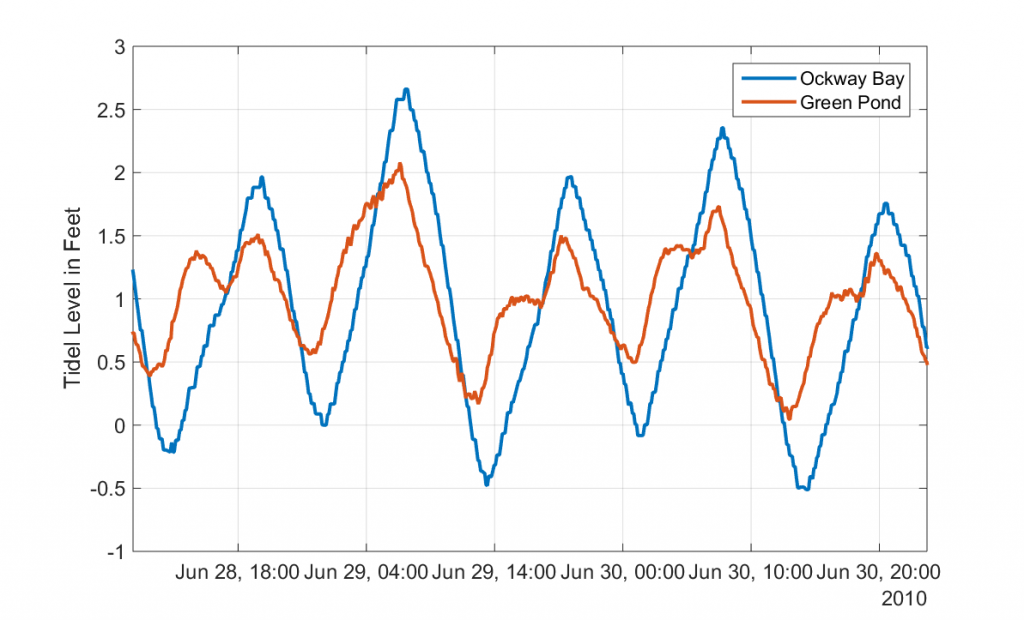

Tide Prediction - Online Analytics

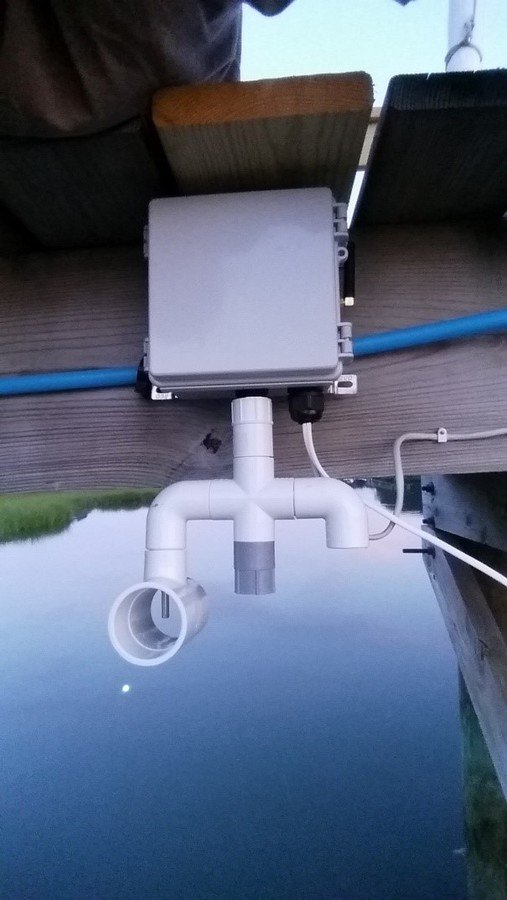

Edge Node

• Arduino
• Ultrasonic Rangefinder and Temperature Sensor
• Data Reduction
• De-noising and "De-batting"
• Sends Data to ThingSpeak

Tide Prediction - Online Analytics

Thank You!

• Collection without analysis has negative ROI

• Analysis happens at every stage

• Dependable, real-world on-line analytics take time to develop, tune, and test

• Trust can be lost in a single momentRob Purser -- rob.purser@mathworks.com, @rpurser47

http://slides.com/rpurser/environmental_analysis
