RAX | A extended | Typically return values |
RBX | B extended | Callee-saved |
RCX | C extended | 4th arg to functions |
RDX | D extended | 3rd argument to functions |
RDI | Destination Index | 1st arg to functions |
RSI | Source Index | 2nd arg to functions |
RSP | Stack pointer | |
RBP | Base Pointer (start of stack) | |
R8 - R15 |
mov (Move - Copies the data refered by one item to the other)
Push (Places stuff on top of the stack)
pop (Removes stuff from the top of the stack)
...
LIFO Datastructure
Usually grows downwards to lower addresses
Stores all the data required by a function call
Everytime a new function is execute, a new stack frame is being created at the top of the stack
When it finishes, the stack from is poped from the stack
The stack frame contains all the functions parameters, the return address back to the caller of the function and any variables local to that function.

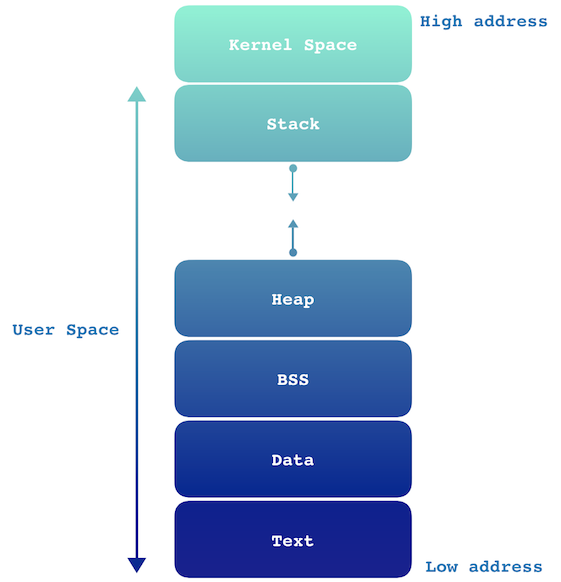

A memory segment for dynamic memory allocation
All reference types created by malloc/new
Uses the brk and sbrk system calls to adjust its size
Heap is used:
Memory size is dynamically allocated at run-time
Scope is not local to a function
Allocated size is large
An unitialized data segment
Data in this segment is usually initialized by the kernel before the program starts its execution
I.e static let index = 0 will be allocated in the BSS
This segment contains initialized global and static variables which have a pre-defined value and can be modified.
It has a read-only and a read-write space.
Let's just say it holds global variables
A segment where basically assembly instructions are stored.
This is read-only
